Mountain House Plan 8504-00074

Sq Ft2,223
1/2 Baths1
Width74' 0"
Depth77' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00074
Floorplan 2 for House Plan #8504-00074

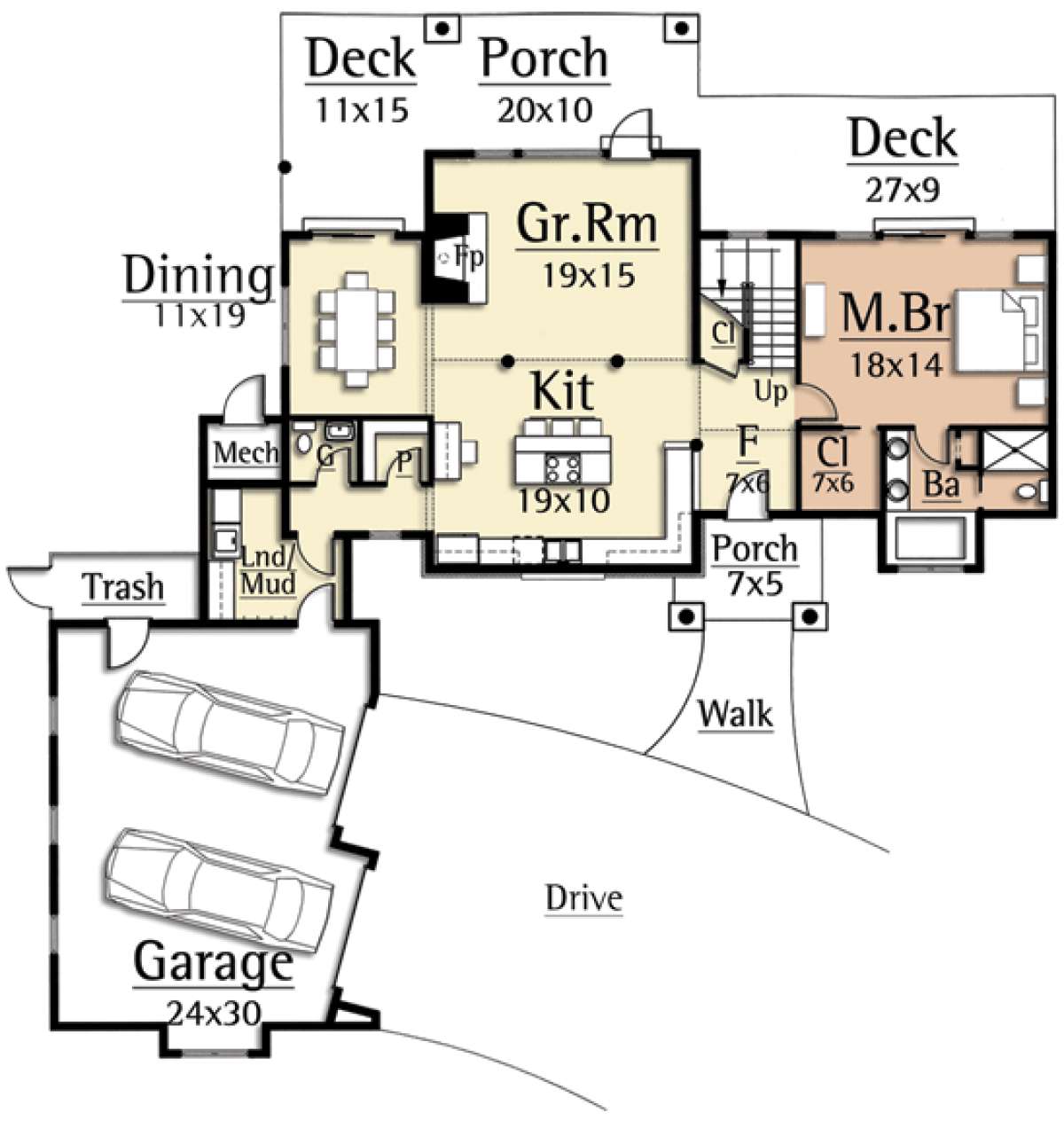

Floorplan 1
Floorplan 1 for House Plan #8504-00074

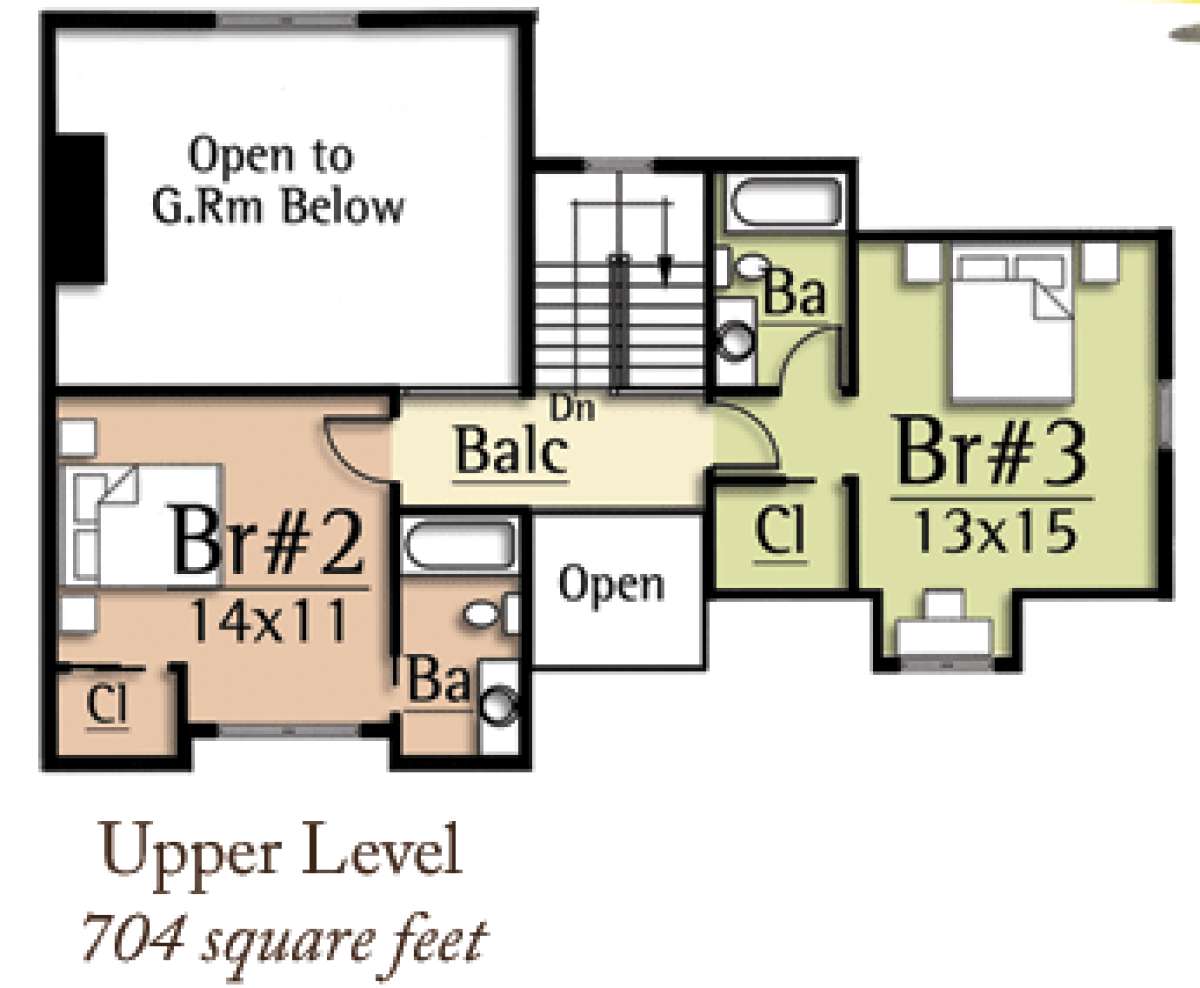

Floorplan 2
Floorplan 2 for House Plan #8504-00074

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

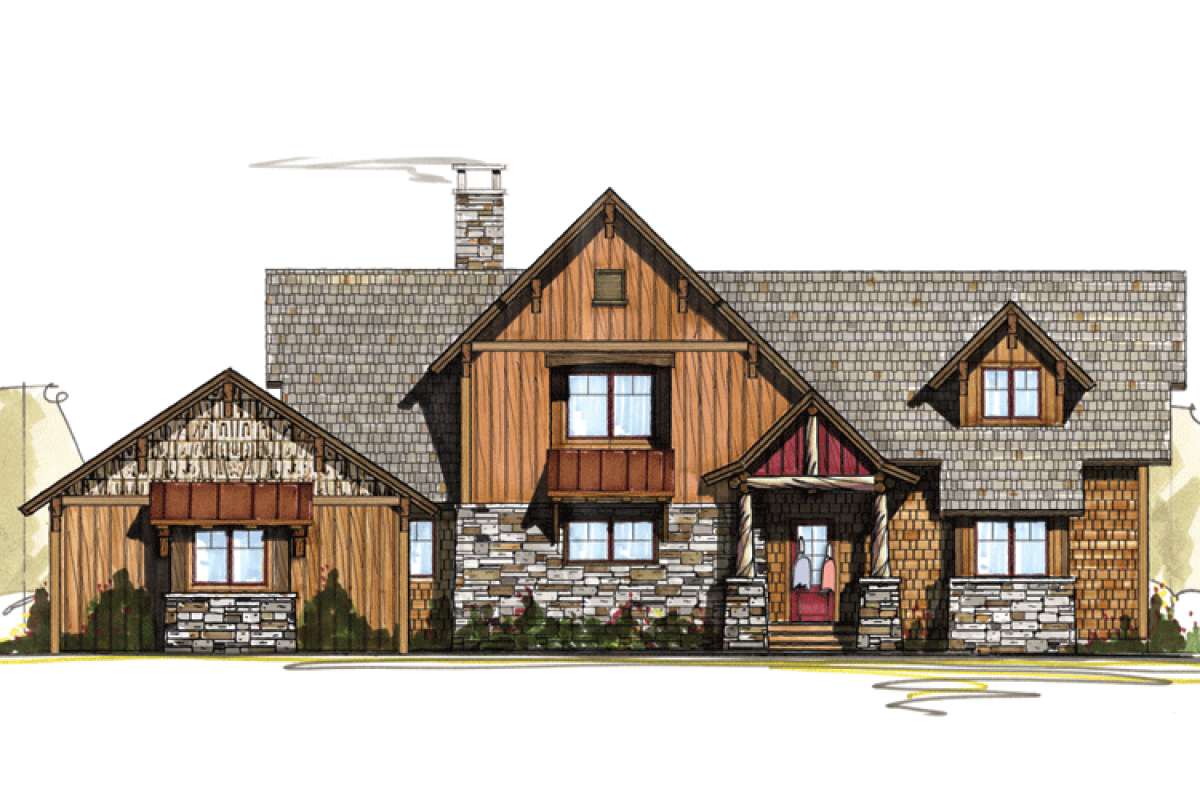

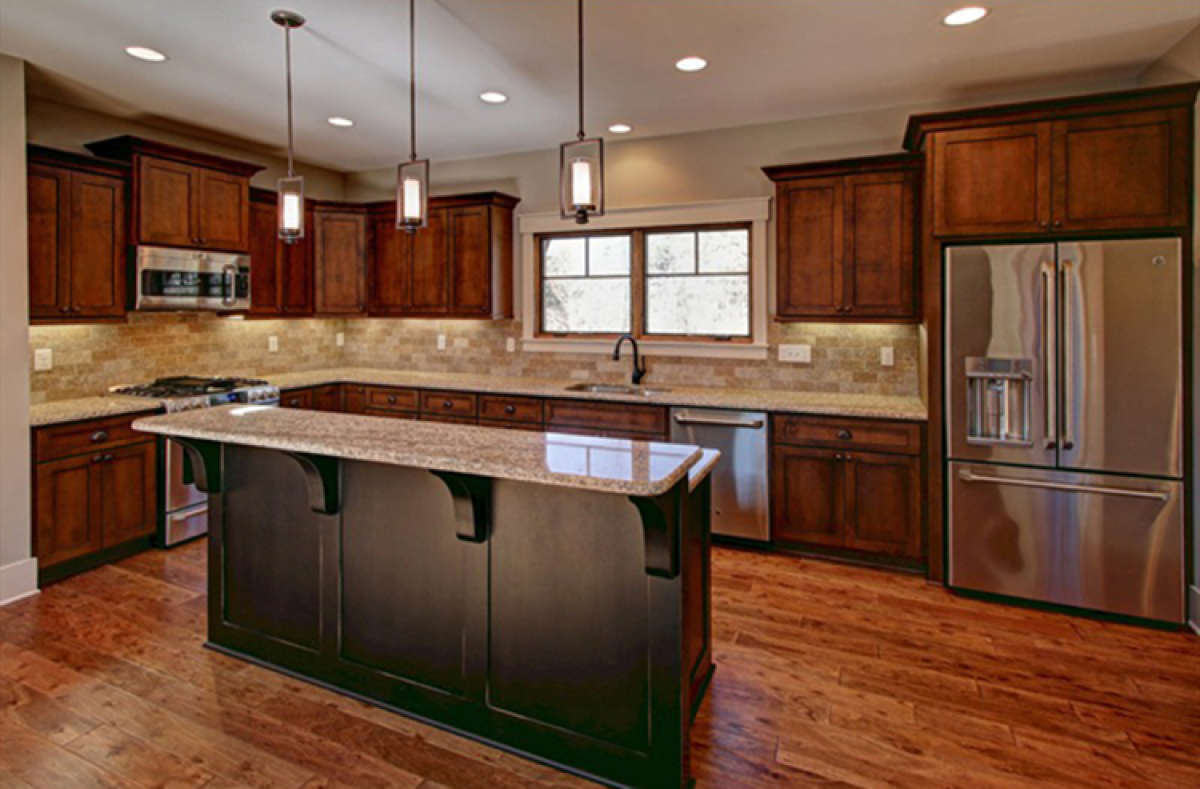

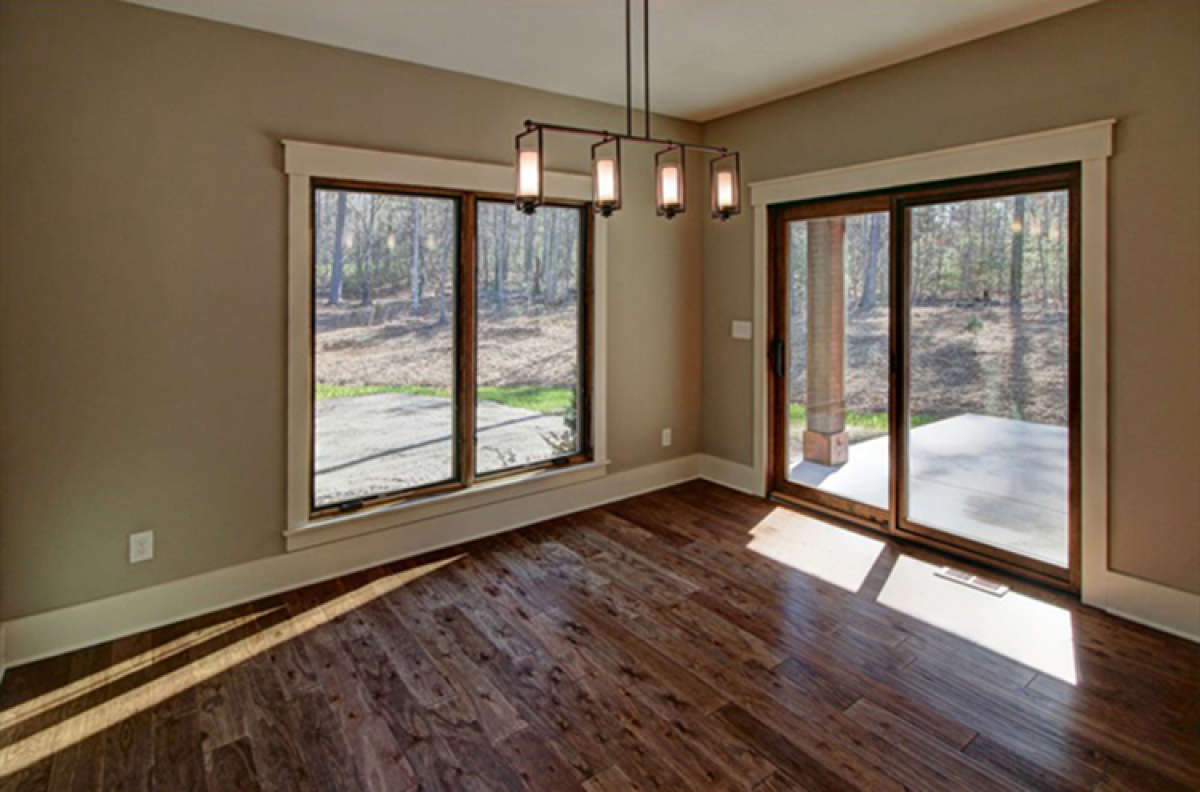

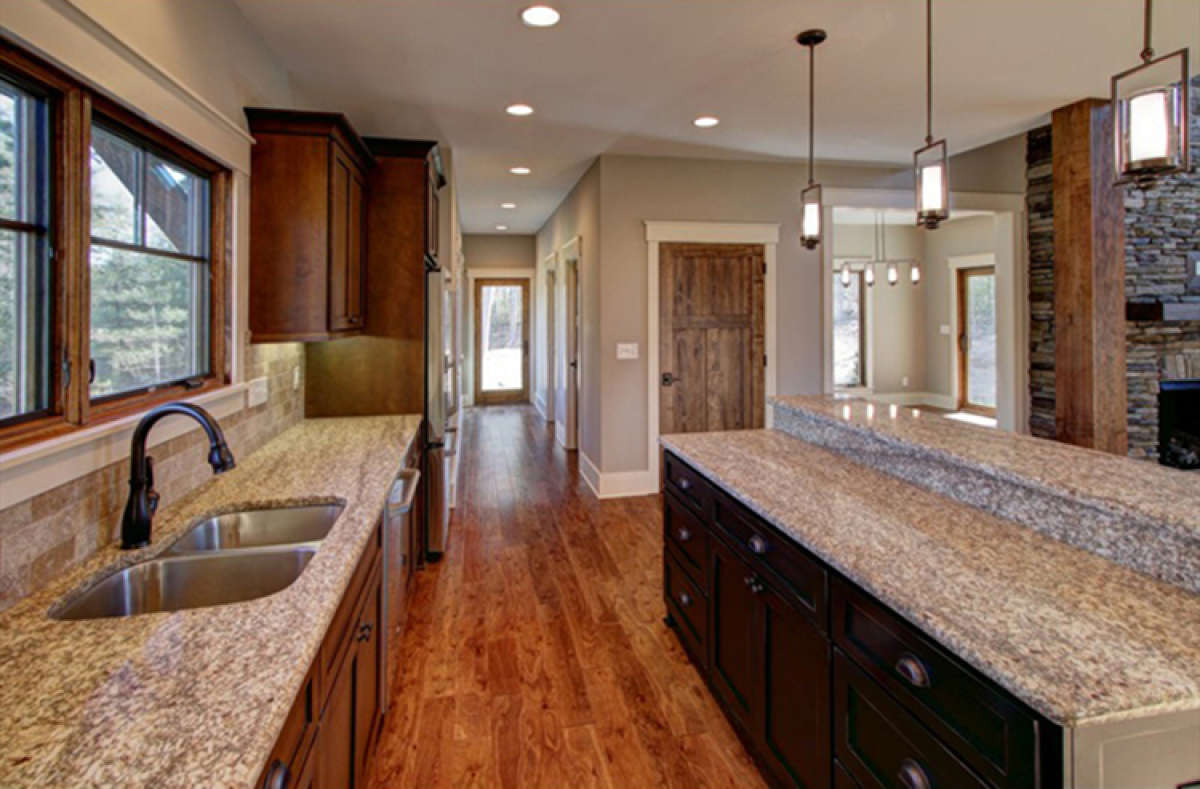

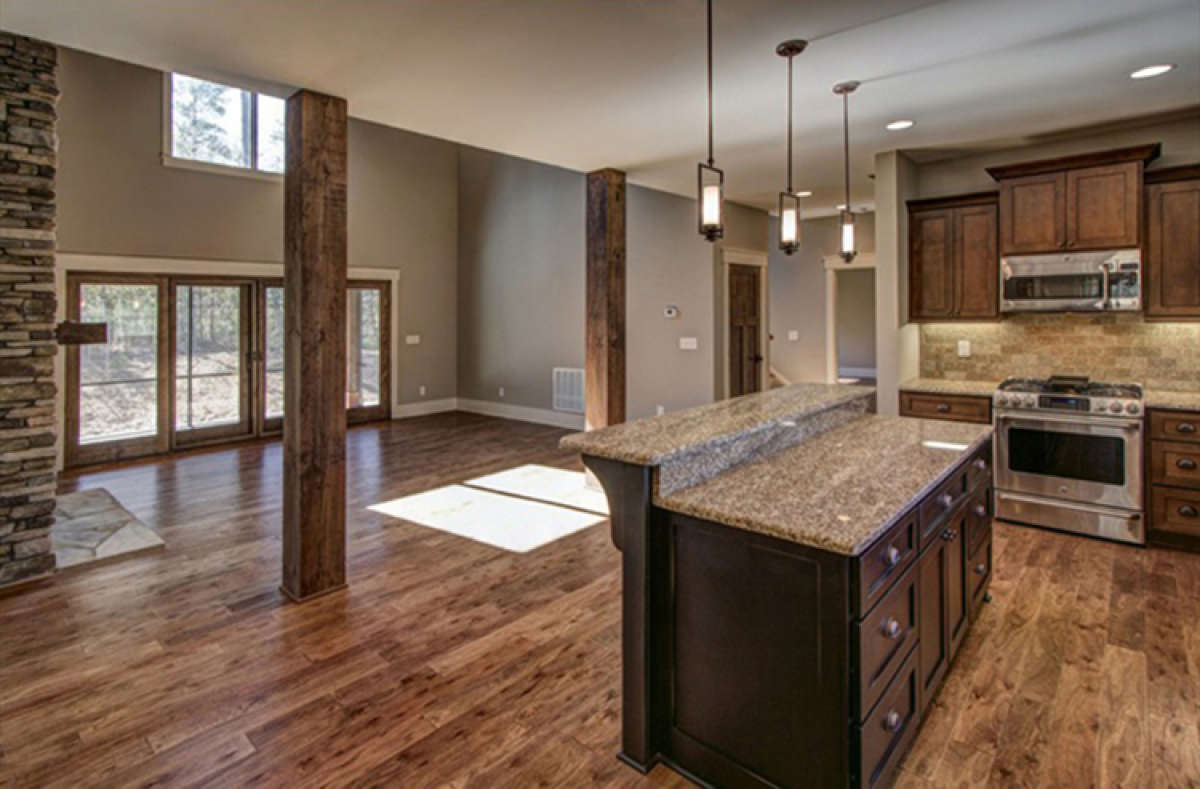

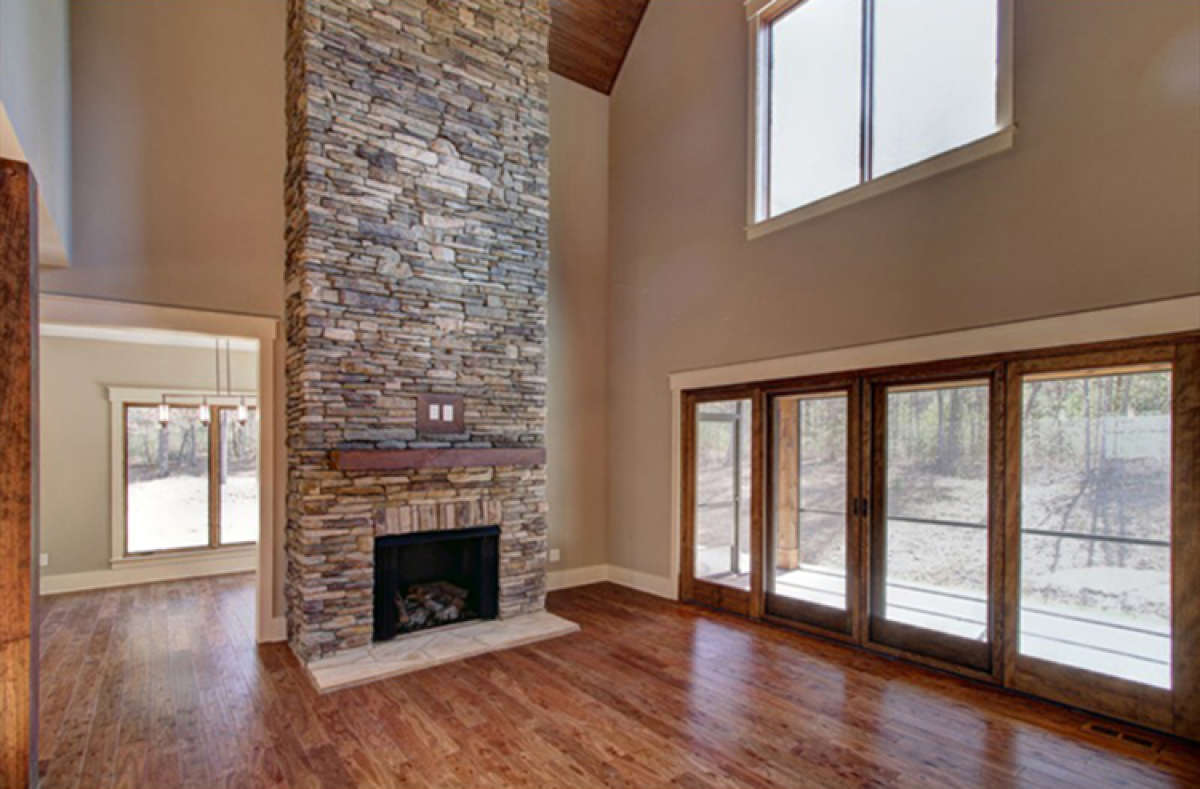

Rich detailing outlines this Rustic Mountain house plan with warm woods, exposed rafters, cedar shakes and stacked stone highlights. The interior floor plan features approximately 2,223 square feet of living space that contains three bedrooms and three plus baths in two floors. There is a two car side loading garage with plenty of vehicle and other gear storage room and a rear compartment for trash storage and an exit removal. The front walkway leads to the covered porch and subsequent foyer with a central staircase and coat closet. The open concept layout is highlighted with excellent entertaining space and a wide assortment of living and dining spaces. A large center cook top island features commanding space for a breakfast bar and work/prep space as well. There are side and rear walls that contain modern amenities and plenty of additional counter and cabinet space. The kitchen opens onto the side dining room where there is abundant space to hold a farmhouse table for special occasion meals and family celebrations. A spacious great room is warmed by the handsome fireplace and both the dining room and great room offer access onto the combined covered porch and deck which spans the width of the home. Beyond the kitchen, a large food storage pantry and laundry/mudroom yields comprehensive space in which to maintain a tidy home environment. The first floor master retreat features a large bedroom with private access onto the outdoor space, an attached walk-in closet and an en suite bath with dual vanities, a separate shower and a large soaking tub.

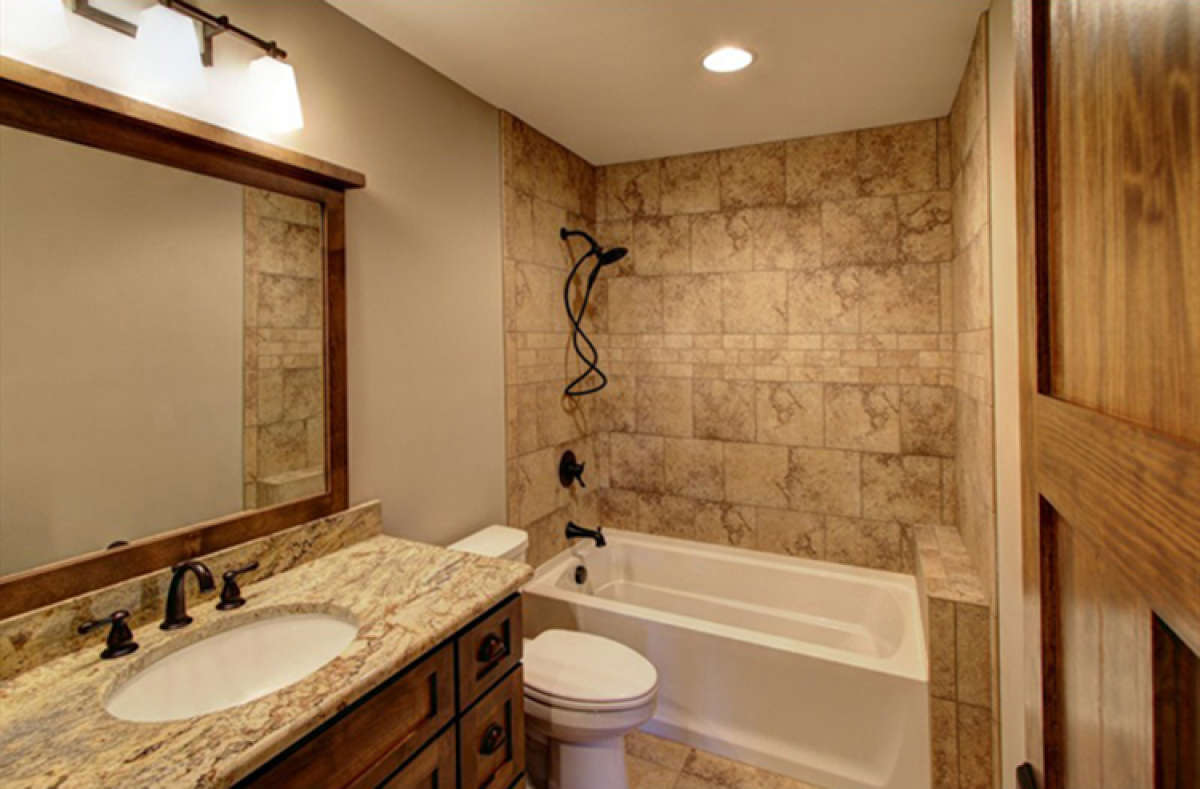

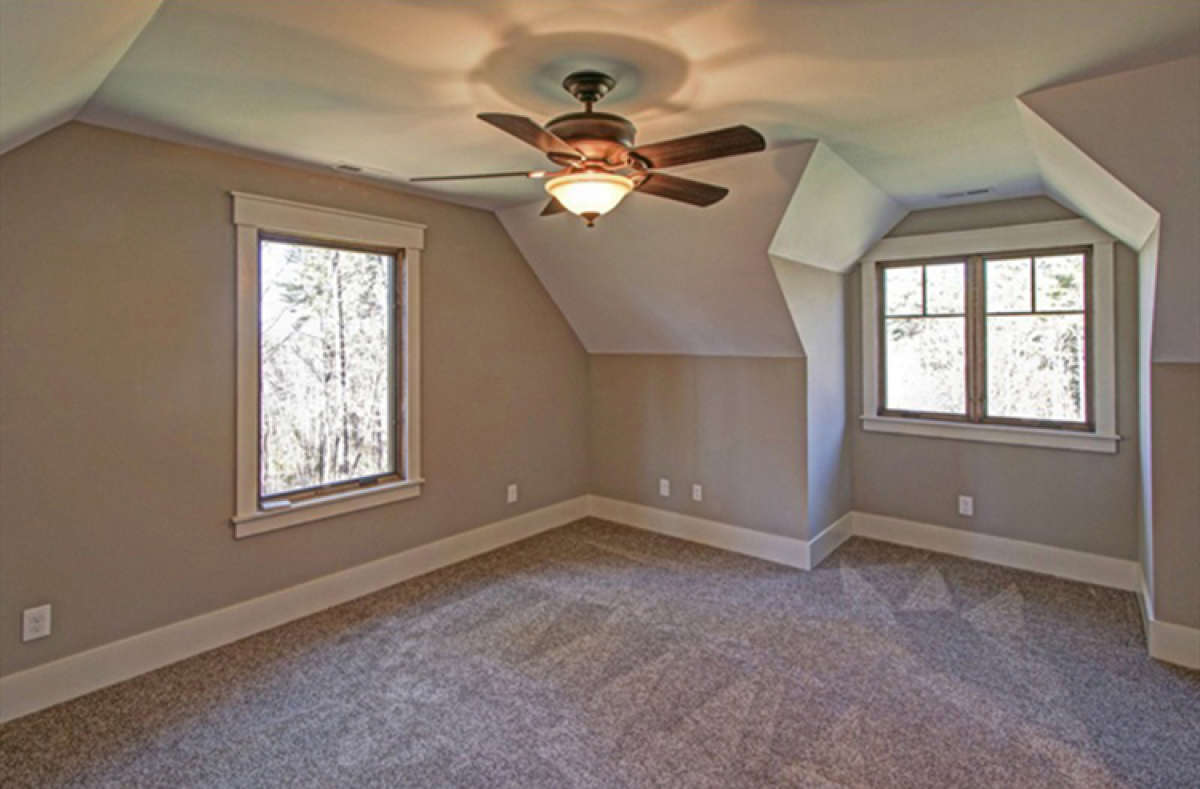

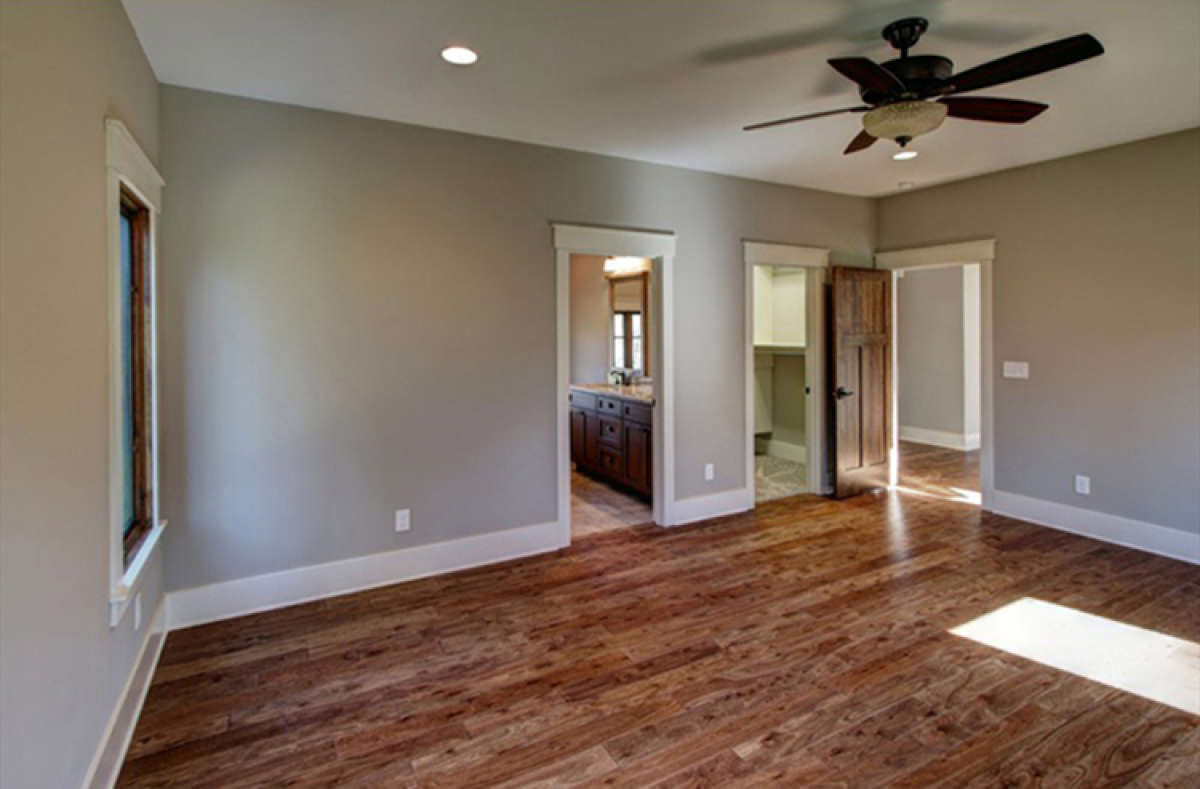

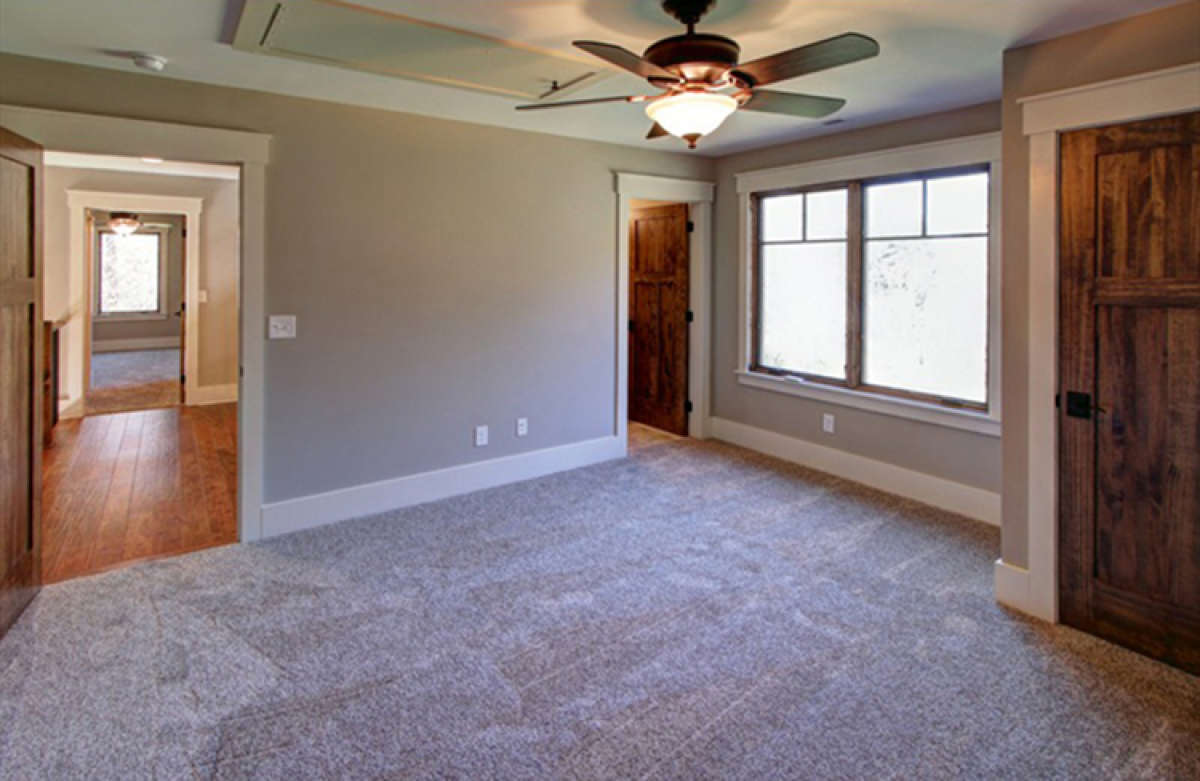

Open views into the foyer and great room are featured on the second story landing along with a balcony hallway containing two additional bedrooms. Both bedrooms enjoy excellent floor space, generous closet and a private bath. This home showcases a rustic exterior façade and an open floor plan for maximum comfort along with outstanding outdoor space for relaxing and entertaining purposes.
