Mountain House Plan 8504-00031

Sq Ft2,340
1/2 Baths1
Width68' 0"
Depth34' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

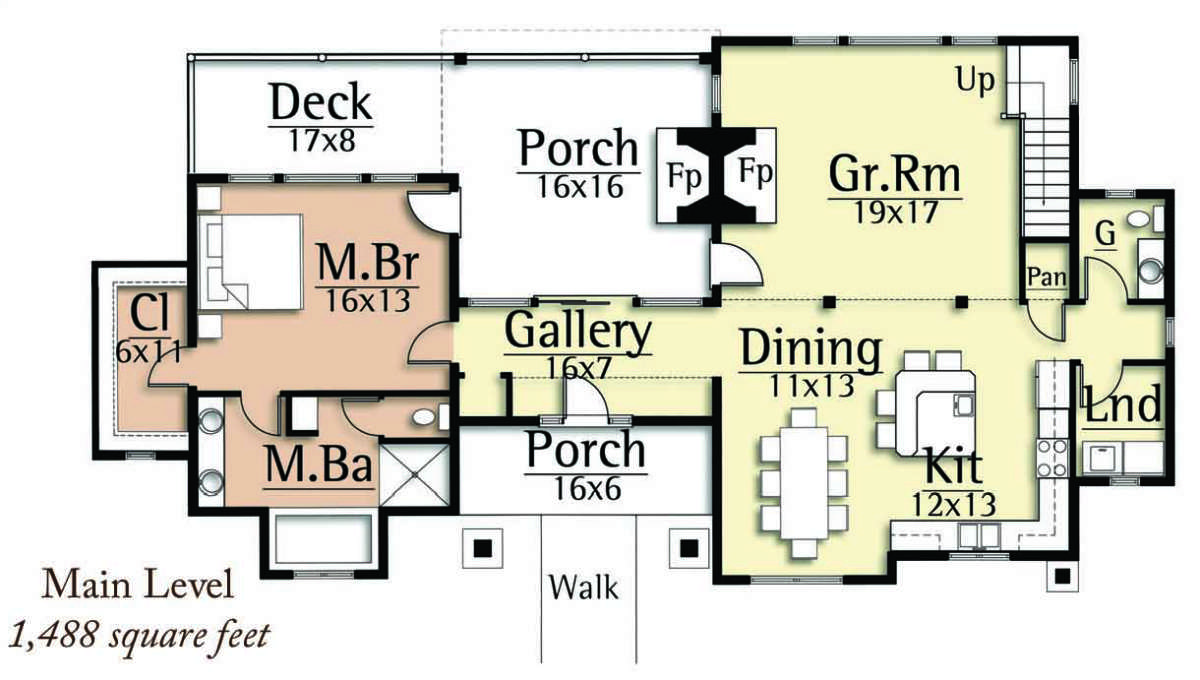

Floorplan 1 for House Plan #8504-00031
Floorplan 2 for House Plan #8504-00031
Garage for House Plan #8504-00031

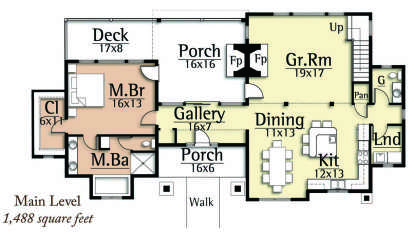

Floorplan 1
Floorplan 1 for House Plan #8504-00031
Floorplan 2
Floorplan 2 for House Plan #8504-00031
Garage for House Plan #8504-00031

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans

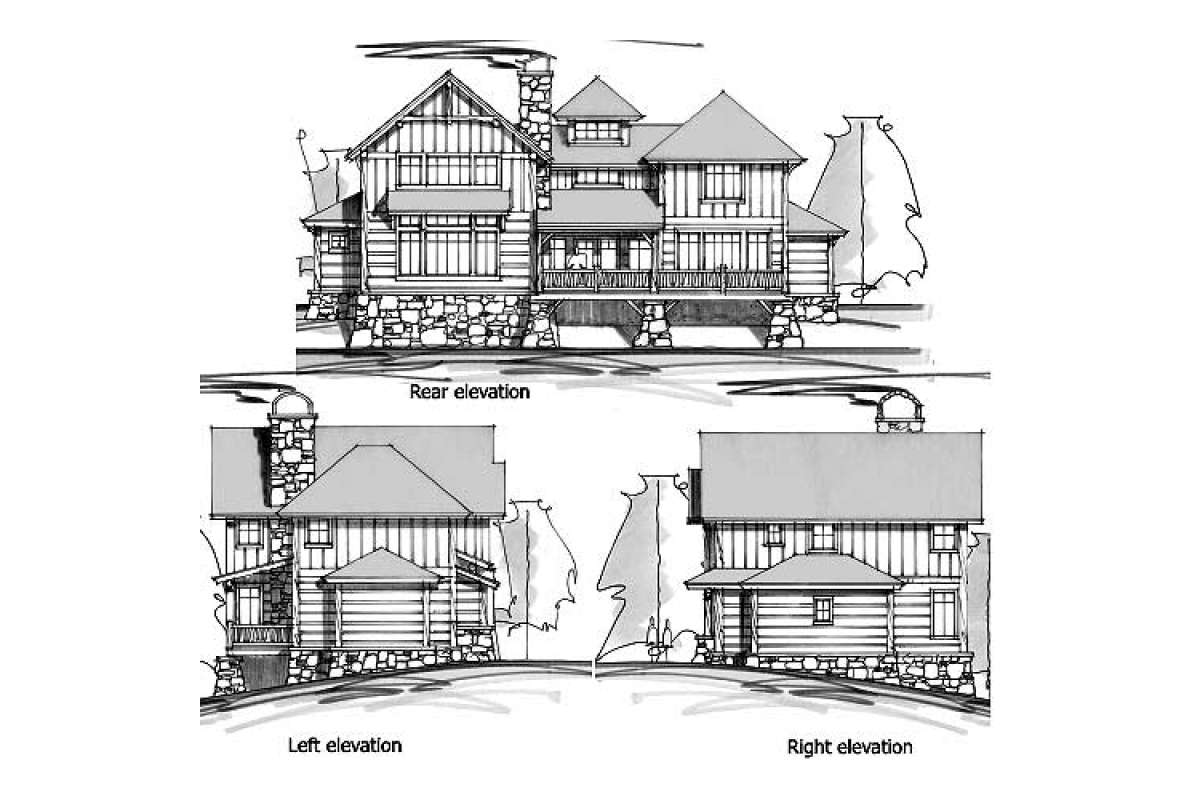

  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

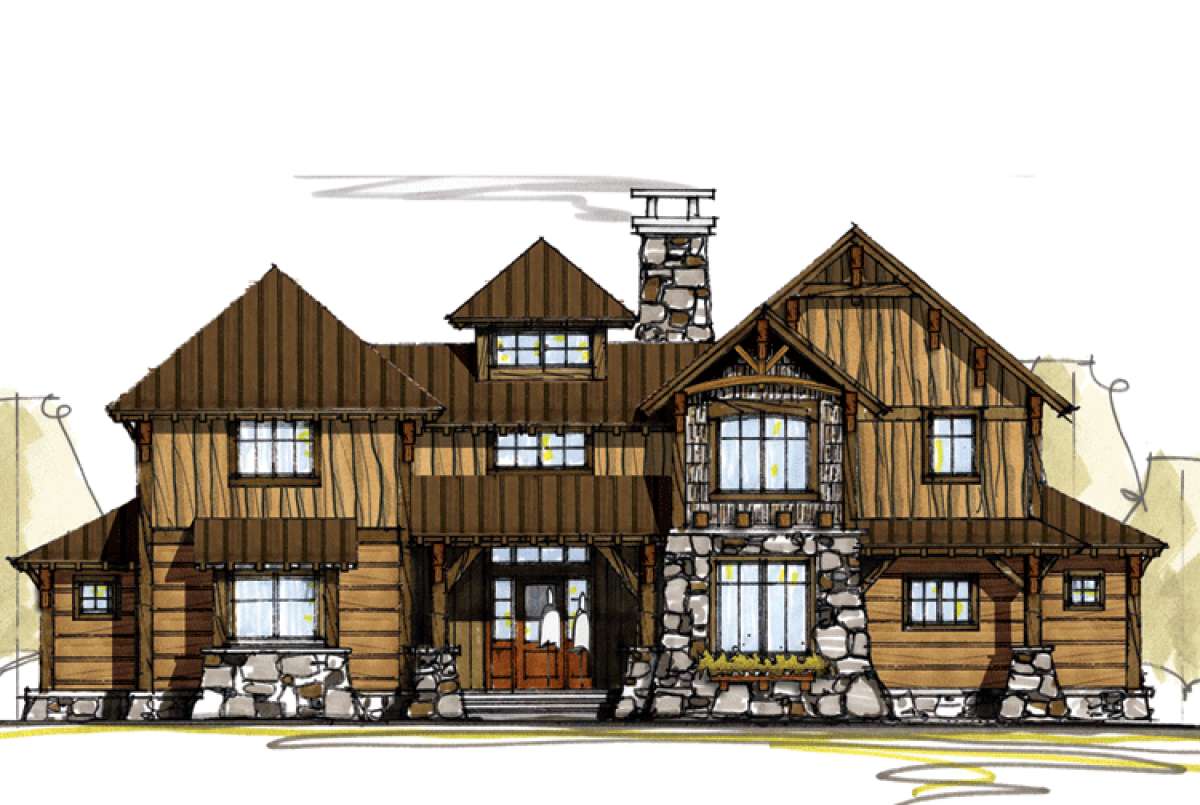

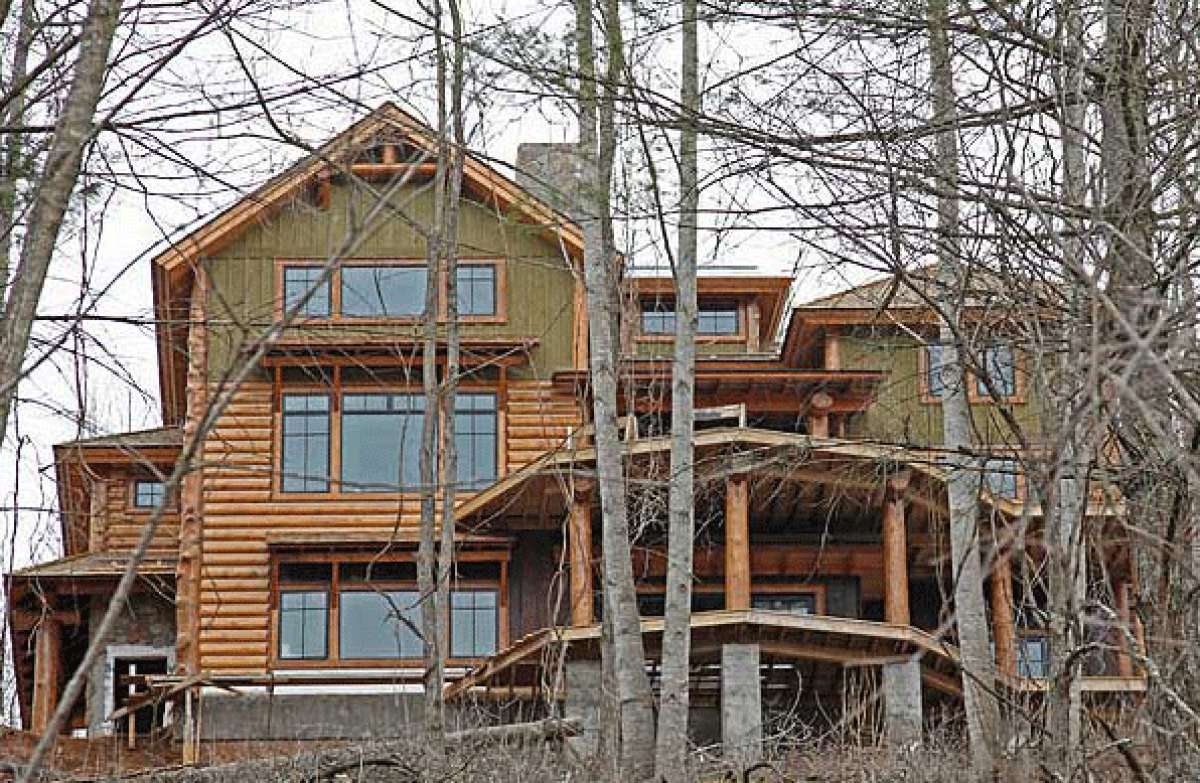

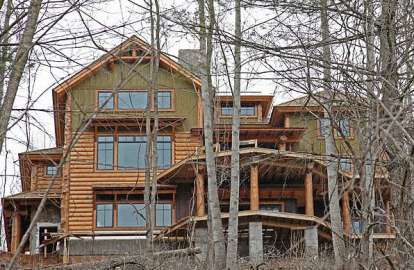

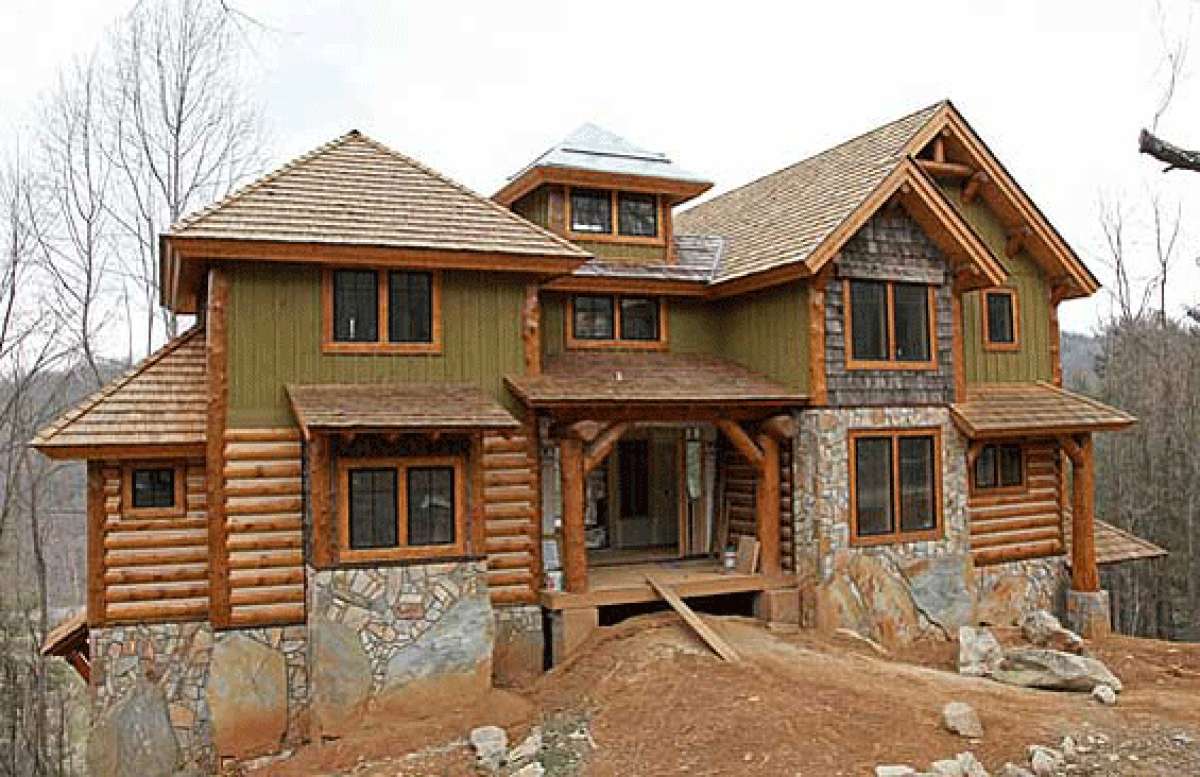

This amazing Lodge crafted home features a rustic exterior chocked full of varying design elements such as stacked stone, cedar shakes, rough-hewn timber logs, and a towering cupola. The rustic exterior perfectly complements the open concept interior where an incredible amount of entertaining and private family spaces abound. The home’s drawings include double-stacked floor plans consisting of approximately 2,340 square feet of living space which include three bedrooms and two plus baths. Additionally, there is a detached two-car garage with plenty of vehicle space which beautifully matches the home’s rustic exterior. The front covered porch features an attractive entrance into the home where a gallery hallway is revealed and views stretch onto the rear porch. There are a large dining space and family-friendly kitchen with additional seating at the L-shaped breakfast bar along with the rear and sidewall of modern conveniences. The great room measures 19’x17’, has a rear wall of windows and the double-sided fireplace provides warmth and ambiance for both the great room and rear covered porch. The main level master suite features a large bedroom with window views overlooking the rear deck, a large walk-in master closet, and private access onto the rear porch. The master bath is a great design with dual vanities, a separate shower, a compartmentalized toilet and a large soaking tub with window views. There are a guest powder room, laundry room and second story staircase on the main floor as well.

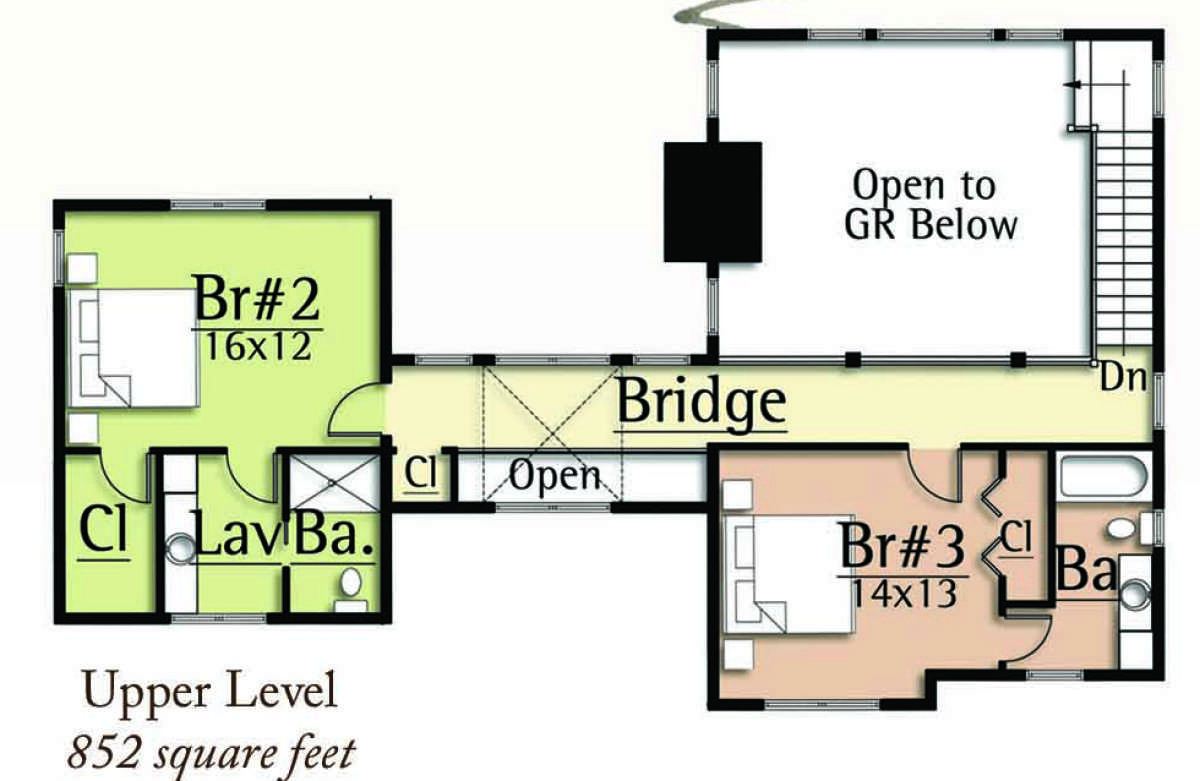

The second story features a bridge walkway overlooking the gallery hallway and great room below. There are two additional bedrooms, as well; bedroom two is quite spacious with a walk-in closet and private full bath. Bedroom three is clearly oversized, has generous closet space and also offers a private full bath. This home is ideally suited for a mountain view property lot and provides a comfortable and inviting interior floor plan.
