Mountain House Plan 5565-00009

Sq Ft2,328
Beds3
Baths3
1/2 Baths1
Stories2
Cars2
Width74' 7"
Depth72' 6"
SALE

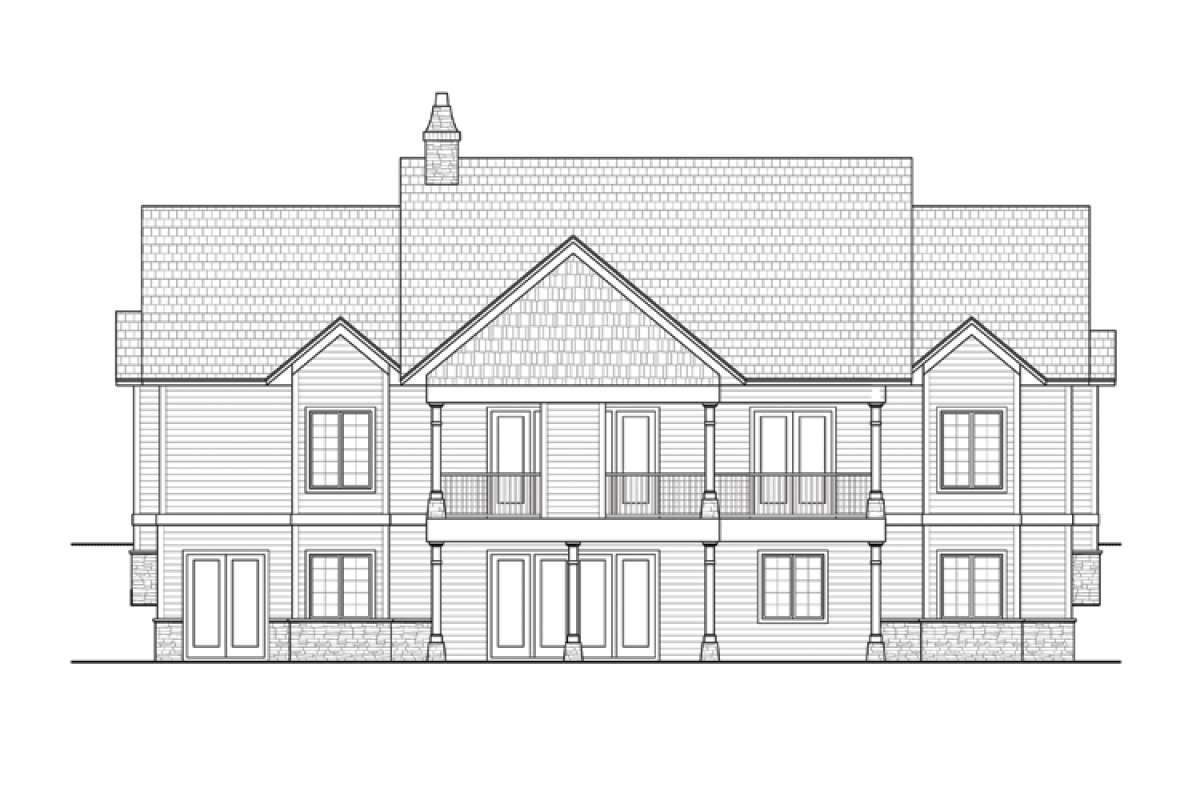

Mountain House Plan #5565-00009 Elevation Photo
Mountain House Plan #5565-00009 Elevation Photo
Mountain House Plan #5565-00009 Elevation Photo
Mountain House Plan #5565-00009 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.
Floorplan 1 for House Plan #5565-00009
Floorplan 2 for House Plan #5565-00009
Basement for House Plan #5565-00009

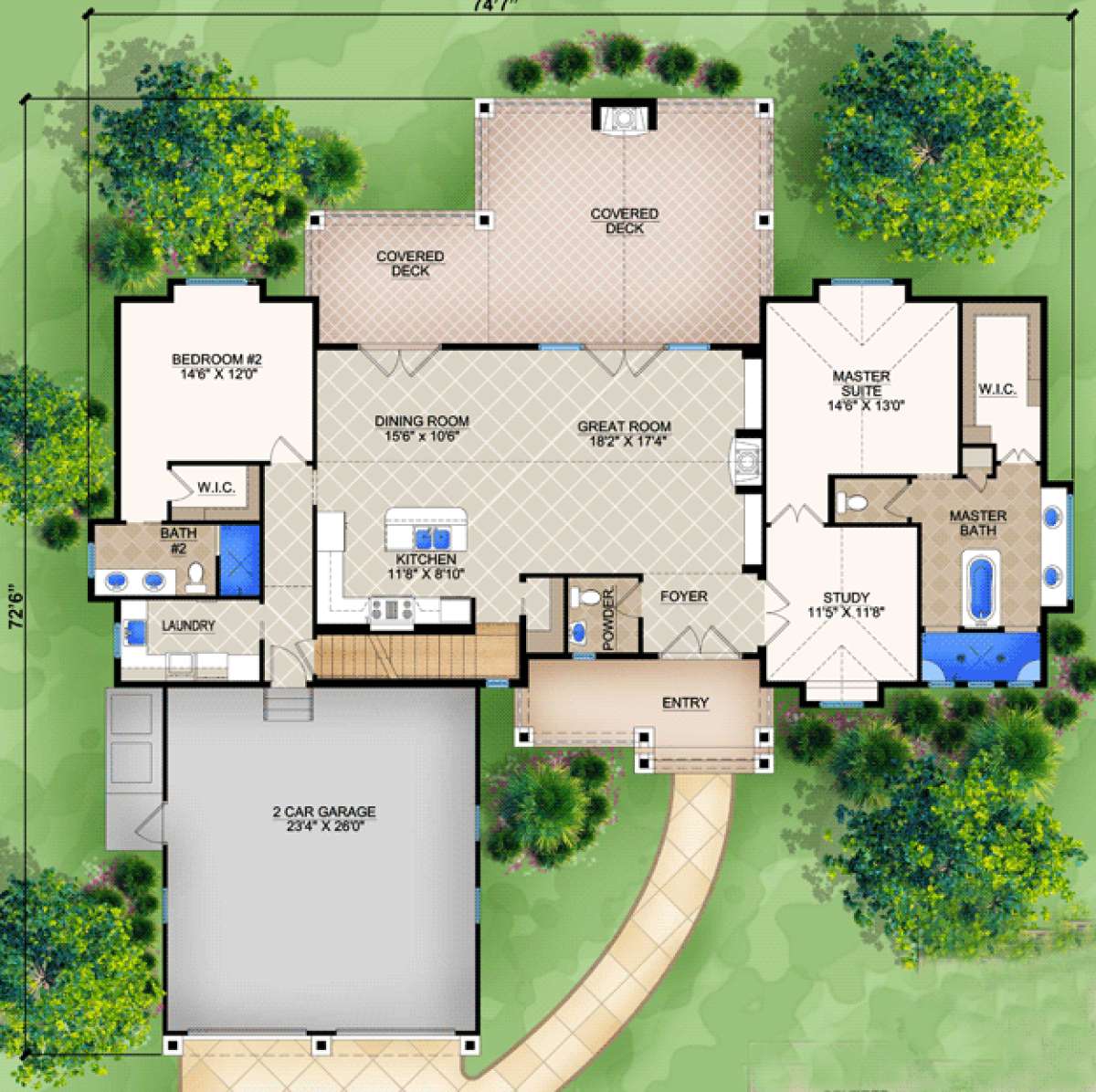

Floorplan 1
Floorplan 1 for House Plan #5565-00009

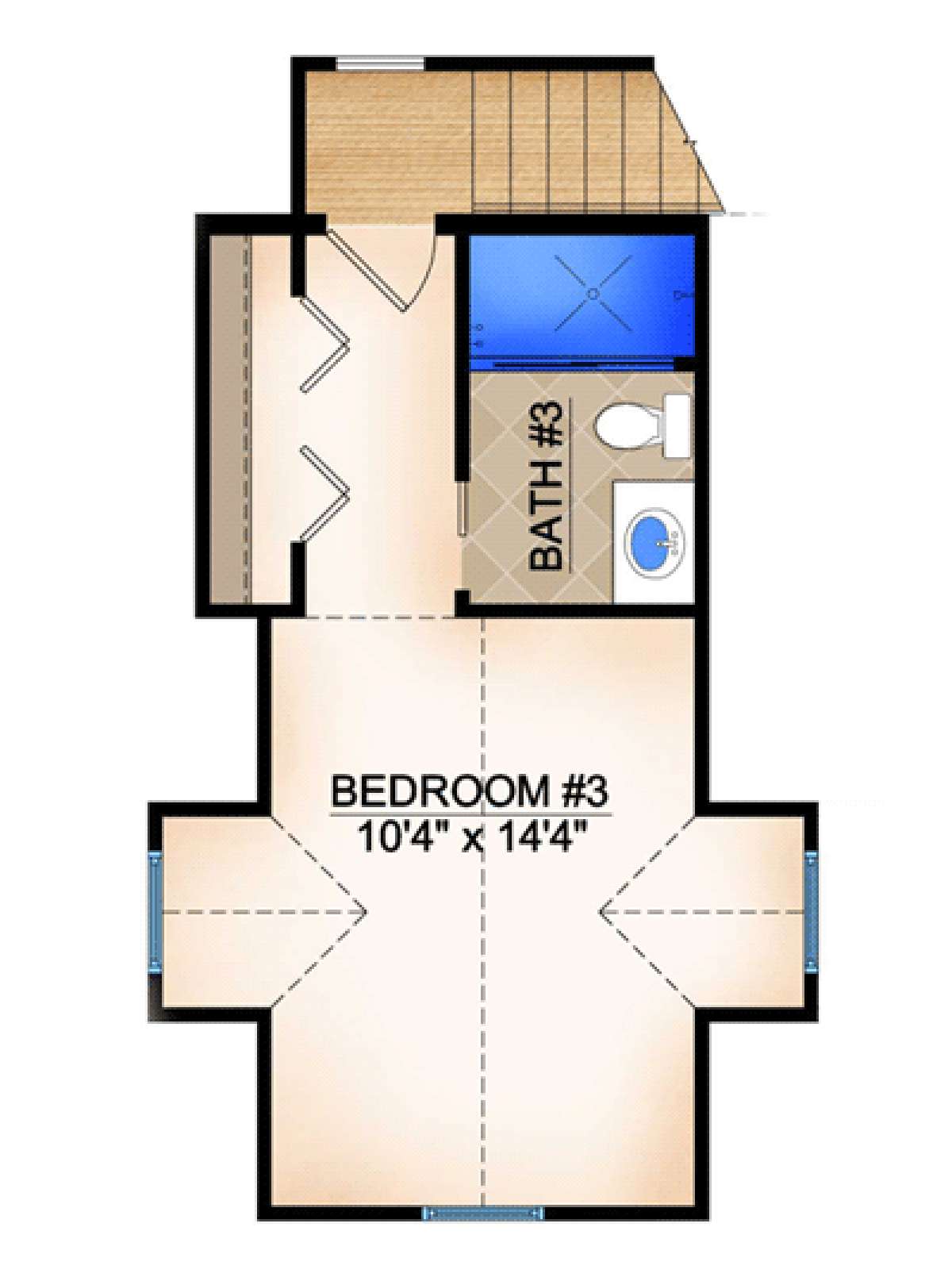

Floorplan 2
Floorplan 2 for House Plan #5565-00009

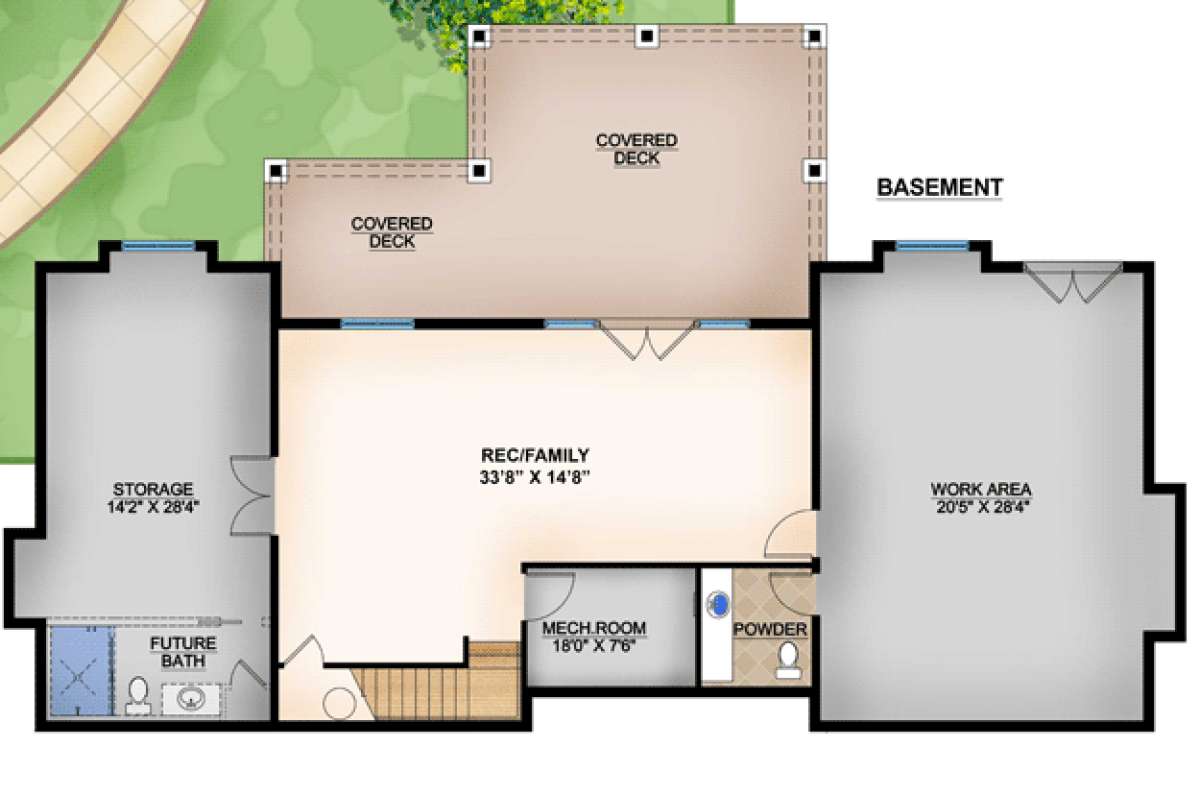

Basement
Basement for House Plan #5565-00009


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Each plan set is drawn at 1/8" to 1/4" = 1' scale and includes the following drawings:
  • Elevations:
    Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan:
    Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any):
    Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation or Slab Plan:
    Floor and Deck Joist Sizes, Spacing and Direction, Rough-In Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
  • Roof Framing:
    Shows roof outlines, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys.
  • Section:
    Shows a cross-section of the home. Shows Floor Joist Size and Spacing, Floor-To-Floor Heights,
    Non-Typical Plate Heights Indicated
  • Electrical Plan:
    A schematic layout of all lighting, switches and electrical outlets.
  • Typical Wall Section and Cut-through Section
  • *Single Build License is included with plan packages of 5 sets or more.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Whether situated atop a mountain property, deep in the woods or a lakefront lot, this striking home captures the essence of an intentional and relaxed lifestyle. The handsome exterior is composed of warm wood accents trimming the garage and the main house along with horizontal siding, decorative window features and shake lined gables. Great interior space includes approximately 2,328 square feet of living space, features three bedrooms and three plus baths, and there is a walk-out basement with 9’ ceiling heights that features an additional 1,923 square feet. The terrace level of the home contains a huge recreation room with covered deck access, a large work area for woodwork or other such hobbies and plentiful storage space. The main entrance into the home is off the front covered porch into the widely proportioned foyer which then opens onto the common rooms of the home and simultaneously leads to the private study. The study is dedicated space for entertaining business associates and peers in a cozy atmosphere. French doors provide access into the master suite bedroom which enjoys a large footprint as does the en suite bath and walk-in closet. The master bath is a lovely arrangement of double vanities, a center soaking tub and a rear wall-to-wall shower component. The common rooms of the home feature wide open space where entertaining and family relaxing will be enjoyable and effortless. The great room features a handsome fireplace, built-in cabinetry and French door access onto the rear covered deck with outdoor fireplace. The adjoining dining space also boasts of French door access onto the outdoor space and the grand kitchen features a center island breakfast bar and loads of counter and cabinet space. There is a large laundry room off the two car garage which features additional storage space for lawn and/or sporting equipment.
The second bedroom suite is situated on the main level and offers good floor space, a walk-in closet and a private bath with dual vanities. The third bedroom is highlighted with a private staircase and features generous closet space, a spacious bath with an extended vanity and a large bedroom with dormer window views. This home incorporates a versatile and valuable floor plan into a striking exterior.
