Mountain Rustic House Plan 8504-00086

Sq Ft2,000
1/2 Baths0
Width32' 0"
Depth48' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00086
Floorplan 2 for House Plan #8504-00086
Lower Level for House Plan #8504-00086

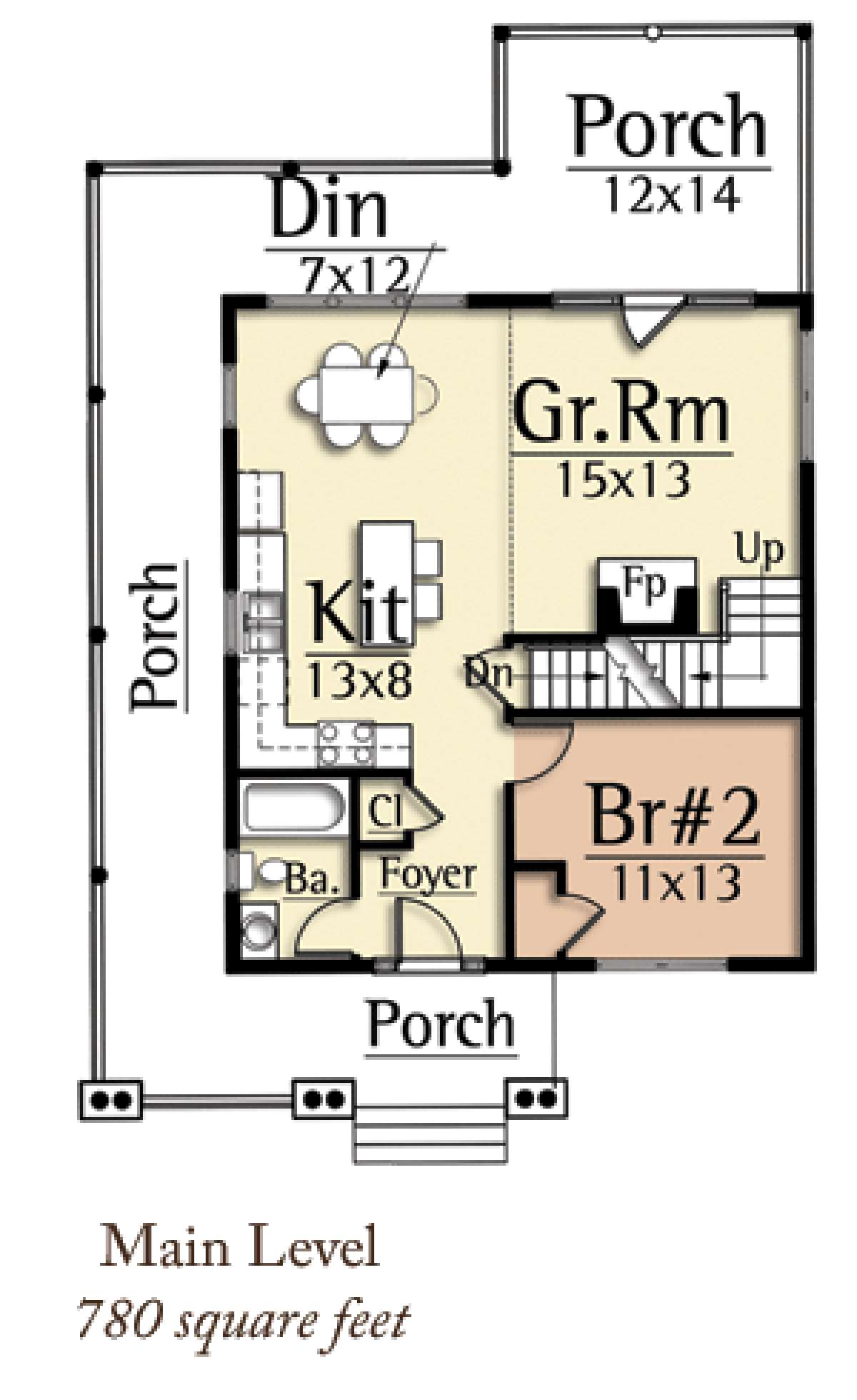

Floorplan 1
Floorplan 1 for House Plan #8504-00086

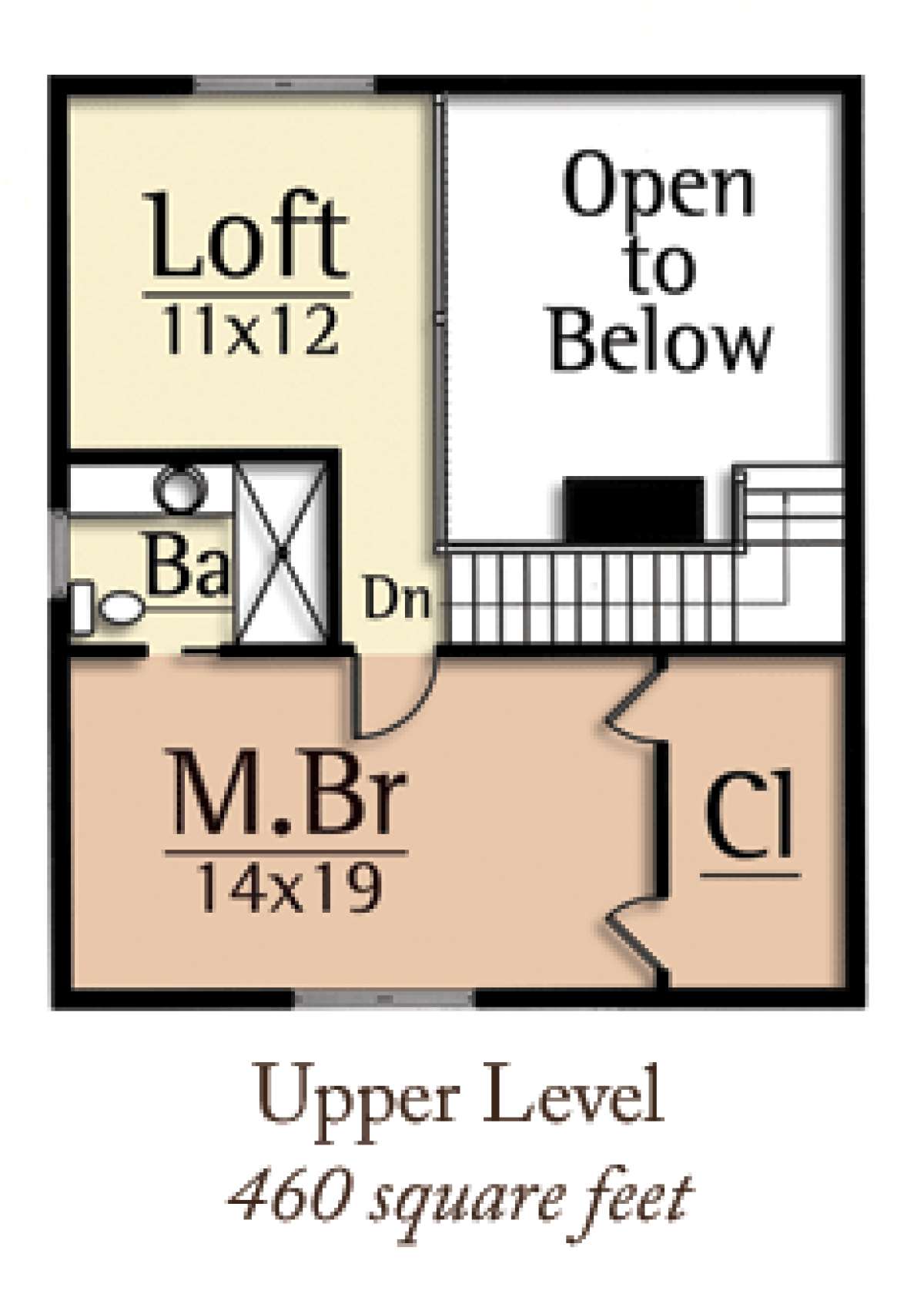

Floorplan 2
Floorplan 2 for House Plan #8504-00086

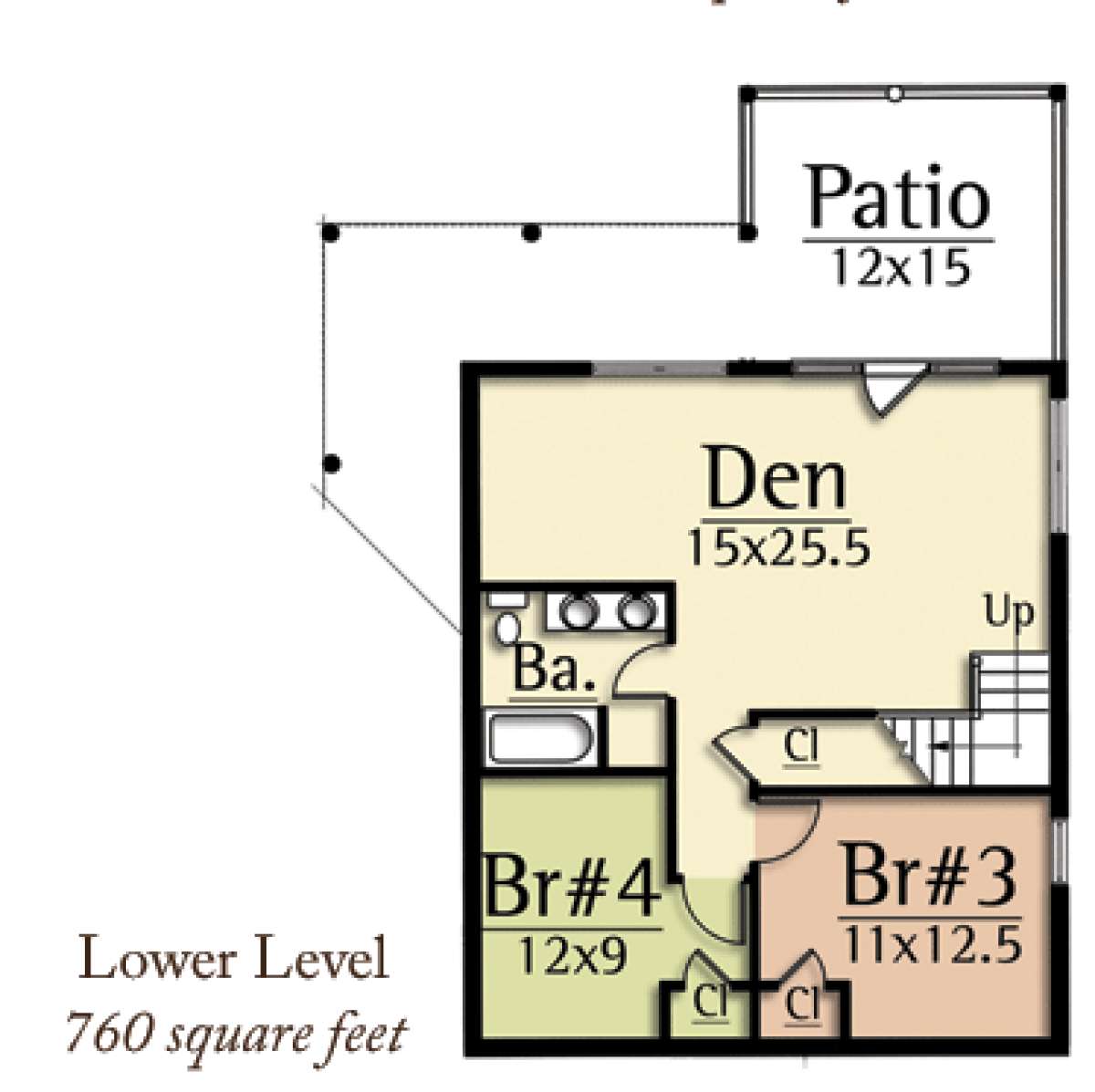

Lower Level
Lower Level for House Plan #8504-00086

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans

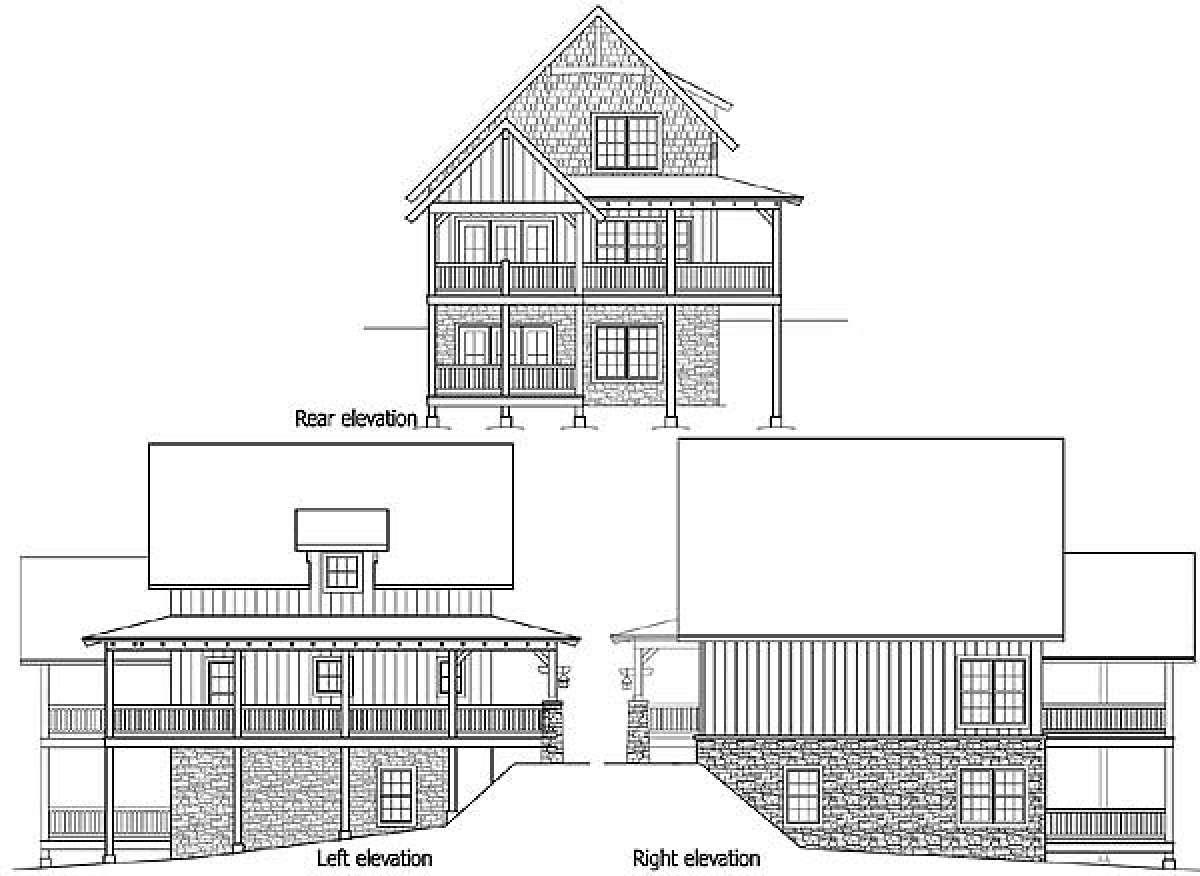

  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

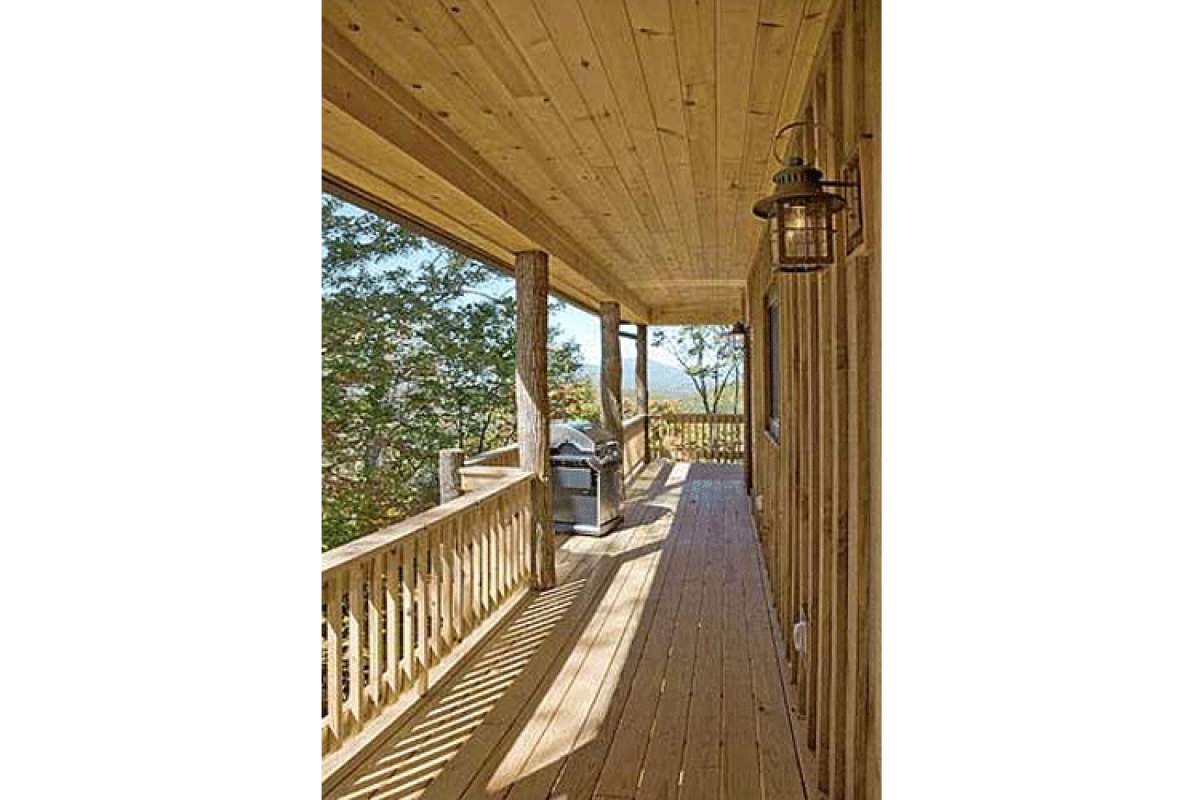

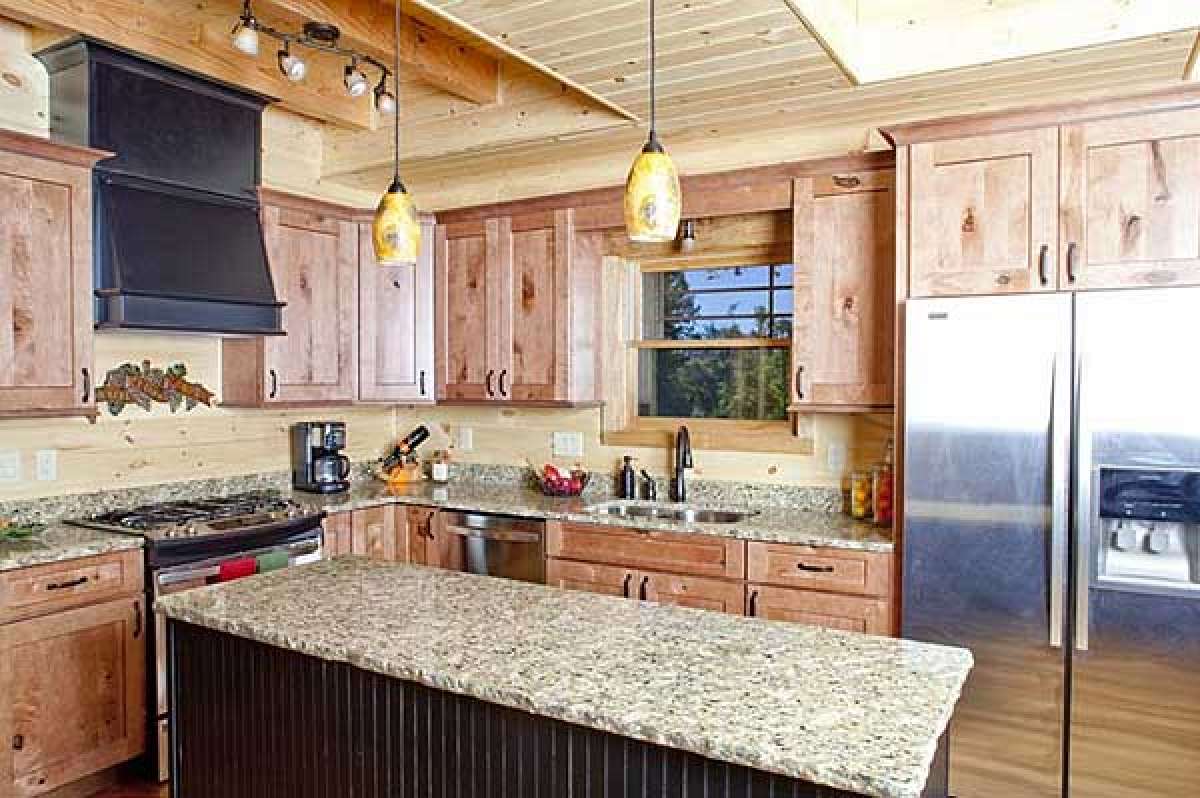

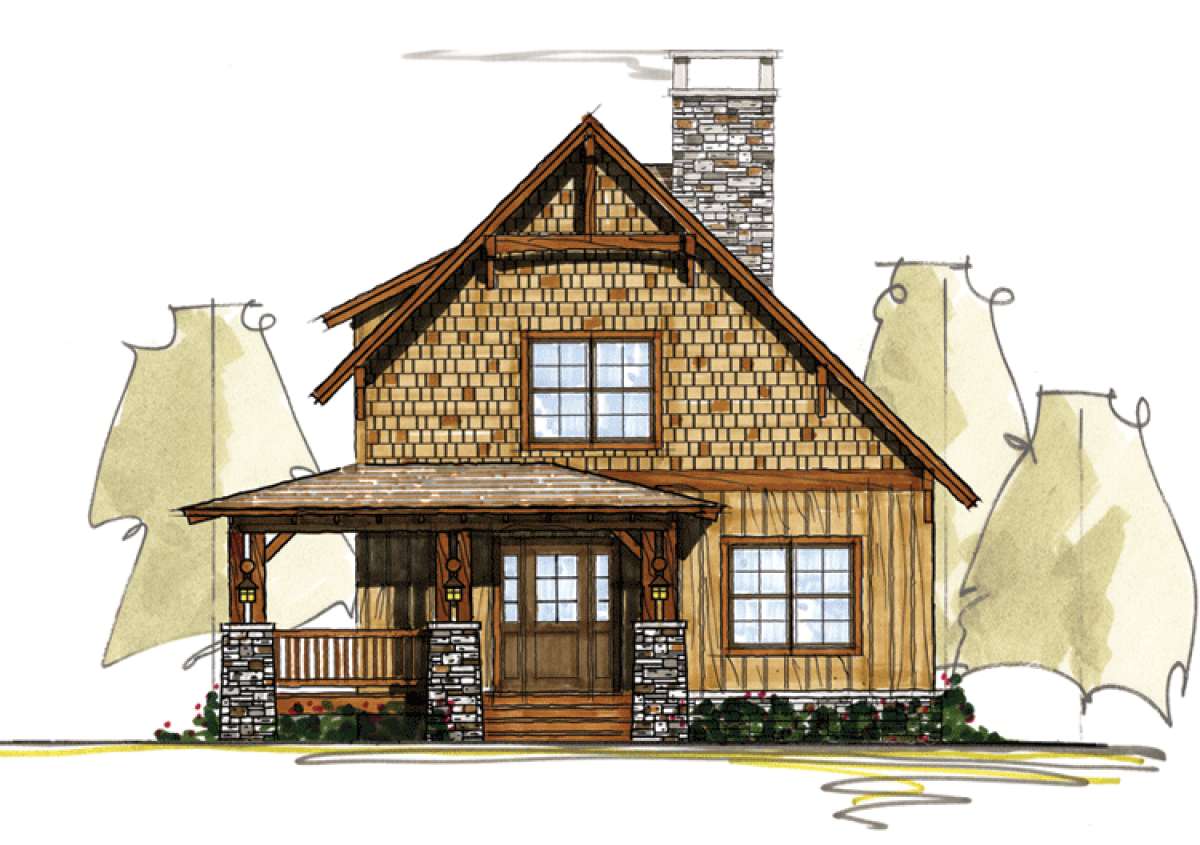

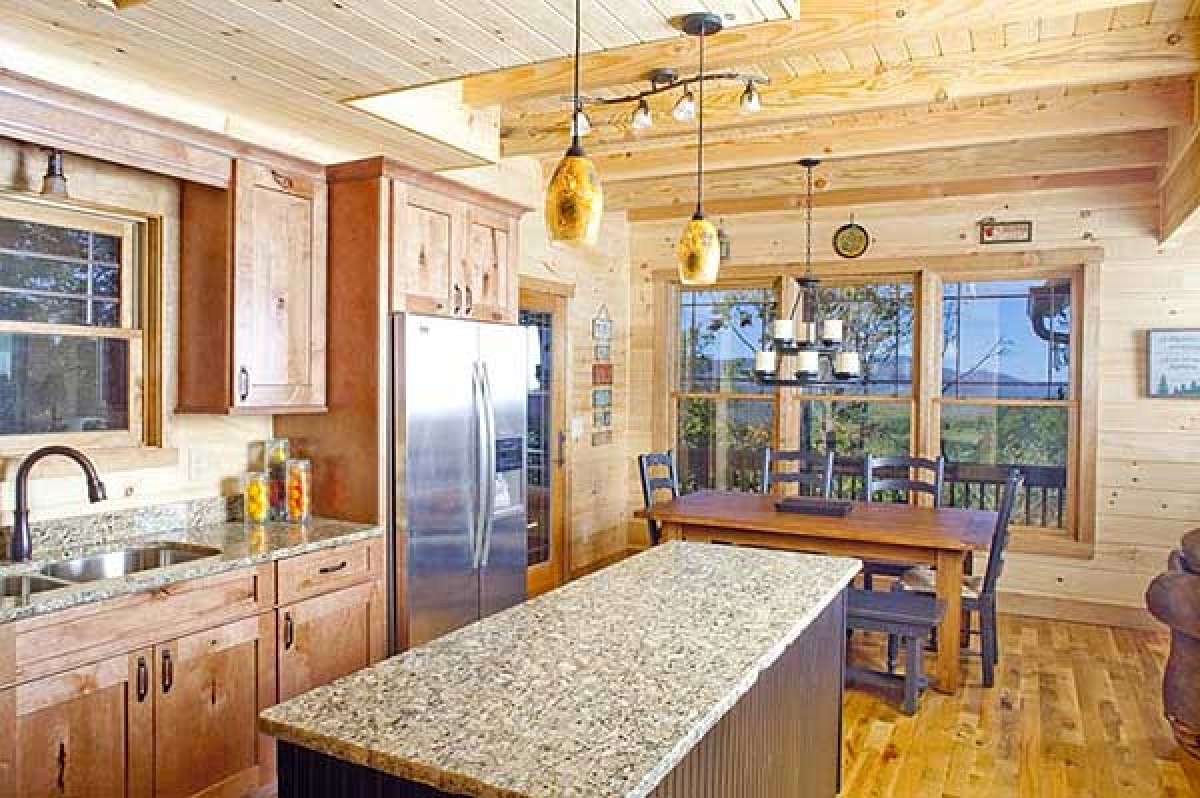

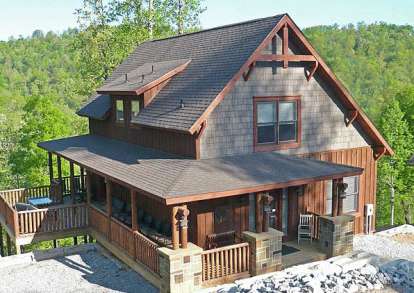

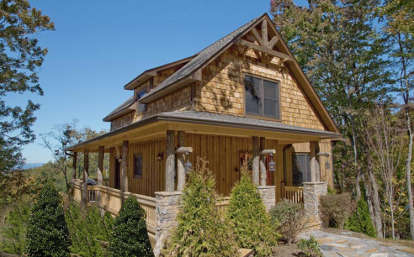

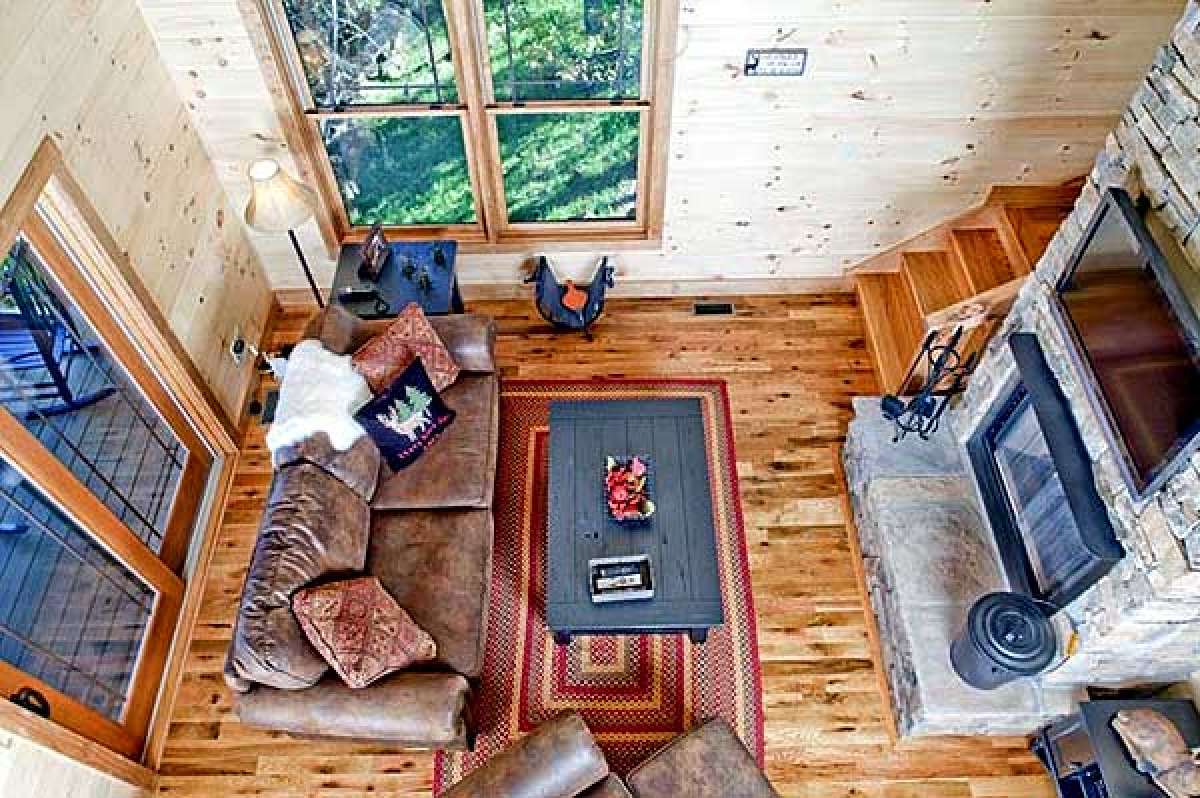

Exciting design features and fabulous interior space highlight this Mountain Rustic house plan. An inviting front covered porch is supported by stacked stone and wood columned beams; the porch wraps around the exterior of the home and ultimately ends in a rear covered dining porch. Decorative timber trusses which sit in the gables, open wood railing and a simple gable roof that spills onto a flat roof line creatively combine with the wraparound porch producing a cumulative effect of rustic ambience. The interior layout features four bedrooms and three baths in approximately 2,000 square feet of living space. The main living areas are situated at the rear of the first level for maximum viewing pleasure; there is a great room with warming fireplace which offers rear deck access providing al fresco dining space. The interior dining room features overlooks onto the rear deck and the kitchen is highlighted by a center eat-in bar area and rear and side walls of counter/cabinet space. There is a guest suite or second bedrooms situated on the main level which features plentiful closet space and an adjacent full bath.

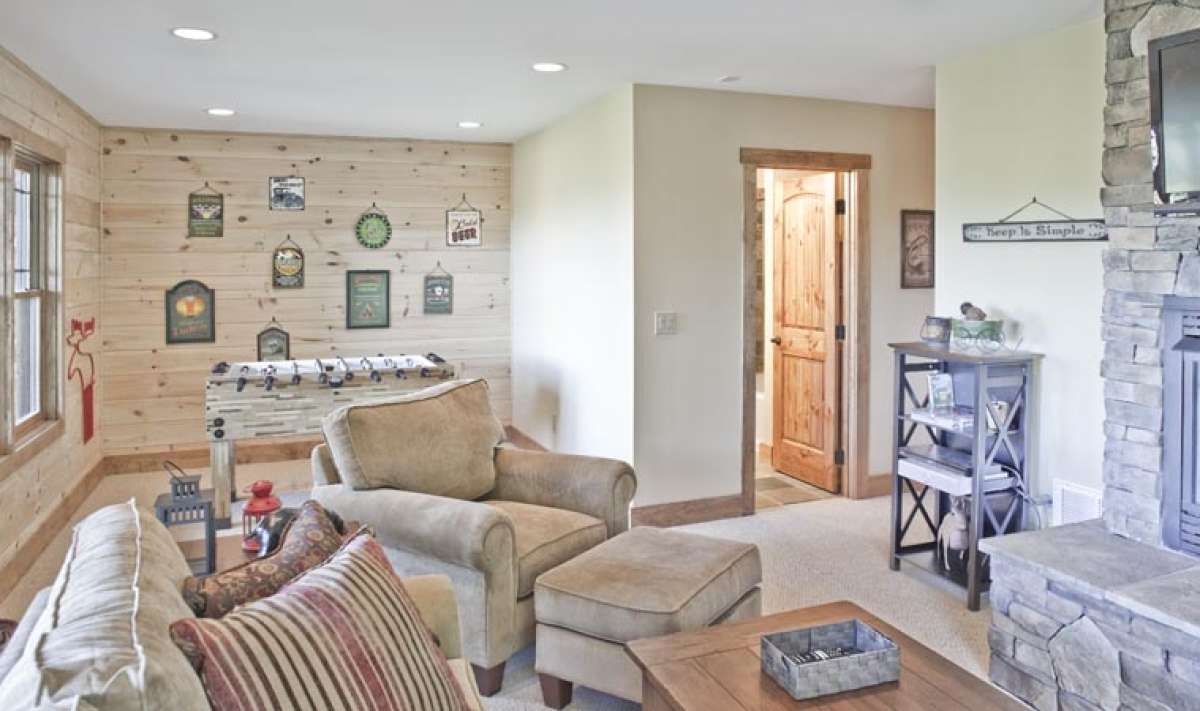

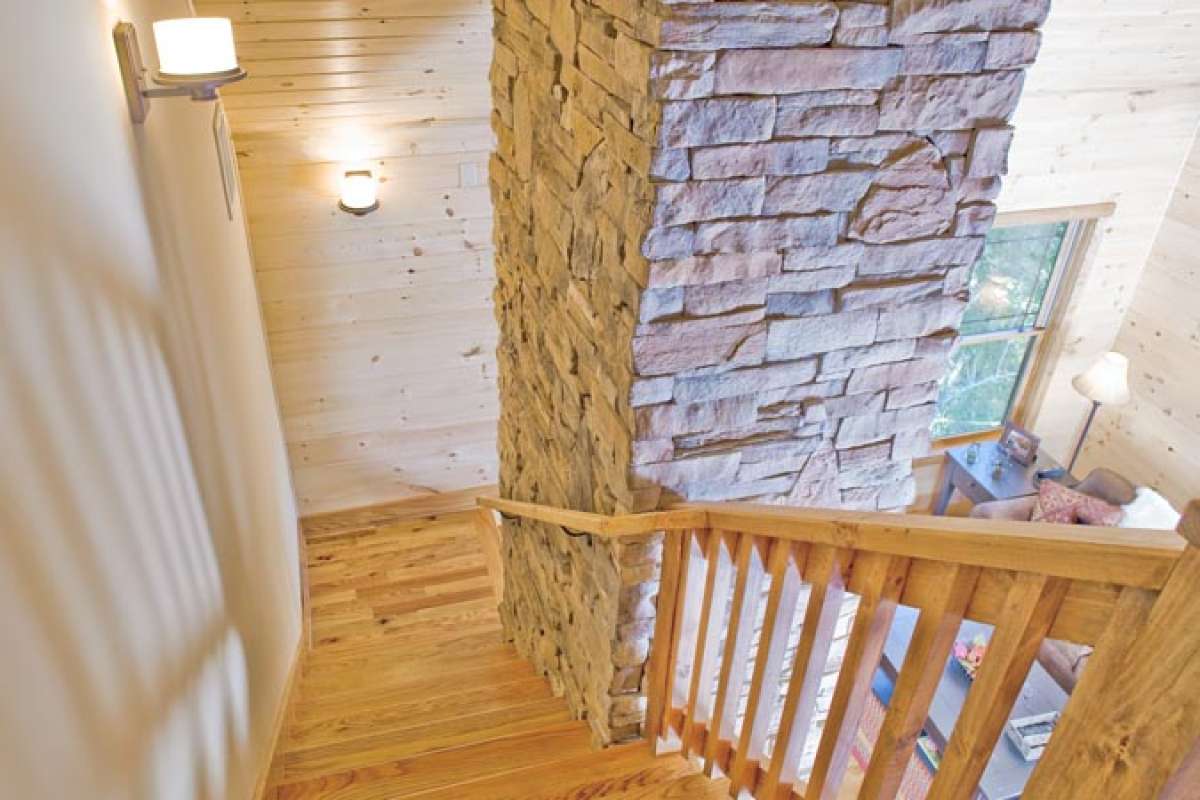

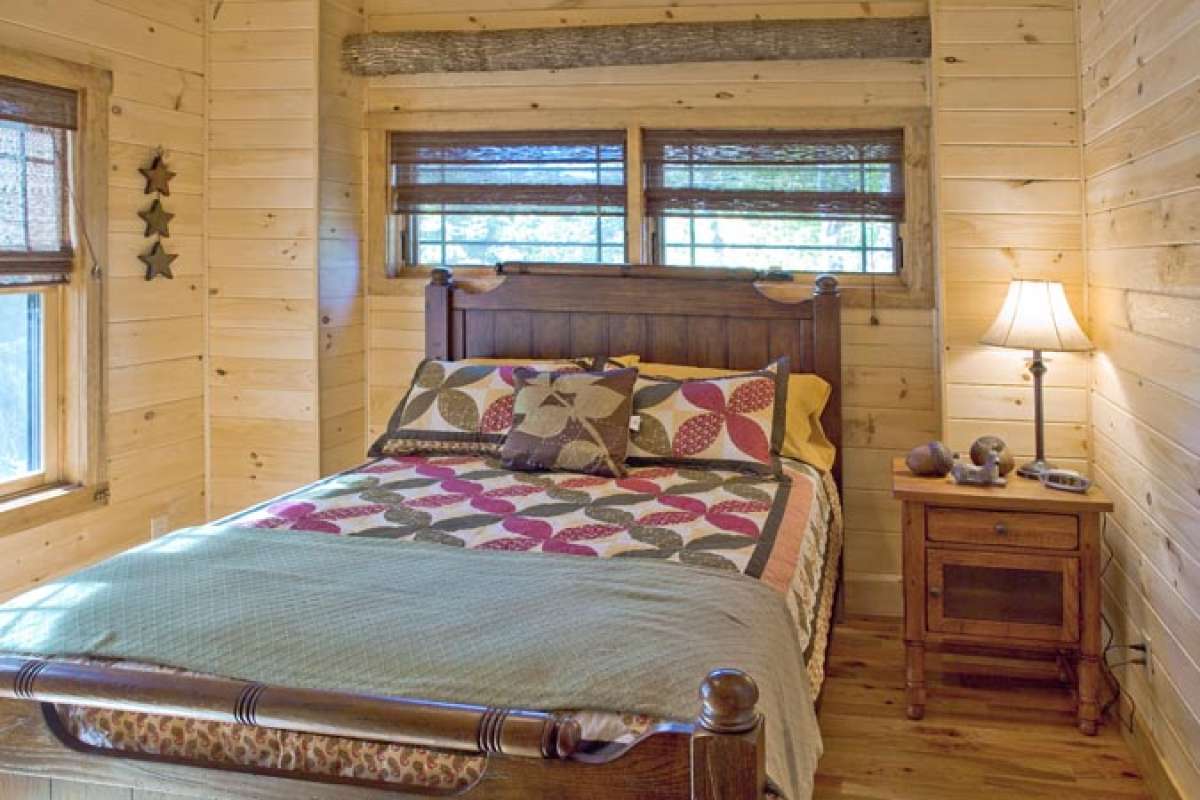

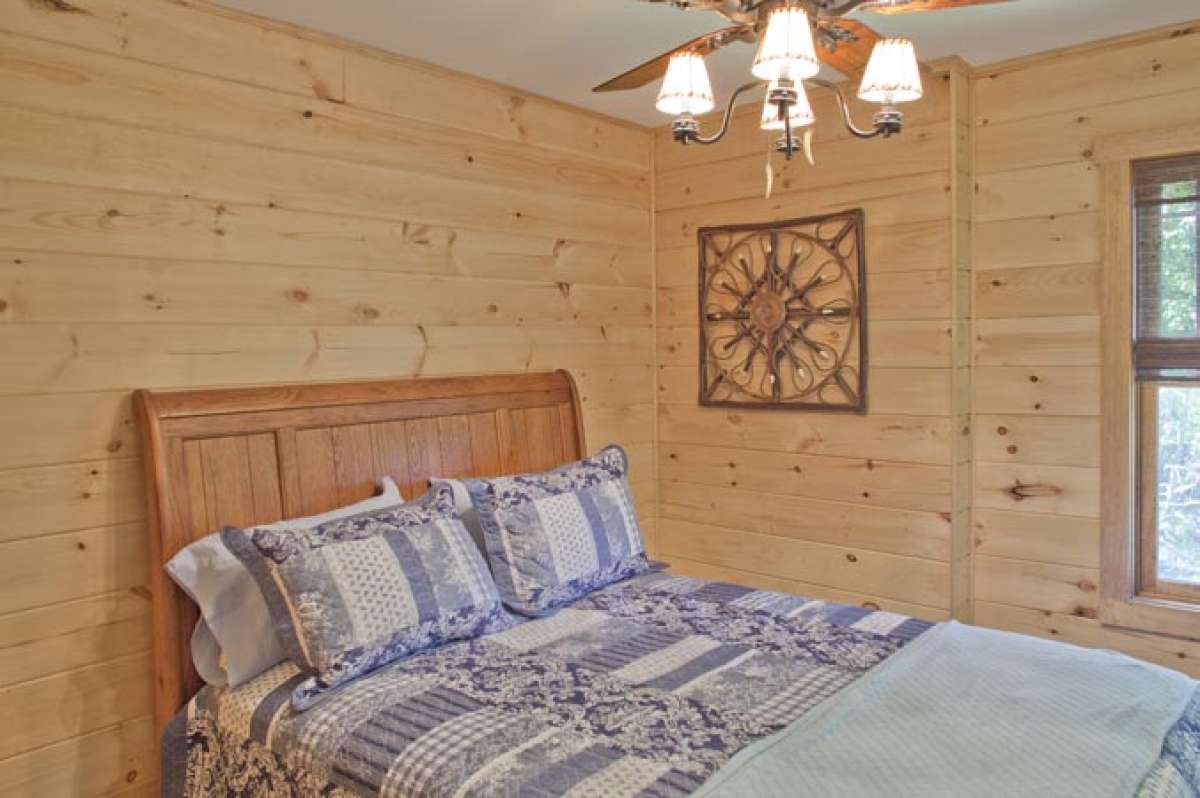

The walk-out basement houses two additional bedrooms; both of which are spacious and feature ample closet space. There is a shared hall bath with double vanities and additional storage space for linens. A second living space is featured in the lower level; it measures in excess of 15’x25’, has rear patio access and could be used as an entertaining space, game room or multi-purpose family room. The second level staircase leads to an open loft area which overlooks the main level living space; this space is adjacent to the master suite and could be used as a private sitting room or study. The master suite is highlighted by a large bedroom with a double access walk-in closet. The private bath features a large vanity and shower. This rustic home features a striking exterior façade and a three tiered home full of usable and livable space.
