About Our Plans

Unique Plans From Hundreds Of Designers

We work with hundreds of designers and architects to bring you over 20,000 house plans. Each plan is designed to meet industry-standard residential building codes. Because of the large variety of plans we offer, you will find that each plan package is somewhat unique as well as what's included in a particular set of plans. Be sure to look at the "What's included in these plans?" section on each plan, located just below the floor plan, to ensure the plans will meet your needs. The complete specifications for each plan are provided on each plan detail page, including a list of the architectural drawings included and any unique terms and conditions.

It is important to note that the plan detail pages display simplified floor plans and elevation renderings for preview purposes, and do not show the same level of detail that come with the actual working drawings. The plans you receive will include fully specified blueprints for each sheet included with the plan, whether it is exterior elevations, the foundation plan, or the individual floor plans for each level.

No Image

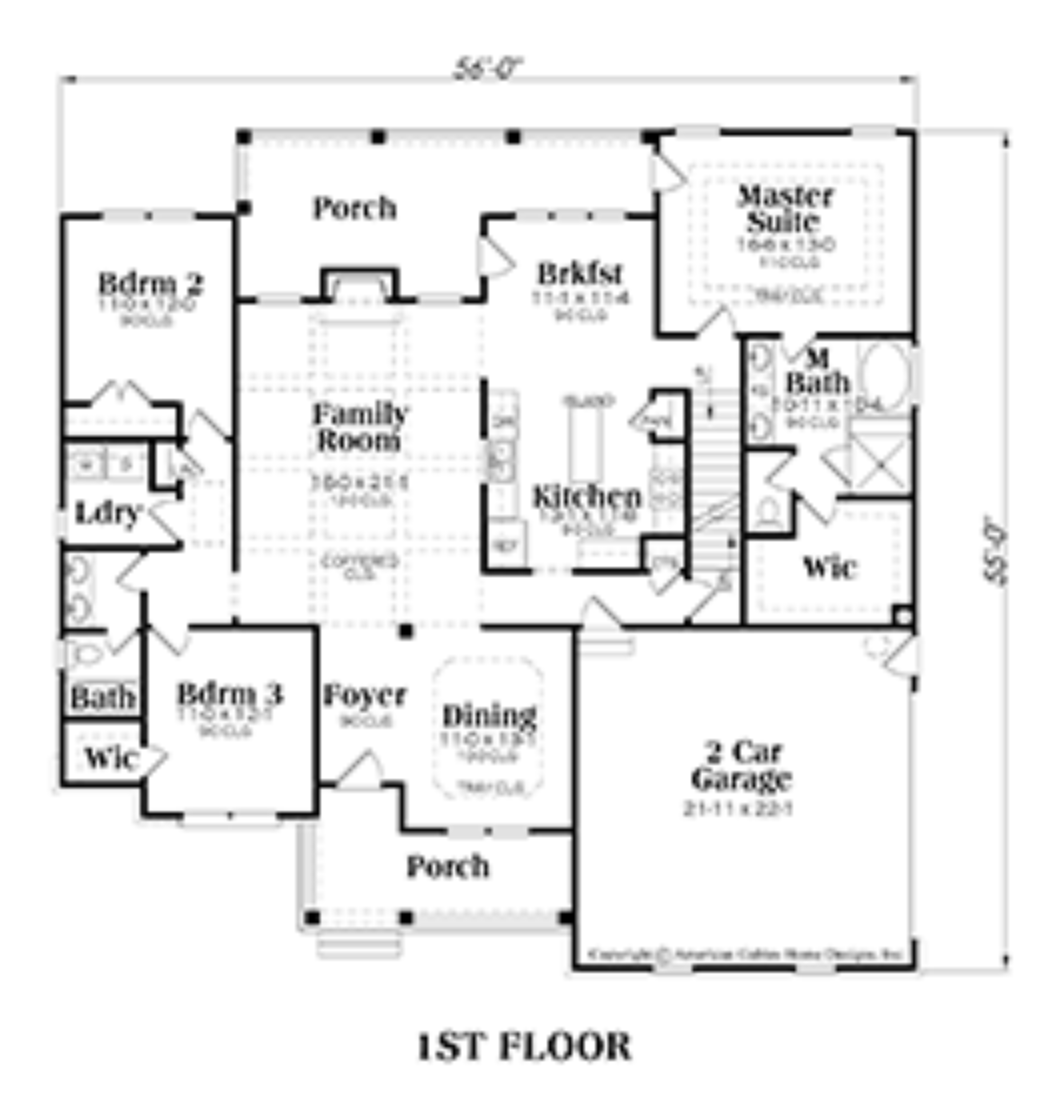

Simplified Floor Plan Image
No Image
Typical Plan Details Image

It is important to note that the plan detail pages display simplified floor plans and elevation renderings for preview purposes, and do not show the same level of detail that come with the actual working drawings. The plans you receive will include fully specified blueprints for each sheet included with the plan, whether it is exterior elevations, the foundation plan, or the individual floor plans for each level.

No Image

Because each plan is unique, it's important to check the plan detail page to see what's included with each plan.

*Not all elevation views are available for preview on the plan detail page.

What Do Plans Typically Include?

Though each plan includes a different combination of sheets, the majority of our plans come with the following:

No Image
No Image

EXTERIOR ELEVATIONS

Display the layout of the building from the outside perspective. This typically includes the front, sides, and rear elevation as well as windows, doors, and exterior materials (such as siding, brick, etc).

No Image
No Image

FLOOR PLANS

Focus on the view of the house as if it were sliced horizontally at a level that would include all doors and window openings.

No Image

FOUNDATION PLAN

Present a top view of the footings, foundation walls, and the location of posts, beams, and load bearing walls as necessary.

No Image

ELECTRICAL PLAN

Shows the location and type of all lighting fixtures, switches, receptacles, and wiring necessary for the house.

No Image
No Image

MISCELLANEOUS DETAILS

Includes construction details that can include framing details, wall sections, stair sections, etc.

No Image

Not Typically Included With Our Plans

The following sections are not typically included with our plans. While our house plans include all the information needed to construct your home, some of these additional items may be required by your local municipality. Prior to purchasing a set of house plans, we recommend you contact your builder, a local engineer, and building officials to learn your city, county, and state building codes. Cross reference the plan detail page to determine what else is needed.

Some items you may need to acquire in addition to your house plan include:

ARCHITECTURAL OR ENGINEERING STAMP

Depending on the city, county, and state building requirements, house plans may need to be reviewed by an architect or engineer for structural details and code standards. Contact a local architect or engineer to verify the requirements for your location.

SITE PLAN

A site plan essentially shows how the house will fit on the lotbetween the building lines and the setbacks. It also shows whichsides the garage should be built on and where parking, drainage,sewer lines, water lines, lighting, landscaping, and walkwaysshould be constructed. Contact a civil engineer to obtain the siteplan.

MECHANICAL DRAWINGS

These types of technical drawings show information about heating, ventilation, and air conditioning. Contact a local HVAC company to obtain mechanical drawings.

PLUMBING DRAWINGS

These drawings show the location of all plumbing materialsthroughout the house and outside. Contact a local plumbingcontractor.

ENERGY CALCULATIONS

These calculations determine how energy efficient your new home will be. Contact a local engineer to dictate these calculations.

TRUSS PACKAGES

This information determines the structural framework of theroof and/or floor system to build the home. Contact a local truss company.

No Image

Framing layouts with beam sizes and locations are not always included in our house plans. If not included in the house plan, contact a builder, local building supply company or engineer.

No Image

DO YOUR PLANS COME STAMPED BY AN ARCHITECT OR ENGINEER?

No, stock house plans do not come stamped by an architect or engineer. While our plans are designed to meet generally accepted national building codes, they are not designed to meet specific local code requirements. Some municipalities may require plan review by a licensed architect or structural engineer in your local area. Please check with your local building officials to determine if an architect's stamp is required. If so, you will need to have a local architect do this before construction begins. In doing so, you may be required to purchase the CAD files for a plan if available.
