Mountain Plan 8504-00032

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,232
Beds 3
Bath 3
1/2 Baths 0
Car 2
Stories 2
Width 63'
Depth 33'

Floorplan Drawings

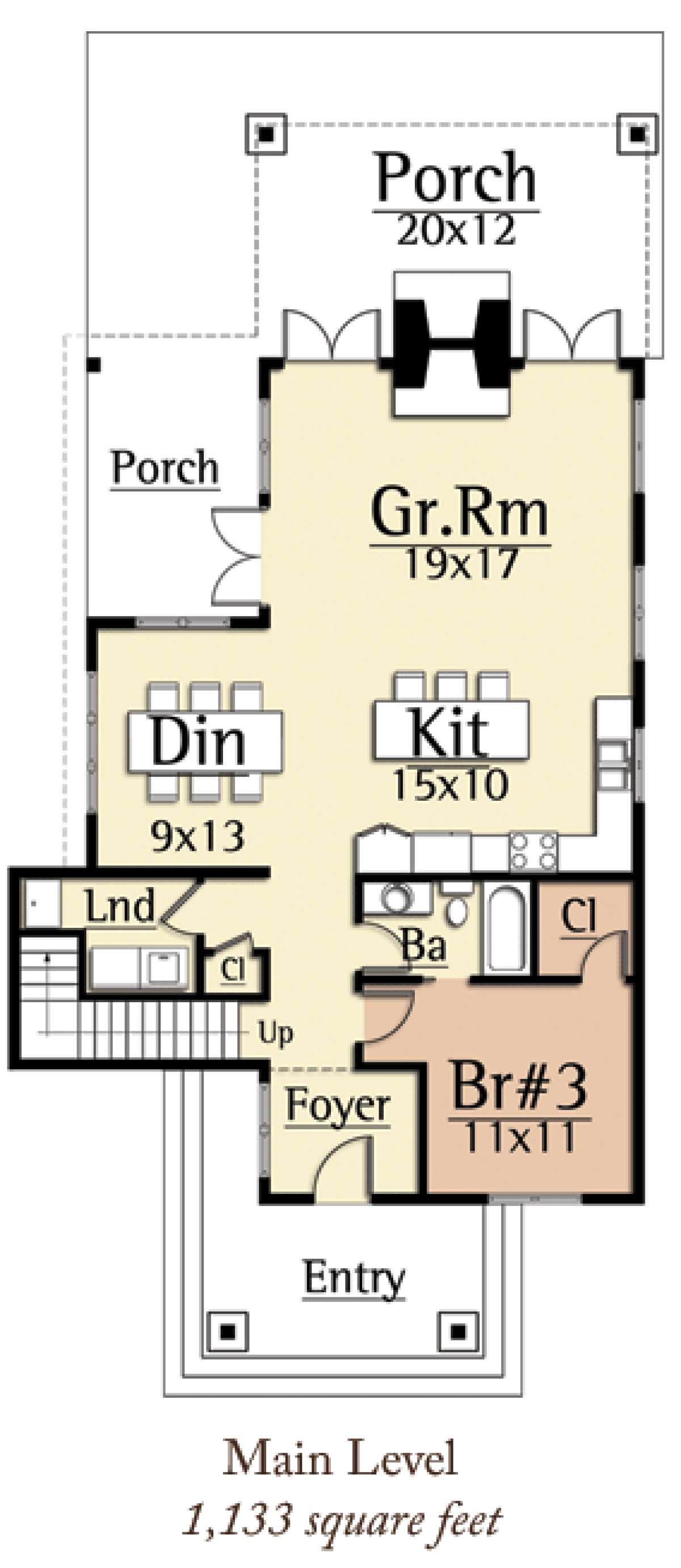

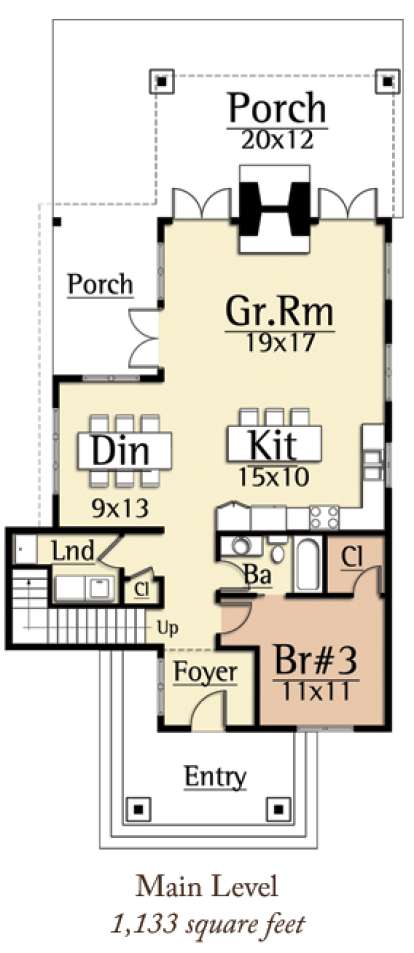

Floorplan 1
Floorplan 1 for House Plan #8504-00032

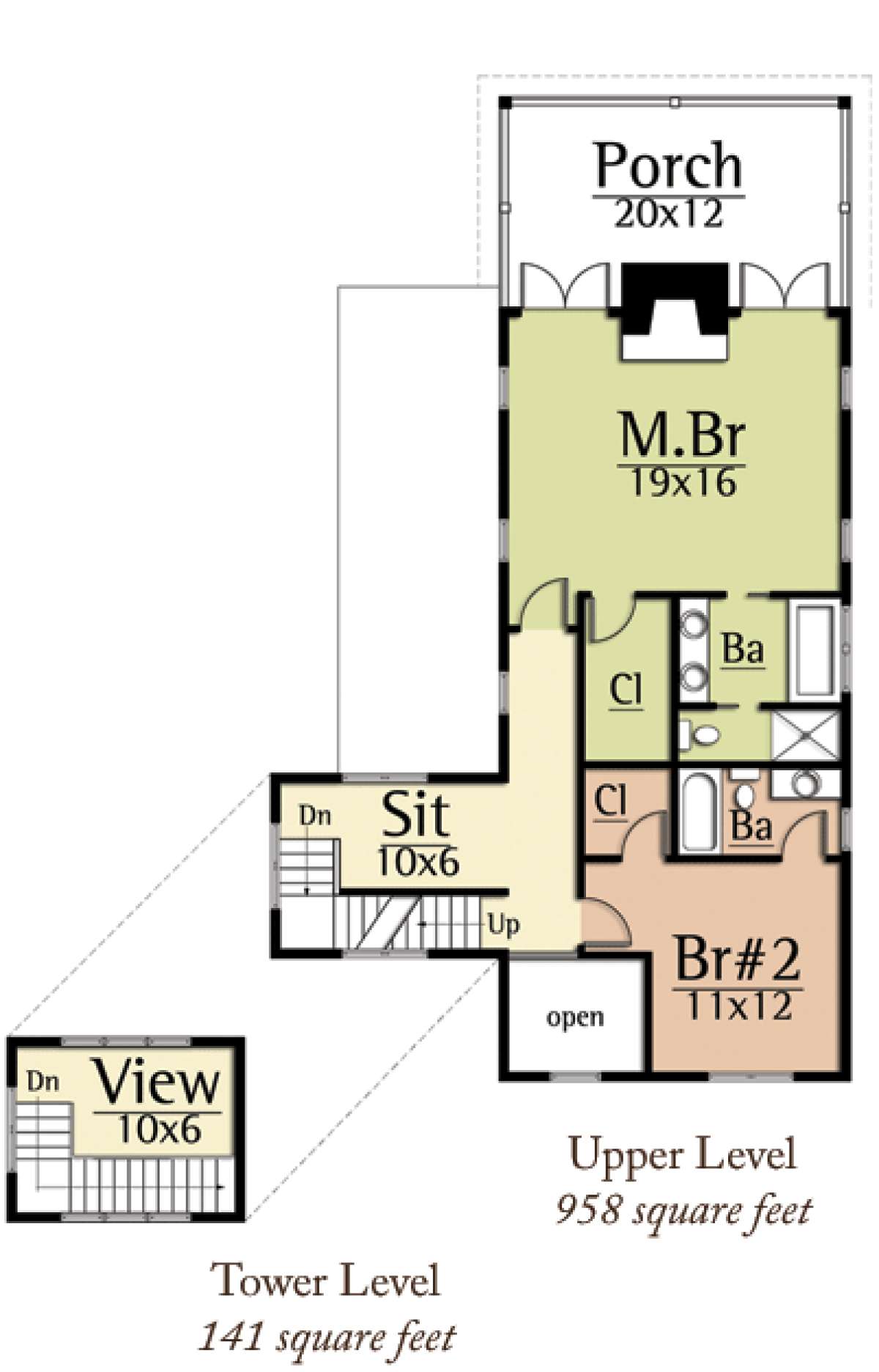

Floorplan 2
Floorplan 2 for House Plan #8504-00032
Garage
Garage for House Plan #8504-00032


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

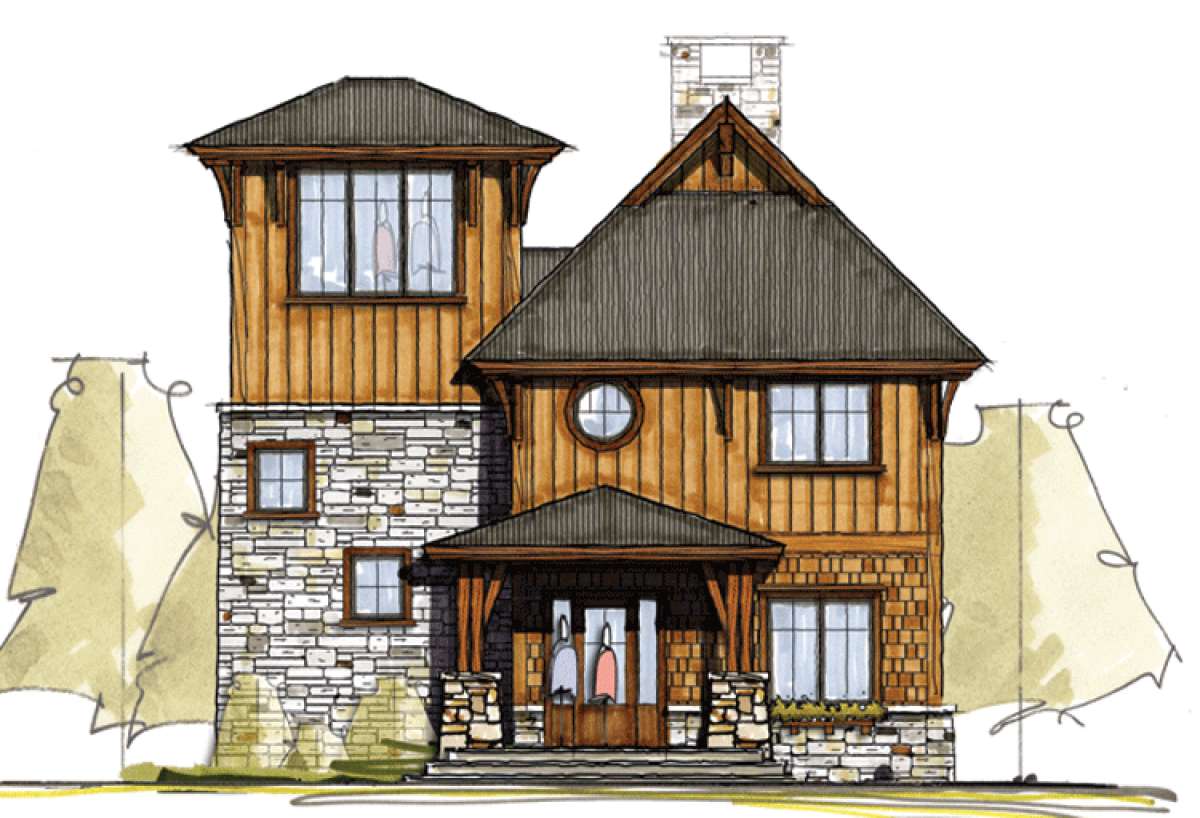

Great vertical height and eclectic exterior design elements outline the exterior of this Mountain house plan. This beautiful home boasts of an assortment of exterior elements which include cedar shakes, stone work, warm wood tones and a front covered entry. Approximately 2,232 square feet of usable living space line the interior and feature three bedrooms and three baths. The first floor of the home features an open layout, one of the three bedrooms and expansive rear and side outdoor space. The open concept floor plan features a large great room with a warming fireplace flanked on either side by French door access onto the rear covered porch. There is a spacious dining room, perfect for a farmhouse table, to comfortably seat guests and adjacent access to the side porch for dining al fresco. The grand kitchen is highlighted with a center island and casual dining space and the rear and back walls of the kitchen house modern amenities. The third bedroom suite features good floor space, a spacious closet and private access to the full bath. There is a laundry room, coat closet and second story staircase to complete the main level of the home. A detached two car garage features 624 square feet of space for vehicles and other gear storage.
The second story landing features a tower level sitting room boasting of unparalleled window views and hall access to the master suite. The master bedroom is a beautiful space with a warming fireplace and a double set of French doors lead to the private 20’x12’ covered porch, perfect for enjoying nature and quiet time. An attached walk-in closet and en suite bath accompany the master suite. There is a second bedroom suite with a private bath and plentiful closet space which could be used as a hobby/craft room or home office to completely transform the upstairs into a self-contained private oasis for the homeowner’s pleasure and comfort. This lovely rustic home offers luxurious accommodations, great outdoor space and a versatile interior floor plan.
