Mountain Plan 8318-00185

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,006
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 2
Width 42' 2"
Depth 53' 6"

Floorplan Drawings

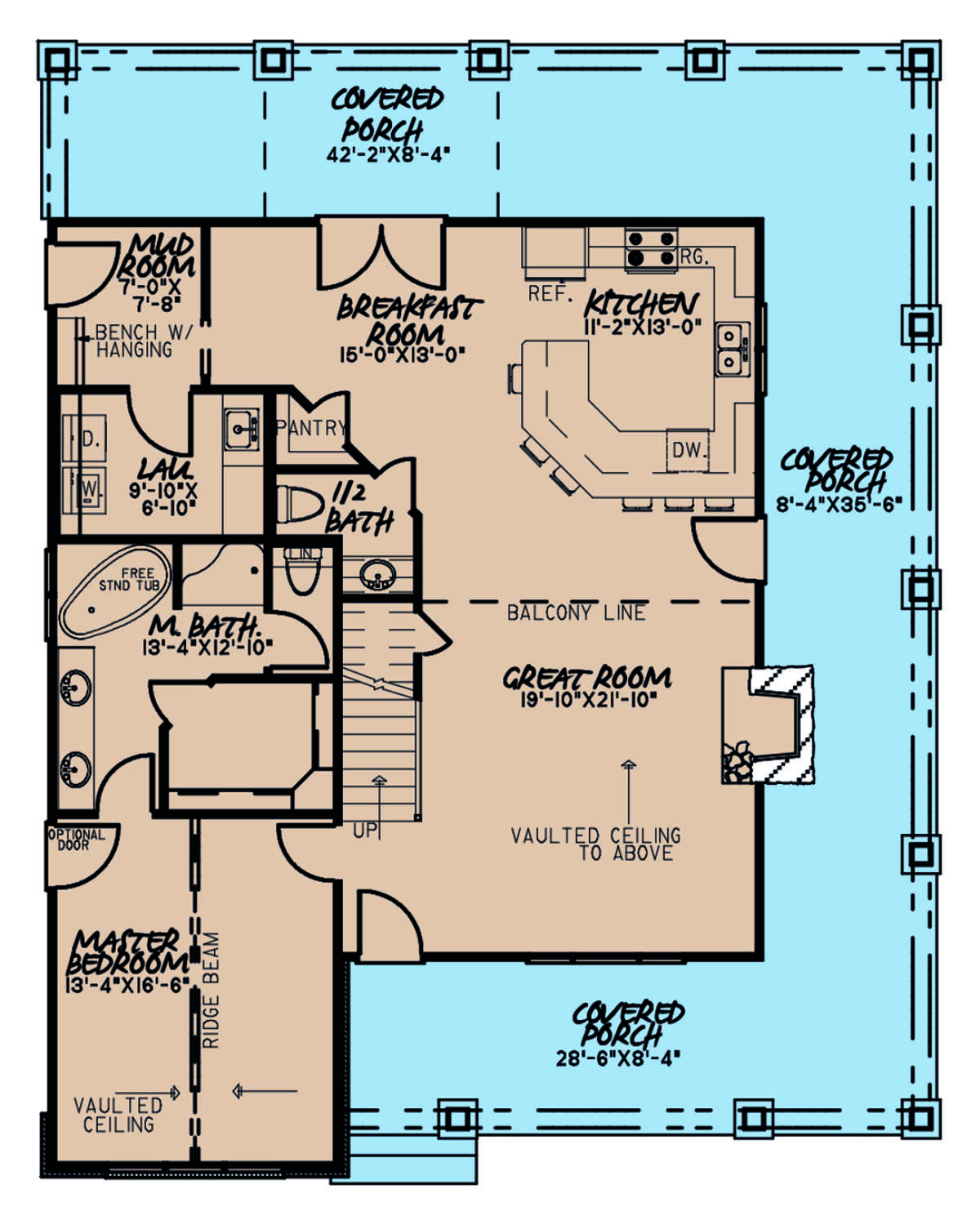

Main Floor
Main Floor for House Plan #8318-00185

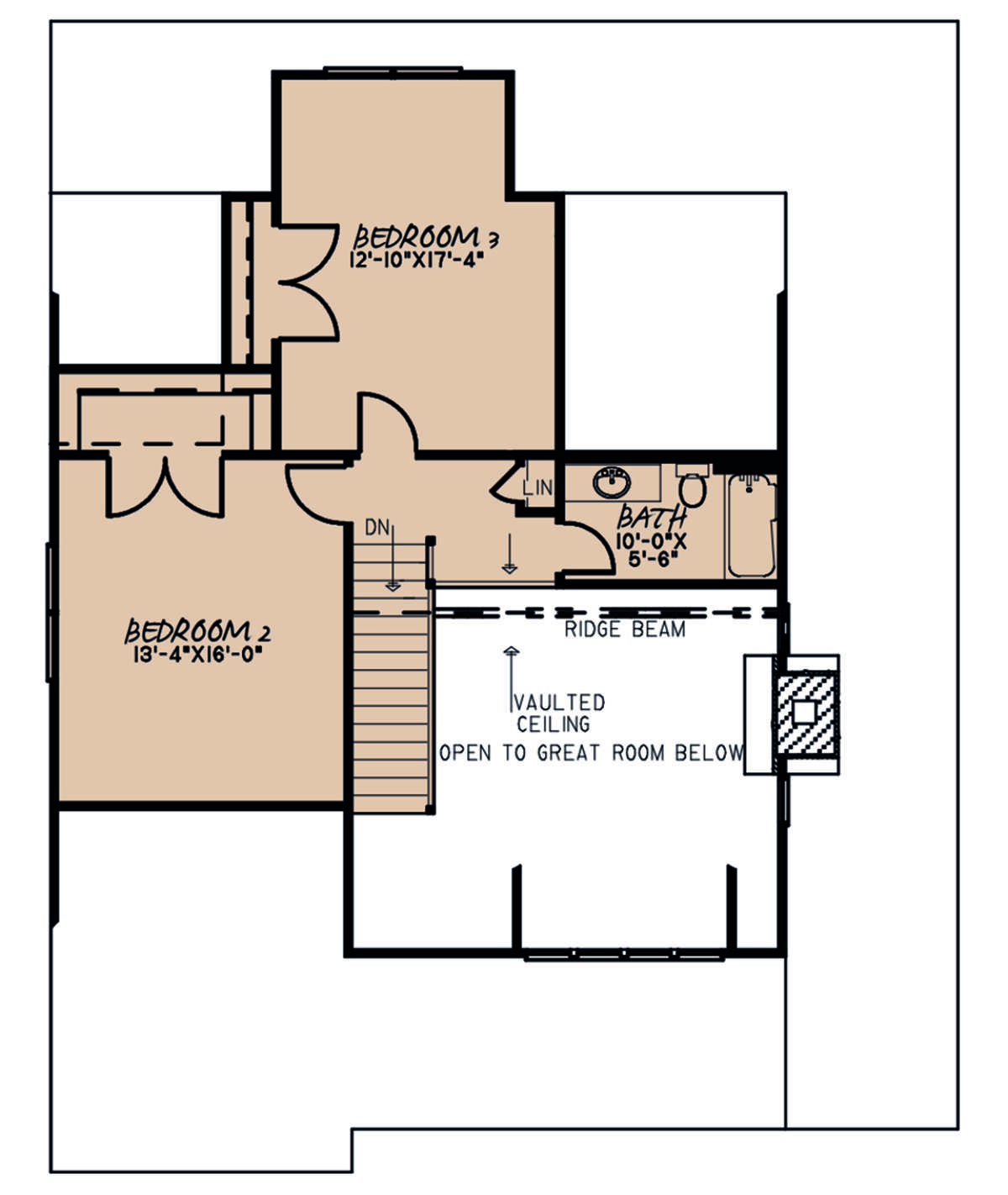

Second Floor
Second Floor for House Plan #8318-00185

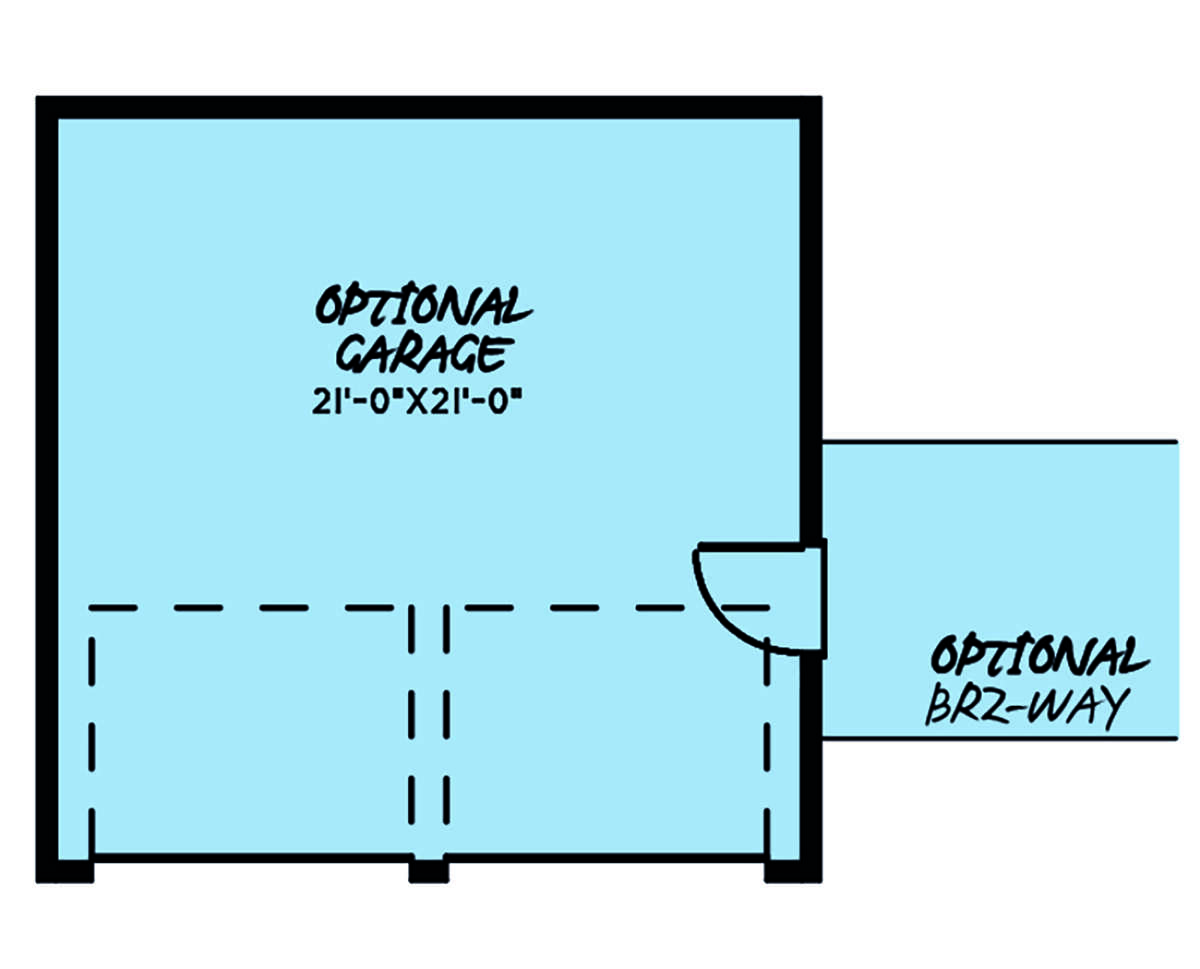

Detached Garage
Detached Garage for House Plan #8318-00185


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

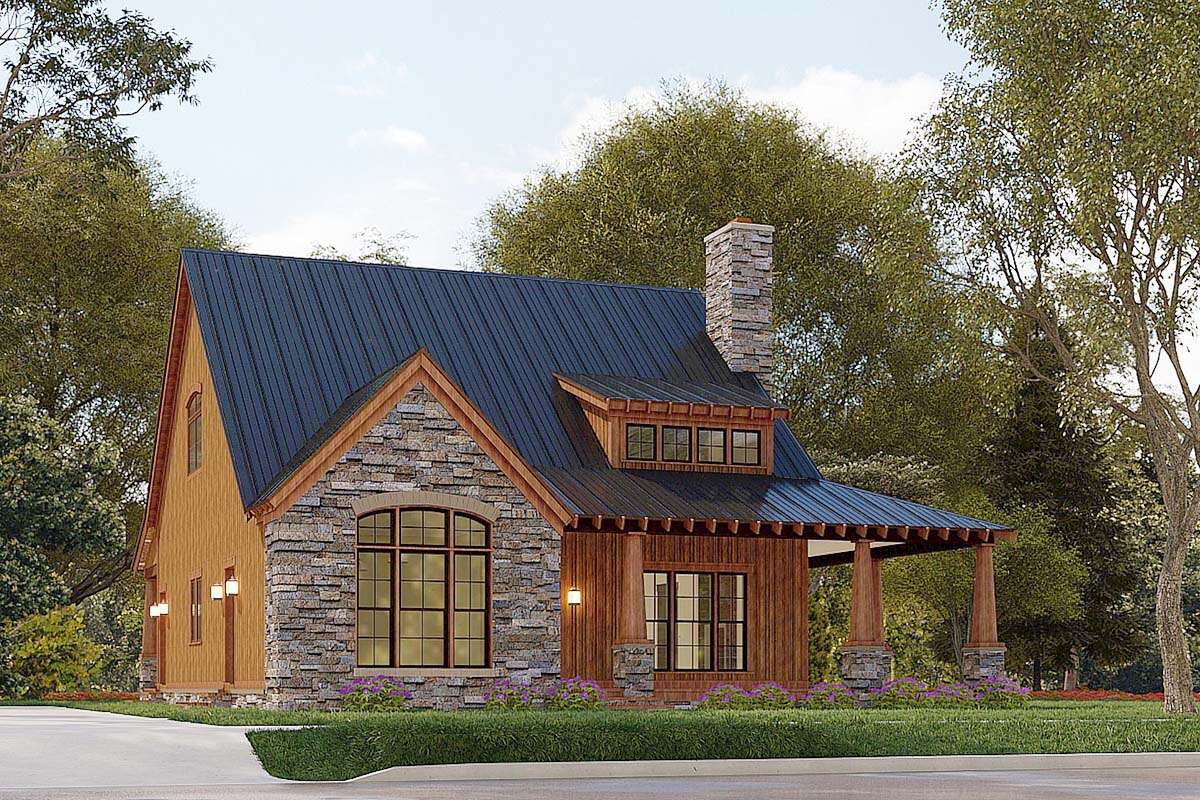

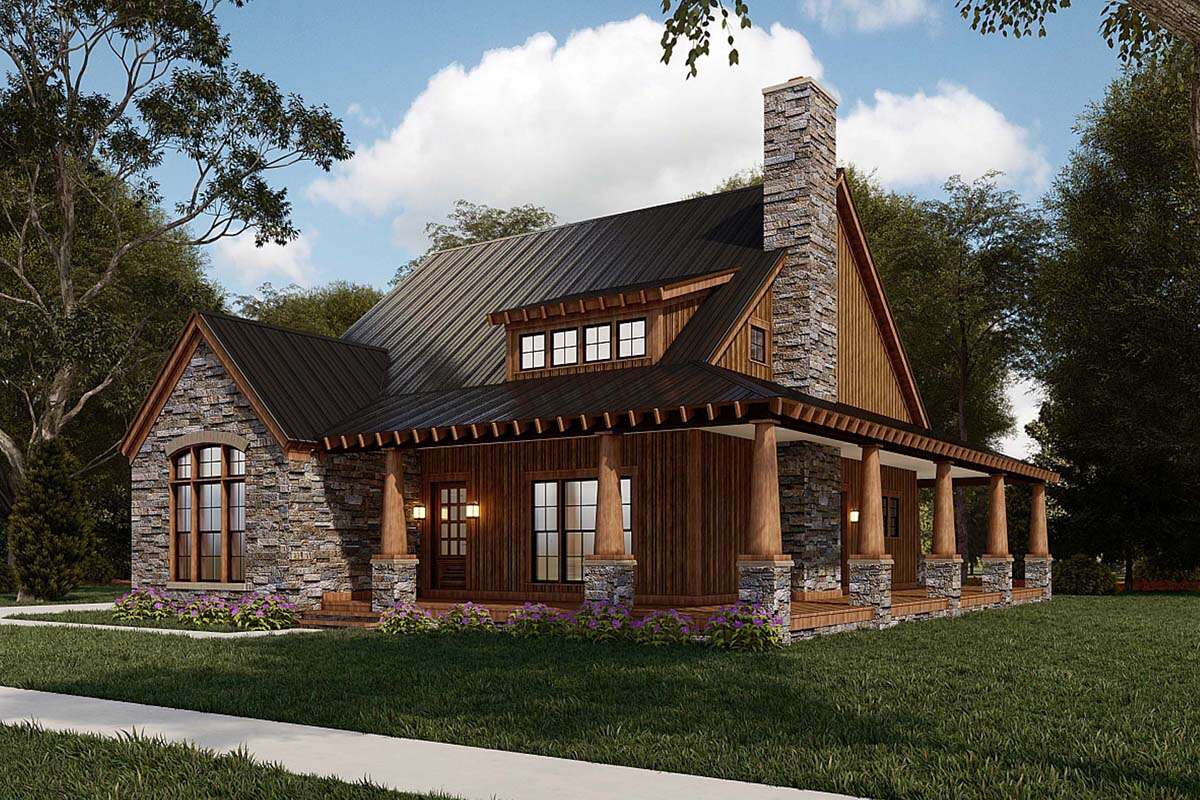

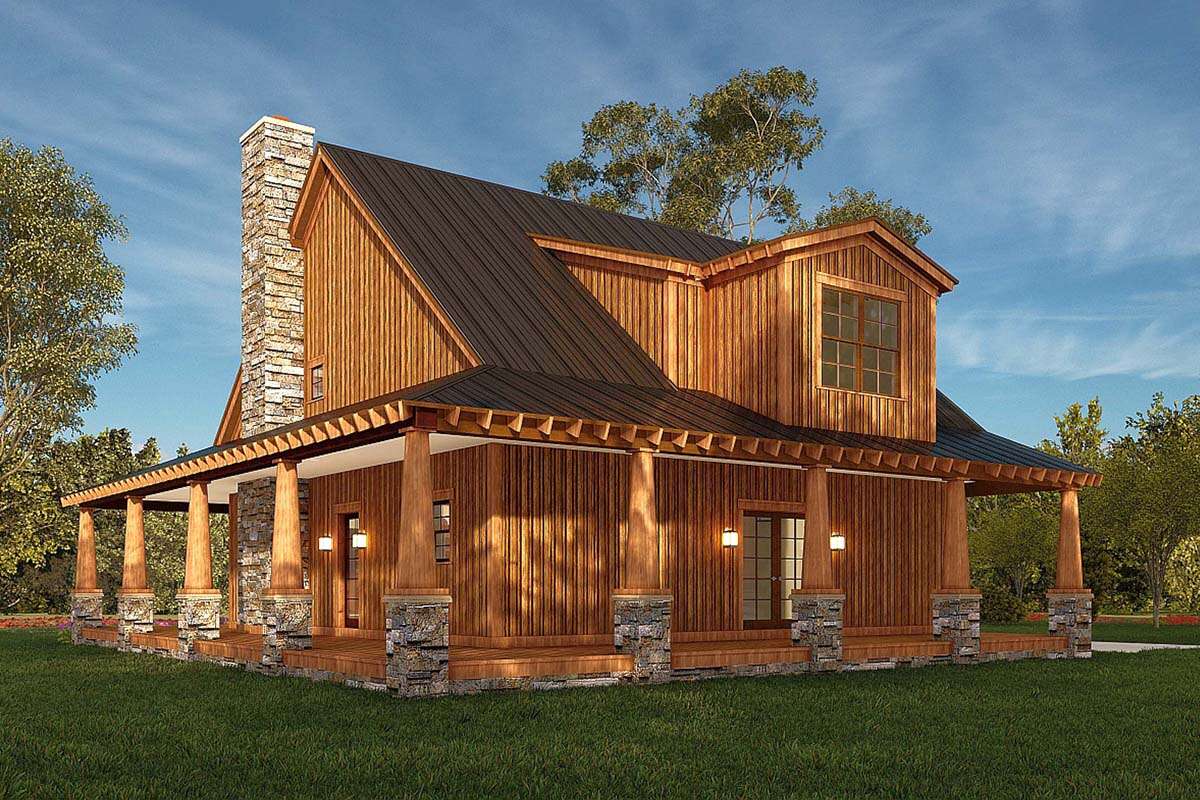

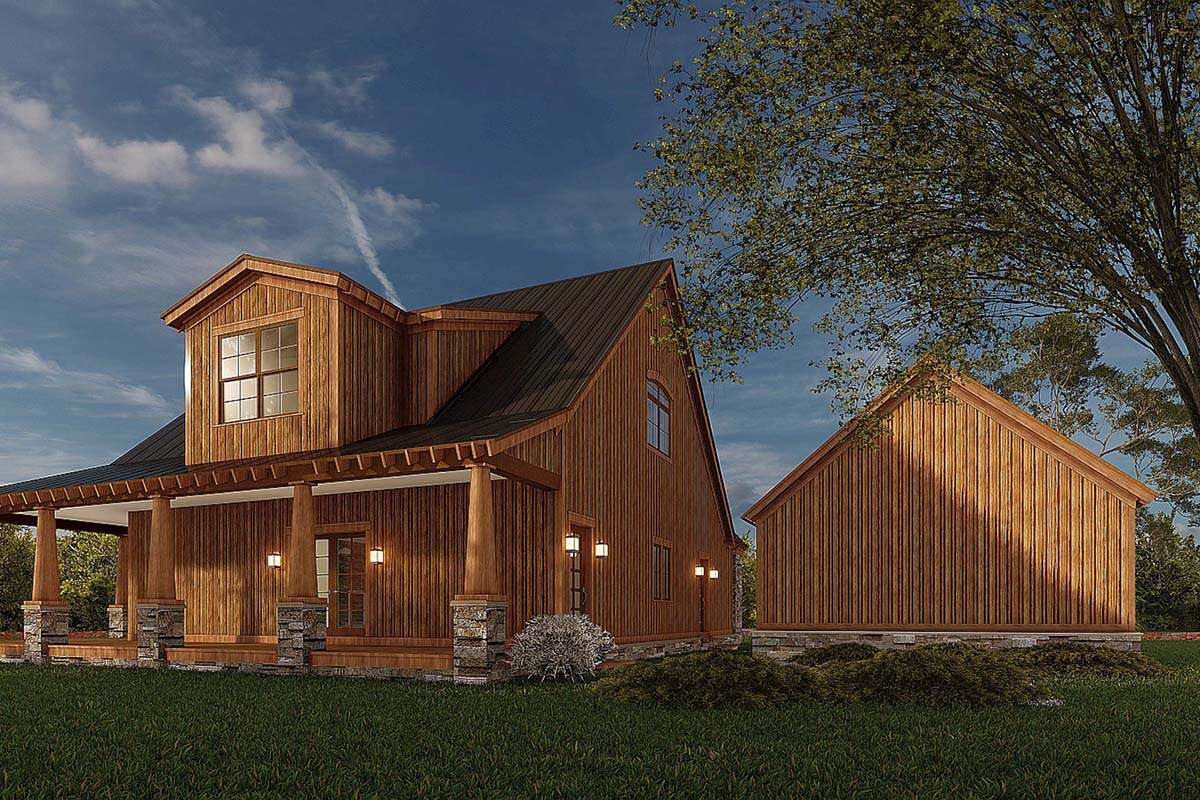

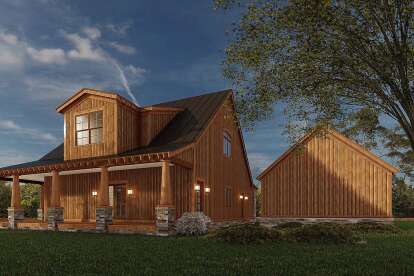

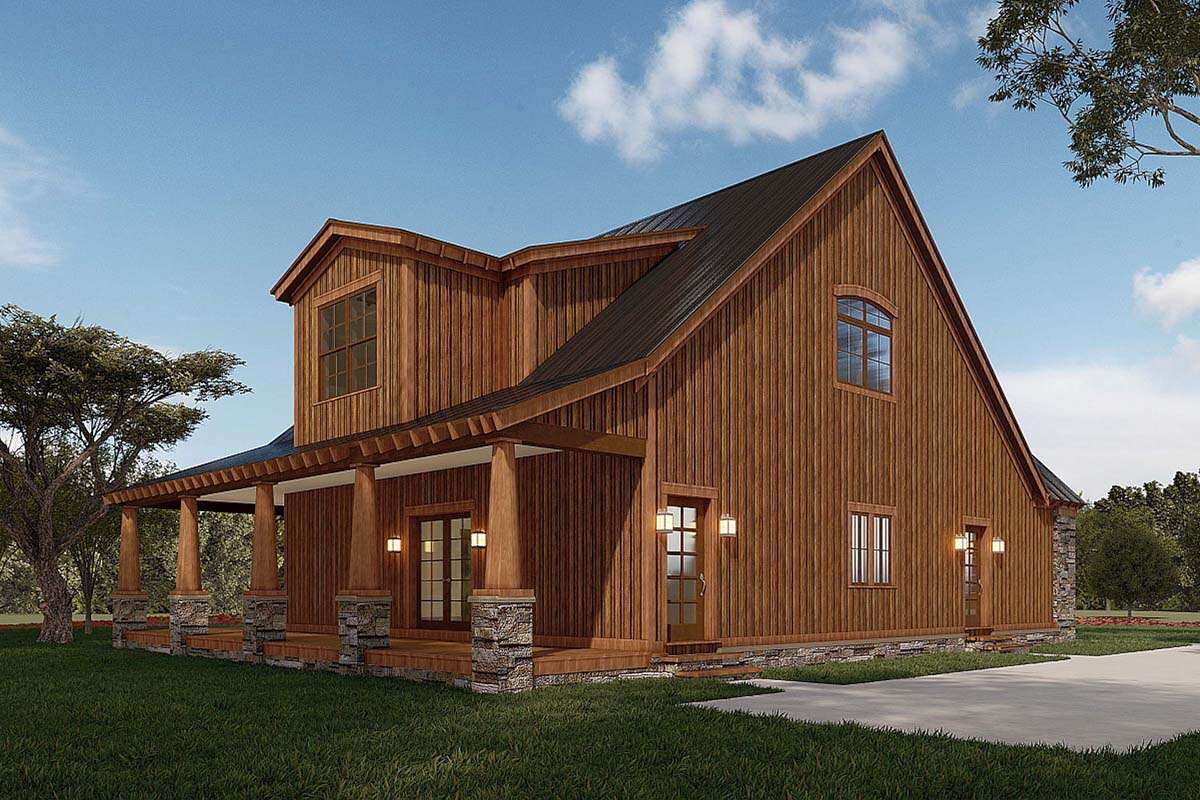

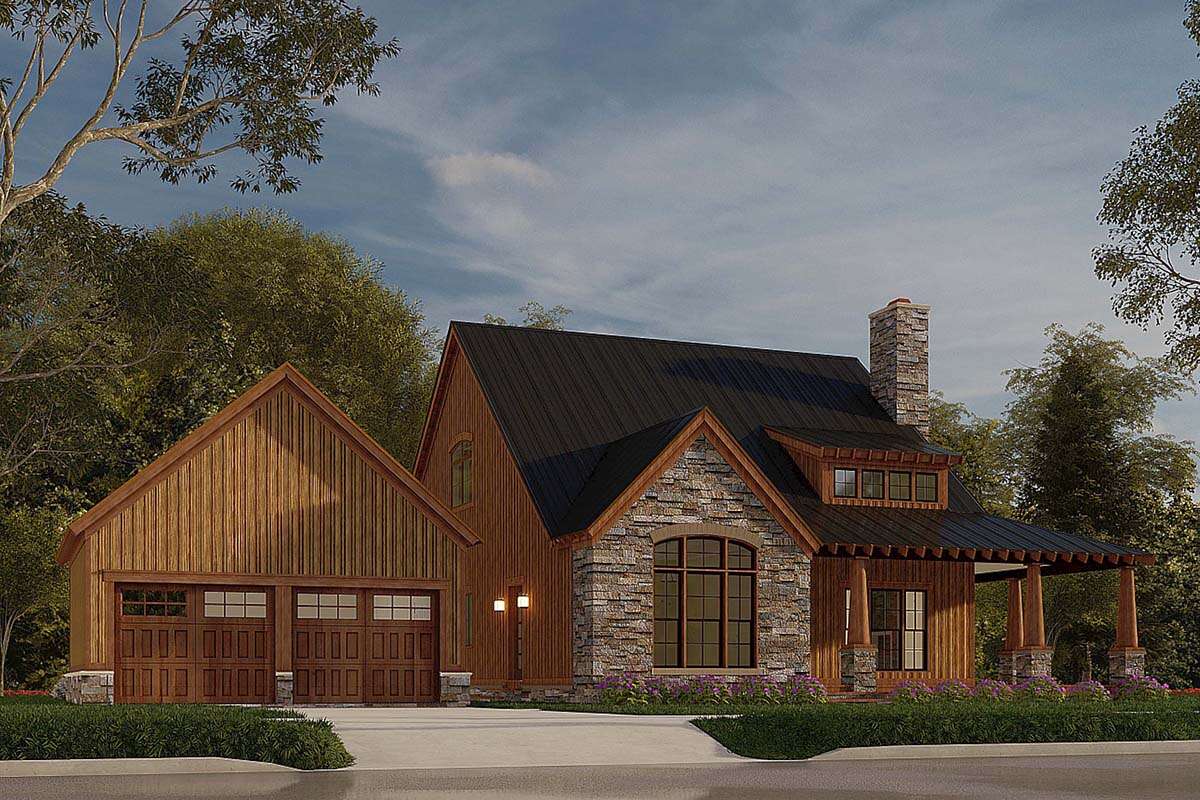

This attractive Mountain House Plan features a sturdy exterior with a stacked stone chimney, stone pillars and a front stone wall and gable. Warm woods surround the remainder of the home including atop the stone pillars, on the exterior walls and exposed rafters along with an overhead shed dormer for the ultimate in warmth and comfort. The wraparound porch mimics the wood, the exposed rafters, the stacked stone and the tapered beams around the side of the home and ends at the far side of the rear covered porch. This gorgeous exterior is completed by the addition of the optional two car detached garage; excellent space for vehicle and storage. Approximately 2,000 square feet of living space is found in the interior with three bedrooms and two plus baths.


The main living floor houses the owner’s suite, complete with a sizable bedroom with a center ridge beam, vaulted ceilings and access to the en suite bath and large walk-in closet. The elegant, attached bath features dual vanities, a freestanding tub, separate shower, and an enclosed toilet room. There is a half bath on the main floor for guests as well as a mudroom with exterior door access and a bench and hanging hooks for winter/outer gear. The laundry room is located directly off the mudroom room and features good space for the washer and dryer, a sink area and counter space. The main living spaces feature a large great room which is vaulted and showcases a warming fireplace while the kitchen and breakfast room both feature outdoor access onto the side and rear covered porch. The kitchen also provides a separate pantry and there is a large wraparound breakfast bar for additional seating and dining space. Upstairs are the two secondary bedrooms; both are oversized with plentiful closet space and there is an endcap shared hall bath with vanity space, a toilet area, and a tub/shower combination.
