Mountain Plan 039-00144

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,811
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 2
Width 28'
Depth 44'

Floorplan Drawings

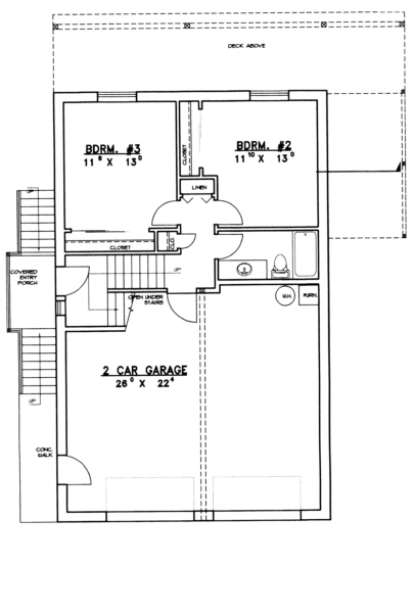

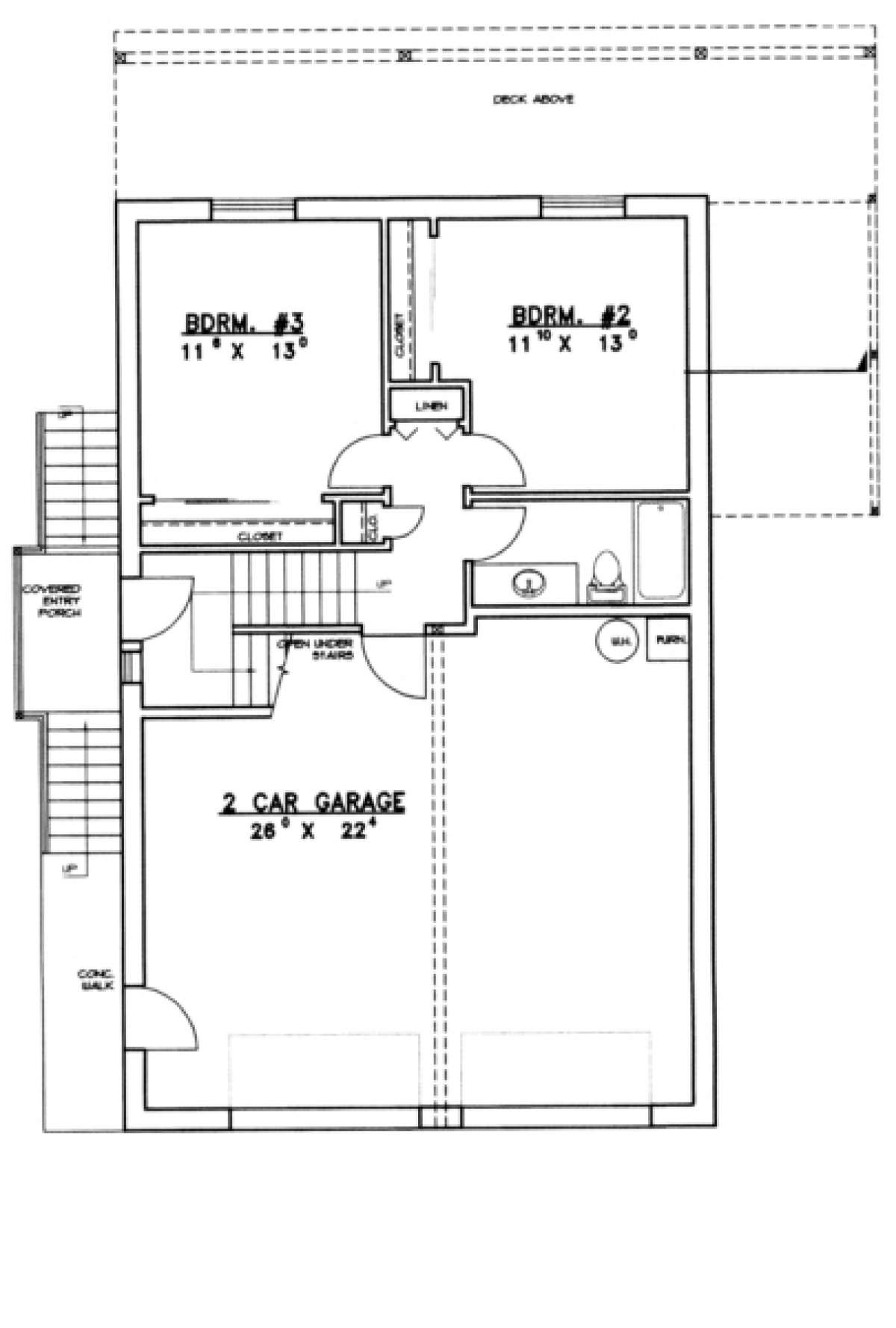

Basement Floor
Basement Floor for House Plan #039-00144

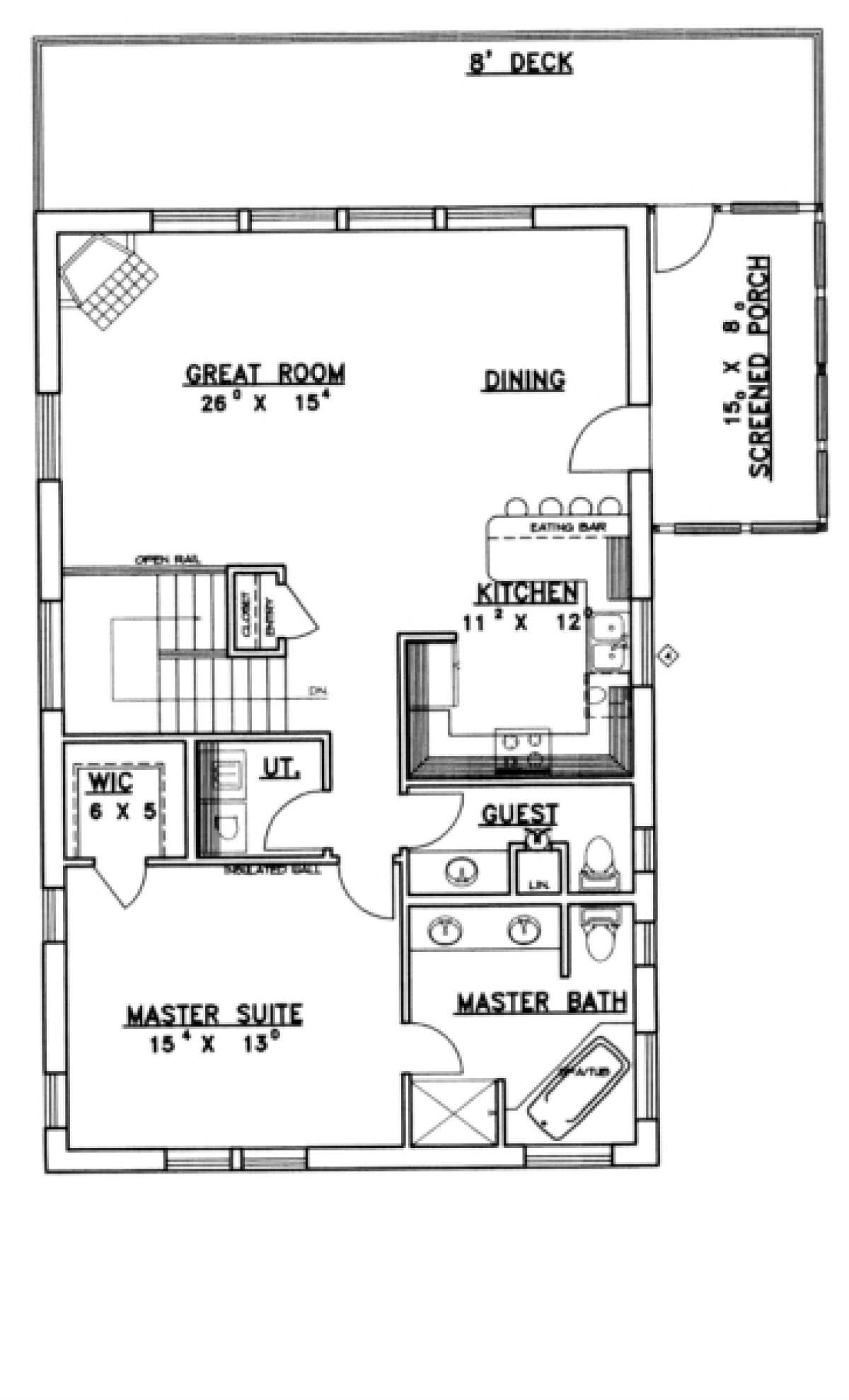

Main Floor
Main Floor for House Plan #039-00144


What's Included in these plans?

  • Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
  • Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
  • Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
  • Upper floor framing plans are included with two story homes or homes with lofts.
  • The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
  • Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
  • Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
  • General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.




Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

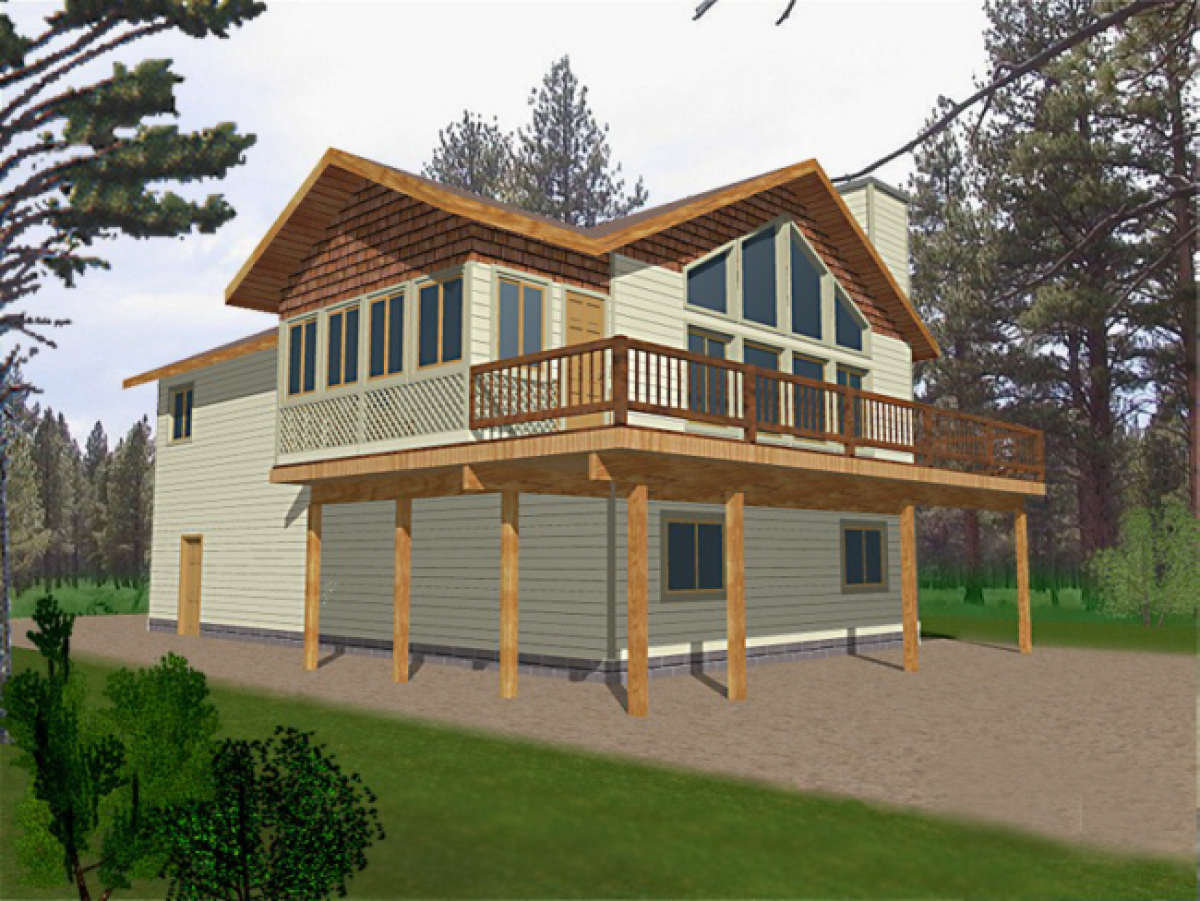

A great Narrow lot house plan with its 28’ width dimension, and the depth is only 44’, is featured in this house design. Perfect for either a permanent residence or vacation get-away, this house plan is highlighted with exterior features designed to enjoy the great outdoors and would fit nicely on either a mountain or lakefront property lot. There is horizontal siding, warm woods and plentiful outdoor space along with amazing window views that span floor-to-ceiling. The outdoor space offers an open deck for those sunny days as well as a screened in porch for weather cover; the deck extends beyond the width of the home to access the screen porch which is also ideal for entertaining large gatherings of family and friends. The interior floor plan offers approximately 1,811 square feet of living space with three bedrooms and two plus baths on two floors. There is a drive under two car garage with a separate covered entry porch and a pedestrian door as well for easy storage of lawn and sporting equipment. The terrace level also includes two bedrooms; both are almost equivalently sized, feature window views and provide wall-to-wall closets. There is a hall linen closet and a shared hall bath which features a large vanity, a toilet area and a tub/shower combination. The main floor of the home features a large open floor plan and the private master suite. The great room is spacious, offers a corner fireplace and a rear wall of window views. The adjacent dining room features good space for family dining and access to the screened porch where dining al fresco will be effortless and enjoyable. The kitchen is highlighted with a peninsula bar for casual dining, double sink window views and wraparound counter and cabinet space. The utility room is located on this floor as well as a large guest powder room. The master suite is a nice compilation of rooms; the master bedroom is spacious with an abundance of window views and an attached master walk-in closet. Dual sinks, a toilet area, corner garden tub and a separate shower are offered in the master bath. This home features great outdoor space, a nice family layout and plenty of entertaining space, both indoors and out.
