Cabin Plan 035-00349

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,145
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 86'
Depth 56'

Floorplan Drawings

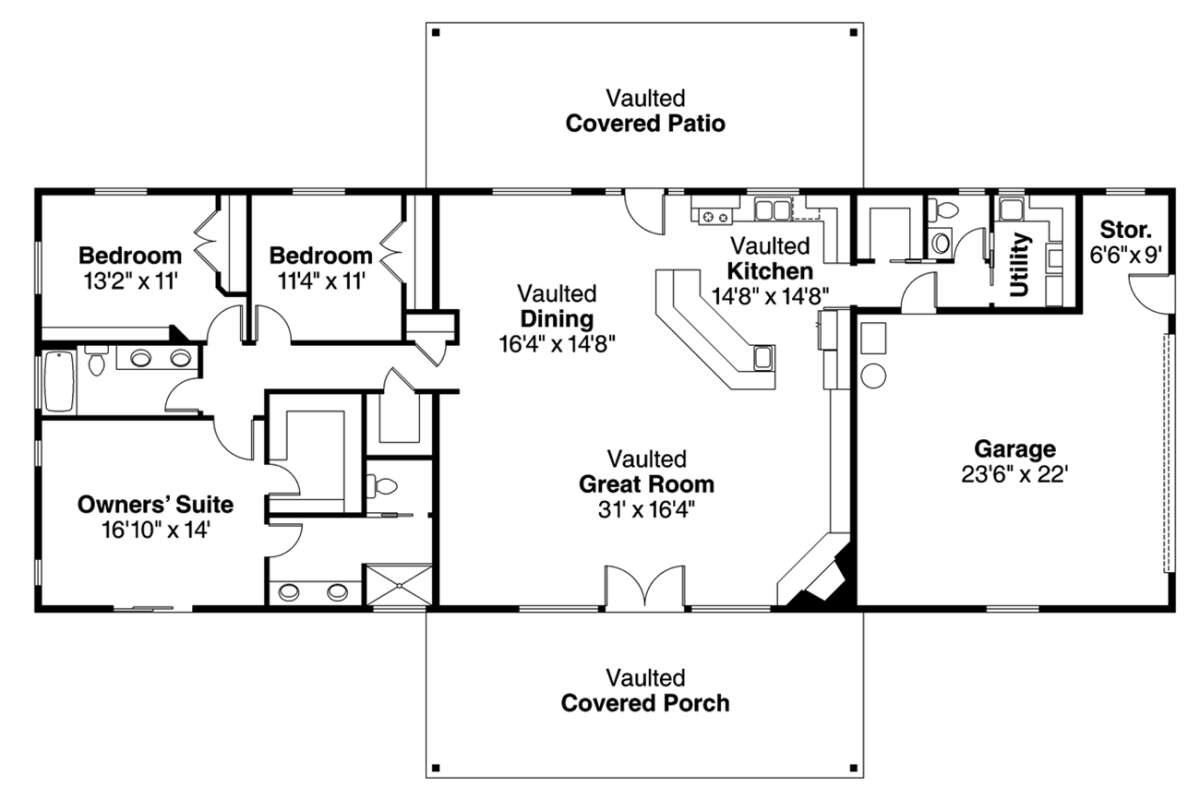

Main Floor
Main Floor  for House Plan #035-00349

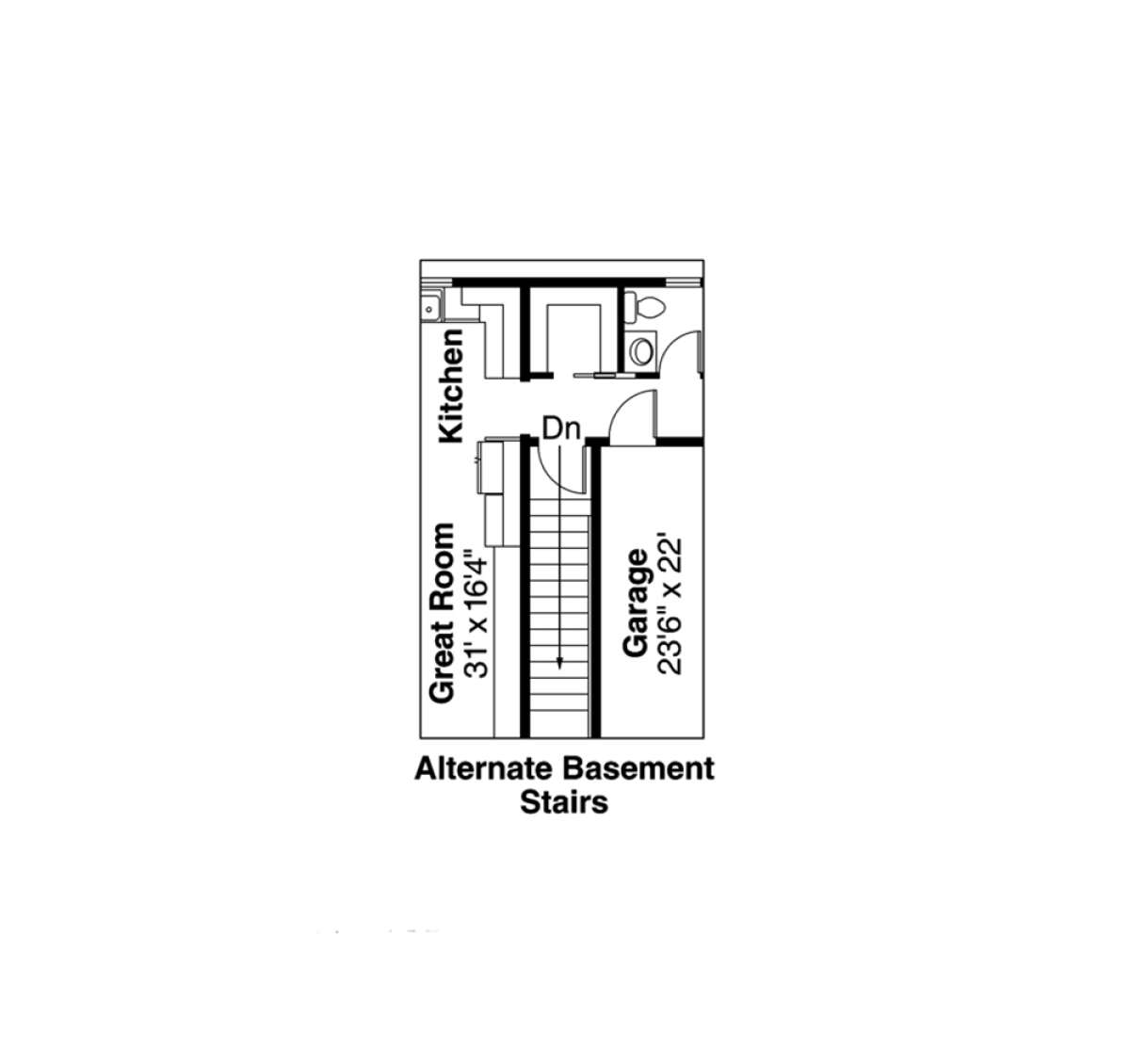

Basement Stairs Location
Basement Stairs Location for House Plan #035-00349


What's Included in these plans?

  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
  • *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
  • *Single Build License is included with plan packages of 5 sets or more.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

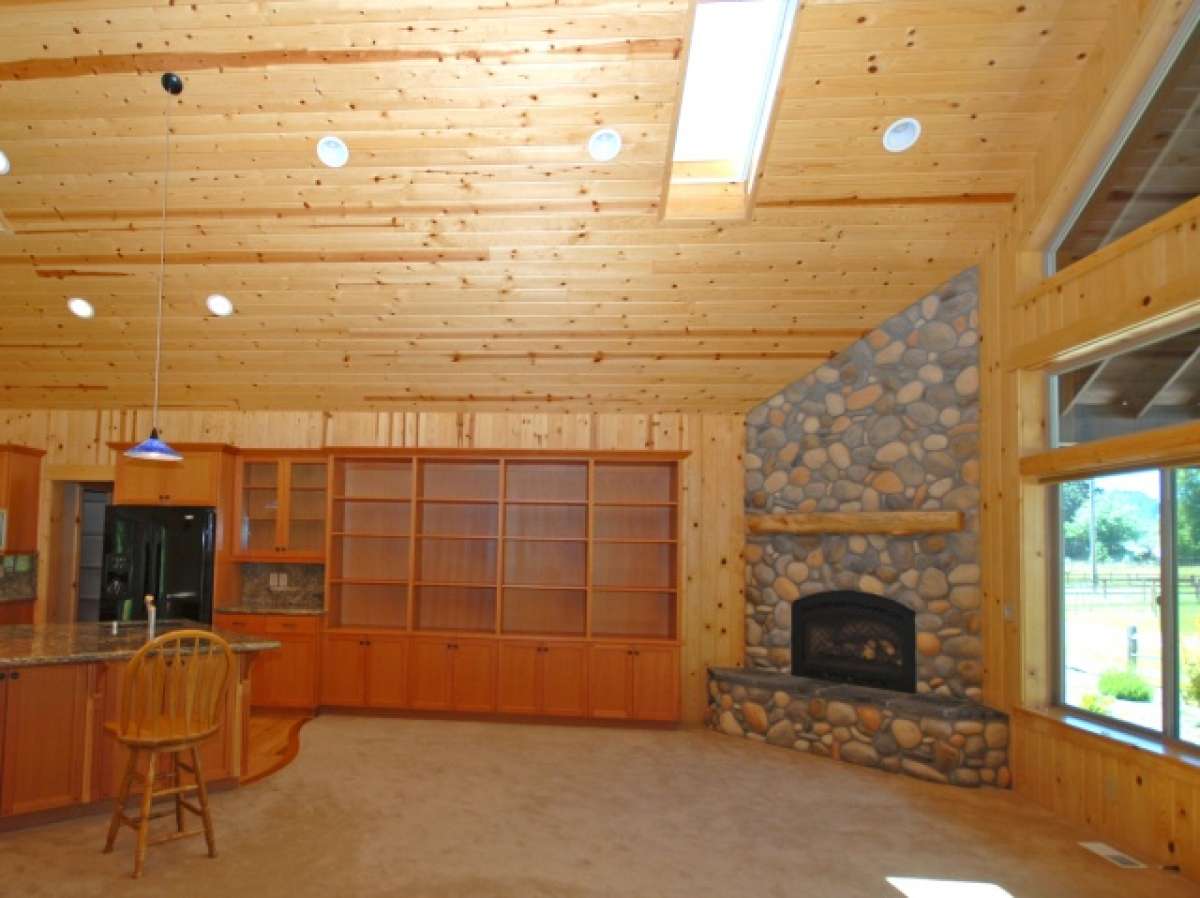

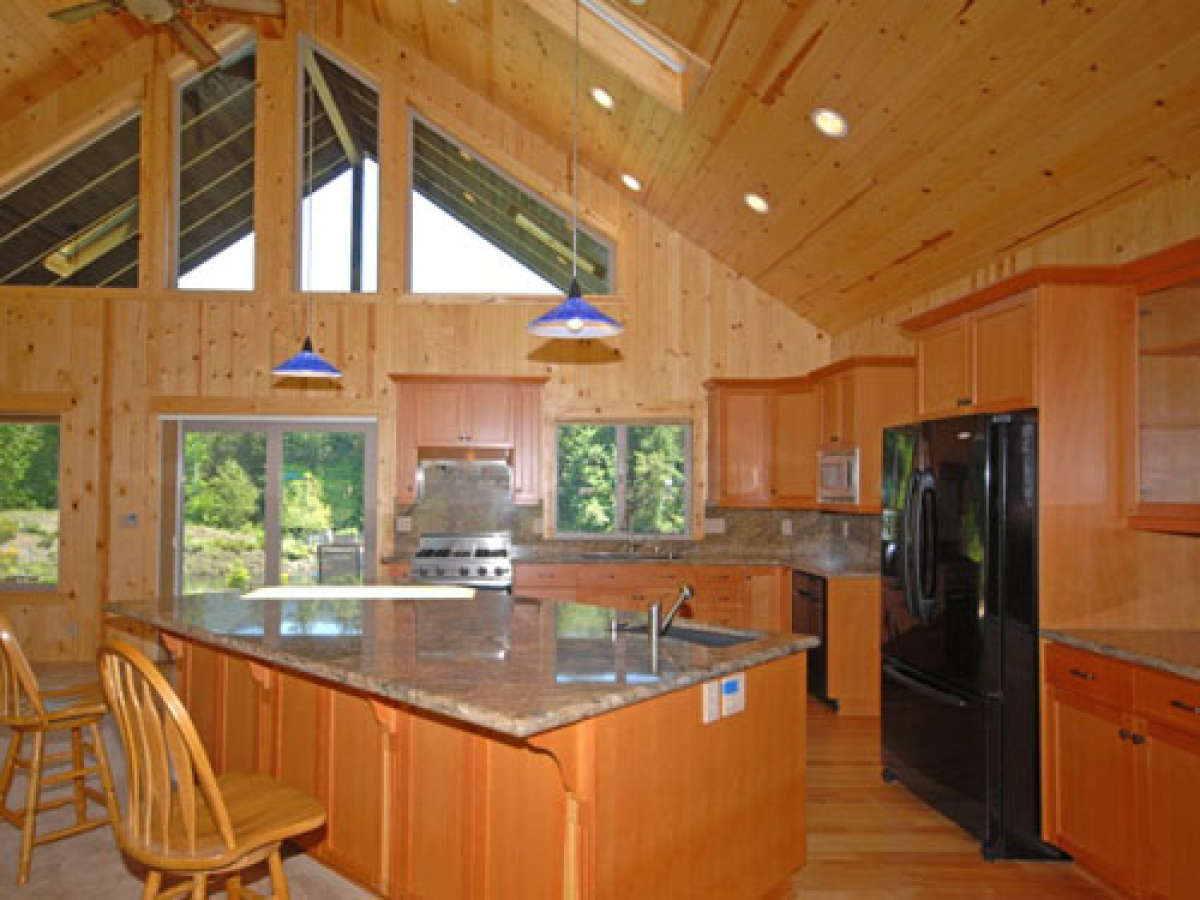

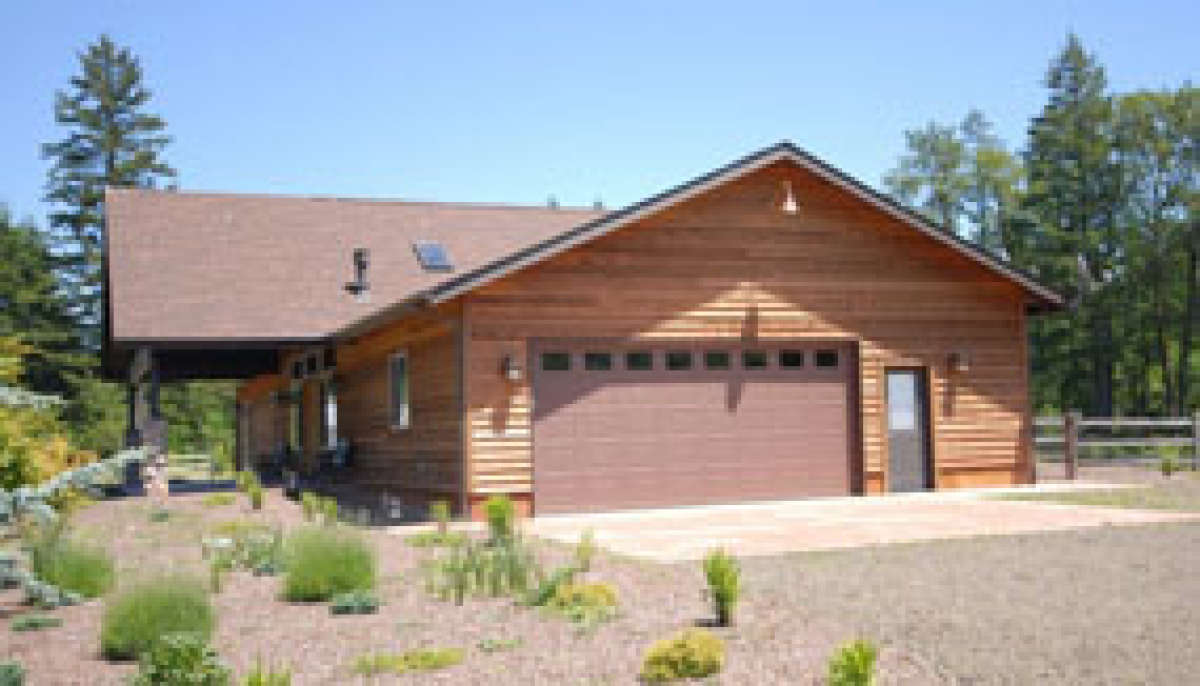

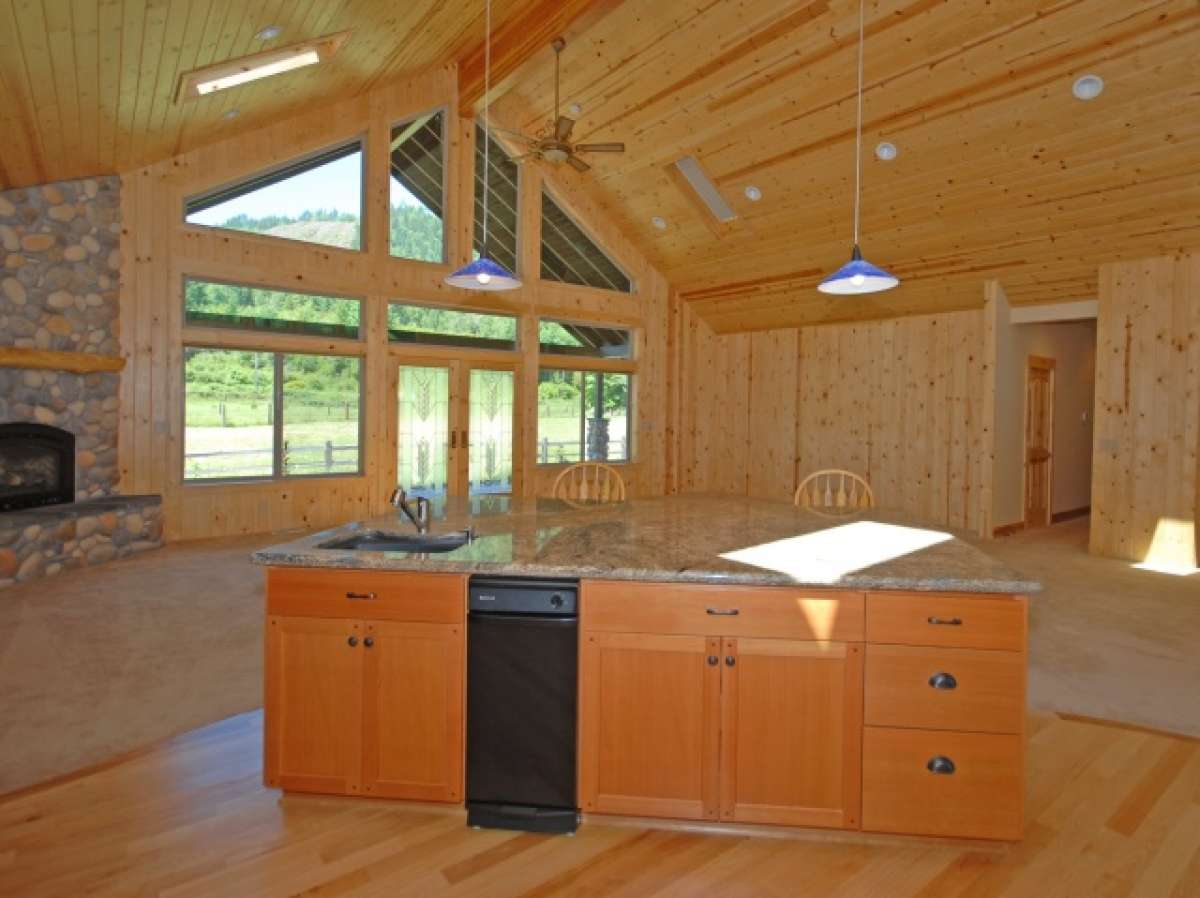

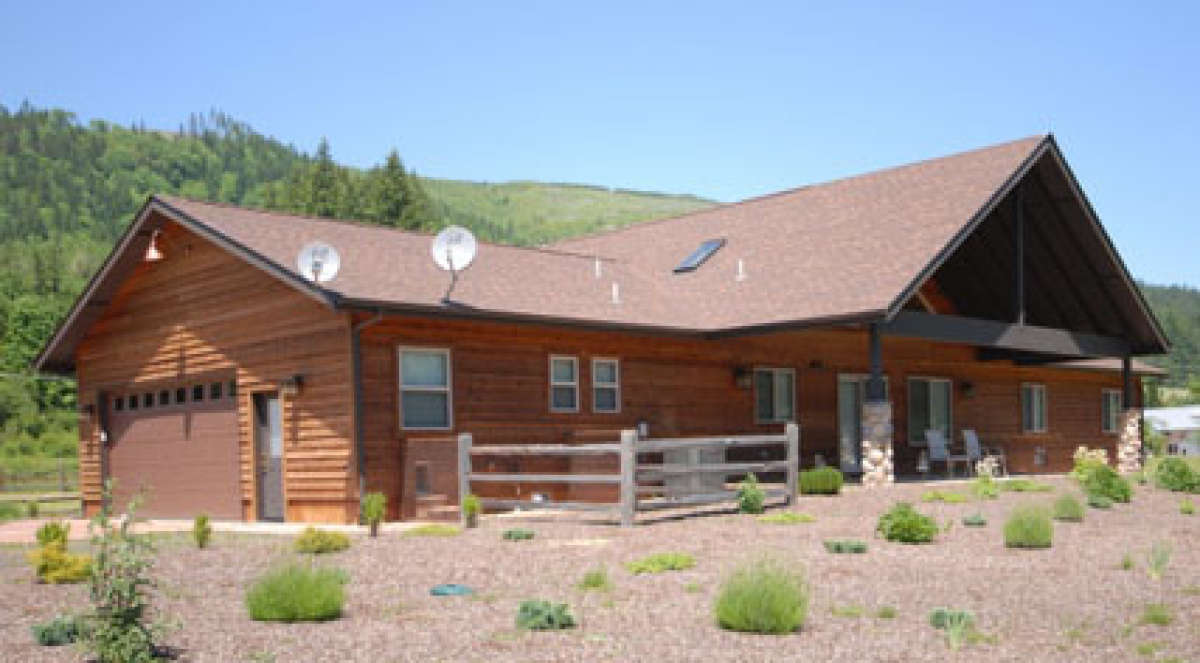

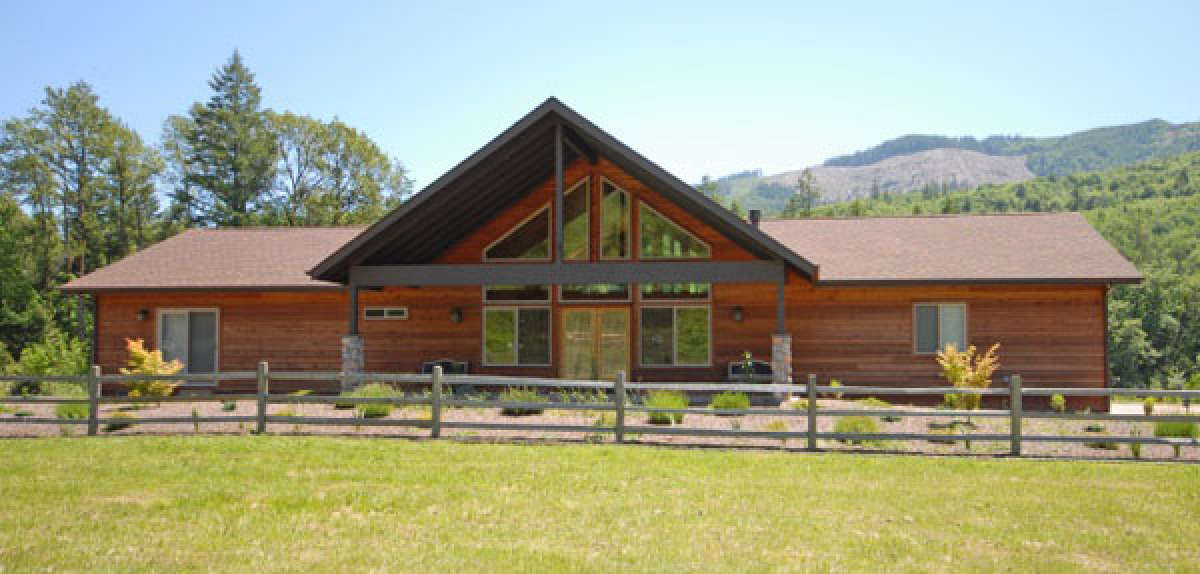

This beautifully designed one story Cabin house plan features a lovely exterior and practical interior layout for family living. The abundance of window views adds texture and architectural interest to both the interior and exterior of the plan while providing a sunlit interior. There is a dramatic, extended overhead gable with warm woods, decorative detailing and shelter for the extended front porch. This is a great spot for relaxing and/or greeting family and friends in comfort and style. The interior layout is situated on one floor and offers an open floor plan, three bedrooms and two plus baths within approximately 2,145 square feet of living space. The two car side loading garage is located on one end of the home and features plenty of vehicle and storage space as well as a pedestrian door for the easy loading/unloading of sporting and lawn equipment. Double door entry into the main entrance of the home reveals the open floor plan where there is a vaulted great room with a corner fireplace and those gorgeously captivating window views. Both the dining room and kitchen are open to the great room and both feature vaulted ceilings as well. The dining room is highlighted with rear window views and there is access to the matching rear covered porch; great private space for relaxing, entertaining or family fun and cook-outs. The gourmet kitchen features an angled breakfast bar, additional counter and cabinet space and double sink window views. Down the hallway to the garage is a walk-in pantry/storage area, a half bath and the family laundry room.

The three bedrooms and two bathrooms are on the opposite side of the home and two closets line the hallway; one for linens/storage and the other is a coat closet. Bedrooms one and two are spacious; each with window views and plentiful closet space. The shared hall bath is nearby and features double sinks, a toilet area and a tub/shower combination. The owner’s suite lies across the hallway and is highlighted with a large master bedroom, wonderful window views and an attached walk-in closet. The en suite bath is highlighted with dual vanities, a toilet area and a shower. This Cabin house design features a handsome exterior, great outdoor entertaining and family space and a practical floor plan.
