Cabin Plan 035-00064

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,735
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 76'
Depth 64'

Floorplan Drawings

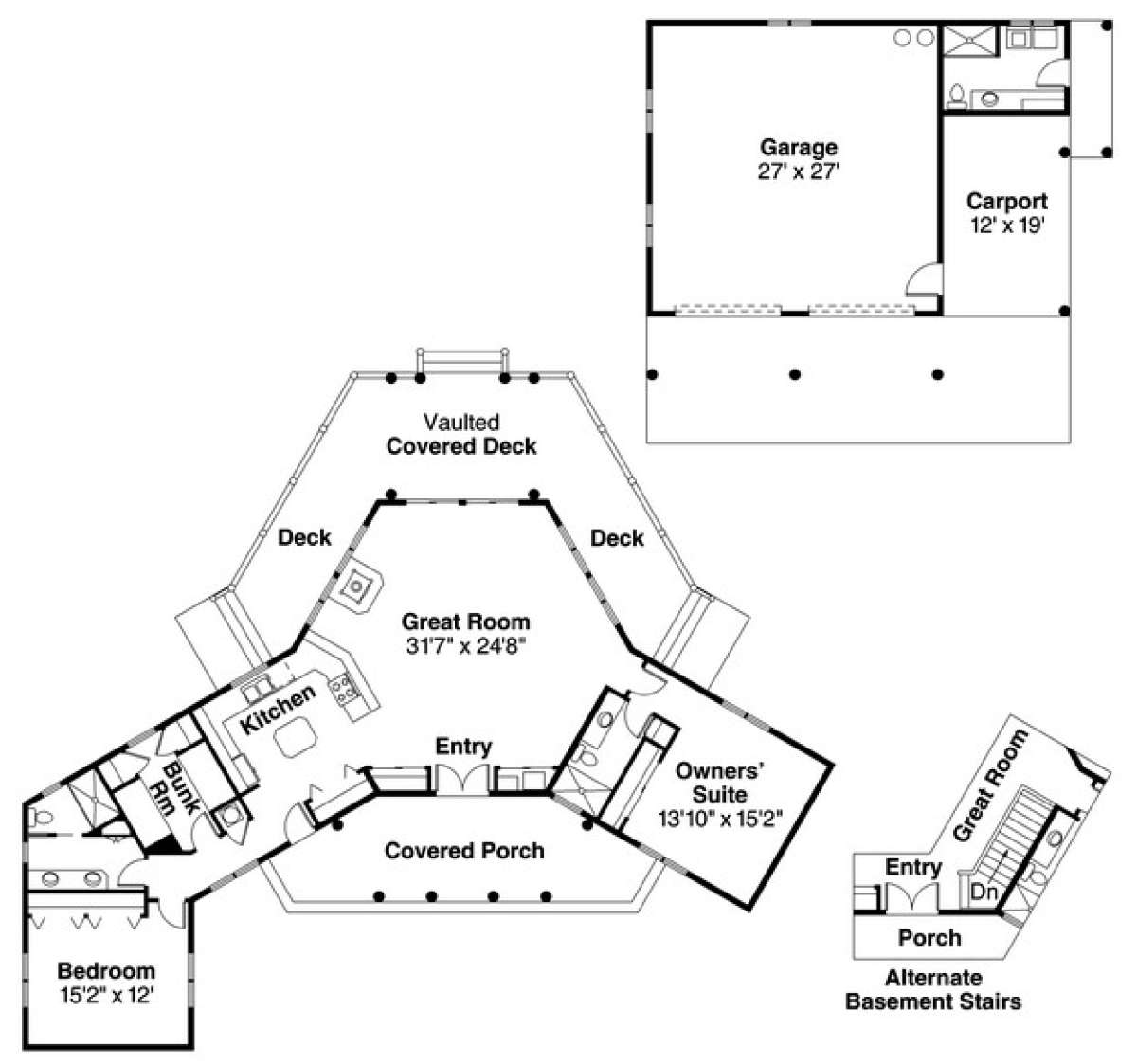

Floorplan 1
Floorplan 1 for House Plan #035-00064


What's Included in these plans?

  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.

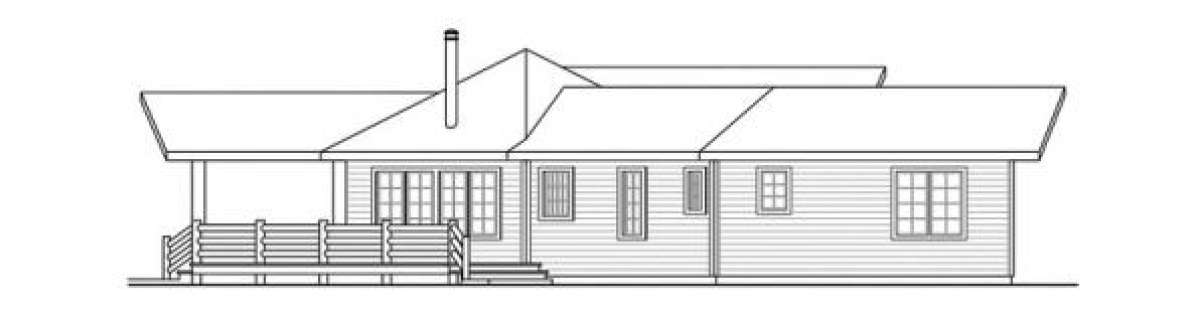

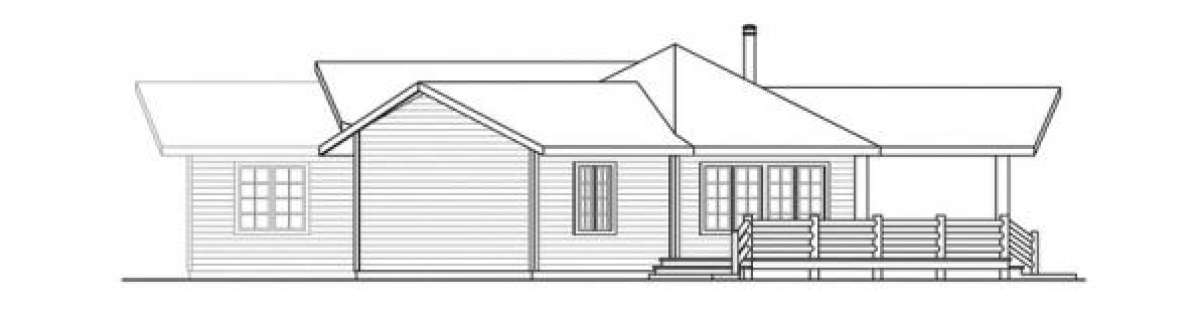

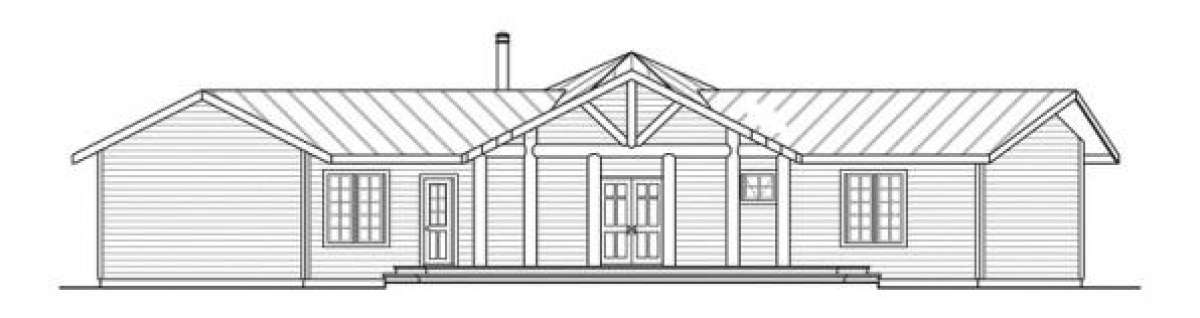

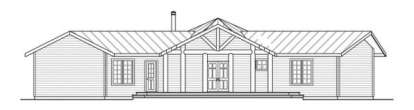

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
  • *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
  • *Single Build License is included with plan packages of 5 sets or more.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Cabin house plan features an elongated exterior, a detached garage and a single level floor plan. The façade of the home is highlighted with warm woods, a simple roofline and a covered porch with double sided staircases. The front porch offers wood railing, an overhead gable and double door entry into the home’s interior. Approximately 1,735 square feet of living space is available with three bedrooms, two baths and an open floor plan. The plan’s foundation features a choice of either a crawl space or unfinished basement; the unfinished basement being an obvious choice for future expansion possibilities. The detached two car garage has in excess of 890 square feet; great space for vehicles and storage. There is also a single vehicle carport for additional parking space as well as a full bathroom with an extended vanity, a toilet area, shower and space for the washer and dryer.

The main house features a lovely entrance provided by the double doors into the home where an open floor plan is revealed. There is a massive great room, measuring in excess of 31’ x 24’ with a warming fireplace and double exit/entry points onto the outdoor space. A vaulted covered deck and the adjoining side open decks provide an enormous amount of entertaining space where cook-outs, relaxing and hosting family and friends will be both enjoyable and effortless. The grand kitchen is open to the great room and is highlighted with a peninsula bar, perfect for casual dining. The U-shaped kitchen also features double sink window views, a separate pantry, plenty of additional counter and cabinet space and separate access onto the front covered porch. The split bedroom plan is highlighted with a master suite located on one side of the home for privacy and convenience. Within the suite, is a master bedroom with wonderful window views and wall-to-wall closet space. The en suite bath provides a large vanity, a toilet area and a shower. The remaining bedrooms and bath are situated on the opposite side of the home. A bunk room offers space for an assortment of sleeping arrangements; bunk beds, a single bed or numerous arrangements for sleeping a crowd efficiently and there are double closets as well as window views within the space. The third bedroom has generous floor space, plentiful closet space and two sets of double window views. A shared hall bath lies between the two bedrooms which features dual vanity sinks, a toilet area and a tub/shower combination. This stylish and versatile house plan is highlighted with a rustic exterior, an efficient floor plan with minimal waste and great outdoor space designed to take advantage of all “Mother Nature” has to offer.
