Cottage House Plan 8504-00067

Sq Ft1,710
Beds3
Baths3
1/2 Baths0
Stories2
Cars2
Width26' 0"
Depth56' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00067
Floorplan 2 for House Plan #8504-00067
Garage for House Plan #8504-00067

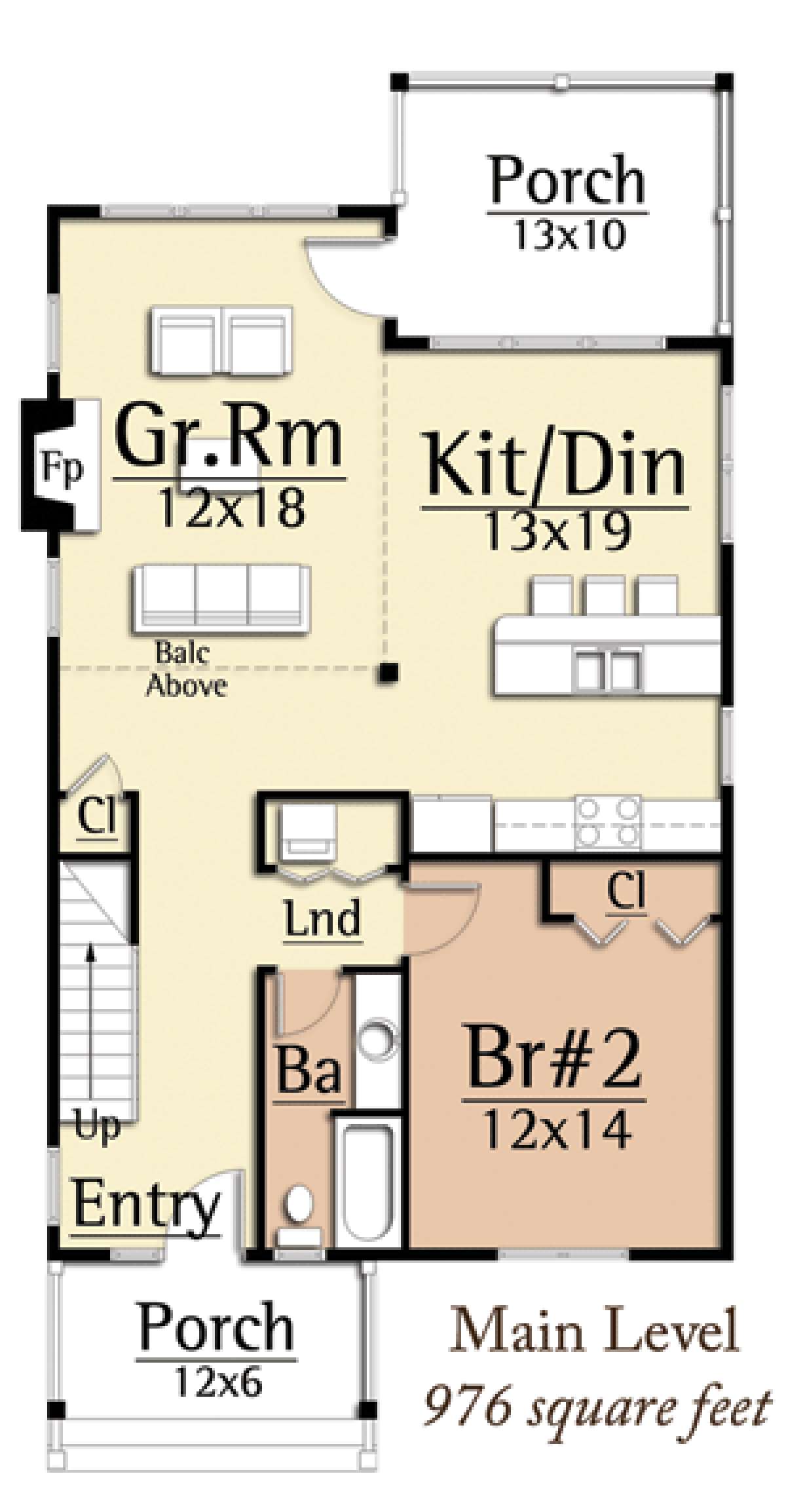

Floorplan 1
Floorplan 1 for House Plan #8504-00067

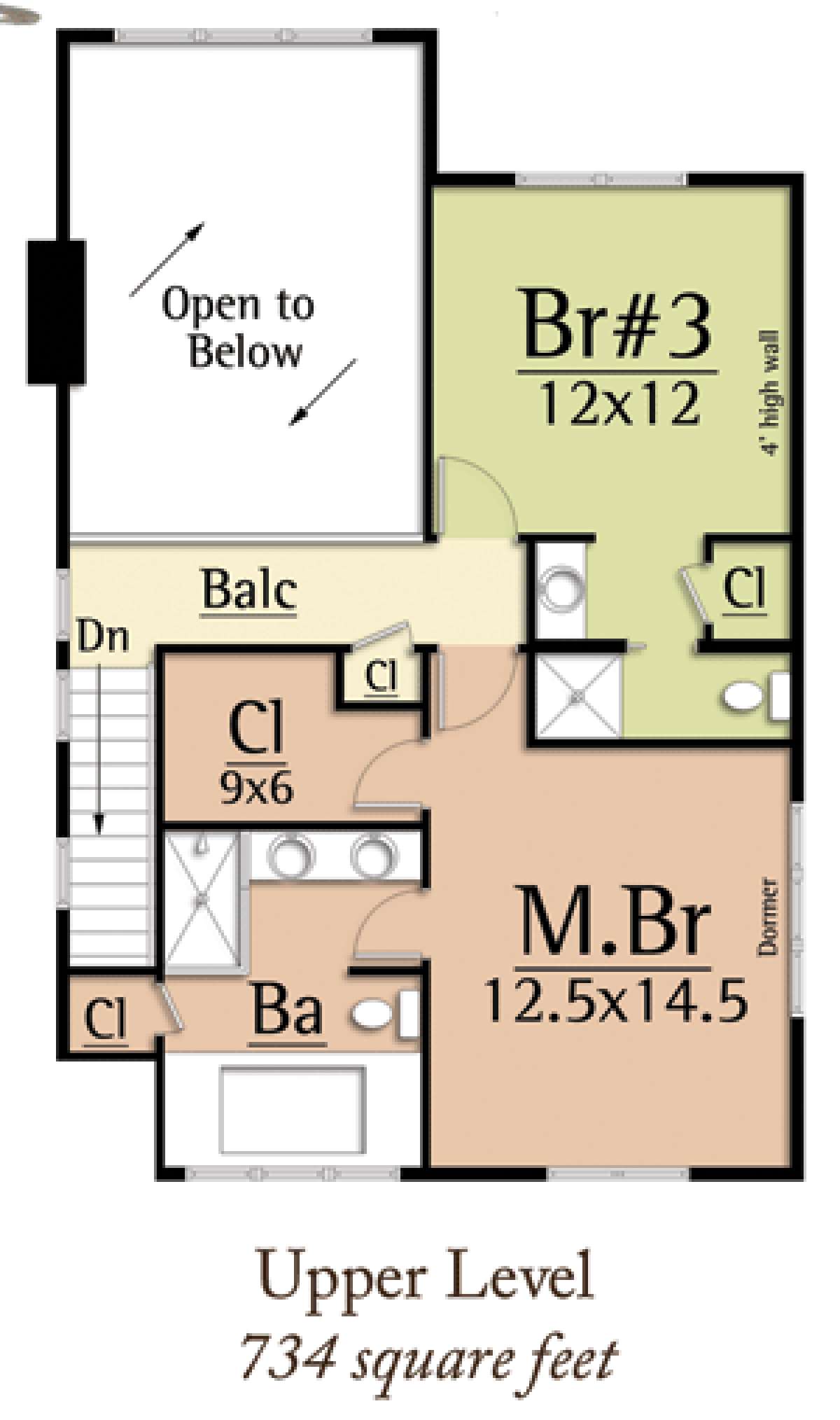

Floorplan 2
Floorplan 2 for House Plan #8504-00067
Garage
Garage for House Plan #8504-00067


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

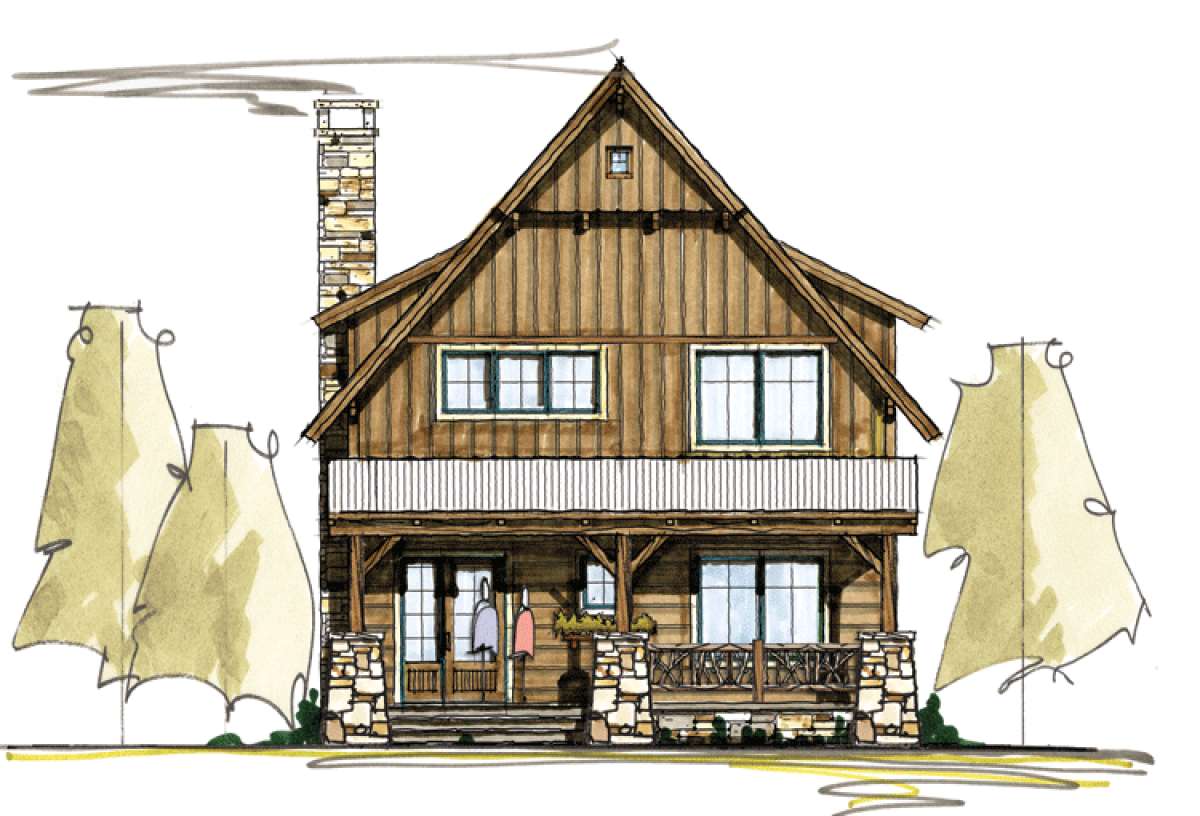

This Cottage house plan features a lovely lodge design exterior with massive curb appeal. The façade is comprised of rustic charm and character outlined with warm woods, stone pillars, a stone exterior chimney and an extended front covered porch, perfect for greeting family and friends into the home’s interior. There are approximately 1,710 square feet of living space in the two storied home that includes three bedrooms and three baths. Ideally suited for a narrow lot, whether situated on a lakefront or mountain property lot, the home features a 26’ width dimension. There is a detached two car garage with approximately 624 square feet of space and attractive exterior features that mirror the home’s façade. The front covered porch provides access into the home’s interior where there is an elongated hallway and second story staircase. A laundry nook and coat closet are located at the end of the hallway before accessing the main common rooms. This open concept layout features a two story great room with a handsome fireplace, surrounding window views and access onto the rear covered porch. There is a grand kitchen and dining space where a large center island provides additional seating arrangements and the large set of sliders overlook the covered porch. This outdoor space is great for entertaining, relaxing and/or dining al fresco. There is a secondary bedroom on this floor which is highlighted with good floor space, ample closet space and the nearby bathroom offers a large vanity, toilet area and a tub/shower combination.

The second story staircase shares a balcony hallway overlooking the great room below and double bedrooms and baths at the end of the floor. The third bedroom is 12’ x 12’, offers double window views, closet space and a private bath with shower. The master suite features a large bedroom with great window views on the side and front walls, an attached walk-in closet and a master bath with dual vanities, a gorgeous garden tub, walk-in shower and a small closet for linens or assorted other items. This rustic Cottage is perfect for a small family, empty nesters or young professionals with its charming exterior, beautiful outdoor space and versatile floor plan.
