Cottage House Plan 8504-00066

Sq Ft1,710
Beds2
Baths2
1/2 Baths0
Stories2
Cars2
Width26' 0"
Depth56' 0"
SALE

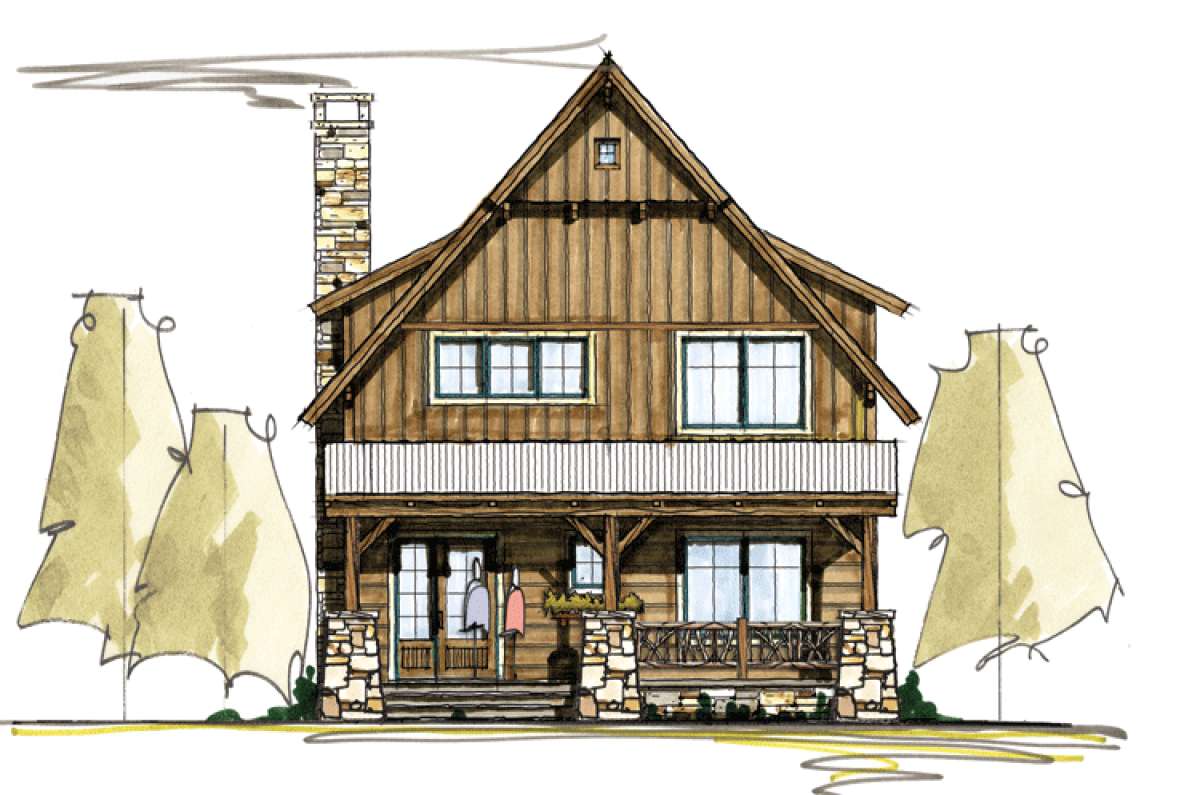

Cottage House Plan #8504-00066 Elevation Photo
Cottage House Plan #8504-00066 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

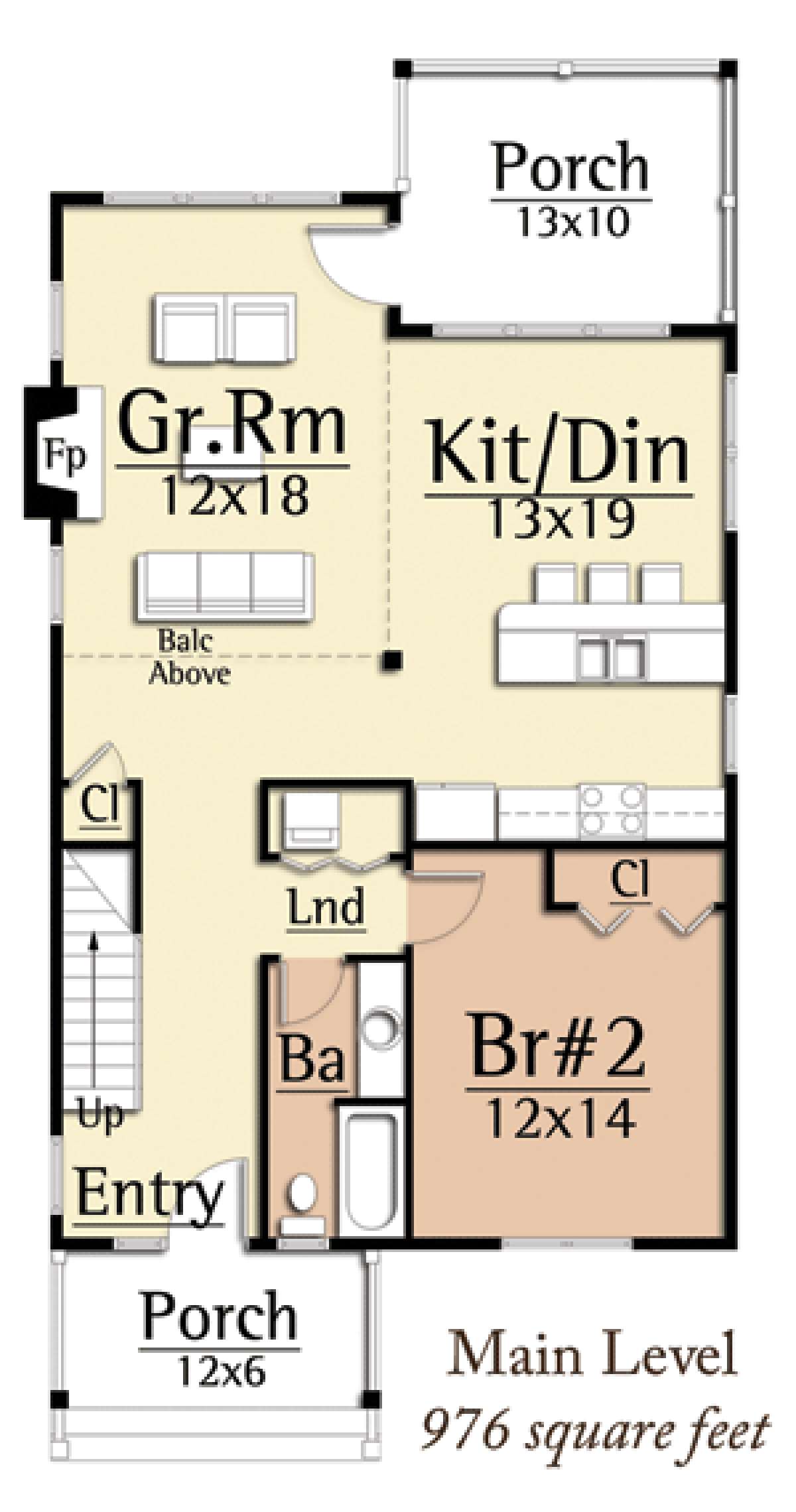

Floorplan 1 for House Plan #8504-00066
Floorplan 2 for House Plan #8504-00066
Garage for House Plan #8504-00066
Floorplan 1

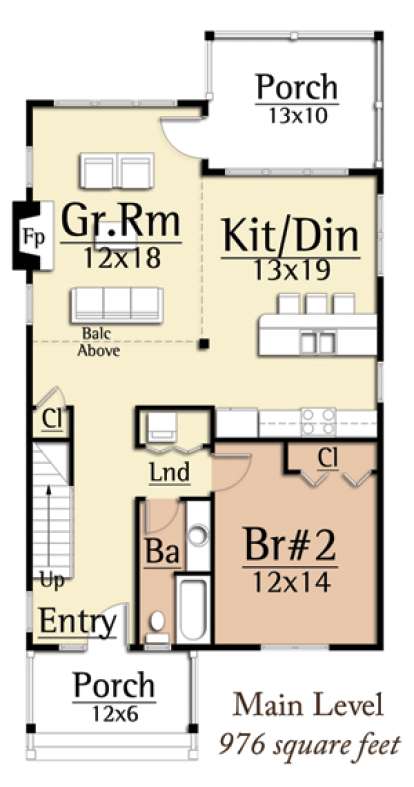

Floorplan 1 for House Plan #8504-00066
Floorplan 2

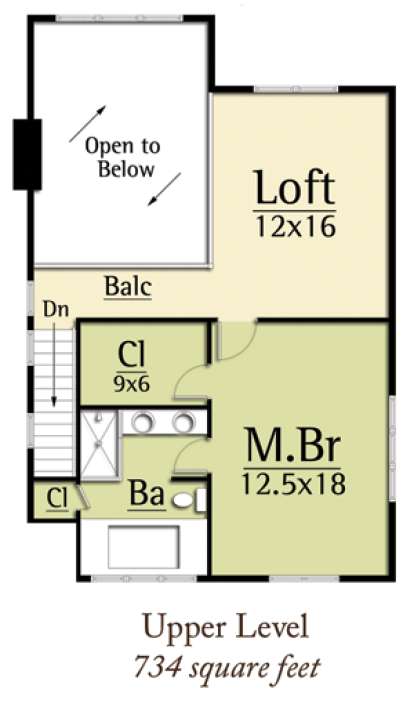

Floorplan 2 for House Plan #8504-00066
Garage
Garage for House Plan #8504-00066


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Cottage house design features a rustic façade with an abundance of natural design elements. Substantial stone pillars support warm beams and the stone exterior chimney detail tie the elements together nicely. There is a front covered porch entrance, perfect for greeting family and friends before stepping into the interior. The interior is highlighted with approximately 1,710 square feet of living space that includes two bedrooms and two baths. A detached two car garage features in excess of 620 square feet of space offering plenty of room for vehicles and other storage items. This house plan is great for a narrow and/or small lot with respective dimensions of 26’ width and 56’ depth. Nine foot ceiling heights are offered on the main floor and eight foot ceiling heights are featured on the second story. The main level of the home is highlighted with 976 square feet of living space and includes the common rooms and the second bedroom. There is an extended foyer entrance with a side staircase featuring views into the great room and rear yard. The great room is highlighted with soaring ceiling heights, a handsome fireplace and a rear triple wall of windows. There is rear covered porch access off the great room, as well, making the space ideal for entertaining. The kitchen and dining area are open to the great room greatly increasing the visual space while adding plenty of room to prepare meals and dine in comfort. The U-shaped kitchen is highlighted with a peninsula bar for additional seating, offers good cabinet and counter space and the dining room window wall makes the space bright and airy. Around the corner from the kitchen is the conveniently located laundry nook. The main floor second bedroom features good floor space and plentiful closet space along with front window views. There is a nearby full bath highlighted with an extended vanity, a toilet area and a tub/shower combination.

Ascending the second story staircase is the balcony overview onto the great room below and the subsequent loft space. This space is quite large and would make an excellent sitting room for the attached master suite. The master bedroom measures 12.5’ x 18’ and has an abundance of window views. There is a large walk-in closet located directly off the bedroom. The en suite bath features dual vanities, a separate shower, a huge garden tub and there is a linen closet as well. The entirety of the second floor is devoted to the homeowner’s pleasure and comfort with plenty of private and relaxing space. This rustic Cottage home features an attractive exterior, comfortable living space and a great floor plan for entertaining.
