Now is the time to buy! Save 15% off the House Plan of Your Dreams!

Limited plans not eligible for discounts

Cabin House Plan 8504-00042

Sq Ft2,694
1/2 Baths1
Width84' 0"
Depth73' 0"

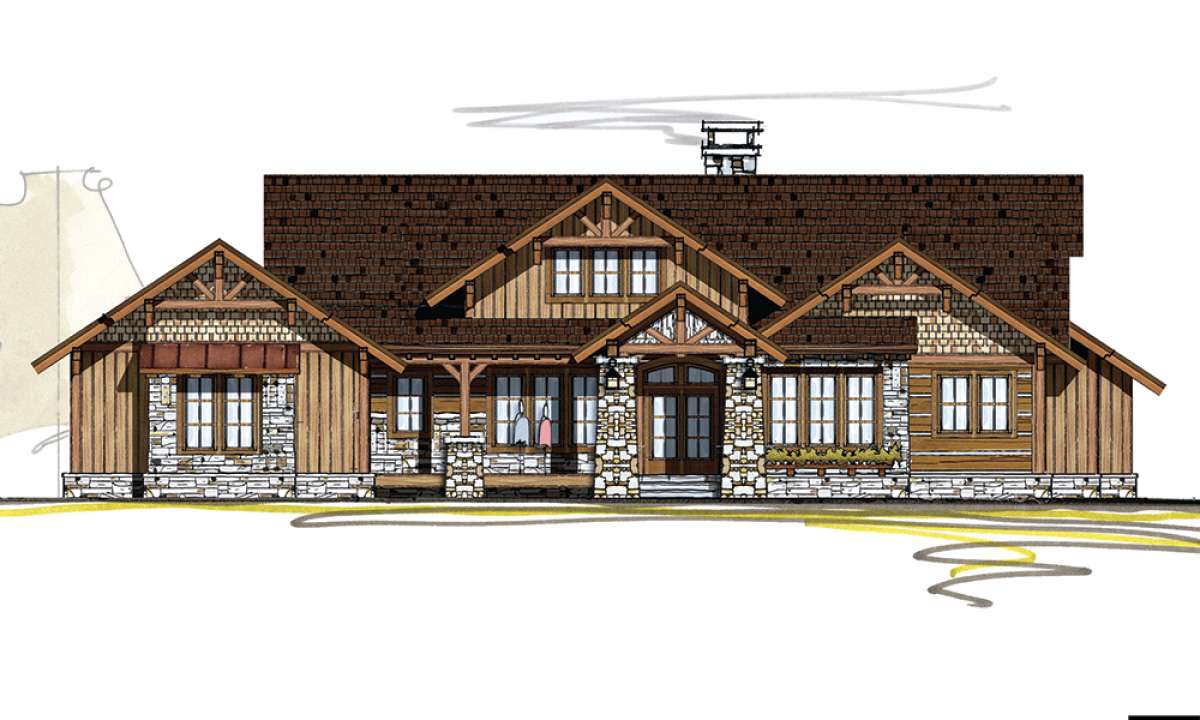

Cabin House Plan #8504-00042 Elevation Photo
Floorplan 1

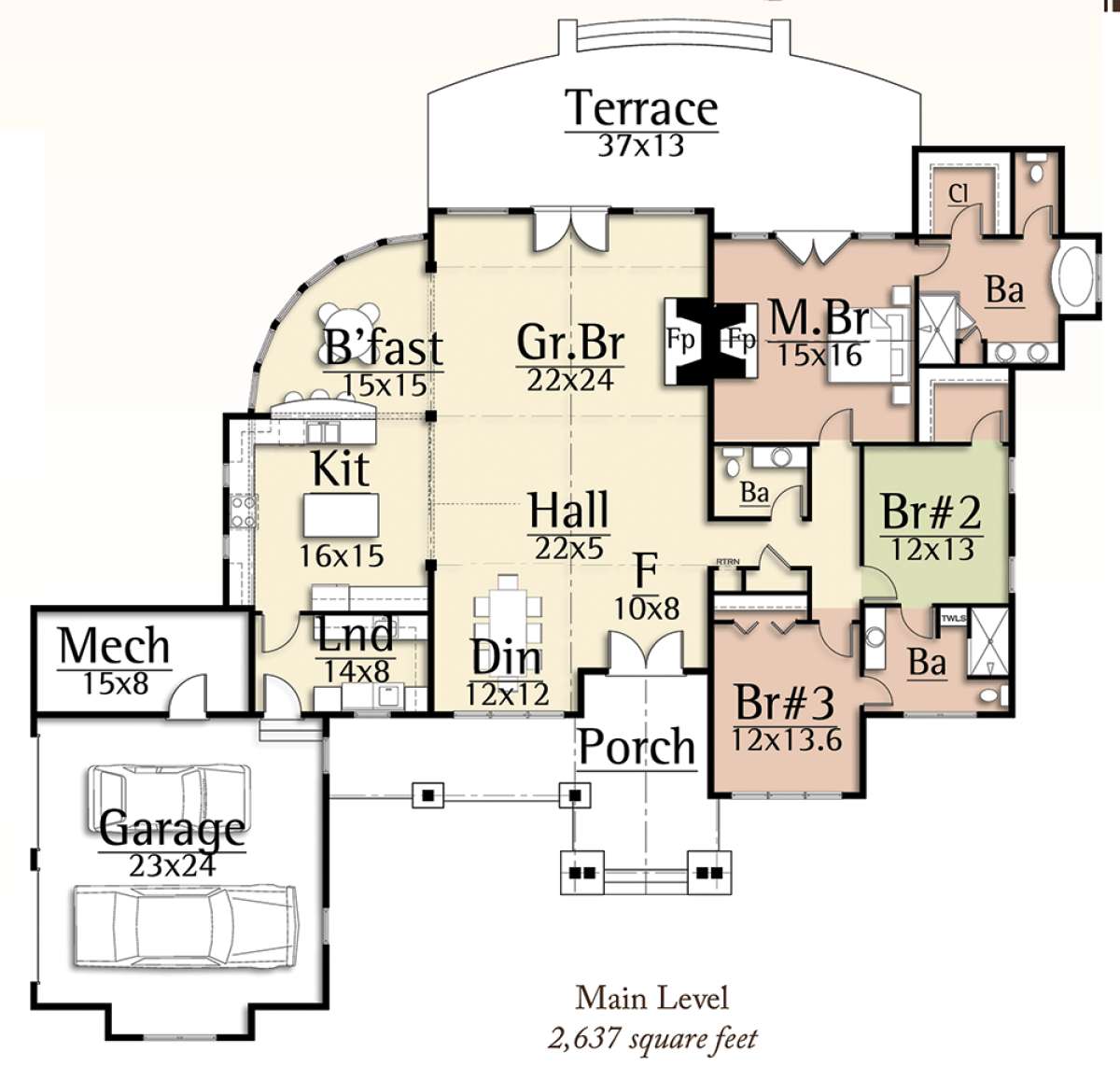

Floorplan 1 for House Plan #8504-00042
Cabin House Plan #8504-00042 Elevation Photo
Floorplan 1 for House Plan #8504-00042
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

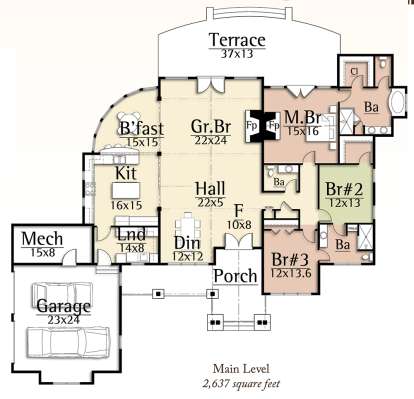

Floorplan 1 for House Plan #8504-00042
Floorplan 1
Floorplan 1 for House Plan #8504-00042

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

A widely expansive exterior features Lodge inspired elements that perfectly capture the mood and feel of rustic living. There are an abundance of log framing features, a wraparound stone perimeter and wonderful window views highlighting the exterior of the home. The Log Cabin house design features an equally stunning and uniquely designed interior which offers approximately 2,694 square feet of living space that is comprised of an open concept layout, three bedrooms and two plus baths. The front covered porch leads into the home’s foyer which then extends into the open floor plan. There is a large dining room trimmed with columned beams and a huge great room lies just beyond. The great room measures 22’x24’, features a handsome fireplace, has French doors to the rear terrace and is perfectly suited for entertaining. The outdoor terrace is highlighted with gently bowed exterior walls that lead around the home encasing the great room, breakfast room and on the opposite end, the master suite. The grand kitchen is highlighted with both a center island and peninsula bar for additional work space and dining options. The breakfast room is situated on the other side of the peninsula bar and features wraparound window views onto the terrace. There is a two car side loading garage which provides entrance into the home through the laundry room for a tidy presentation.
There is a half bath for guests before accessing the two family styled bedrooms; both of which are spacious and one of which has ample closet space while the other features a walk-in closet. There is a shared hall bath, as well, for the bedroom’s use which features a large vanity, toilet area and a tub/shower combination. The master suite lies at the rear of the home for privacy and features a large master bedroom with private access onto the terrace through French doors and a warming interior fireplace for chilly mornings and nights. The en suite master bath includes dual vanities, a separate shower, a window enclosed garden tub and a rear positioned walk-in closet. This is a beautifully designed family or vacation home that completely captures the feel and style of Lodge living.
