Cabin House Plan 8504-00080

Sq Ft2,905
1/2 Baths1
Width105' 0"
Depth86' 0"
Cabin House Plan #8504-00080 Elevation Photo

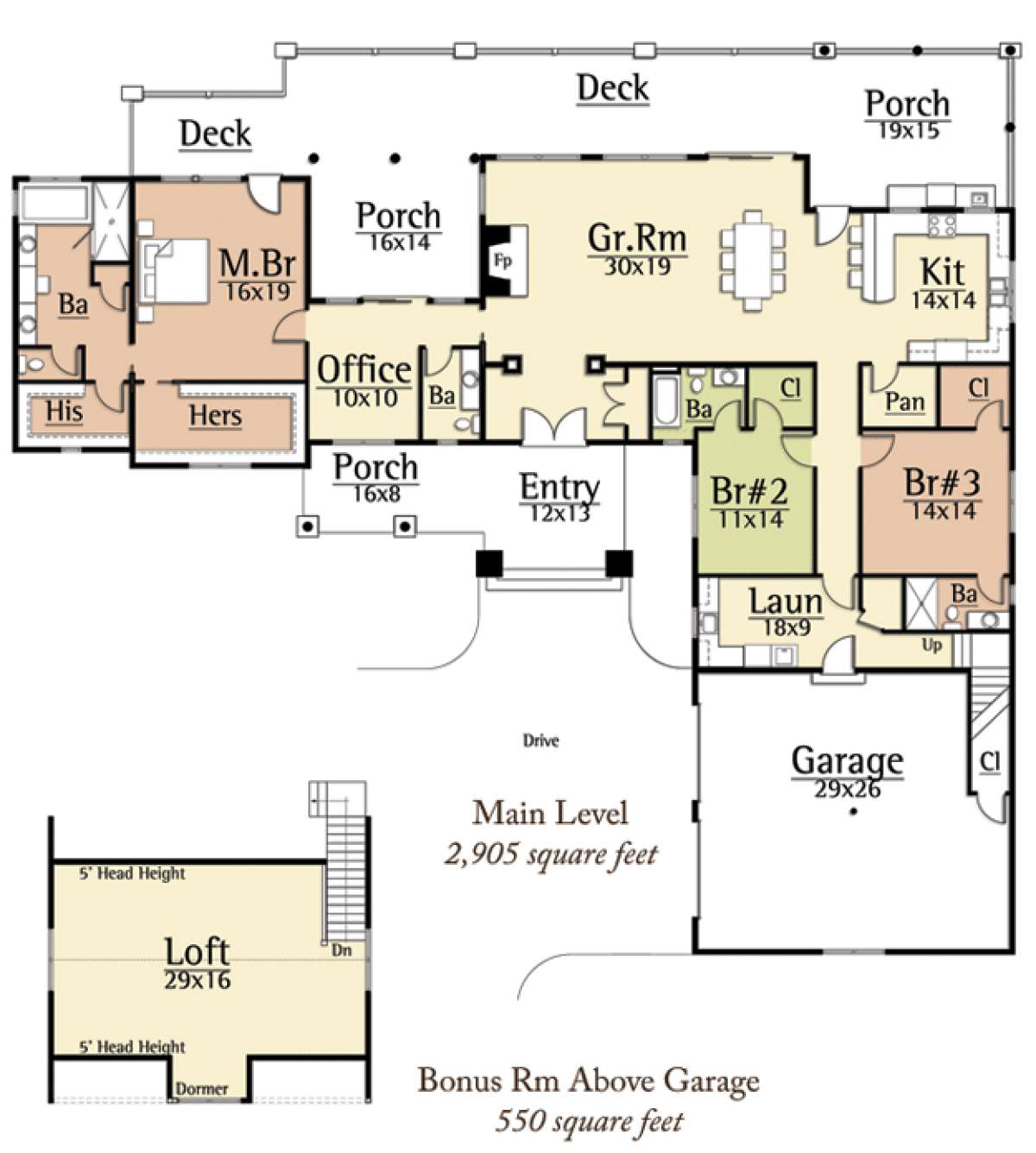

Floorplan 1
Floorplan 1 for House Plan #8504-00080
Cabin House Plan #8504-00080 Elevation Photo
Floorplan 1 for House Plan #8504-00080
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

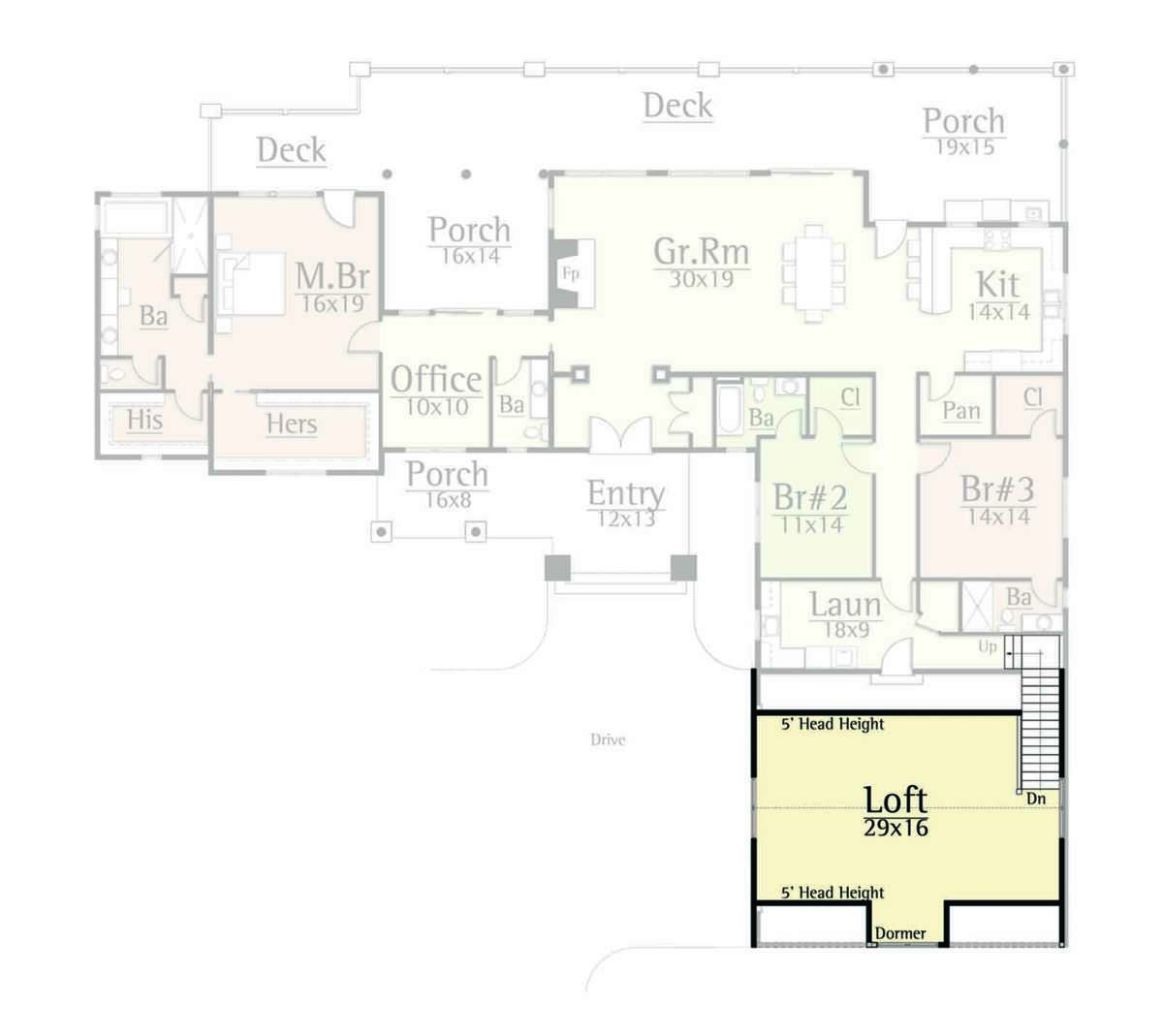

Floorplan 1 for House Plan #8504-00080
Floorplan 1
Floorplan 1 for House Plan #8504-00080

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This sprawling one story Cabin house plan features an inviting Lodge presence and an interior floor plan that is warm and welcoming for family and friends. The exterior façade features a compelling series of architectural design elements that inspire and charm all whom view the home’s exterior. Warm woods, a gorgeous stone perimeter skirt, board and batten and a front covered porch provide plenty of curb appeal. The front covered porch is highlighted with tapered stone pillars, warm wood beams and plenty of room to greet family and friends. The interior floor plan features approximately 2,905 square feet of living space with three bedrooms, three plus baths and an open floor plan in the one story home. The double door entry into the home’s interior reveals a large open floor plan and rear window views overlooking the outdoor space. The entry foyer houses a coat closet and then gently spills into the oversized great room where there is a warming fireplace, surrounding window views and slider access onto the rear outdoor space. This outdoor space spans the width of the home and features two covered porches along with two open decks. One of the porches is located off the dining room and kitchen making it ideal for dining outdoors easily and comfortably. The grand kitchen also features a peninsula bar, good counter and cabinet space and a large walk-in food storage pantry. There is a two car side loading garage with good vehicle and storage space along with an upper level staircase leading to the overhead bonus room. The bonus room offers approximately 550 additional square feet to the plan; great expansion possibilities for a multi-purpose family room, a fourth bedroom or an artist’s studio. Located directly off the garage is an interior laundry room which is quite spacious and features counter space, a sink area and there is an adjacent coat closet as well. There are two bedrooms on this wing of the home; both are secondary bedrooms and feature generous floor space with walk-in closets, double window views and each has a private full bath; one with a shower, the other with a tub/shower combination.

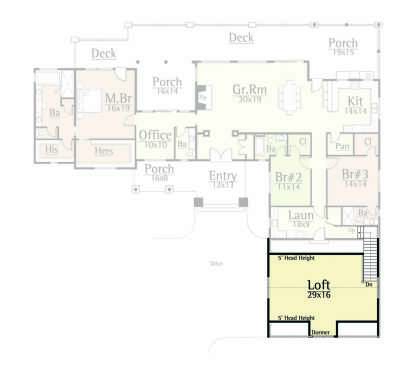

On the opposite end of the home, down the hallway, is an office with a nearby powder room for guests; double windows in the office overlook the front porch and a hall slider offers access to the rear porch. The endcap of the hallway features the master suite where there is a large master bedroom with window views and private access to the outdoor space is featured. An enormous closet for her is featured and his closet is quite comfortably spaced as well. The en suite bath is an excellent use of space with an extended vanity and double sinks, a private water closet, garden tub, an enclosed linen closet and a separate shower. This beautifully designed home features an attractive exterior and a functional and versatile floor plan on the main level with expansion space offered overhead.
