Cottage Plan 2559-00753

Name: House Plan 2559-00753 - Cottage Plan: 1,816 Square Feet, 3 Bedrooms, 2.5 Bathrooms
Brand: America's Best House Plans
SKU: 2559-00753
Price: 1423.00 USD

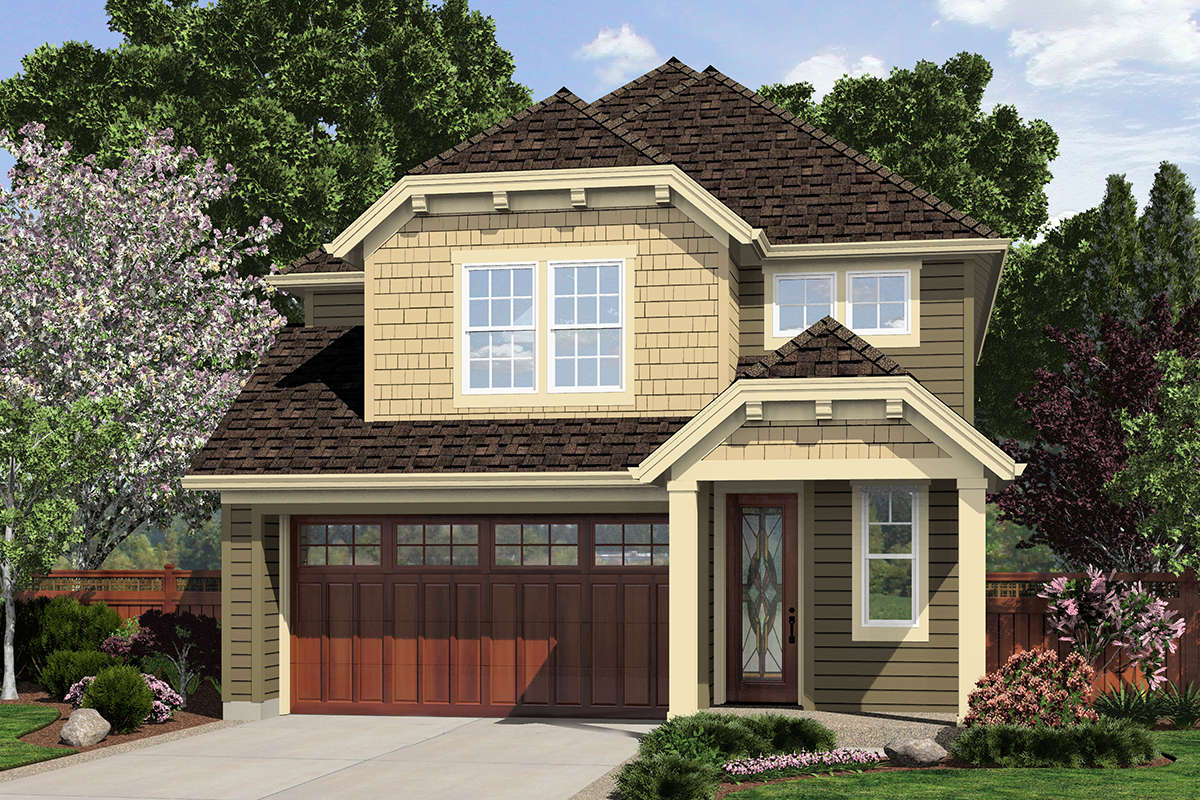

Cottage House Plan #2559-00753 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,816

Beds 3

Bath 2

1/2 Baths 1

Car 2

Stories 2

Width 28'

Depth 53'

See What's Included

Select Package

PDF (Single Build)

$1,423.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$1,623.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,673.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$2,846.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.

Select Foundation

Slab Foundation $0.00

Crawlspace Foundation $0.00

Basement Foundation $495.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $225.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

PRINT DOWNLOAD

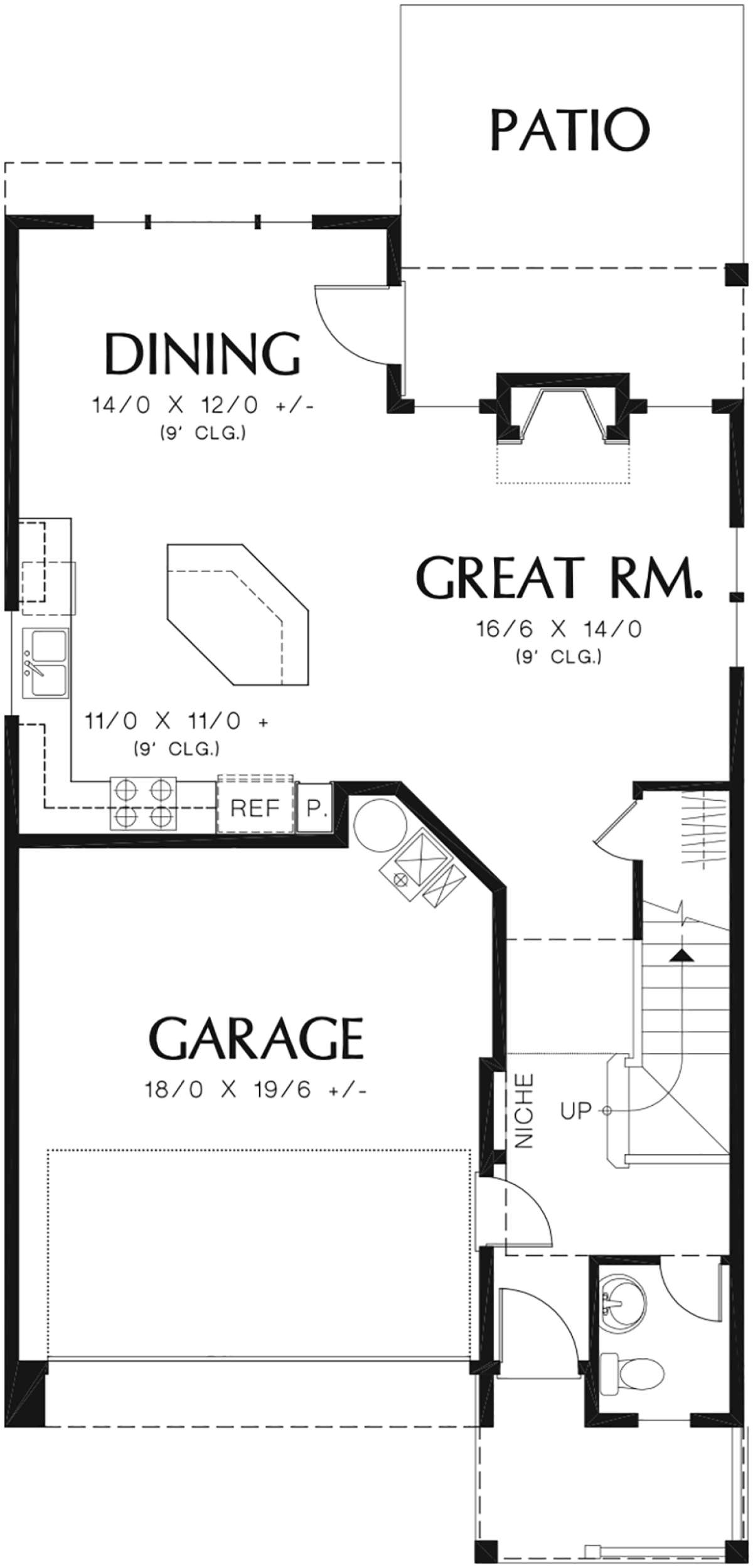

Main Floor

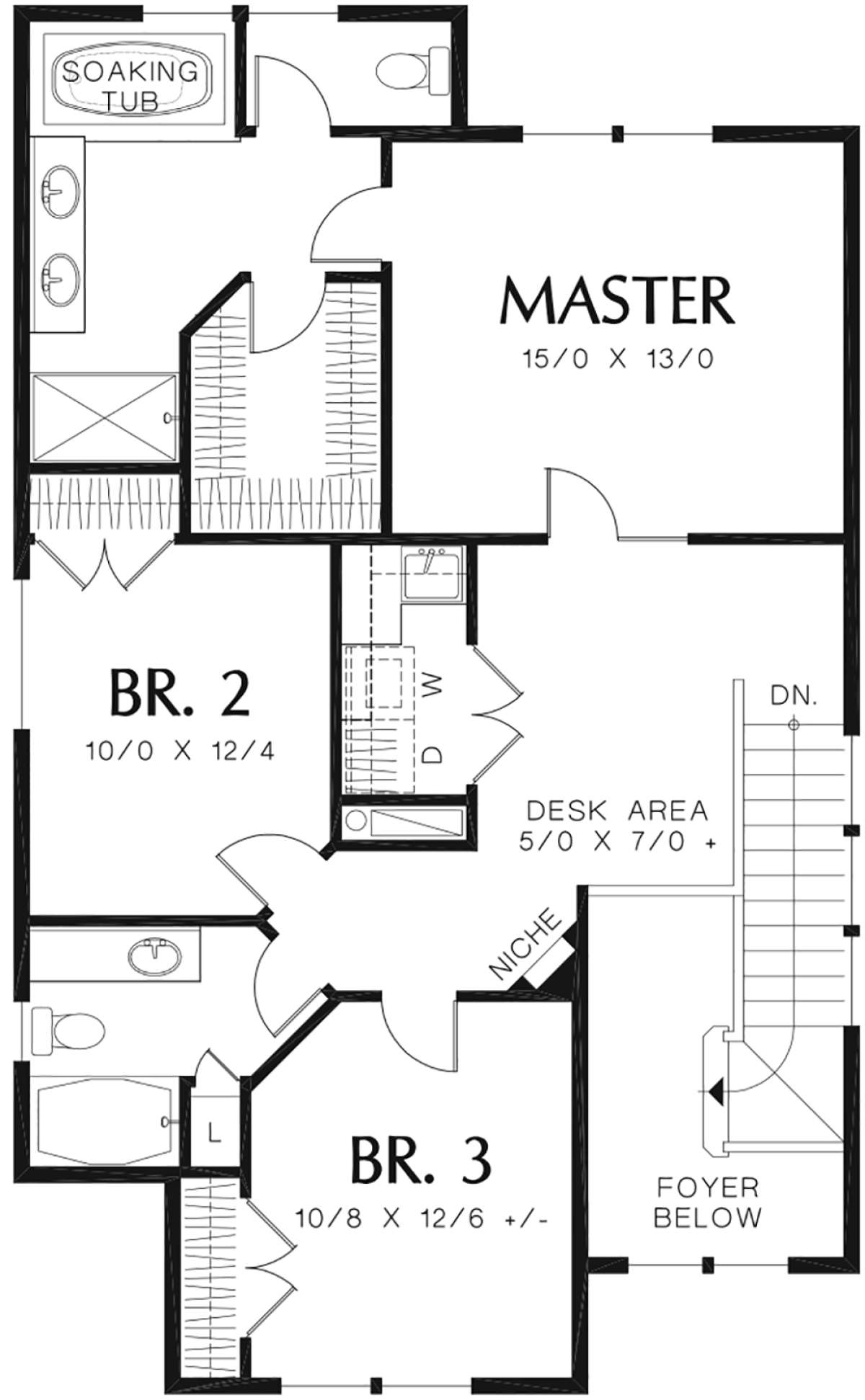

Second Floor

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 1,816 sq. ft. First Floor: 785 sq. ft. Second Floor: 1,031 sq. ft.

UNHEATED Sq Ft

Total Unheated Area: 368 sq. ft. Garage: 368 sq. ft.

Bedrooms: 3

Bathrooms: 2

Half Baths: 1

Floors: 2

Garage Size: 2 car

Width: 28ft.

Depth: 53ft.

Height: 30ft.-6in.

Foundation: Crawlspace Foundation Slab Foundation Basement Foundation

Main Roof Pitch: 10:12

Exterior Framing: 2x6 Wood

CEILING HEIGHTS

First Floor: 9 feet

What's Included in these plans?

Exterior Elevations - all at 1/4" scale and - usually two sheets.
Floor Plans - fully detailed with structural elements sized.
Cabinet Elevations - often included on the floor plans.
Electrical Fixture Layout - usually included on the floor plans.
Foundation Plan - crawlspace is standard but basements & slabs are available.
Wall Section - usually included on the foundation plans.
Building Sections - usually at least three or four but most different conditions are illustrated.
Roof Plan - 1/4" scale with structural sizes and often including both tile & comp/shake versions.
General Notes & Details - includes structural and insulation specifications and standard details.

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

About This Plan

This 3 bedroom, 2 bathroom Cottage house plan features 1,816 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
