Vacation House Plan 8504-00027

Sq Ft1,630
Beds3
Baths2
1/2 Baths1
Stories1.5
Cars2
Width32' 0"
Depth32' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00027
Floorplan 2 for House Plan #8504-00027
Garage for House Plan #8504-00027

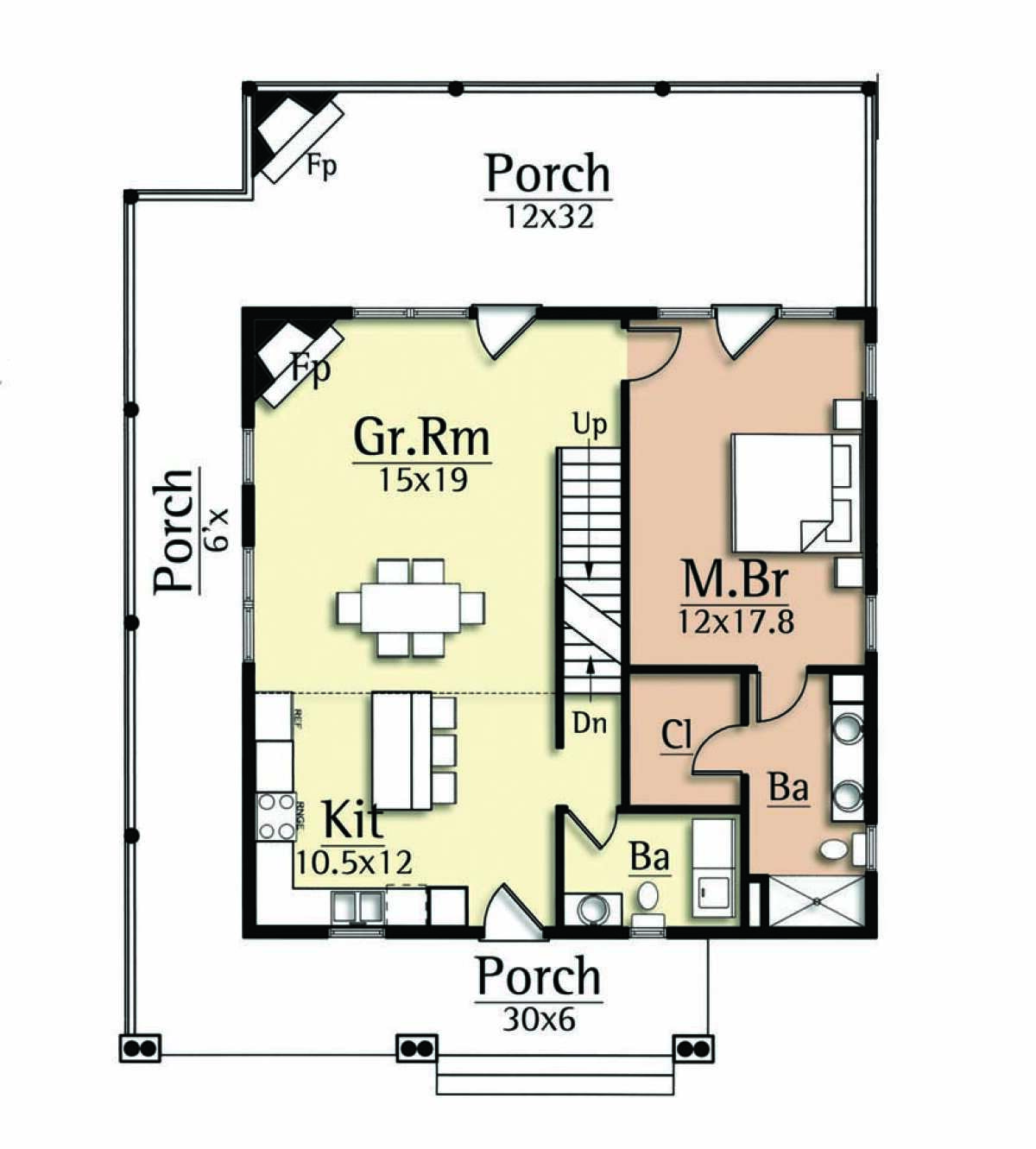

Floorplan 1
Floorplan 1 for House Plan #8504-00027

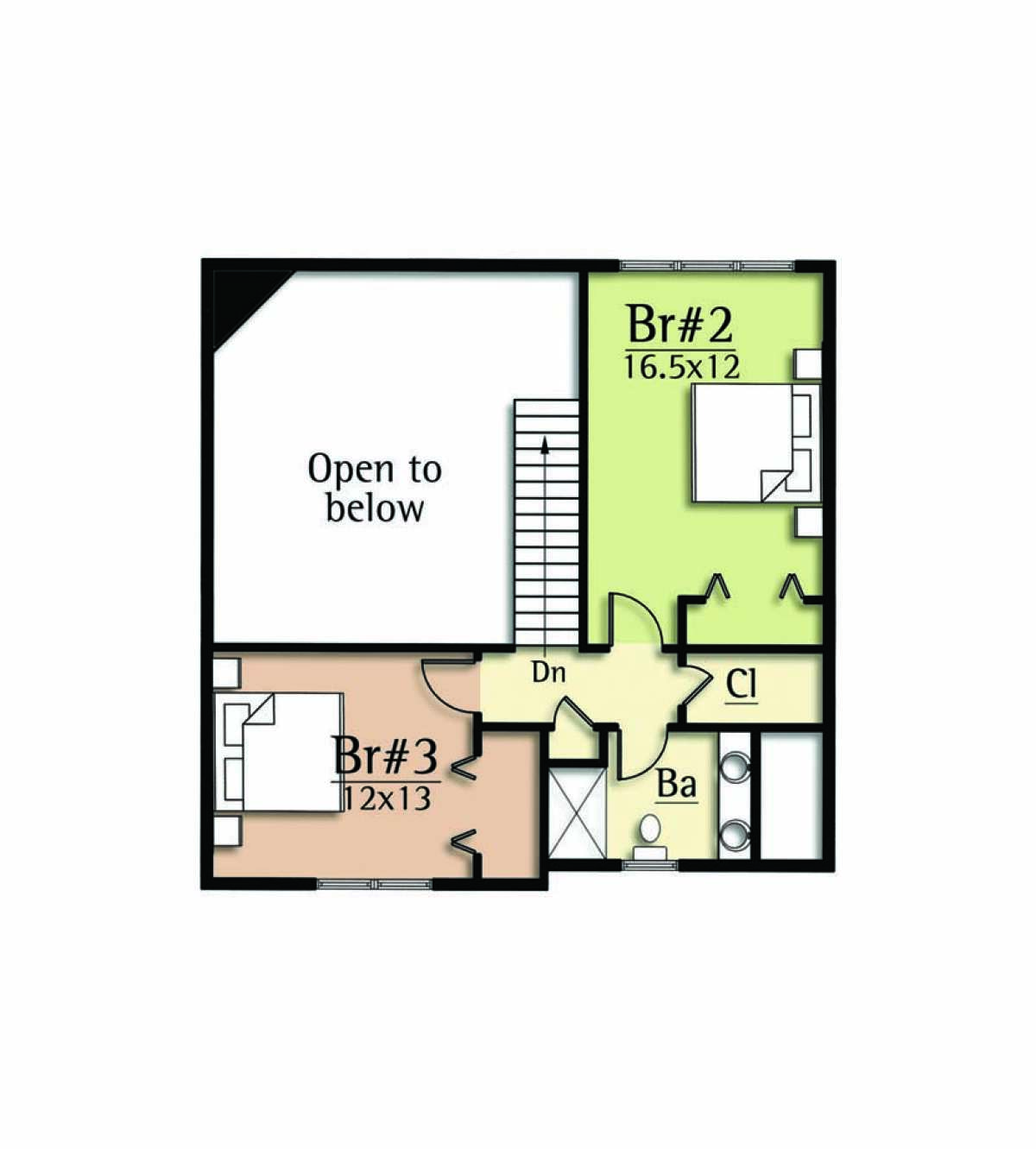

Floorplan 2
Floorplan 2 for House Plan #8504-00027
Garage
Garage for House Plan #8504-00027


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans

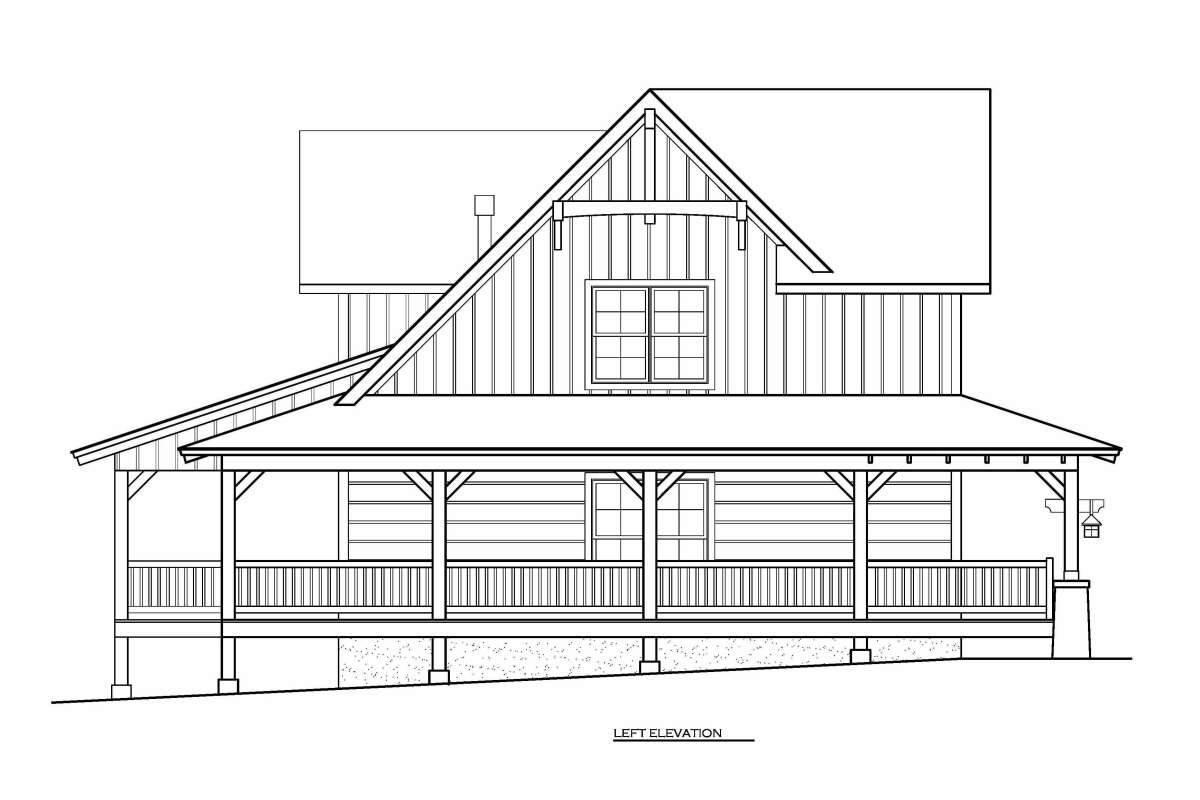

  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

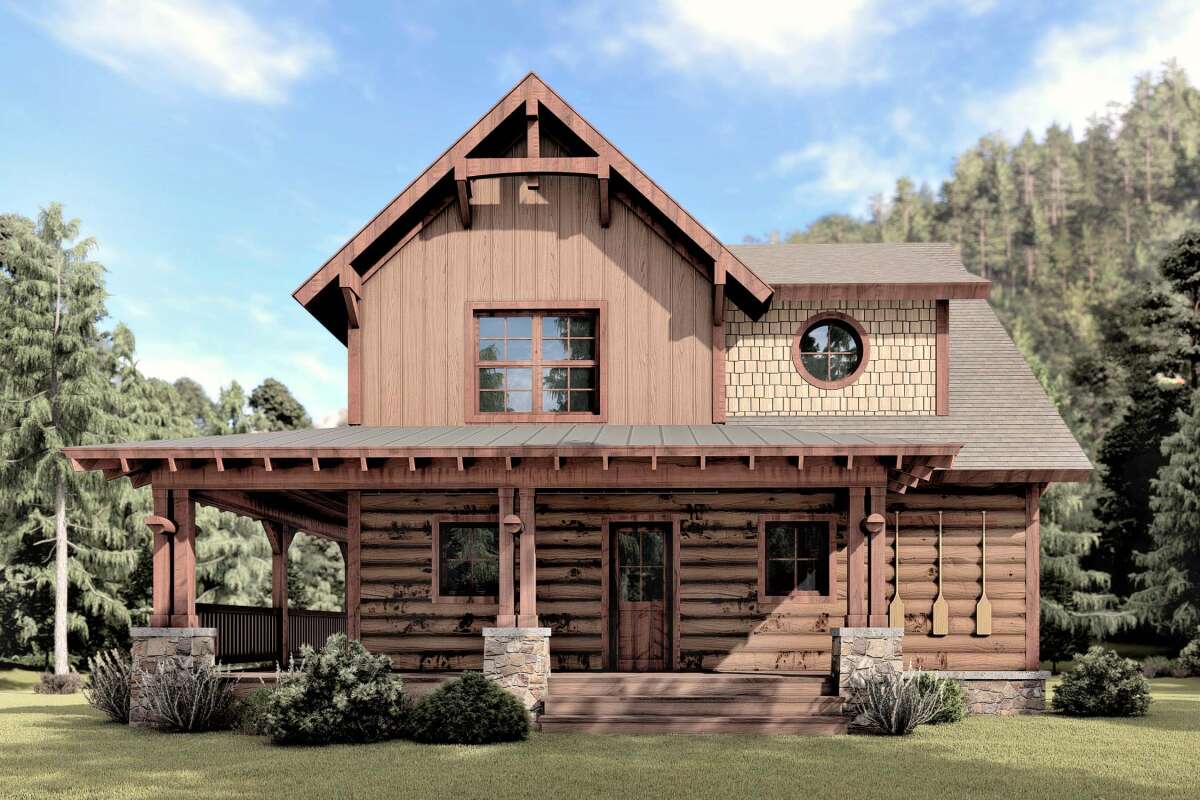

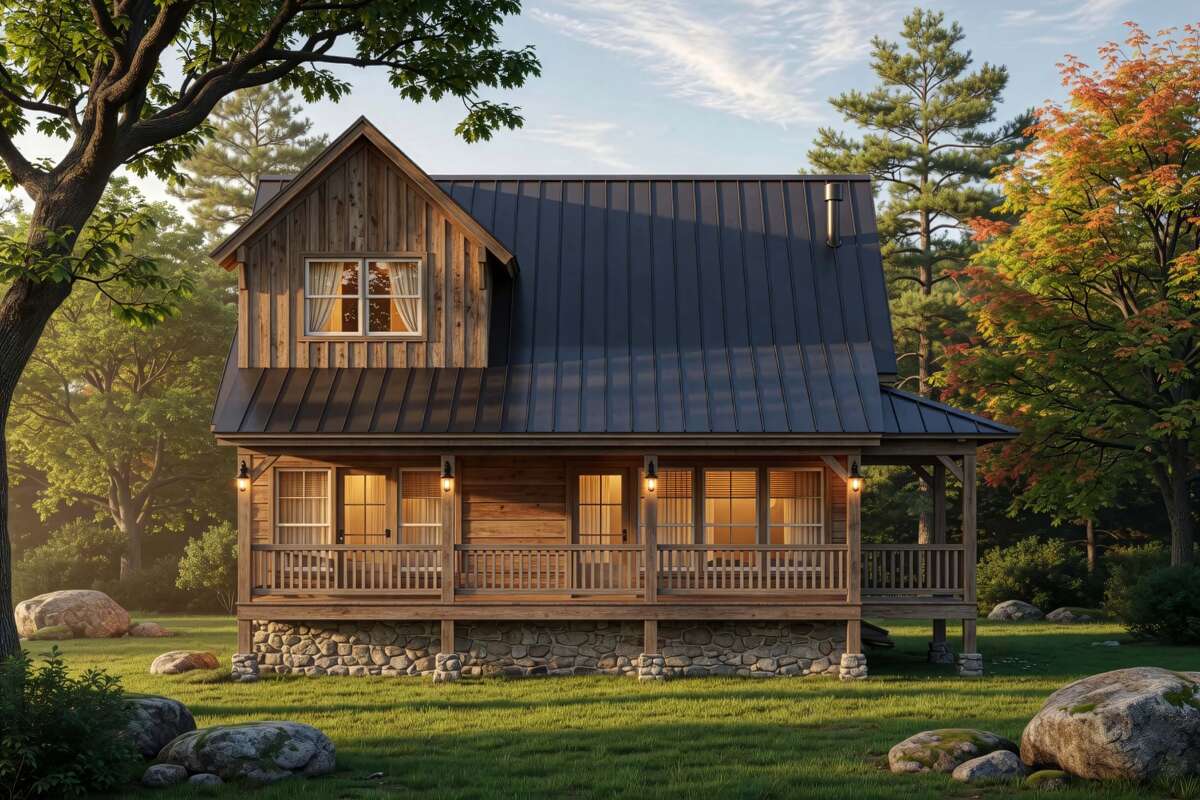

This Rustic two-storied home would make an outstanding vacation or “forever” home for a small family or couple. The quaint exterior boasts of distinct architectural design elements consisting of cedar shakes, a multi-gabled roofline with decorative accents and a wraparound porch with stacked stone supporting wooden beams. The phenomenal outdoor space provides a welcoming entrance into the home that extends around the side and subsequently ends at the rear of the home where a large porch with an outdoor fireplace is situated. All this outdoor space provides additional living and entertaining options designed to add comfort and versatility to the home and the 32’width and depth dimensions of the home make it ideal for a small or narrow mountain or lake property lot. The interior of the home features three bedrooms and two plus baths along with a detached two-car garage. The large great room is highlighted with a corner warming fireplace, great for those chilly autumn nights and mornings, along with access to the rear porch. The dining space anchors the great room and kitchen where an additional seating space is located at the center island. The main level master suite is spacious with rear porch access, a large walk-in closet and a master bath which features dual vanities. There is a guest powder room and staircase leading to the second level as well. Overlooks onto the great room below are highlighted on the second-floor landing. Additionally, there are two oversized bedrooms with generous closet space and wonderful window views to enjoy the scenery. There are two additional storage closets, one which could house linens and another for other storage items, and there is an adjacent full bath with double vanities. This is a great vacation or small family home which commands outstanding views whether by a lakefront or mountain view that provides a functional interior floor plan and excellent outdoor space.
