Mountain House Plan 8504-00065

Sq Ft1,900
Beds3
Baths2
1/2 Baths1
Stories1.5
Cars2
Width96' 0"
Depth37' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00065
Floorplan 2 for House Plan #8504-00065
Garage for House Plan #8504-00065

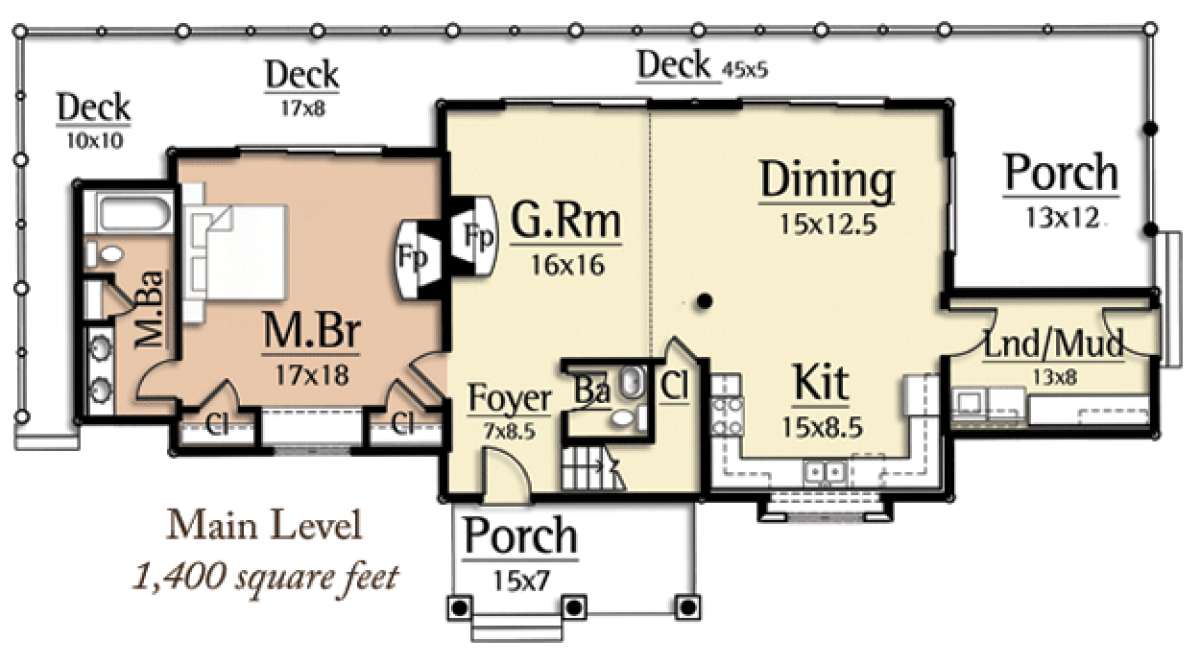

Floorplan 1
Floorplan 1 for House Plan #8504-00065

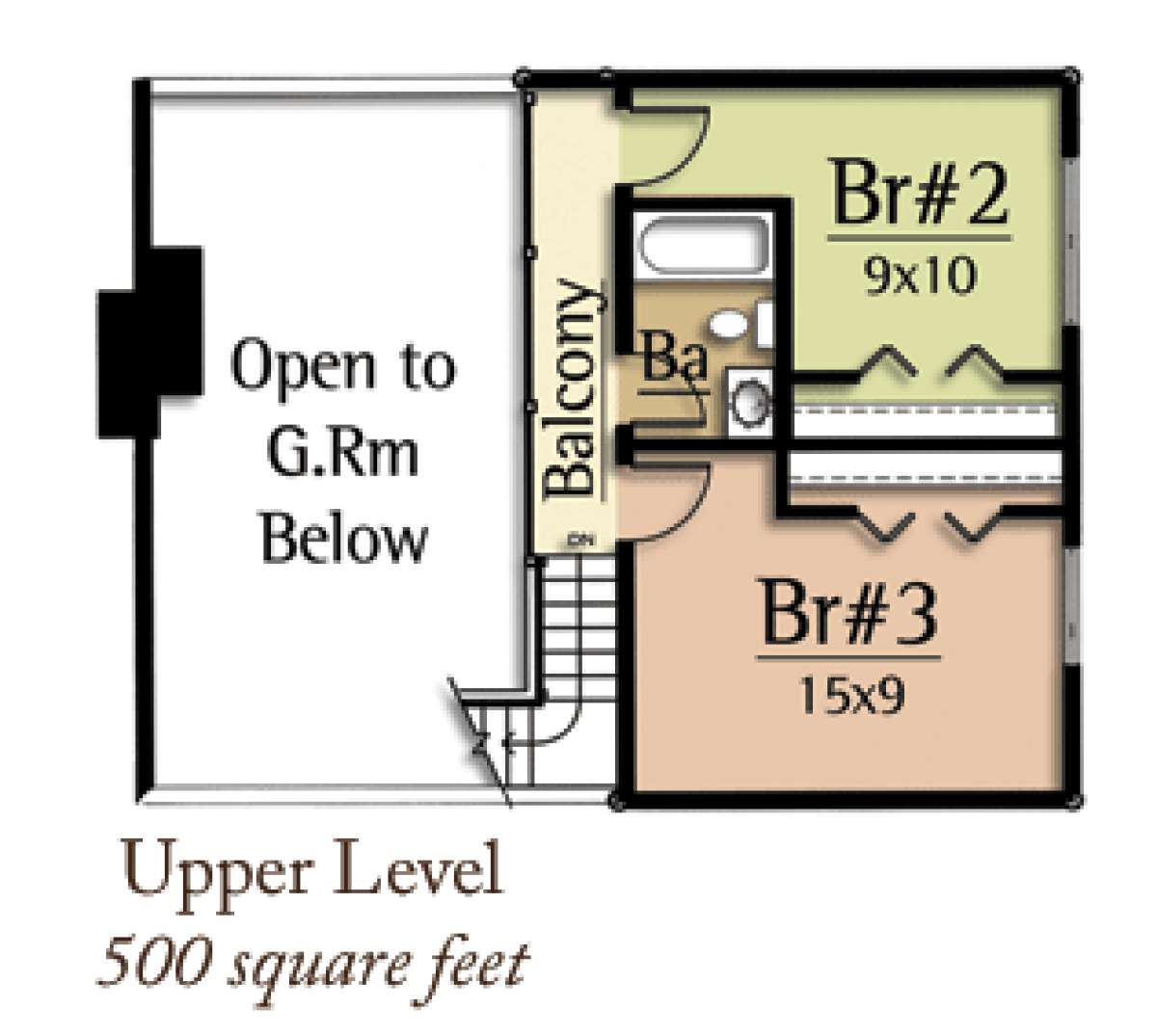

Floorplan 2
Floorplan 2 for House Plan #8504-00065
Garage
Garage for House Plan #8504-00065


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

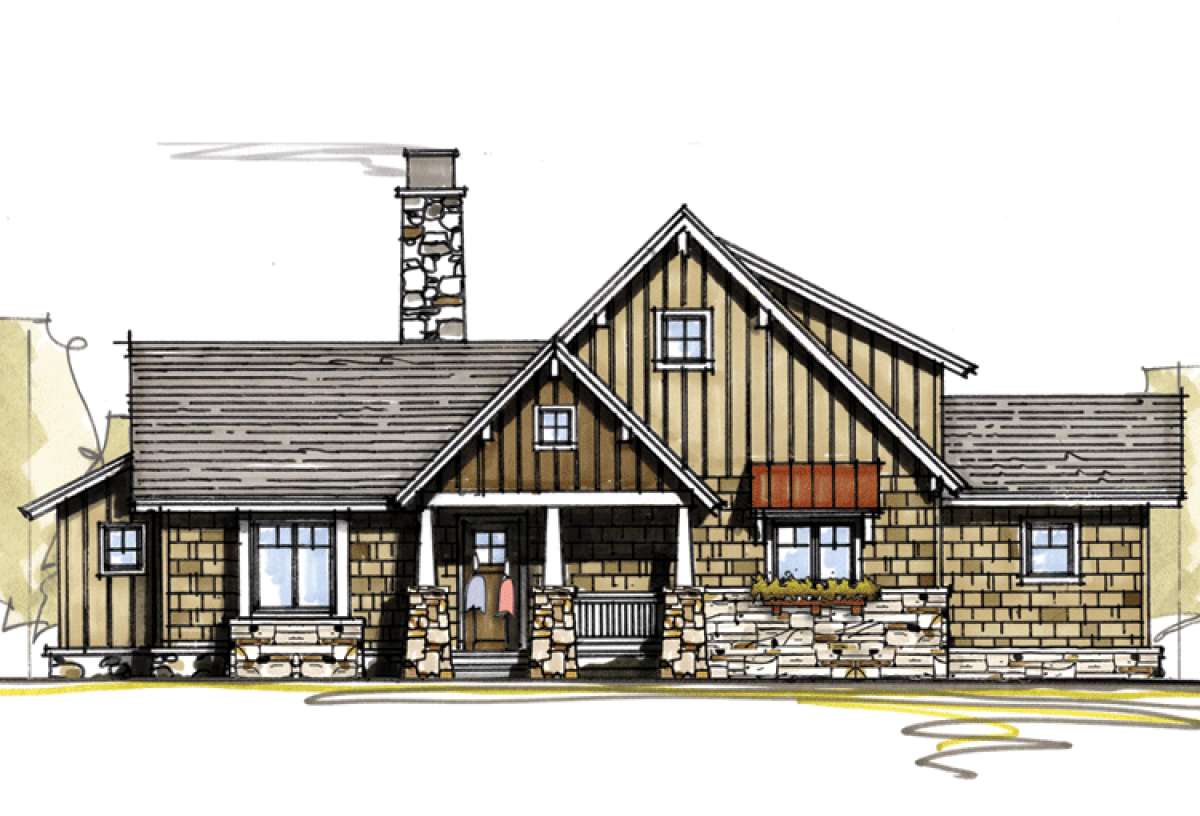

Cedar shakes, board and batten along with stacked stone are rustic elements designed for this Mountain house plan. The combination and juxtaposition of these architectural design features create a warm and inviting exterior façade that beckons to family and friends alike. A covered front porch highlighted with tapered stack stone supporting columned beams further enhances the architectural style and warmth of the home. An exciting and easily navigable interior floor plan focuses on wide open living spaces and plenty of private family space that includes 1,900 square feet of usable living space consisting of three bedrooms and two baths. The greeting foyer houses the second story staircase and extends into the oversized great room that features a handsome fireplace and rear access to the deck. This is no ordinary deck but one of substance that spans the entire width of the home and subsequently wraps around the side. Three distinct deck spaces span the distance around the house culminating onto the outdoor covered porch; great for relaxing and dining alfresco, this space is valued for its proximity to nature. The interior dining space is a large space, perfect for a farmhouse table and provides access onto the porch. There is a large U-shaped kitchen which continues to open up the space with side and back walls holding loads of counter and cabinet space along with modern conveniences. A large laundry/mudroom features plenty of counter space and there is a detached two car garage with ample space for vehicle and other gear storage. The main level master suite combines form and function beautifully; the master bedroom enjoys a large footprint, provides private access onto the rear deck and has a warming fireplace for chilly autumn mornings and evenings. Double closets line the wall space and the en suite master bath features dual vanities, a linen closet, toilet area and a tub/shower combination.
Upstairs are two bedrooms, a bath and a balcony overlook onto the great room below. Bedroom two is spacious with generous closet space while the third bedroom is clearly larger and contains generous closet space as well. There is a shared hall bath with vanity space, a toilet area and a tub/shower combination. This home is ideally suited for a mountain property or lakefront lot as it features outstanding outdoor space designed for viewing pleasure and a floor plan featuring great entertaining and private family space.
