Mountain Rustic Plan 8504-00062


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,926
Beds 3
Bath 3
1/2 Baths 1
Car 2
Stories 1.5
Width 65'
Depth 41'

Floorplan Drawings

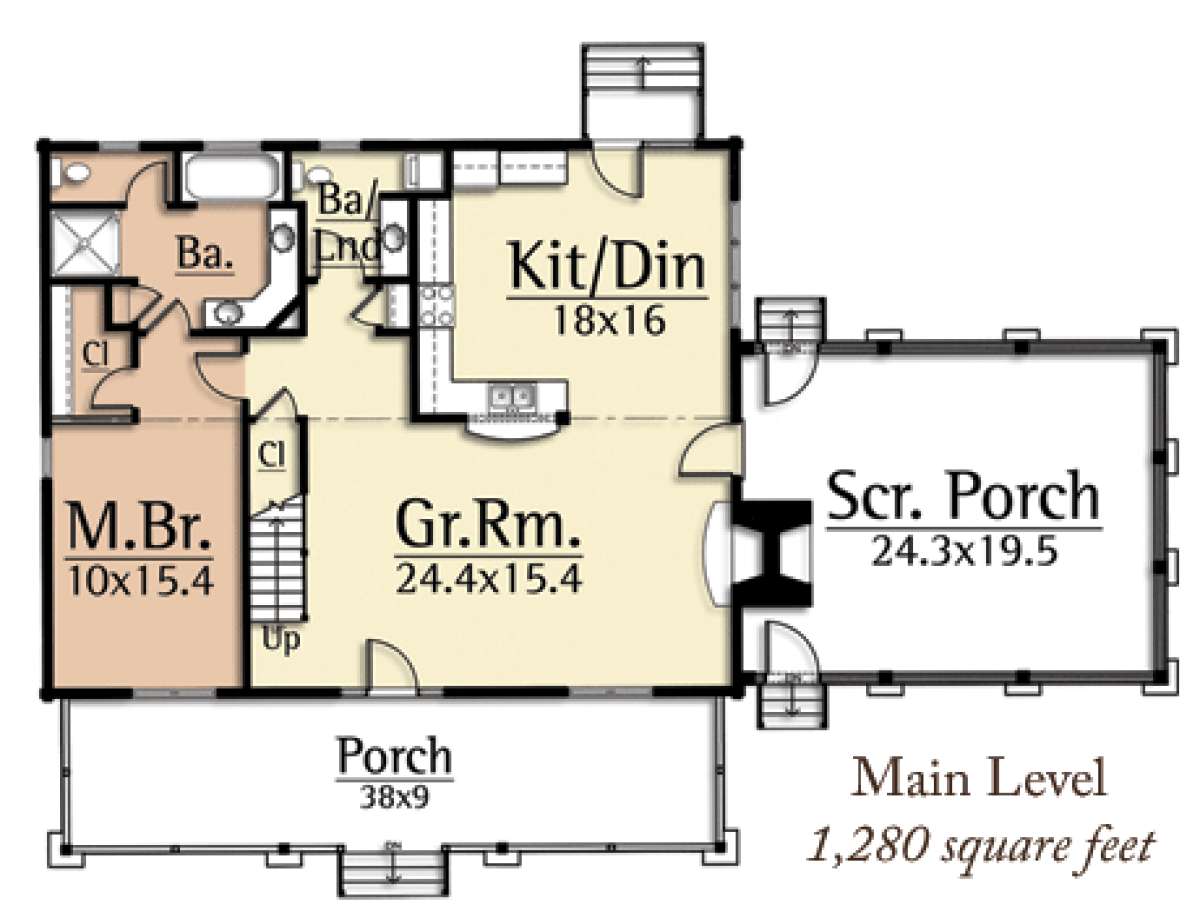

Floorplan 1
Floorplan 1 for House Plan #8504-00062

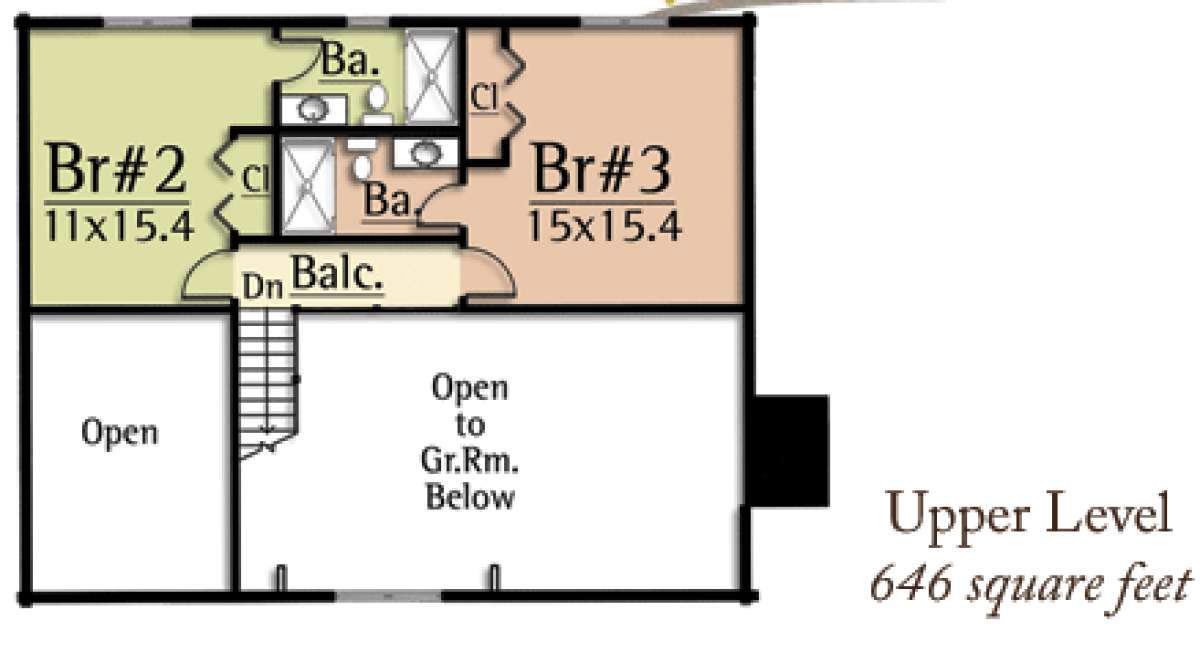

Floorplan 2
Floorplan 2 for House Plan #8504-00062
Garage for House Plan #8504-00062

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

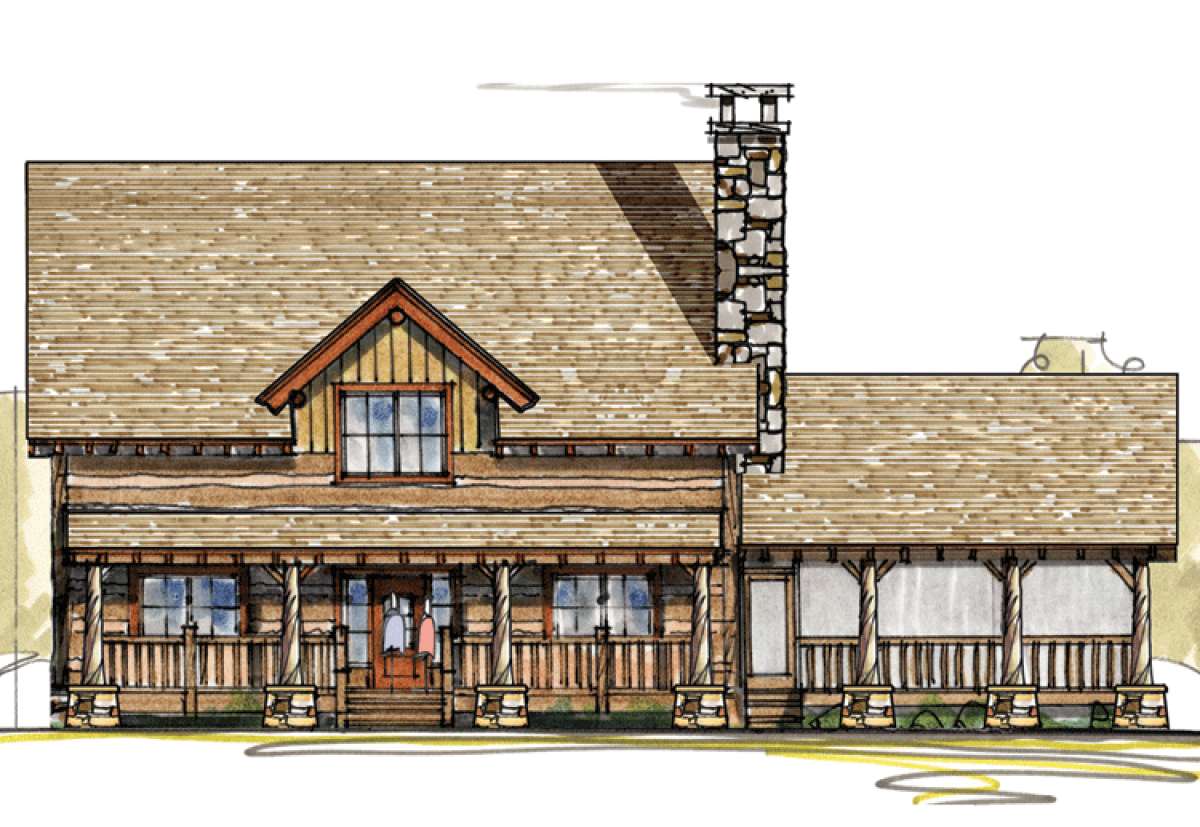

This Lodge inspired rustic home desires a mountaintop property lot with its inspiring exterior features that include an enormous screened porch. This outdoor space measures in excess of 24’x19’ and would make an excellent secondary living room and the warming fireplace certainly guarantees its use as a three season, if not four season, living space. Imagine a long day of hiking, hunting or fishing and then trekking back home to relax in this space. The remainder of the exterior is highlighted with a nice assortment of rustic design elements which include stone pillars, wood columned beams, a substantial stone exterior chimney and an expansive front covered porch. The front porch measures 38’x9’ and is an additional outdoor space to relax and greet family and friends in comfort. The 1.5 storied home’s interior is comprised of approximately 1,926 square feet of living space that contains three bedrooms and three plus baths. Entering the home from the front porch, the large great room is revealed; it houses the second story staircase and the double sided warming fireplace. Beyond the great room is the kitchen and casual dining space where there is a peninsula bar, plenty of cabinet and counter space and access to the rear porch. A guest powder room and linen closet are available along with the master suite on the first floor. The master suite features a spacious bedroom, generous closet space and a private en suite master bath with dual vanities, a separate shower and a large soaking tub.
The second story balcony hallway features overviews onto the great room below along with the family bedrooms and baths. Bedroom two enjoys good floor space, plentiful closet space and a private bath while the third bedroom is slightly larger as well as the closet space and there is private bathing facilities as well. A 624 square foot garage; plenty of space for vehicles and assorted other storage items, is detached with a breezeway connecting to the home. This mountain inspired home has a rustic charming exterior, excellent outdoor space and an interior that is comfortable and functional.
