Mountain Rustic Plan 8504-00025

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,626
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1.5
Width 32'
Depth 32'

Floorplan Drawings

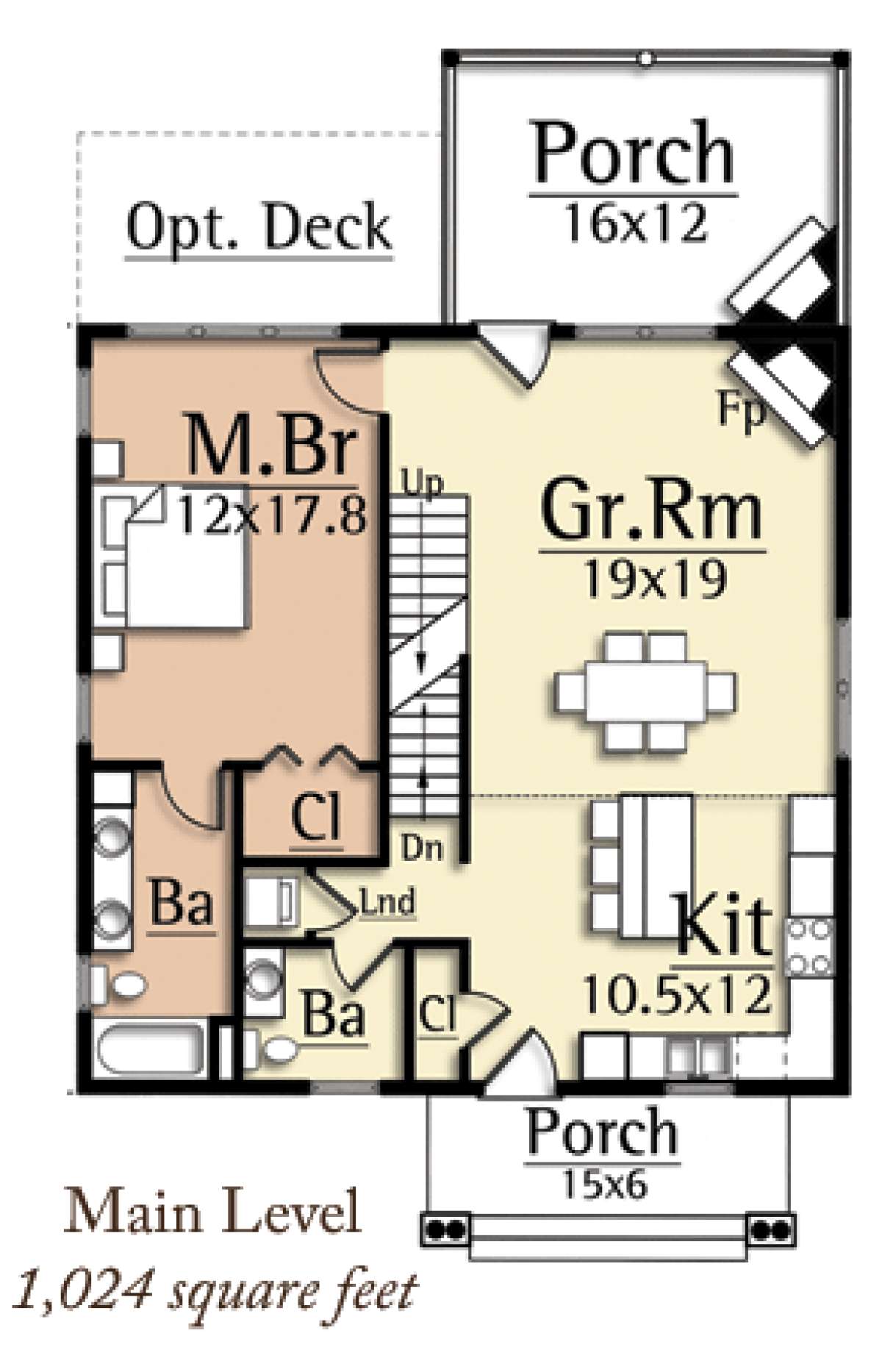

Floorplan 1
Floorplan 1 for House Plan #8504-00025

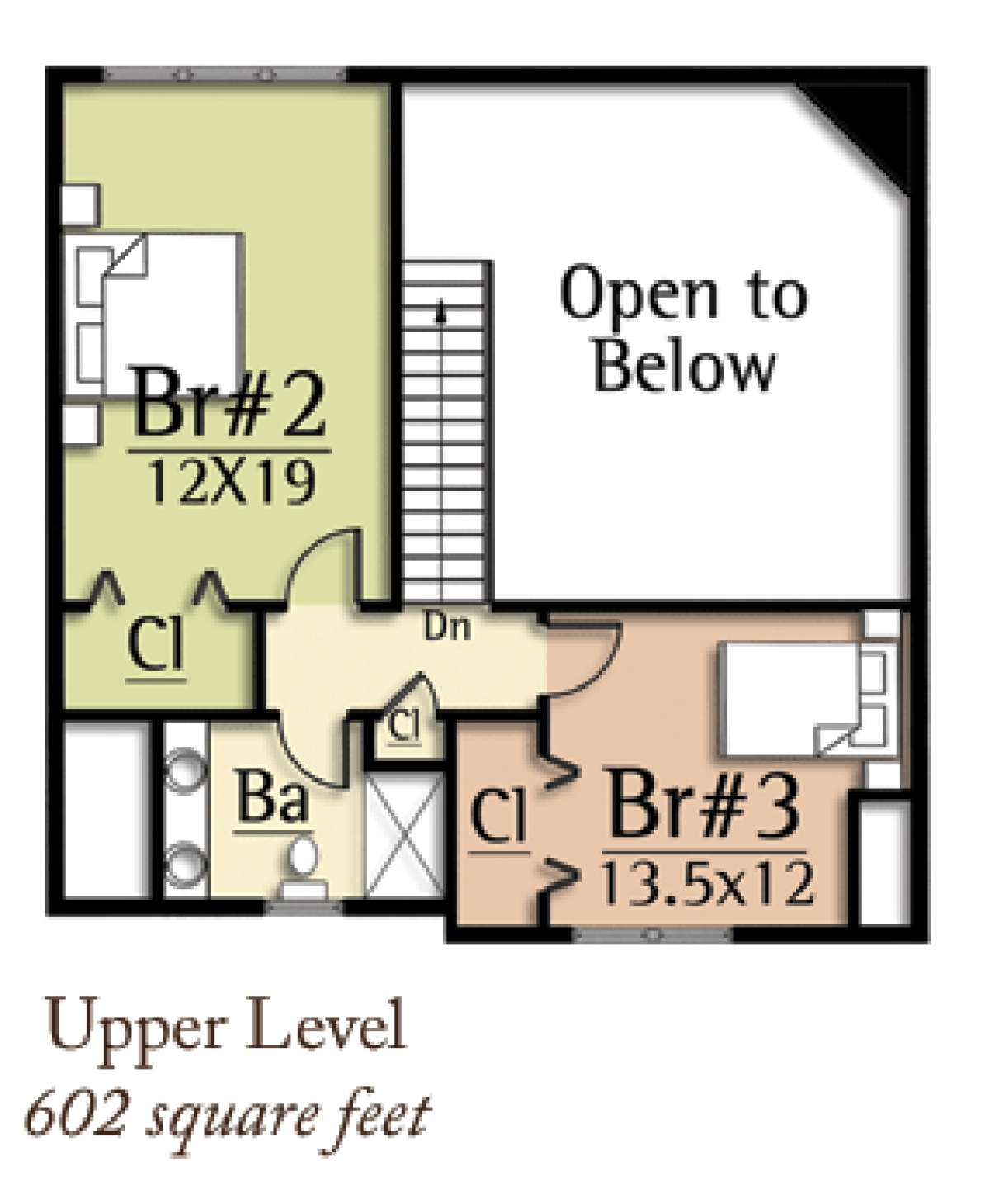

Floorplan 2
Floorplan 2 for House Plan #8504-00025
Garage
Garage for House Plan #8504-00025


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

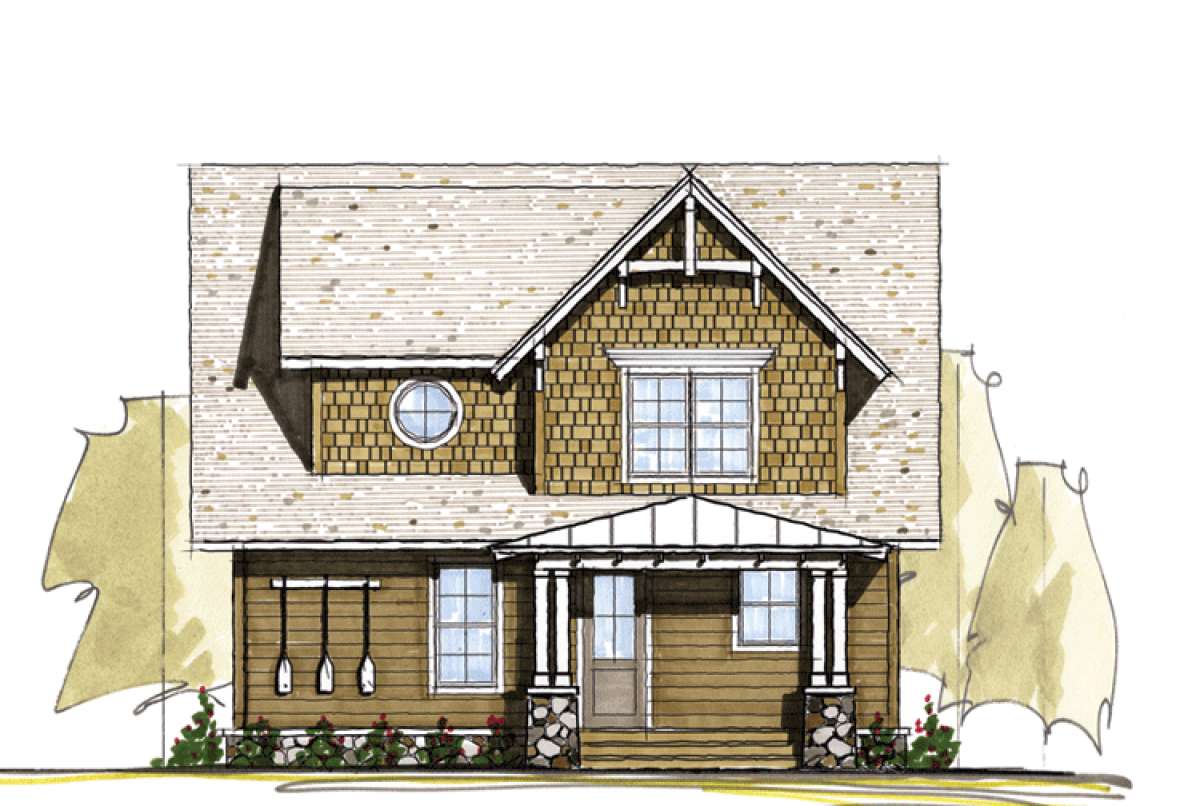

This charming Rustic Mountain house plan features an exterior loaded with organic design materials that add visual curb appeal to the home. There are exposed rafters, cedar shakes, warm wood accents and a stone perimeter skirt and stone pillars. The front covered porch offers excellent space to greet family and friends into the home’s interior and there is a large rear covered porch as well as an optional adjoining deck. The rear outdoor space is private, features a corner warming fireplace for seasonal climate control and offers a large amount of space for cook-outs, entertaining and family fun. The interior floor plan features an open floor plan that spans the depth of the room, three bedrooms and two plus baths. The 1.5 storied home houses approximately 1,626 square feet of living space with main floor ceiling heights at 9’ and the second story offers 8’ ceiling heights. A two car garage is included with the plan and features matching exterior detailing, a double load entrance and approximately 624 square feet of vehicle and storage space.

The open floor concept is revealed once you enter the home from the front covered porch as well as a large coat closet. The grand kitchen is highlighted with a large center island, casual seating arrangements and plenty of additional counter and cabinet space. The dining space lies between the kitchen and great room and offers good space and brightly lit window views. The great room is situated at the rear of the first floor and is highlighted with generous floor space, a corner handsome fireplace and rear access to the covered porch. There is a guest powder room and space for a stackable washer and dryer on this floor as well as the master suite. A large master bedroom features access to the open deck and there is an attached walk-in closet. The master bath offers dual vanities, a toilet area and a tub/shower combination. The second floor staircase is open to the below living space and there are two large bedrooms and a shared bath on this floor. Bedroom two is oversized and highlighted with excellent floor space, abundant window views and a walk-in closet. The third bedroom is smaller but still offers a generous amount of floor space, double window views and a large closet. There is a hall linen closet and the shared bath features a double sink vanity, a toilet area and a shower. This rustic family home is highlighted with a natural element exterior, great outdoor space and a functional floor plan.
