Vacation House Plan 110-01033

Sq Ft1,621
Beds3
Baths2
1/2 Baths1
Stories1.5
Cars2
Width63' 2"
Depth52' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor Plan for House Plan #110-01033
Upper Floor Plan for House Plan #110-01033
Main Floor Plan
Main Floor Plan for House Plan #110-01033
Upper Floor Plan
Upper Floor Plan for House Plan #110-01033


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

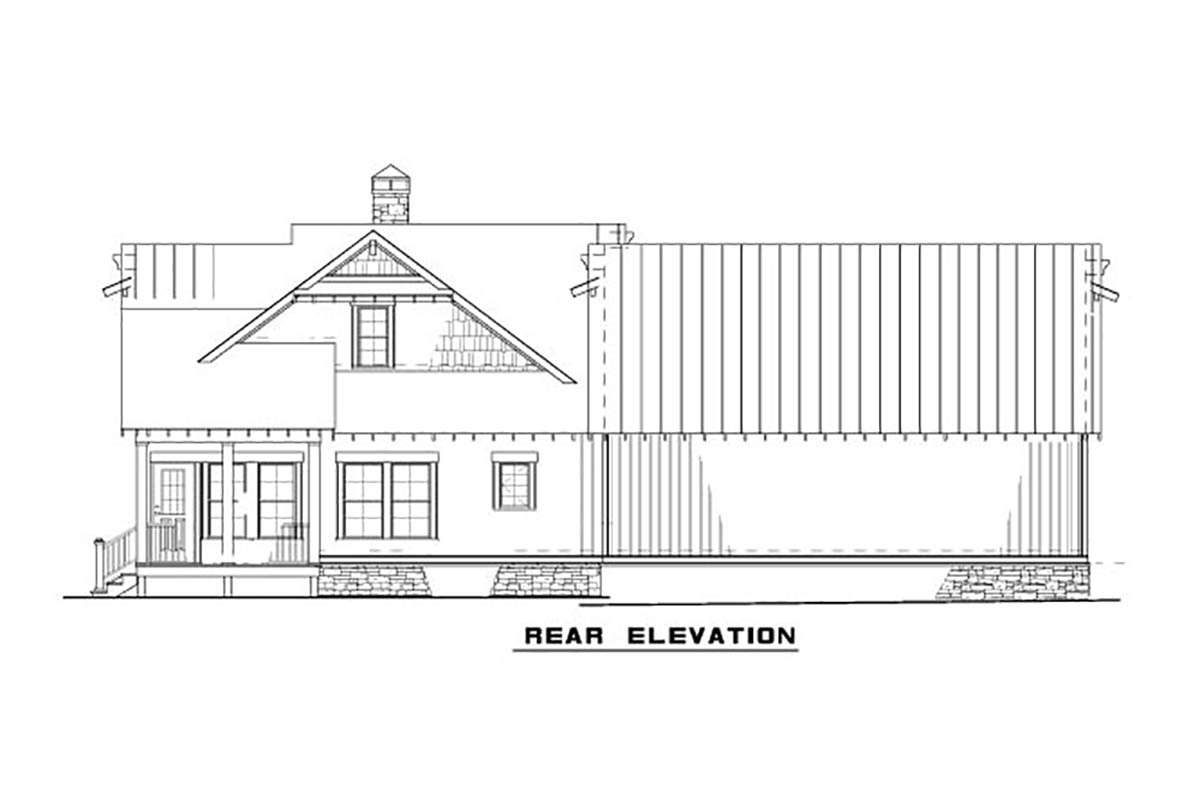

  • SET OF ELEVATIONS

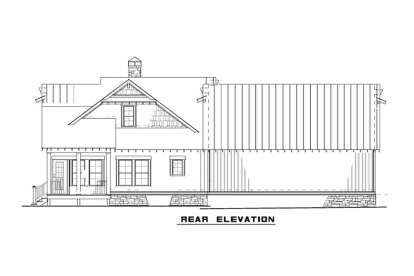

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

A beautiful exterior is highlighted in this Vacation house plan consisting of cedar shakes, stone pillars, large columned beams along with a stone perimeter and exterior stone chimney feature. Rustic and charming, this striking exterior also features a large L-shaped front covered porch which add enormous curb appeal, not to mention, great space for relaxing and greeting family and guests. The interior floor plan is well-thought out with an efficient use of space and approximately 1,621 square feet of usable living space. There are three bedrooms, two plus baths and an open floor plan within the home’s interior. With the inclusion of either a slab, crawl space, basement or daylight basement choice, the home can be customized to your family’s needs and lifestyle. The front covered porch leads into the open concept layout where the great room, which is quite large, features a warming fireplace and the second story staircase. The kitchen and dining area are positioned beyond the great room; the dining room is naturally drenched in sunlight from the rear wall of windows. The U-shaped kitchen provides additional seating at the breakfast bar and there is large laundry room nearby with loads of counter space and a sink area for ease of clean-up. The sun room is situated directly off the dining room and leads to the rear grilling porch; this is great space for entertaining and relaxing. The two car side entry garage is spacious and contains additional storage space for lawn or sporting equipment. The master suite is located on the main floor and features good floor space, wonderful window views and a large closet. There is an en suite bath with dual vanities, an enclosed linen closet and a tub/shower combination along with a separate half bath for guests.

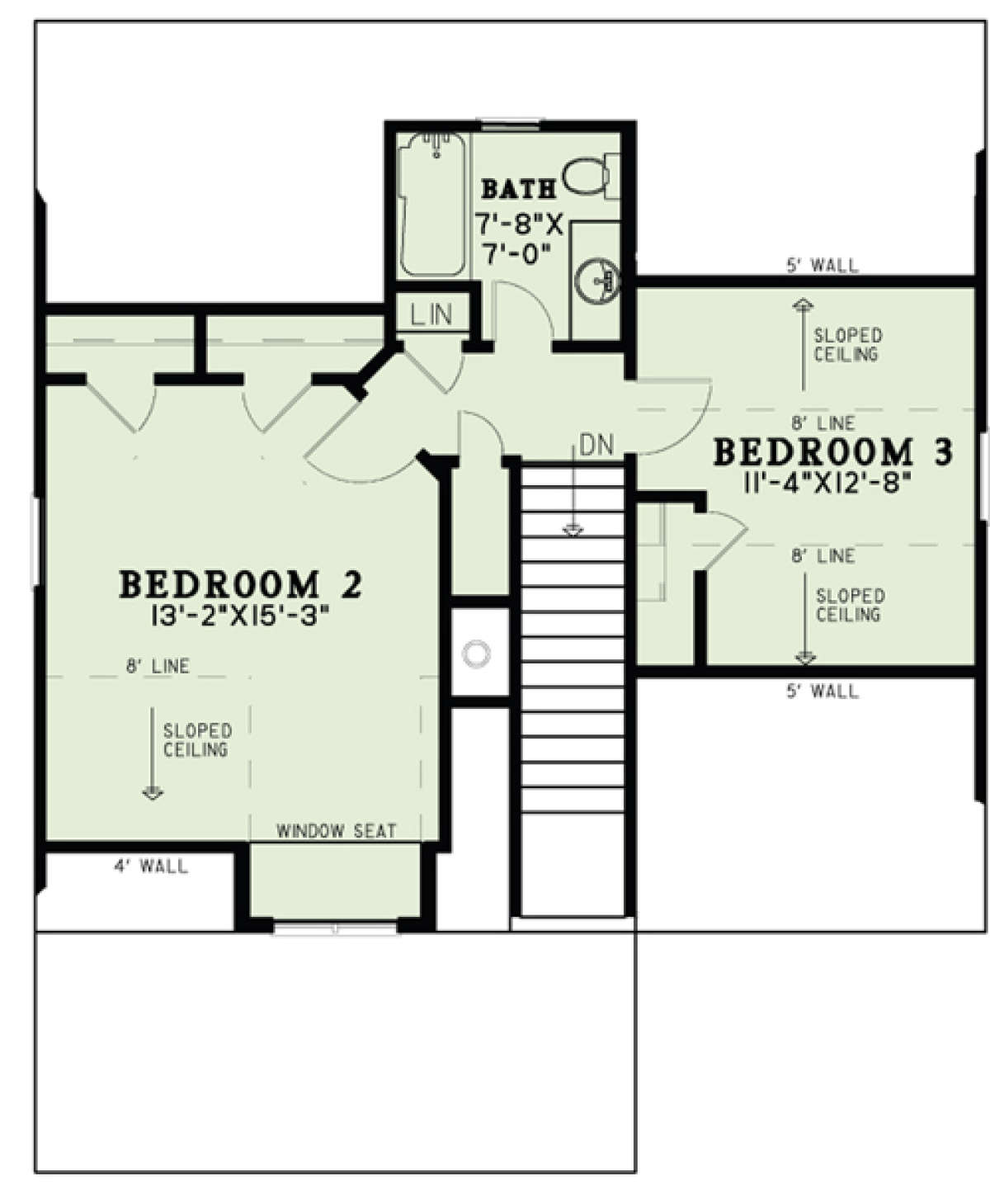

The second story staircase allows access to the second floor which features two bedrooms and a bath. Bedroom two is oversized with a window seat and double wall-to-wall closets. The third bedroom is slightly smaller with generous closet space. The shared hall bath features a large vanity space, a toilet area and a tub/shower combination and there is a nearby linen closet for convenience. This family style Vacation home is highlighted with an inviting exterior, great outdoor space for entertaining and family fun along with a choice of foundation, two of which could add considerable square footage to the home’s interior.
