Vacation Plan 036-00047

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,770
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1.5
Width 52' 4"
Depth 66'

Floorplan Drawings

Floorplan

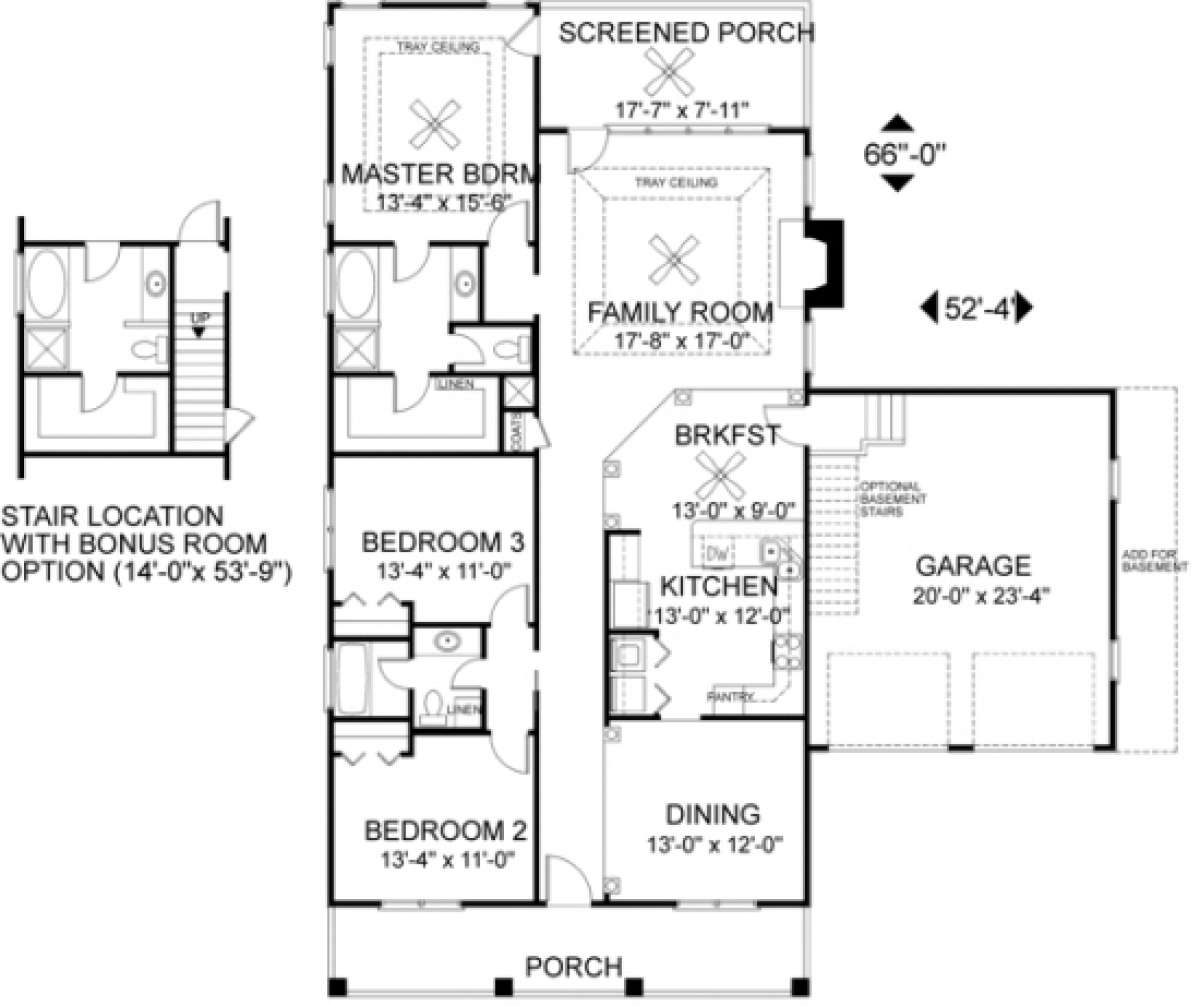

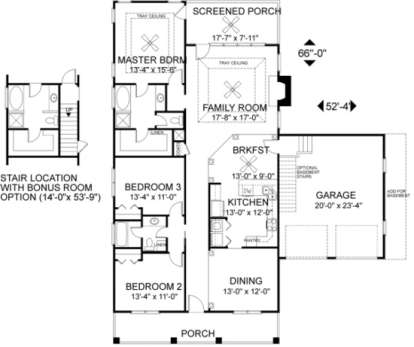

Floorplan for House Plan #036-00047


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This classic country cottage harkens back to simpler times with its rocking chair front porch which runs the width of the home. There is a front facing dining room which leads into the well-appointed kitchen that offers an abundance of cabinet and counter space, a separate pantry and laundry nook. The large breakfast room anchors the kitchen and family room which has a trey ceiling, fireplace and has rear access to oversized screened porch. The master suite includes a bedroom with trey ceiling, a large walk-in closet, rear porch access and a master bath with separate shower and garden tub. Two additional bedrooms with ample closet space share a jack and jill bath. The two car garage completes the home and there is an optional bonus room. This house plan offers comfort and style for your family.
