Cabin Plan 8504-00028

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,654
Beds 5
Bath 3
1/2 Baths 1
Car 2
Stories 2
Width 32'
Depth 32'

Floorplan Drawings

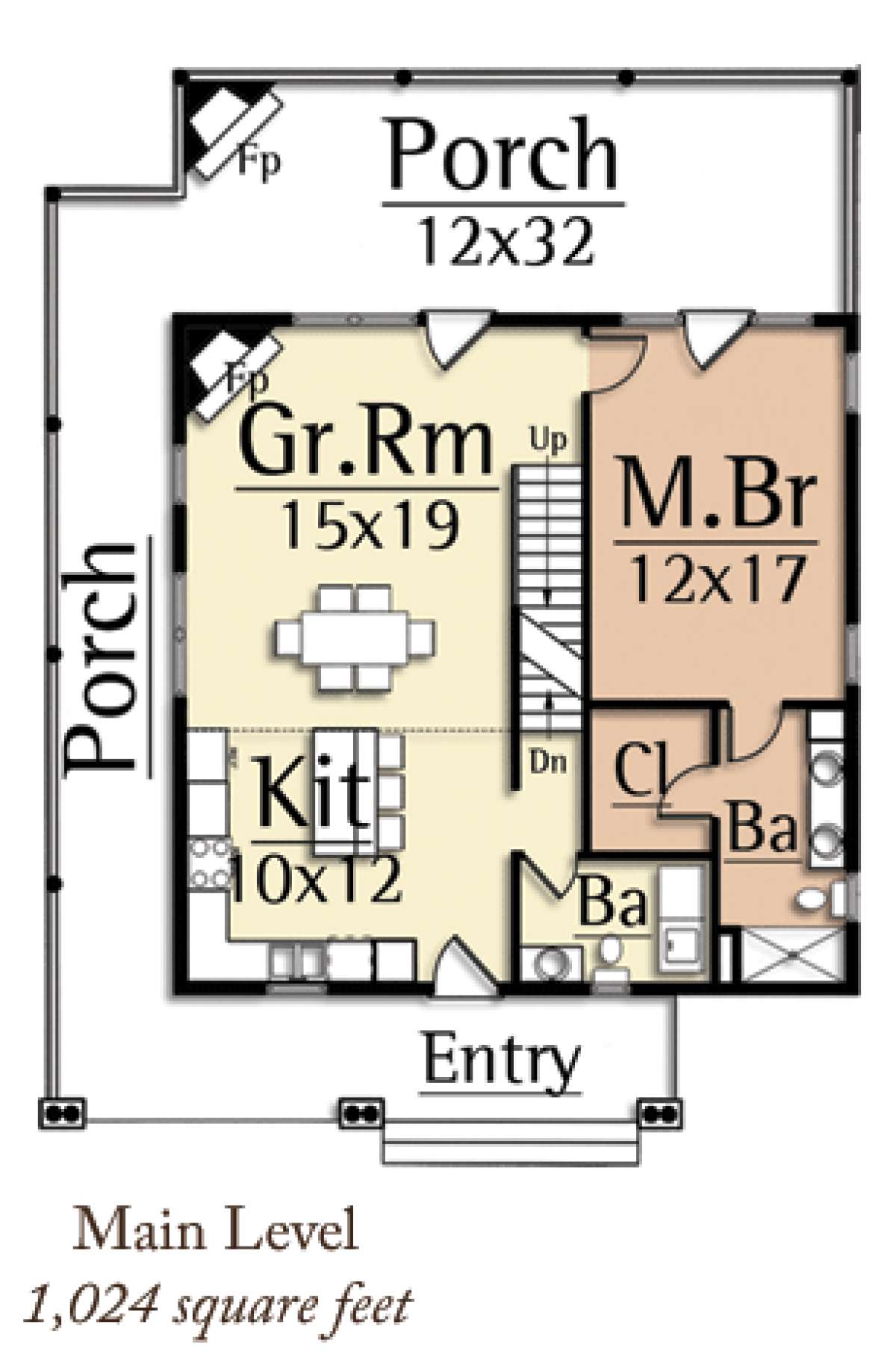

Floorplan 1
Floorplan 1 for House Plan #8504-00028

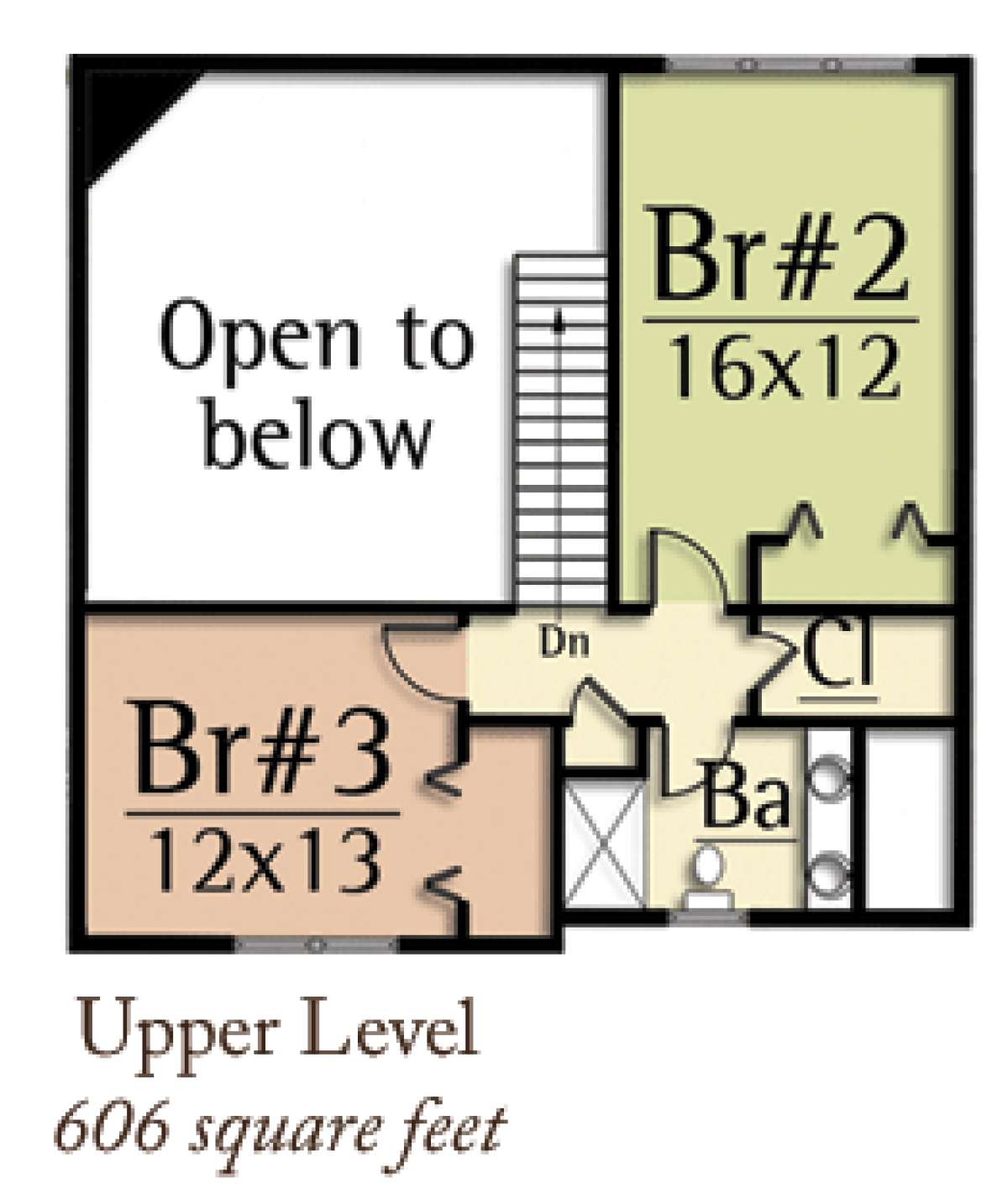

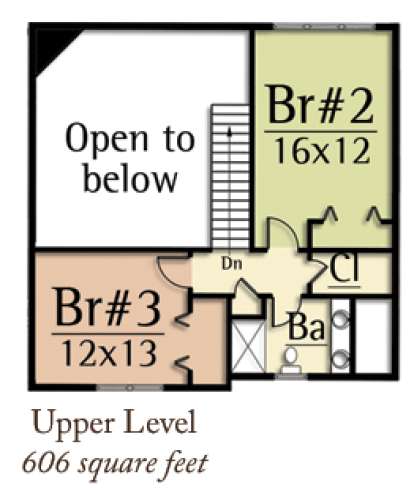

Floorplan 2
Floorplan 2 for House Plan #8504-00028

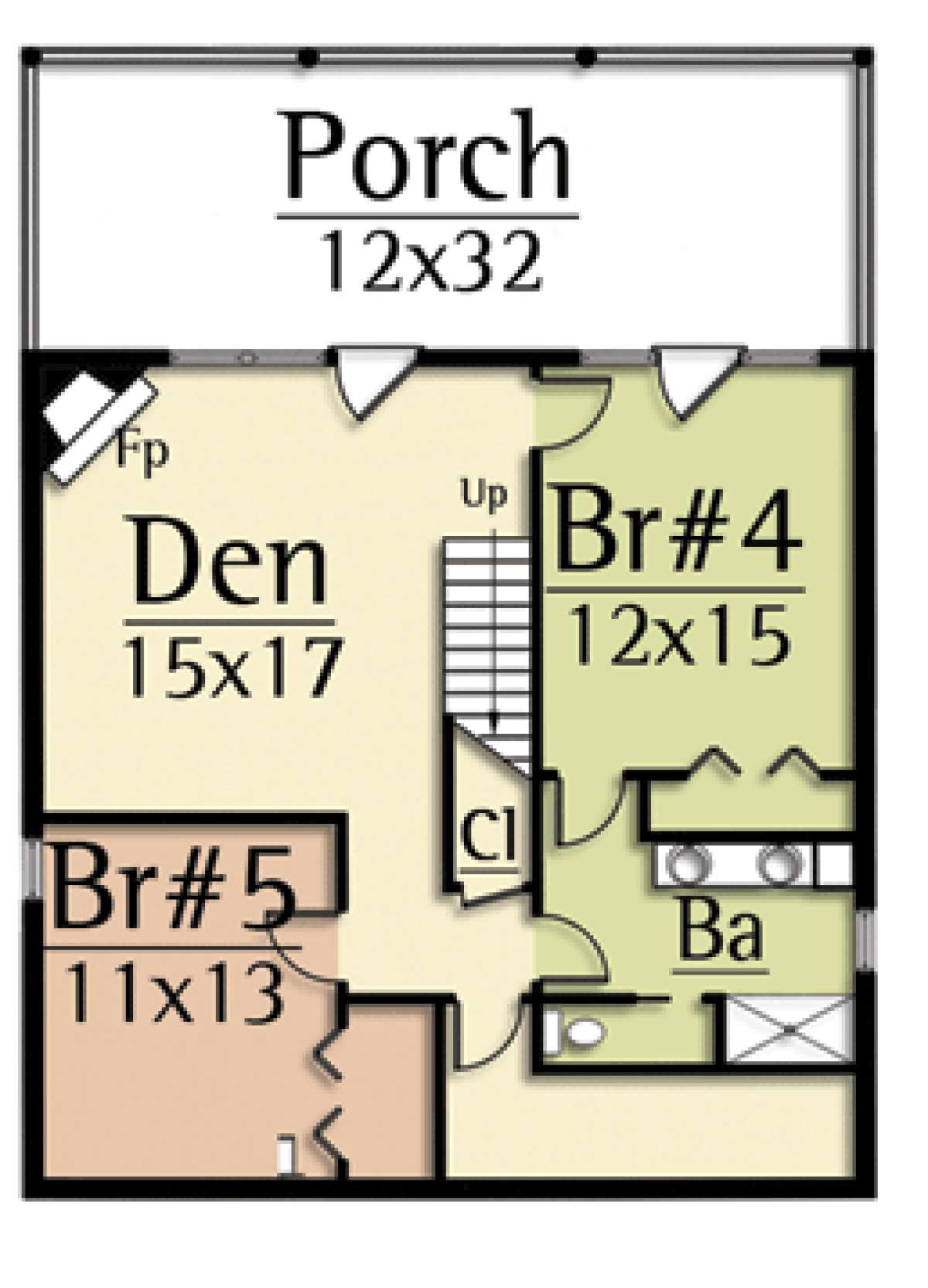

Lower Level
Lower Level for House Plan #8504-00028


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans

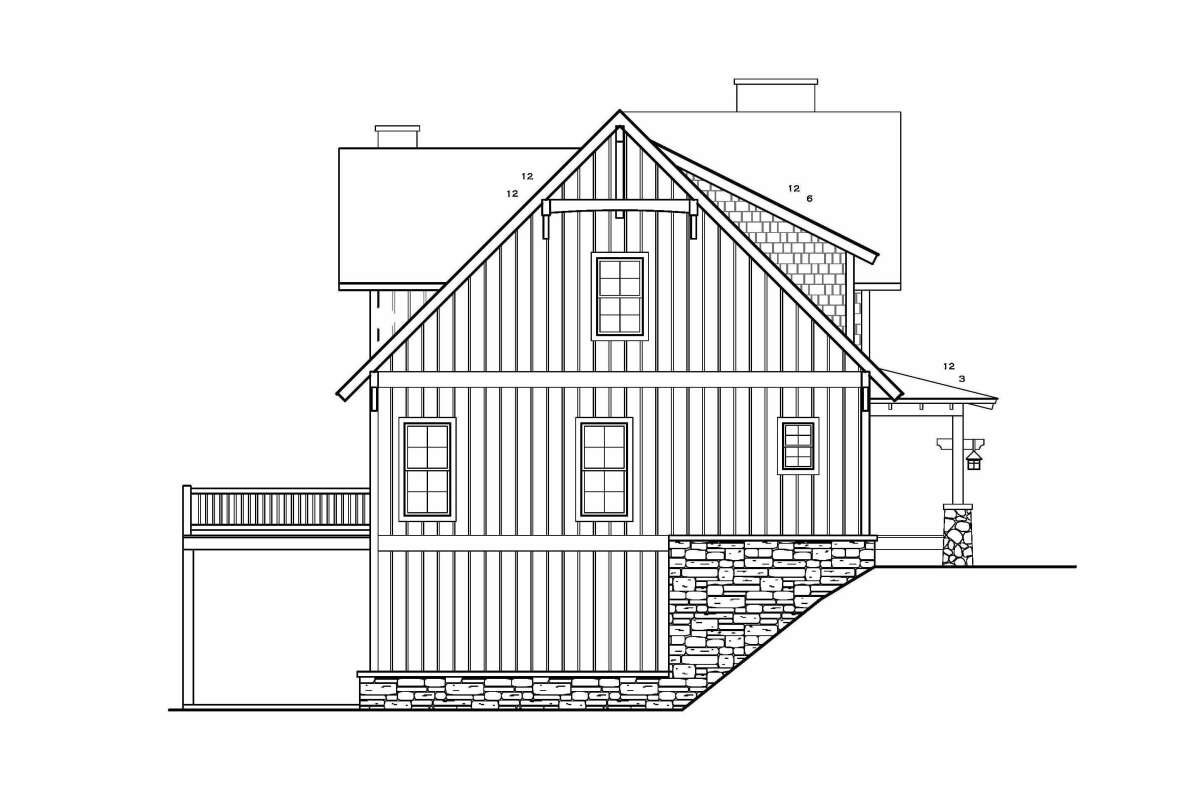

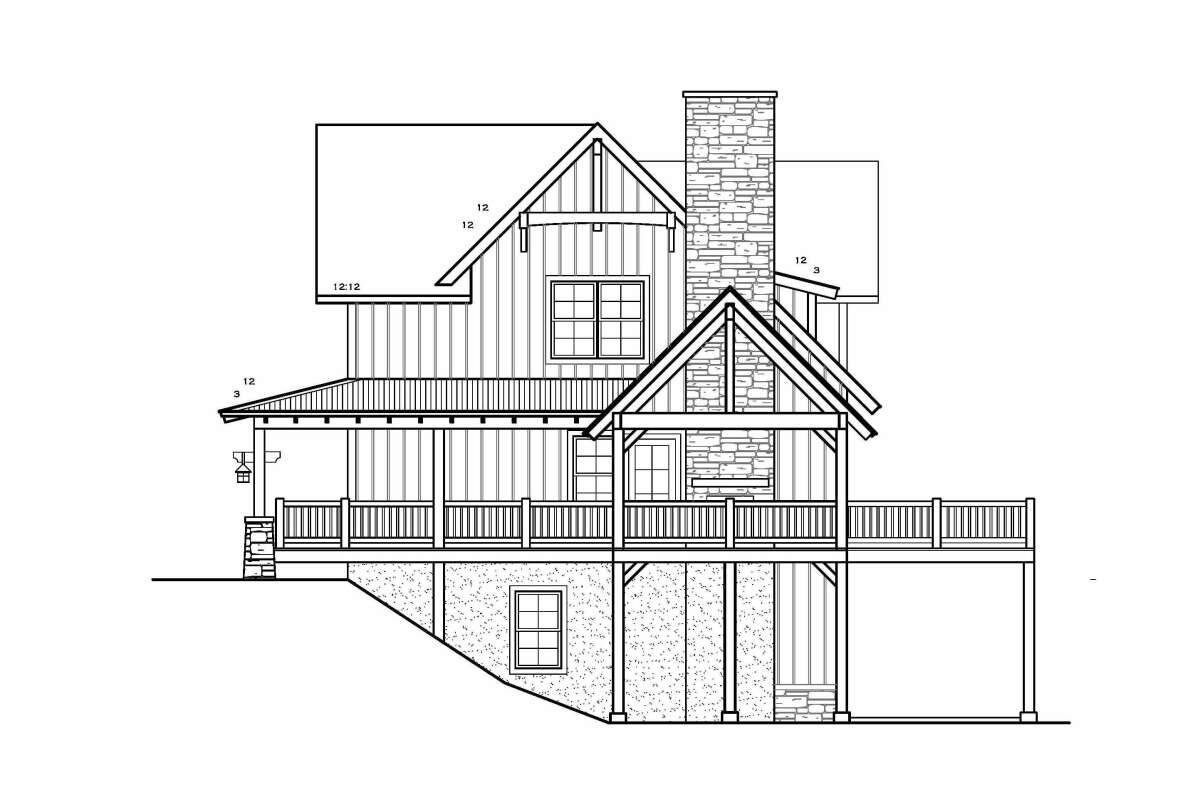

  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

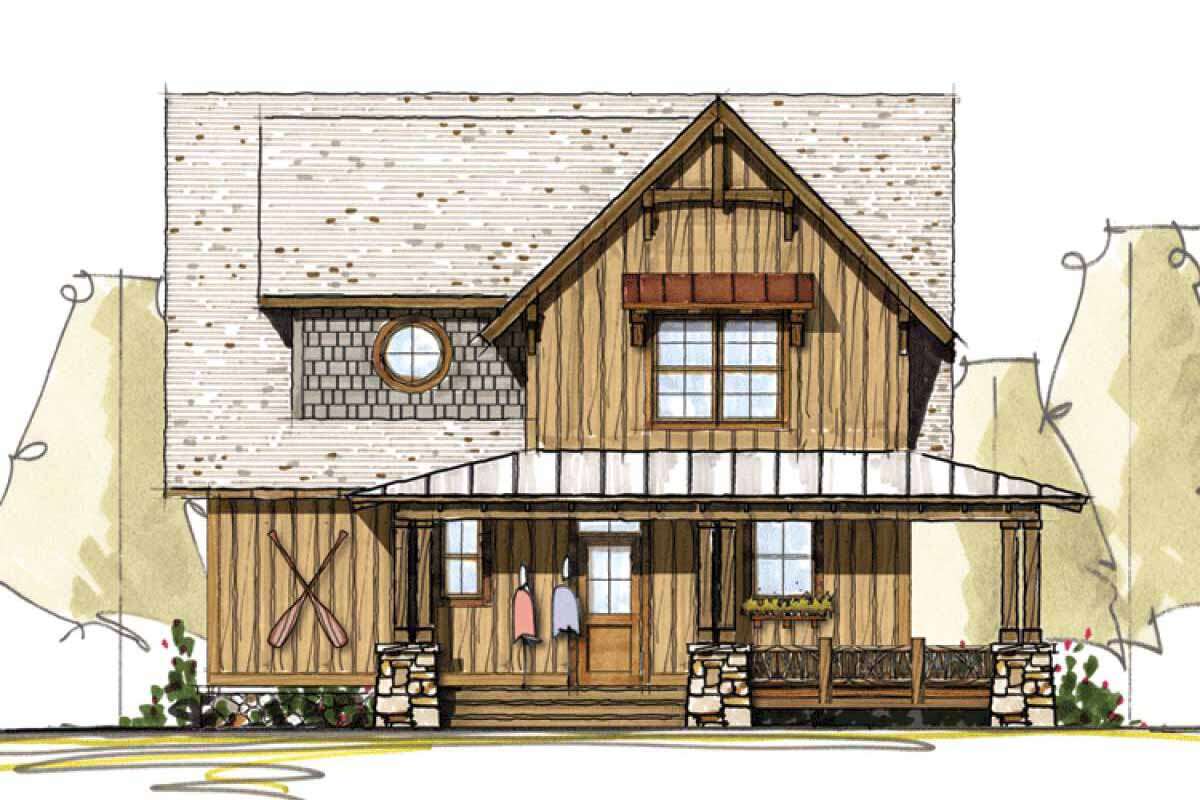

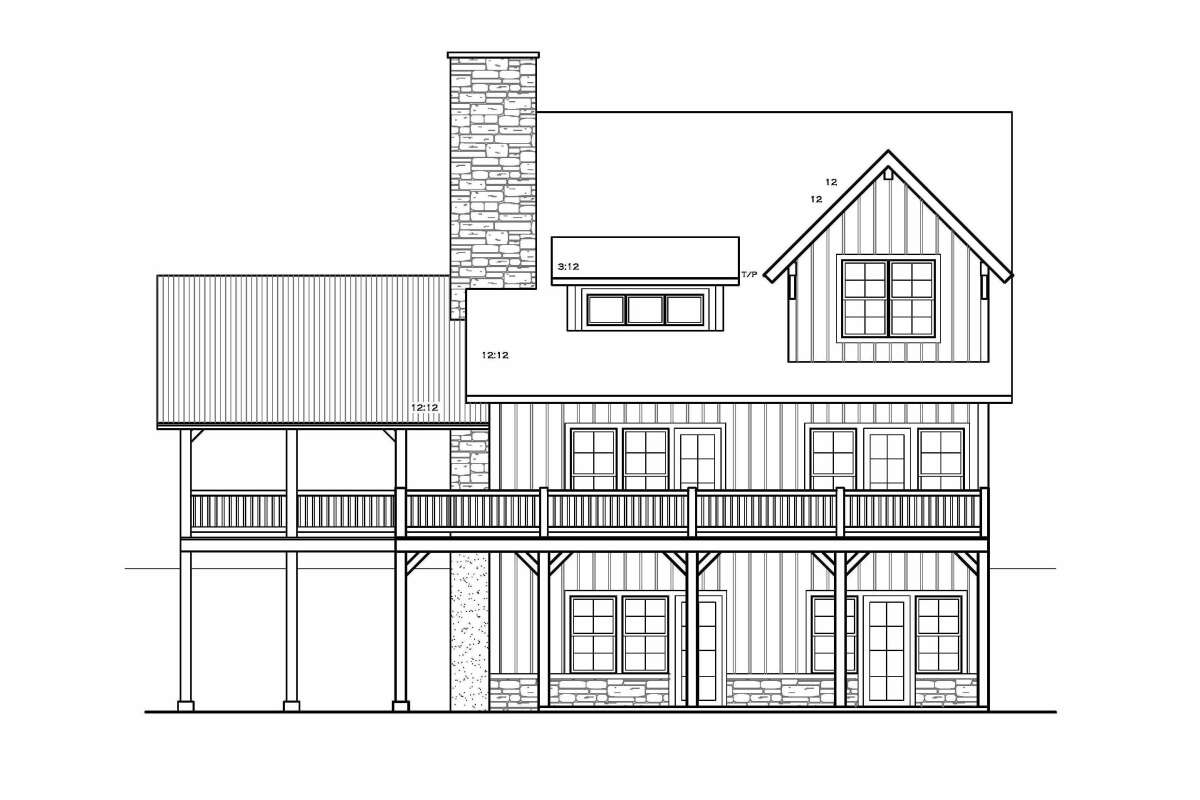

This stunning home features approximately 2,600 square feet of living space and evokes a rustic, country vibe. The ideal setting for this home would be a stunning mountain view or serene lakefront property in order to take advantage of its earthy tones and woodsy elements. The stacked stone and wood beam columns provide a beautiful backdrop to the country covered front porch. The wood beam flooring keeps the rustic vibe going and adds architectural interest to the home. The covered porch extends around the side of the home and finally rests at the rear of the home with a large rear porch and fireplace. This outstanding space is accessed from both the great room and master bedroom and allows for both intimate and family relaxing and entertaining. Can you imagine sitting on the rear porch with your morning coffee taking in stunning views of the mountains or lake? The great room is spacious with a fireplace and space for dining as well. The large country kitchen has a center island with breakfast bar and an abundance of additional counter and cabinet space. The master suite is situated on the main level and enjoys a large bedroom with walk-in closet. The master bath has dual vanities and shower. There is an additional half bath on this level for your guests.

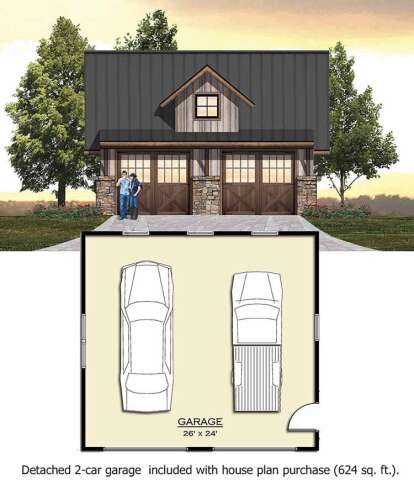

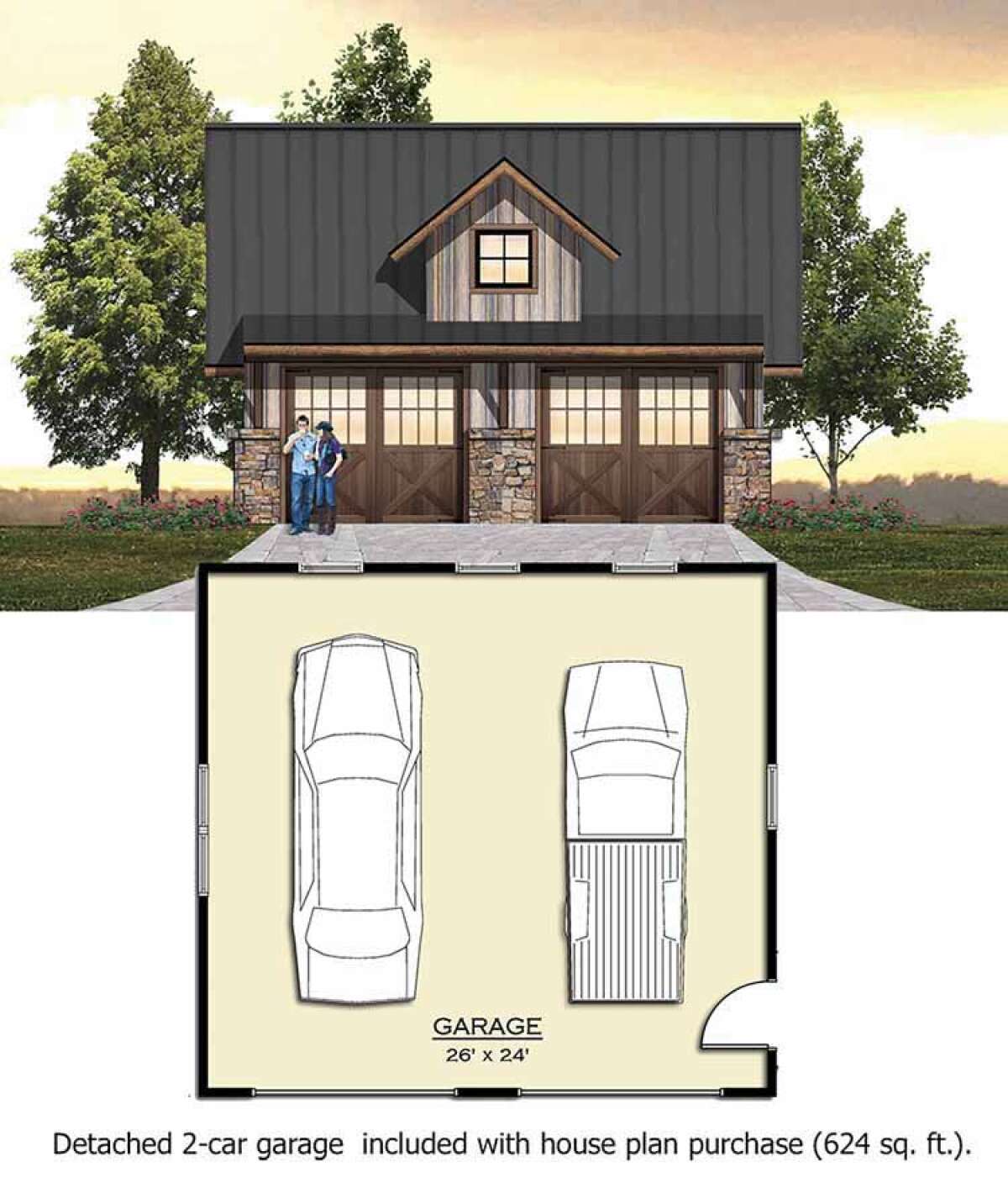

This home has an additional four bedrooms which lie either up or downstairs and makes this a versatile and functional floor plan. As you travel upstairs, you discover two additional bedrooms; one measures 16’x12’ and has considerable closet space while the third bedroom measures 12’x13’ and offers a spacious closet. A shared hall bath includes dual vanities, a shower and adjacent linen closet. The lower level of the home includes an additional 1,024 square feet. This additional space includes a family room or den to unwind, watch television or enjoy family time. Additionally, there are two bedrooms on this level and they both feature large closets. Bedroom four has private access to the shared bath which includes dual vanities and a linen closet while bedroom five is directly across the hall. An additional storage space is also available on this level. A detached two car garage which includes 624 additional square feet is offered with this house plan. If outdoor living and entertaining is at the top of your priority list, this home features an outstanding value, a versatile floor plan and exciting exterior façade which affords you and your family an outstanding lifestyle.
