Cape Cod Plan 5633-00179

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,322
Beds 4
Bath 3
1/2 Baths 0
Car 3
Stories 1
Width 82' 4"
Depth 49' 4"

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #5633-00179


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

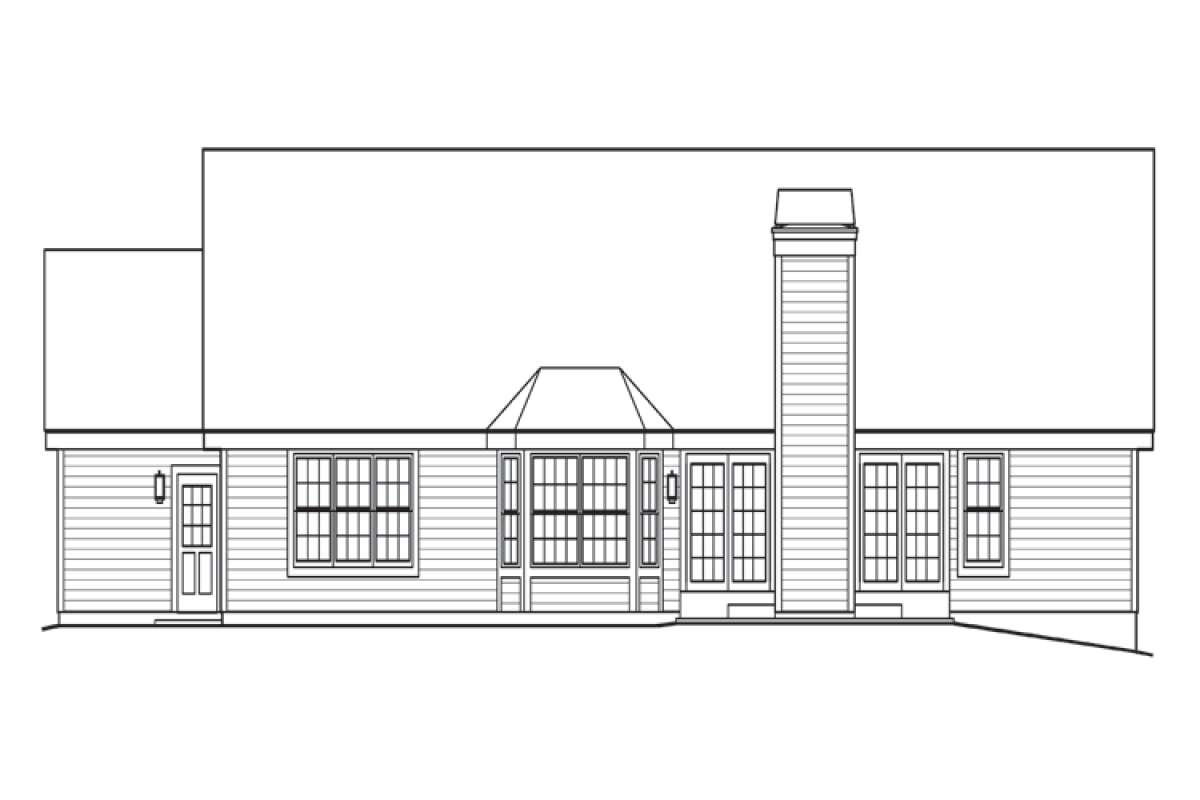

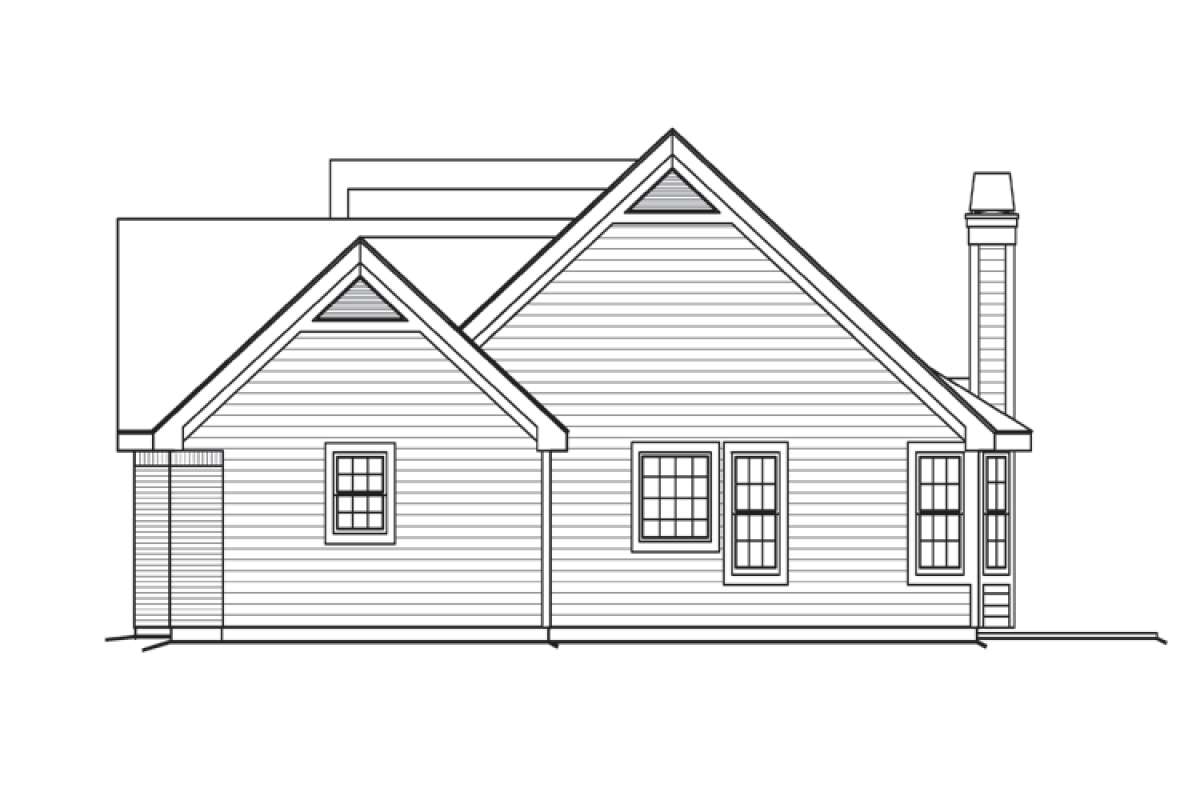

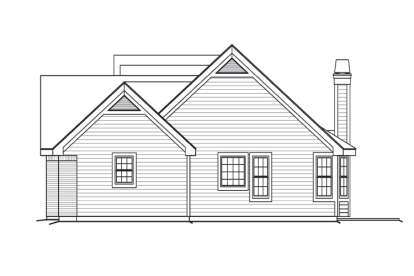

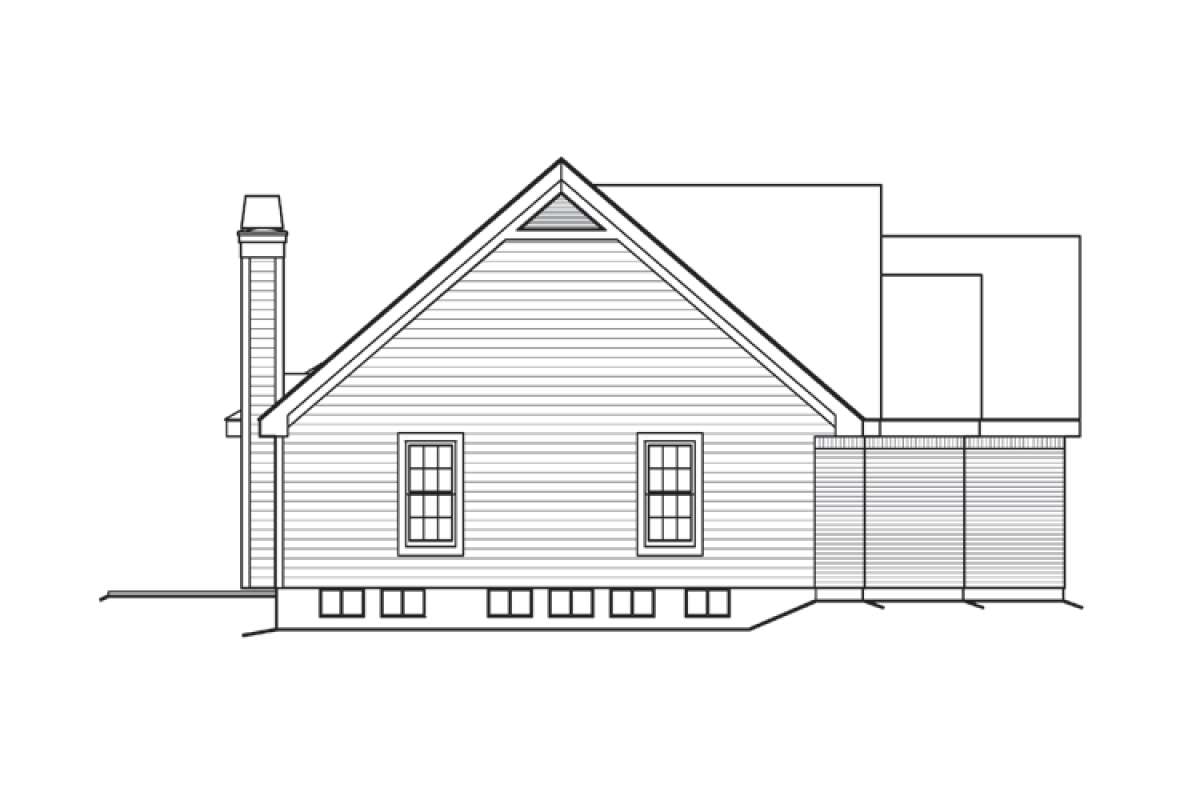

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This split bedroom Country house design features a gorgeous exterior façade consisting of cedar shake siding, French style shutters and a multi-gabled roof line that adds character and charm. The front covered porch is the ideal spot for greeting family and neighbors or to enjoy a cool glass of lemonade. Loads of interior space is featured in the home where there are four bedrooms and three baths in 2,322 square feet of living space. The home is situated on a basement foundation which almost perfectly mirrors the first floor living space. Additionally, there is a slab and crawl space included in the home’s drawings. There is a three car garage perfect for a large family’s vehicles and other storage items. Great entertaining space is provided in the main living areas with a vaulted great room featuring a rear wall fireplace and double access points onto the rear patio. The gourmet kitchen has a separate pantry, expansive breakfast bar and anchors the adjoining casual breakfast room and formal dining room.
There are three family styled bedrooms and a shared hall bath with large vanity and double linen closets on one side of the home. Each bedroom is spacious with generous closet space and has window views. The master retreat is a private oasis for relaxing and features an oversized vaulted bedroom with five window views illuminating the space. There is an enormous walk-in master closet and the elegantly designed master bath features dual vanities, a separate shower and a garden tub. This lavish single story home features a fully functional floor plan and a basement foundation with substantial expansion possibilities.
