Cape Cod Plan 5633-00154


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,929
Beds 4
Bath 3
1/2 Baths 0
Car 3
Stories 1
Width 68'
Depth 49' 8"

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #5633-00154

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.

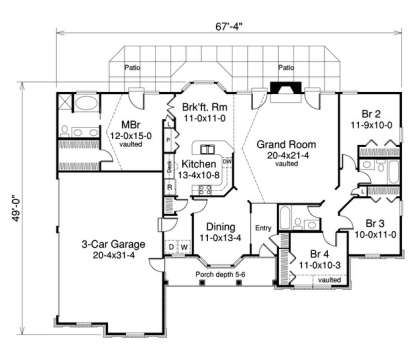

    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

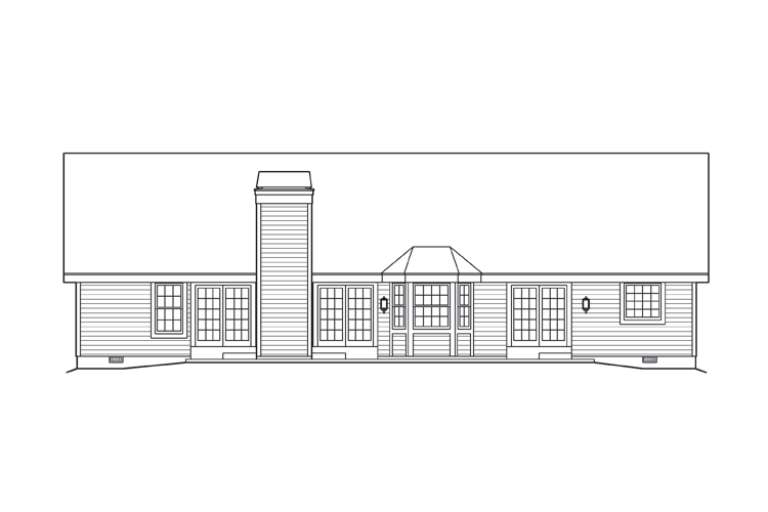

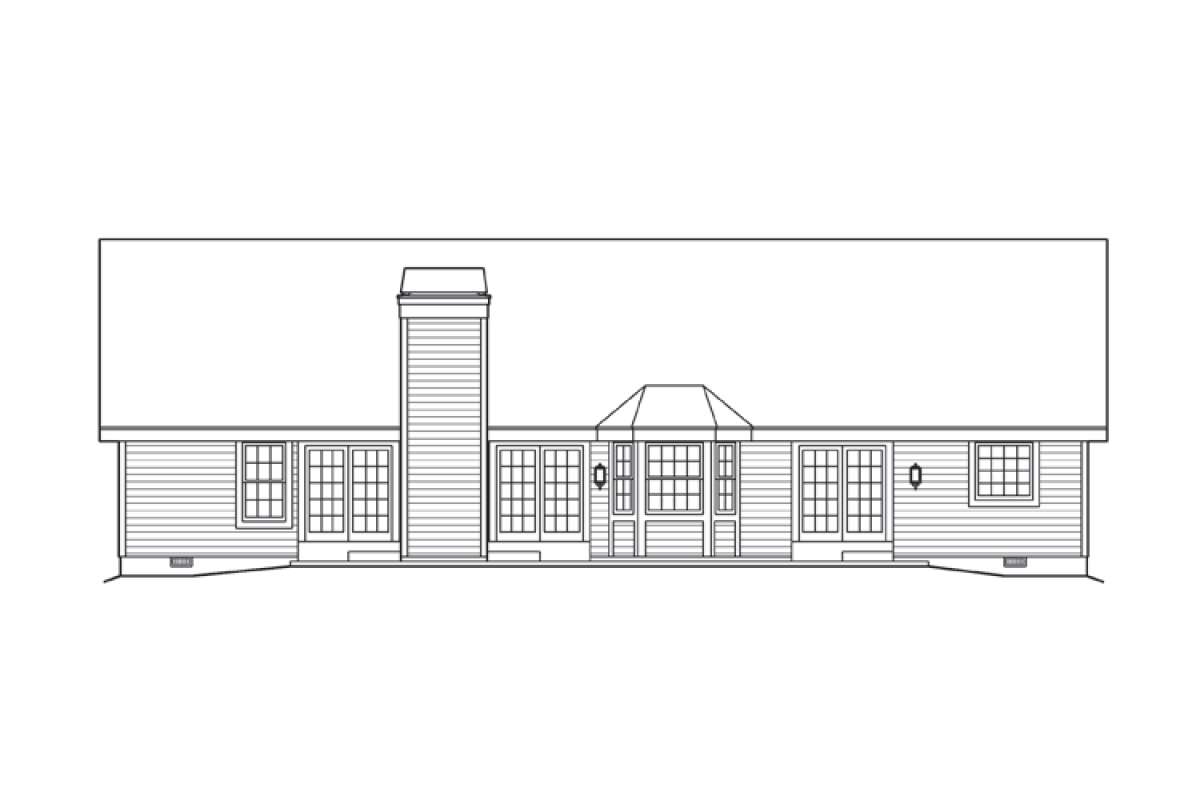

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

A striking classic and timeless exterior façade features enormous curb appeal in the traditional brick Ranch house design. The exterior is highlighted by triple window dormers, Palladian styled window feature and an expansive front covered porch. There are approximately 1,929 square feet of living space on the main floor of the home consisting of four bedrooms and three baths. The home’s drawings are on a crawl space foundation but also include a slab and basement foundation. The basement foundation would substantially increase the home’s value, versatility and expansion possibilities. There is an enormous three car, side entry garage; ideal for vehicle and other storage items. The spacious entrance foyer houses a coat closet and opens onto the formal dining room featuring a triple bay window wall. The centrally located grand room measures in excess of 20’x21’, has soaring ceiling heights, a rear wall fireplace and provides double access points onto the rear patio. The patio space spans the length of the home and offers exceptional entertaining options. The gourmet kitchen is highlighted by a separate pantry, desk area and loads of counter and cabinet space. There is an adjacent, sun drenched breakfast room nestled into a triple bay window. A large laundry room is conveniently located off the garage.
The split bedroom plan features three family styled bedrooms and two baths on one side of the home. Bedrooms two and three are spacious with generous closet space and one full bath and a hall linen closet is situated between the two bedrooms. The fourth bedroom is highlighted by a vaulted window feature, has ample closet space and there is an adjacent full bath. The master suite is situated on the opposite side of the home for privacy and features a large vaulted master bedroom with private patio access. There is an oversized master walk-in closet and the master bath is highlighted by dual vanities, a private toilet area, separate shower and a garden tub with a view. This family friendly home features a fully functional and comfortable floor plan with an outstanding exterior façade.
