Cape Cod House Plan #5633-00203 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 2,241

Beds 4

Bath 2

1/2 Baths 1

Car 2

Stories 1

Width 68' 4"

Depth 56'

See What's Included

Select Package

PDF (Single Build)

$1,149.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$1,549.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,149.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,249.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,849.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$2,249.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Basement Foundation $0.00

Slab Foundation $250.00

Crawlspace Foundation $250.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $150.00

Convert the exterior framing to 2x6 walls.

Material List $125.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Please note that the material list is created with the standard foundation only and will not include any alternate foundations or additional options.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Floorplan 1

Images copyrighted by the designer.

What's Included in these plans?

Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
Artist Rendering

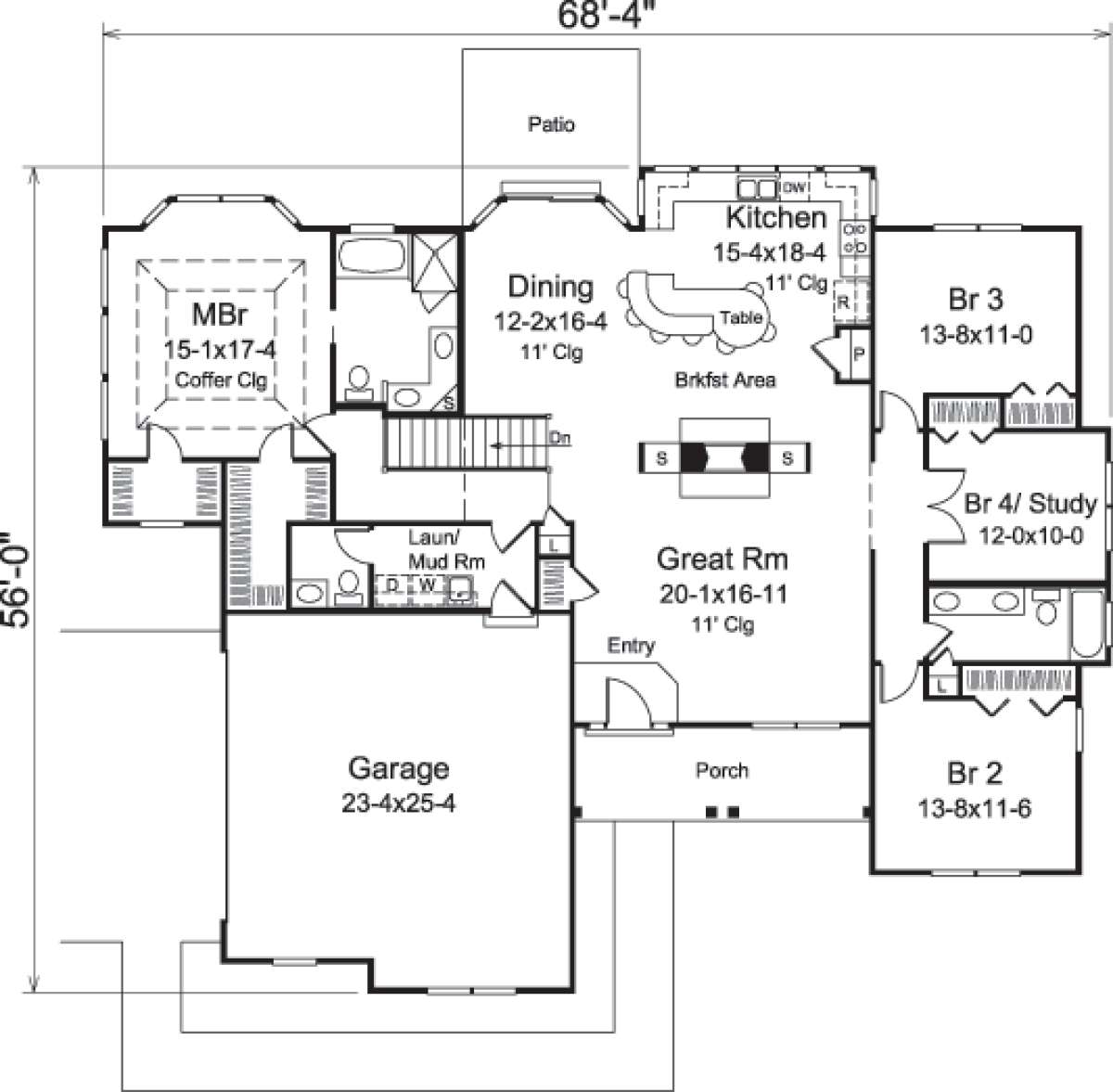

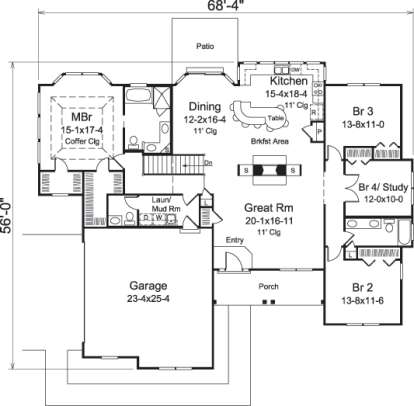

Foundation & Floor Plans (1/4"=1')

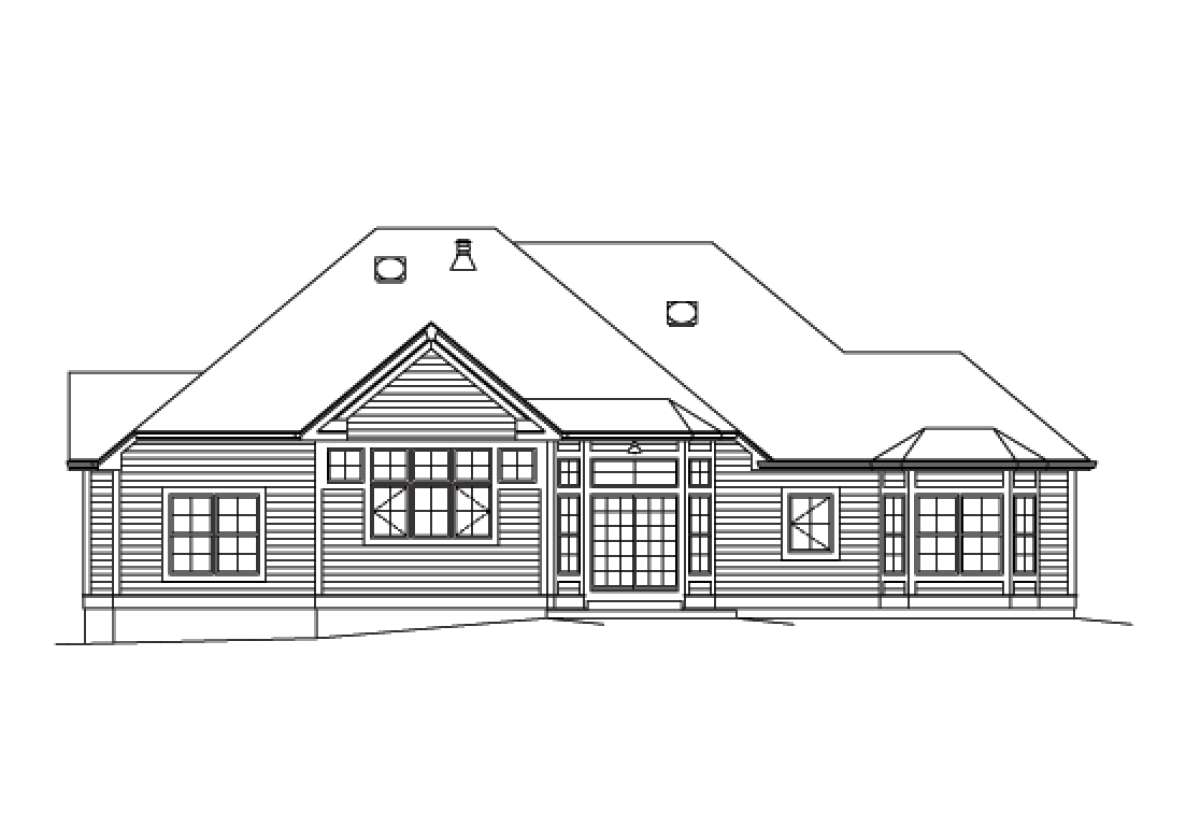

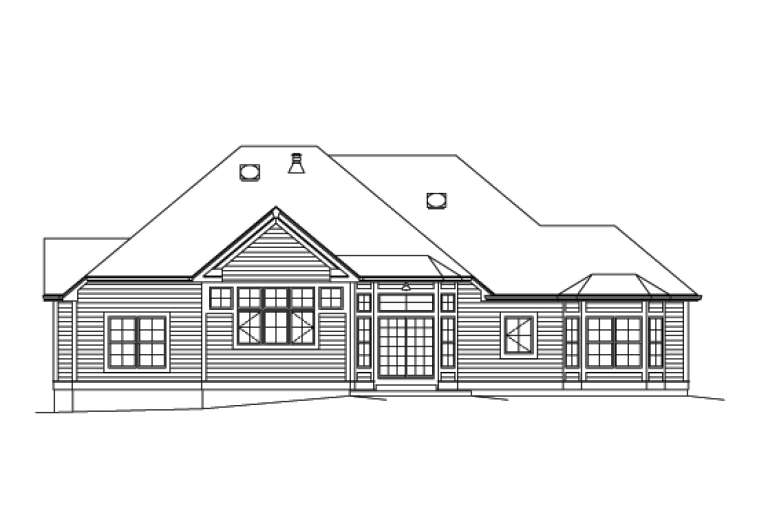

Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
Kitchen and Bath Elevations (1/4"=1') **
Miscellaneous Details (1/4" to 3/4"=1')
Stair Section (1/4" to 3/8" = 1')
Roof Overview Plan (scale varies) **
** Some plans in this series do not provide cabinet elevations or roof overview. Please call to verify.
FLOOR PLANS
This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
SET OF ELEVATIONS
This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
Some details are included for interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

About This Plan

This charming Cape Cod home design features a striking exterior full of light and balanced composition with its double window dormers, multiple window elements and a front covered porch with columned beams. The single story home is highlighted with approximately 2,241 square feet of usable living space and there is an unfinished basement foundation for future expansion options. There is an open concept layout within the home’s interior and a split bedroom plan that features four bedrooms and two plus baths. Walking into the home’s main entrance there is an entry foyer before stepping into the great room with soaring ceiling heights and a double sided centrally located fireplace. Beyond the great room is a plethora of casual dining space which includes a breakfast area, unique wraparound breakfast bar with end table and a separate dining space enveloped in a bay window that offers access to the outdoor patio. The kitchen boasts of side and rear walls that house an extensive array of modern amenities for an enjoyable space in which to prepare family meals. A large utility room, half bath and linen closet are conveniently accessible from the two car side loading garage.
The ubiquitous split bedroom plan is highlighted with private space for the homeowner’s pleasure and comfort that features the master suite on one side of the home. There is a beautifully designed master bedroom with a large bay window and a coffered trey ceiling accent. His and hers attached master walk-in closets offer plentiful storage for clothing and accessories and the en suite bath boasts of an L-shaped vanity with double sinks, a separate shower and a large soaking tub. There are three additional bedrooms on the opposite side of the home where each bedroom is equipped with good floor space, generous closet space and wonderful window views. The shared hall bath features an extended vanity with dual sinks, an enclosed linen closet and a tub/shower combination. This family friendly home is well-appointed and showcases plenty of space and an open layout.
