Traditional House Plan 5633-00028

Sq Ft2,480
Beds4
Baths2
1/2 Baths1
Stories1
Cars2
Width77' 0"
Depth37' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

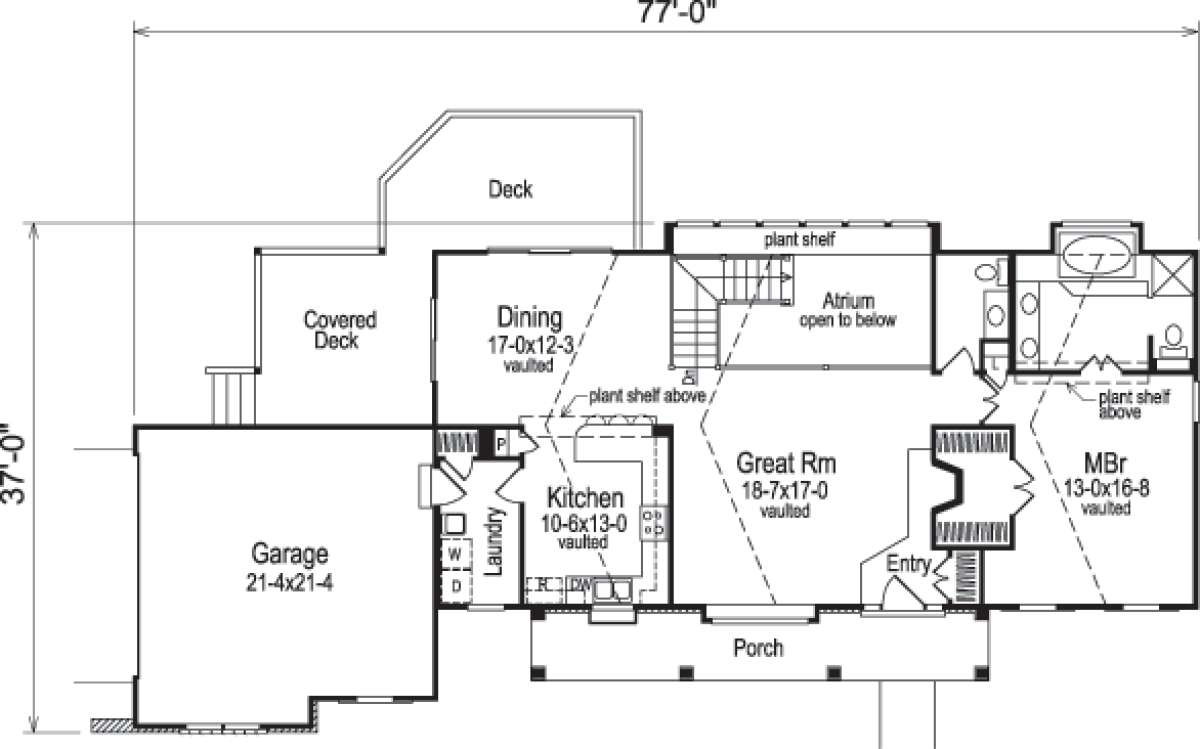

Floorplan 1 for House Plan #5633-00028

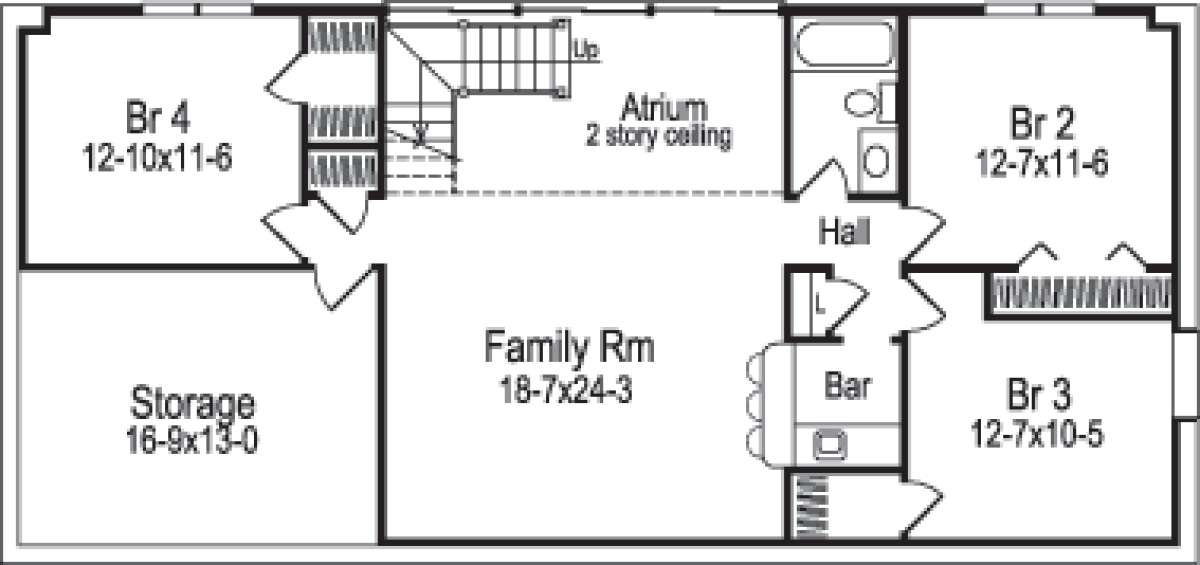

Floorplan 2 for House Plan #5633-00028
Floorplan 1
Floorplan 1 for House Plan #5633-00028
Floorplan 2
Floorplan 2 for House Plan #5633-00028


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Generous living space and a classic exterior command attention in this traditional house plan. There are approximately 2,480 square feet of living space in the home including 988 square feet provided in the walkout basement. Four bedrooms and two plus baths adorn the home where entertaining and family private spaces abound. The timeless exterior features an expansive front covered porch, triple window dormers and beautiful stonework. The home’s interior space maximizes the distinction between living and sleeping quarters creating an ideal environment in which to relax and entertain. A vaulted great room with fireplace is centrally located and the added rear window wall atrium provides a dramatic touch to the space. The formal dining room is also vaulted and features an enormous space along with double access points to both the open and covered rear deck. A breakfast bar, separate pantry and loads of counter and cabinet space are highlighted in the kitchen. The interior laundry room is spacious with a sink area and closet/storage room directly accessible from the garage. The main level master suite is elegantly designed with French door access into the bedroom where a large vaulted space is revealed. A second set of French doors leads to the oversized master walk-in closet and the master bath is a flawless design. There are dual vanities, a separate shower and a gorgeous garden tub with views.
The lower level offers a superior design for children and guests. A large family room takes center stage and includes a bar area and enough space to enjoy movie viewing, board games and/or “hanging out as a family. There are three spacious bedrooms with views and generous closet space. A shared hall bath is featured along with a hall linen closet. An additional large space includes plenty of storage room and could be easily converted into a fifth bedroom. This is a great family home with separate entertaining and private family space.
