Cape Cod House Plan 5633-00123

Sq Ft2,547
Beds4
Baths2
1/2 Baths1
Stories1
Cars3
Width66' 0"
Depth66' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

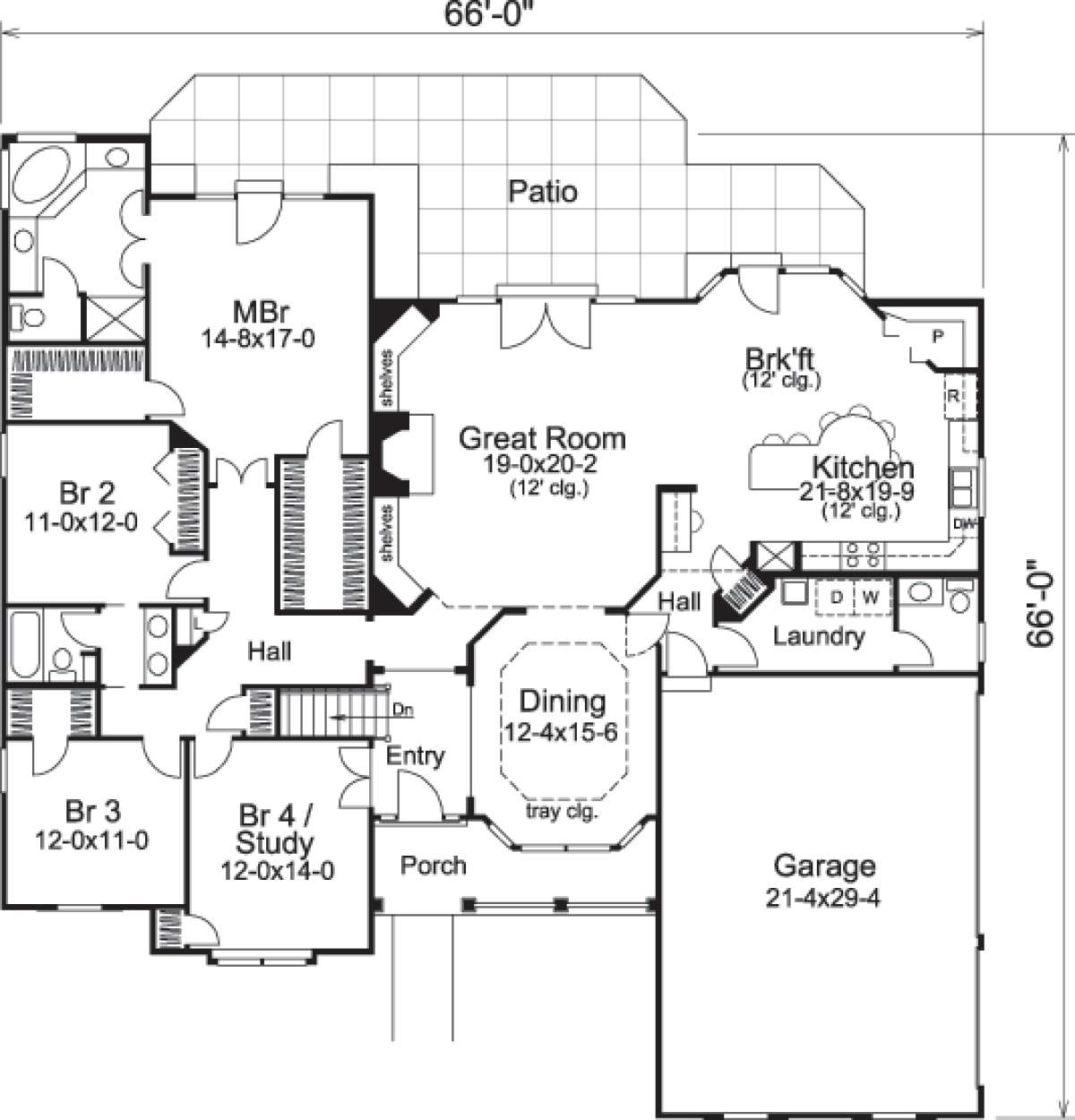

Floorplan 1 for House Plan #5633-00123
Floorplan 1
Floorplan 1 for House Plan #5633-00123


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

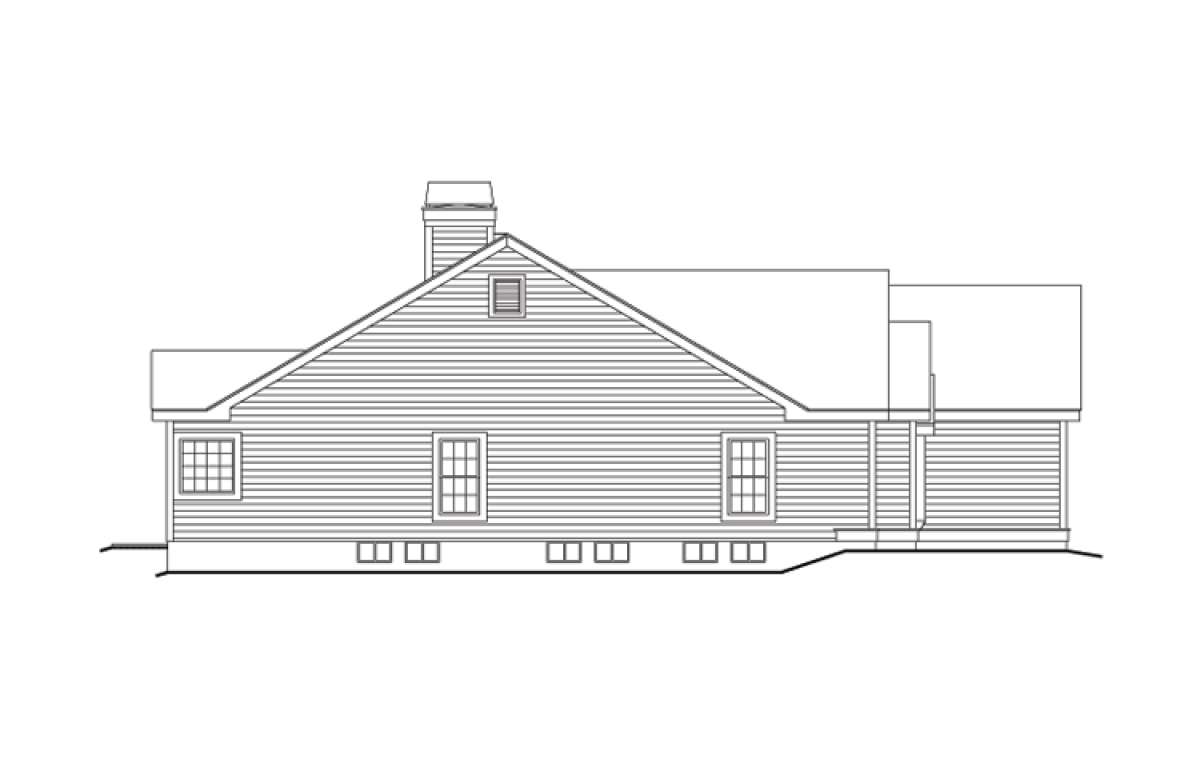

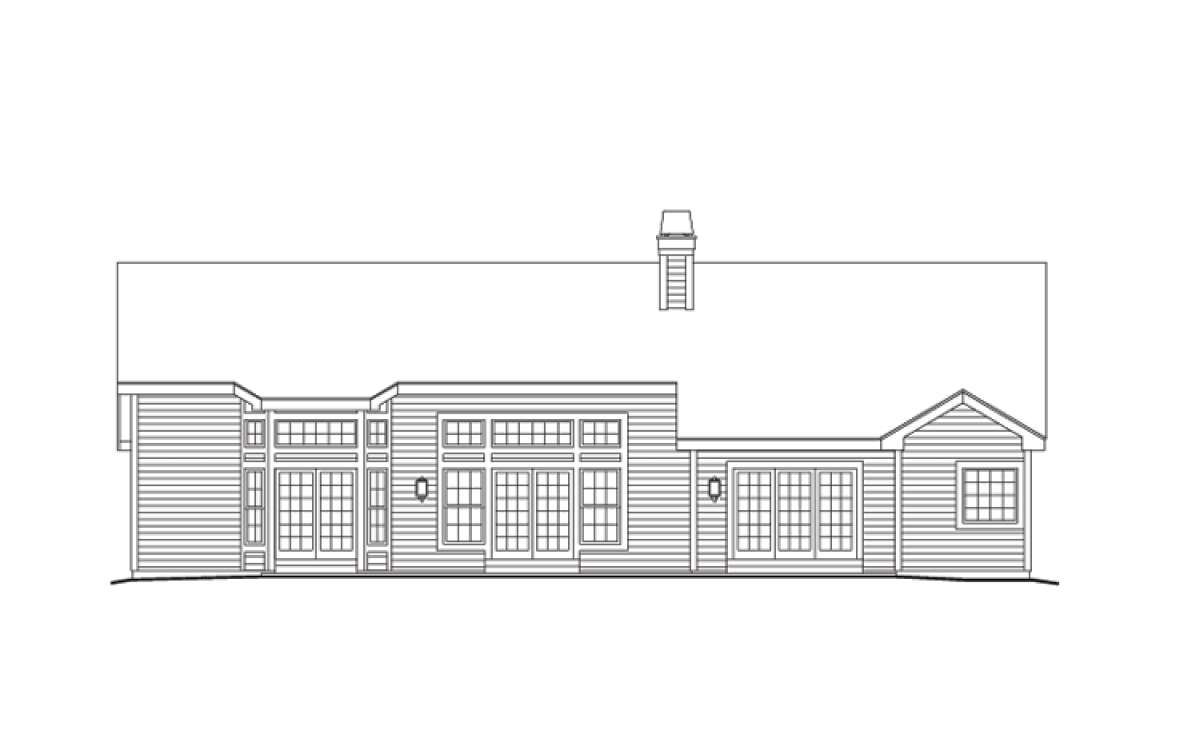

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Country house plan has a patio spanning the back exterior of the home with three access points and a multitude of window views resulting in a light filled home. The front exterior is inviting and features double window dormers and a covered porch where relaxing and greeting family and neighbors is enjoyable. This single level Ranch home consists of four bedrooms and two plus baths in approximately 2,500 square feet of living space and a three car garage has plenty of storage for a large and active family. The grand sized great room features a 12’ volume ceiling with center fireplace and built-in shelving. There is French door access to the patio which is highlighted with sidelights and transom windows and a casual breakfast nook is situated in a large bay window with additional patio access. This is a great kitchen for a family; there is a large breakfast island offering seating for seven, an oversized walk-in pantry, computer/desk area and an abundance of counter and cabinet space. This home has a formal dining room, as well, which features a trey ceiling and large bayed window overlooking the front porch. The interior laundry room is conveniently located off the garage resulting in a tidy home and there is a powder room for guests.
Bedroom two is spacious with generous closet space while the third bedroom features a walk-in closet. The fourth bedroom is designed to function as a study/home office if necessary and provides a private French door entrance. There is a jack and jill bathroom situated between the second and third bedroom and a hall linen closet is provided. The master suite enjoys a large footprint with private rear patio access and two enormous his and her walk-in closets. An outstanding master en suite bath includes dual vanities, a separate shower, garden tub encased with window views and a compartmentalized toilet. This home enjoys a comfortable and inviting exterior façade and an interior floor plan which consists of designer quality amenities and a layout suited for the modern family.
