Traditional Plan 5633-00092


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,978
Beds 4
Bath 2
1/2 Baths 1
Car 3
Stories 1
Width 76' 8"
Depth 47' 4"

Floorplan Drawings

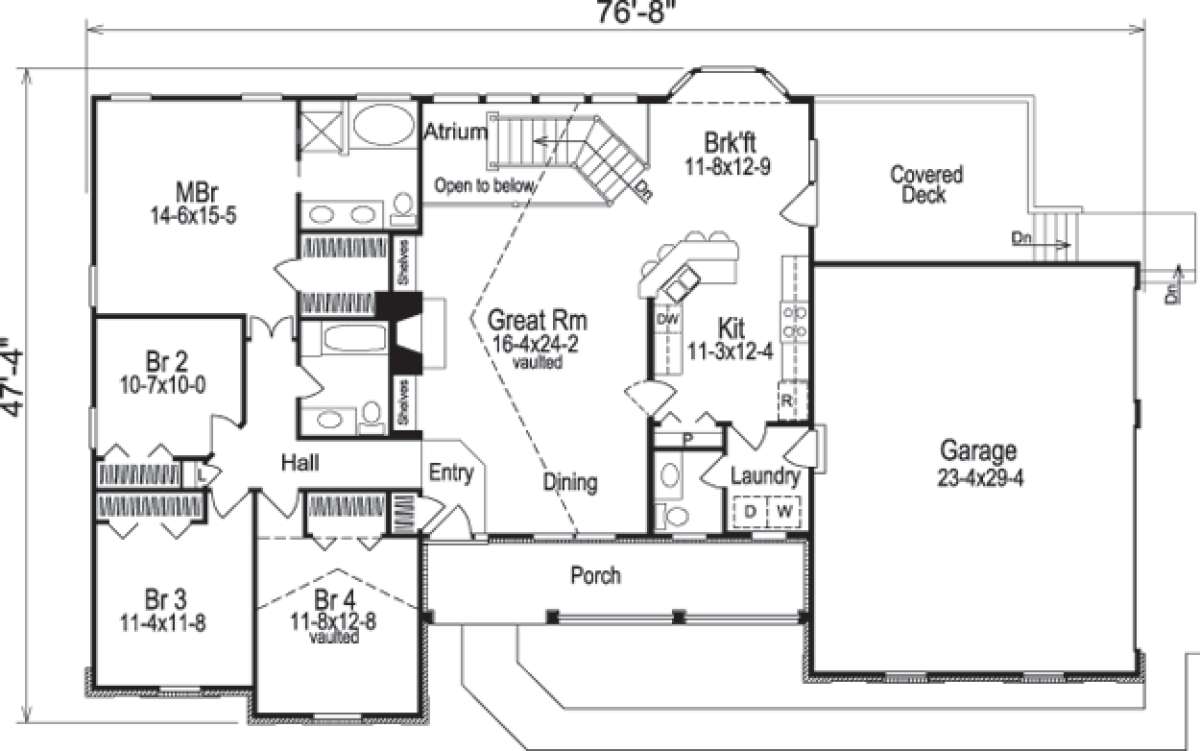

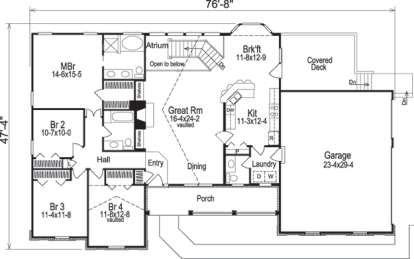

Floorplan 1
Floorplan 1 for House Plan #5633-00092

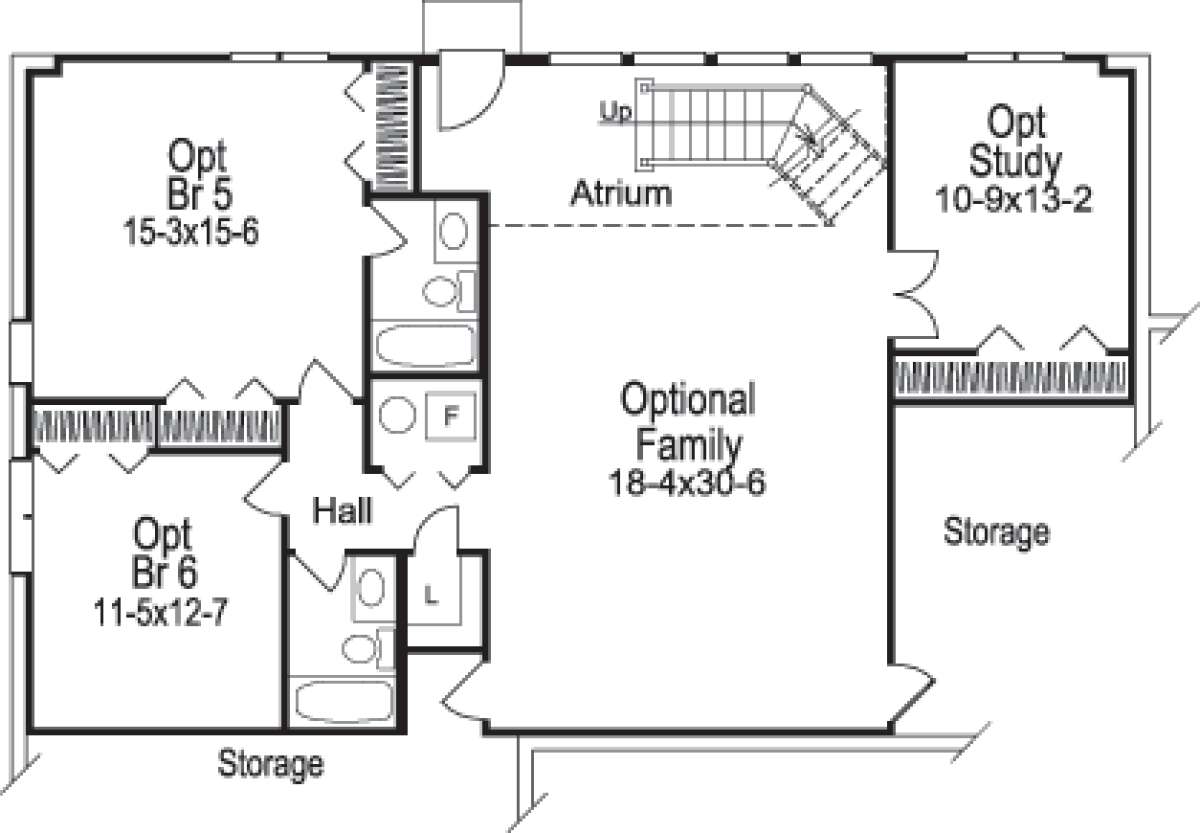

Floorplan 2
Floorplan 2 for House Plan #5633-00092

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

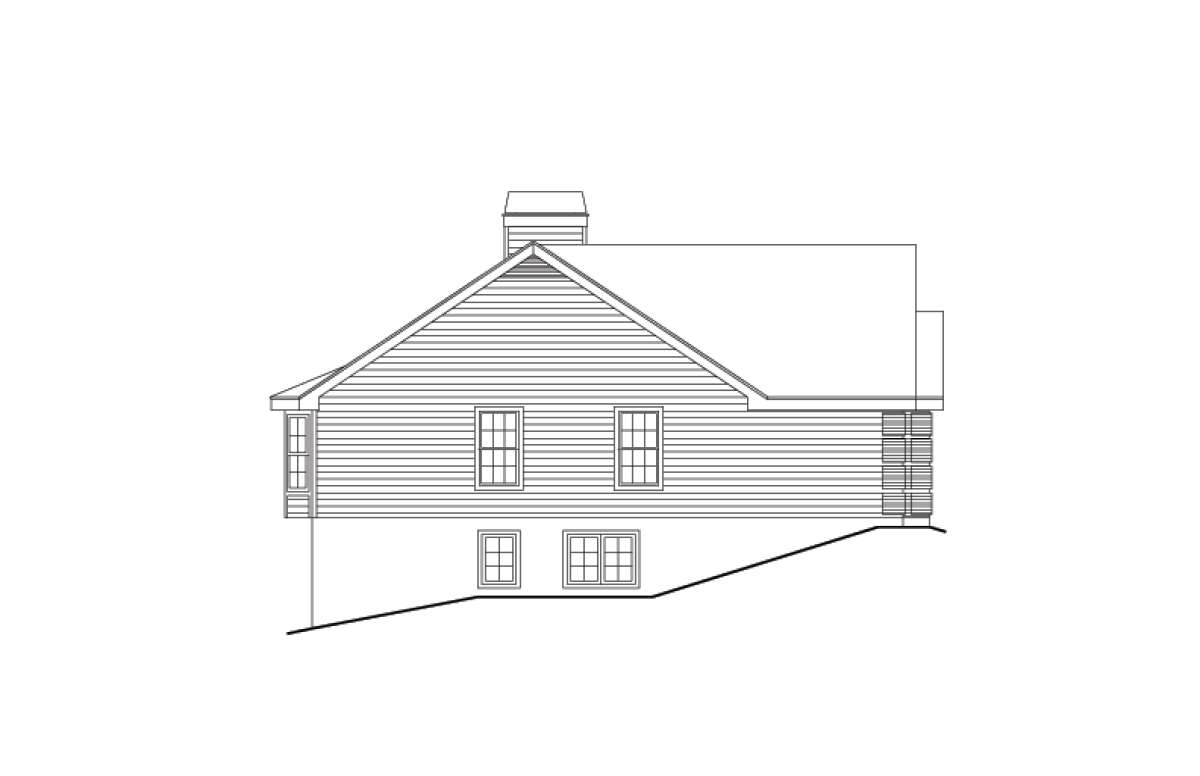

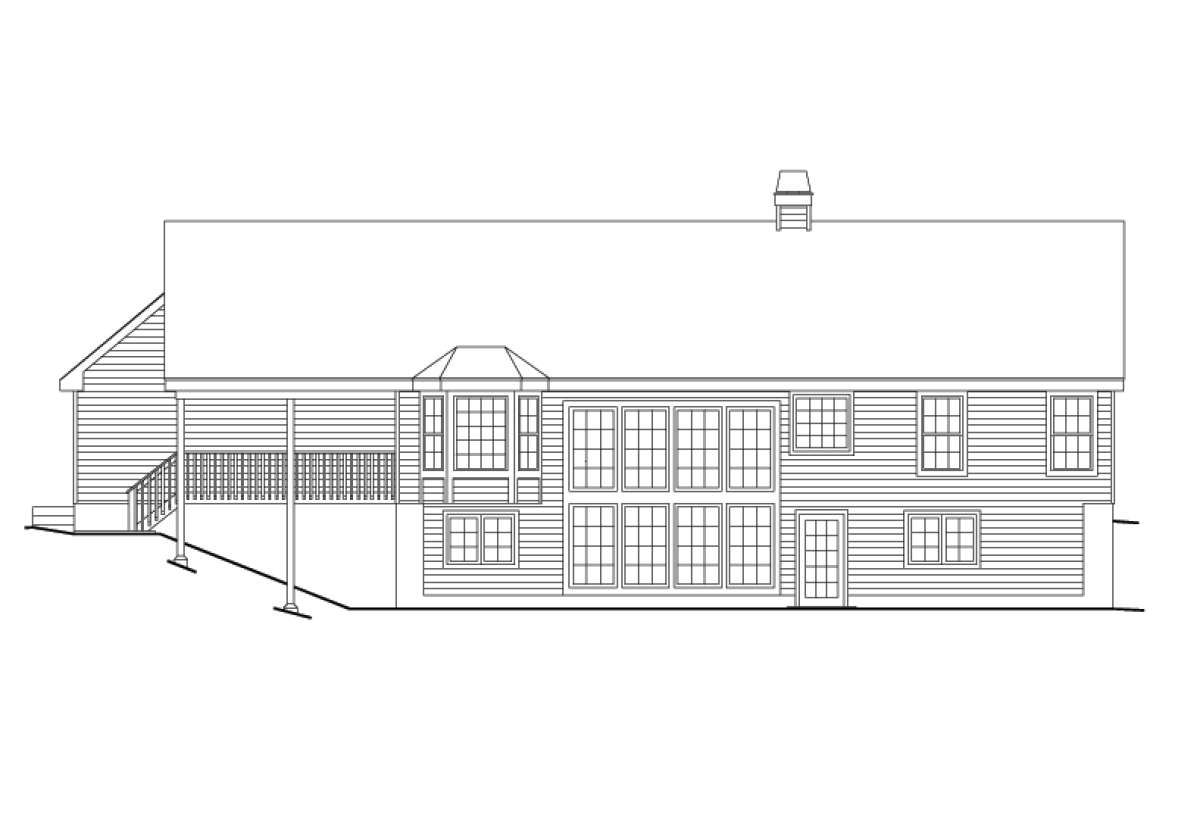

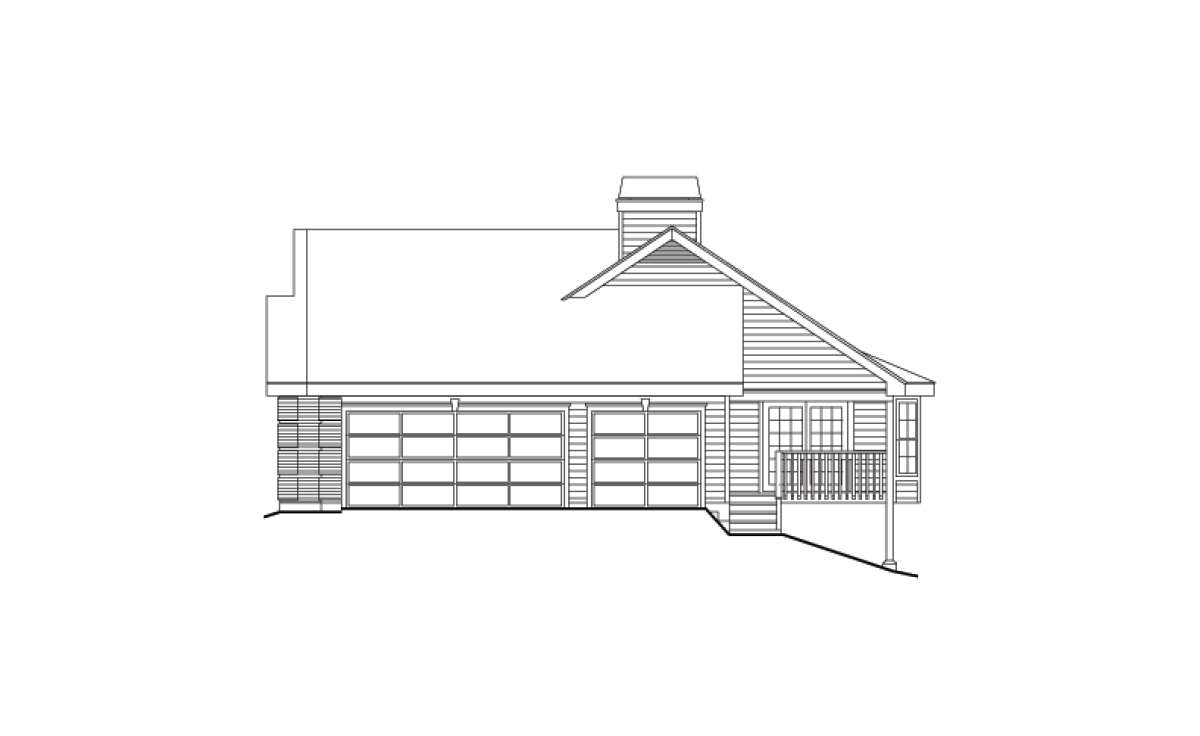

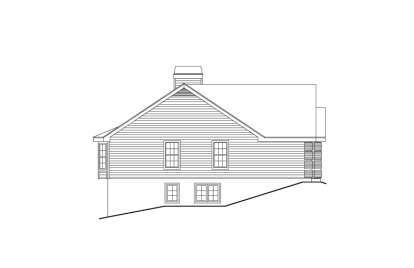

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Form and function clearly intersect in this traditional Ranch styled floor plan consisting of four bedrooms and two plus bathrooms. Approximately 1,978 square feet of living space is available on the main floor and an additional 1,295 feet occupy the walk-out basement level. A huge three car, side entry garage contains plentiful vehicle and other gear storage space making this home ideal for a large family. The classic exterior façade is highlighted with multiple gables and dormers along with a front covered porch highlighting the “always in style” exterior and providing enormous curb appeal. Wide open spaces and a rear atrium window wall drench the common living spaces in sunlight. The great room and dining space are both vaulted and feature a handsome fireplace and built-in cabinetry. A large pantry and an abundance of counter and cabinet space are found in the gourmet kitchen and the breakfast nook is vaulted and nestled into a triple bay window. There is a fabulous timbered deck off the nook for entertaining and grilling purposes. A powder room for guests and a conveniently located laundry room complete one side of the home.
An abundance of sleeping space and bathrooms are situated on the opposite side of the home for privacy and include three family styled bedrooms; each has generous closet space and the fourth bedroom is vaulted with extra deep closet space. There is a shared hall bath with large vanity space and a hall linen closet for the family bedrooms. The large and luxurious master suite boasts of French door access into the master bedroom which contains great window views and a generous foot print. There is an oversized master walk-in closet along with an en suite master bath. The master bath is delightfully tranquil and features dual vanities, a private toilet area, a separate shower and a garden tub. This home features excellence in modern conveniences and design standards.
