Traditional Plan 4848-00162

What's Included in these plans?

• Cover Page
  This home plan features the front elevation and informative reference sections including general notes and design criteria.
• Elevations
  Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
• Foundations
  Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

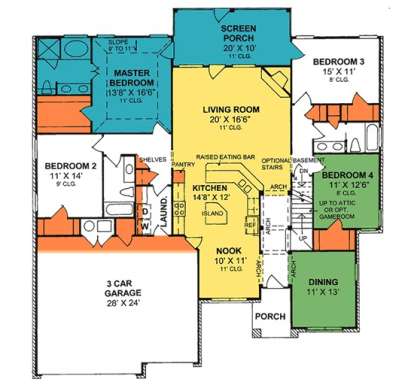

• Main Level Floor Plan
  Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
• Second Level Floor Plan
  Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
• Interior Elevations
  Kitchen cabinet elevations are drawn.
• Sections
  The plans include two pages of sections; a typical wall section, stair section and foundation details.
• Roof Plan
  A Roof plan showing roof pitches, valleys, ridges and rafters.
• No Re-use Fee
  As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.
