Cape Cod House Plan 5633-00065

Sq Ft2,758
Beds4
Baths2
1/2 Baths1
Stories1
Cars3
Width72' 8"
Depth68' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

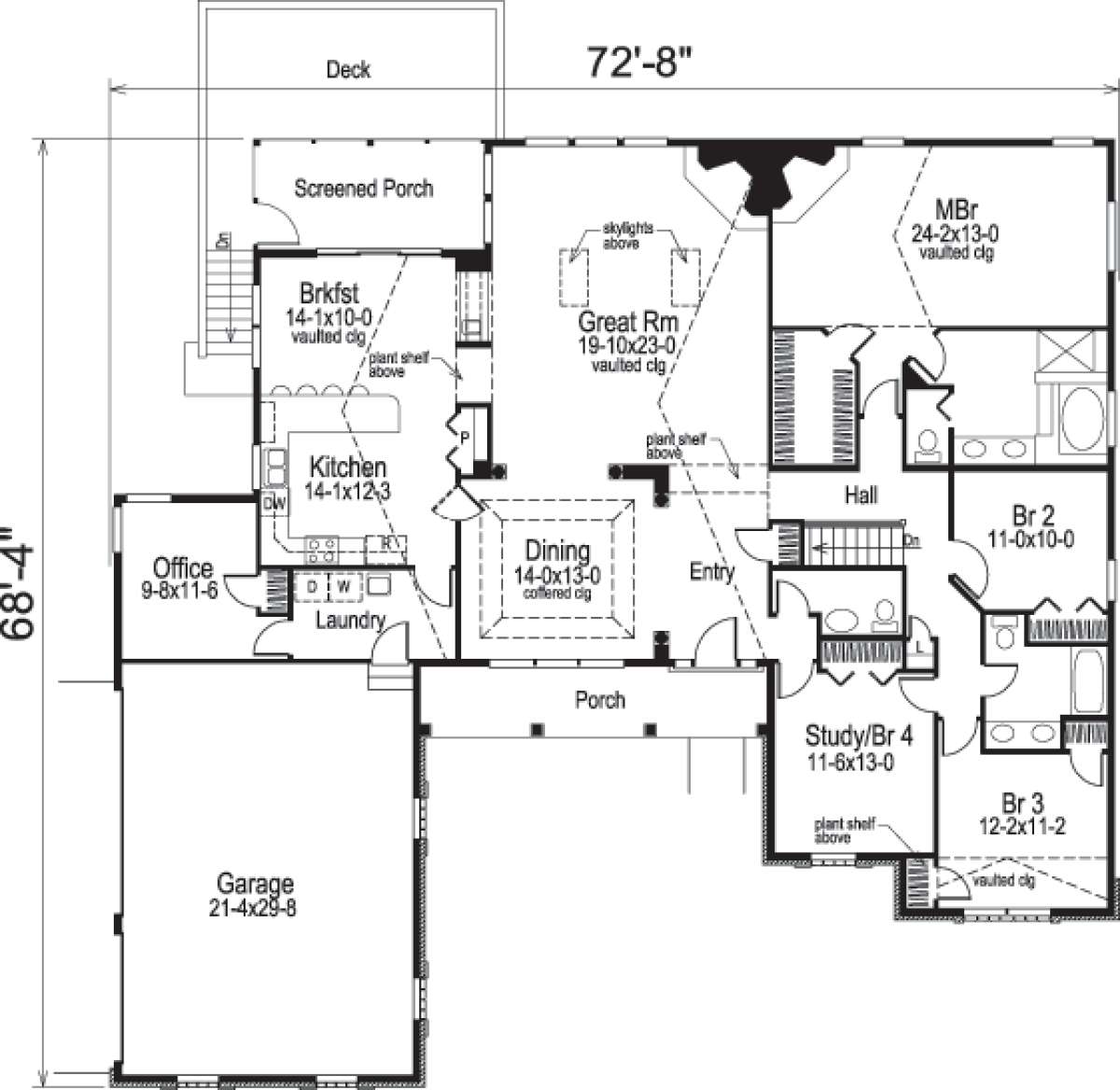

Floorplan 1 for House Plan #5633-00065
Floorplan 1
Floorplan 1 for House Plan #5633-00065


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

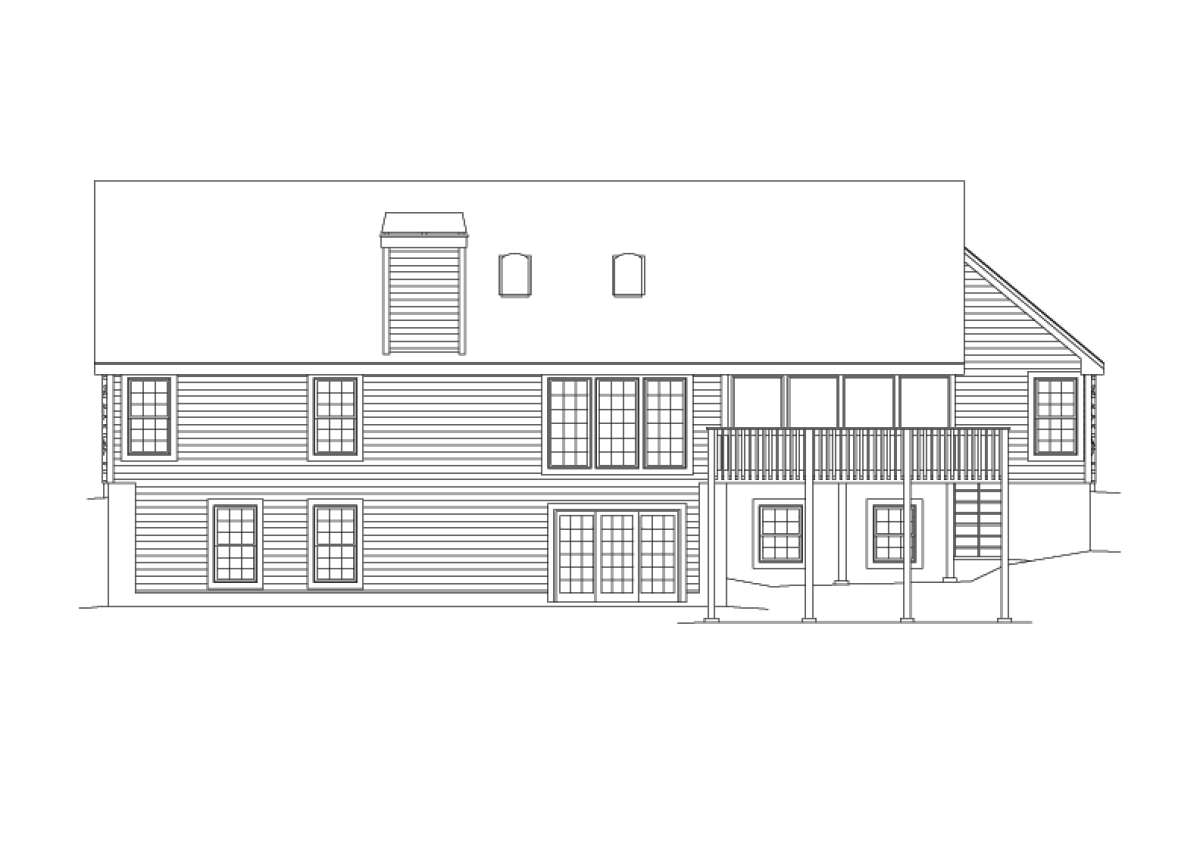

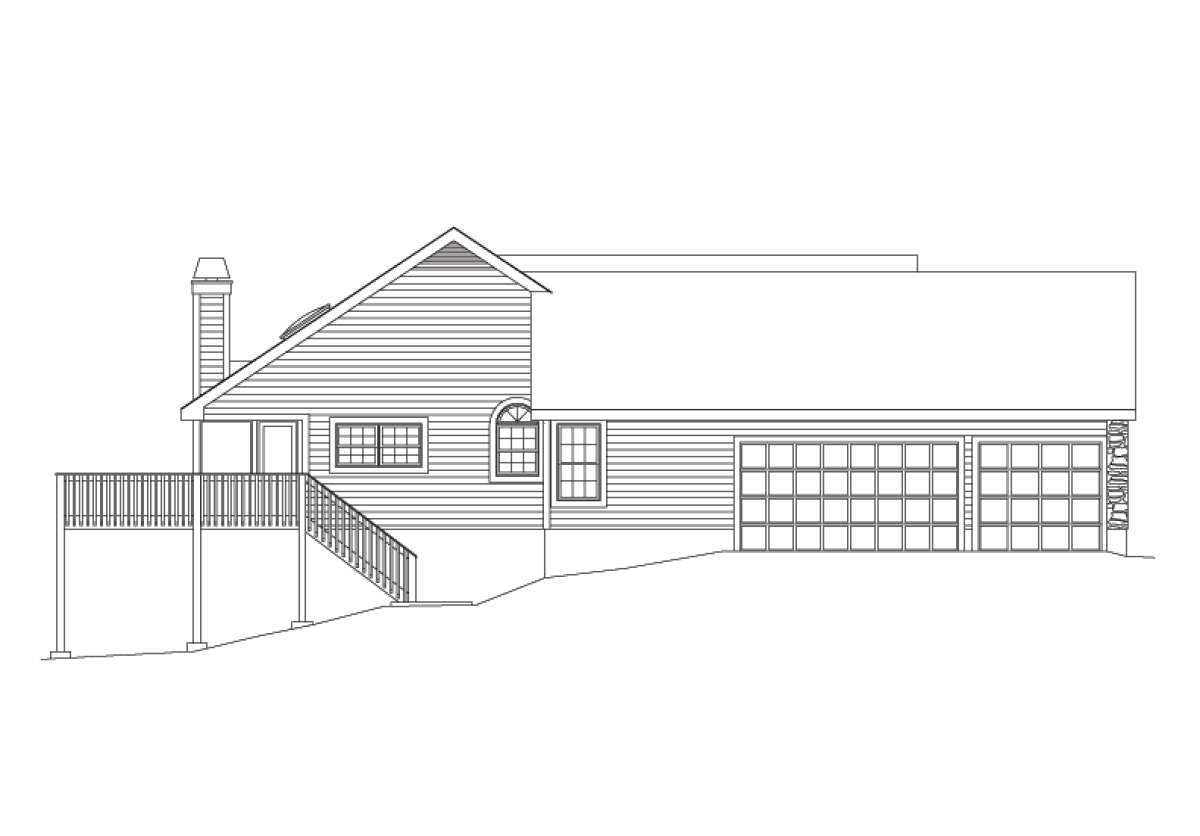

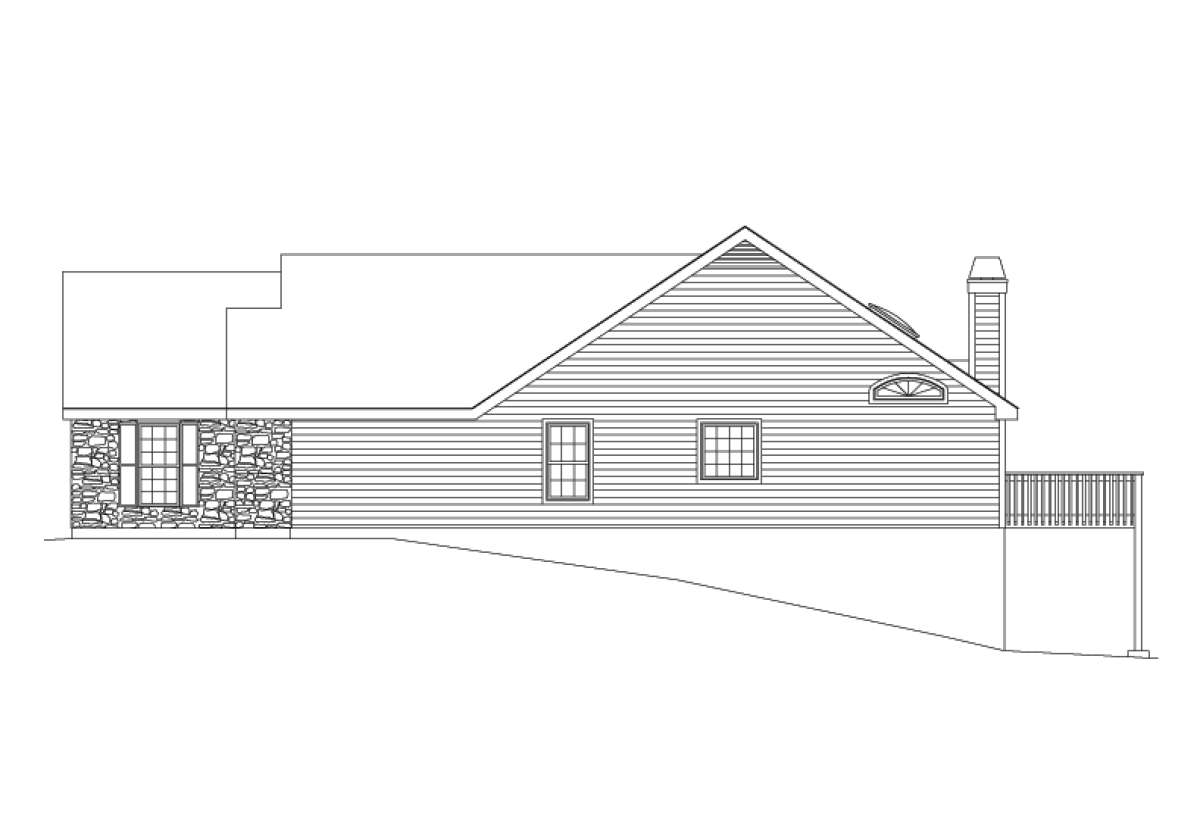

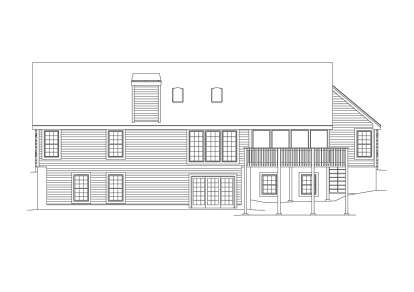

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

A striking exterior façade and spacious interior floor plan create a symbiotic relationship in this rambling Ranch house plan. The combination of stonework, multiple gables and window dormers along with a front covered porch paints a picture of visual interest. The square footage on the interior of the home is in excess of 2,700 square feet and consists of four bedrooms and two plus baths. A walk-out basement foundation mirrors the home’s main floor space and a three car, side entry garage features plenty of vehicle and other gear storage space. The centrally located great room takes “top billing” in the home’s interior and boasts of soaring ceiling heights, a corner fireplace, double skylights overhead, a wet bar and rear wall of windows. The formal dining room is open to the foyer, has a dramatic double trey ceiling and a pass-thru to the kitchen. The gourmet kitchen is a beautiful space to create family meals and features a peninsula breakfast bar for convenience, a separate pantry and is open to the casual breakfast room. This space features vaulted ceilings and access to the rear screened in porch which is ideal for casual dining and family relaxing. There is an enormous laundry room conveniently located off the garage and a private home office offers corner windows and a coat/storage closet.
There is a powder room for guests and two additional bathrooms along with four bedrooms situated on the opposite side of the home. Three spacious bedrooms feature generous closet space; one bedroom offers vaulted ceilings and another has a decorative plant shelf. The fourth bedroom has double access points for privacy and could function as a study. There is a shared hall bath with double vanities and a hall linen closet for the bedroom’s use. The master suite is located at the rear of the home for privacy and features an oversized bedroom with a corner fireplace and vaulted ceilings. The enormous master walk-in closet has plenty of room for clothing and accessory storage. A beautifully designed master bath is highlighted with dual vanities, a compartmentalized toilet, separate shower and garden tub. This excellent Ranch style home features country flair and an exceptional floor plan.
