Lake Front House Plan 341-00223

Sq Ft3,026
1/2 Baths1
Width50' 0"
Depth45' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

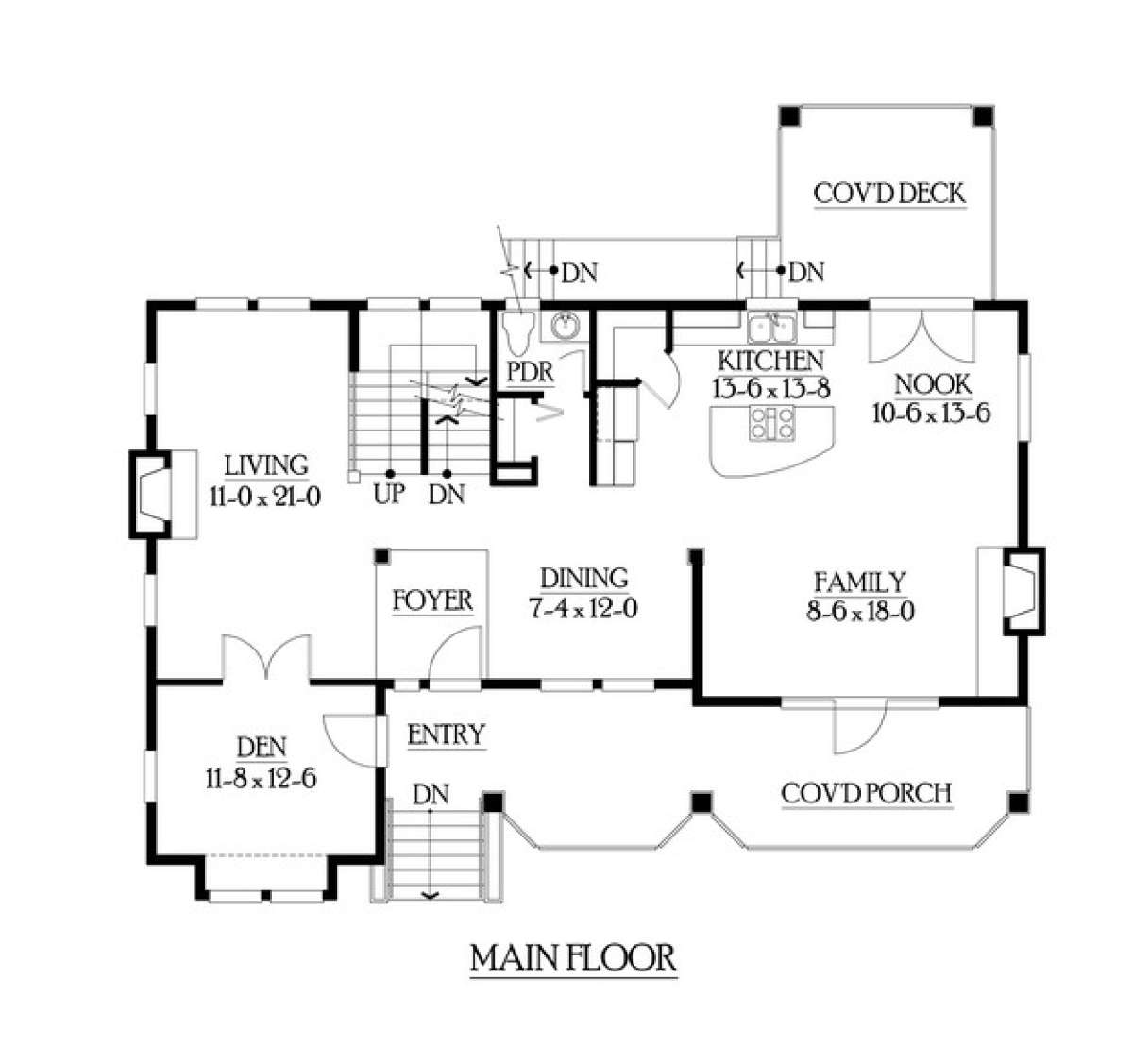

Floorplan 1 for House Plan #341-00223

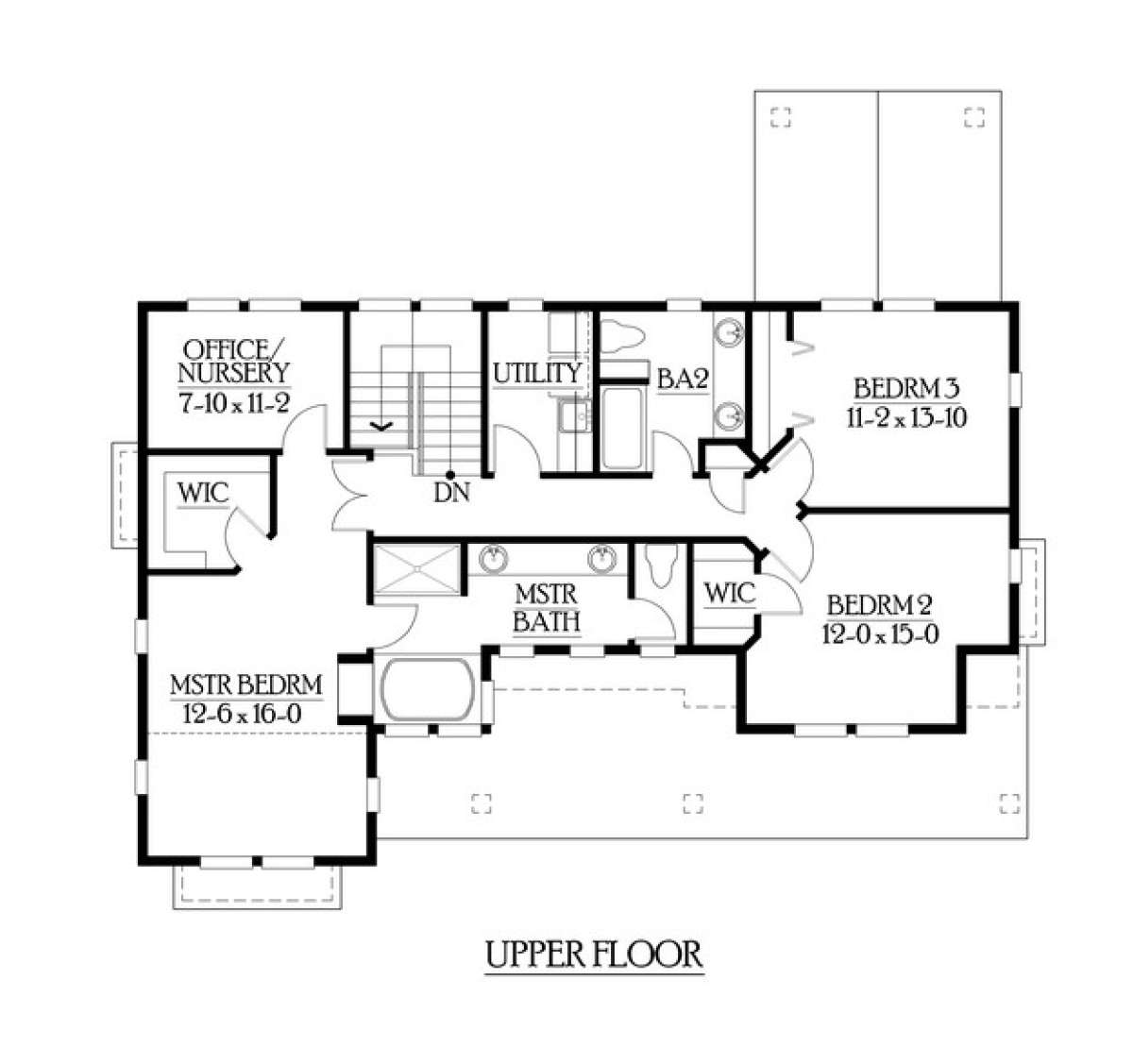

Floorplan 2 for House Plan #341-00223

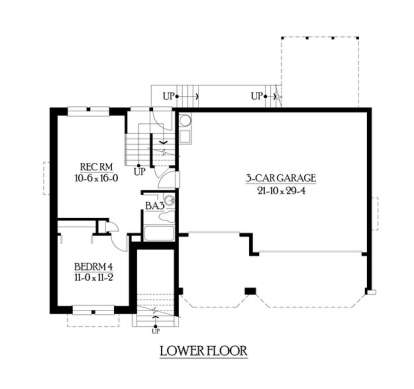

Floorplan 3 for House Plan #341-00223

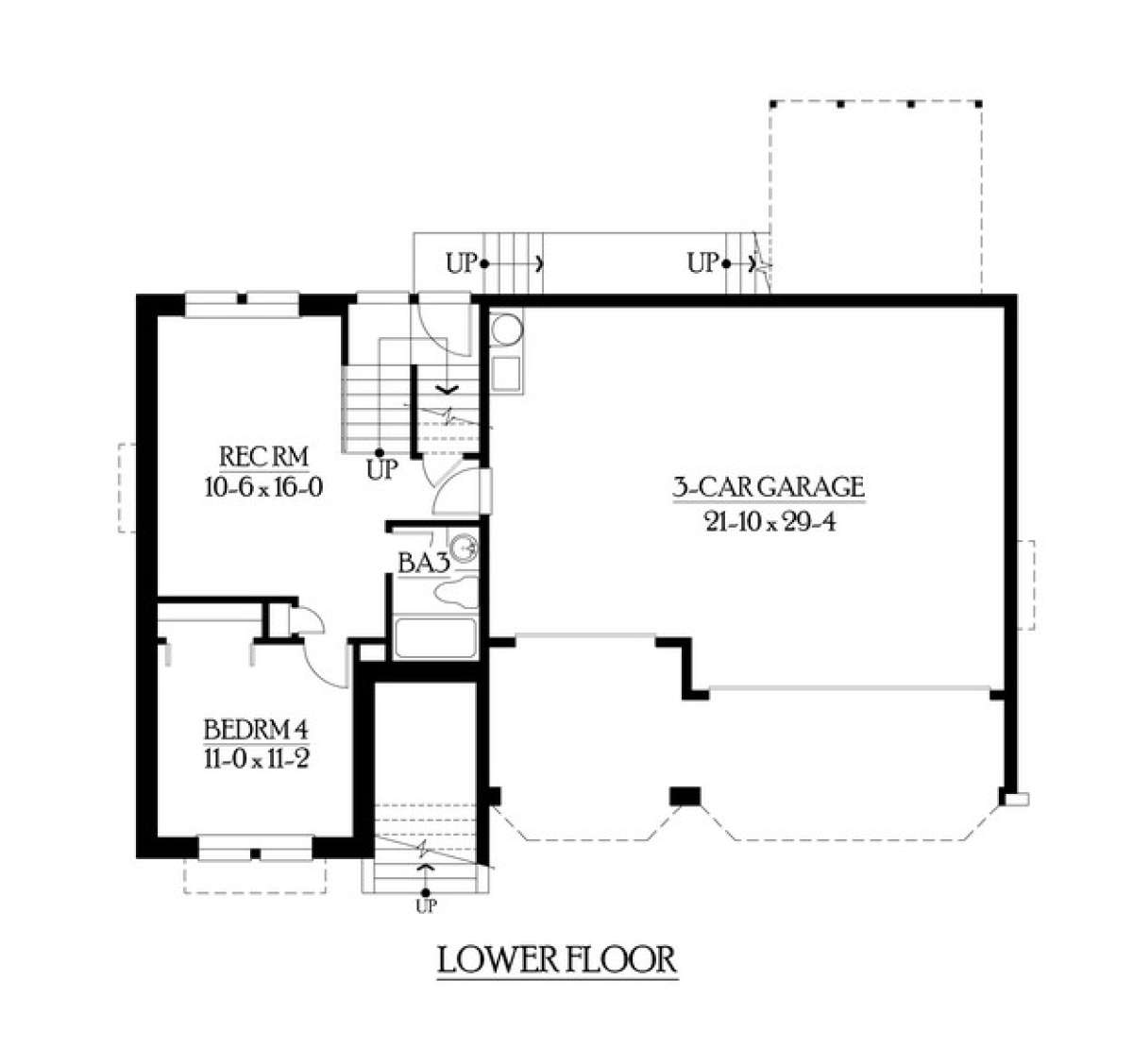

Floorplan 1
Floorplan 1 for House Plan #341-00223
Floorplan 2
Floorplan 2 for House Plan #341-00223
Floorplan 3
Floorplan 3 for House Plan #341-00223

Frequently Asked Questions


What's Included in these plans?

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation specs, and Washington State Energy Code compliance information.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction, including footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Roof and Foundation Plan Sheet: The roof plan shows the location of all hips, ridges, valleys, dormers, overhangs, gutters, downspouts, roof pitches, structural members, vents, skylights, and all other roof features.  The foundation plan shows the layout and location of the crawl space, walk-out basement or slab foundation, along with all necessary notes, dimensions, and structural information.
  • Floor Plan Sheet: Floor plans are horizontal sections through each floor level of the home, usually at five feet above the floor, showing the location of interior and exterior walls, floors, stairs, doors, closets, cabinets, flooring, appliances, plumbing fixtures, posts and beams.

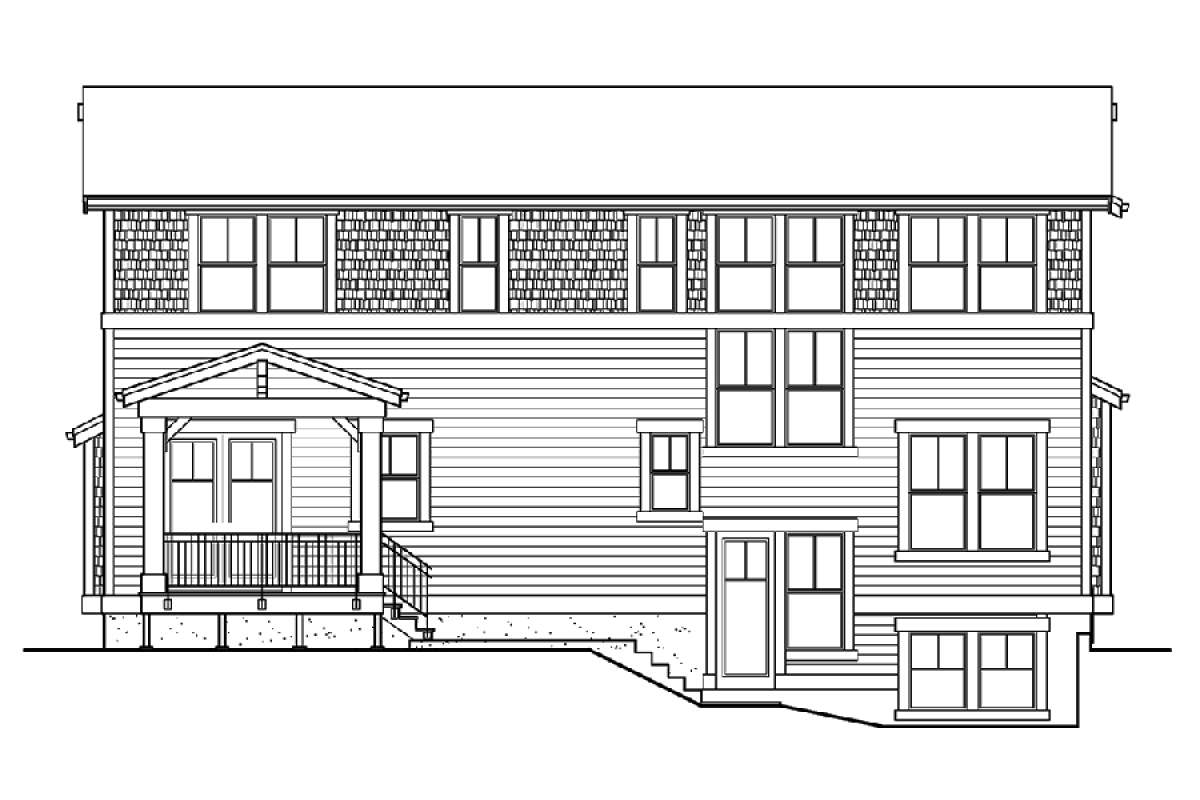

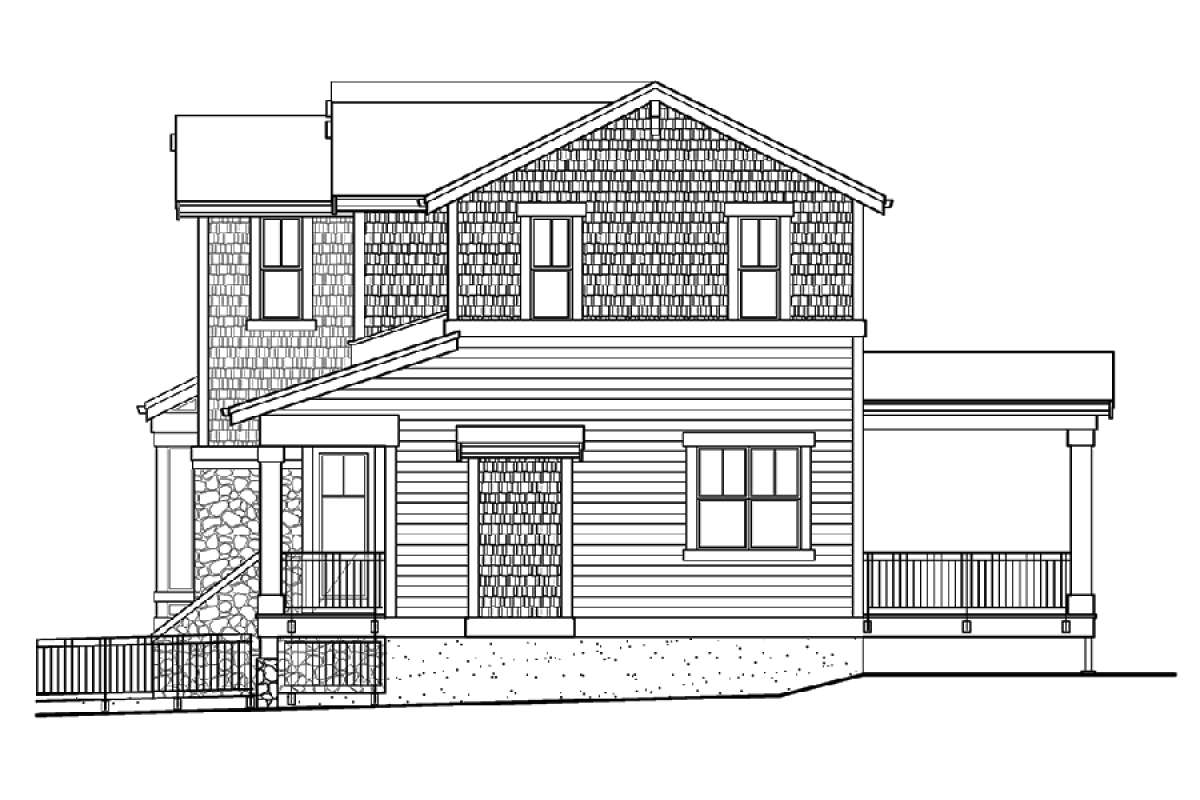

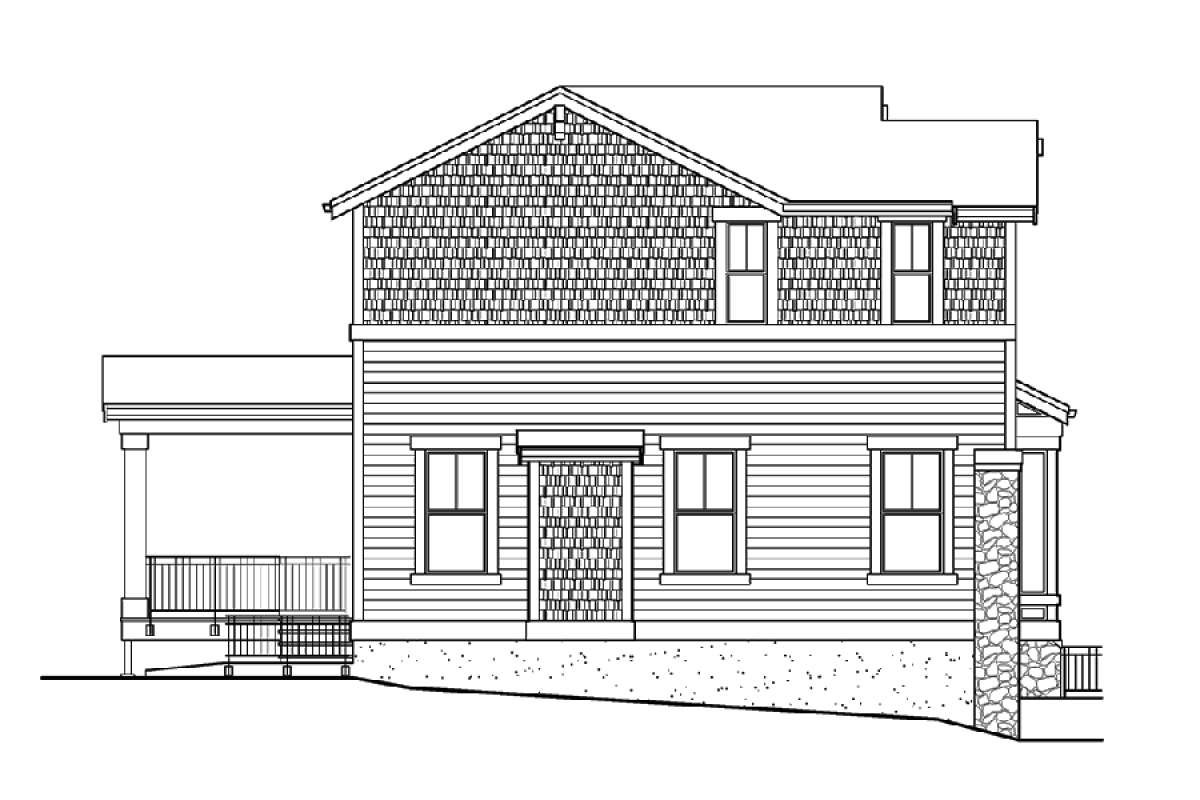

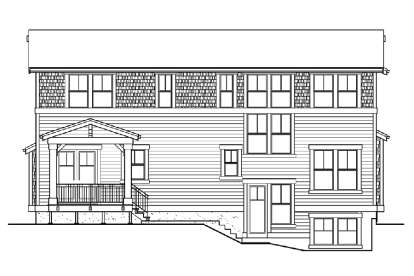

  • Exterior Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the home from the roof to the foundation.  The sections illustrate the construction sequence from bottom to top, starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, roof framing, stair construction, windows, doors, venting, exterior and interior finisheds.

Important Note--Why can't this plan be sold in the State of Washington?

Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information. WA State law requires that all plans produced by an architect licensed in the state of WA for construction be stamped by the the architect; consequently, plans not stamped by this designer cannot be built in WA State.  The architect who designed this plan must provide in-state pricing with pricing for any revisions and the required structural engineering. WA State plans must comply with the WA State Energy Code, and the architect guarantees permit approval for the plans, site issues excepted. If you want to build this plan in WA State, please contact us for custom pricing.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

IMPORTANT NOTE: Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information.

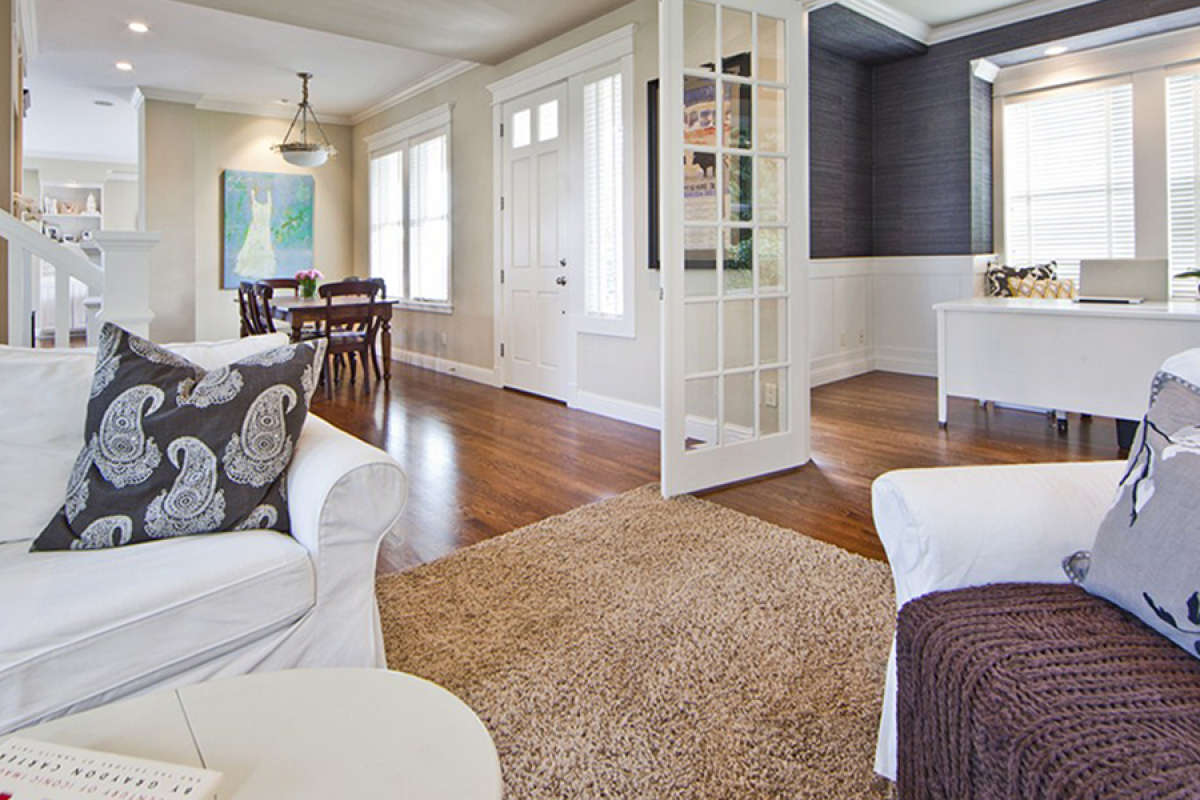

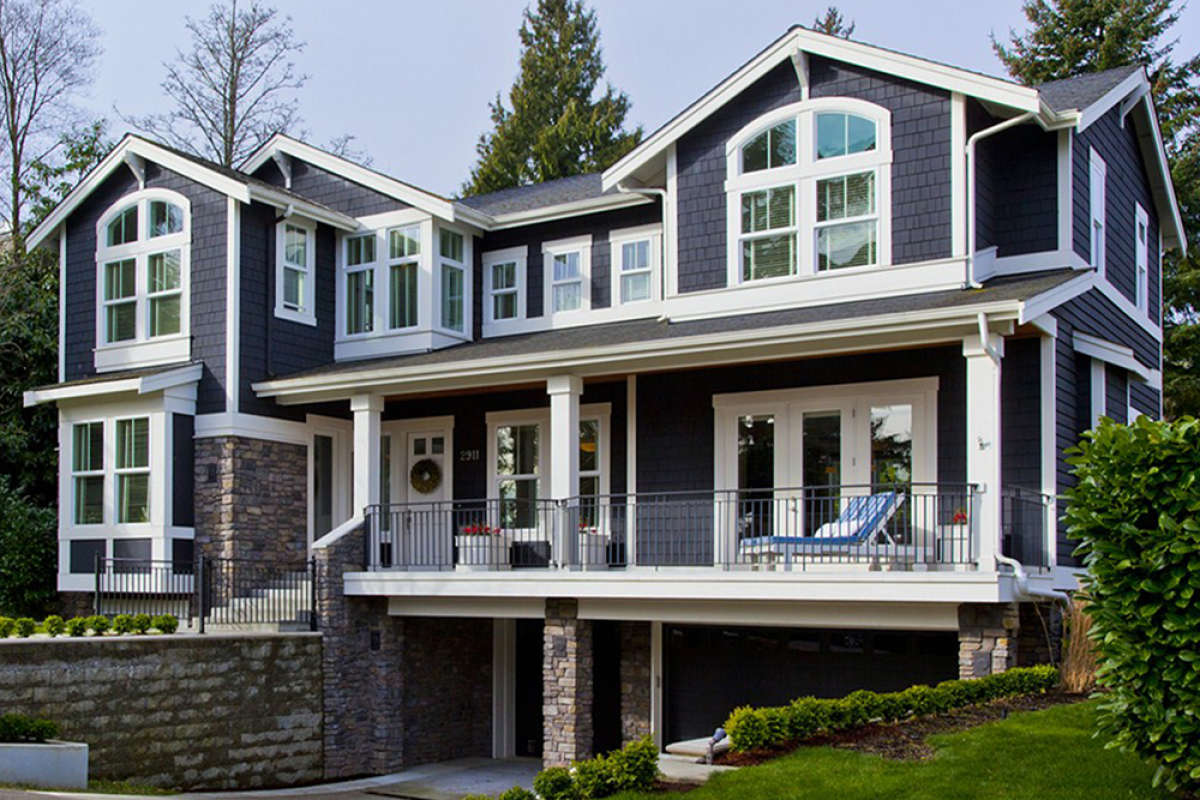

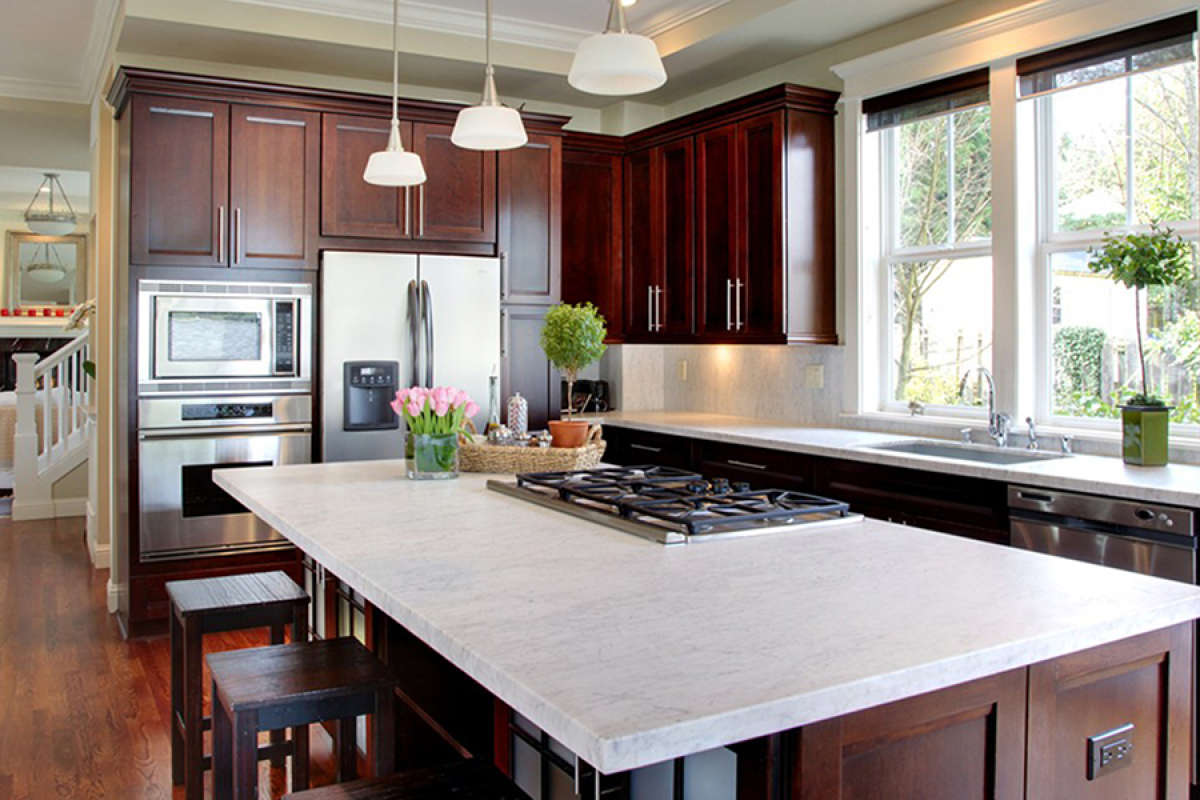

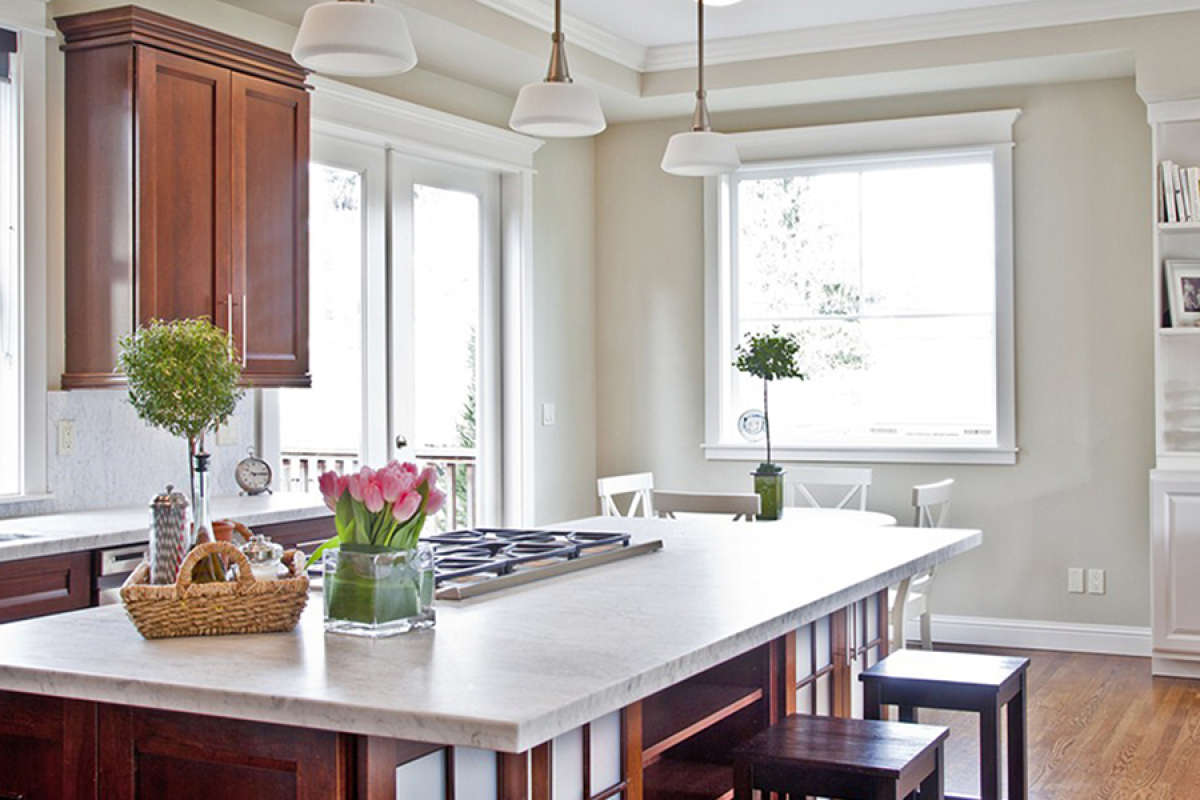

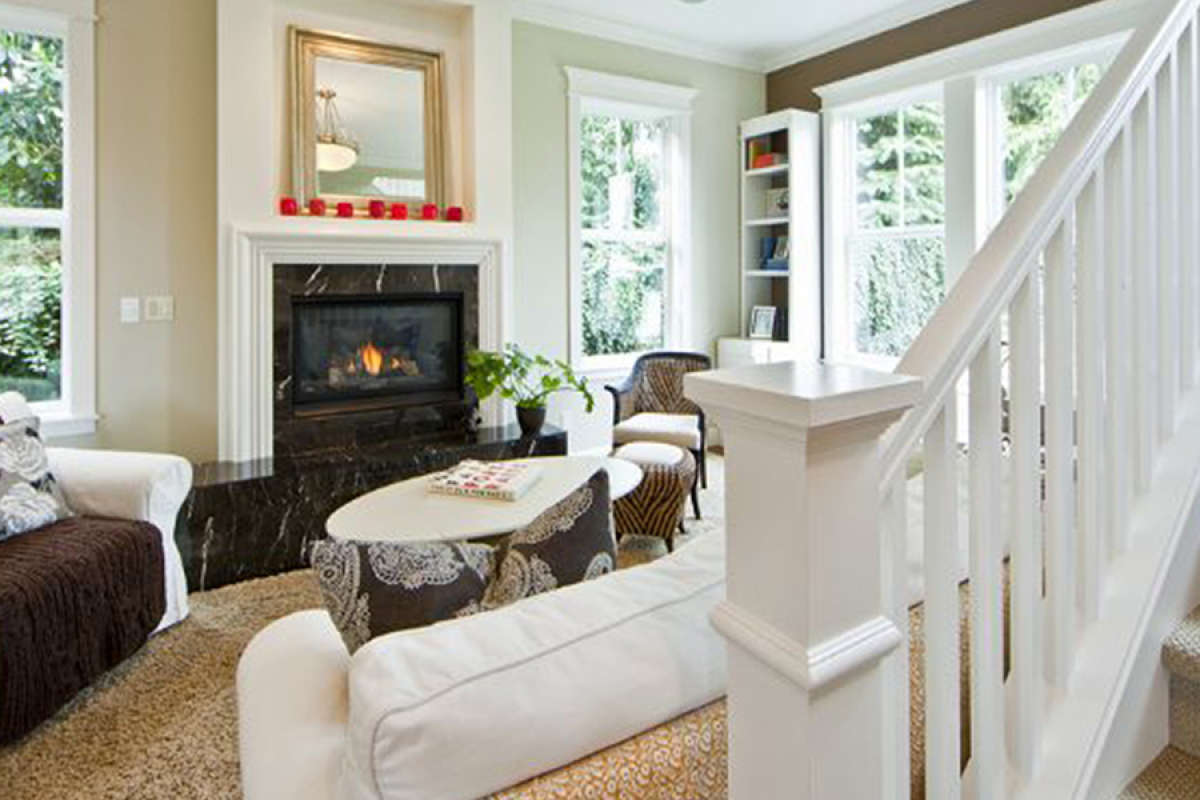

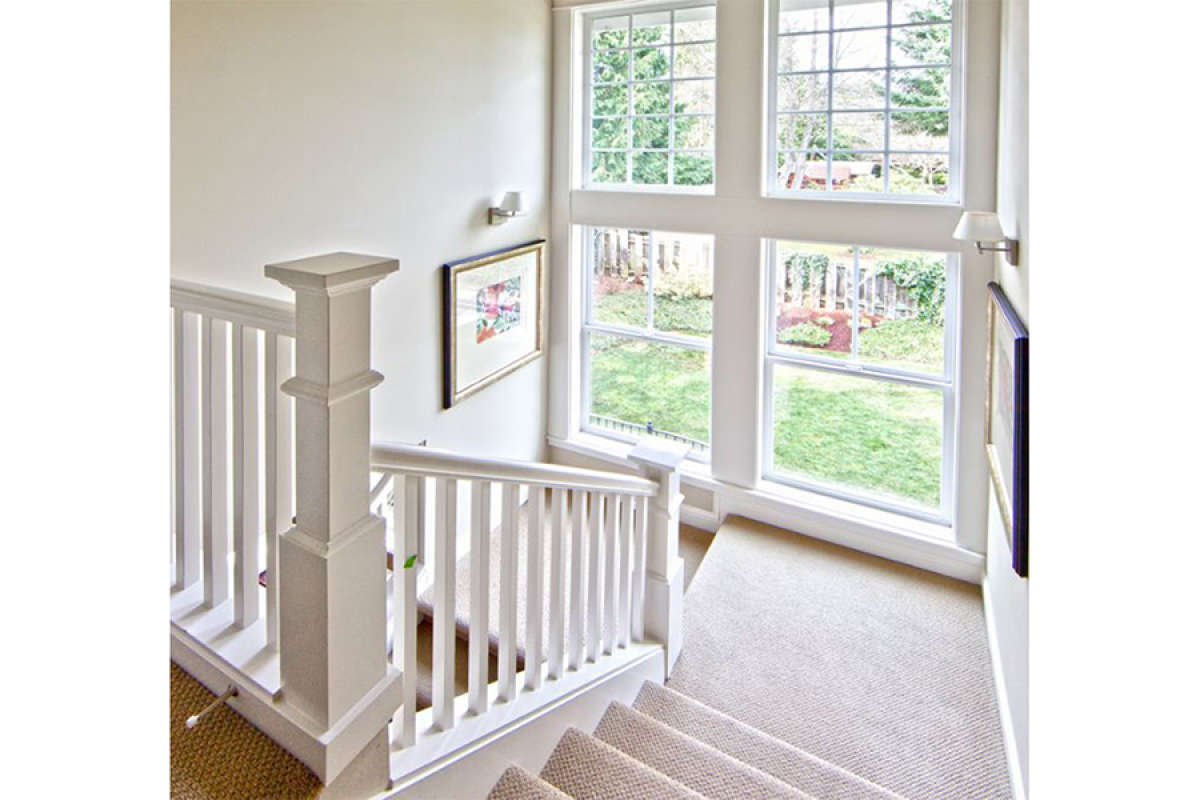

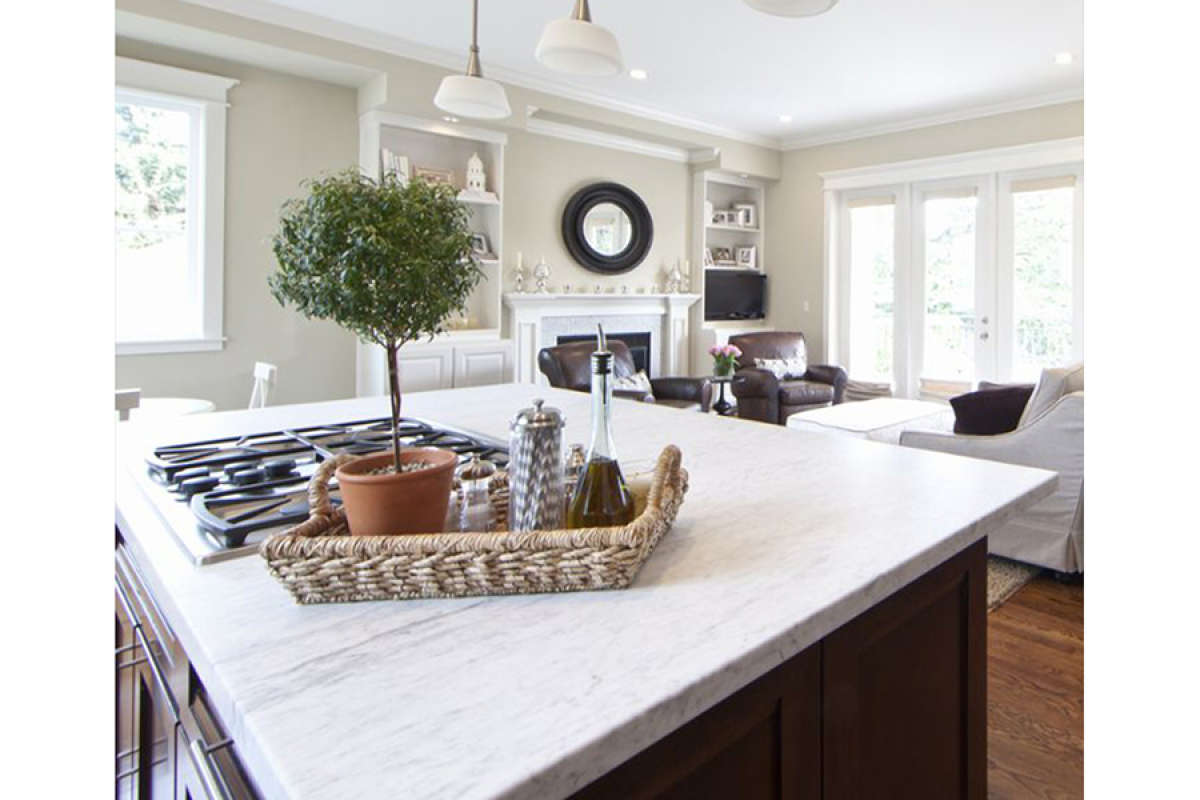

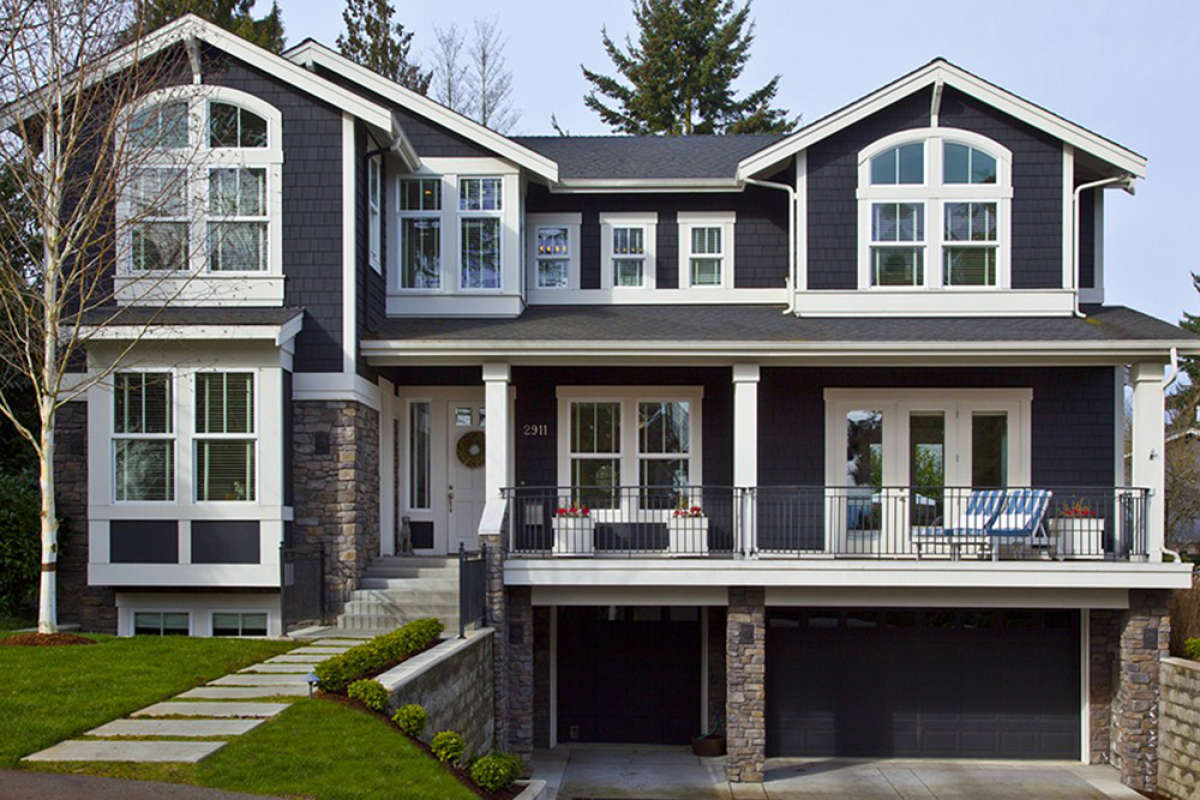

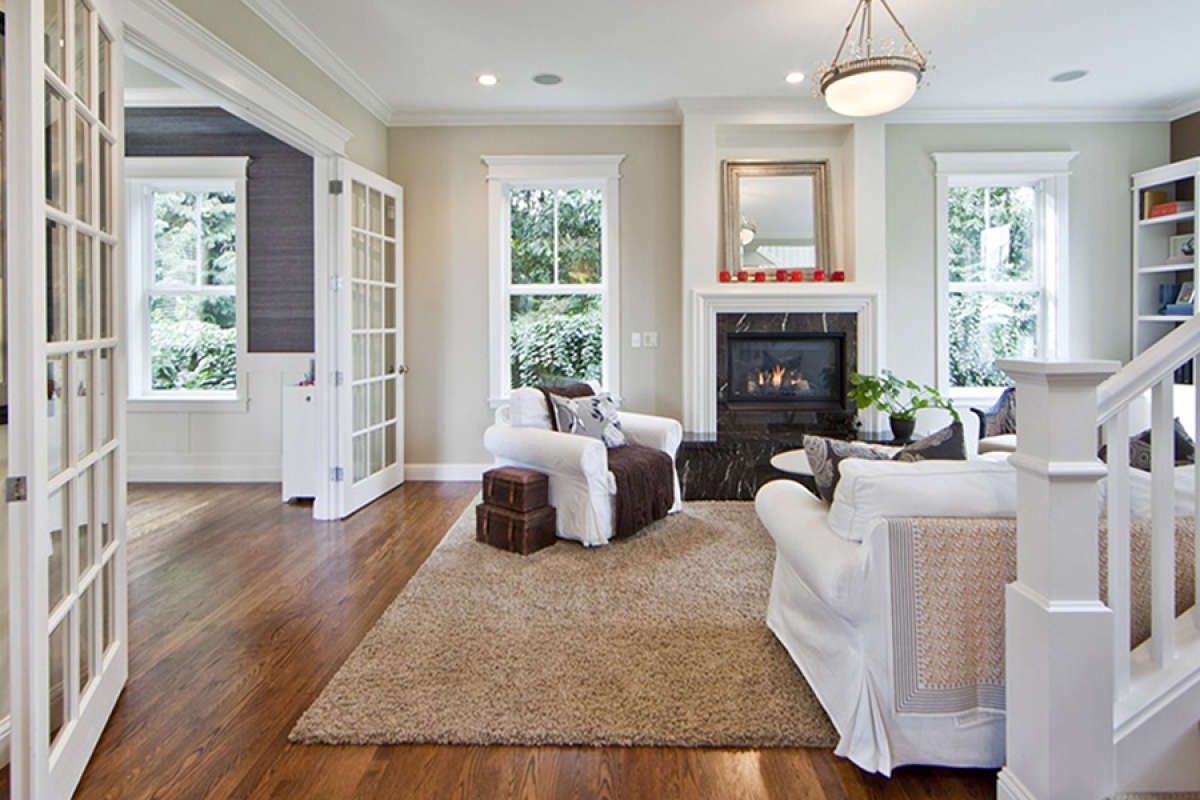

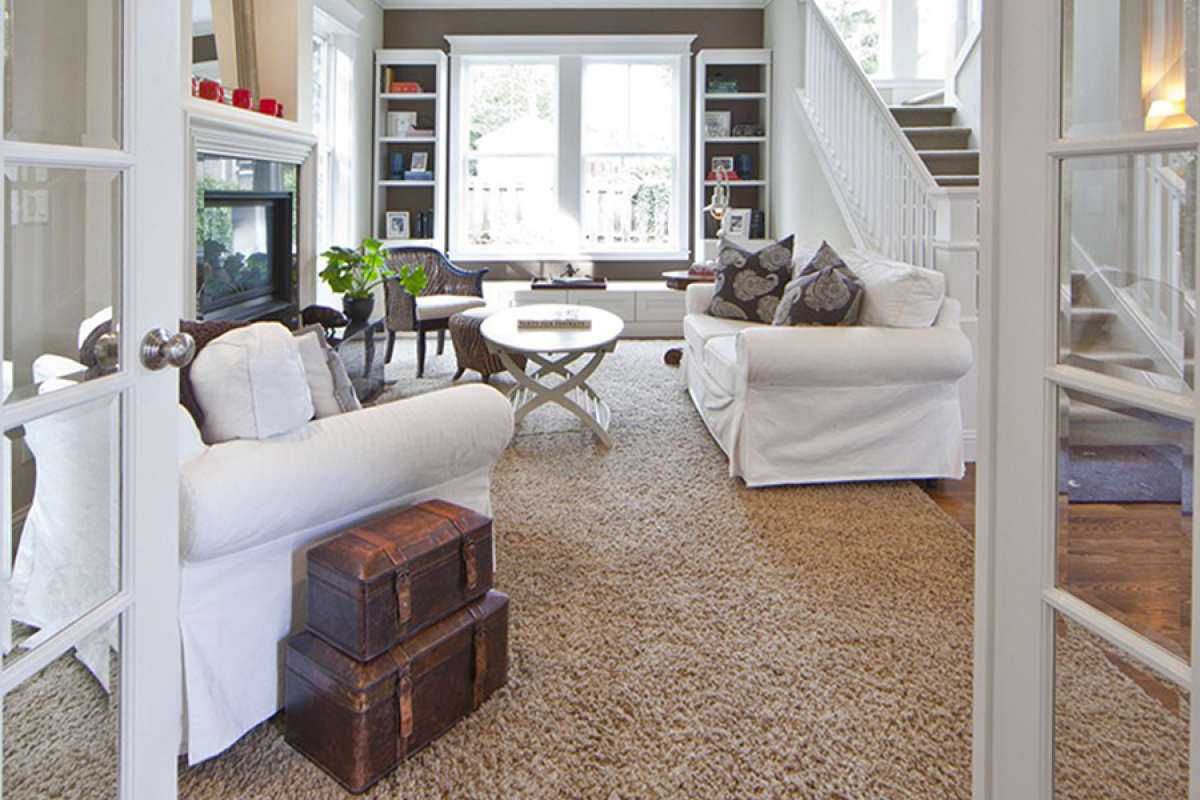

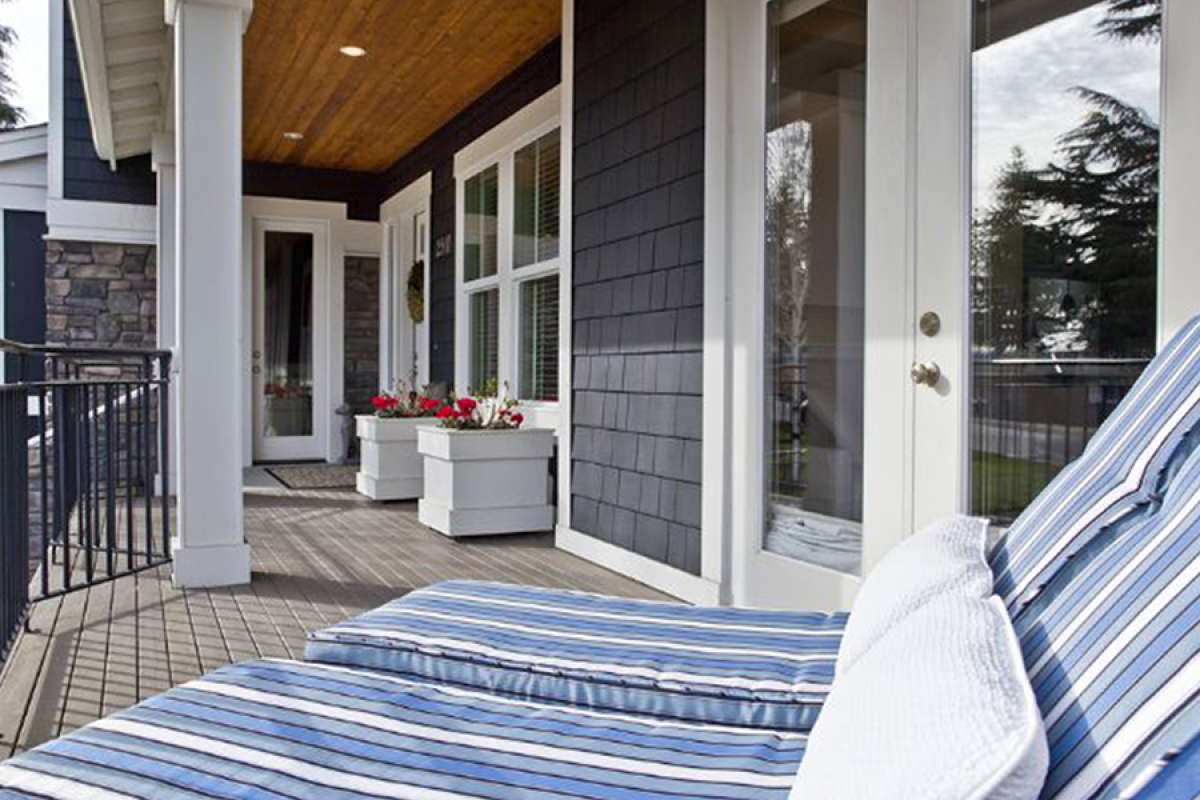

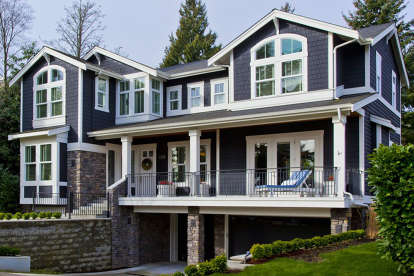

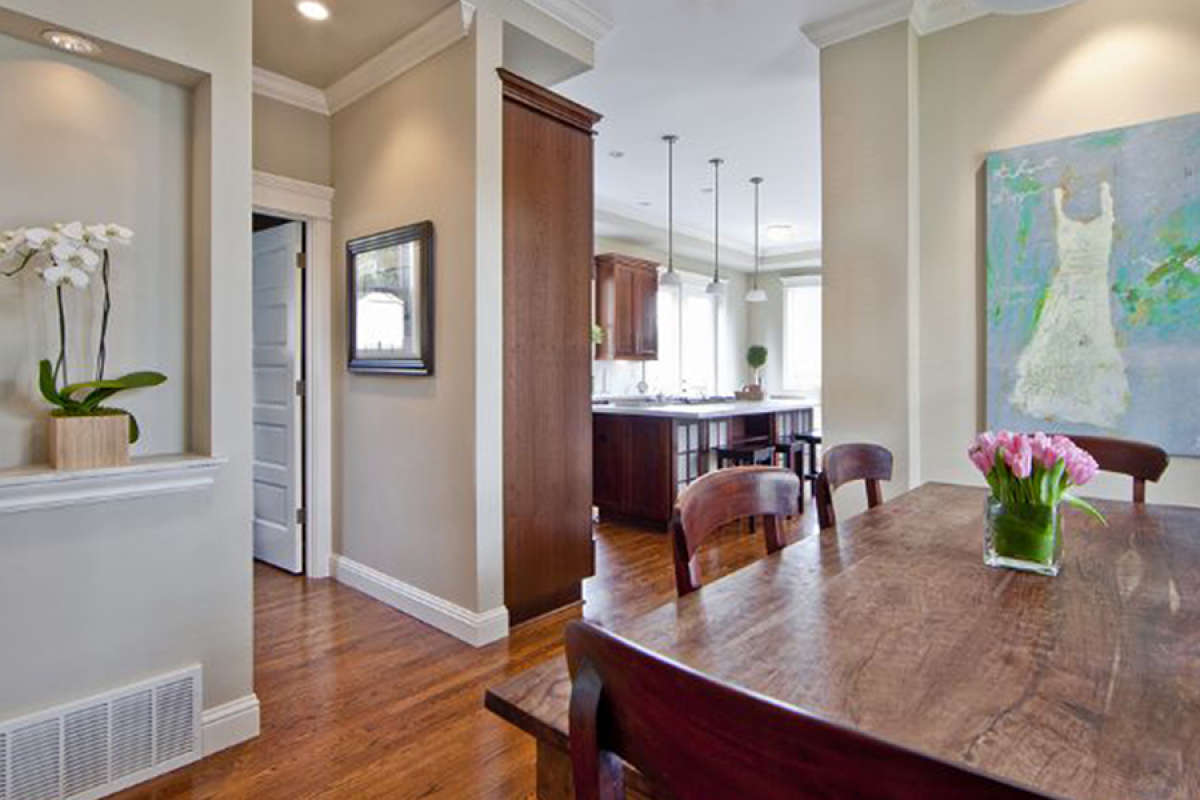

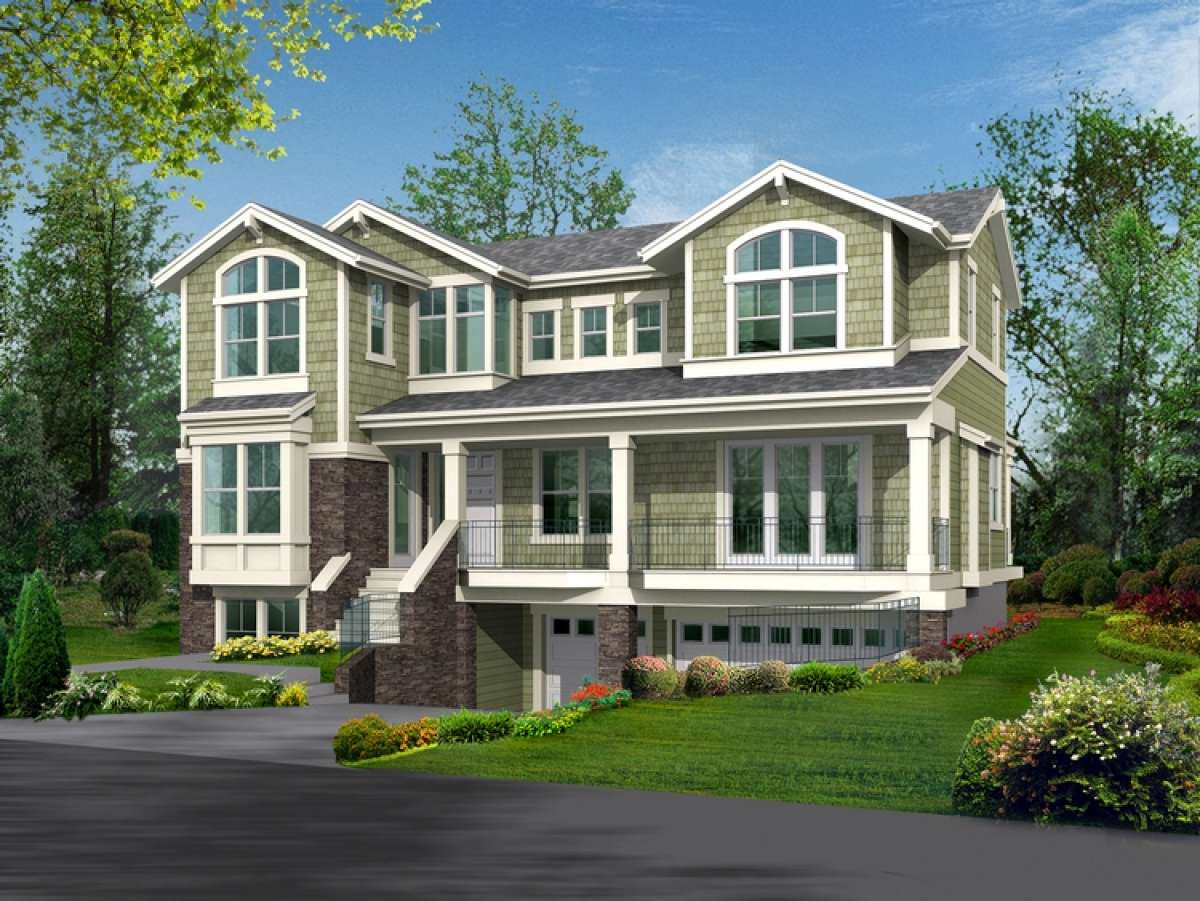

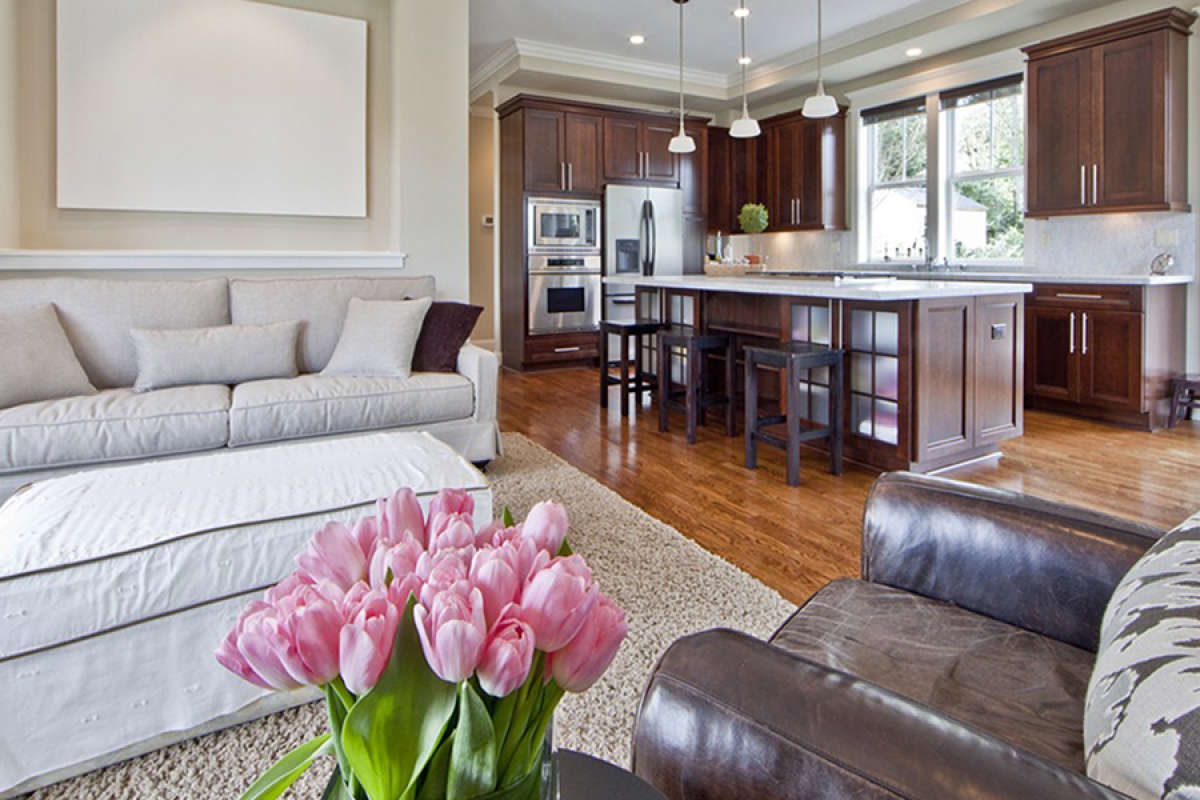

This gorgeous Lakefront house plan features an exterior overflowing with warmth, character and a plethora of window views that decorate the front and rear façade for a truly inspiring house design. The interior floor plan offers approximately 3,026 square feet of living space with four bedrooms and three plus baths. There is a three car drive under garage with a double and single bay on the basement level which also contains living space and a bed and bath. The fourth bedroom is spacious with window views and there is an attached closet. The bath is nearby and features a vanity space, toilet area and a tub/shower combination. A recreation room is also located on this floor and there is an interior staircase as well as an exterior one for private entry. The main floor of the home is accessed from the stunning front covered porch where there are three entry/exit points; the main foyer entrance, the family room and the den. The foyer entry opens onto the open common rooms which include a dining room, the family room and the kitchen with breakfast nook. The formal dining room is spacious and features double window views overlooking the front porch while the family room has porch access and a warming fireplace. The gourmet kitchen is highlighted with a center island, a walk-in corner pantry, plenty of counter and cabinet space and the breakfast nook features French door access onto the rear covered deck. On the opposite side of the foyer is the formal living room and a cozy den for more intimate entertaining.

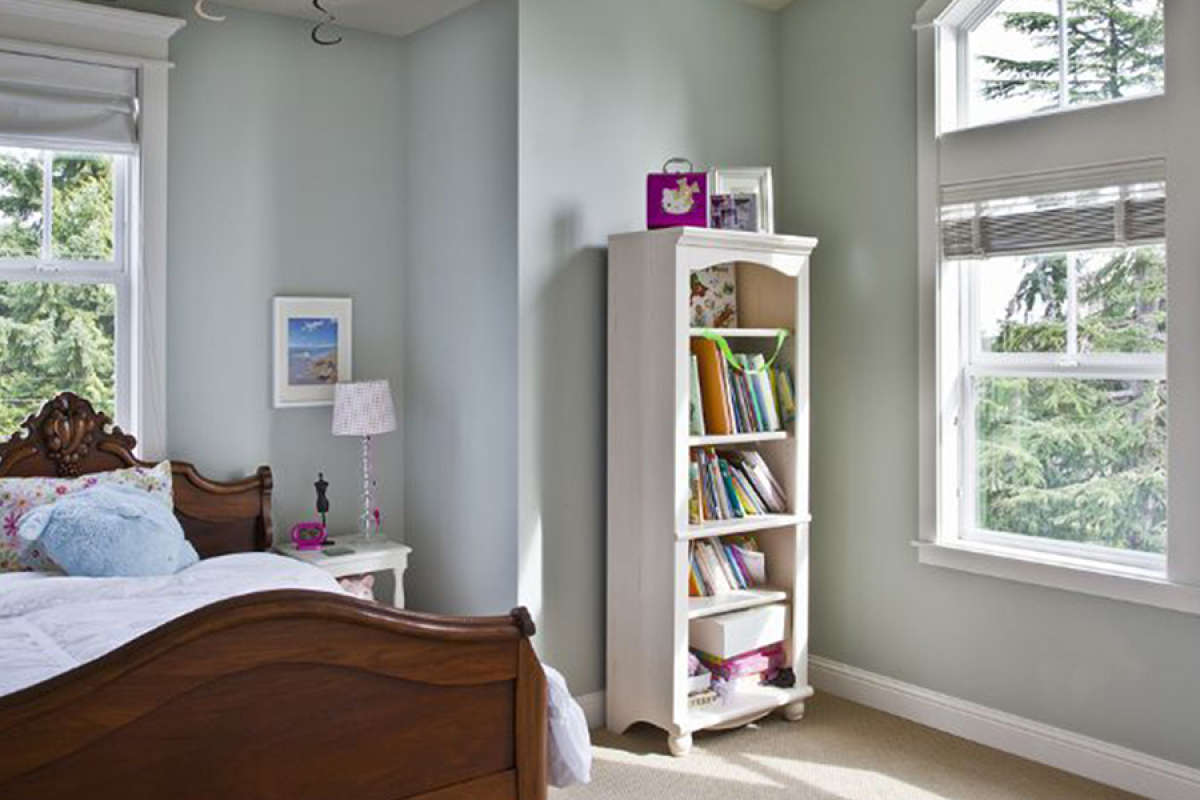

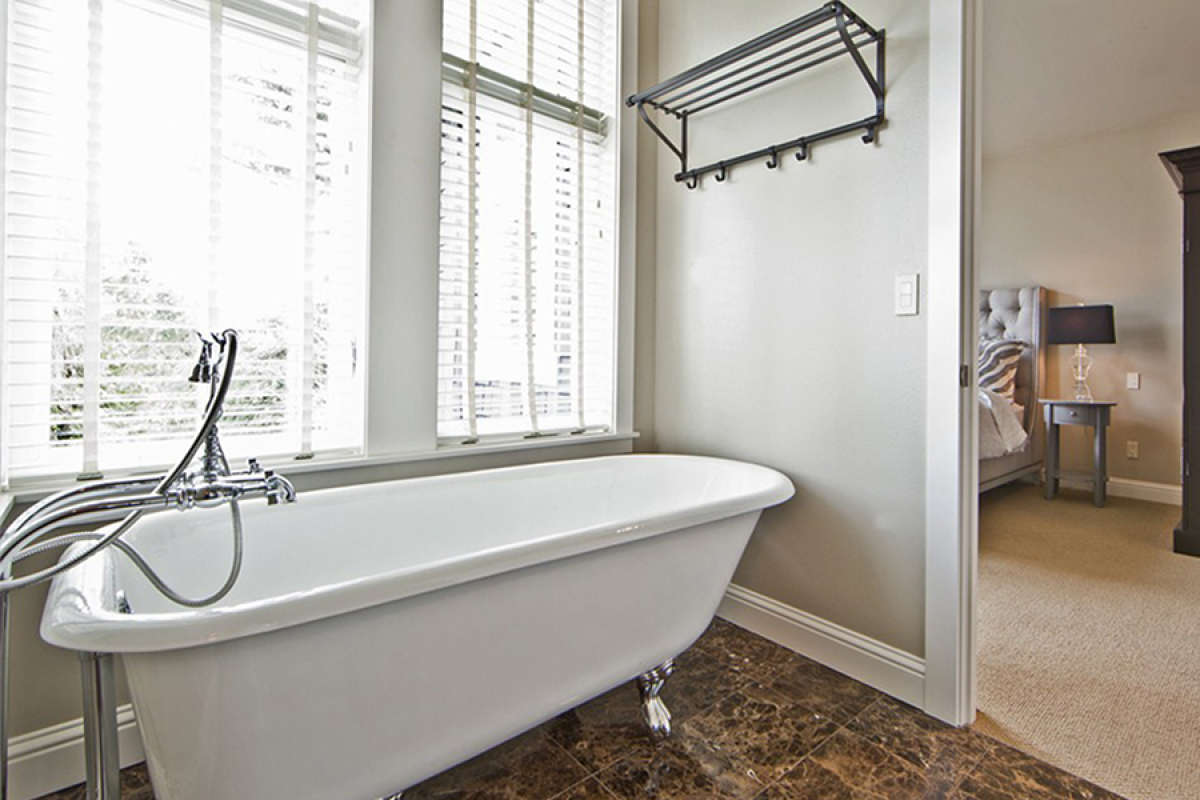

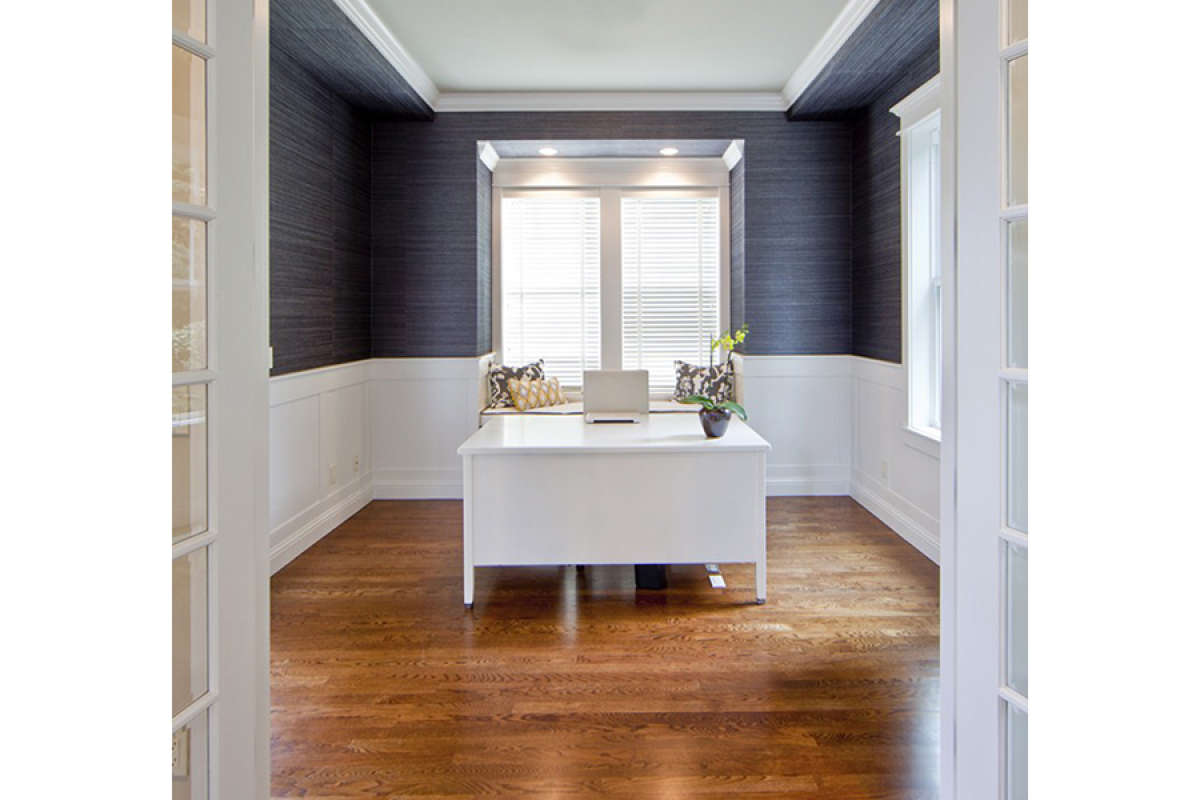

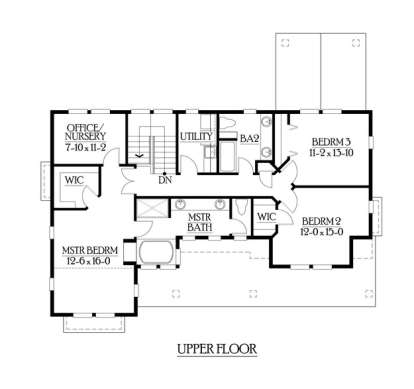

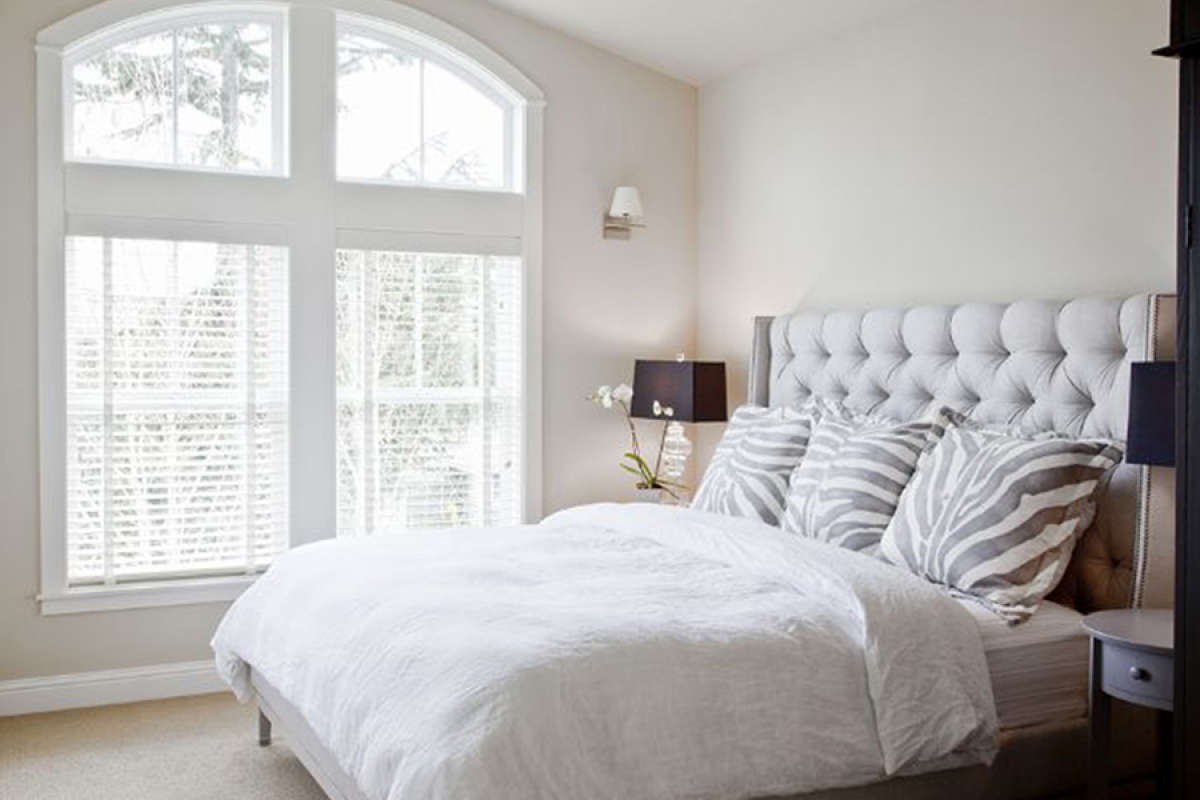

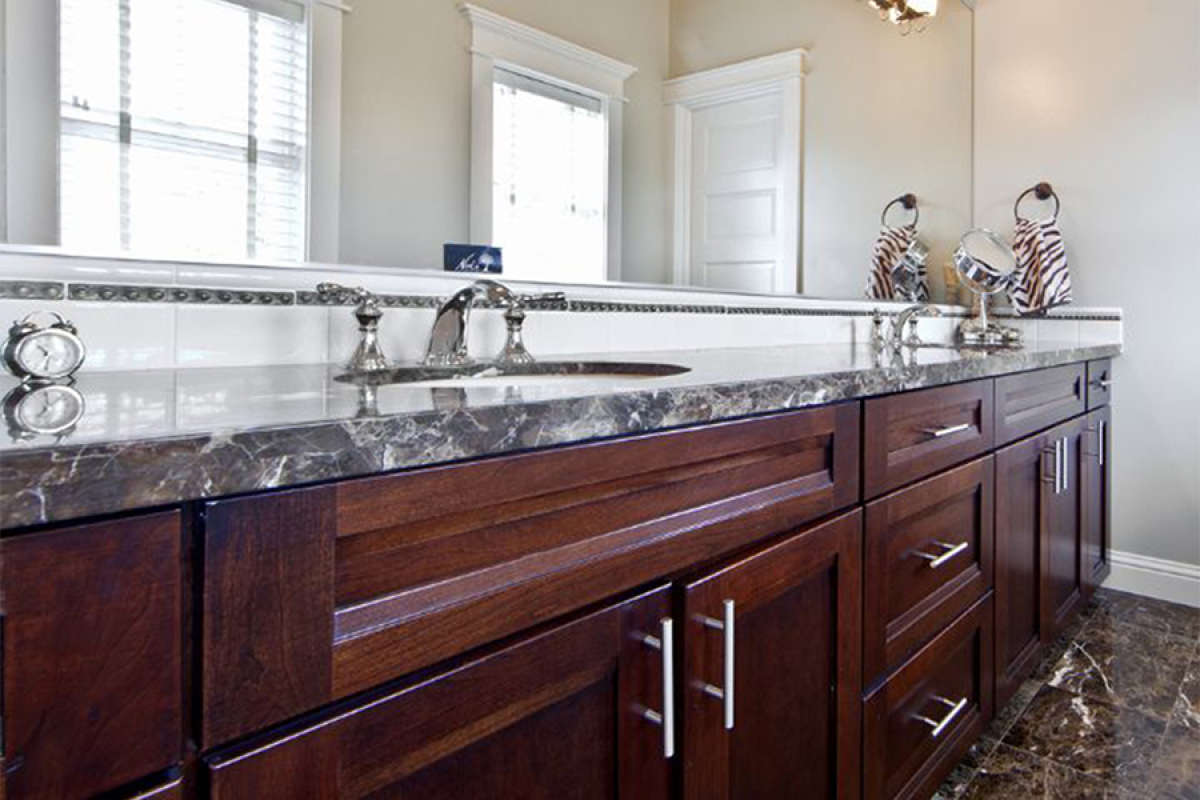

The upper level features a plethora of private sleeping spaces and baths along with the laundry room. Bedrooms two and three are spacious; one features a walk-in closet, the other, ample closet space. There is a nearby hall linen closet and shared bath with dual vanities, a toilet area and a tub/shower combination. The opposite end of the hall features a small nursery or office space and the master suite where there is a spacious master bedroom, an attached master closet and an elegant en suite bath. The master bath features dual vanities, a private toilet area, a garden tub and a separate shower. A stunning exterior, functional and versatile floor plan and beautiful outdoor space make this an ideal Lakefront house plan.
