Save 15% off your Dream House Plan with our Fall Savings Sale!

Limited plans not eligible for discounts.

Cabin House Plan 039-00050

Sq Ft1,040
Beds1
Baths1
1/2 Baths0
Stories2
Cars0
Width24' 0"
Depth30' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #039-00050
Loft Floor for House Plan #039-00050

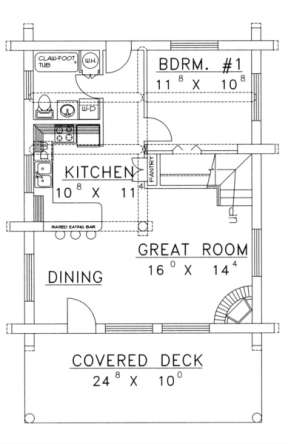

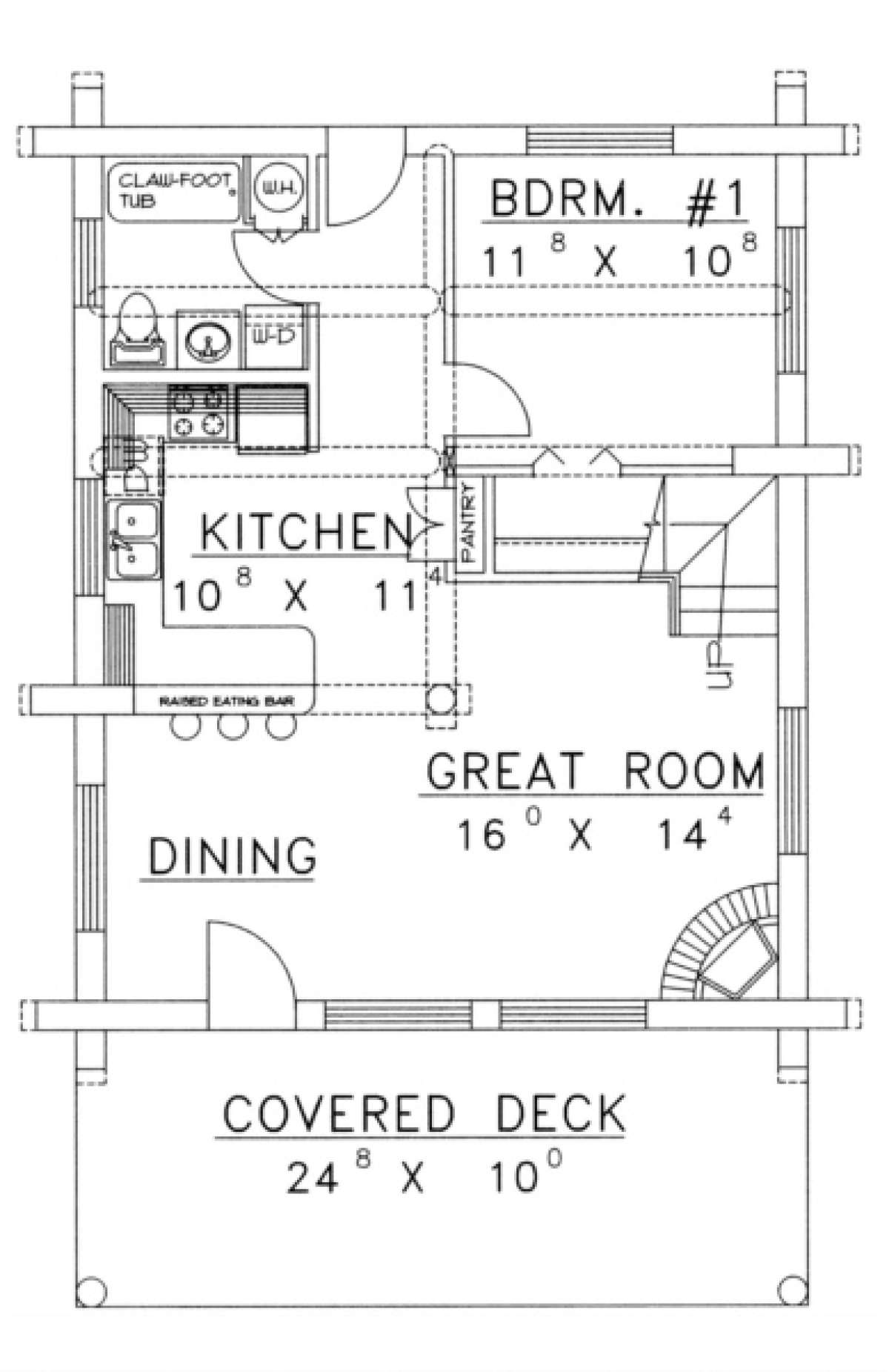

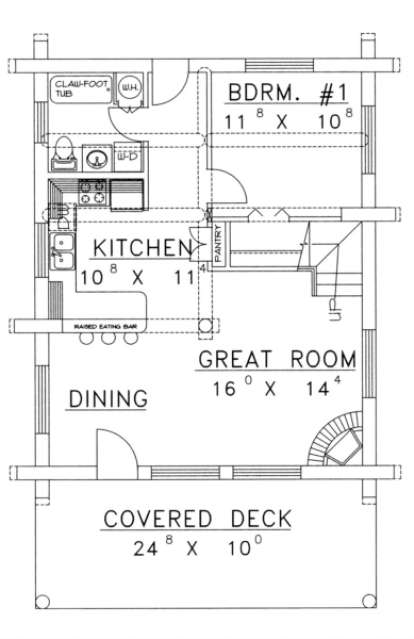

Main Floor
Main Floor for House Plan #039-00050

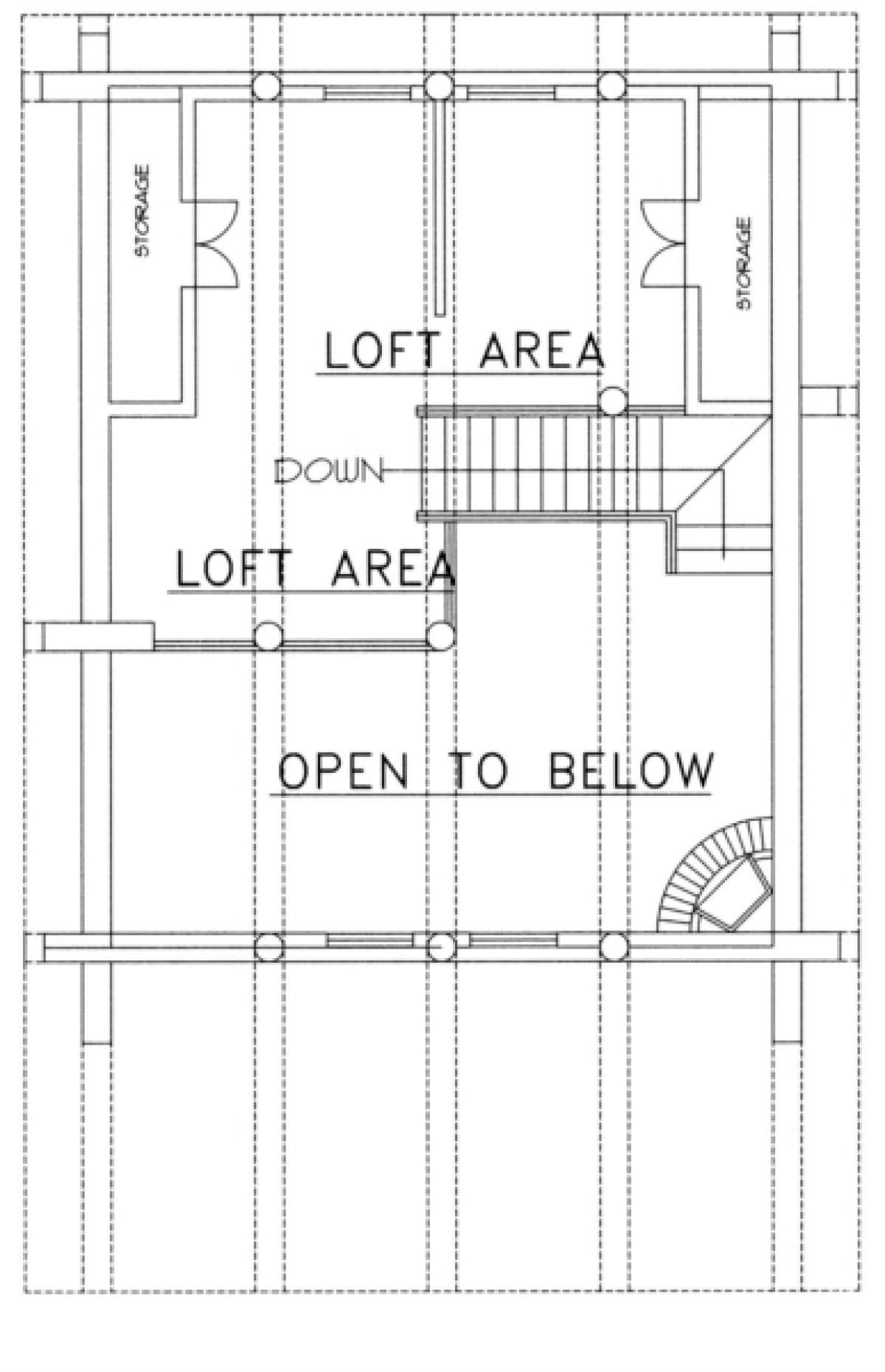

Loft Floor
Loft Floor for House Plan #039-00050


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
  • Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
  • Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
  • Upper floor framing plans are included with two story homes or homes with lofts.
  • The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
  • Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
  • Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
  • General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

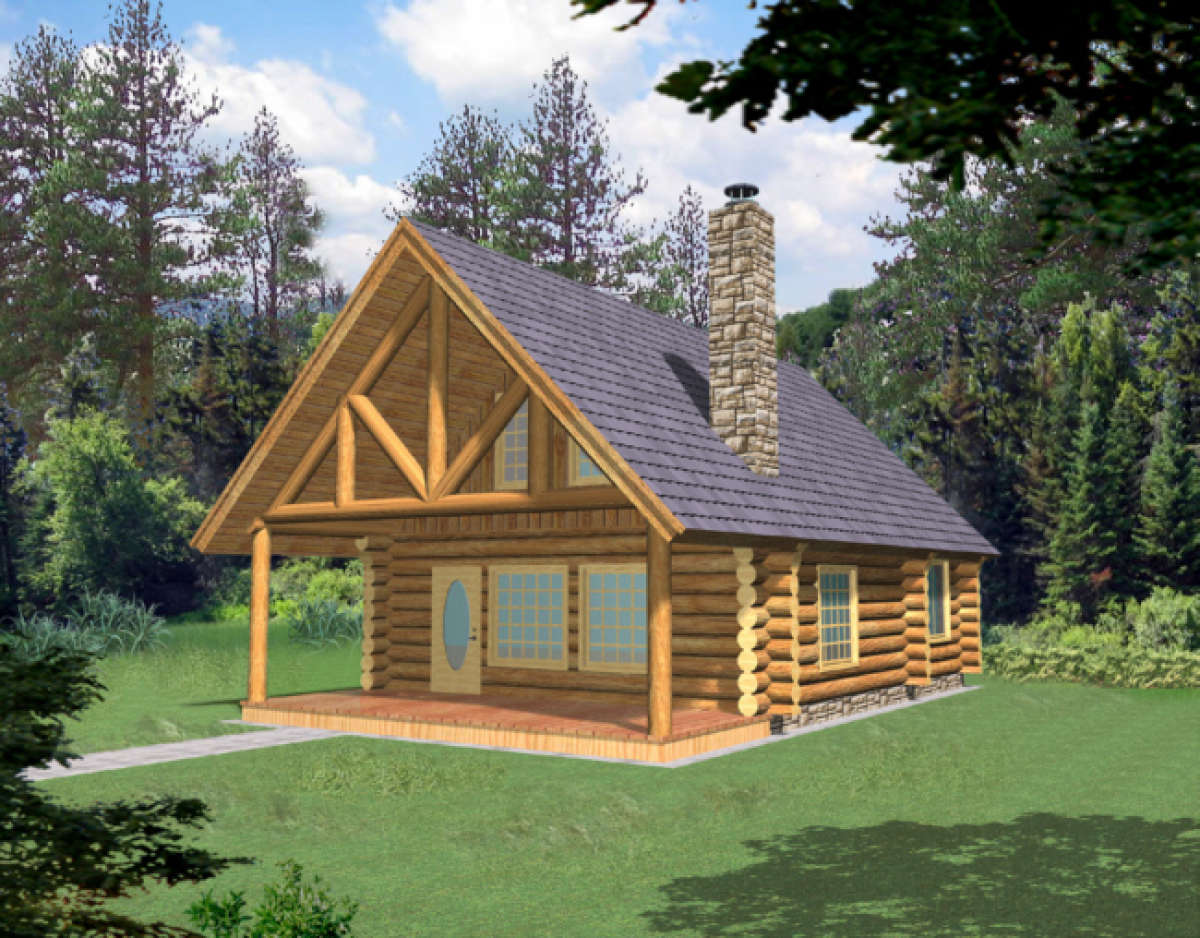

This Log Cabin inspired home features a rough hewn timber log exterior which includes a front covered porch and timber trusses in the simply constructed gable roof. The interior floor plan is highlighted by approximately 1,040 square feet of living space in the two storied home which features one bedroom and one bath. It is ideally suited for a vacation home or weekend getaway for a small family or young professional couple and the 24’ width and 30’ depth dimensions fit perfectly in a small narrow lot. The expansive front deck spans the length of the home and provides great entertaining and relaxing space for family and friends. Upon entering the home, an open concept living floor plan is revealed which introduces an abundance of space. The great room features a corner warming fireplace and there is an adjoining dining space. The U-shaped kitchen is highlighted with a peninsula breakfast/snack bar, a separate pantry, double sink window views and plenty of additional counter and cabinet space. The single bedroom is spacious with generous closet space and great window views overlooking the side and rear yards. There is an adjacent bath which houses a space for a claw-foot tub, a vanity, a toilet area and the laundry facilities. A 320 square foot loft area is accessible from the great room where balcony overlooks onto the main living spaces is featured. The loft space, itself, is quite large and could be used as additional sleeping quarters, a second entertaining space and/or as a writer’s or artist’s studio. Double storage spaces lines the perimeter of the loft area and provide organization and management of seasonal items and other gear. A spectacular exterior and an efficient interior floor plan provide a fully functional vacation home with plenty of usable interior and outdoor space.
