Vacation House Plan 1907-00003

Sq Ft1,160
Beds1
Baths1
1/2 Baths0
Stories2
Cars2
Width38' 0"
Depth28' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.
Floorplan 1 for House Plan #1907-00003
Floorplan 2 for House Plan #1907-00003

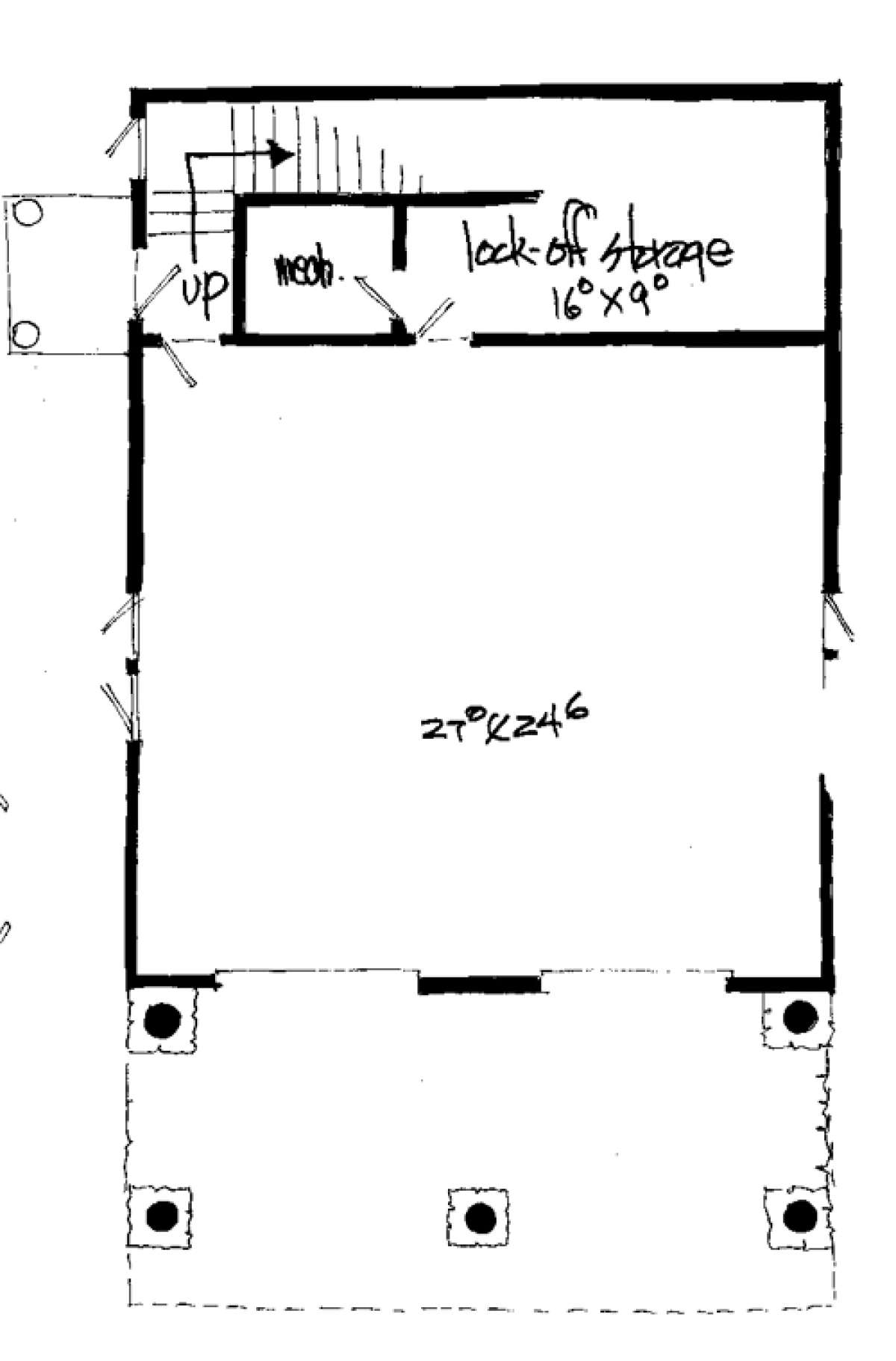

Floorplan 1
Floorplan 1 for House Plan #1907-00003

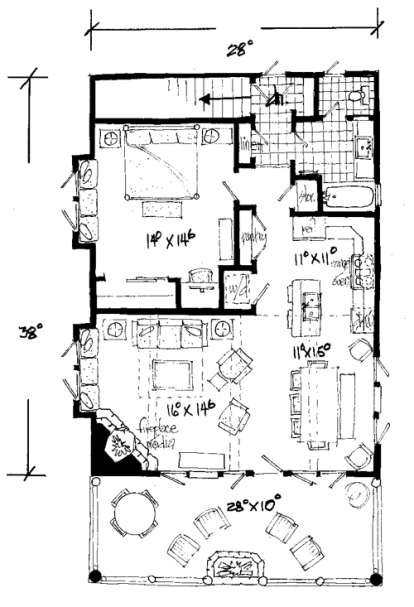

Floorplan 2
Floorplan 2 for House Plan #1907-00003


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • 1/4" Floor Plans
  • 1/4" All Elevations
  • Foundation Plan
  • Roof Overview Plan
  • Floor and Roof Framing Plans
  • Cross Section
  • Wall Section
  • Electrical Plan
  • General Construction Notes
  • Plan Notes

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

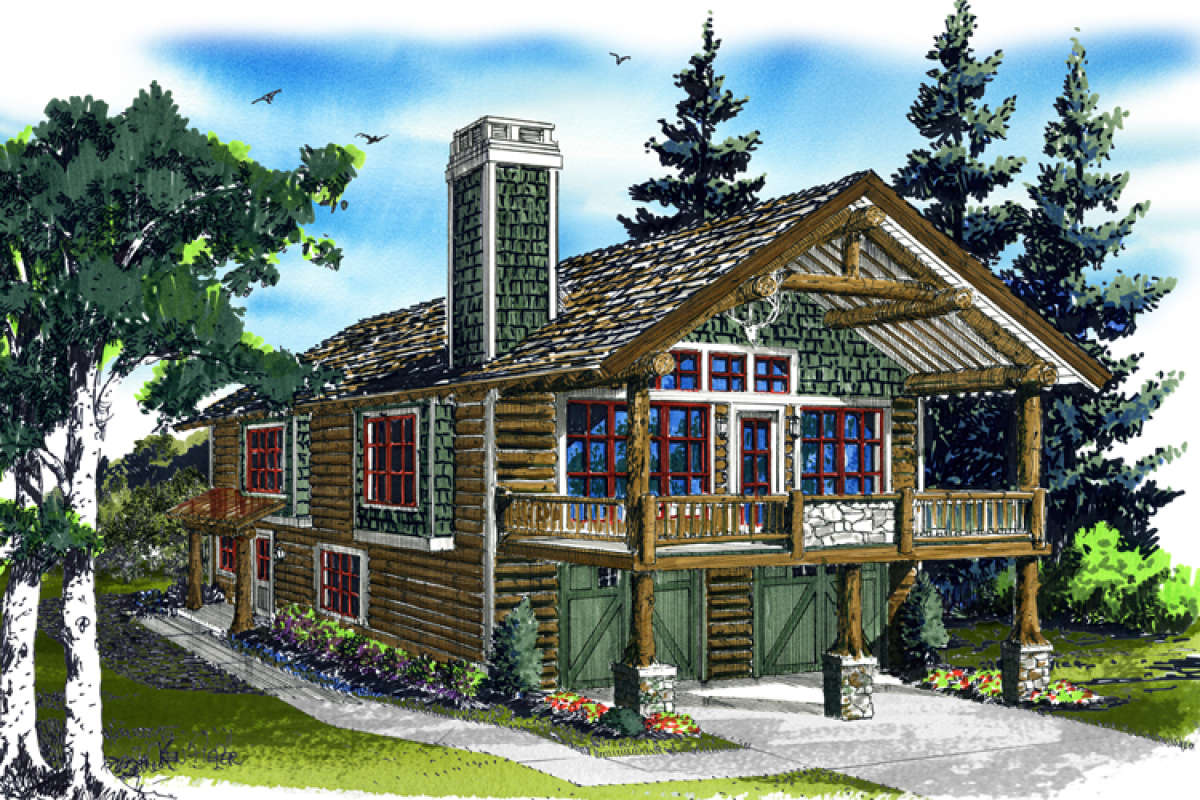

A Vacation home with loads of exterior charm and functionality frames an interior that houses approximately 1,160 square feet of living space. Rough-hewn wood beams, stone pillars, cedar shakes and a large covered porch with a beamed gable outline the exterior of the home beautifully. This house design is perfectly suited for a narrow or small property lot with its 38’ width and 28’ depth dimensions. There is a two car drive under garage with 700 square feet of vehicle and storage space with corresponding window views and look alike barn door entries. In addition to the garage space, there is a mechanical room and a large storage room. Entry to the staircase is provided through the garage as well as the front covered porch and there is additional covered parking space from the exterior garage which offers great coverage for family and friends during inclement weather.

The open staircase leads to the second floor landing where there is a foyer and accessibility to the main living floor. The main living floor features an open floor plan, one bedroom, one bath and outdoor entertaining space. The enormous open layout is highlighted with a large living room that includes a media center, warming fireplace and a “bump-out” window view. The adjacent outdoor space is large and easily accessed from the open entertaining space; this space measures 28’ x 10’ and offers plenty of welcoming space for guests to gather and relax along with the opportunity for panoramic views to be revealed. The spacious dining area is ideal for a farmhouse table where family and friends can gather in comfort while the kitchen features a center island with additional seating options and plenty of counter and cabinet space. A separate pantry is located directly across from the kitchen as well as a laundry nook. At the rear of the floor is a spacious bedroom with a second “bump out” window view and generous closet space. Adjacent to the bedroom is a hall linen closet, storage room and large bathroom. The bathroom features a modern large vanity, a tub/shower combination and a compartmentalized toilet area. This functional and efficient Vacation house plan is highlighted with a rustic exterior and an open floor plan featuring excellent entertaining options.
