Cabin Plan 035-00271


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,246
Beds 1
Bath 1
1/2 Baths 0
Car 0
Stories 2
Width 47'
Depth 30'

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #035-00271
Floorplan 2
Floorplan 2 for House Plan #035-00271

What's Included in these plans?

  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.

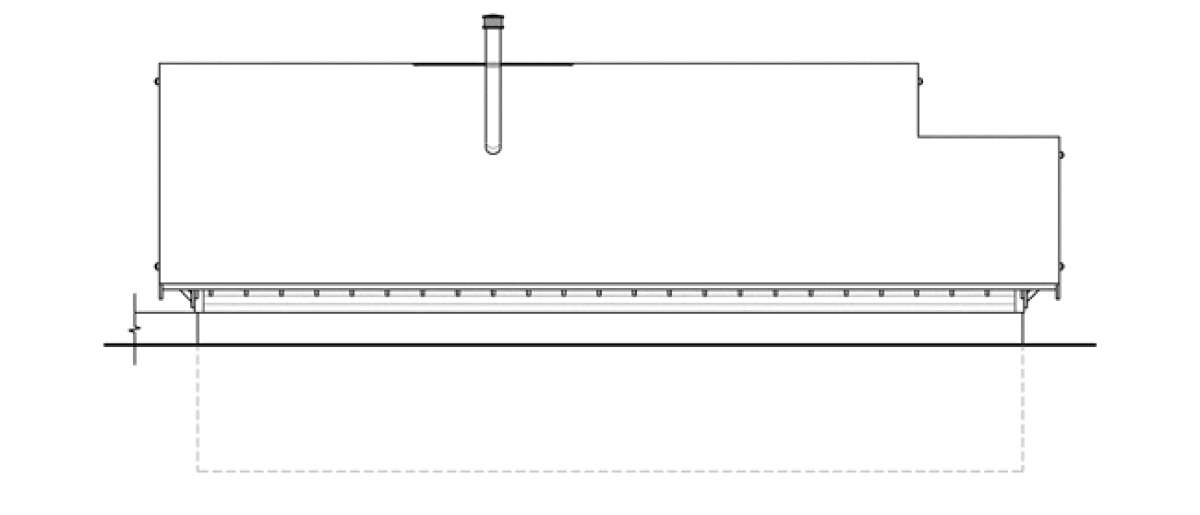

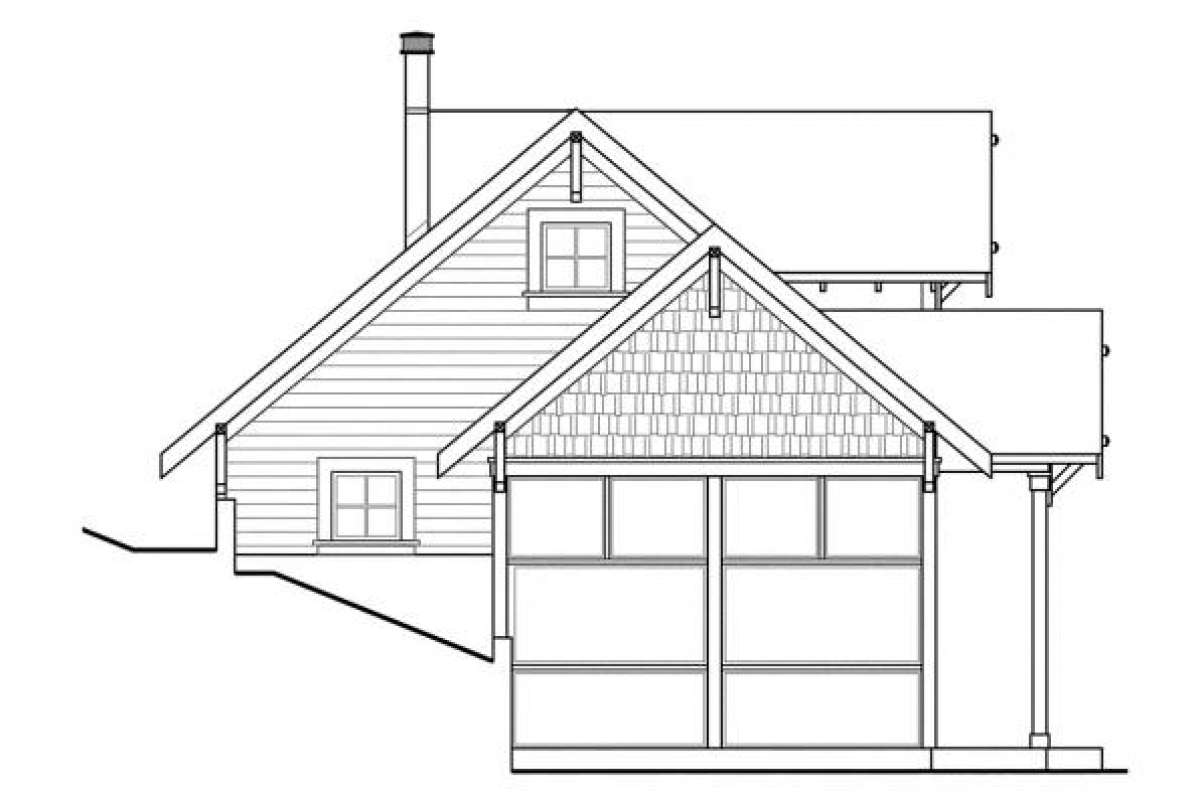

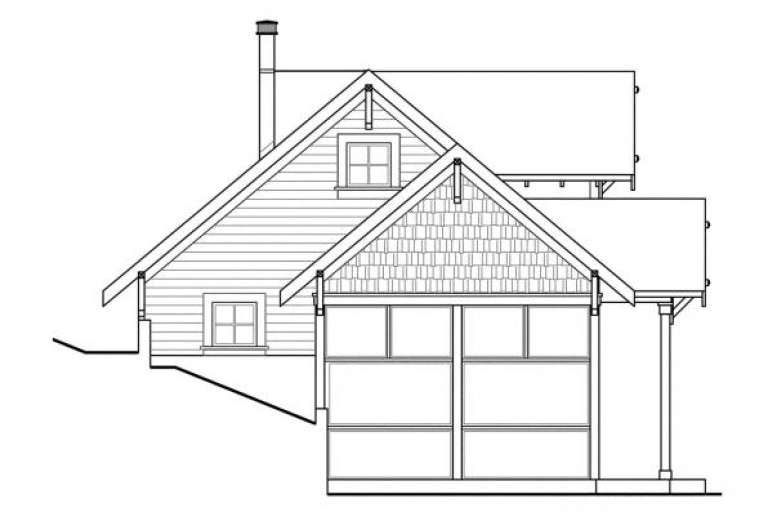

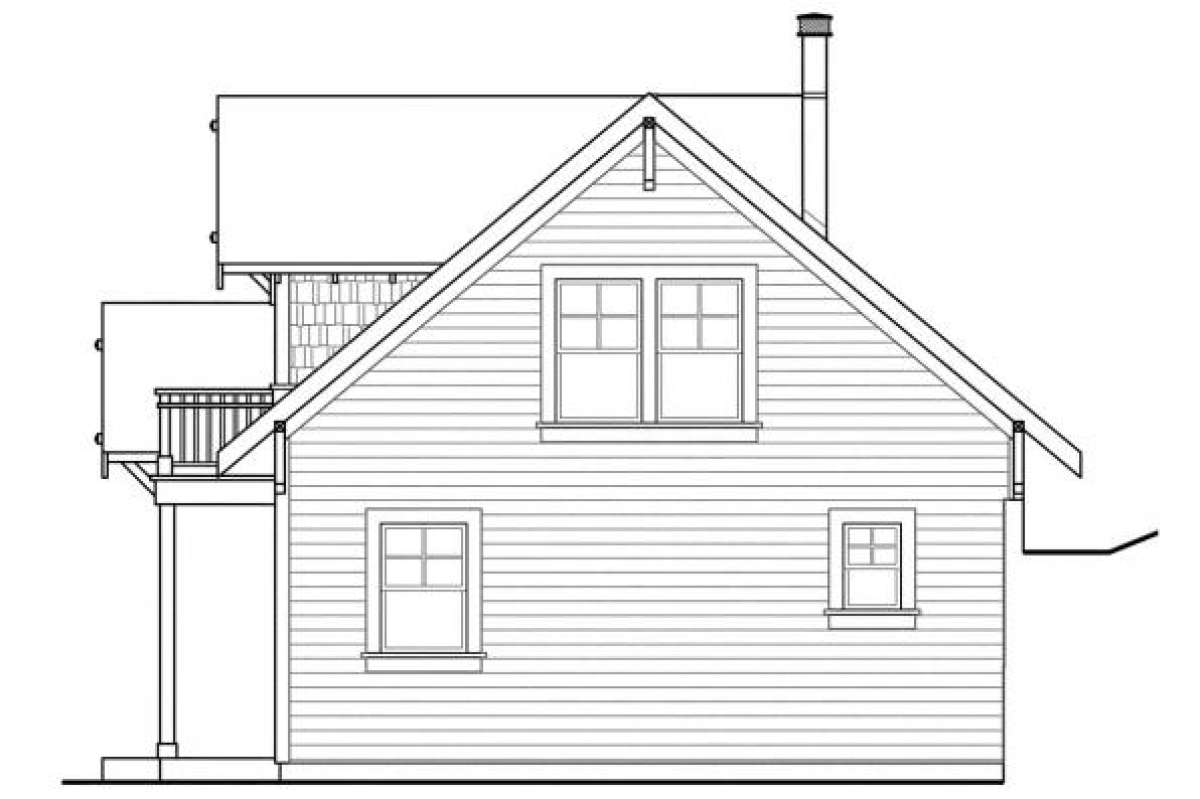

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

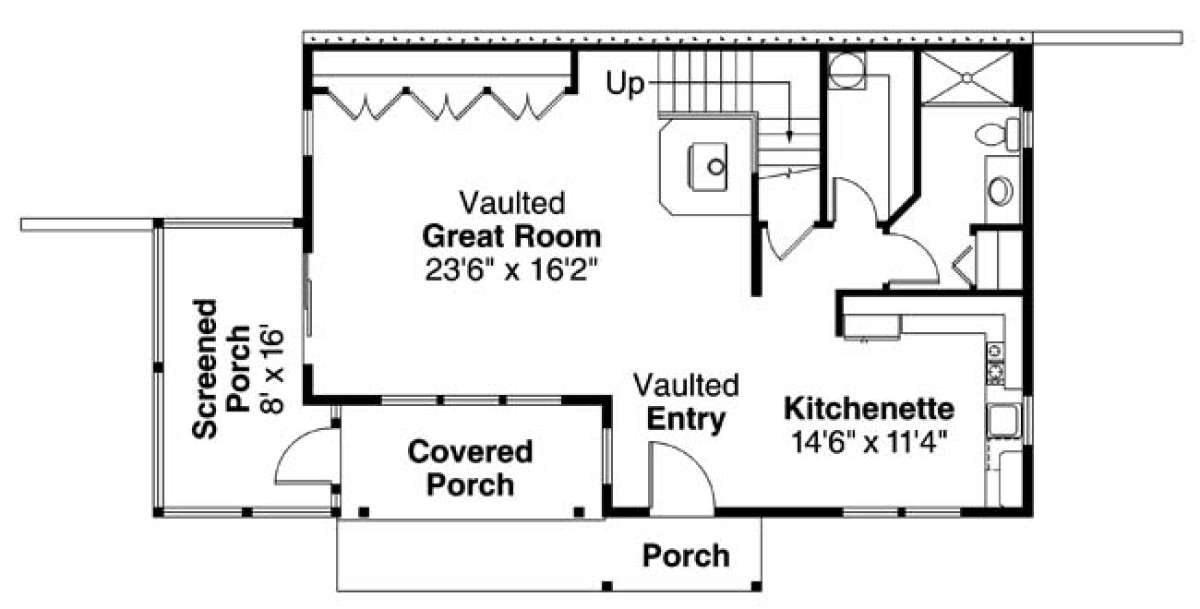

  • Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
  • *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
  • *Single Build License is included with plan packages of 5 sets or more.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Two floors of great space and beautiful window views are highlighted in this Cabin house plan. Ideally suited for a vacation home with lakefront or mountain property views, the home features great outdoor space and an open floor plan made specifically for enjoying “Mother Nature.” The exterior features rustic design elements, windows galore and three separate outdoor spaces; after a day exploring the outdoors whether hiking, fishing or hunting, this home will be a welcome sight upon your return. The interior floor plan is highlighted with approximately 1,246 square feet of living space, nine foot ceiling heights and is situated on a crawl space foundation. Perfect for a narrow and/or small property lot, the home’s respective width and depth dimensions are 47’ by 30’. There are double covered porch entrances into the home; one features columns and an overhead gable leading to the front entry while the second porch extends across the front of the home. From the larger porch, there is access to the adjacent screened porch which measures 8’ x 16’ and could include glass inserts as an alternative feature making the space a three season room. There are slider doors into the interior of the home as well for easy access and a seamless transition between the interior and exterior space. The vaulted entrance foyer leads directly into the great room which is vaulted as well and features great entertaining space, a freestanding fireplace, loads of storage/closet space and great window views onto the screened porch and great outdoors. The kitchenette is comfortable for dining as well and there are double window views and plenty of counter and cabinet space. A large mechanical room is available on the main floor as well as a full bathroom where there is a large vanity, an enclosed linen closet, a toilet area and a tub/shower combination.

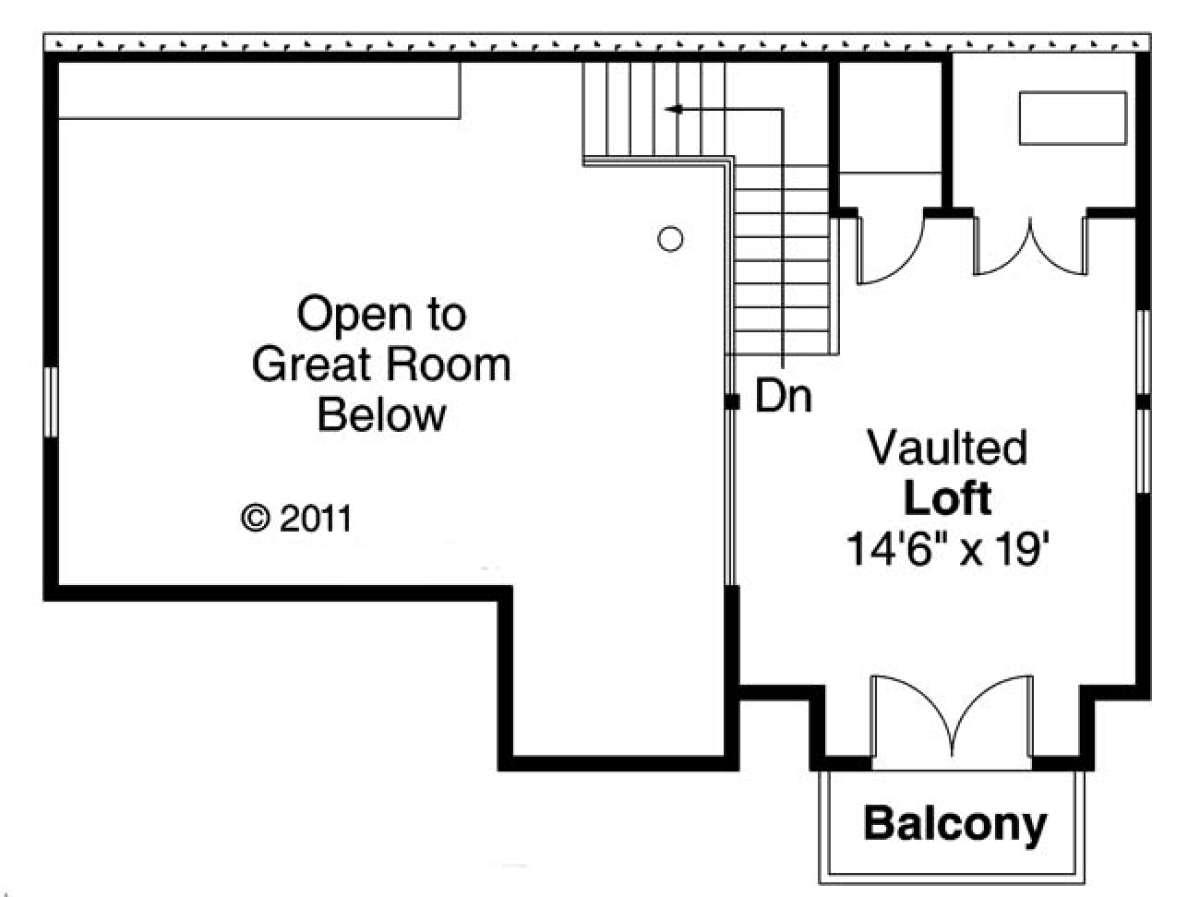

The second level of the home is accessed from the rear of the great room and features beautiful overviews onto the great room. A vaulted loft, measuring in excess of 14’ x 19’ also shares overviews onto the below great room and could be utilized as a bedroom, bunk room for numerous bedding arrangements or as a multi-purpose room. There are double attached closets as well, one accessible through French doors, the other is smaller for various storage options. Double window views are situated on one side of the room while a large outdoor balcony is located at the end of the room through French doors; fantastic space for outdoor views, relaxing and stargazing. This Cabin house plan features good interior space, a versatile floor plan and plenty of outdoor space for entertaining and relaxing.
