Country Plan 5633-00057

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 632
Beds 1
Bath 1
1/2 Baths 0
Car 2
Stories 2
Width 28'
Depth 26'

Floorplan Drawings

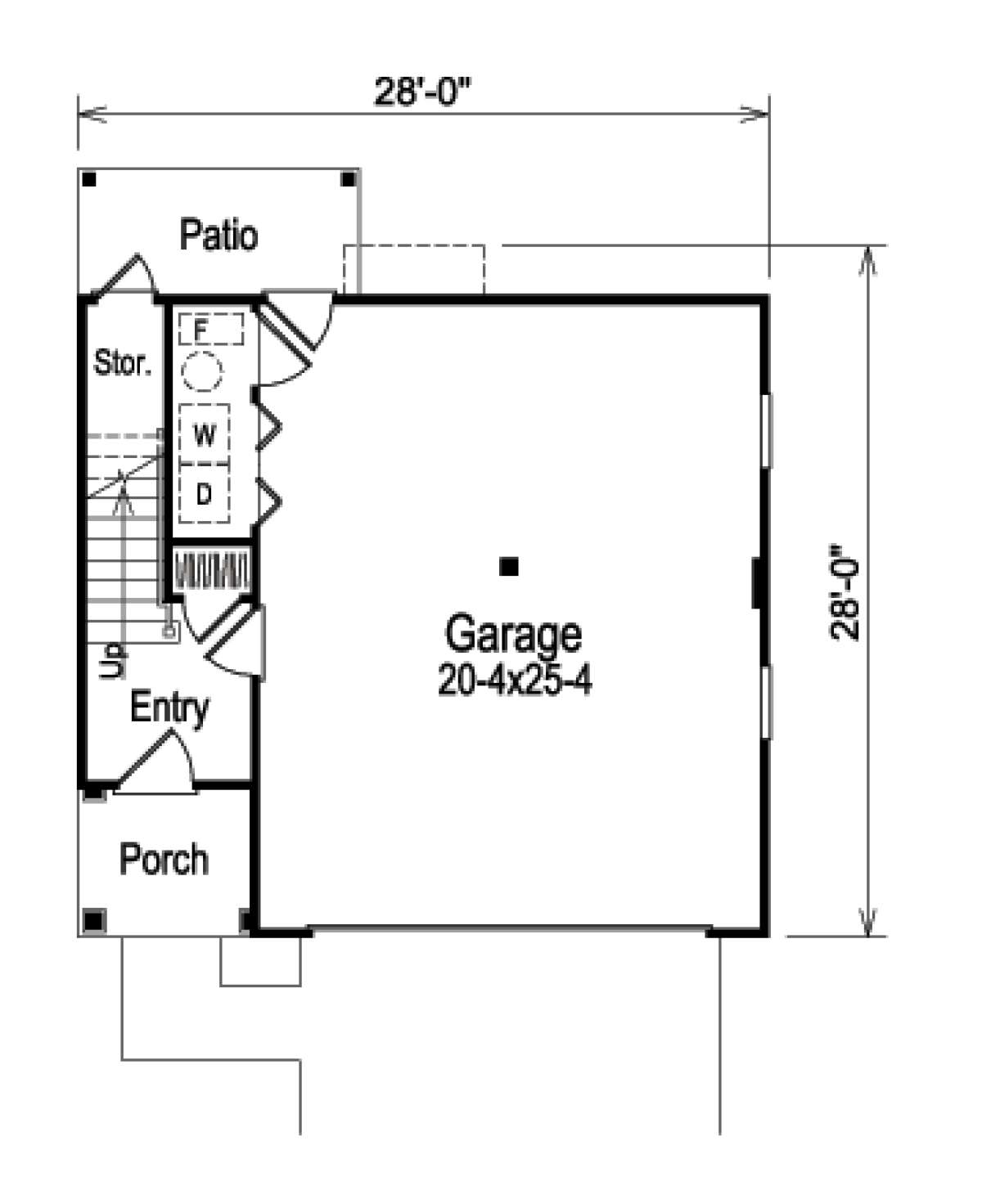

Floorplan 1
Floorplan 1 for House Plan #5633-00057

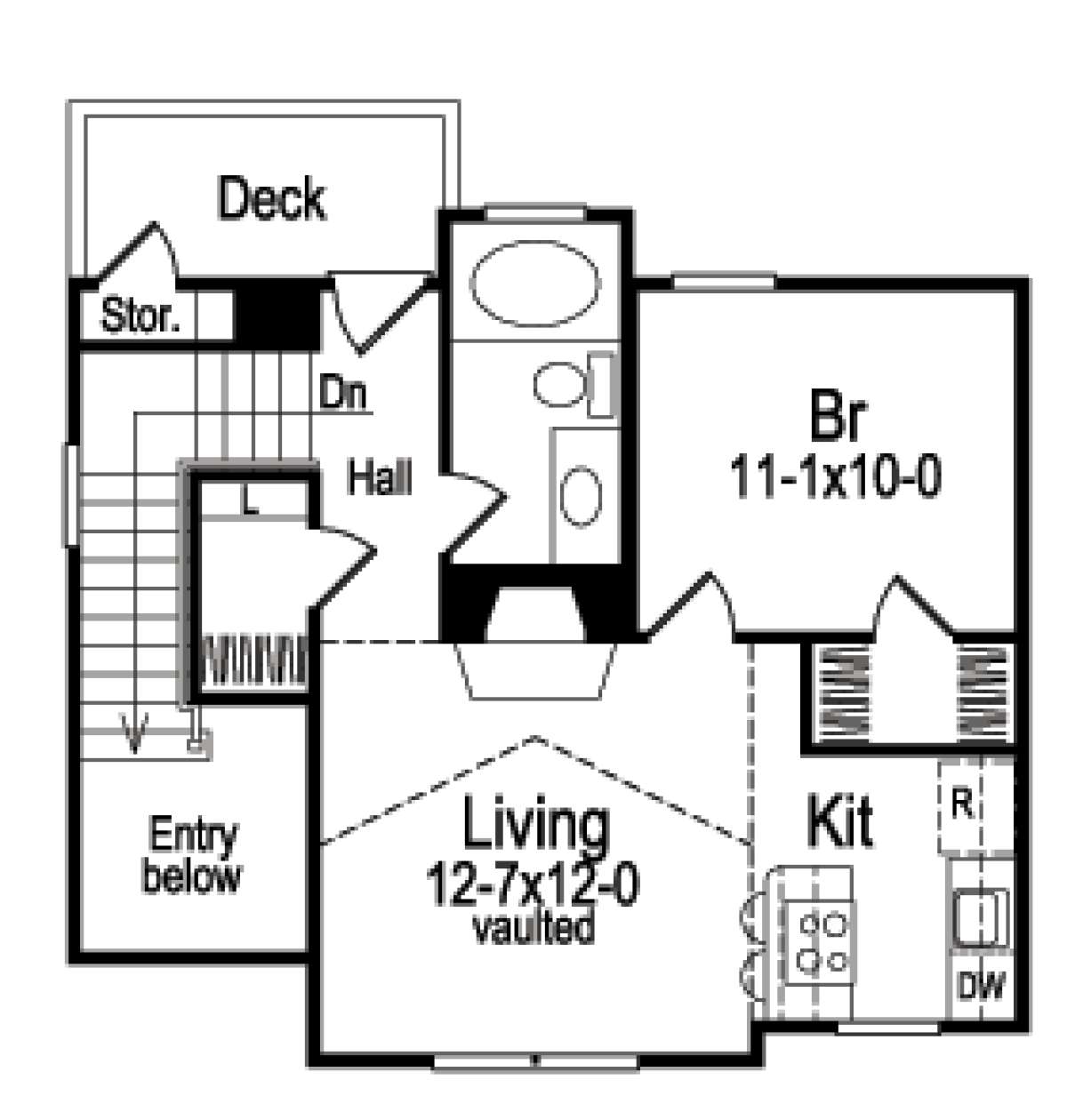

Floorplan 2
Floorplan 2 for House Plan #5633-00057


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

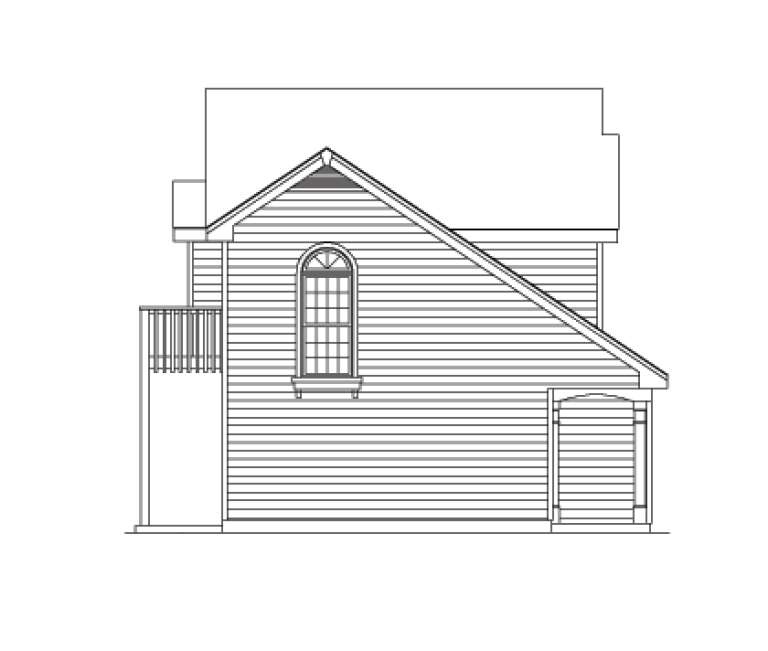

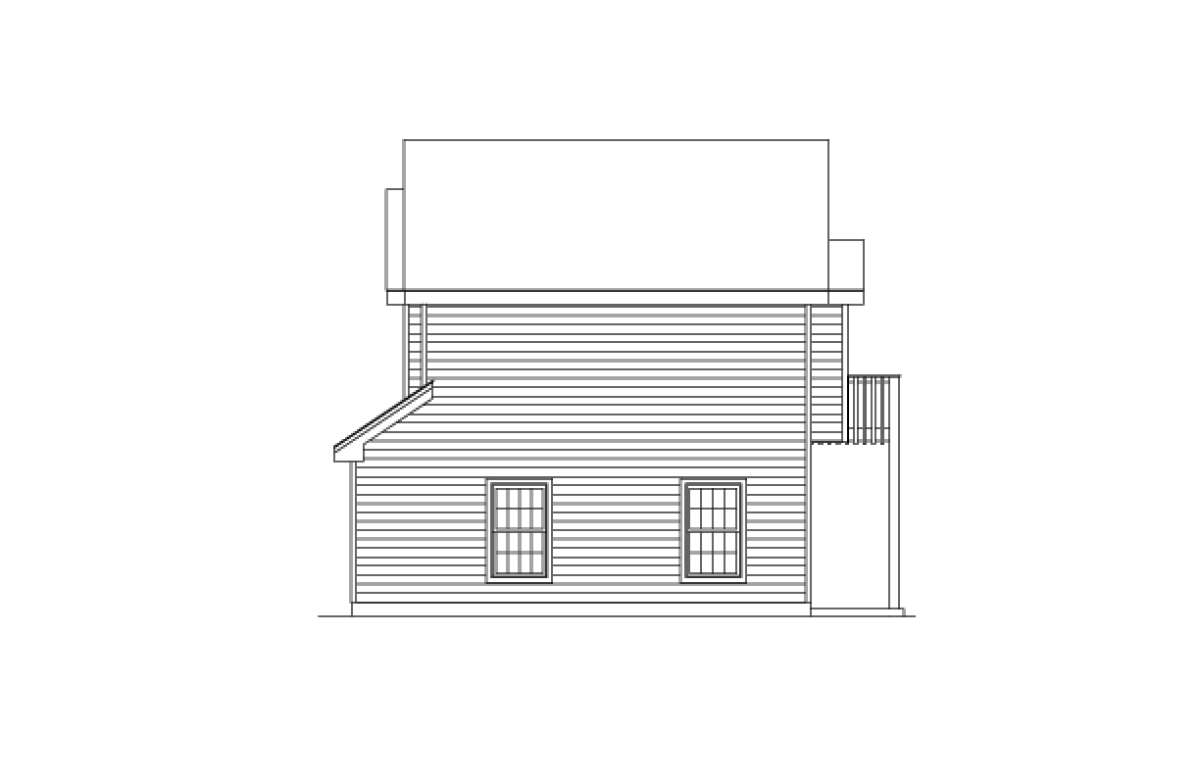

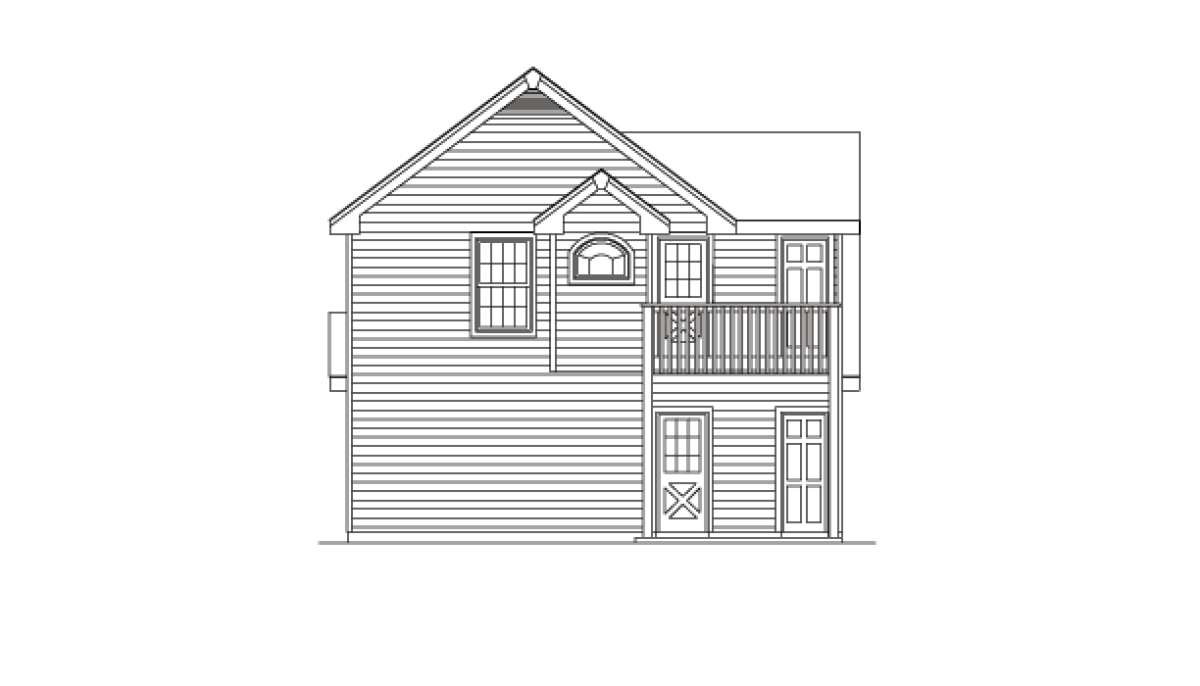

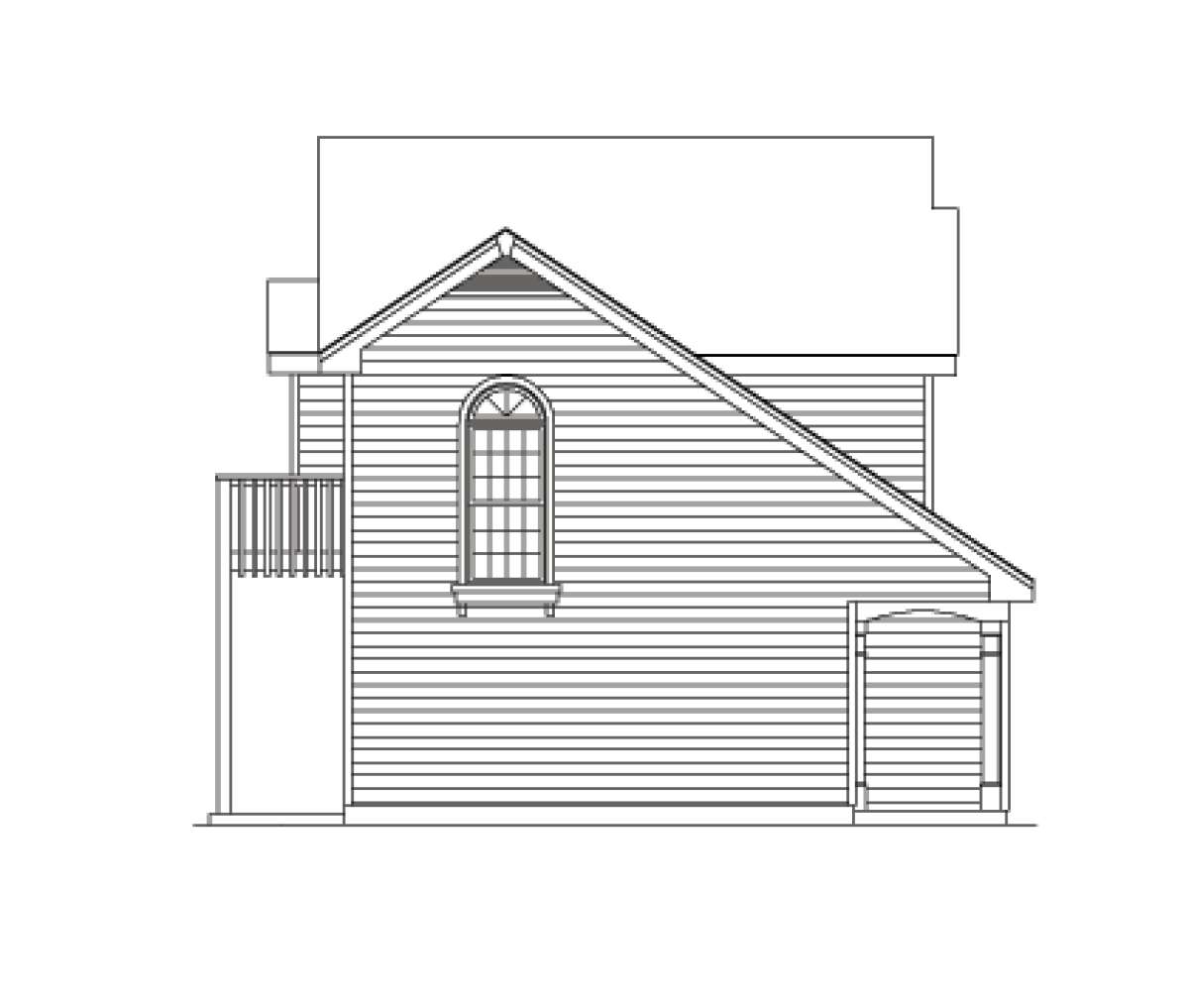

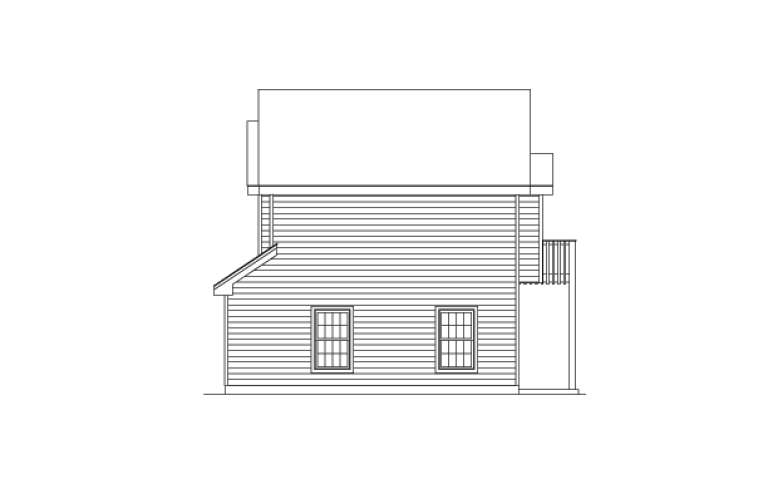

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Country house plan features an apartment garage layout with 632 square feet of living space on two floors. The exterior of the home is attractive and is highlighted by a Palladian style window on one of the two dormers. A front covered porch features arched openings supported by column beams and makes an inviting statement when greeting family and friends. Access into the home from the front porch leads to a vaulted entryway where there is a closet and side staircase. The two car garage which contains an additional 540 square feet of space houses the laundry nook and leads to the outdoor patio and there is a large interior storage room off the patio as well. Ascending the staircase is a window feature for light and function. The second floor landing features access to the outdoor deck with another storage space and there is a large interior walk-in closet with linen space as well; this compact home features a large amount of storage space within its 632 square feet. A spacious bathroom with a large vanity area and garden tub with an arched window is adjacent to the walk-in closet. Passing through into the living area, you will find a vaulted space in excess of 12’x12’ with a fireplace and the Palladian window feature; the vaulted ceiling and window feature give the room a light and spacious feel. The adjoining kitchen has a breakfast bar and modern amenities. At the rear of the home is the private bedroom which features generous space and a walk-in closet. This one bedroom, one bath home is highlighted by function and useable space and the two car garage is an added bonus in terms of space and storage.
