Vacation Plan 039-00065

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,368
Beds 3
Bath 2
1/2 Baths 1
Car 3
Stories 2
Width 40'
Depth 40'

Floorplan Drawings

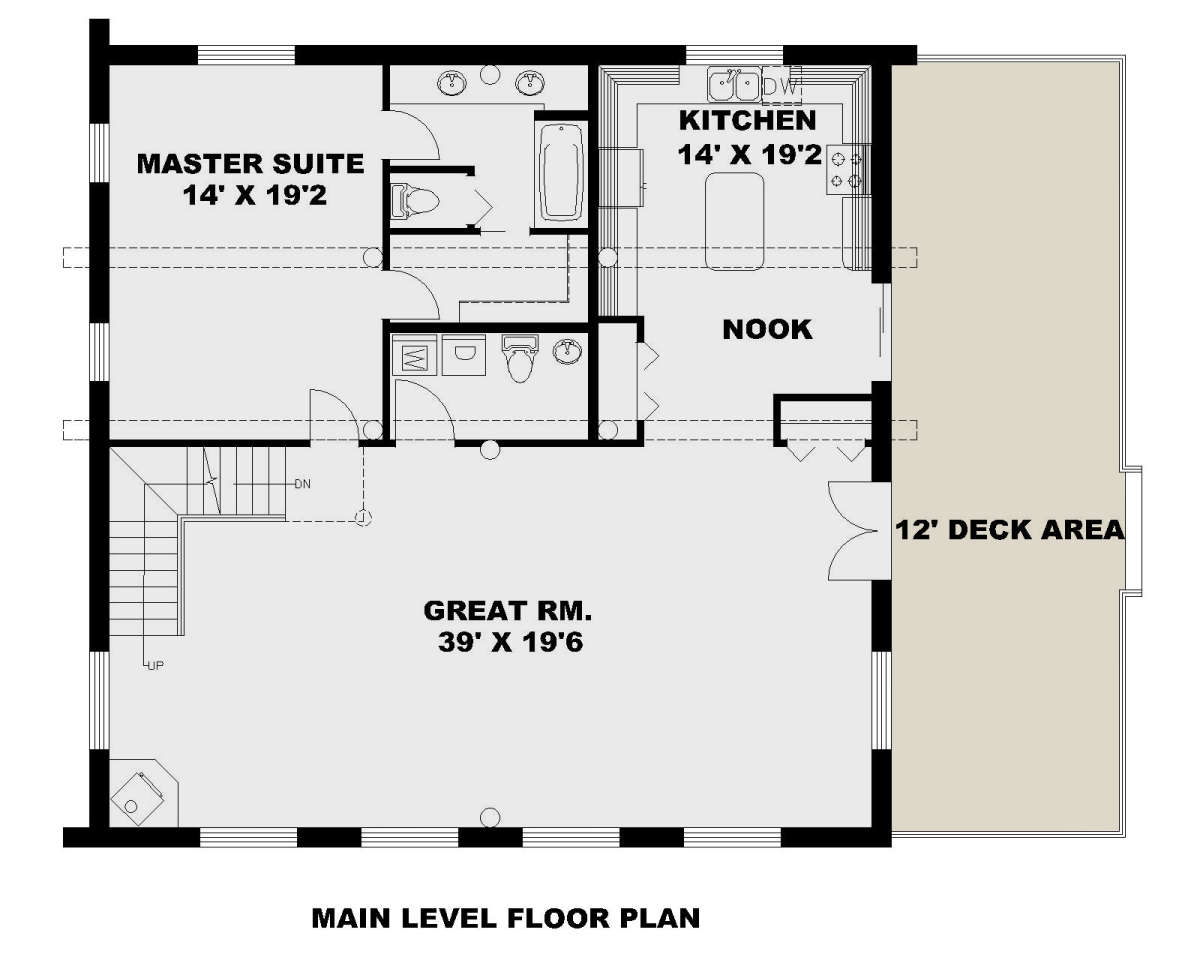

Main Floor
Main Floor for House Plan #039-00065

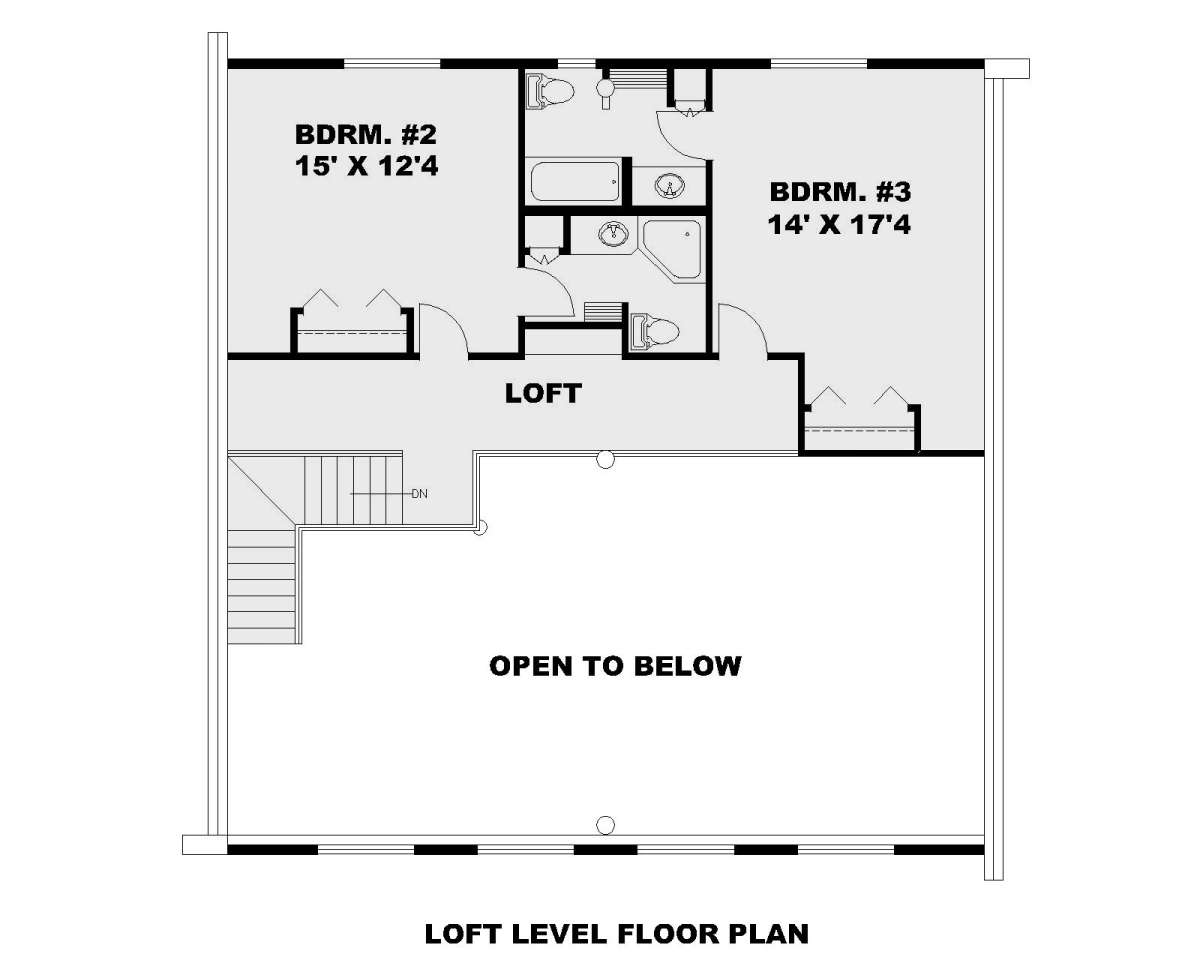

Second Floor
Second Floor for House Plan #039-00065

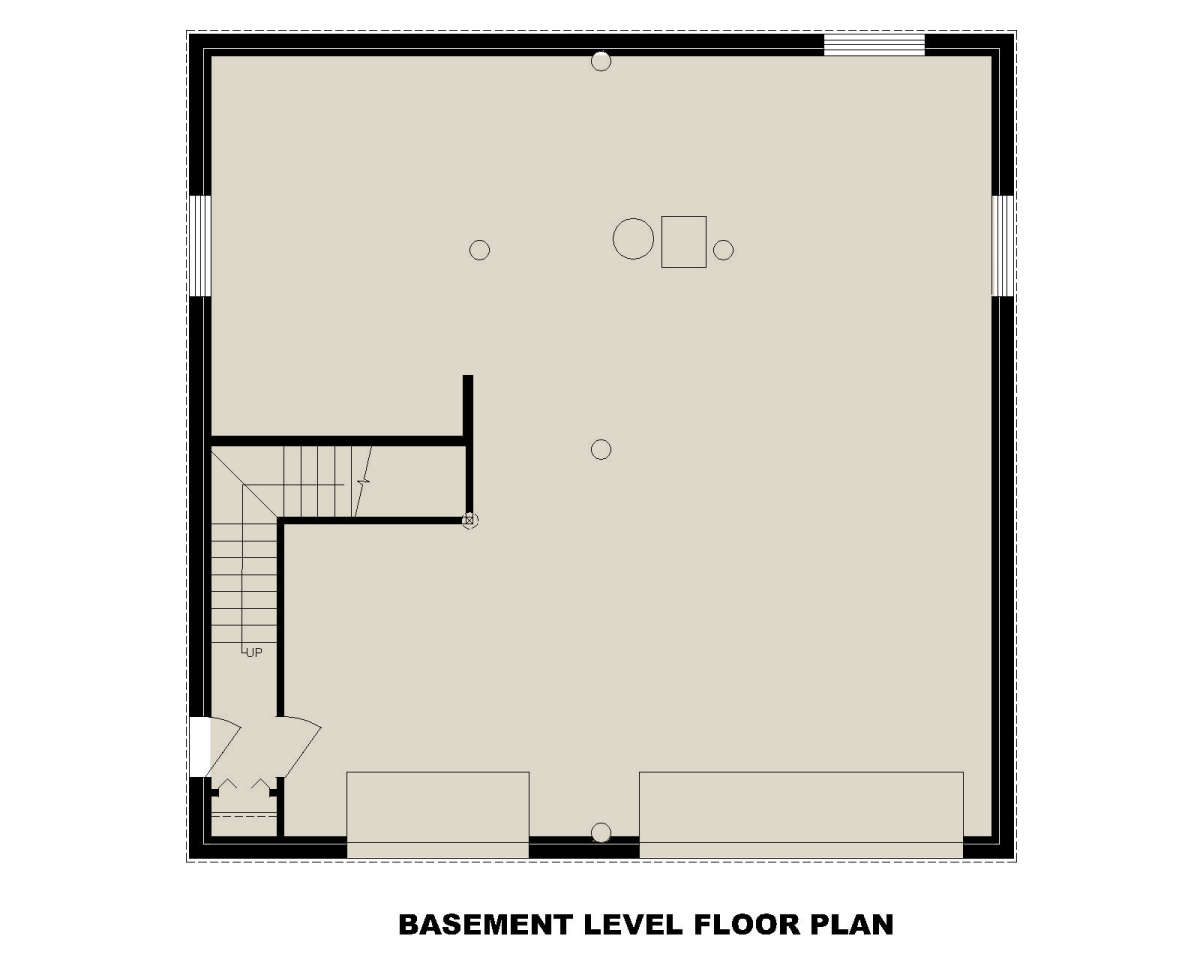

Basement
Basement for House Plan #039-00065


What's Included in these plans?

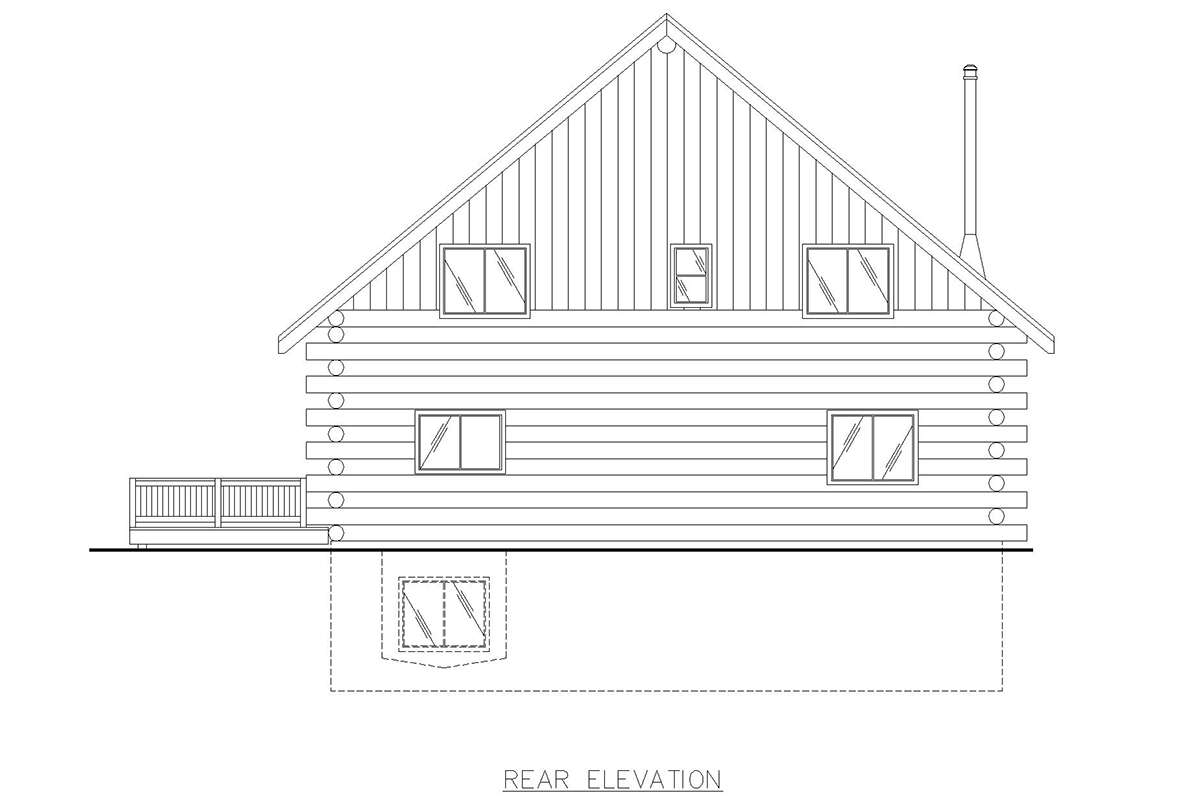

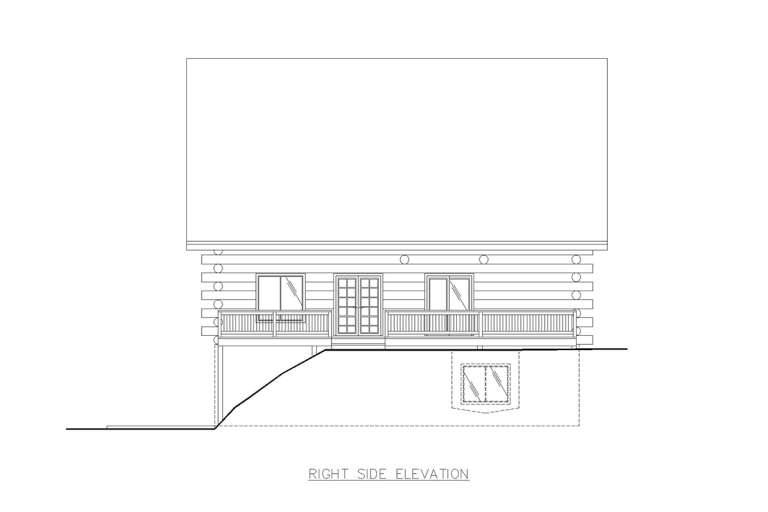

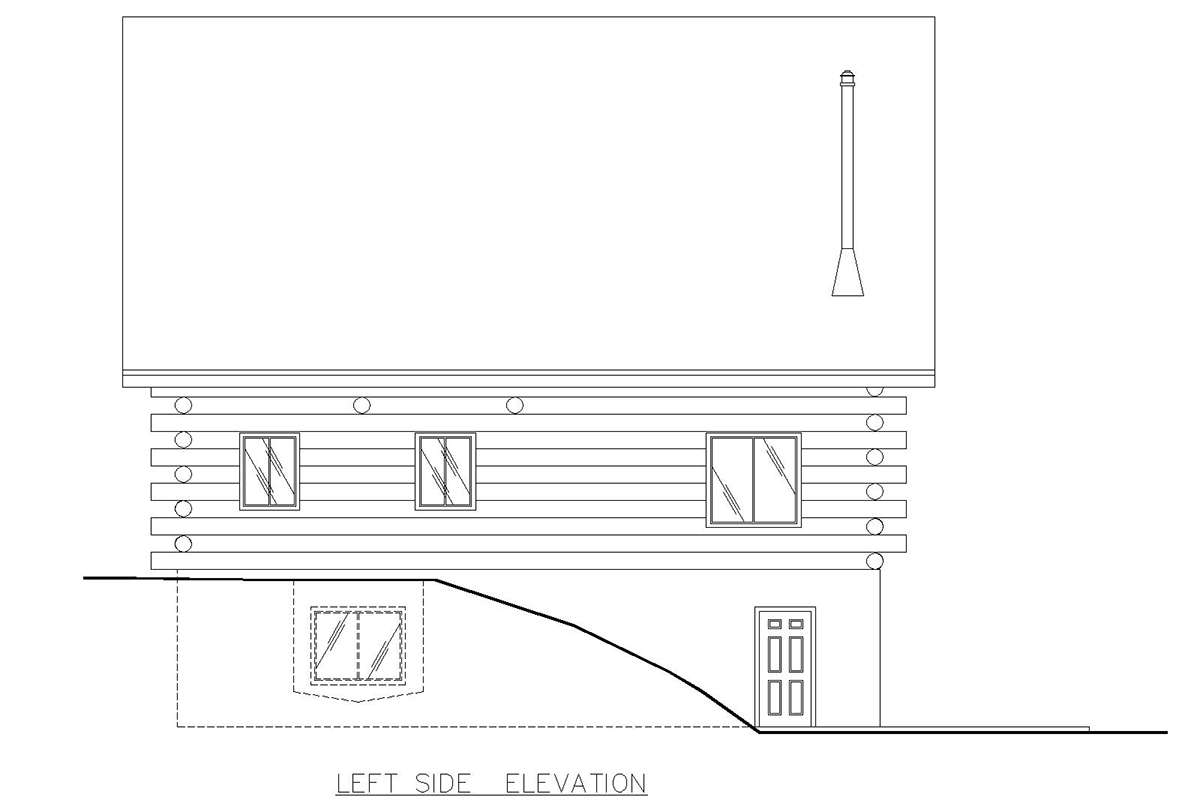

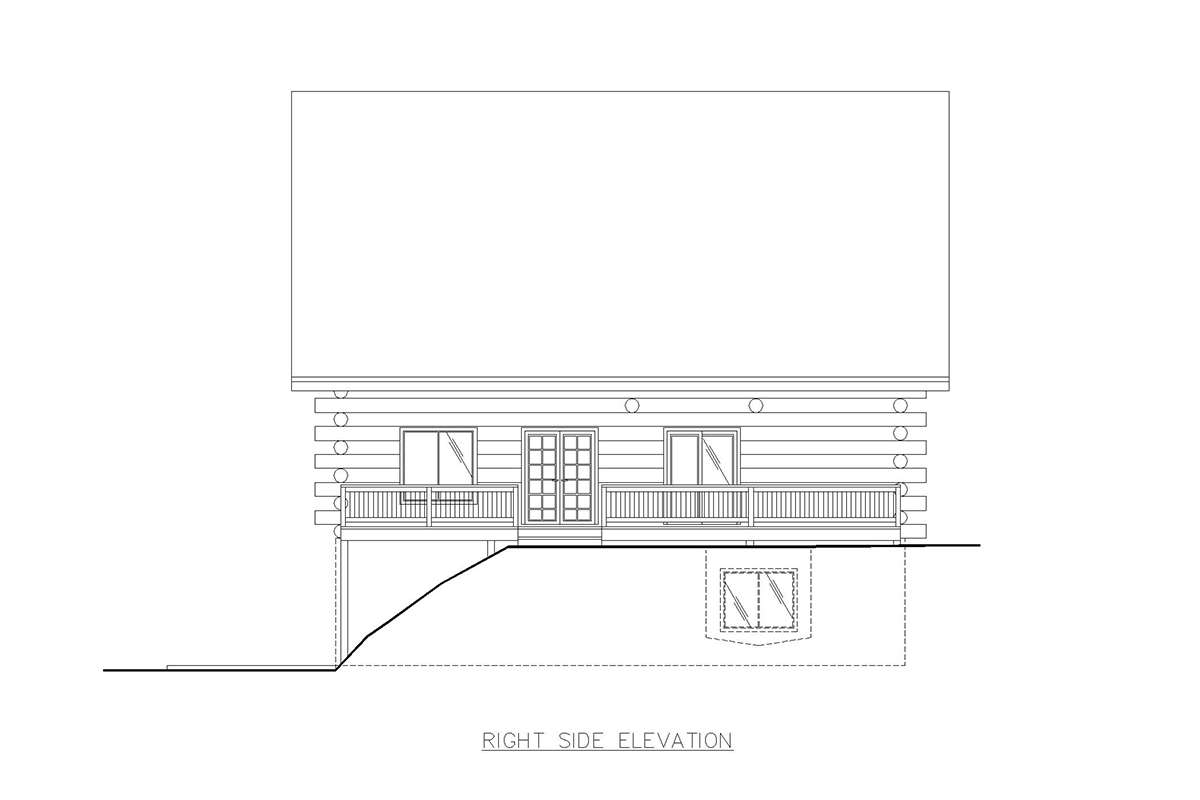

  • Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
  • Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
  • Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
  • Upper floor framing plans are included with two story homes or homes with lofts.
  • The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
  • Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
  • Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
  • General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.




Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Vacation house plan is structurally grounded in wraparound stone work and timber logs with a multitude of window inserts and excellent outdoor space. A walk-up front staircase expands to include an extensive 12’ deck area for premium entertaining and hosting get-togethers with family and friends. Approximately 2,368 square feet of interior space houses wide open spaces, three bedrooms and two plus baths in the two storied home. There is an unfinished basement foundation, as well, with 1,654 additional square feet of expansion space and a three car, double bay garage. This abundant terrace level space could function as a large workshop, car maintenance area or a hobby/craft space. Double door entrance into the home’s interior reveals a massive great room, measuring in excess of 35’x17’ with a wood burning stove. This space is large enough to include optimal furniture placement of both living and dining spaces comfortably. There is a peninsula bar opened to the kitchen, as well, and the kitchen further includes a separate pantry and plentiful counter and cabinet space. A guest powder room and the laundry facilities are located on the main floor along with the master suite. The master bedroom is quite spacious with wonderful window views and there is an attached walk-in closet and en suite bath. The master bath is highlighted with a large extended vanity, a toilet area and a tub/shower combination.
The second story staircase features a loft landing and overviews onto the great room below. At the rear of the space are two family styled bedrooms of equivalent size with attached walk-in closets. There is a shared hall bath with an extended vanity, a tub/shower combination and a hall linen closet. Whether situated on a lakefront or mountaintop setting, this home supplies a spacious and functional interior and a lovely exterior façade.
