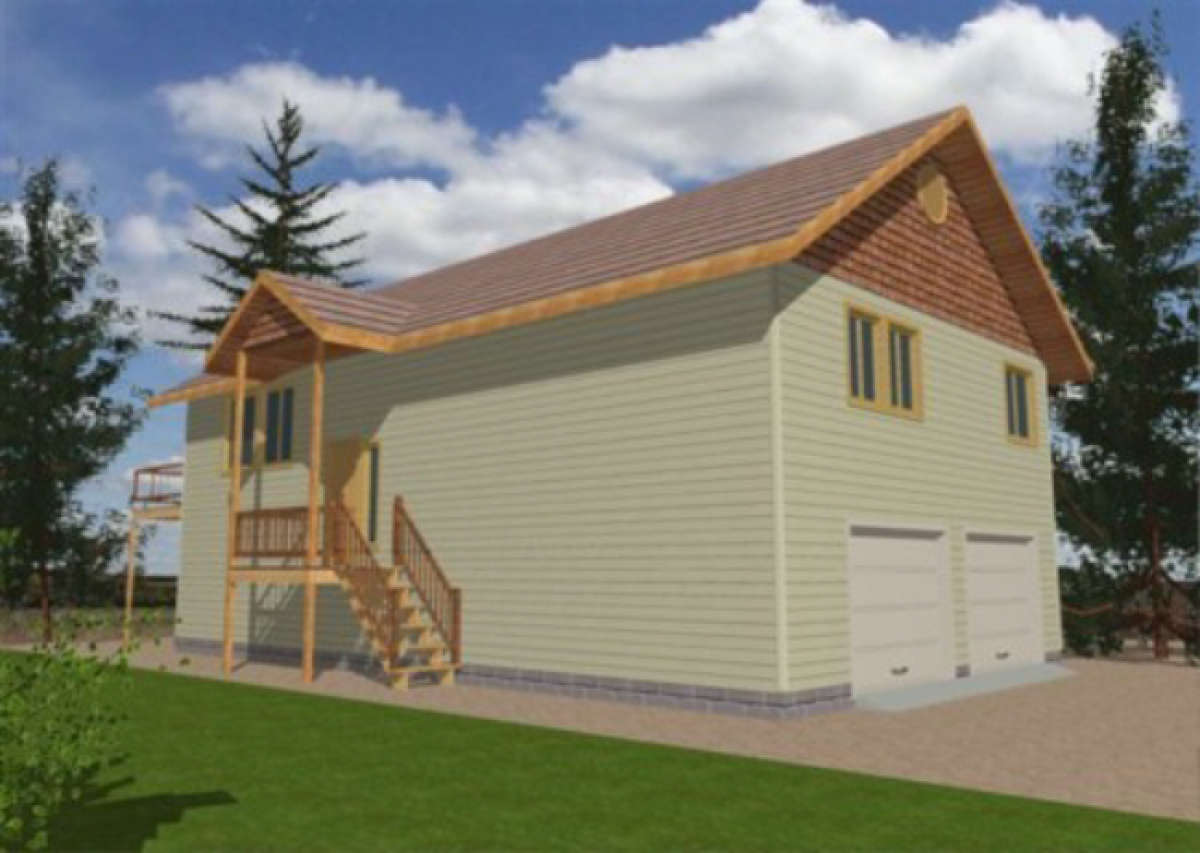

Vacation Plan 039-00123

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,059
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 2
Width 28' 4"
Depth 48'

Floorplan Drawings

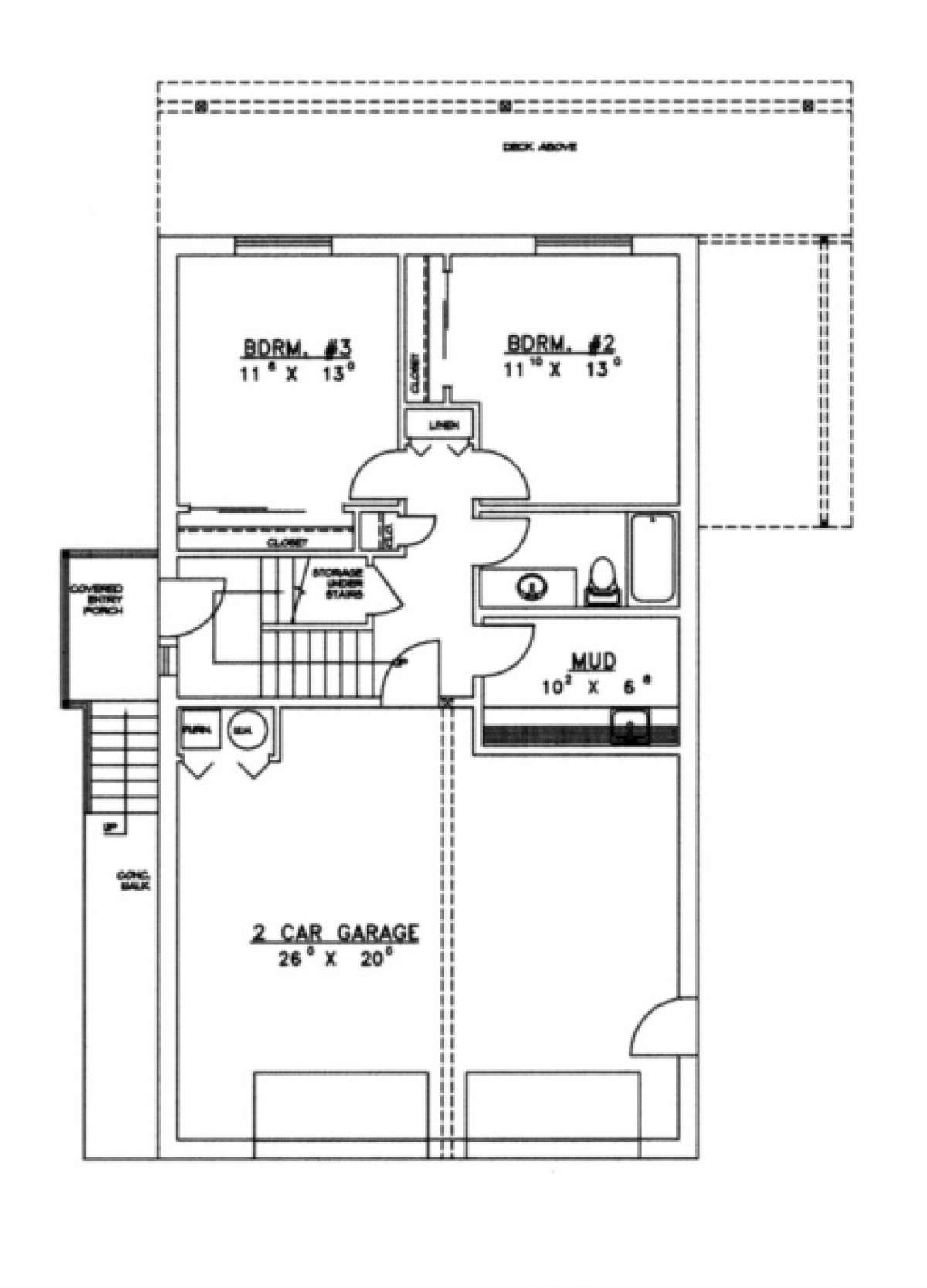

Garage Floor
Garage Floor for House Plan #039-00123

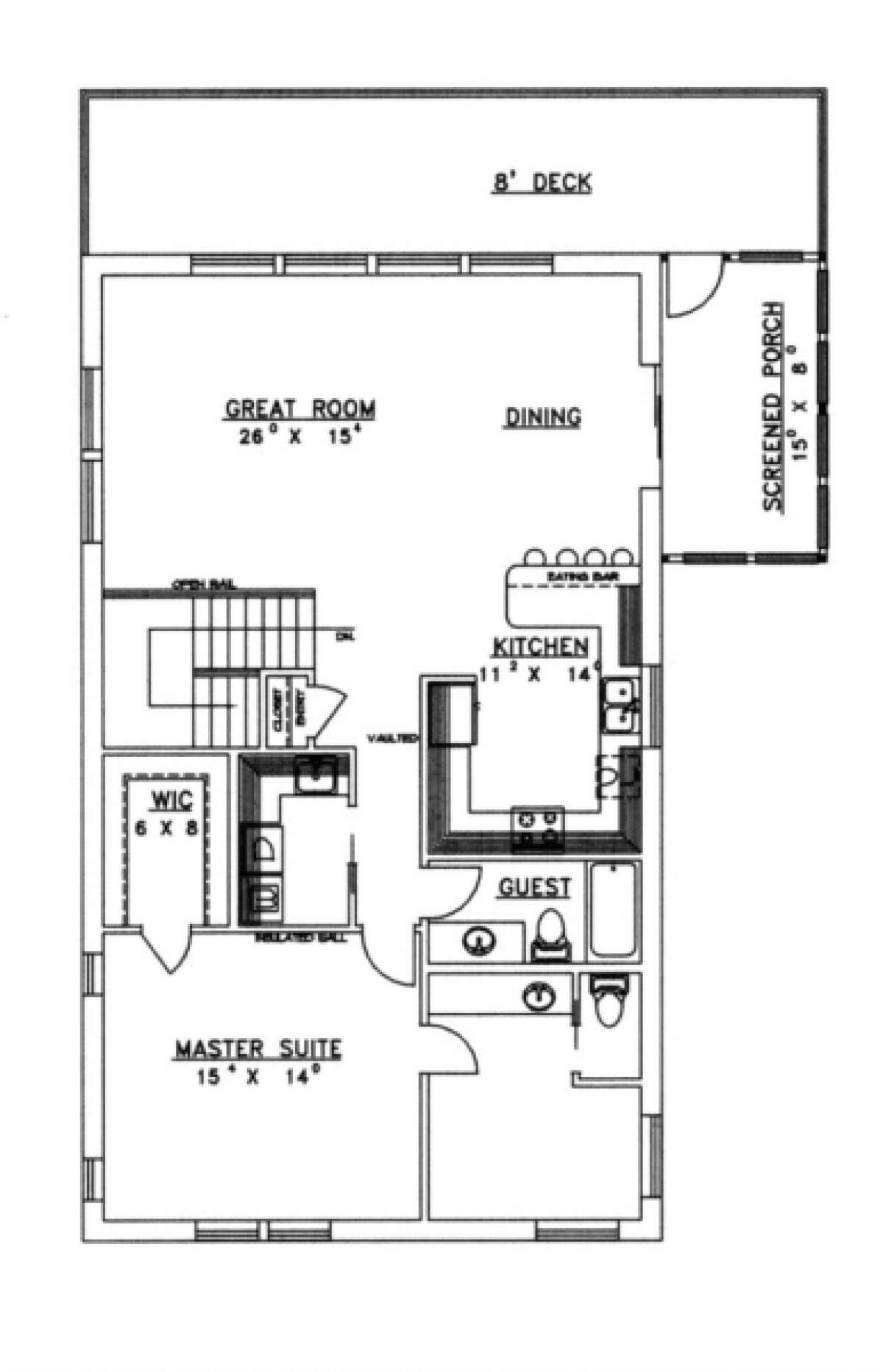

Main Floor
Main Floor for House Plan #039-00123


What's Included in these plans?

  • Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
  • Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
  • Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
  • Upper floor framing plans are included with two story homes or homes with lofts.
  • The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
  • Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
  • Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
  • General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.




Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Vacation house plan features 2,059 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
