Vacation Plan 8504-00061

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,888
Beds 3
Bath 3
1/2 Baths 0
Car 2
Stories 2
Width 67'
Depth 44'

Floorplan Drawings

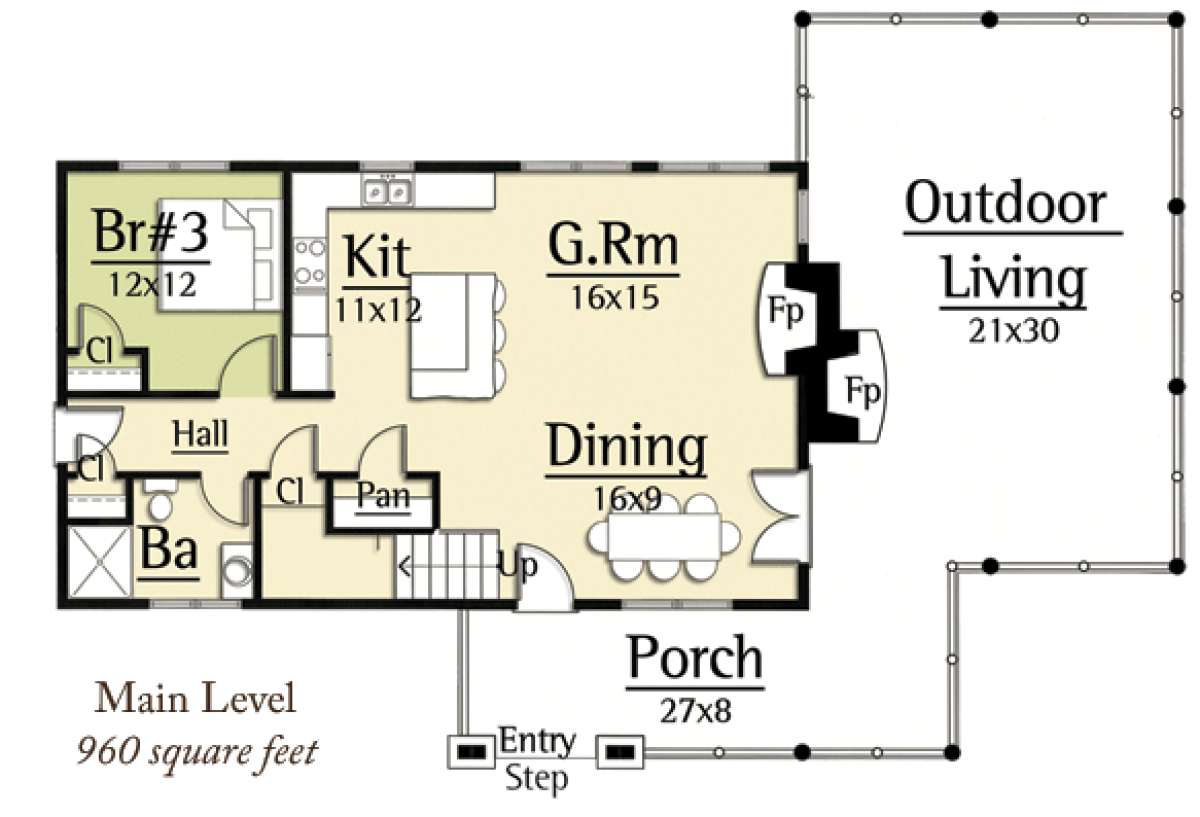

Floorplan 1
Floorplan 1 for House Plan #8504-00061

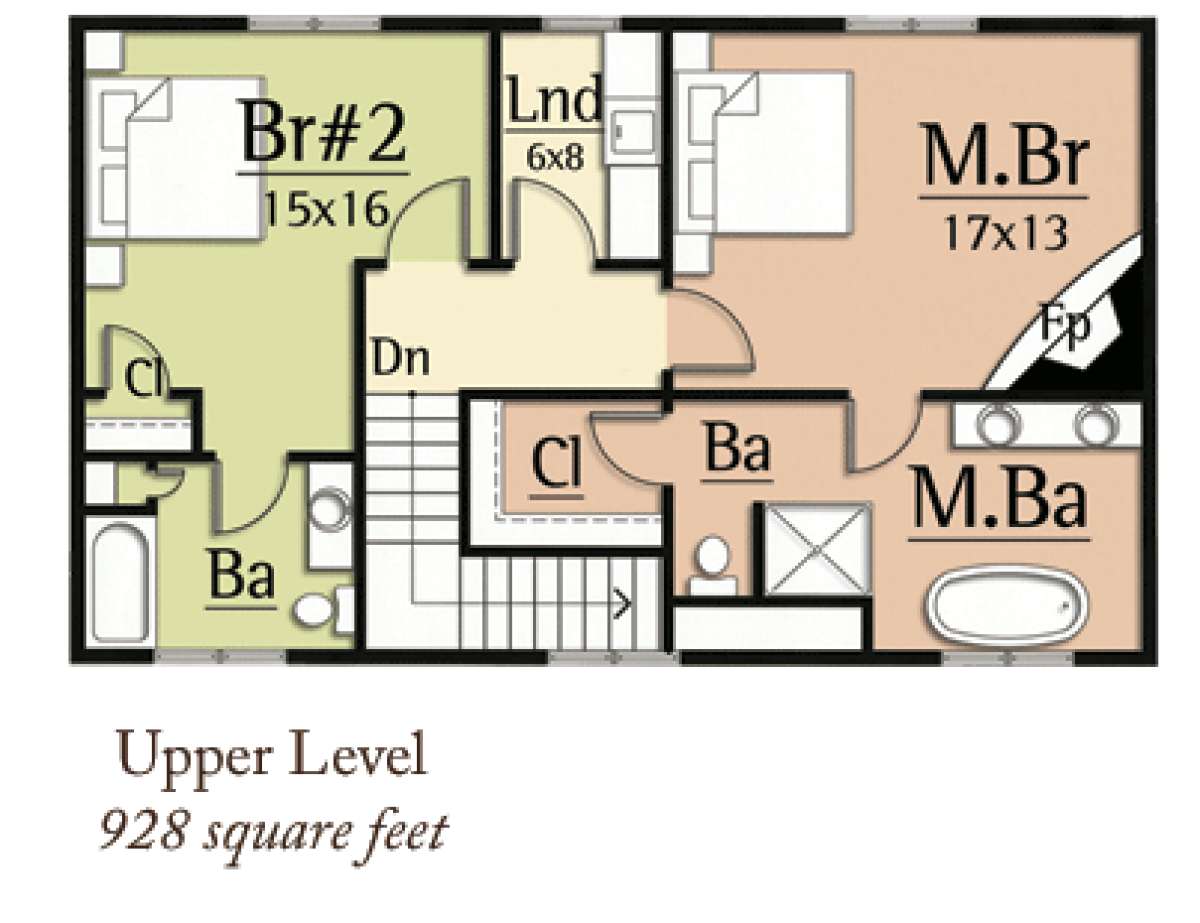

Floorplan 2
Floorplan 2 for House Plan #8504-00061


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

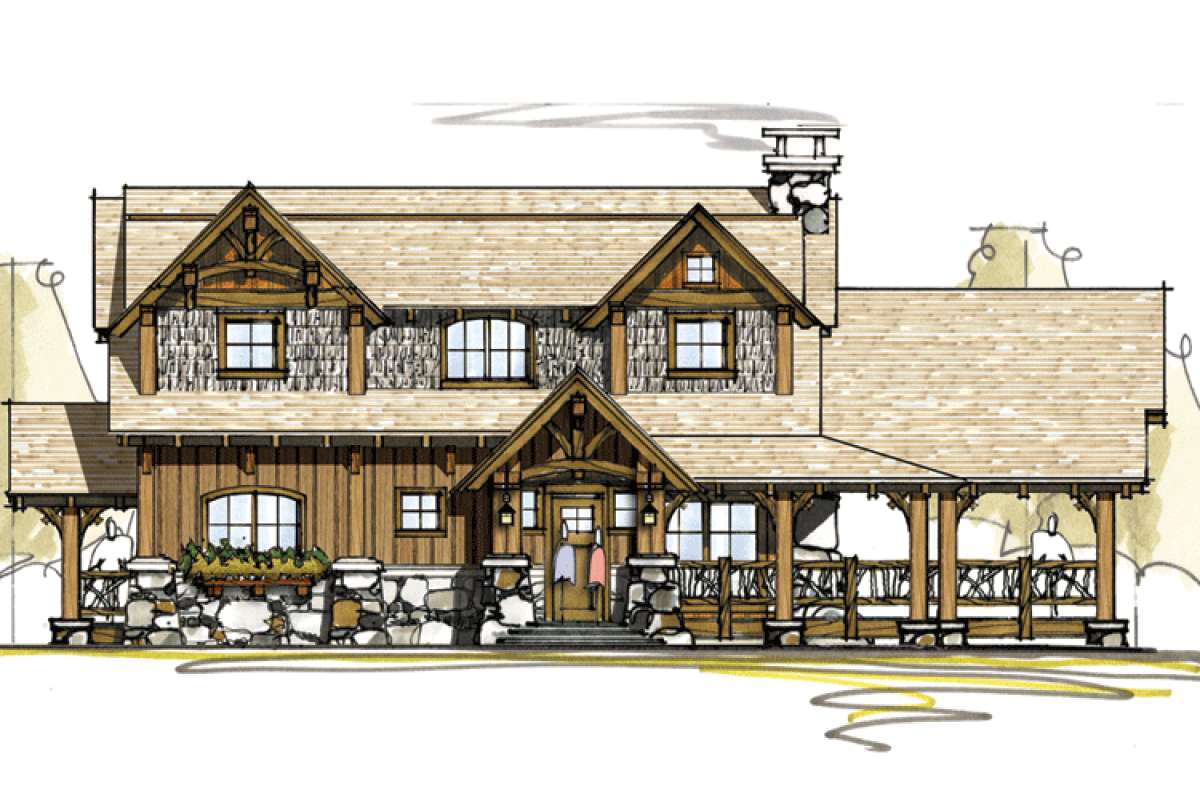

This fabulous Vacation plan features a rustic exterior, great for a mountain or lakefront property lot and plentiful outdoor space to enjoy “Mother Nature.” Nestled into the home’s interior is approximately 1,888 square feet of living space that is highlighted with three bedrooms and three baths. Warm rustic wood, exposed beams, stone work and decorative gables give the home an inviting and welcoming presence. The large front covered porch extends to the side of the home where there is a generous amount of outdoor living space and a warming fireplace for those chilly mornings and nights; imagine the entertaining that would be enjoyed here! The main level of living is an open floor plan, a guest/family bedroom and bath. The open floor plan is revealed once you access the home’s interior where there is a large great room with a second warming fireplace and wonderful window views along the rear wall. The dining room is spacious and features French door access onto the outdoor living area making it ideal for dining alfresco with large groups of family and friends. The grand kitchen offers a center island with additional seating arrangements, a separate pantry and plenty of counter and cabinet space. The third bedroom features good floor space, nice window views and plentiful closet space. Located directly across from the bedroom is a closet and a full bath with vanity space, a toilet area and a shower.

The second floor is accessed from the main staircase below and features a spacious landing with desk/computer space that can be utilized as a small office or homework station for the children. Bedroom two is quite spacious, measuring 15’ x 16’, with good closet space and a private full bath which provides a large vanity, a toilet area, an enclosed linen closet and a tub/shower combination. The master suite is located on the opposite side of the floor and features a generously sized bedroom with a cozy corner fireplace and window views. The master bath offers modern amenities that homeowner’s desire; there are dual vanities, a soaking tub, a separate shower and a toilet area. The master walk-in closet lies directly off the bath and features plenty of space for clothing and other accessories. This Vacation lodge home has an exciting exterior with loads of outdoor entertaining space and an interior floor plan that is open and versatile.
