Vacation House Plan 8504-00078

Sq Ft2,851
Beds3
Baths2
1/2 Baths1
Stories2
Cars2
Width93' 0"
Depth46' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00078
Floorplan 2 for House Plan #8504-00078
Garage for House Plan #8504-00078

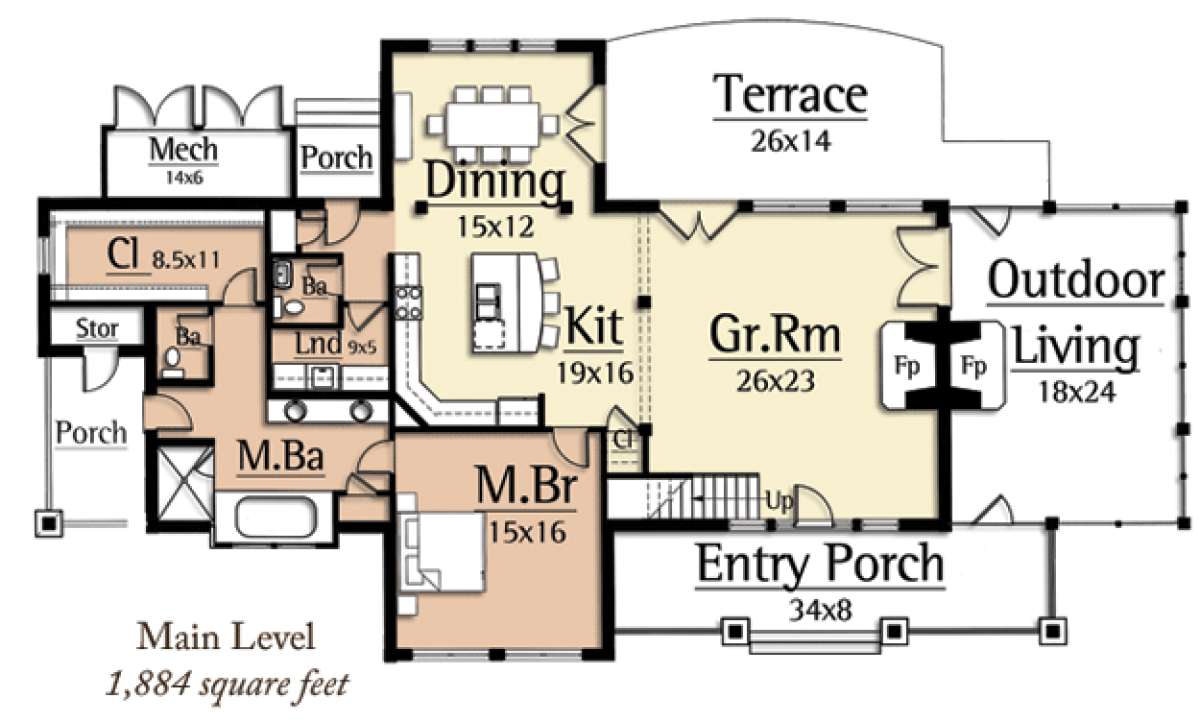

Floorplan 1
Floorplan 1 for House Plan #8504-00078

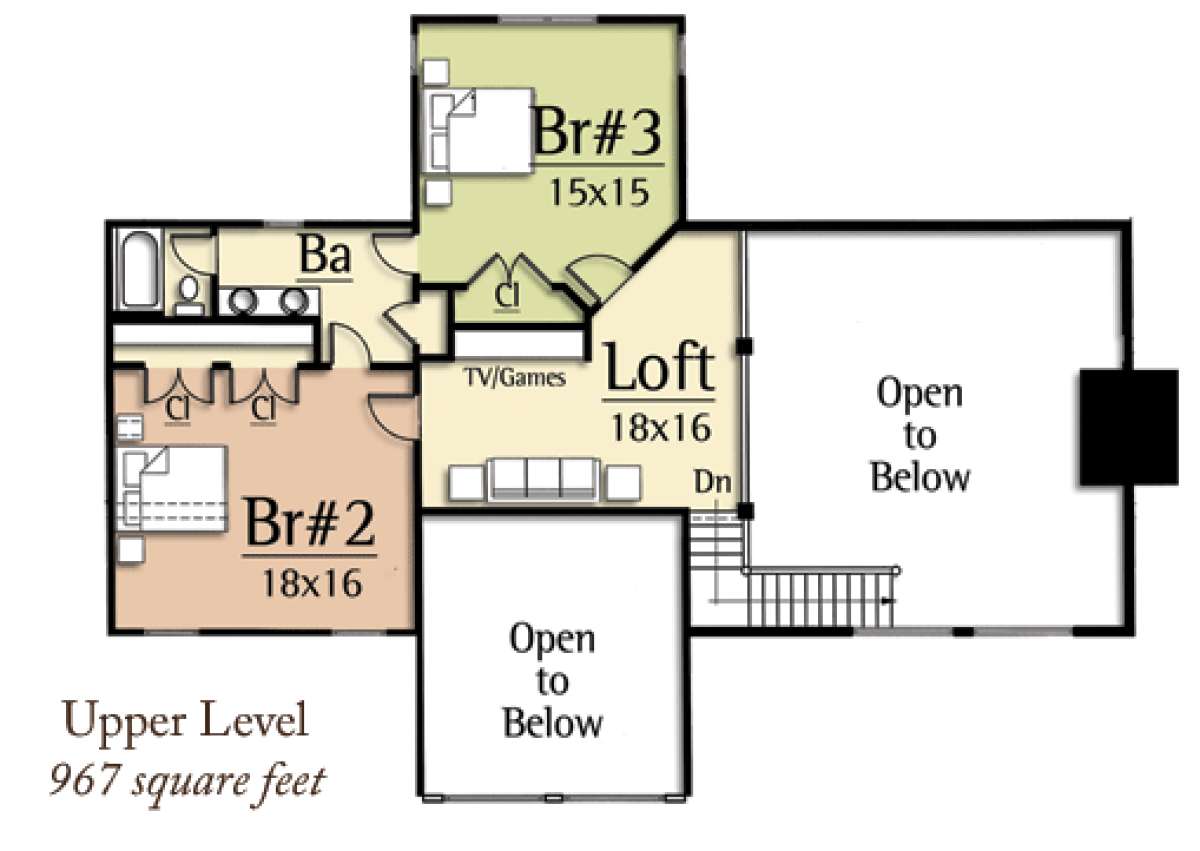

Floorplan 2
Floorplan 2 for House Plan #8504-00078
Garage
Garage for House Plan #8504-00078


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

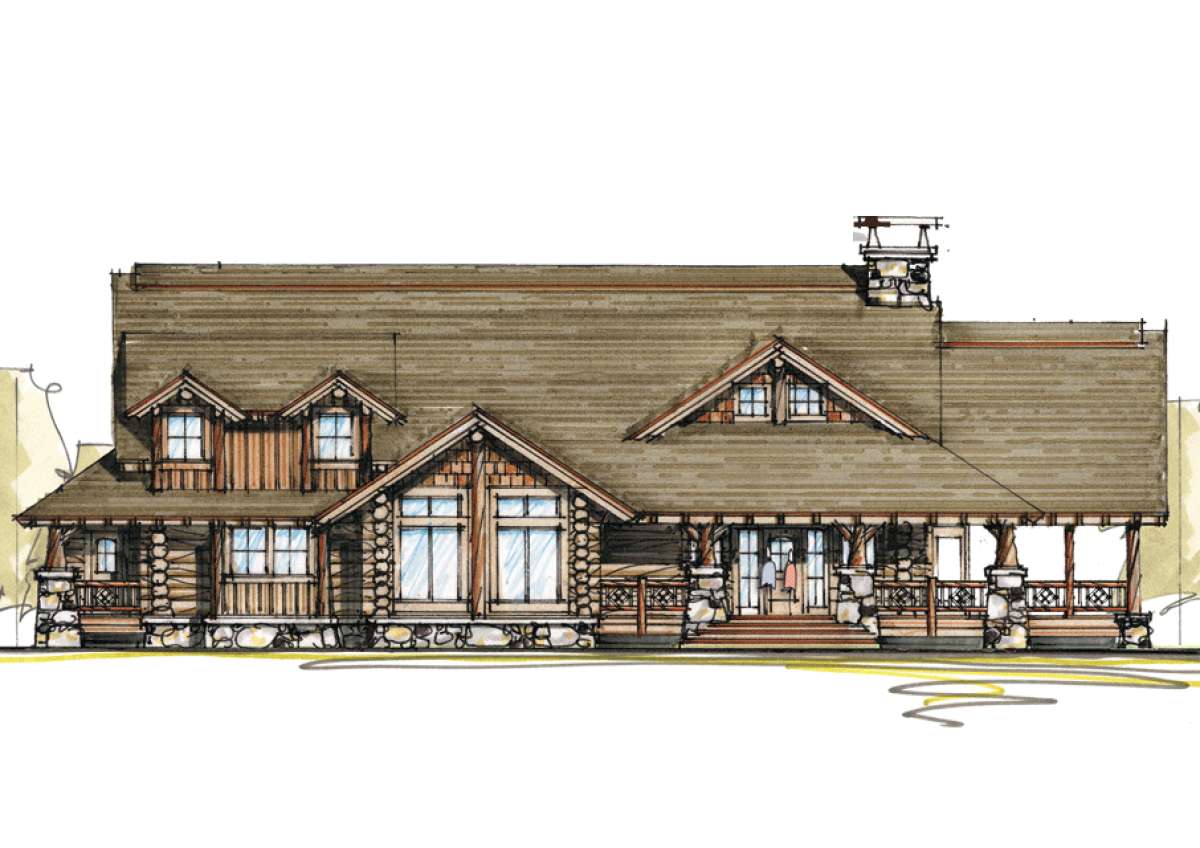

Lodge living at its finest is displayed in this sprawling rustic house plan. The 93’ width home features a covered front porch, a side porch and an enormous outdoor living room with warming fireplace. The rustic exterior also features beautiful stone pillars, wood beams along with cedar shakes and overhead window dormers. The interior floor plan features an open concept layout, three bedrooms and two plus baths in the two storied home with approximately 2,851 square feet. The entry porch measures 34’x8’ and spills directly into the home’s great room which is massive, includes a cozy fireplace and boasts of double French door exit/entry points onto the rear terrace and side outdoor living space. The grand kitchen features a breakfast bar with casual dining space, plenty of work/prep space and wraparound counter and cabinet space. The dining room is highlighted with a triple window wall and access to the rear terrace. There is a small porch at the rear of the home that directly leads to the laundry room for ease of clean-up and a tidy home. The master suite is luxuriously appointed and features a large master bedroom, a generously proportioned walk-in closet and an elegant master bath with double vanities, a separate shower, a large soaking tub and access to the private porch. An overhead breezeway connects the home to the two car detached garage where there is plenty of vehicle and other storage room.

Overlooks onto the first floor populate the second story landing along with a large loft area. There are two family bedrooms on this floor as well as a large bathroom; both bedrooms are oversized and include plentiful closet space and window views. The shared jack and jill bath features double sinks and a private toilet and tub/shower area. This rustic charmer is ideal for a vacation or “forever” home with its excellent outdoor space and functional floor plan.
