Craftsman House Plan 8504-00079

Sq Ft2,973
1/2 Baths1
Width94' 0"
Depth42' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

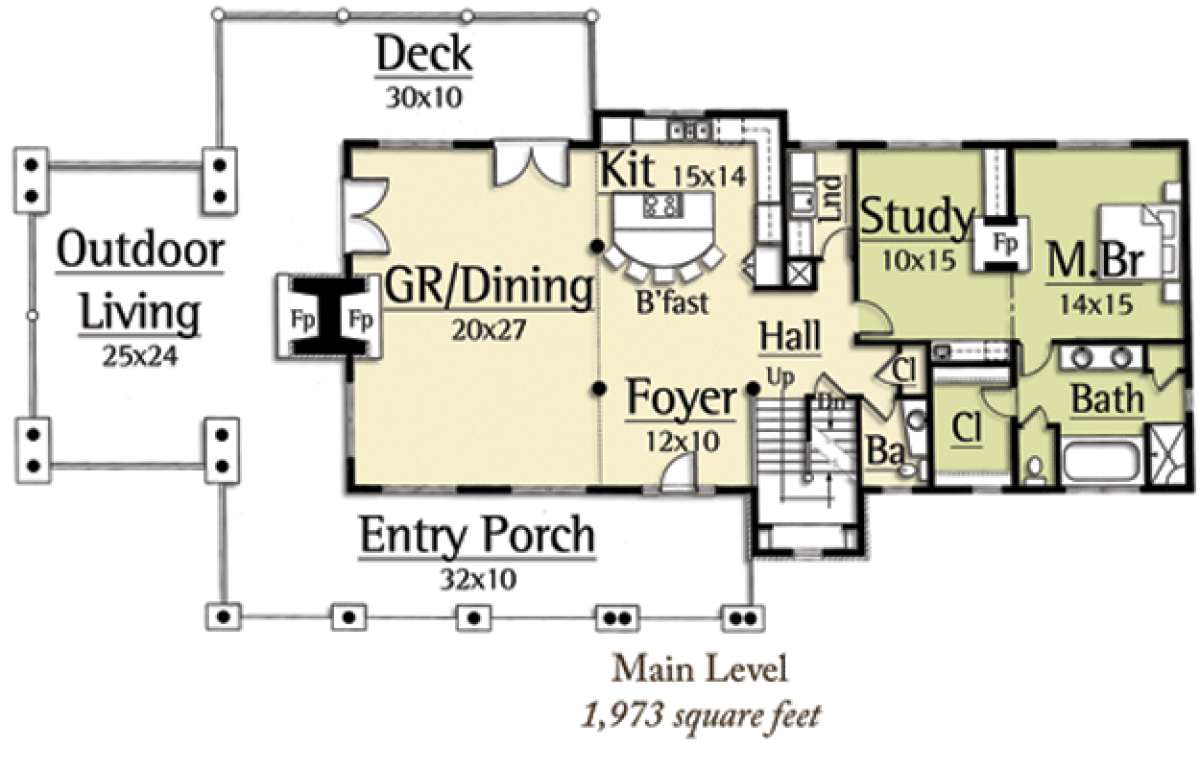

Floorplan 1 for House Plan #8504-00079
Floorplan 2 for House Plan #8504-00079
Garage for House Plan #8504-00079
Floorplan 1
Floorplan 1 for House Plan #8504-00079

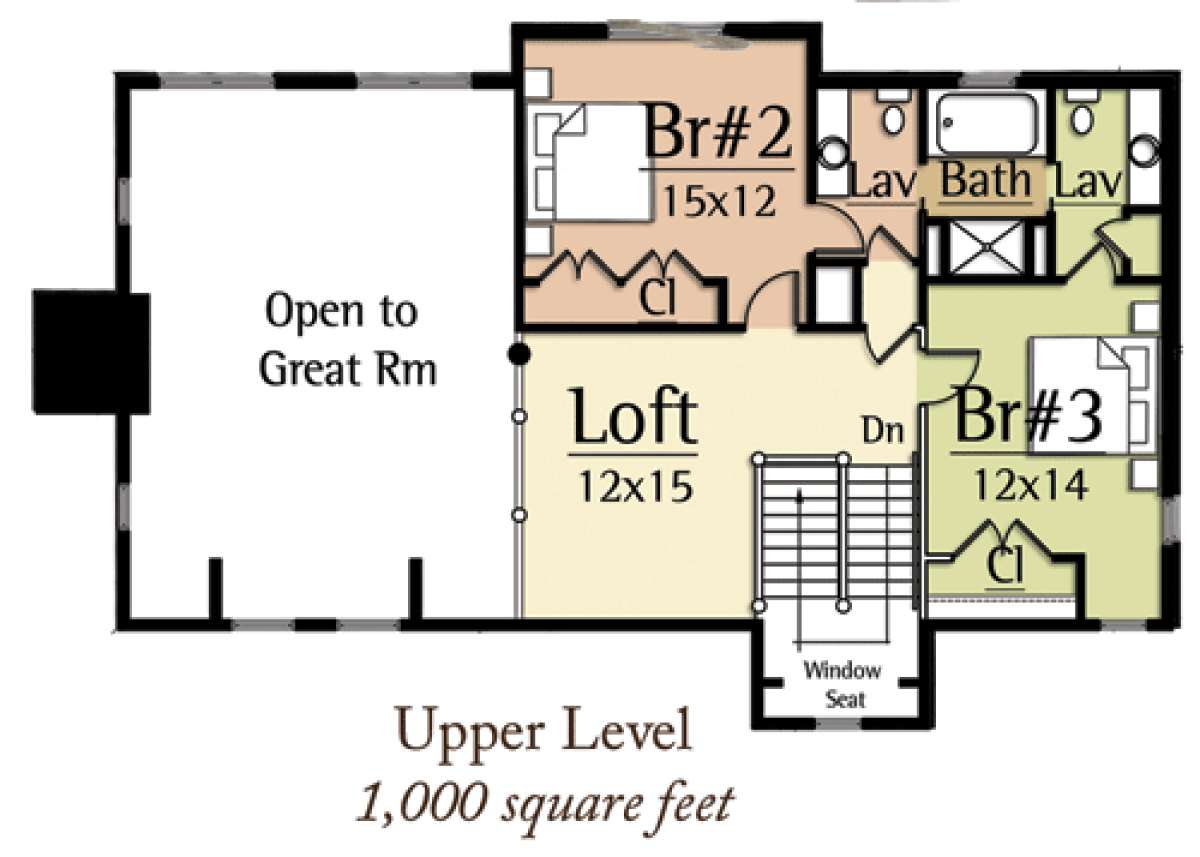

Floorplan 2
Floorplan 2 for House Plan #8504-00079
Garage for House Plan #8504-00079

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

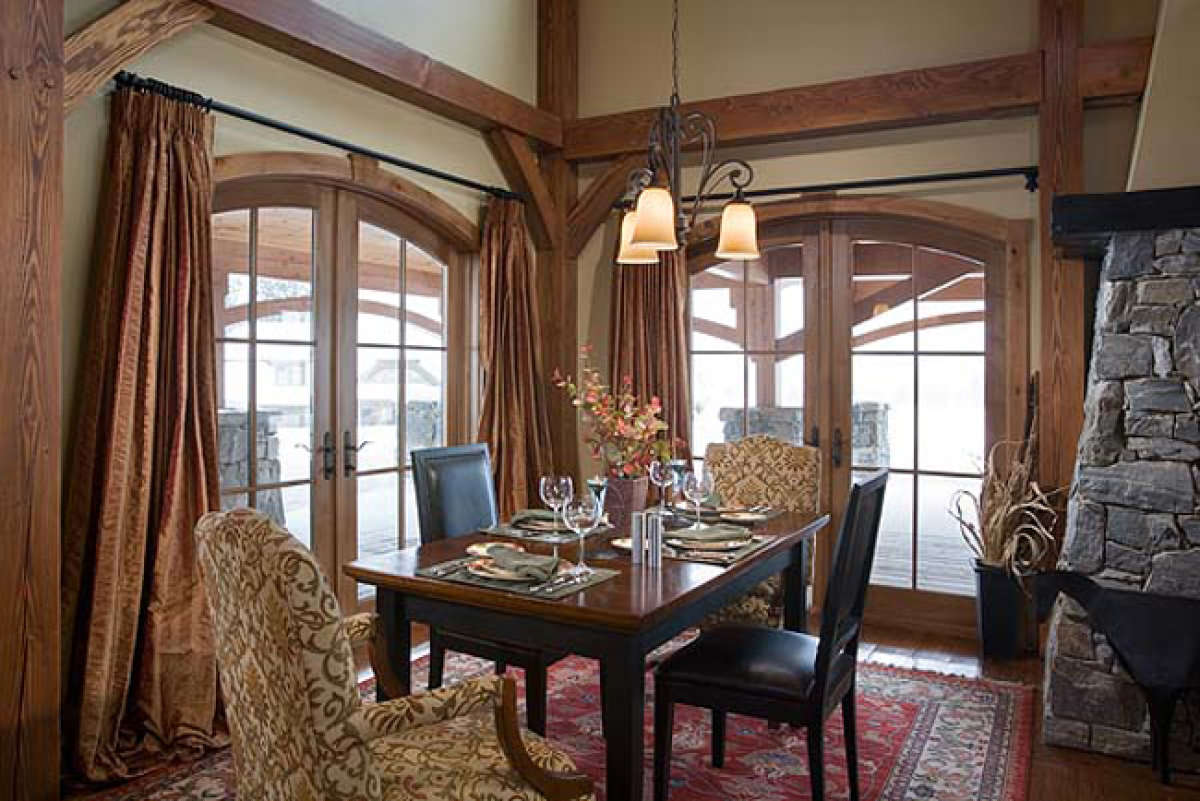

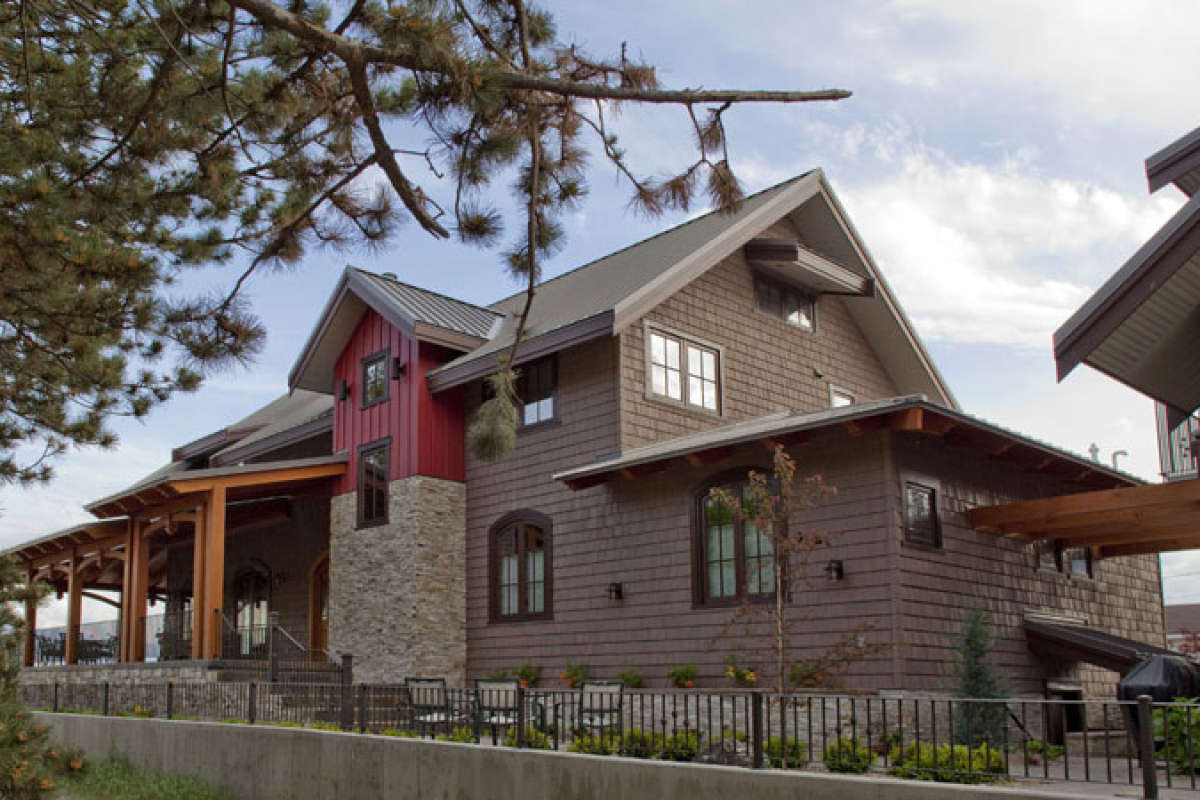

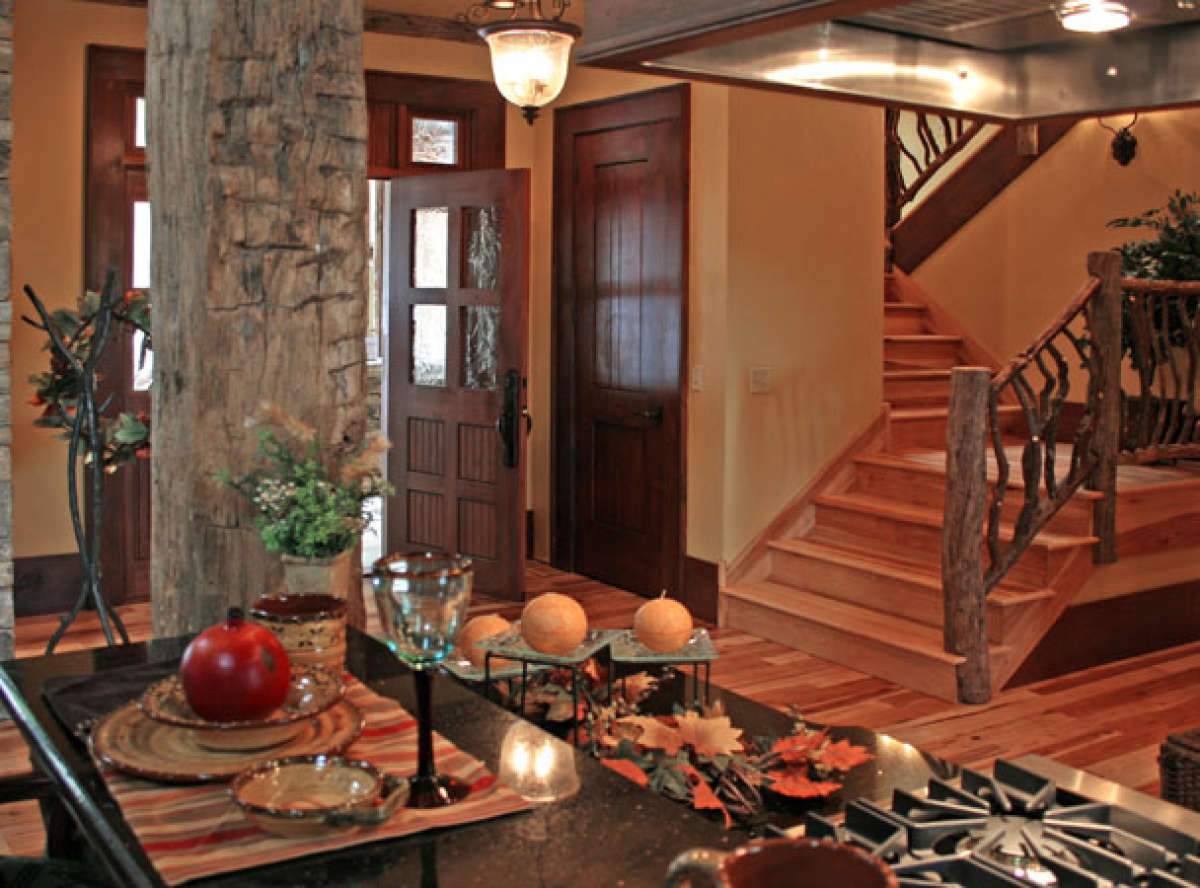

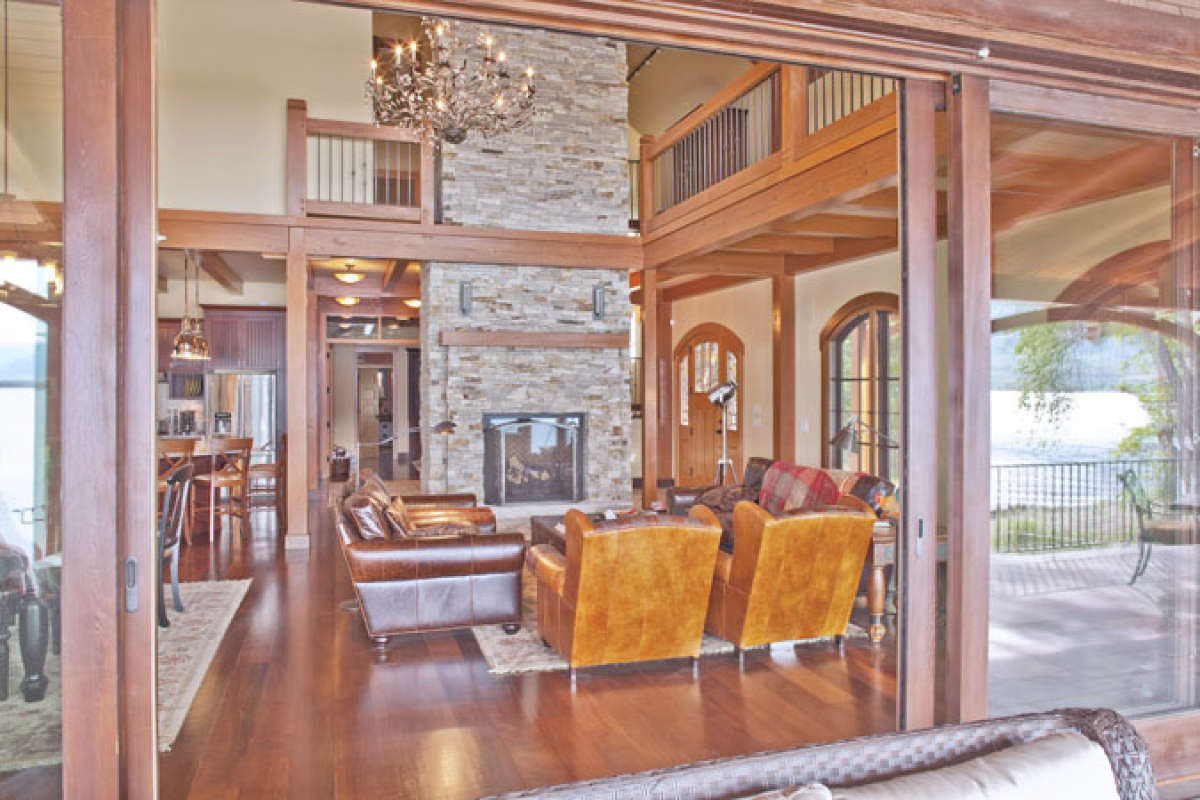

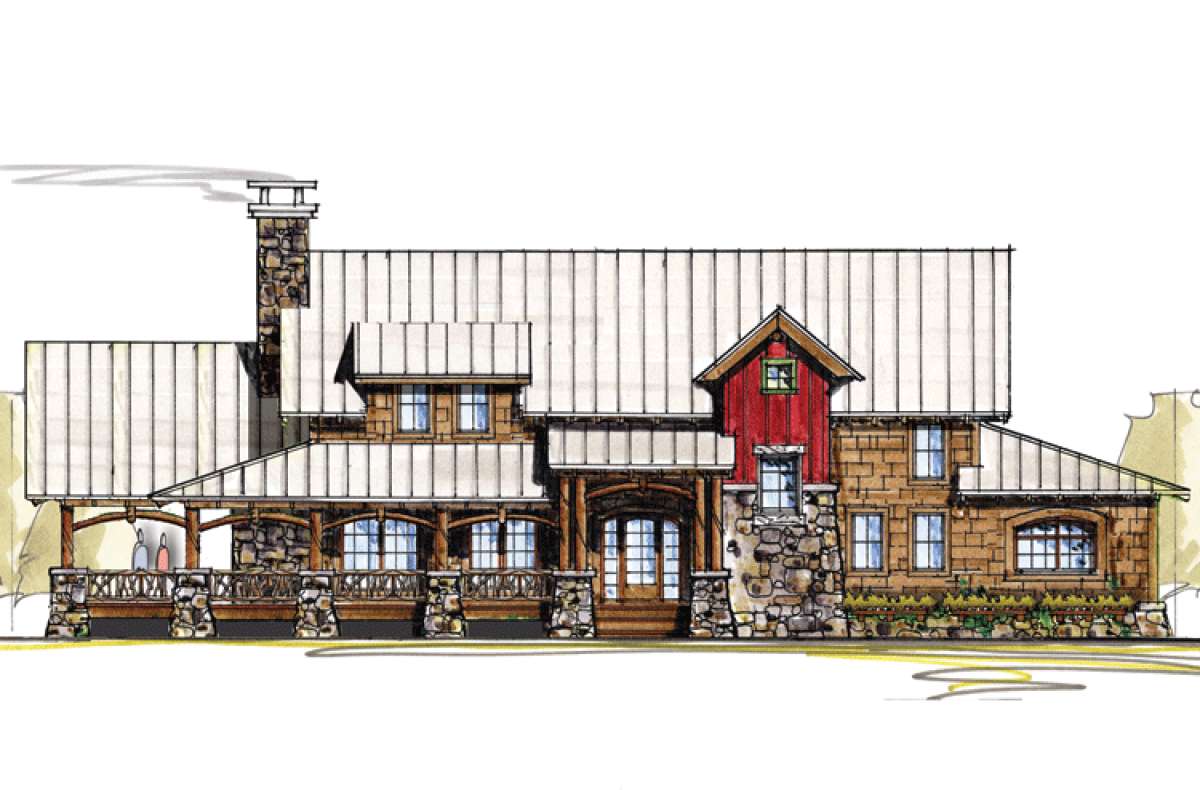

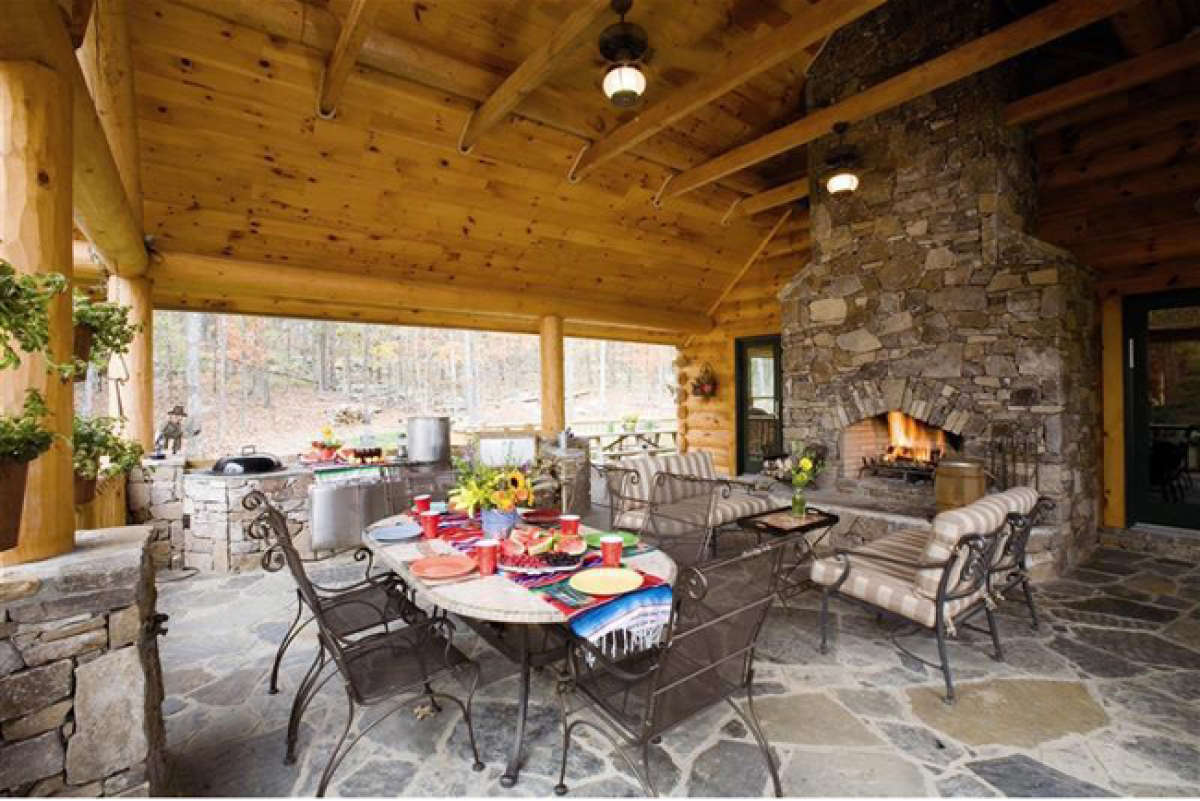

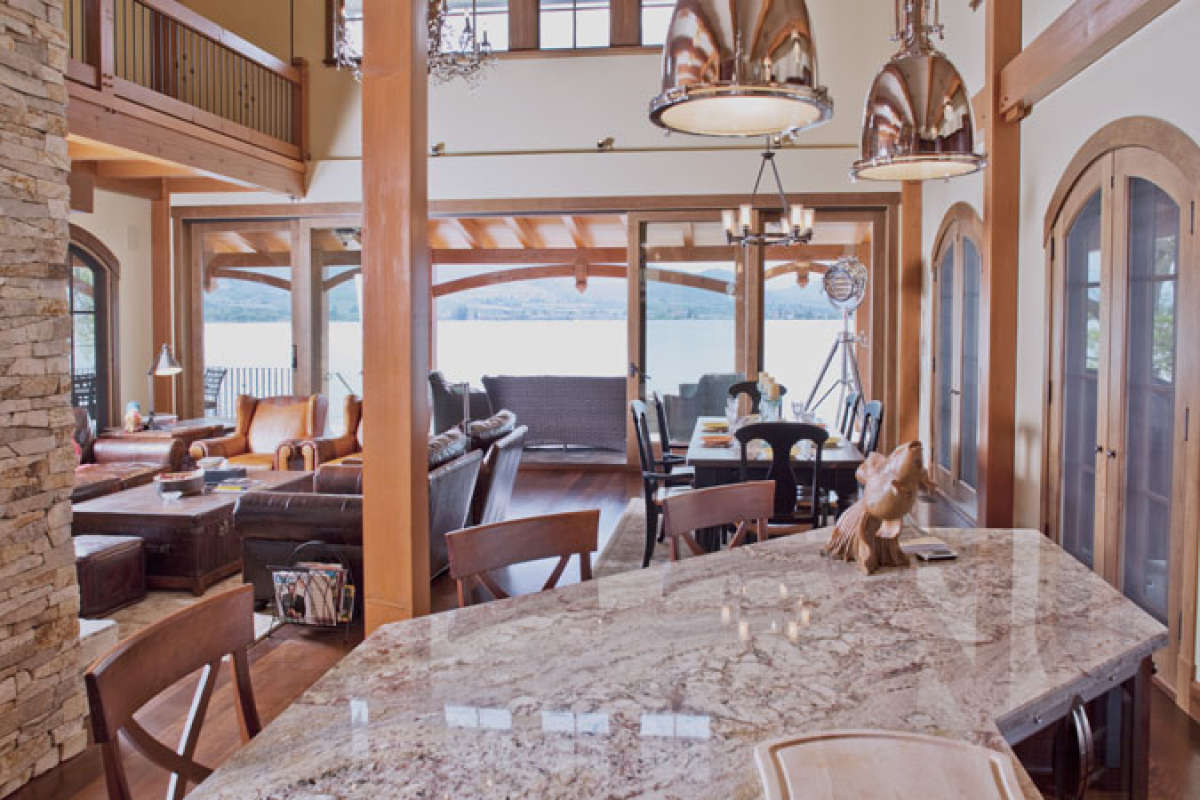

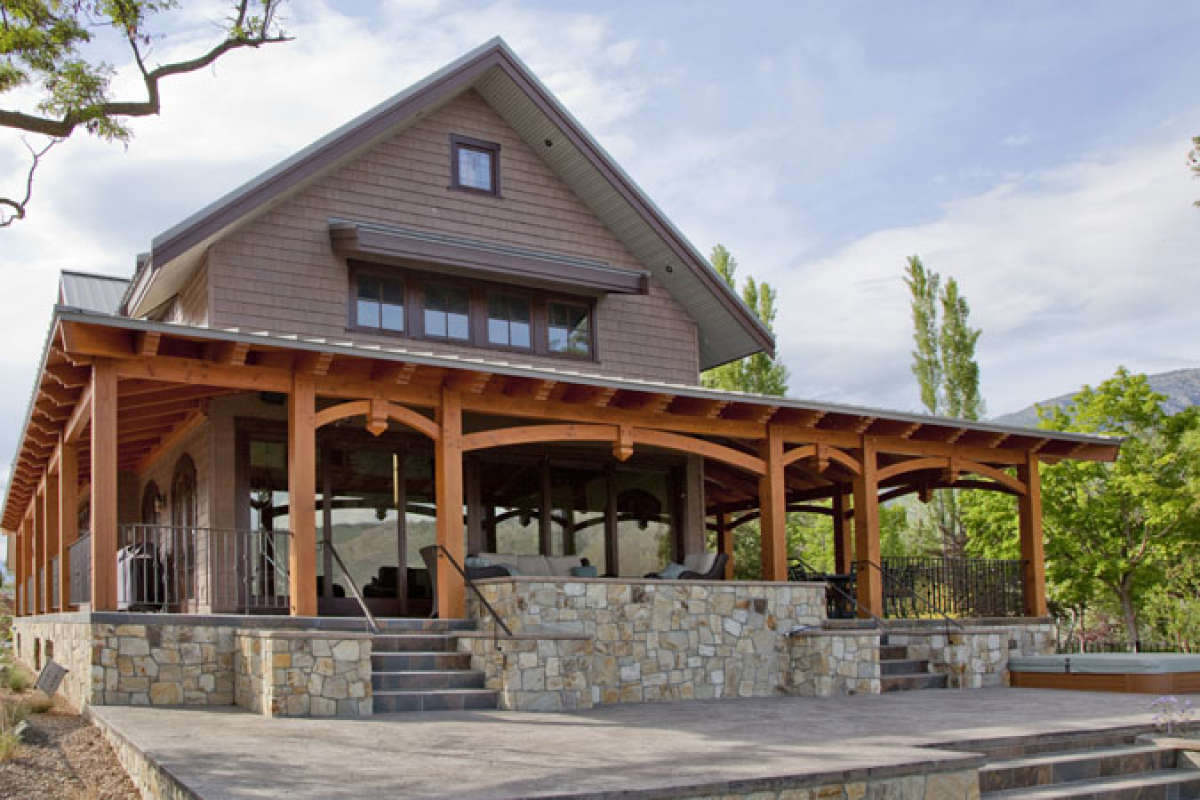

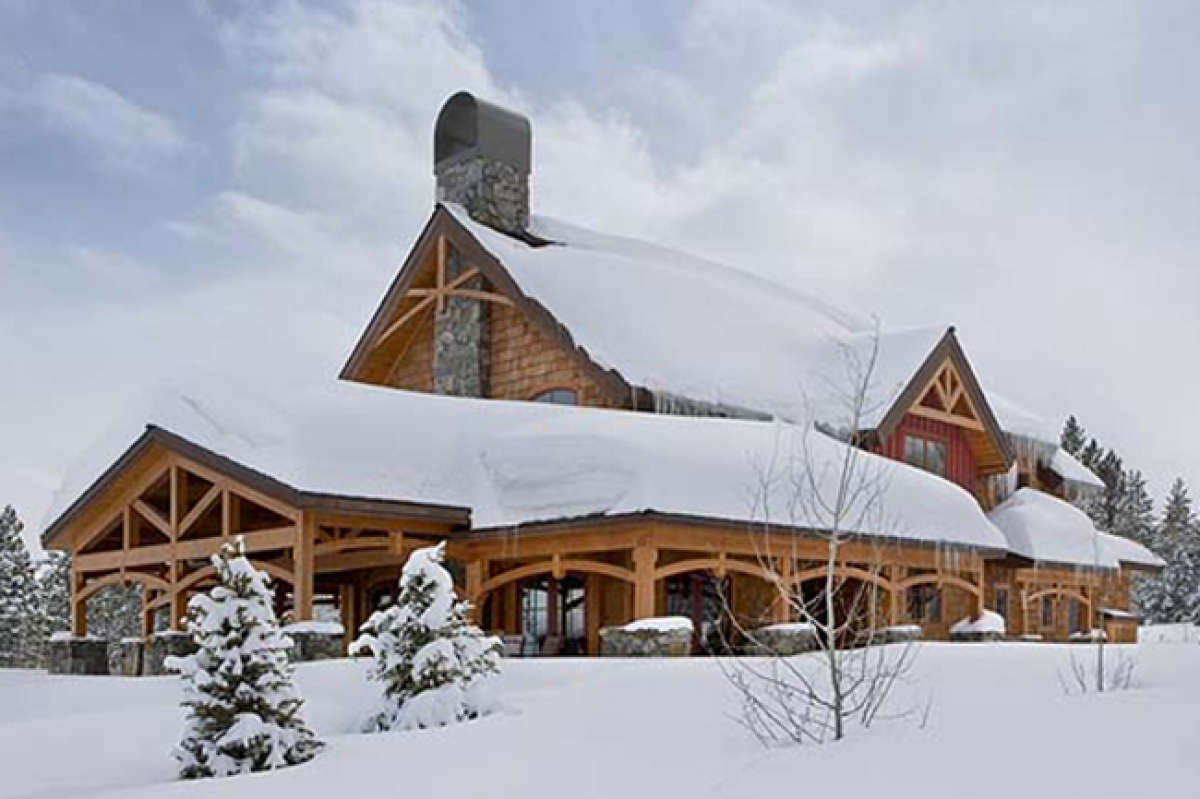

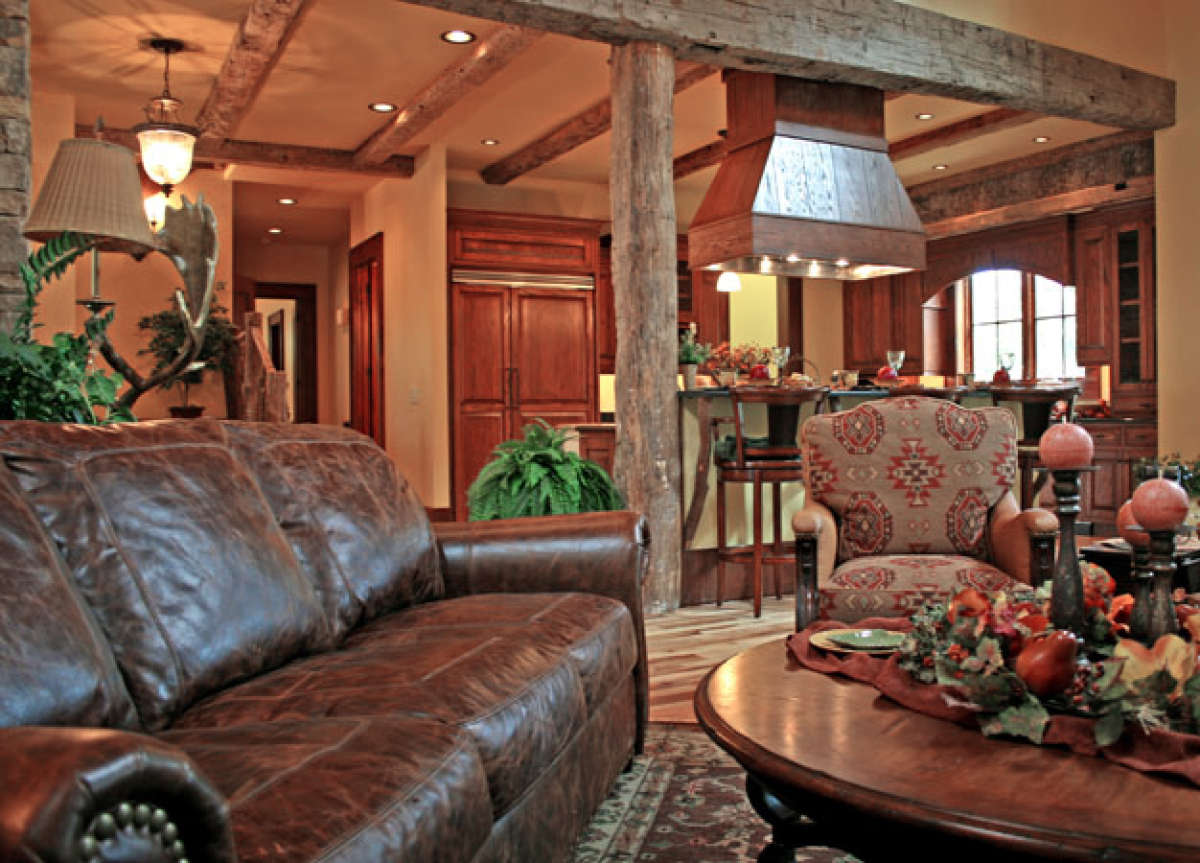

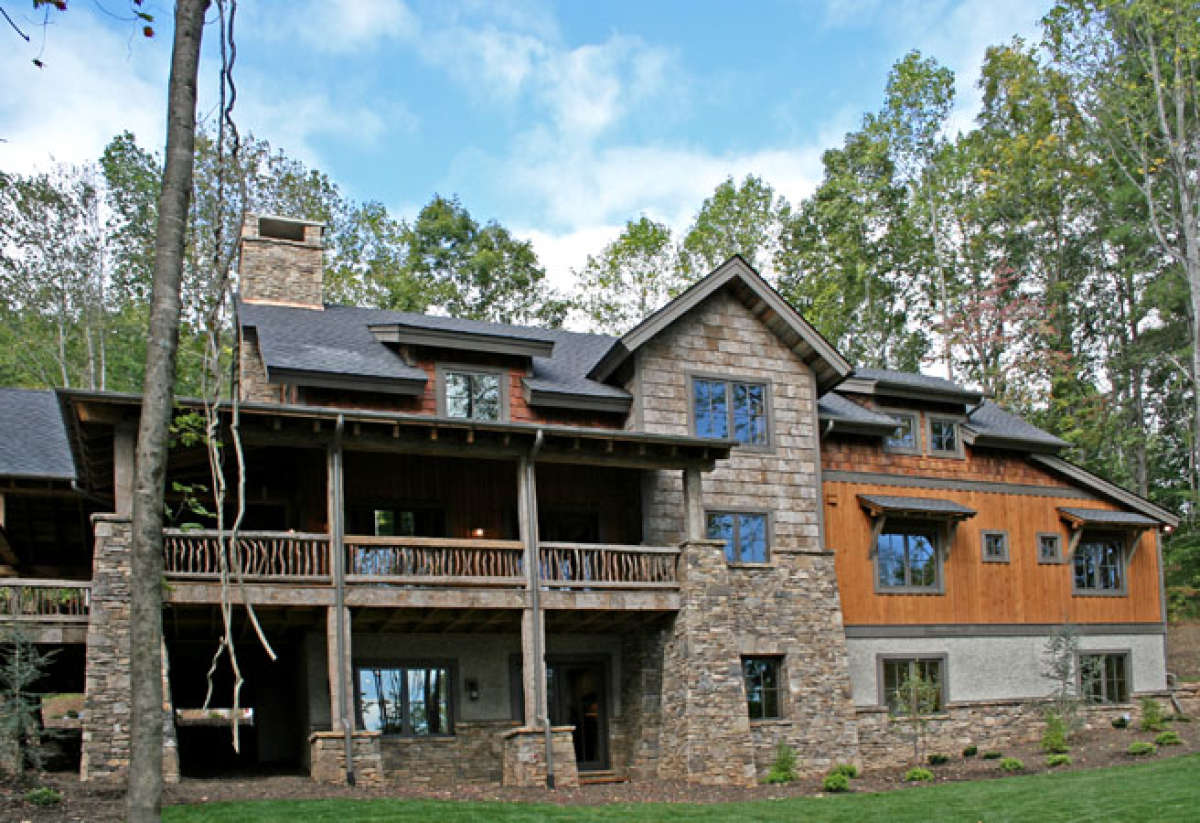

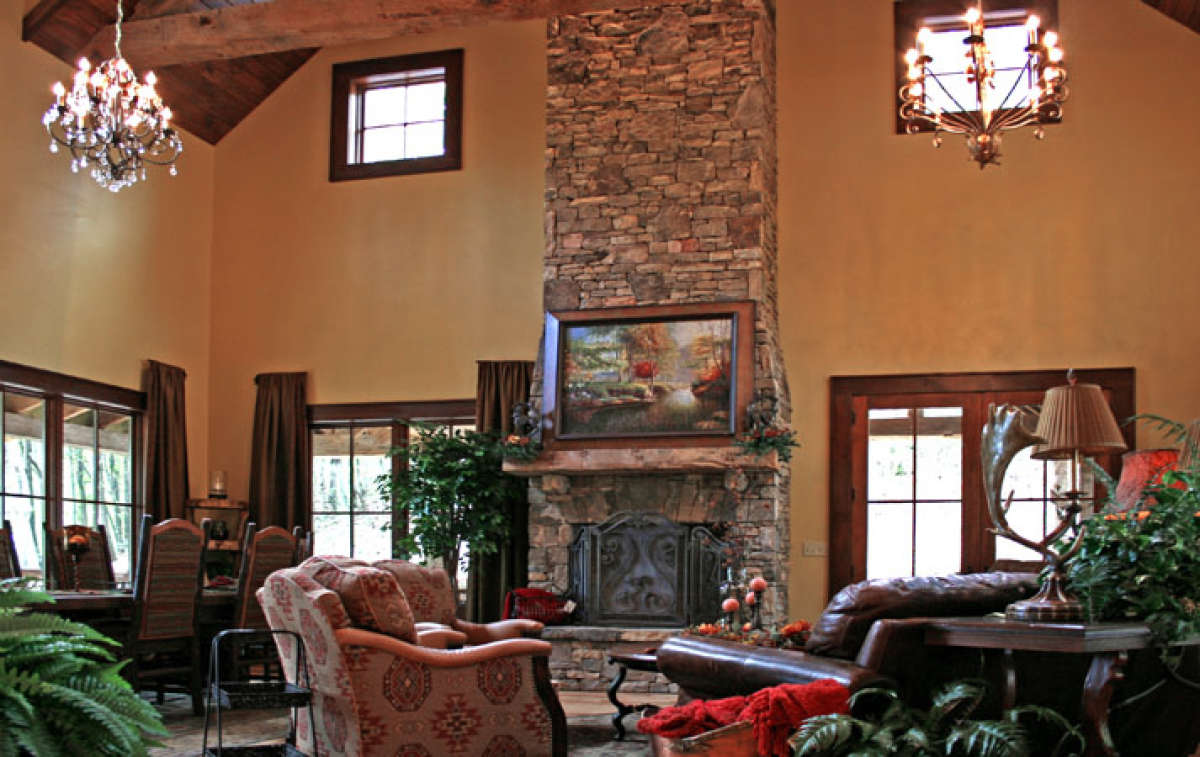

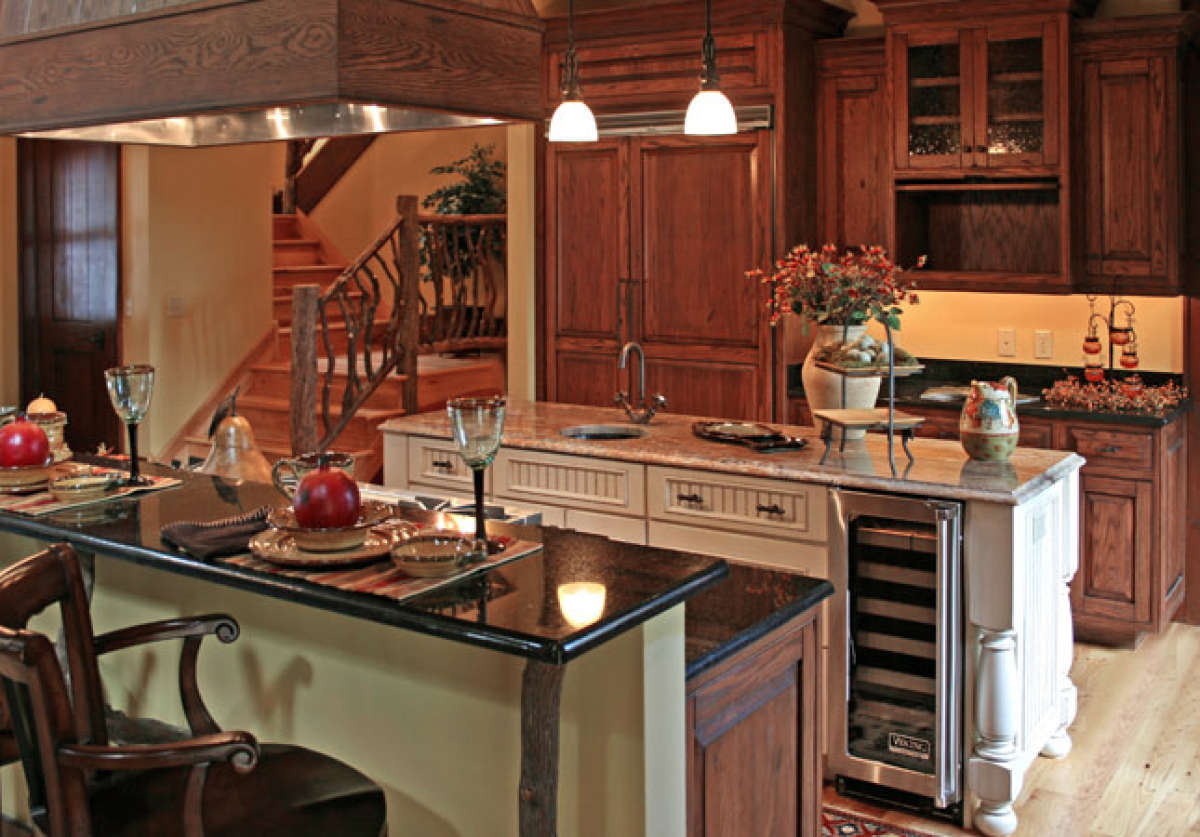

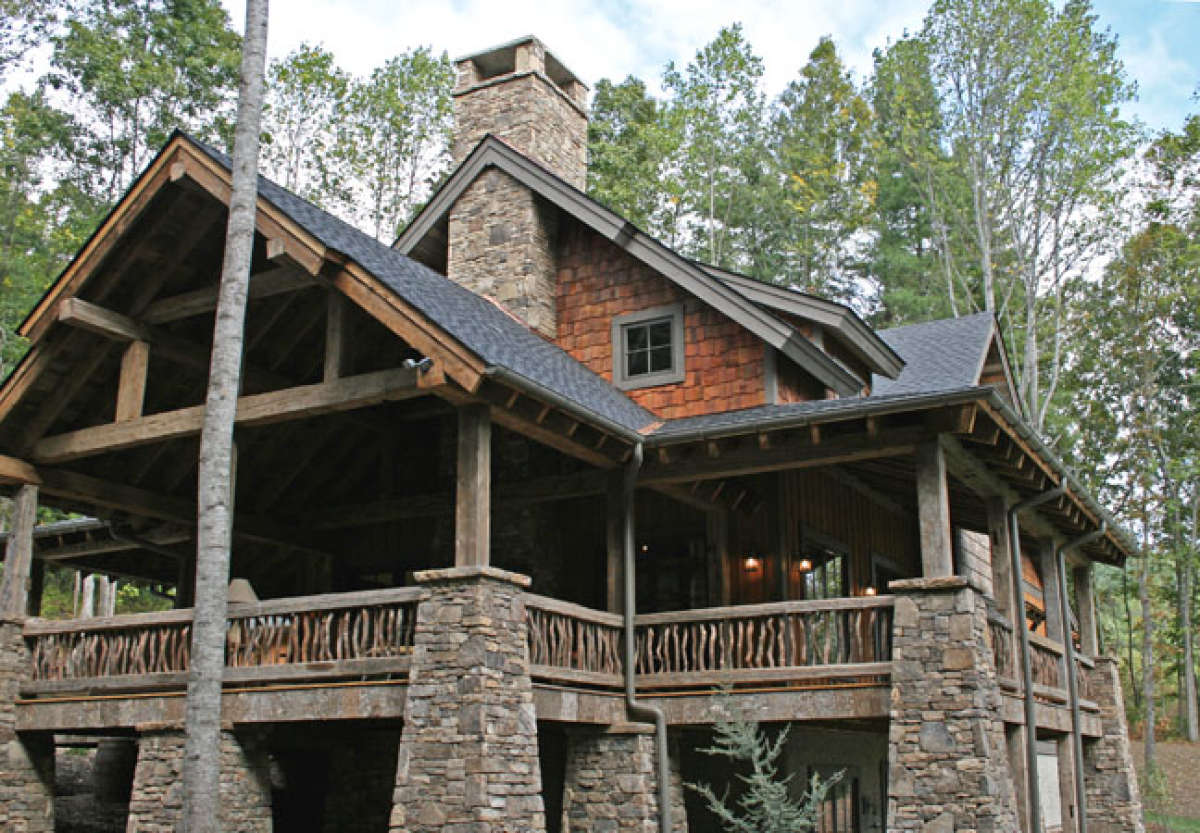

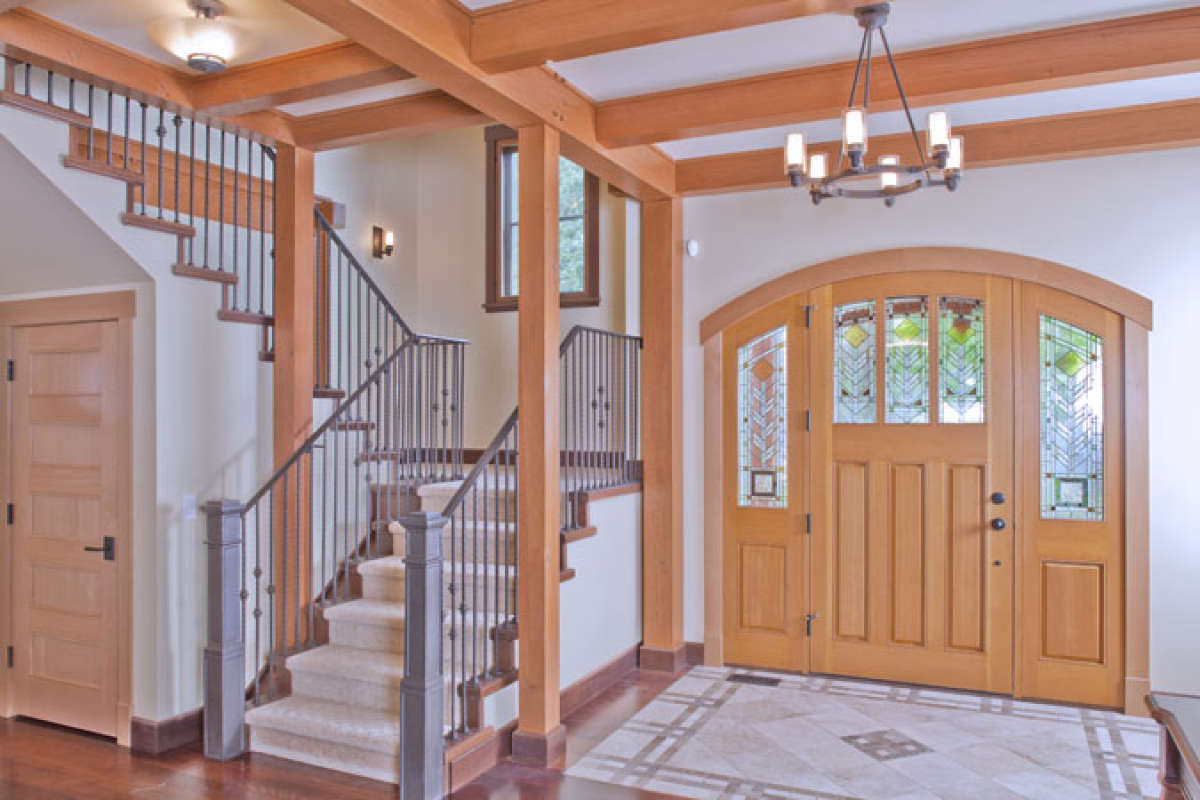

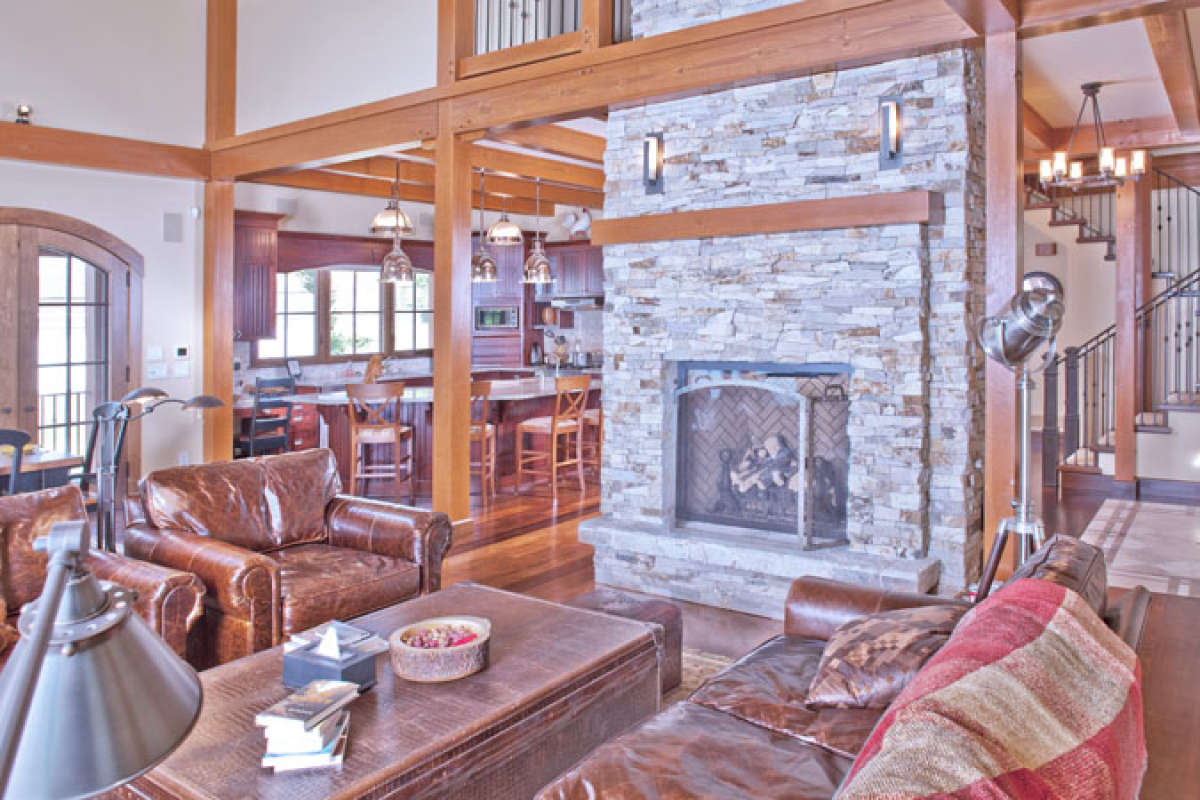

This Craftsman home features desirable and extensive outdoor space, an interior floor plan that offers a copious amount of entertaining and private family space and a Lodge inspired exterior façade. The exterior is highlighted with cedar shakes, tapered stack stone pillars and an extensive amount of warm wood including geometric railing and overhead arches outlining the covered porch. Nearly 3,000 square feet of interior space boasts of an open layout, three bedrooms and three plus bathrooms. There are an additional 624 square feet in the detached two car garage; perfect for utility vehicles and other storage gear. The entry porch wraps around the front exterior and subsequently offers an outdoor living space with fireplace and rear deck; the enormity and amenities of the space allows for gracious entertaining in all season weather. The front foyer is spacious and opens onto the main living rooms which include a grand kitchen with semi-circular breakfast bar and generous seating arrangements; there is a separate pantry, as well, and the rear and side walls house modern conveniences. The great room and dining space measure 20’x27’, feature a handsome fireplace and double sets of French doors leading to the side outdoor living area and rear deck. There is a main level master suite which includes a spacious bedroom, an enormous master walk-in closet and an en suite bath. The master bath boasts of dual vanities, a linen closet, separate shower, a large soaking tub and a compartmentalized toilet. There is an adjoining study to the bedroom which shares the double sided fireplace; this space could be utilized as a private sitting room or reading library. The main level also features a spacious laundry room and guest powder room before accessing the up/down staircase.

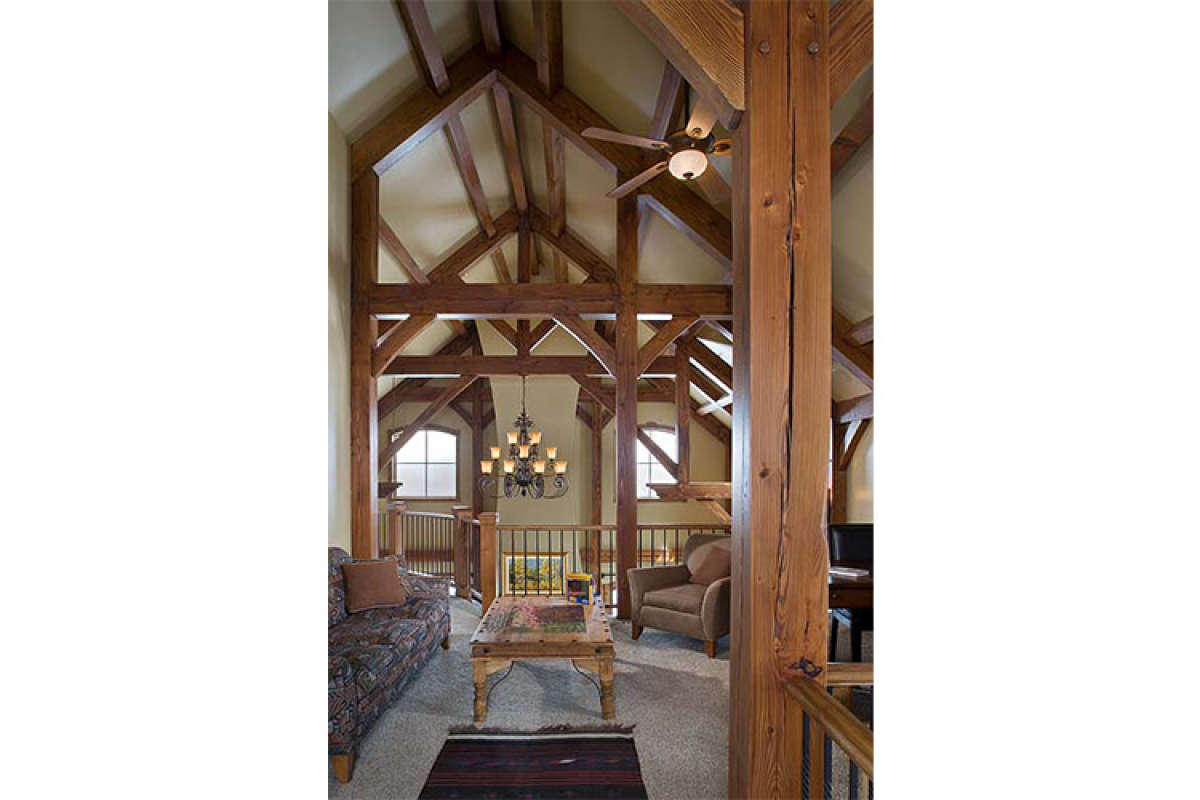

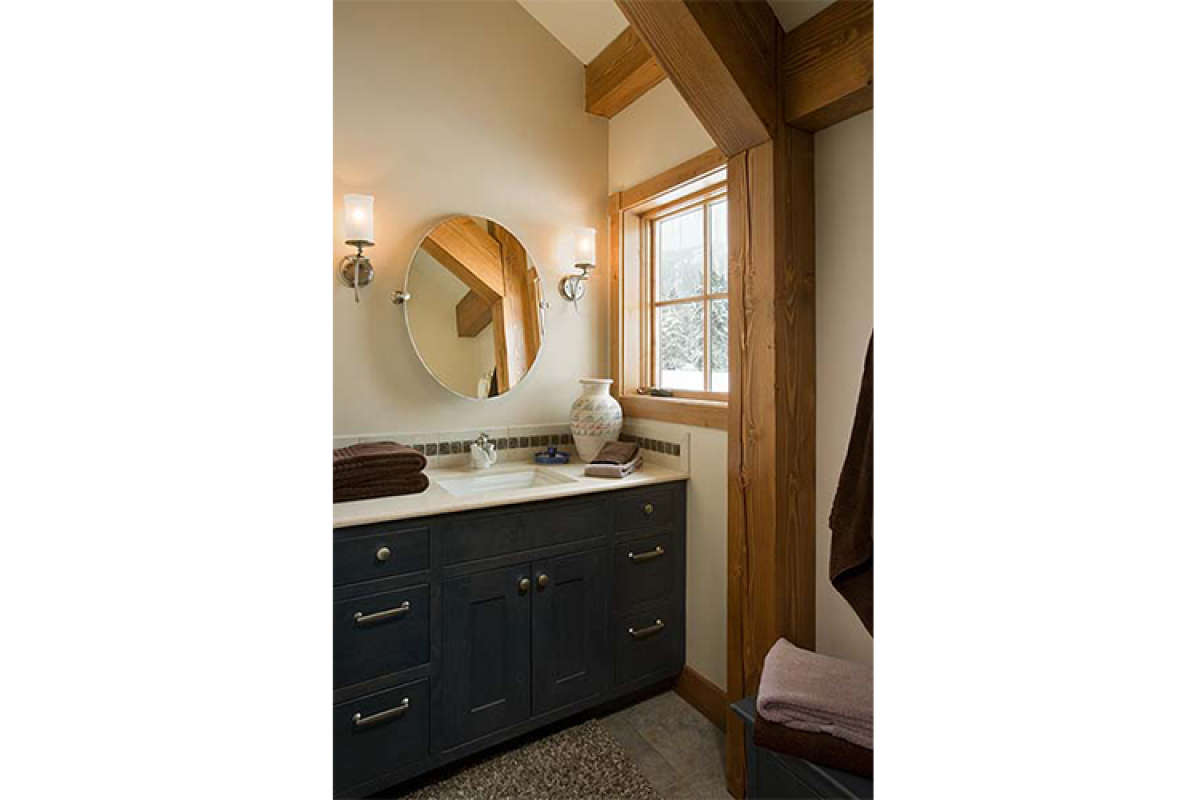

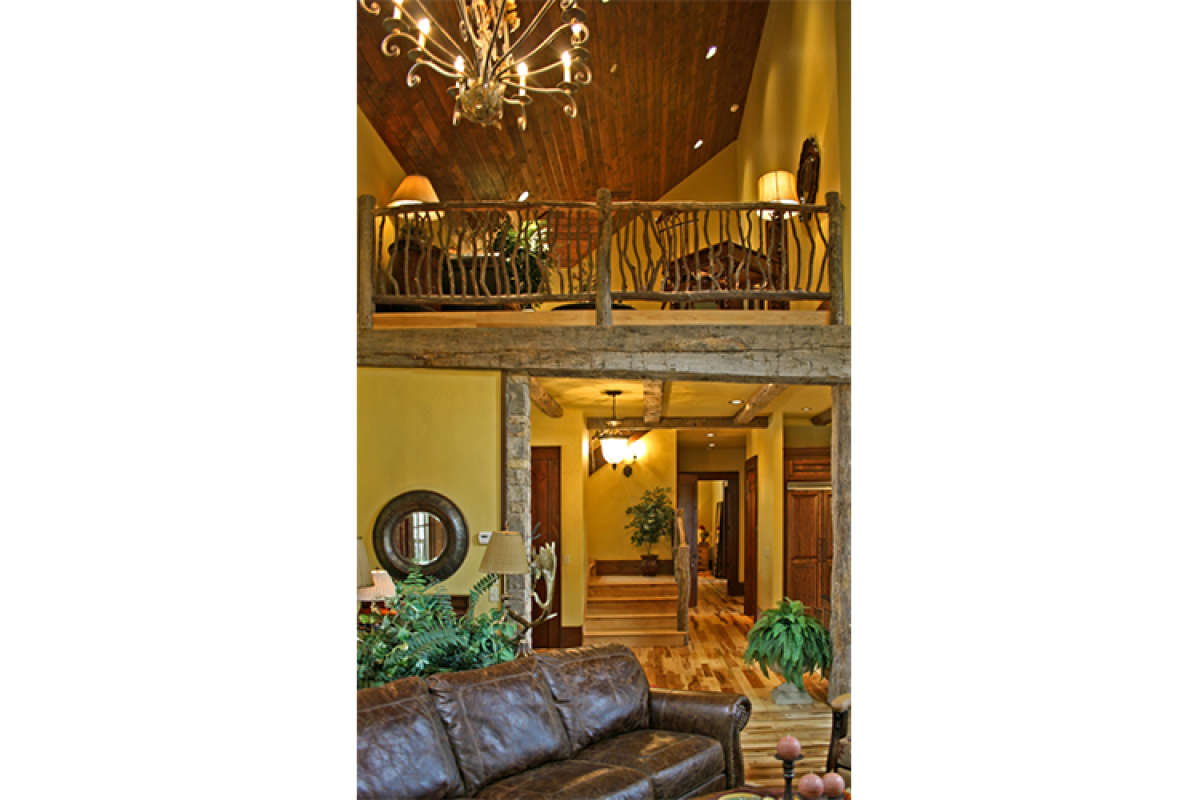

Ascending the second level of the home is a picturesque window seat and upon stepping onto the landing is a large loft space. This space could function as a playroom for small children or as a teen-age lounge for older children. There are also two family styled bedrooms on this floor; each is overly spacious with generous closet space and great window views. The shared hall bath is a jack and jill style with separate vanities and toilet areas and a tub and separate shower. This Lodge inspired home features a bold exterior highlighted with a plethora of outdoor space and an interior layout that is fully functional, versatile and comfortable for a large family.
