Modern House Plan 9401-00009

Sq Ft2,562
1/2 Baths1
Width51' 1"
Depth81' 1"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

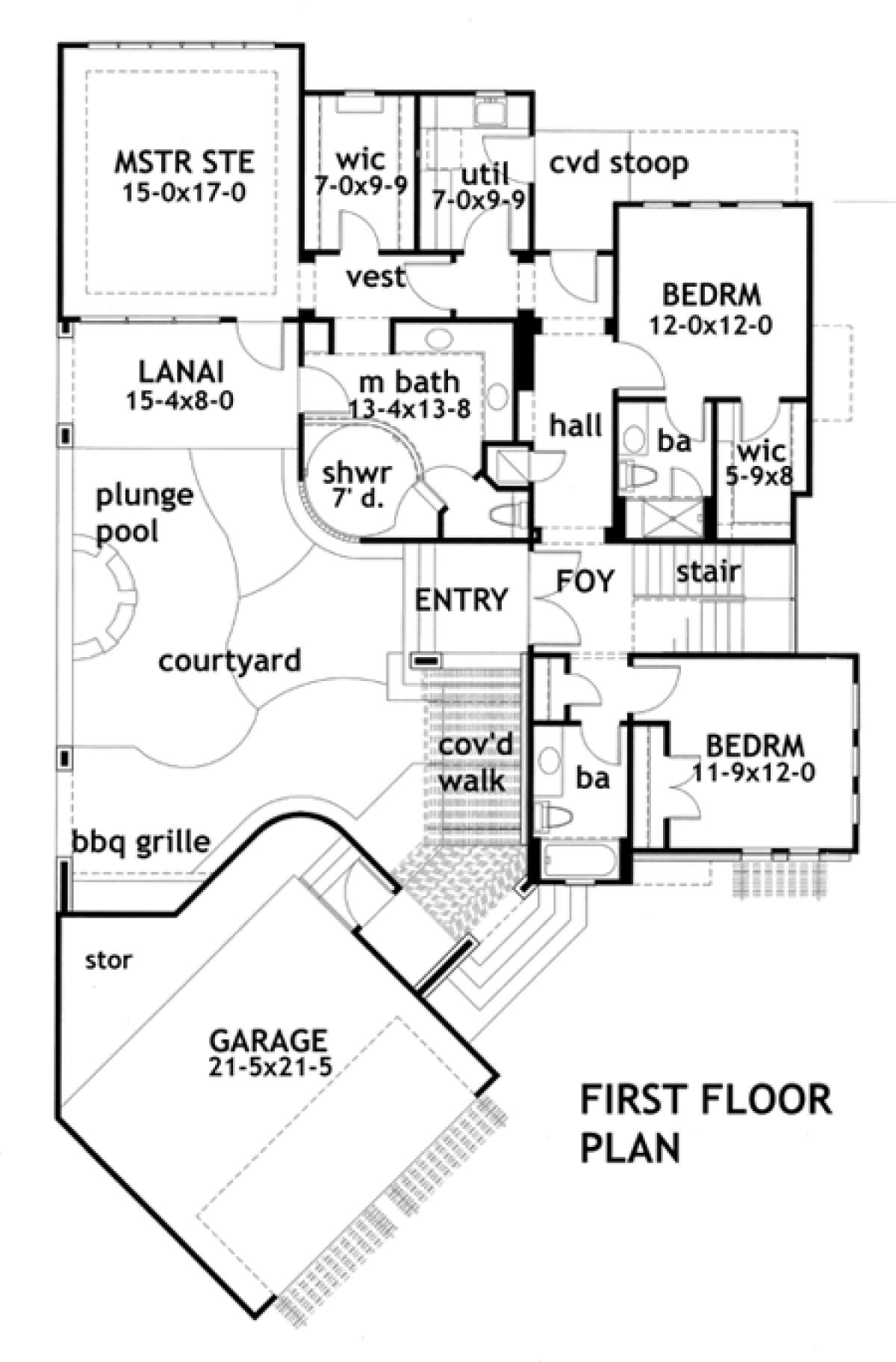

Floorplan 1 for House Plan #9401-00009

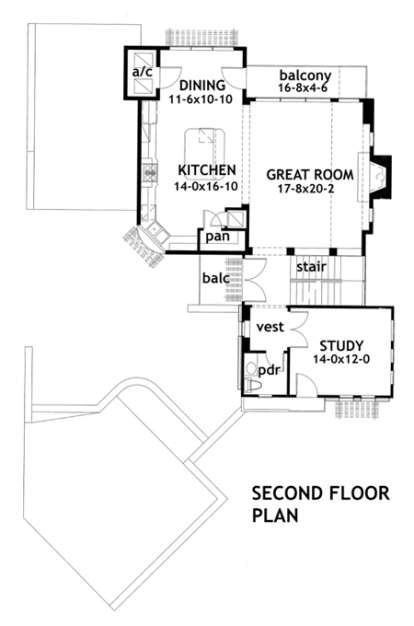

Floorplan 2 for House Plan #9401-00009

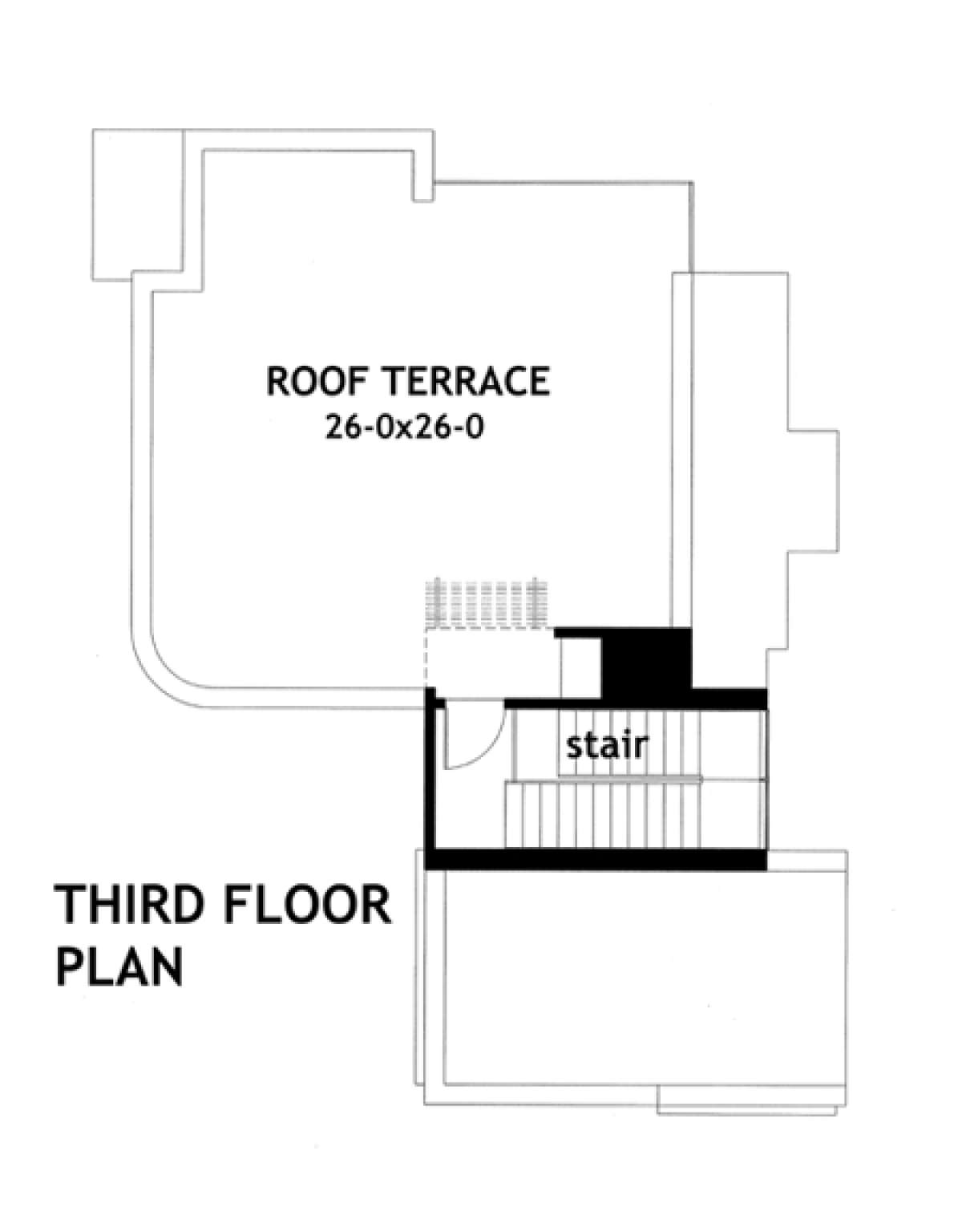

Floorplan 3 for House Plan #9401-00009
Floorplan 1
Floorplan 1 for House Plan #9401-00009
Floorplan 2
Floorplan 2 for House Plan #9401-00009
Floorplan 3
Floorplan 3 for House Plan #9401-00009

Frequently Asked Questions


What's Included in these plans?

  • 1/4" Scale Floor Plan(s)
  • 1/4" Scale Exterior Elevations
  • 1/4" Scale Building Section
  • 3/8" Cabinet Elevations
  • 1/4" 1st Floor Ceiling Framing
  • 1/4" 2nd Floor Ceiling Framing
  • 1/4" Roof Framing
  • 1/4" Electrical Schematic
  • Depending on Foundation Available for Plan:
  • 1/4" Slab Plan, 1/4" Crawlspace Plan with framing plan, 1/4" Basement Plan with framing plan

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

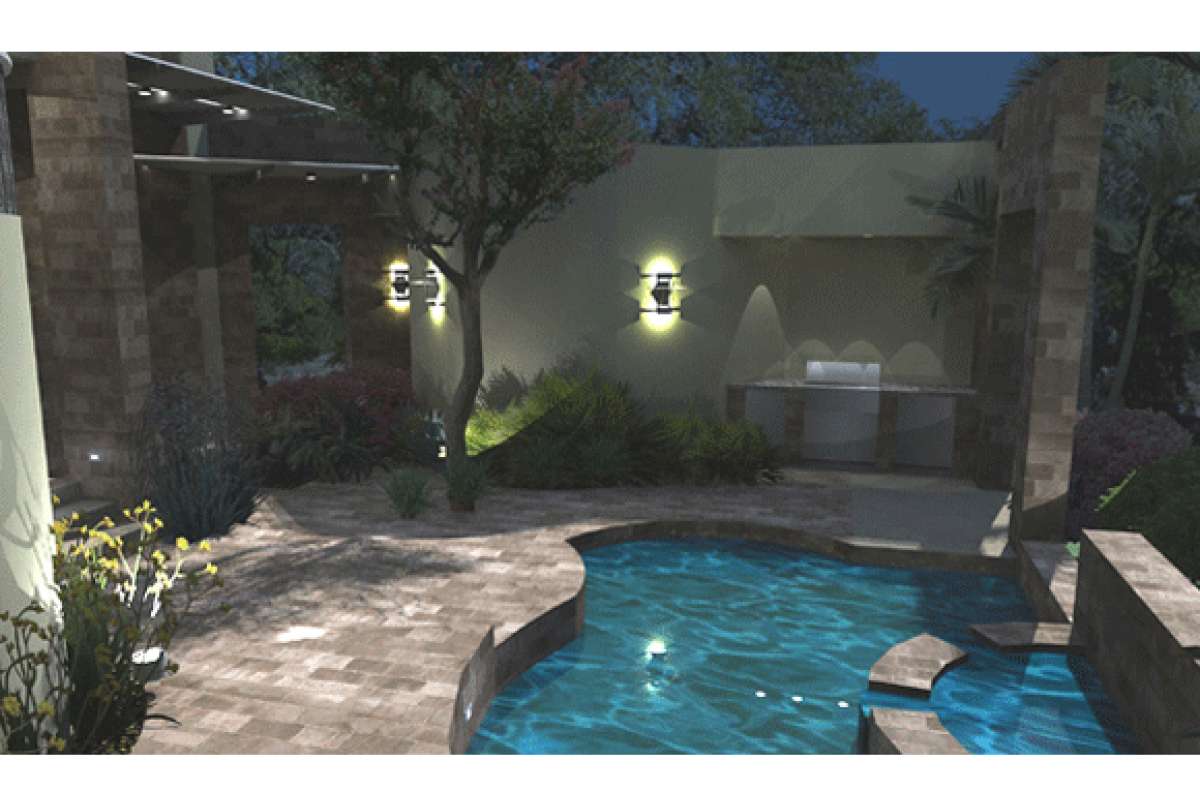

Art Deco inspiration is highlighted throughout this Modern house plan from its bold and exciting exterior including a rooftop terrace to the abundance of interior living space. An eclectic mix of architectural design elements are beautifully situated in a way that eliminates competing styles and true to form, there are a series of setbacks outlining the exterior that create a stepped appearance. The razor edged stone walls highlight the sleek, linear form which combines beautifully with the rounded, smooth finished stucco walls; together a sense of symmetry, balance and stylized ornamentation decorate the exterior in a contemporary fashion. The front gardens, the courtyard with plunge pool, a bar-b-que area and lanai make a lasting impression when coming upon the front entrance of the home. The entryway leads to the staircase where the main living areas of the home are situated. There is a foyer with French door access onto the balcony with outdoor overviews and the side vestibule leads to a private study with half bath. An open great room, kitchen and dining room feature wide open spaces for effortless entertaining. The great room is highlighted with column beam detailing, a handsome fireplace, built-in cabinetry and a rear wall of windows overlooking a second balcony. The dining room also features a window wall accent and access to the outdoor space. The kitchen is quite grand with a huge center island with a raised breakfast bar, a large corner pantry and a plethora of rear wall space filled with modern amenities. The rooftop terrace is accessed from the main staircase and offers unlimited potential for entertaining and relaxing; the space measures 26’x26’ and provides a “bird’s eye” view of the surrounding landscape.
The sleeping and bathing quarters of the home are located on the first floor and feature two family styled bedrooms split off the foyer. Bedroom one is highlighted with good floor space, generous closet space and an adjacent full bath and linen closet. The second bedroom is spacious with a walk-in closet and private bath. The end cap of the main hallway provides access to a covered stoop for ease of clean-up and the laundry room is situated right off the stoop. The master suite is situated at the far edge of the home for privacy and it is a true suite of luxuriously appointed rooms. A vestibule leads to the master suite where an oversized walk-in closet and grand master bath are located; the en suite bath includes an L-shaped vanity with dual lavatories, a compartmentalized toilet and a circular 7’ shower. Private access to the lanai is offered off the bath as well as the master bedroom which is encased in window views and features a trey ceiling. This unique and beautifully crafted Modern home has a spectacular exterior with multiple outstanding outdoor areas and a functional and comfortable interior.
