Cabin Plan 035-00143


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,390
Beds 2
Bath 2
1/2 Baths 0
Car 0
Stories 2
Width 46'
Depth 32'

Floorplan Drawings

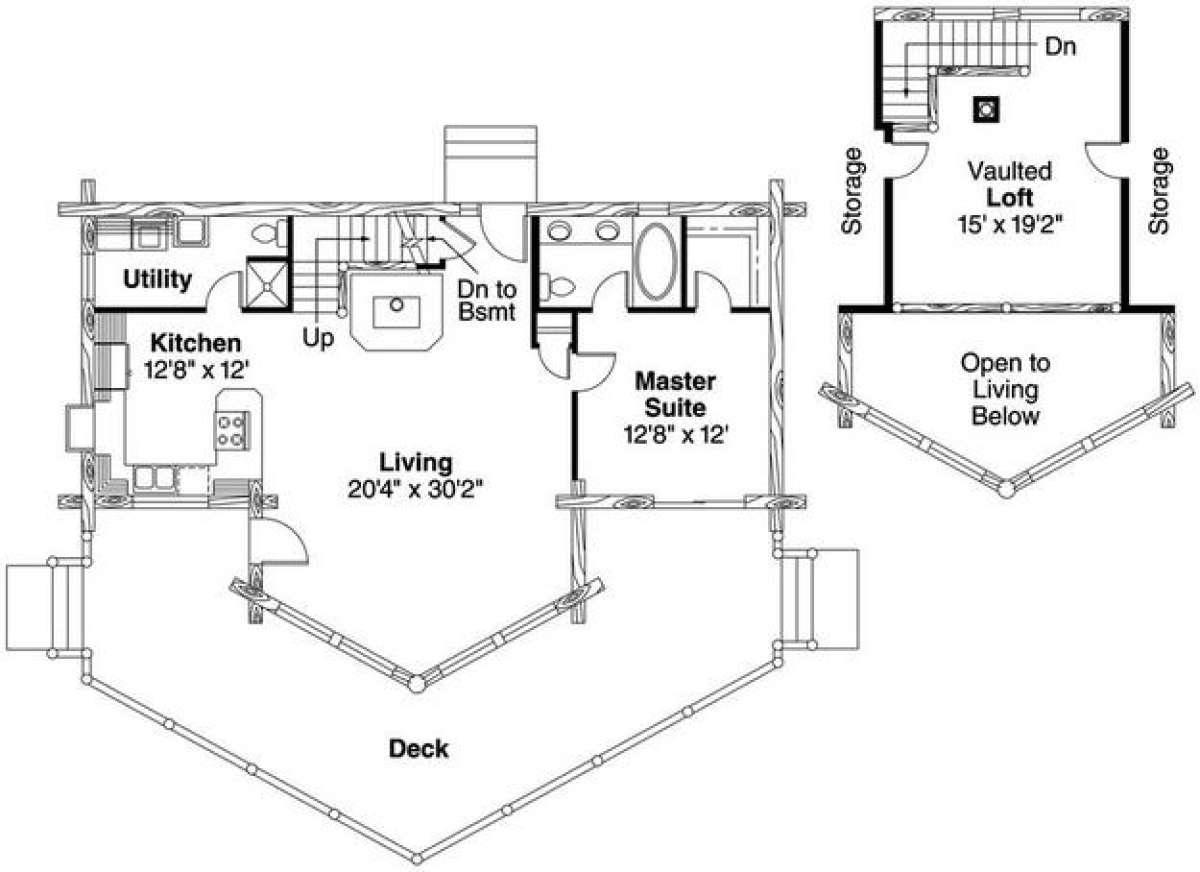

Floorplan 1
Floorplan 1 for House Plan #035-00143

What's Included in these plans?

  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.

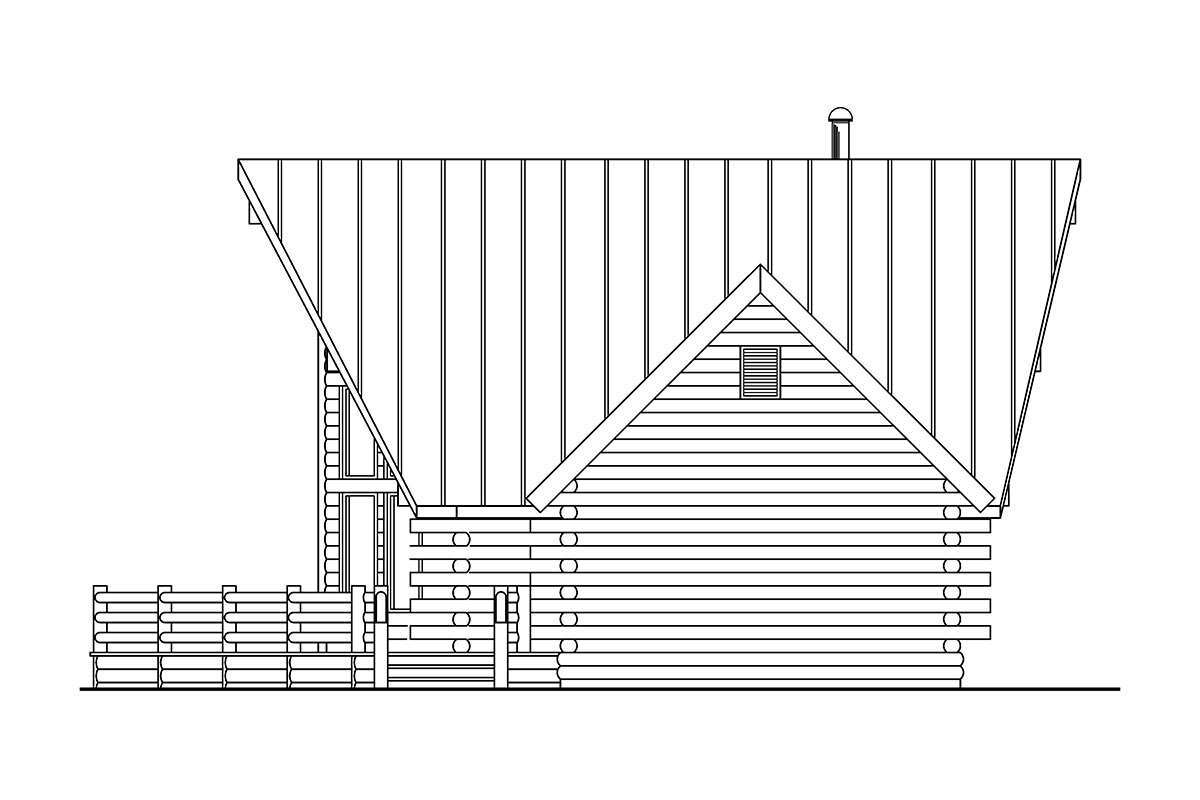

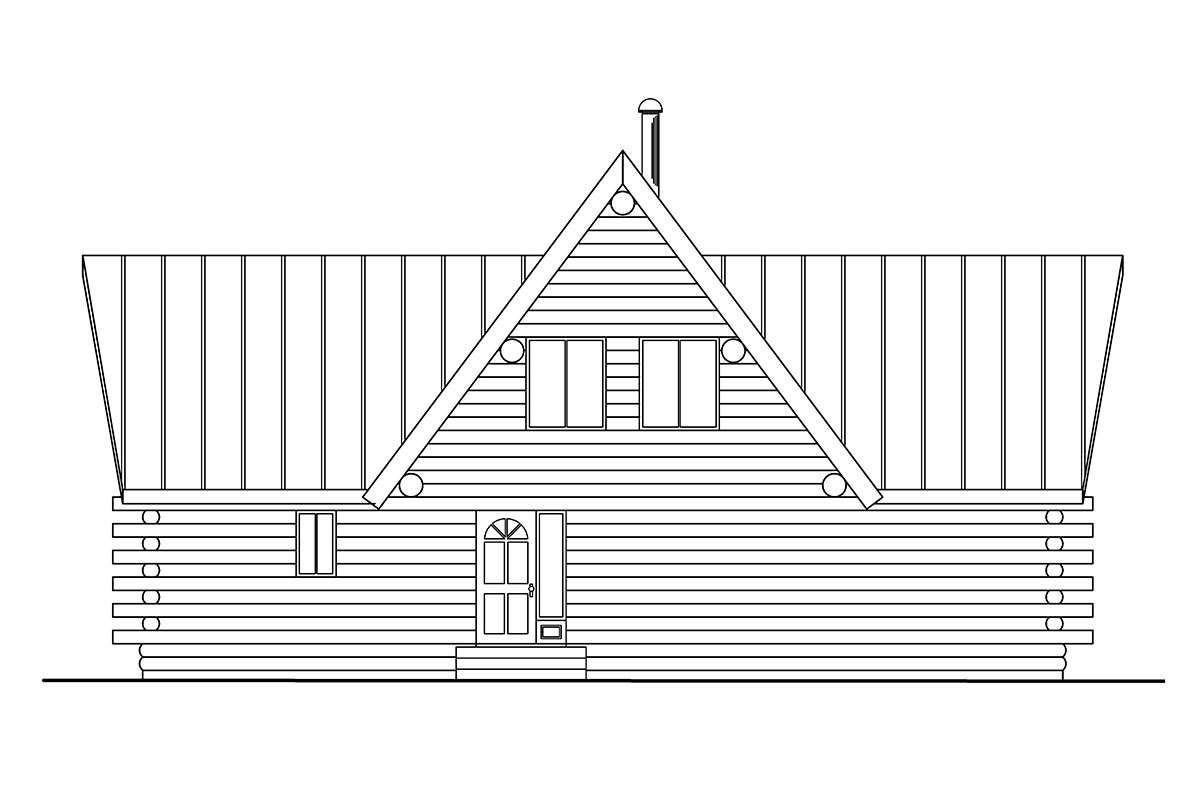

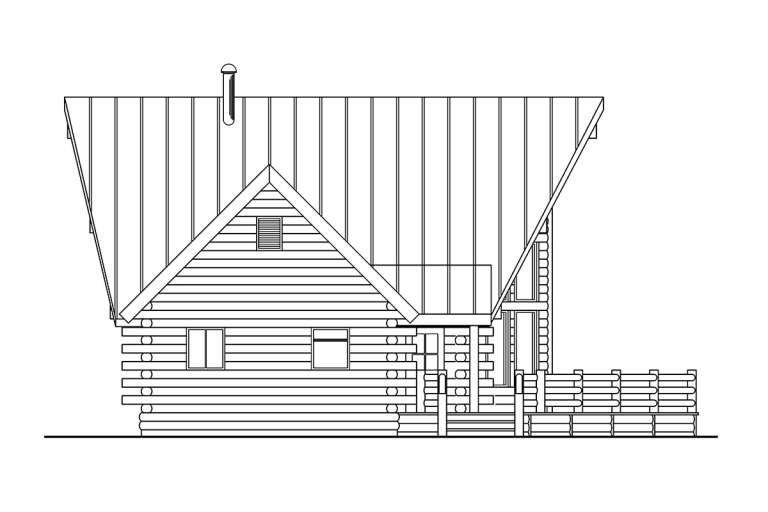

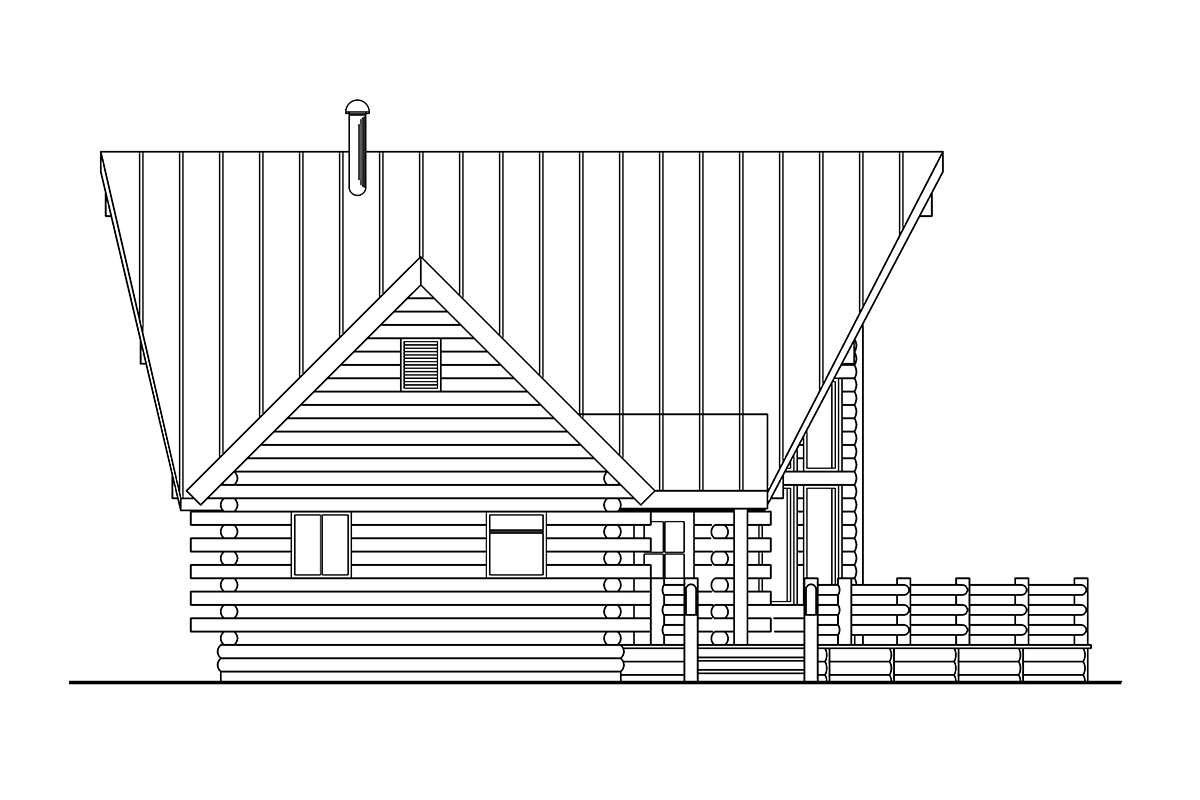

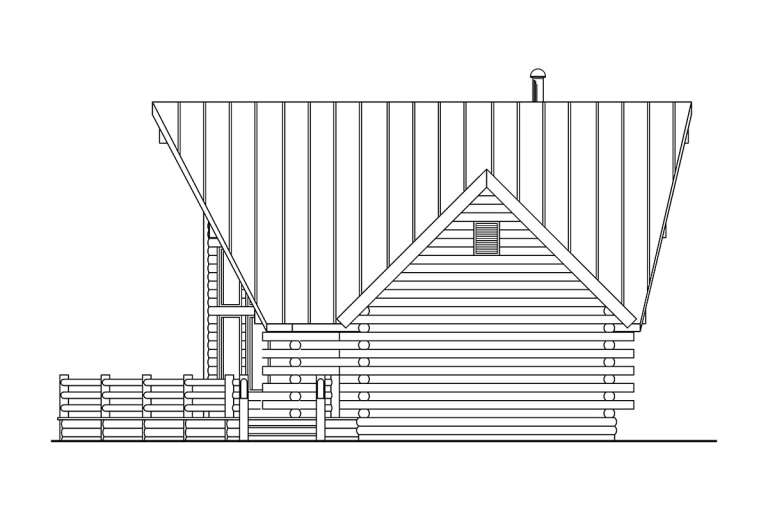

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
  • *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
  • *Single Build License is included with plan packages of 5 sets or more.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Rough hewn timber logs frame this Log Cabin house design adding character and warmth to an interior space containing approximately 1,384 square feet of usable living space. Amazing detailing on the exterior façade consists of a soaring A-framed window vista with floor to ceiling window inserts, exposed log supports and an open deck with extensive space for entertaining large gatherings of family and friends. There are two bedrooms and two baths in the two storied home along with an unfinished basement foundation designed for future expansion. Stepping onto the open deck there is entrance into the home’s interior where a grand living room is featured; it measure in excess of 20’x30’ and offers a wood burning stove and panoramic views to the outdoors. “Mother Nature” and all her glory are effortlessly invited into the home’s interior while the outdoor deck is made for entertaining, star gazing or relaxing in a hammock. The kitchen features window sink views, a peninsula bar for casual dining and/or snacking and plenty of counter and cabinet space. There is a spacious laundry room directly accessible from the kitchen containing a sink area and half bath.
The main level master suite features a spacious bedroom with fantastic window views, a walk-in closet and private en suite bath. The bathroom contains double vanities, a toilet area, tub/shower combination and there is an adjacent linen closet. The second story T-shaped staircase leads to the vaulted loft where overviews into the main living space are provided. The room could be utilized as a sleeping loft, home office, reading library and is encapsulated by two side storage areas, great for seasonal clothing and/or other seasonal items. This Cabin home commands a mountain or lake view in order to take advantage of the amazing window vistas outlining the home.
