Cottage Plan 5633-00184


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,131
Beds 2
Bath 1
1/2 Baths 1
Car 0
Stories 2
Width 20'
Depth 39'

Floorplan Drawings

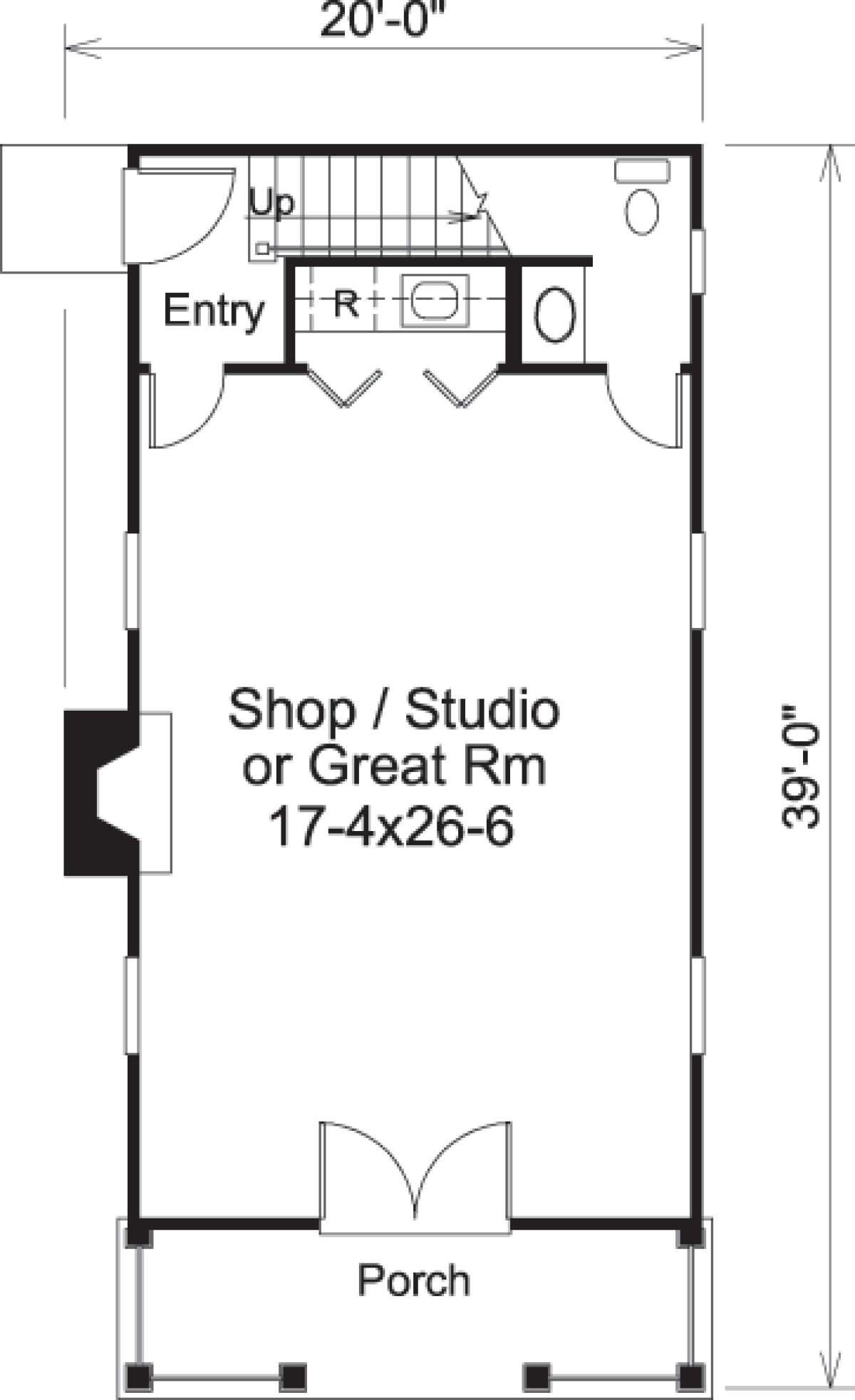

Floorplan 1
Floorplan 1 for House Plan #5633-00184

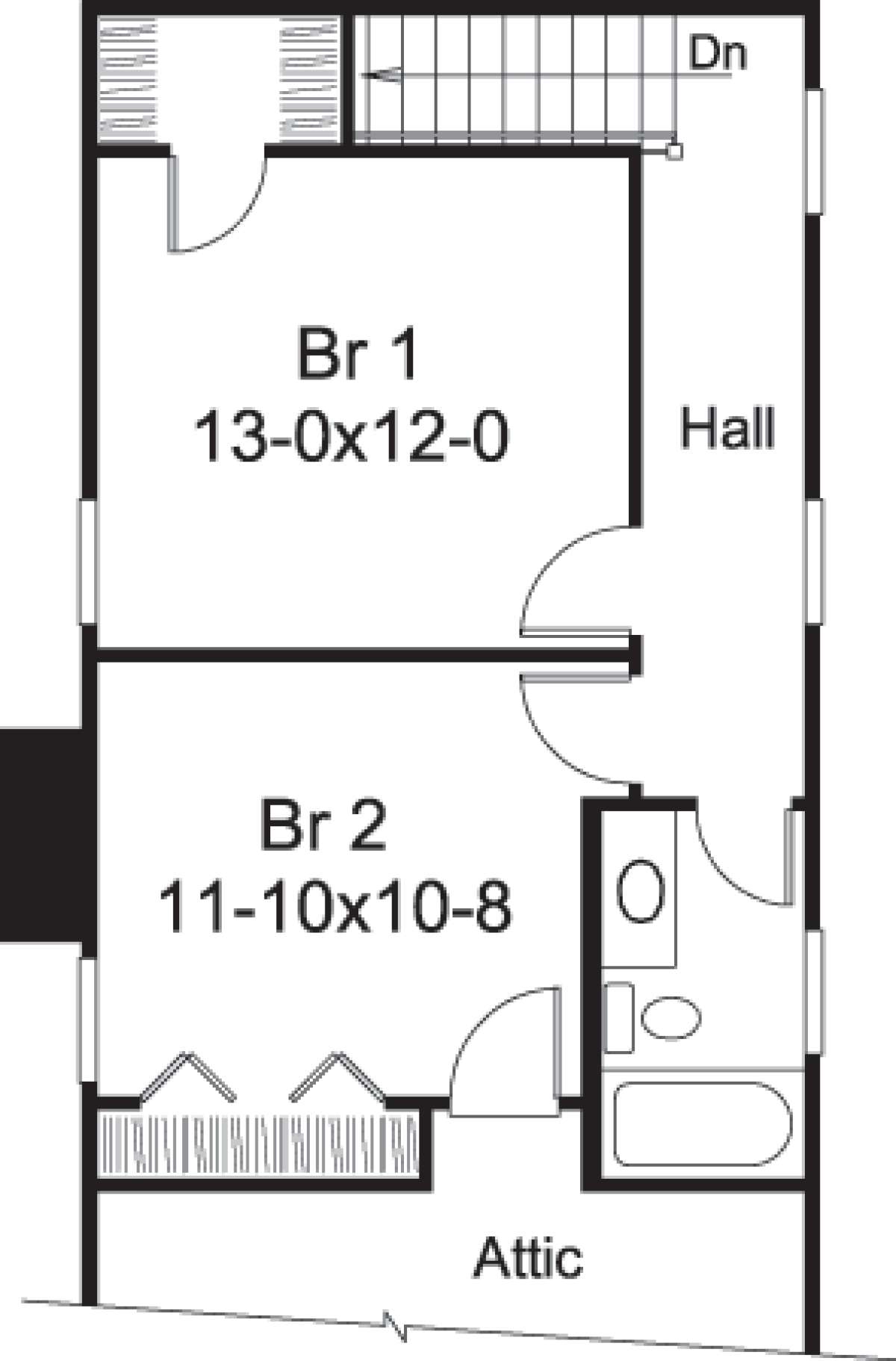

Floorplan 2
Floorplan 2 for House Plan #5633-00184

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

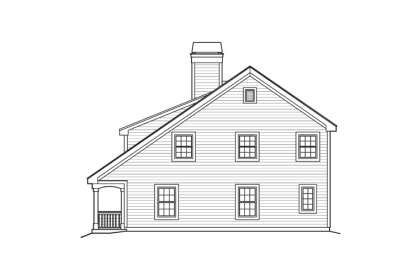

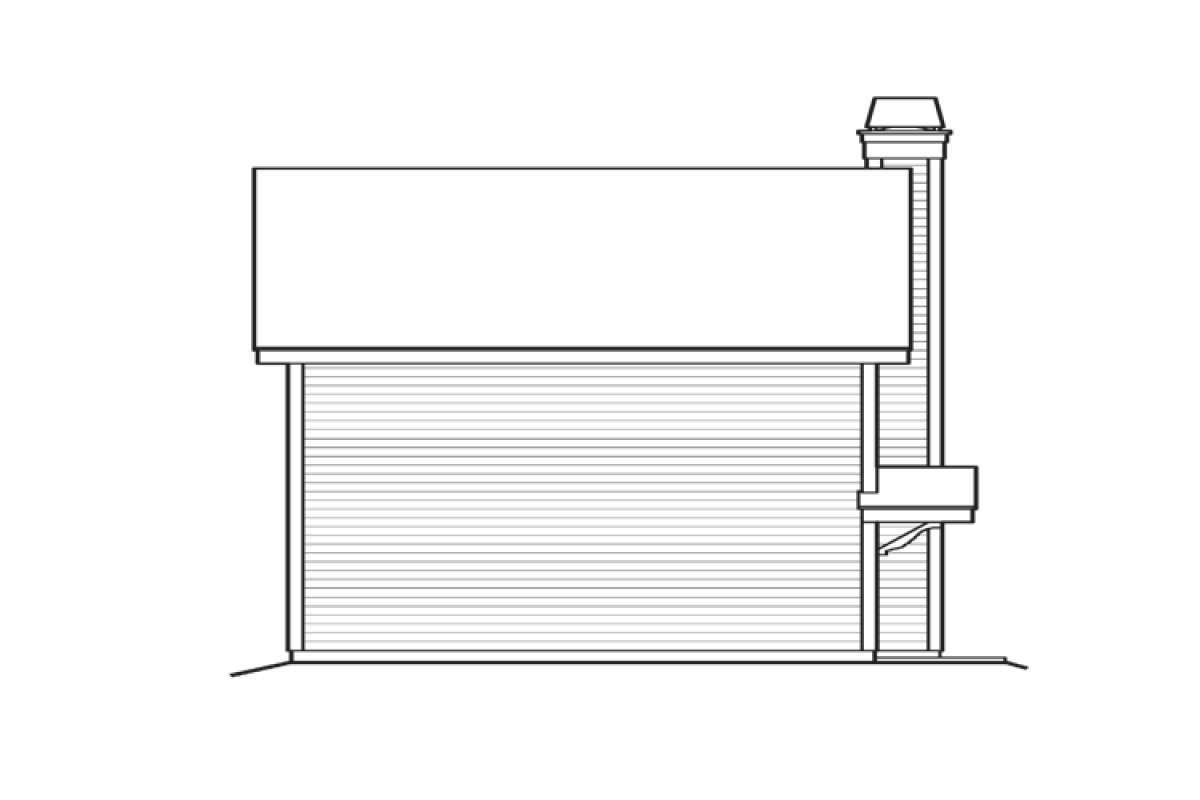

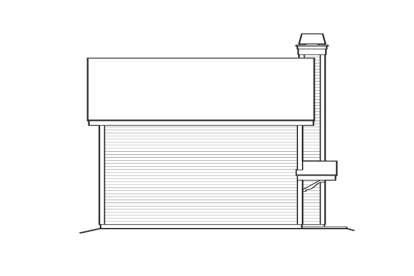

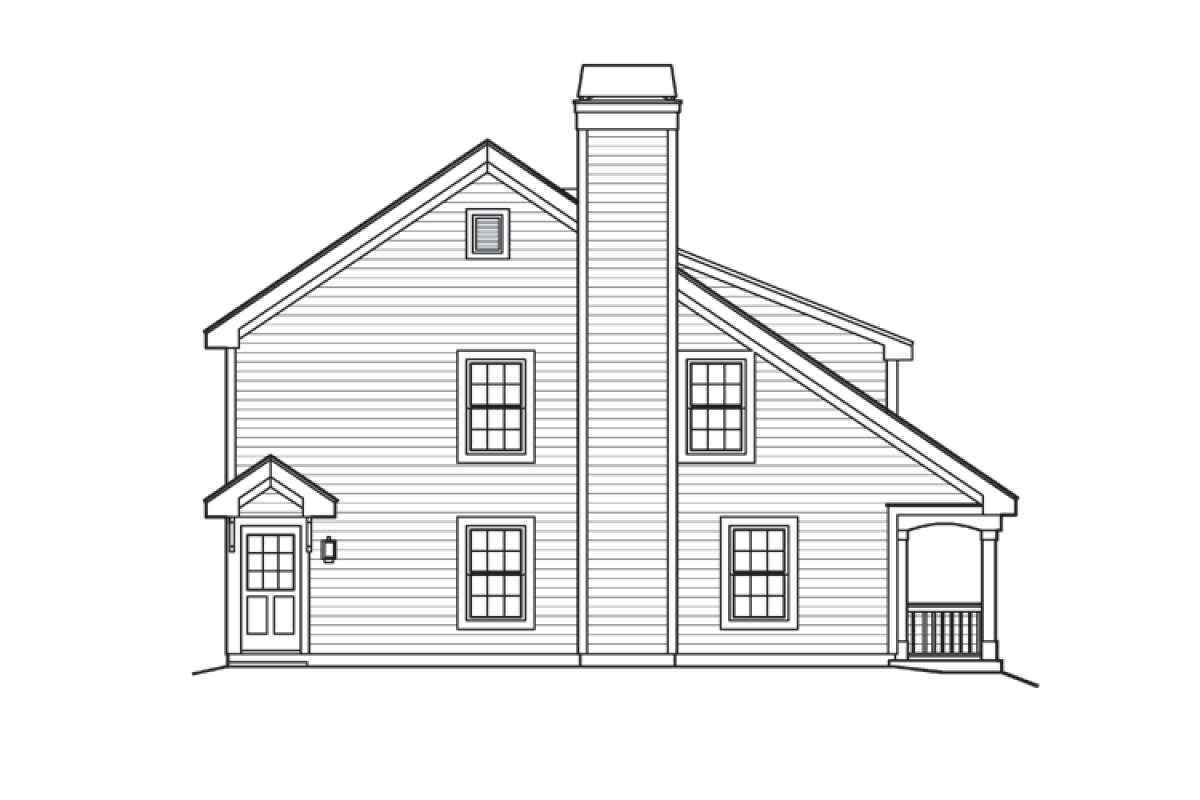

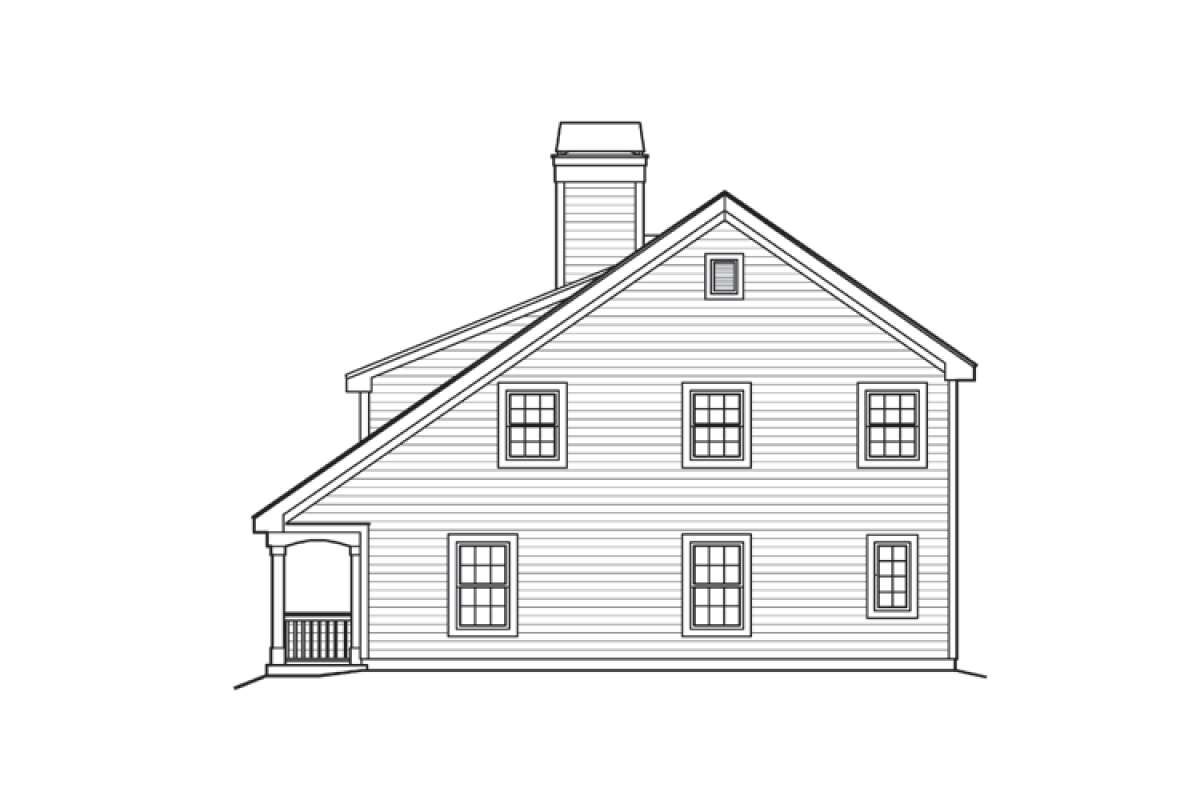

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Cottage house design is ideally suited for a narrow lot with its 20’ width and 39’ depth dimensions and would be the perfect home for a country or lakefront property. The exterior façade features a double window dormer, siding and a front covered porch with broad column beams and open railing. The two storied home features in excess of 1,130 square feet of living space which incorporates two bedrooms and one and half baths into the floor plan. French door access into the first level of the home reveals an enormous space; the room measures in excess of 17’x26’, features a handsome fireplace and functions well as a great room, artist’s studio or workshop. A kitchenette sits at the rear of space along with a half bath and entrance to the second floor sleeping quarters. Bedroom one is highlighted by a spacious footprint and an impressive sized walk-in closet. The second bedroom features generous floor space and ample closet space. At the rear of the second bedroom is a large attic space; perfect for seasonal or other storage items. There is a shared hall bath which provides vanity space, a toilet area and a shower/tub combination. This unique floor plan offers a home which maintains privacy and delightful space in which to create or entertain and is best suited for a vacation home, a home for young professionals or a home for empty nesters who value their creative space and privacy.
