Cabin House Plan 035-00142

Sq Ft1,216
Beds2
Baths2
1/2 Baths0
Stories2
Cars0
Width40' 0"
Depth27' 0"

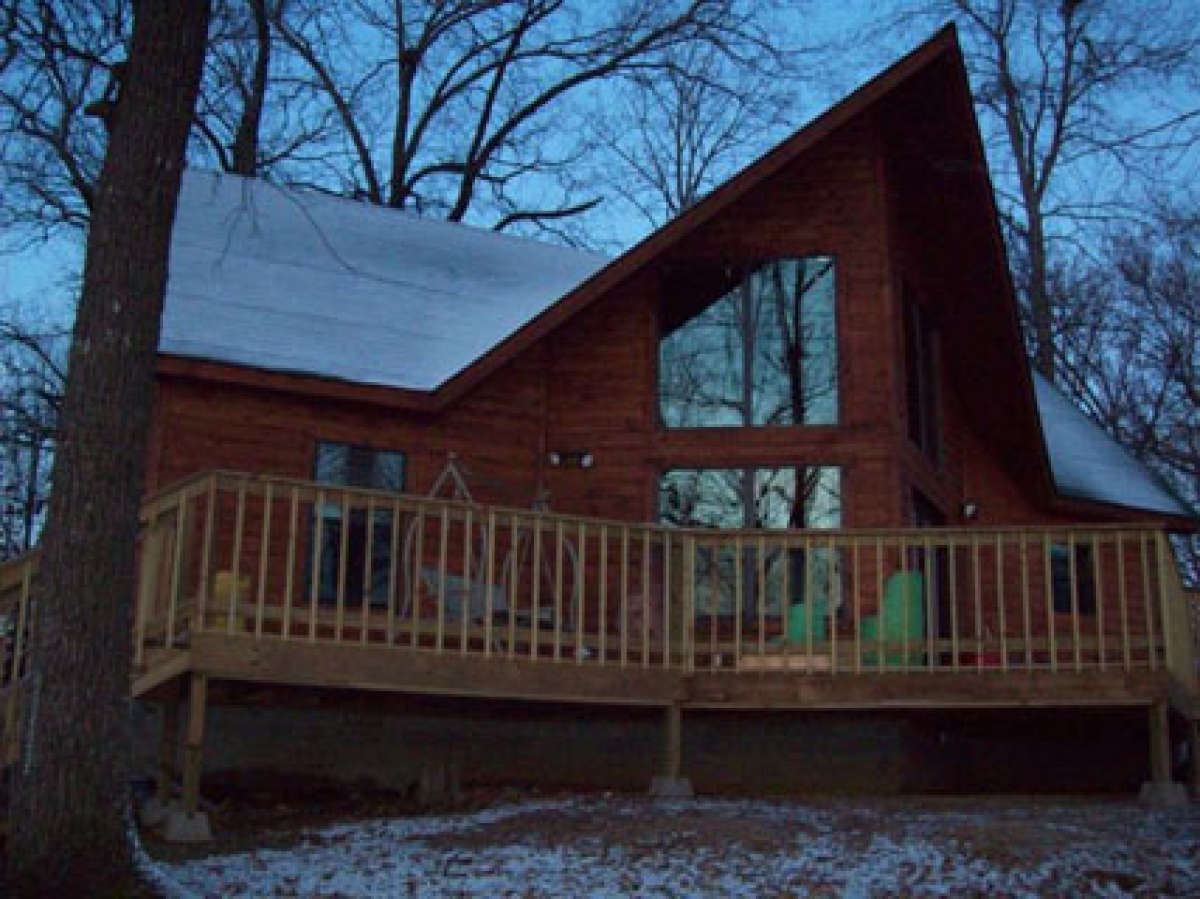

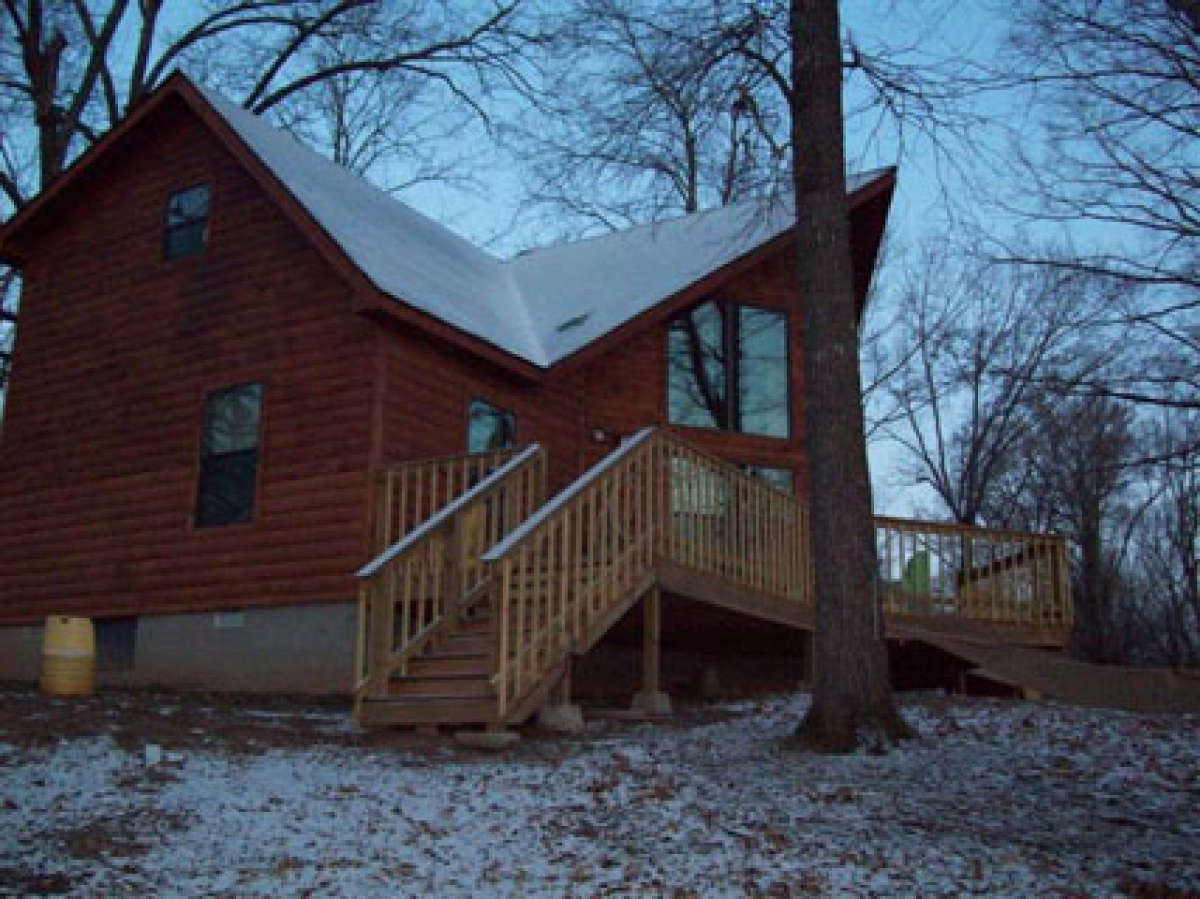

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #035-00142
Second Floor for House Plan #035-00142
Alternate Floors w/ 2x6 Framing for House Plan #035-00142

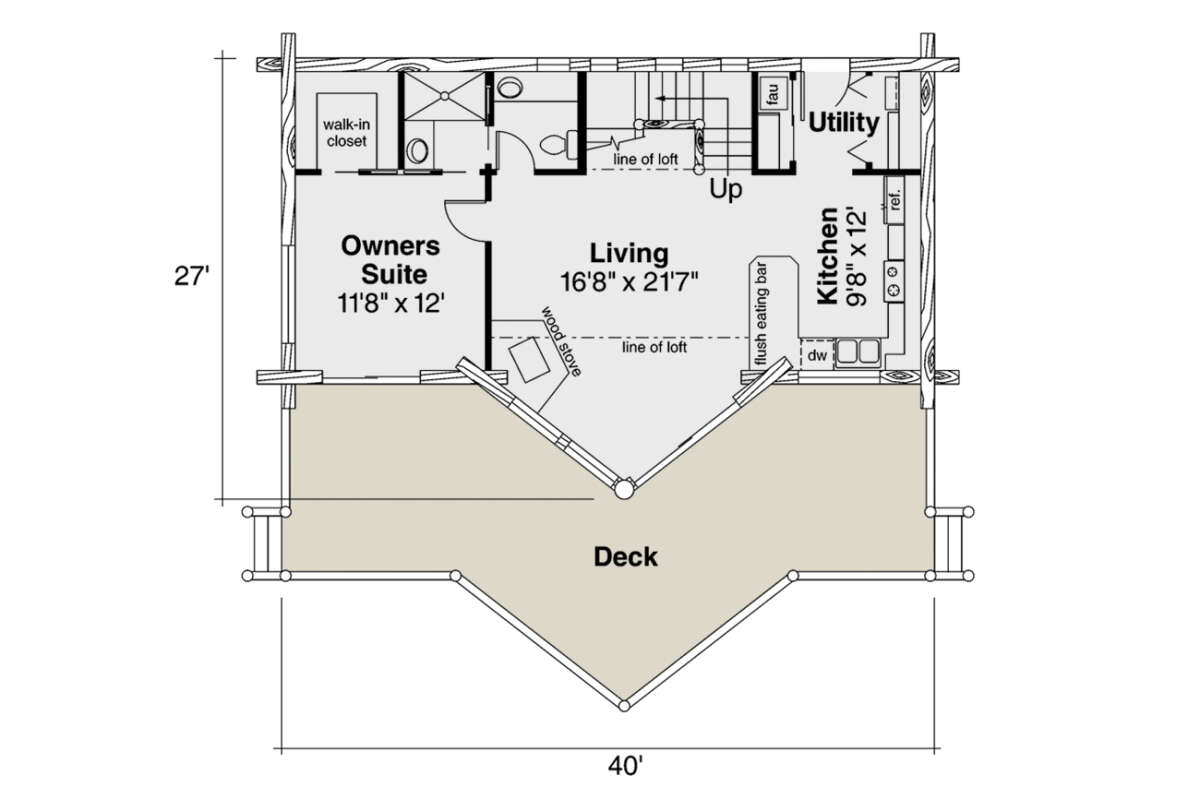

Main Floor
Main Floor for House Plan #035-00142

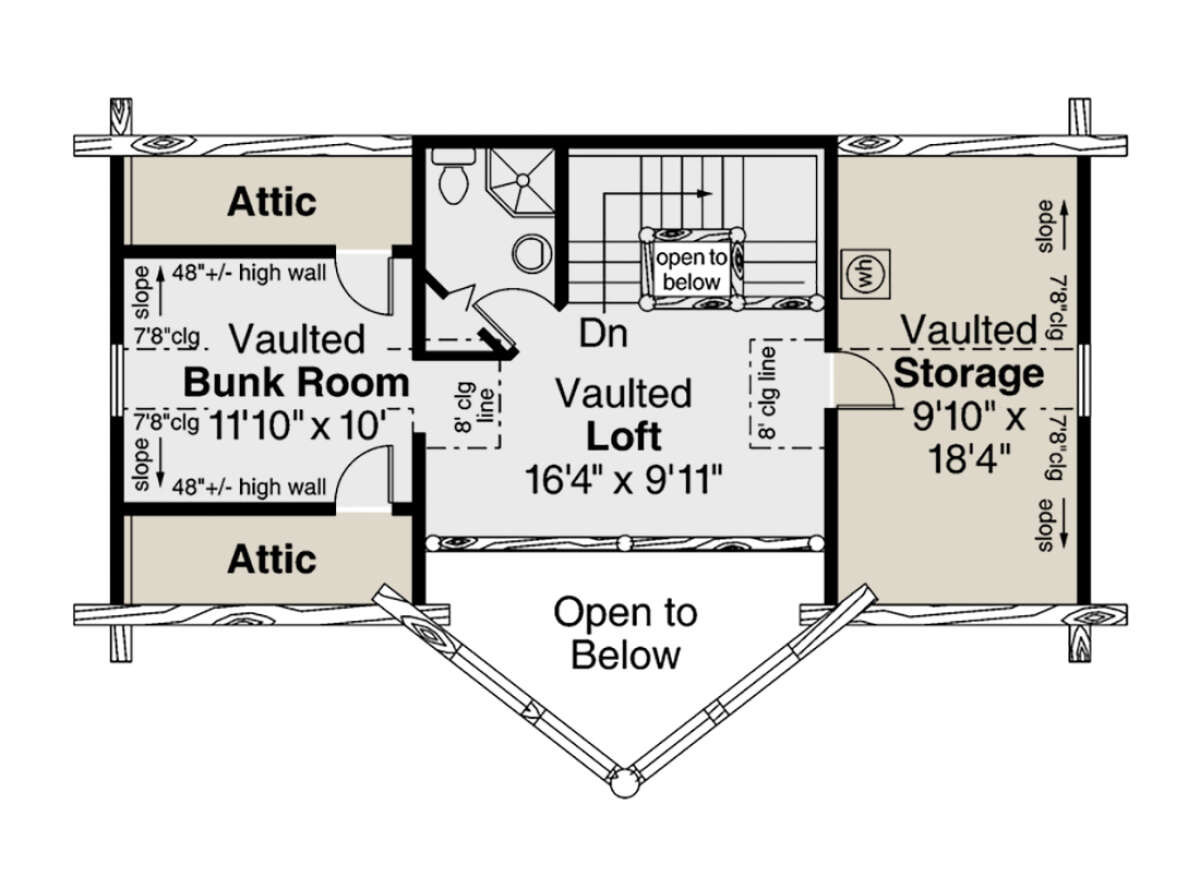

Second Floor
Second Floor for House Plan #035-00142

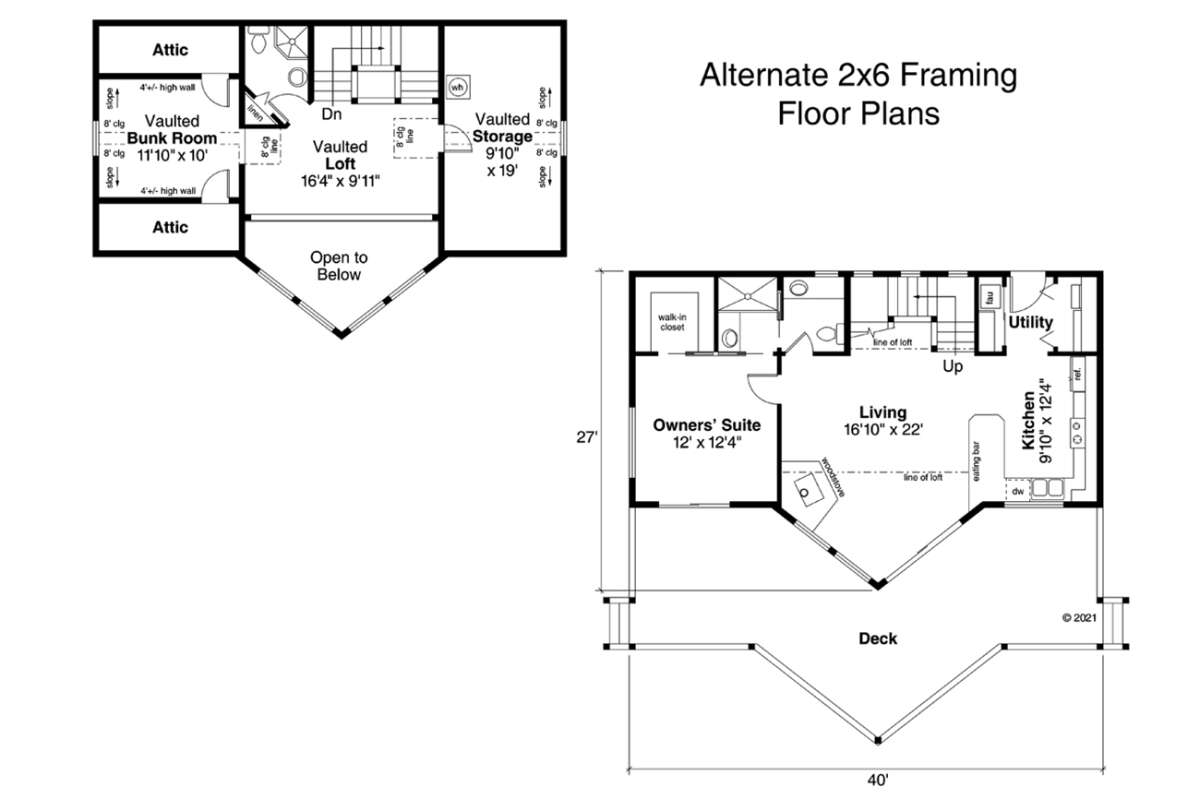

Alternate Floors w/ 2x6 Framing
Alternate Floors w/ 2x6 Framing for House Plan #035-00142


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
  • *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
  • *Single Build License is included with plan packages of 5 sets or more.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Floor to ceiling window views are the pièce de résistance of this Cabin home and offer outstanding views whether looking upon a gentle lakefront view or commanding mountaintop view. The front triangulated deck features great entertaining space and relaxing private space where star gazing and enjoying “Mother Nature” takes center stage. Rough hewn timber logs and an overall rustic charm surround the home with character and appeal. There are well organized spaces in the 1,216 square feet of living space where two bedrooms and two bathrooms are highlighted along with additional flex spaces. This home is ideally suited as a vacation or small family home and the 40’width and 27’depth dimensions make it appropriate for a small or narrow lot. There is an oversized living room, measuring in excess of 16’x21’, which offers a corner warming fireplace and a massive amount of space in which to host guests or family. A peninsula breakfast/eating bar is featured in the U-shaped kitchen where additional counter and cabinet space and a bevy of modern amenities are offered along the rear and side walls. There is a large laundry room with counter and sink space and a second story staircase at the rear of the home. The main level owner’s suite features great overviews of the outdoors, a spacious bedroom and a walk-in closet. Additionally, there is a master bath which fully encompasses the spirit of the home by maximizing space and function whereby a vanity and shower space is attached through private access and an additional vanity and toilet area are available as well.
Ascending the second story staircase, there is a large loft space with overhangs into the main living space below. This loft area is quite spacious and could function as an additional entertaining space, a multi-purpose family room or a craft/hobby space. Abundant storage space is situated on one side of the loft space making it ideal for storage of seasonal items or clothing. There is an adjacent bunk room flanked to the rear and front with more attic space; this would be great for storing furnishings to convert the bunk room into additional family or guest’s sleeping quarters. There is a full bath on the floor as well with a toilet area, sink and shower along with generous closet space. This unique house plan is fully functional and provides a comfortable layout for enjoying a natural lifestyle consistent with intentional living.
