Cabin House Plan 036-00039

Sq Ft1,647
1/2 Baths0
Width28' 0"
Depth46' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

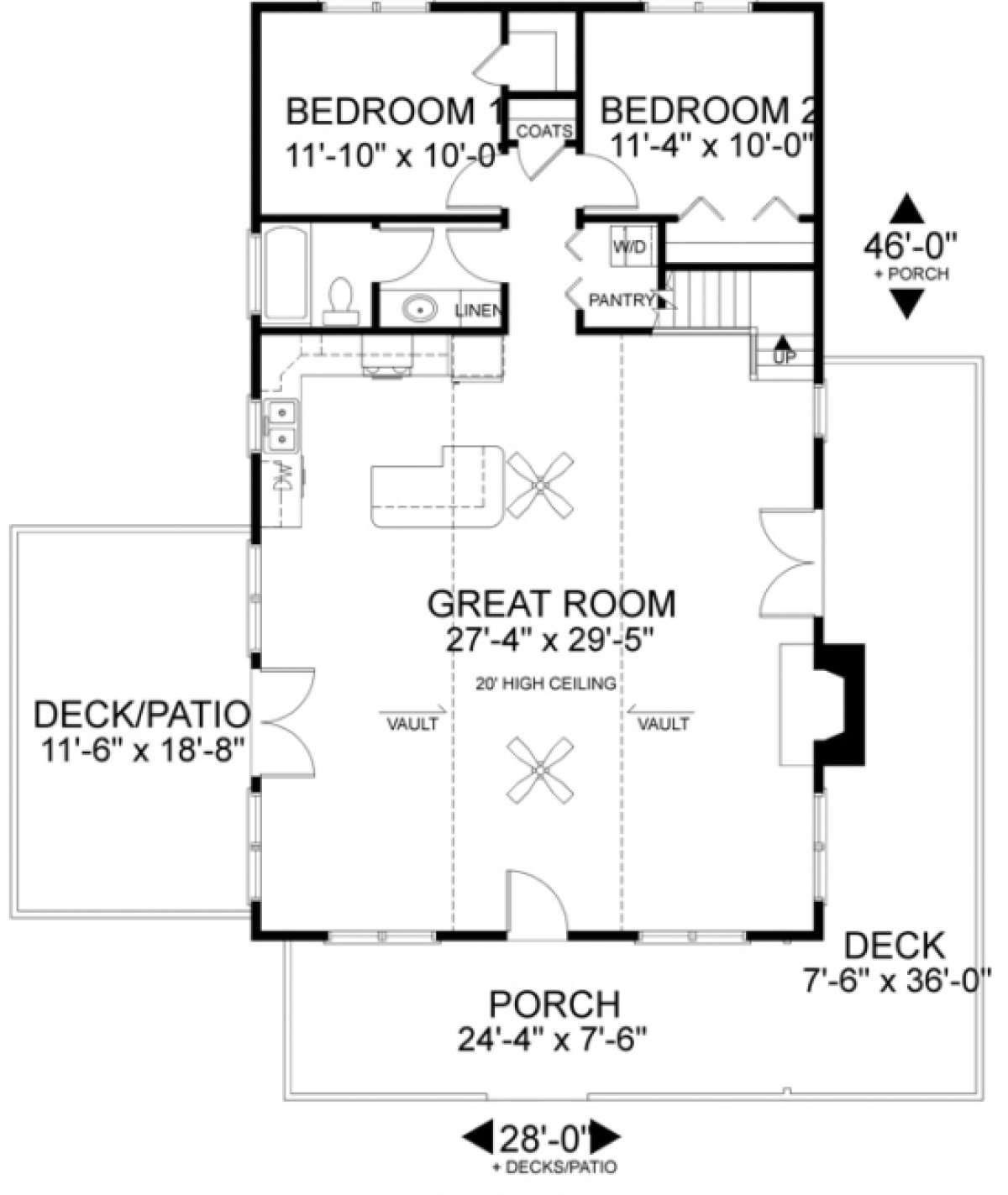

First Floor for House Plan #036-00039

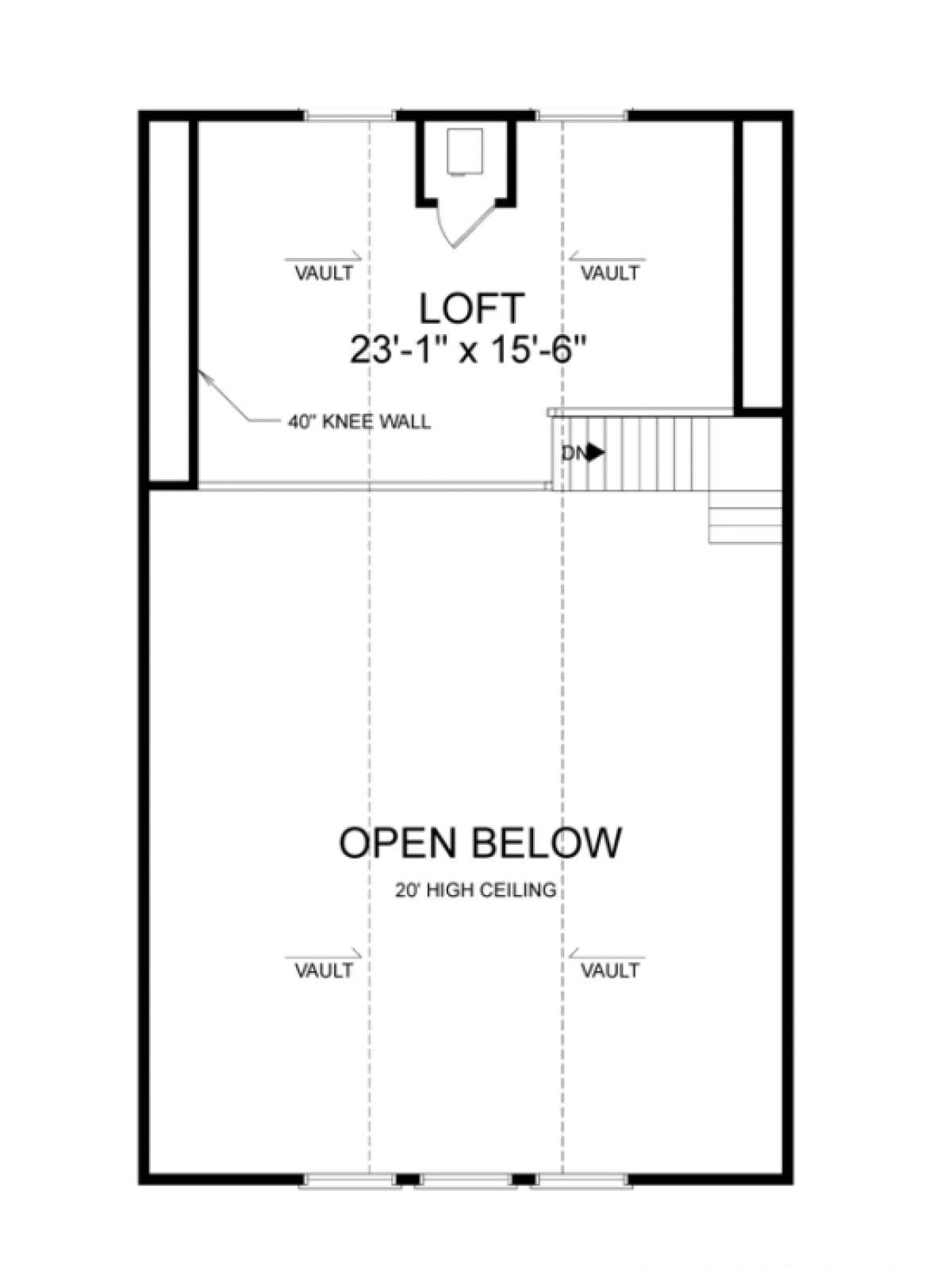

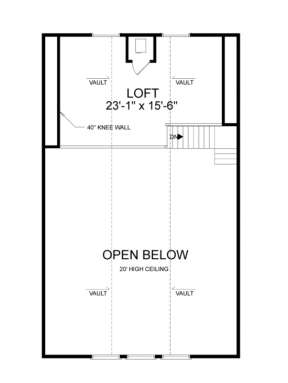

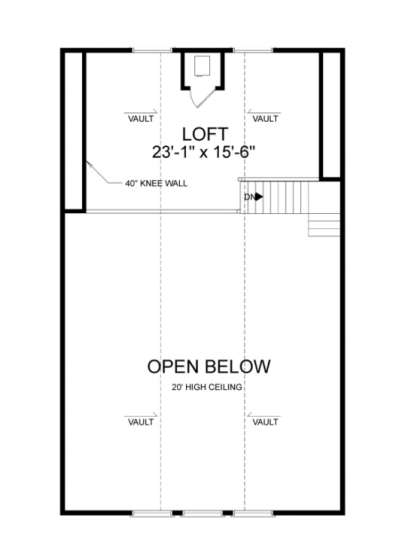

Loft Floor for House Plan #036-00039
First Floor
First Floor for House Plan #036-00039
Loft Floor
Loft Floor for House Plan #036-00039

Frequently Asked Questions


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This house plan is ideal for a vacation home and the use of board and batten siding, standing seam metal roofing and stone accents on the porch and chimney make for a unique and stunning exterior. The exterior livable spaces in this house plan include a wide covered front porch which extends around the side of the home and an additional side deck or patio making these spaces ideal for relaxing or entertaining. Once you enter the home, you are greeted with an outstanding open plan which includes an enormous vaulted great room with a fireplace and access to a side porch. The great room is open to the kitchen which includes an island and breakfast bar. Off the kitchen, you have a utility room which includes space for a stackable W/D and pantry area. There are two bedrooms with ample closet space and a shared hall bath that completes the first floor. Upstairs, you have an oversized loft area with 11’ high ceilings and three large windows in each gable end which create an abundance of light and airiness; this space can be incorporated into additional sleeping areas or recreational space. This simply designed house plan includes plenty of exterior and interior space and offers comfort and functionality for both large and small families.
