Cabin House Plan 8504-00093

Sq Ft1,210
1/2 Baths1
Width40' 0"
Depth27' 0"

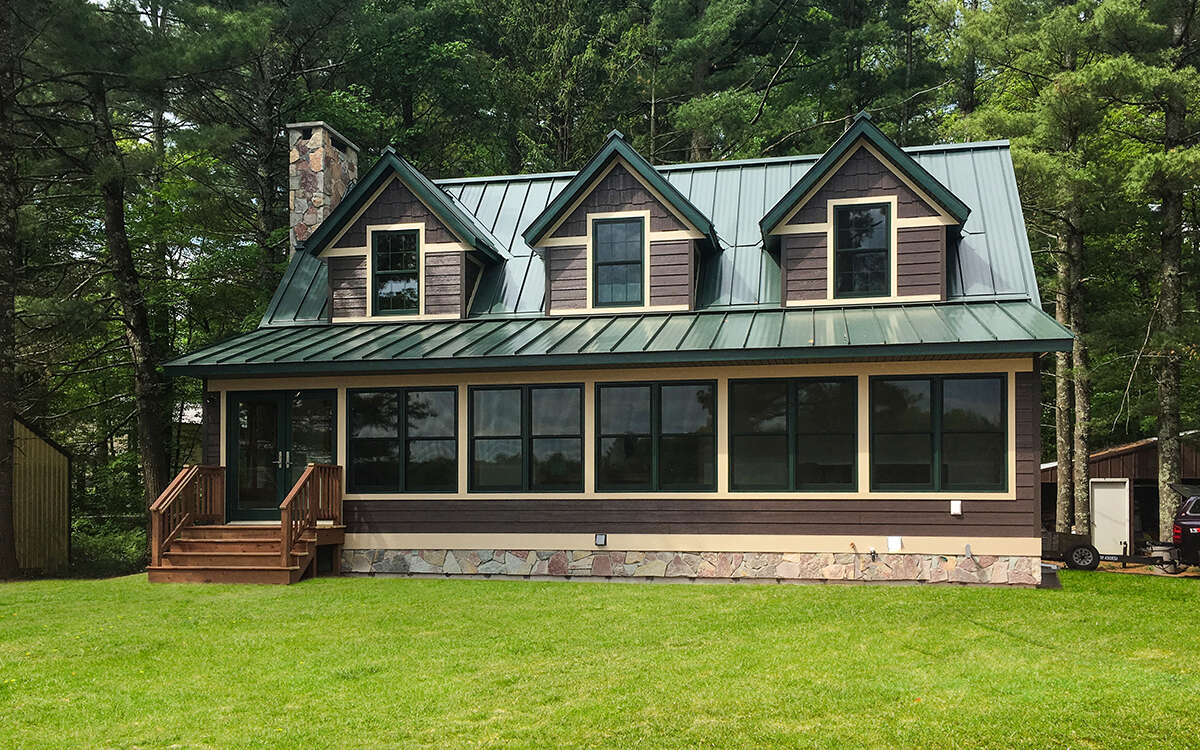

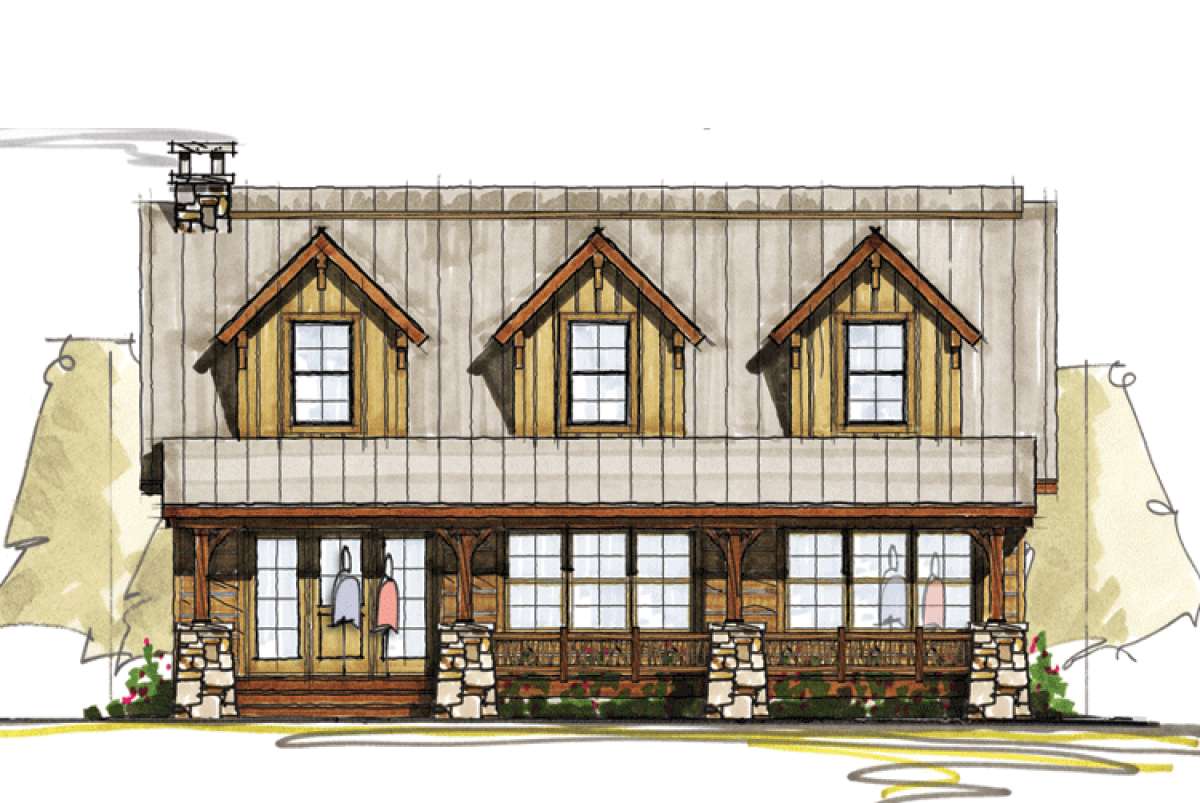

Cabin House Plan #8504-00093 Elevation Photo
Floorplan 1
Floorplan 1 for House Plan #8504-00093
Floorplan 2
Floorplan 2 for House Plan #8504-00093
Garage for House Plan #8504-00093
Cabin House Plan #8504-00093 Elevation Photo
Floorplan 1 for House Plan #8504-00093
Floorplan 2 for House Plan #8504-00093
Garage for House Plan #8504-00093
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00093
Floorplan 2 for House Plan #8504-00093
Garage for House Plan #8504-00093
Floorplan 1
Floorplan 1 for House Plan #8504-00093
Floorplan 2
Floorplan 2 for House Plan #8504-00093
Garage for House Plan #8504-00093

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

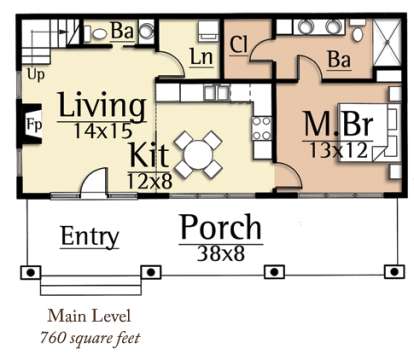

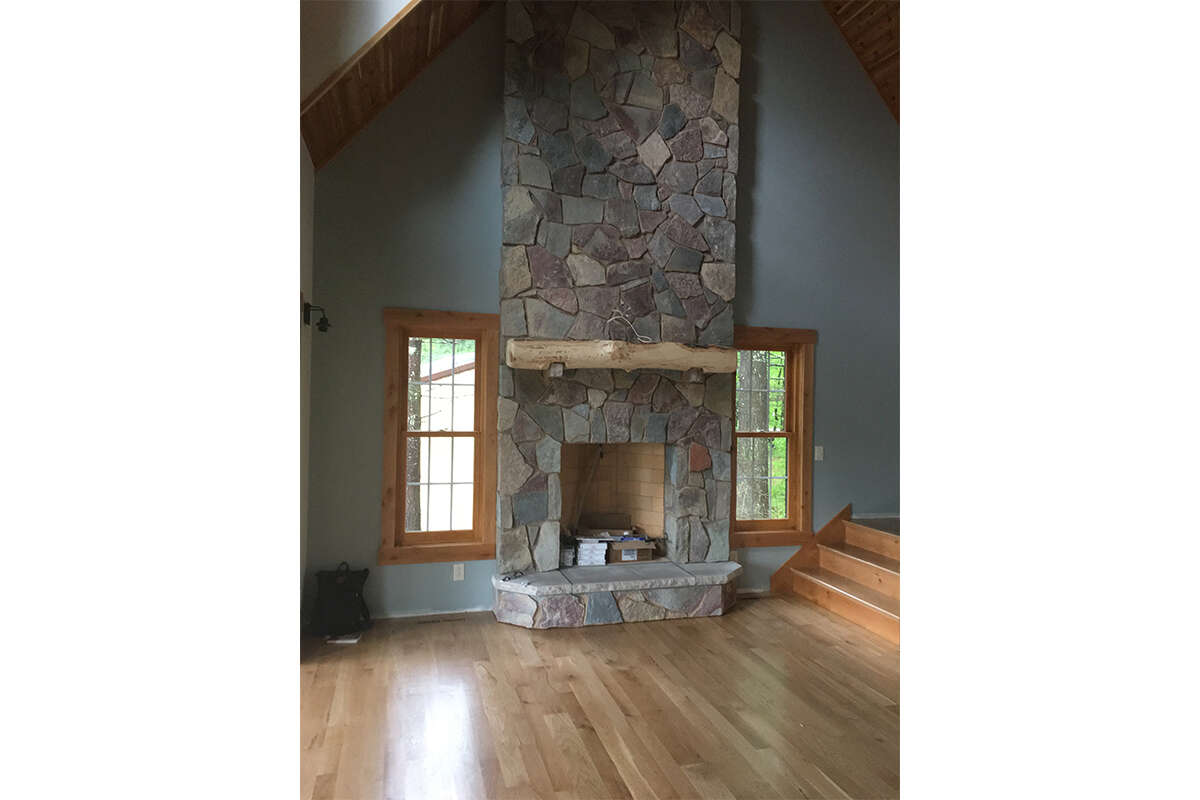

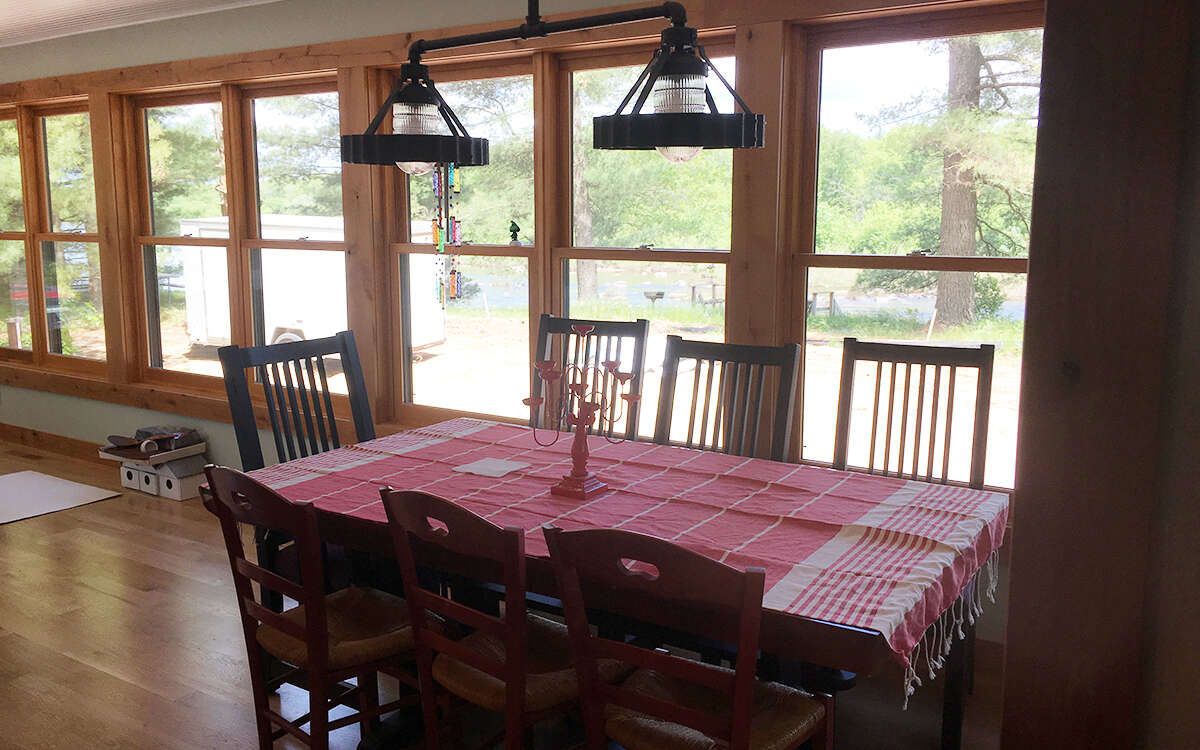

Symmetry and balance are highlighted along the exterior of this fascinating Cabin house plan. The rustic exterior is composed of triple window dormers, simple gabled rooflines and the front covered porch spans the width of the home. The front porch is a beautiful assembly of tapered stacked stone supporting wood beams, open railing and there are a lavish number of window insets bordering the front of the home that blur the lines between the exterior and interior spaces. The interior floor plan is comprised of approximately 1,210 square feet of living space on two floors that includes two bedrooms and two plus baths. Additionally, there is a detached two car garage with 624 square feet of space; plenty of room for vehicles and other storage items. The expansive front covered porch measures 38’x8’ allowing for generous entertaining and family relaxing space before entering the home. There is a large living room with a warming fireplace flanked by picturesque window views. The adjacent casual dining space and open kitchen feature plenty of counter and cabinet space. There is a powder room for guests and a laundry room on this level as well as the master suite. The master retreat features a spacious bedroom with a triple window wall overlooking the covered porch and an attached en suite bath. The master bath is highlighted with double lavatories, a large shower, a toilet area and the master walk-in closet is conveniently located at the rear of the bath.

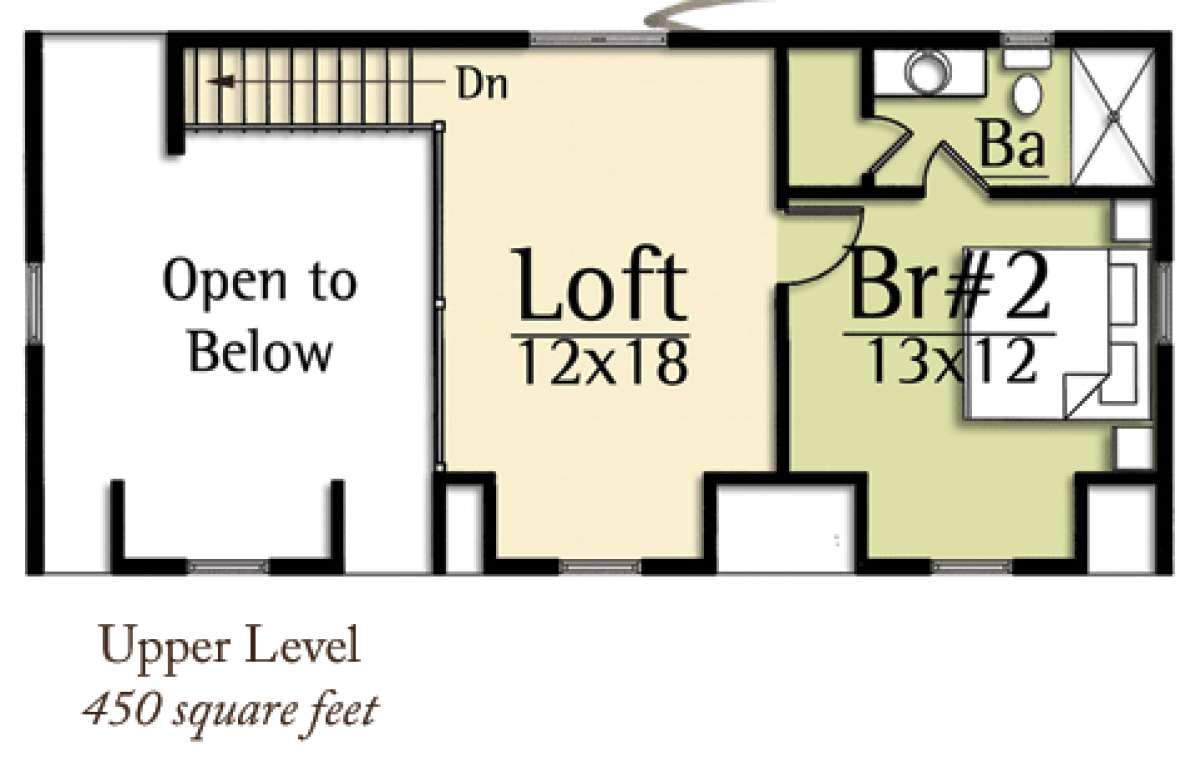

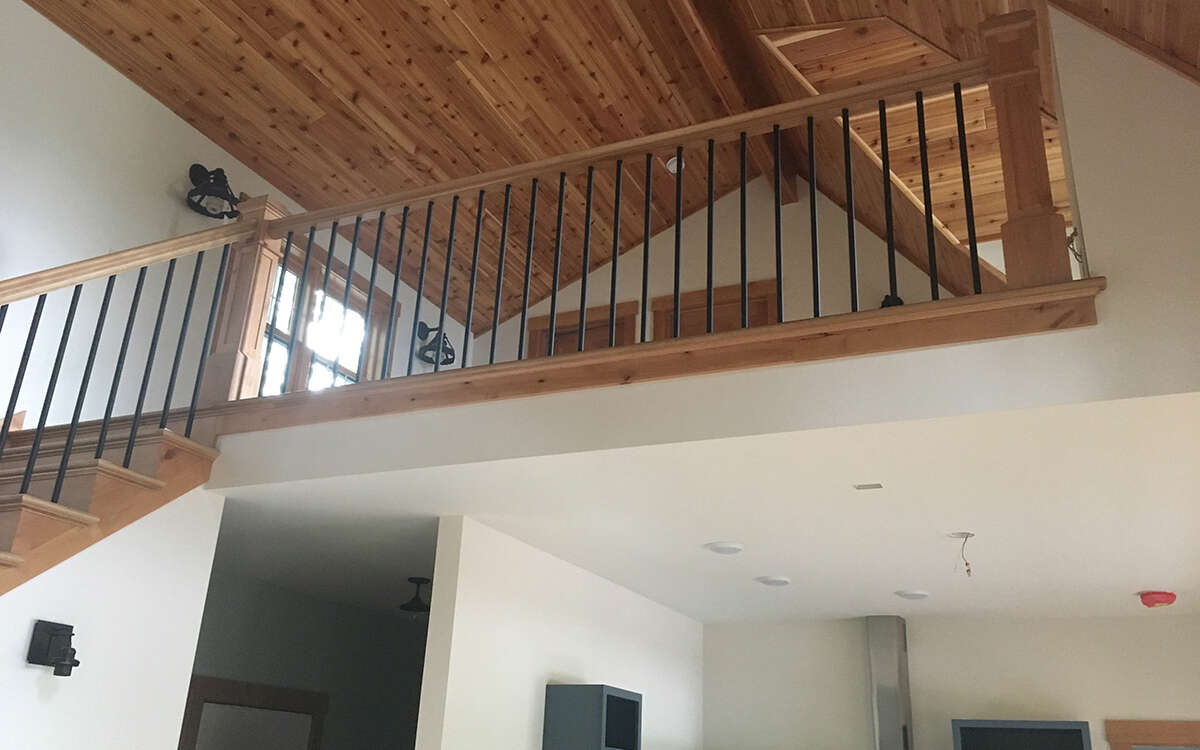

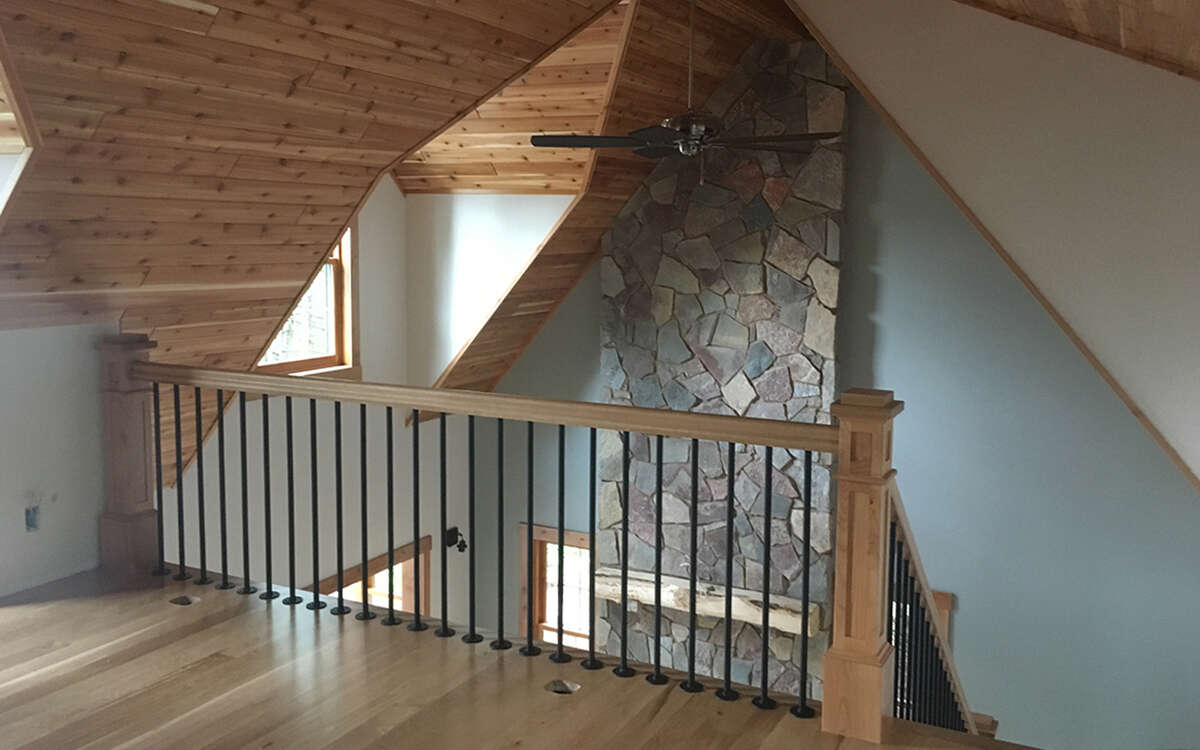

The second story staircase provides overviews into the main living space below before opening onto the large loft area. The loft measures 12’x18’ and makes an outstanding second entertaining space, a home office/study or a hobby room. There is a second bedroom suite which features a generously sized bedroom, a walk-in closet and a private full bath. This rustic home combines character and livability under one roof with expansive outdoor space and a fully function floor plan ideally suited for a small family or one that is utilized as a vacation home.
