Mountain Rustic Plan 8504-00010

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,885
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 2
Width 60'
Depth 41'

Floorplan Drawings

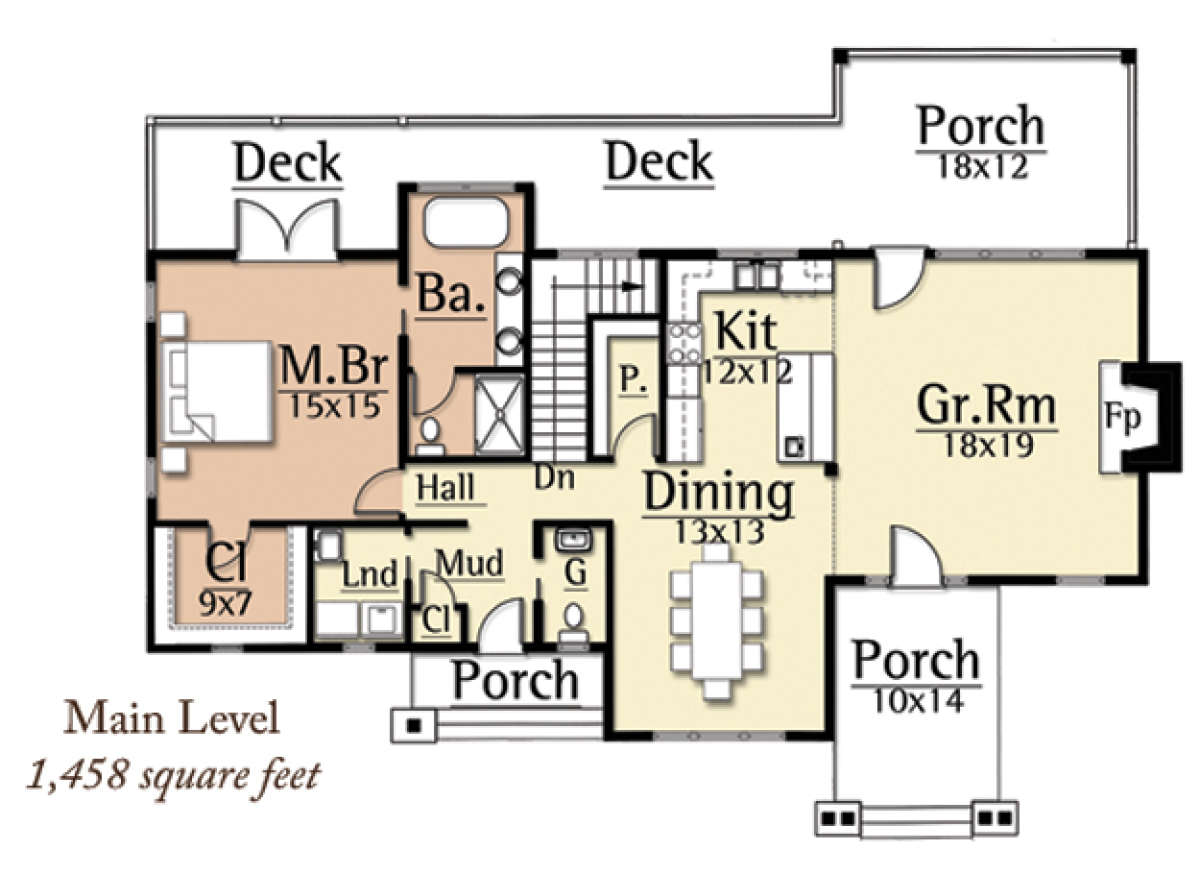

Floorplan 1
Floorplan 1 for House Plan #8504-00010

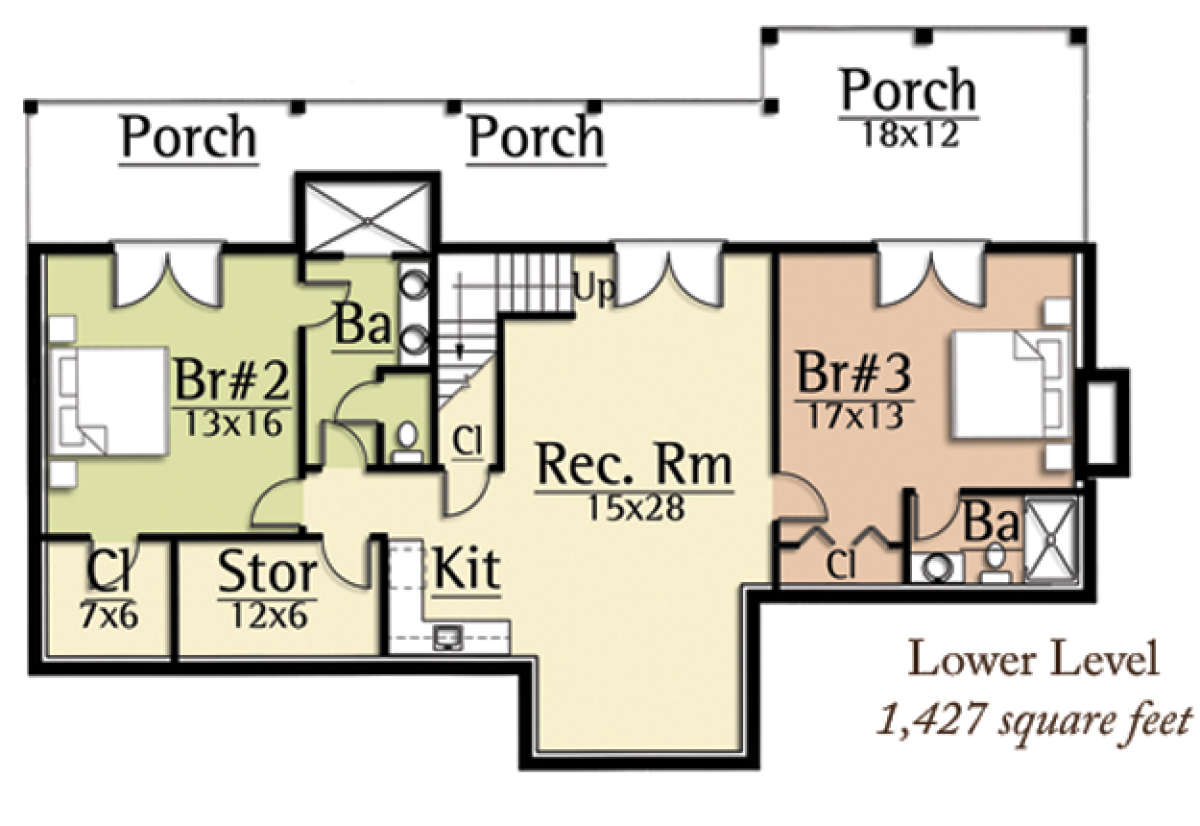

Lower
Lower for House Plan #8504-00010


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This lodge inspired Mountain house plan features a detailed exterior with abundant organic and natural design elements as well as extravagant outdoor space. Stonework, warm woods, overhead trimmed gables and covered porches and open decks outline the exterior of the home and provide plenty of space for family fun, entertaining possibilities and quiet spots to enjoy the great outdoors. The interior floor plan offers approximately 2,885 square feet of living space with three bedrooms, two plus baths and a finished basement foundation. The main floor of living is accessed from the front covered porch where the open floor plan is revealed. There is a great room with amazing space, a warming fireplace and a rear wall of windows alongwide an exit/entry point onto the rear covered porch. Adjacent to the rear porch is an elongated deck with private French door access into the main level master suite. Open to the great room is the grand kitchen and dining room; the dining room is quite spacious and features a three panel window wall. The kitchen showcases a center island with additional seating options, a huge food storage pantry on the back wall and plenty of counter and cabinet space. Travelling the hallway to the master suite is a powder room for guests, the laundry room, a closet and a mudroom with a small exterior porch making this space perfect for maintaining a tidy home environment. The main level master suite is highlighted with a large master bedroom with private deck access, a large walk-in master closet and a master bath. The en suite bath features dual vanities, a large soaking tub, a separate shower and a private toilet area.

The terrace level is highlighted with a large centrally located recreation room and kitchenette; perfect for family movie night, a teen-age lounge or a second entertaining space. French doors off the recreation room lead to the outdoor space which extends across the width of the home providing plenty of covered room to relax and entertain. The second bedroom is a suite of rooms containing a large bedroom, private access onto the elongated porch, a walk-in closet and private access to the bathroom which features dual vanities, a shower and a compartmentalized toilet. Located directly across the hall entrance to the bathroom is a huge storage closet. On the opposite side of the recreation room is the third bedroom suite which features an oversized bedroom, also with private access onto the covered porch, plentiful closet space and a privately enclosed full bath. This rustic Mountain house design features an attractive exterior with loads of outdoor space and an interior layout that is versatile and family friendly.
