Lake Front Plan 8504-00012

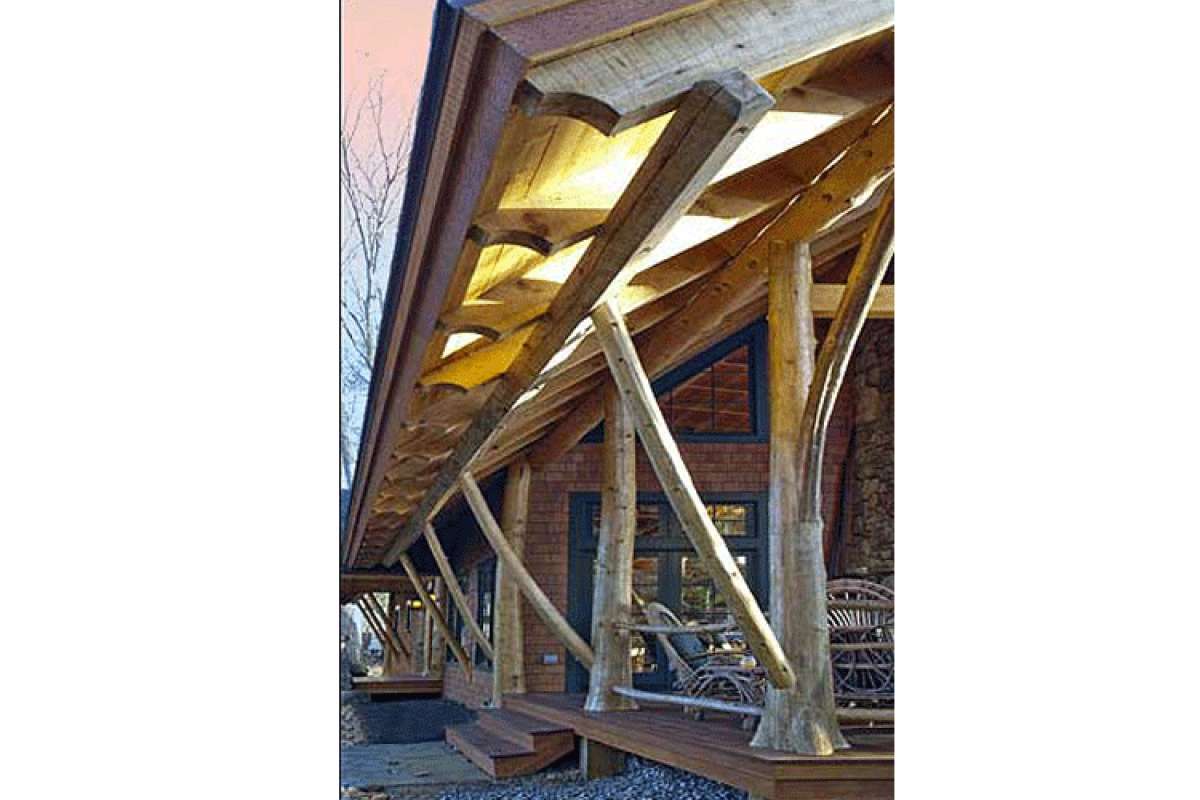

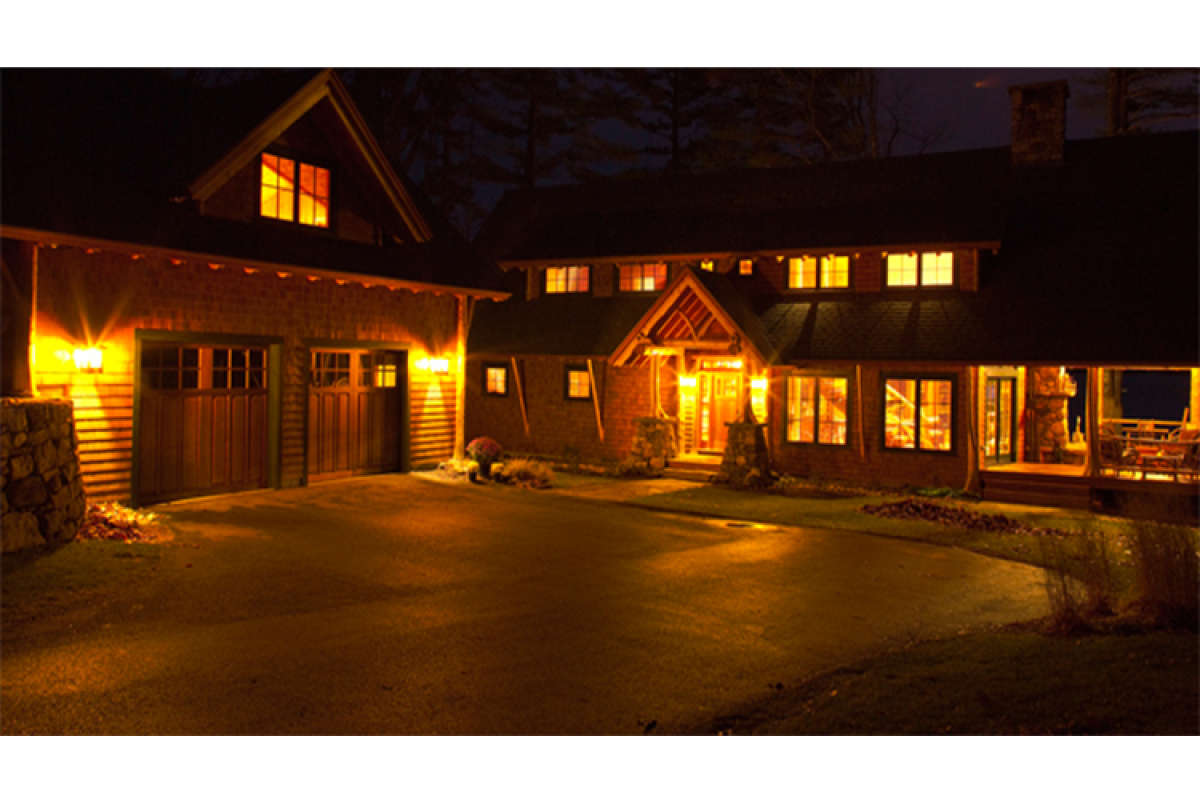

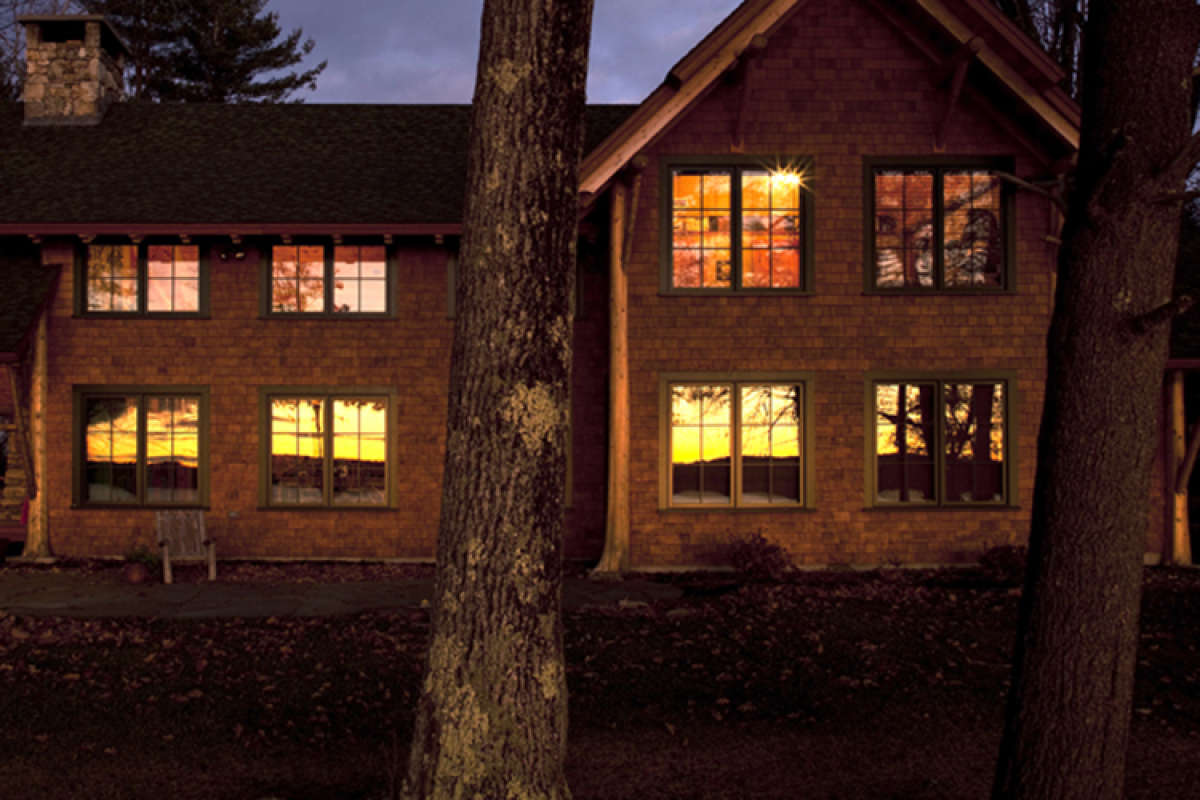

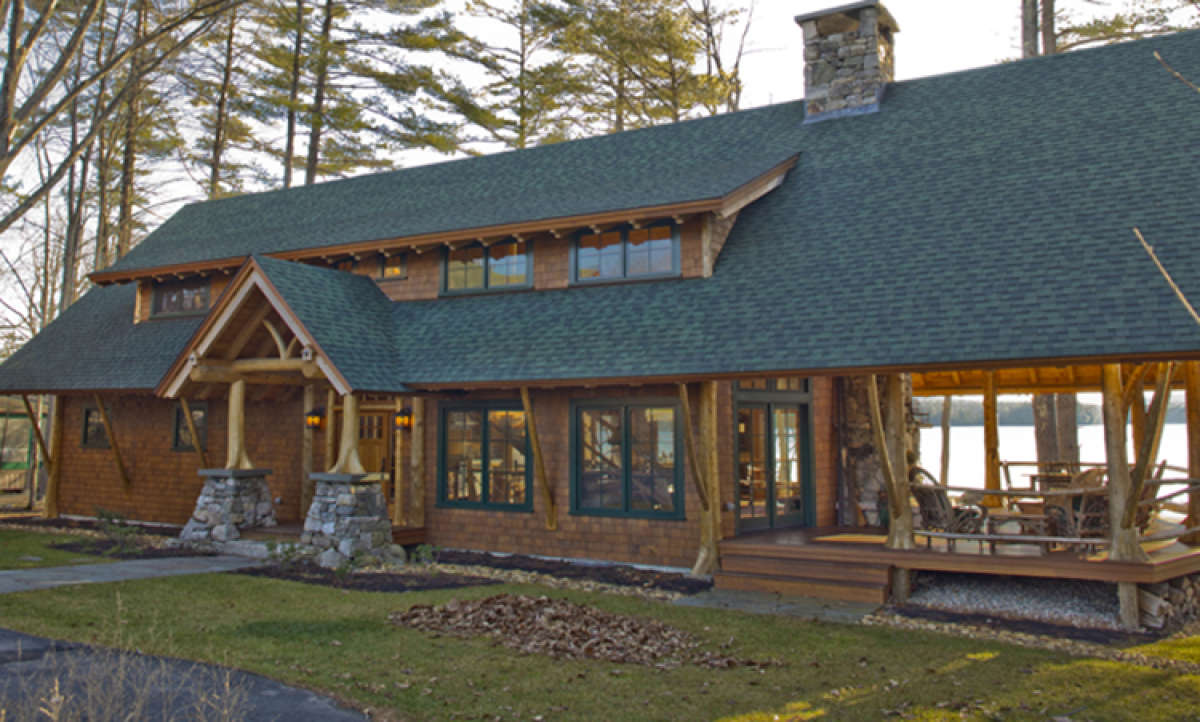

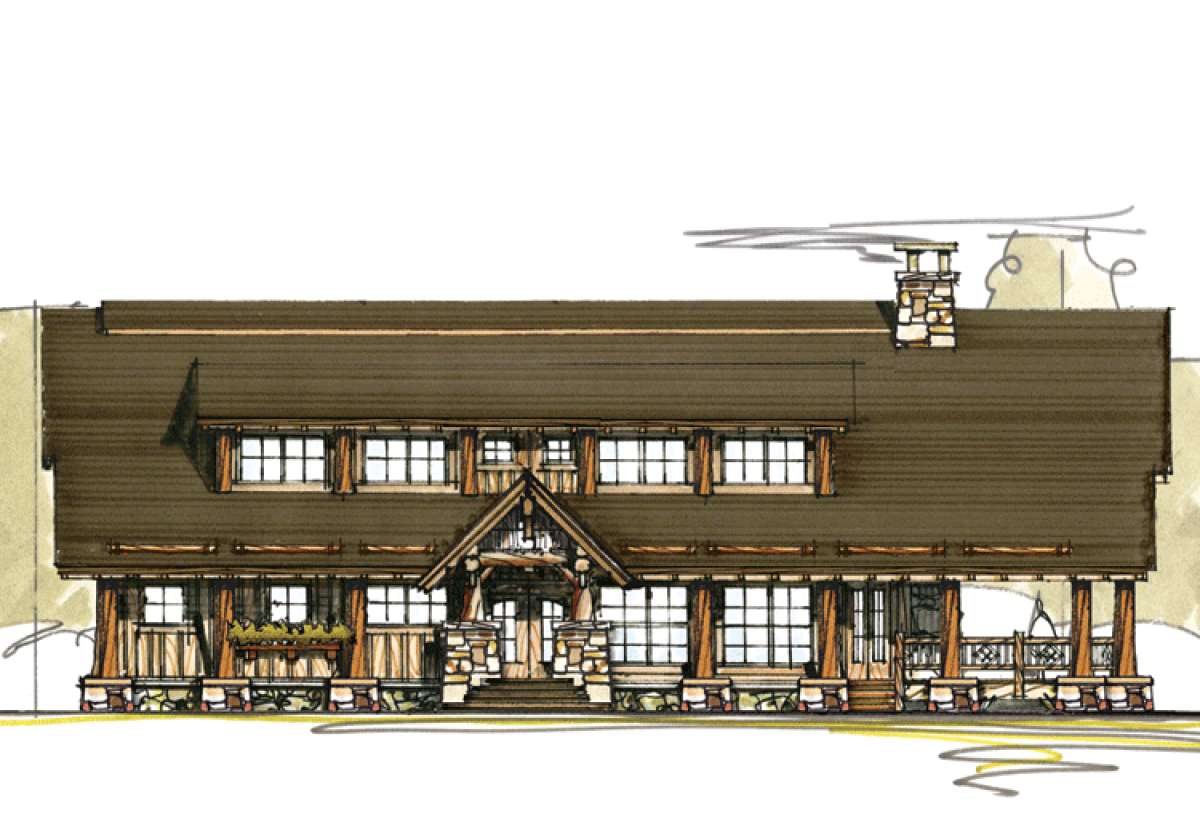

Lake Front House Plan #8504-00012 Elevation Photo
Lake Front House Plan #8504-00012 Elevation Photo
Lake Front House Plan #8504-00012 Elevation Photo
Lake Front House Plan #8504-00012 Elevation Photo
Main Floor: 1BR, 2BA, Gr.Rm/Dining, Kitchen, Ldry, 2 Closets. Carport, Deck, 2 Porches, Stairs. Unheated: Carport/Deck/Porch. House Plan # 8504-00012 Main Floor Floor Plan Drawing by America's Best House Plans, Inc.
Basement: 2 BR, 1 BA, Den, Office, Stor/Mech room, stairs, Patio. Unheated: Patio, Stor/Mech area. House Plan # 8504-00012 Basement Floor Plan Drawing by America's Best House Plans, Inc.
6 Images

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Square Footage Icon Sq Ft 2,801
Beds Icon Beds 3
Baths Icon Baths 2
Half Baths Icon 1/2 Baths 1
Cars Icon Cars 2
Stories Icon Stories 2
Width Icon Width 57' 6"
Depth Icon Depth 33' 6"

Floorplan Drawings

 PRINT  DOWNLOAD
Main Floor: 1BR, 2BA, Gr.Rm/Dining, Kitchen, Ldry, 2 Closets. Carport, Deck, 2 Porches, Stairs. Unheated: Carport/Deck/Porch. House Plan # 8504-00012 Main Floor Floor Plan Drawing by America's Best House Plans, Inc.
Basement: 2 BR, 1 BA, Den, Office, Stor/Mech room, stairs, Patio. Unheated: Patio, Stor/Mech area. House Plan # 8504-00012 Basement Floor Plan Drawing by America's Best House Plans, Inc.
Main Floor
Main Floor: 1BR, 2BA, Gr.Rm/Dining, Kitchen, Ldry, 2 Closets. Carport, Deck, 2 Porches, Stairs. Unheated: Carport/Deck/Porch. House Plan # 8504-00012 Main Floor Floor Plan Drawing by America's Best House Plans, Inc.
Basement
Basement: 2 BR, 1 BA, Den, Office, Stor/Mech room, stairs, Patio. Unheated: Patio, Stor/Mech area. House Plan # 8504-00012 Basement Floor Plan Drawing by America's Best House Plans, Inc.
Images copyrighted by the designer.


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

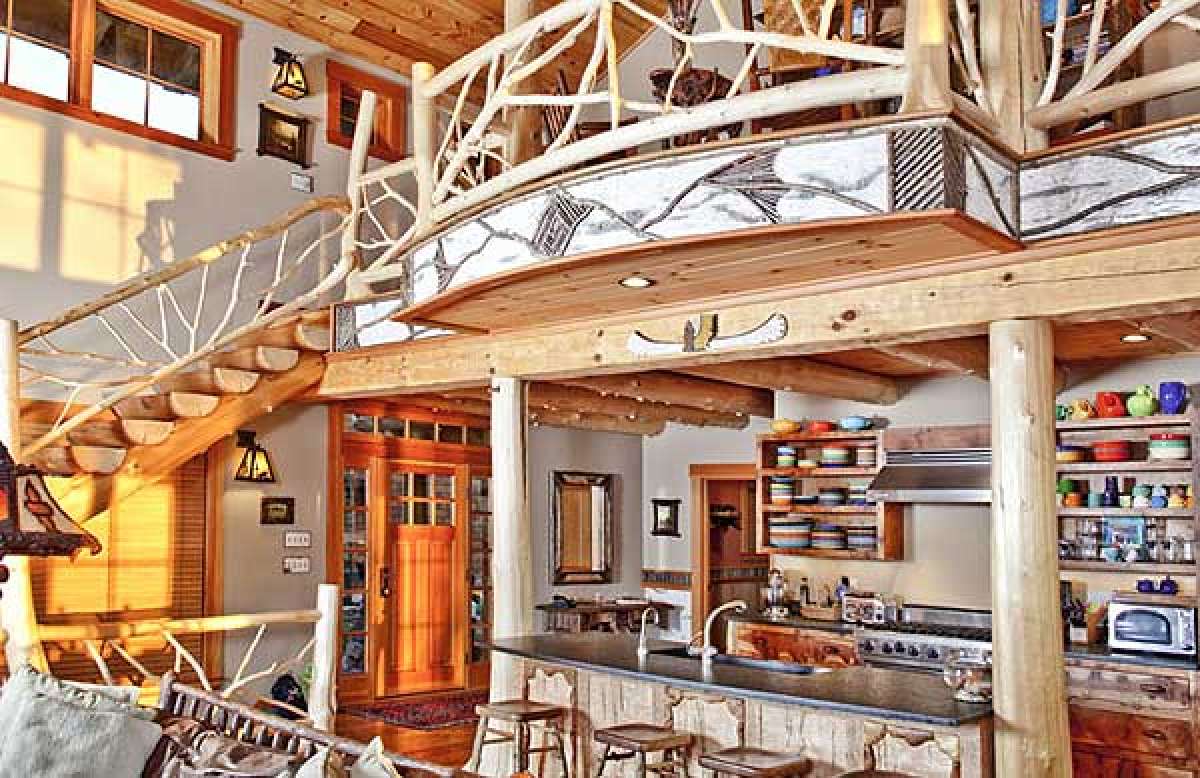

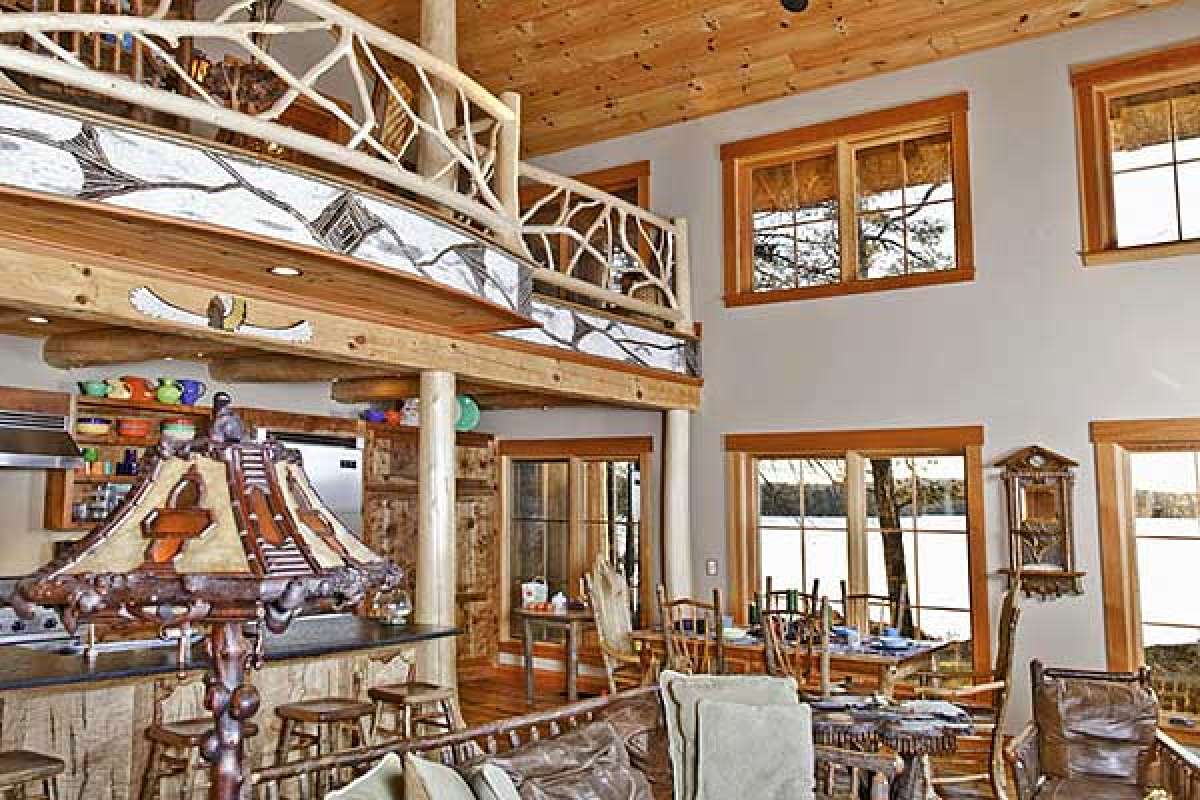

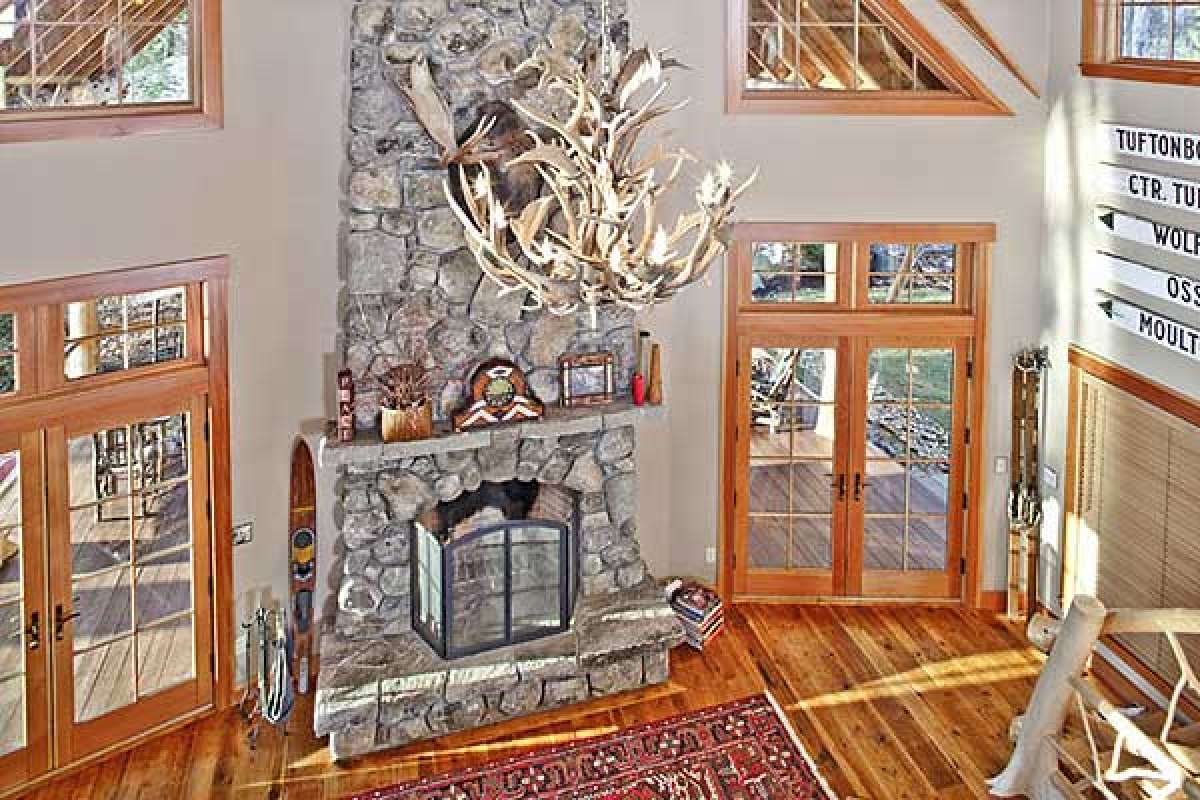

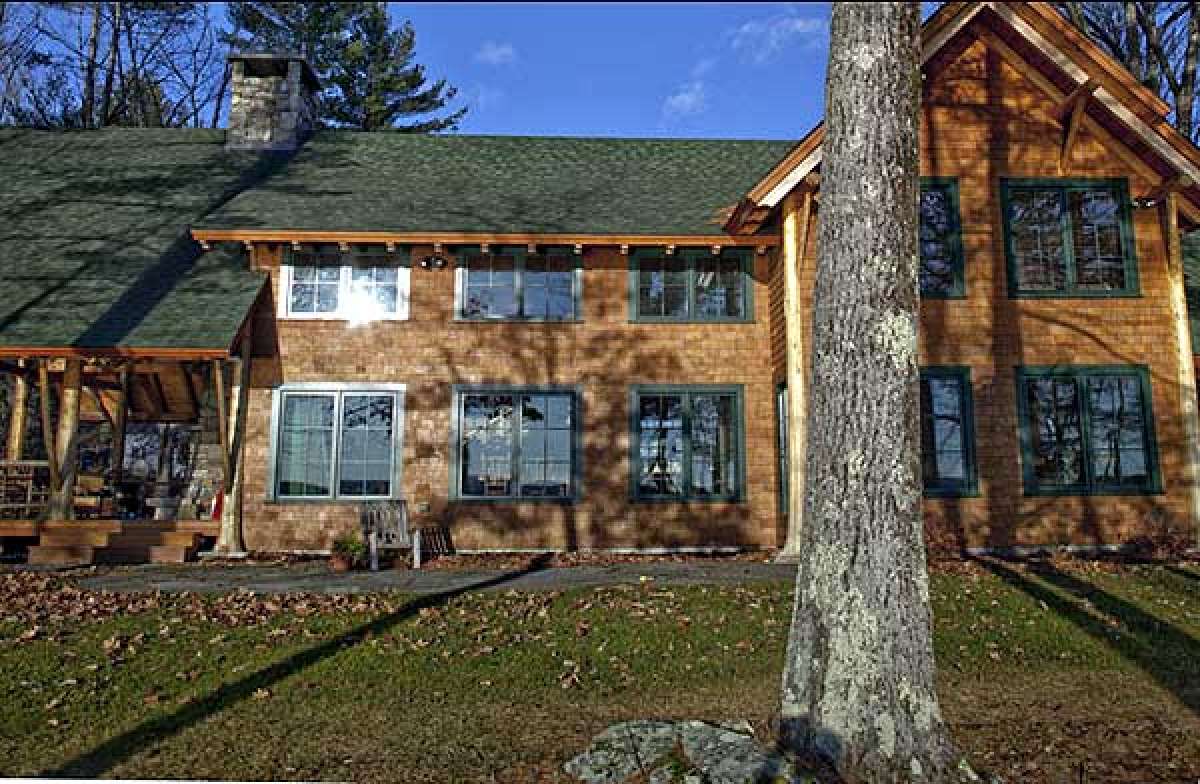

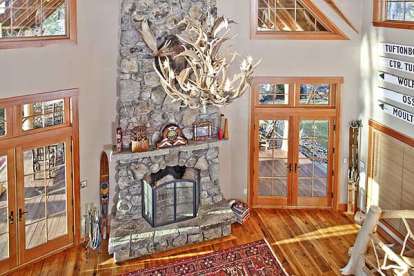

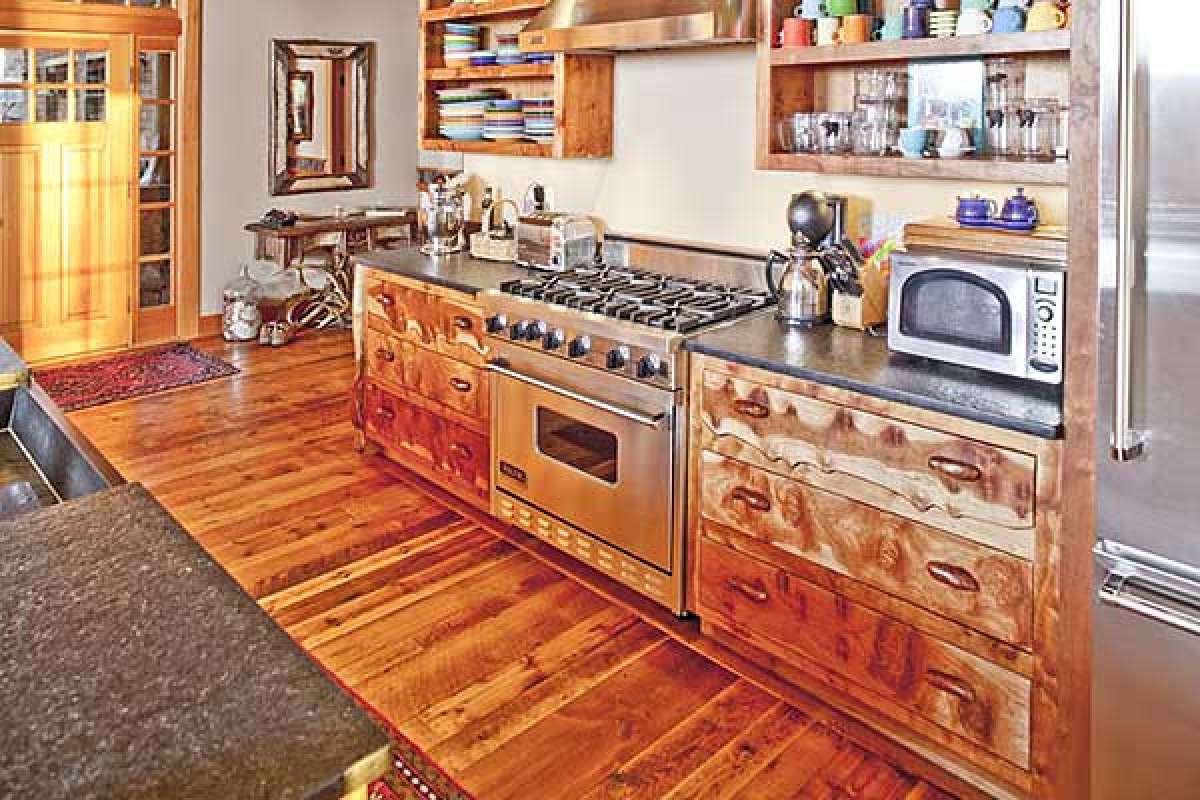

This rustic house plan containing approximately 2,720 square feet of living space creates a symbiotic relationship between form and function. The exterior façade of the home features compelling architectural design features such as a wide range of window dormers, stacked stone and wooden beam supports and a sprawling main level culminating in outstanding outdoor space. The lodge inspired exterior continues onto the interior floor plan where rustic elements are further enhanced in the three bedroom, two plus bath double level home. The home’s drawings include a detached two car garage which includes plenty of vehicle and other storage gear space. The spacious foyer and wide open main living areas draws the eye inward and reveals amazing interior space. An enormous center breakfast island anchors the space and there is plenty of additional rear wall counter and cabinet space. The adjoining breakfast room and dining room are both sun drenched with an entire wall of windows attached. The great room features a warming fireplace and double points of access onto the outdoor space. The outdoor living room receives warmth from the adjoining fireplace for those chilly nights and mornings and the space, measuring 18’x27’ is attractively designed. There is a powder room for guests along with a coat closet and beyond the kitchen wall is a private office/study. The adjacent master suite is quite large; there are multiple windows along the rear wall and private outdoor access is highlighted in the master bedroom. The master bath features dual vanities, a private toilet area, a separate shower and large soaking tub. The master walk-in closet is situated at the rear of the space and houses the laundry facilities as well. The second floor landing features a large loft area and balcony overlook onto the main living areas. There are two additional bedrooms; both are oversized with generous closet space and there is a jack and jill bathroom containing double sinks. At the rear of the space is an enormous storage area measuring 9’x26’; ideal for maximum organization and storing off-season clothing or seasonal decorations. This home is highlighted with amazing interior floor space and an exterior façade chocked full of exciting and bold design features.
