Ranch House Plan 5633-00163

Sq Ft2,539
Beds4
Baths3
1/2 Baths1
Stories1
Cars3
Width75' 8"
Depth52' 10"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

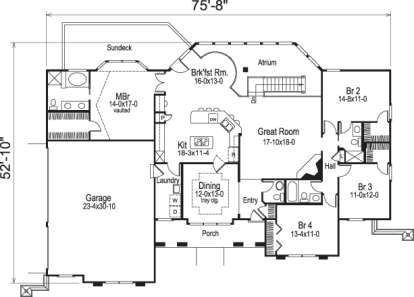

Floorplan 1 for House Plan #5633-00163

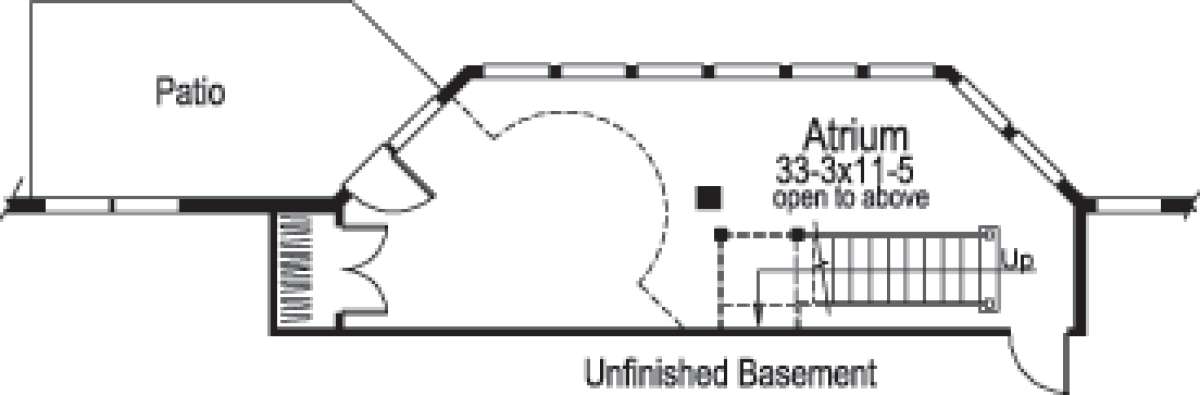

Floorplan 2 for House Plan #5633-00163
Floorplan 1
Floorplan 1 for House Plan #5633-00163
Floorplan 2
Floorplan 2 for House Plan #5633-00163


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

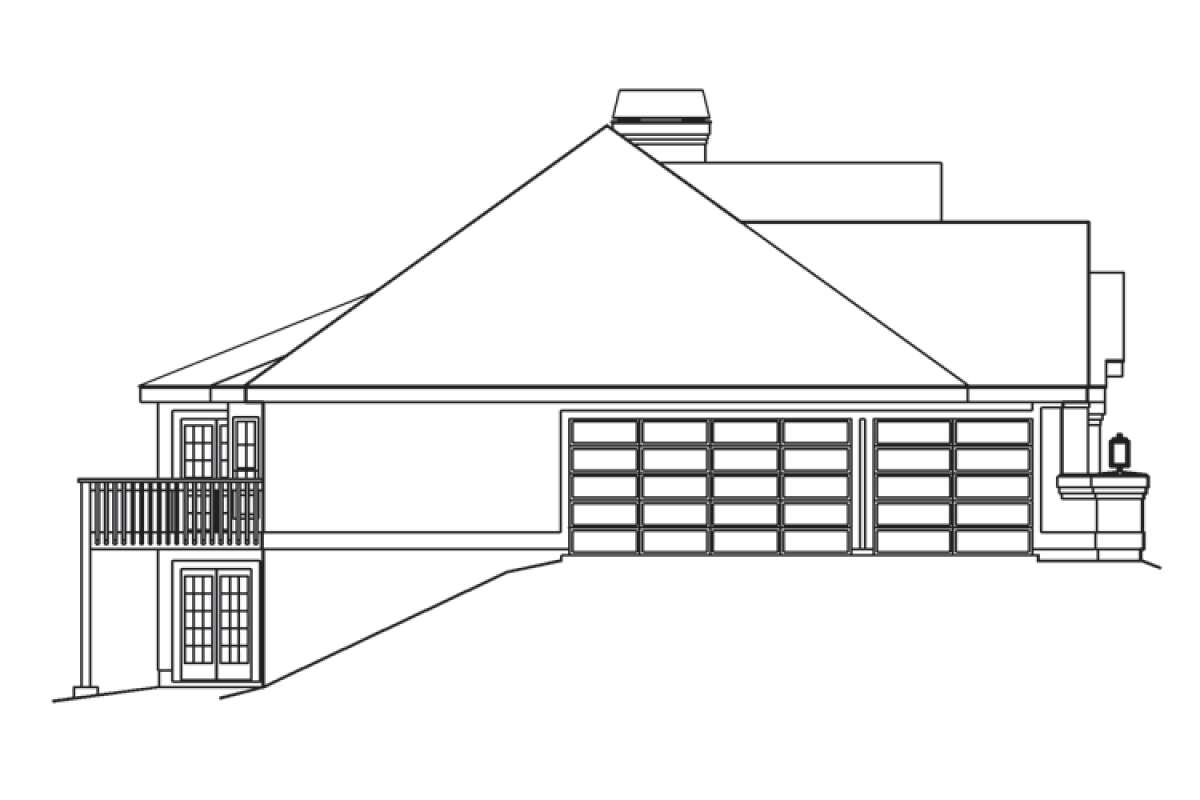

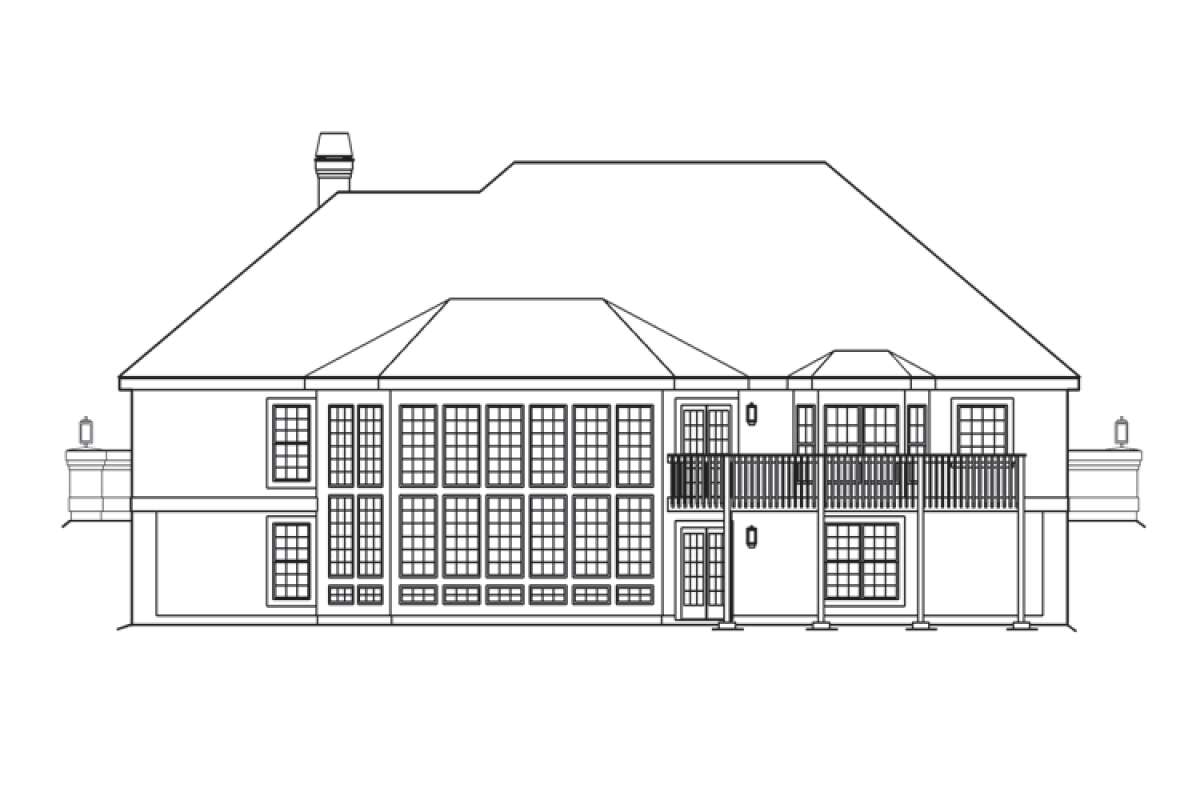

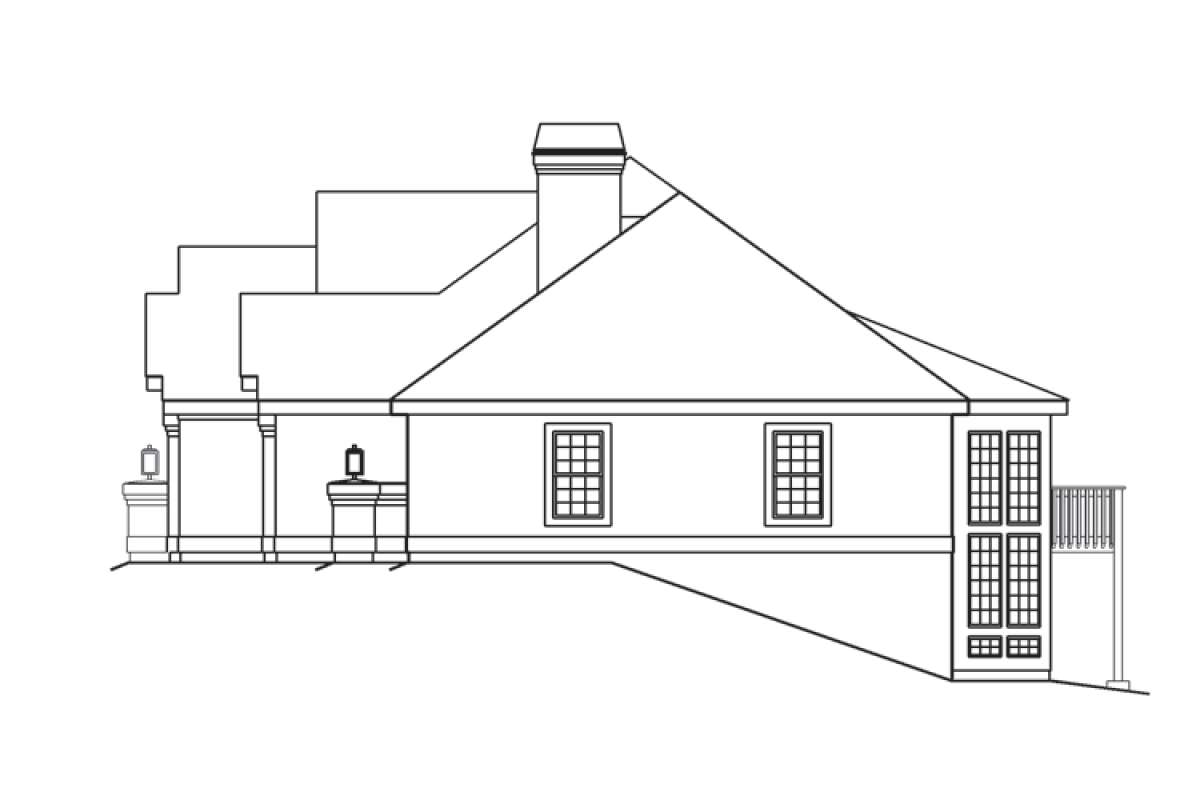

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This spectacular atrium home’s main living spaces are sun drenched with plenty of natural light from the two story window wall of the atrium bay. In combination with the bold exterior consisting of multiple gables, a beautiful window dormer and double door entrance, this home hits a “home run.” A stunning trey ceiling and three patio doors to the front porch designed to be fixed or operable are features of the elegant dining room. A pass-thru from the dining space into the gourmet kitchen allows for optimal entertaining. The kitchen features a separate pantry, cook top center island and a separate breakfast bar before opening onto the breakfast room with balcony atrium overlook. Additionally, the breakfast room provides rear sundeck access where entertaining and relaxing is effortless and enjoyable. The home possesses approximately 2,539 square feet of living space comprised of the main living spaces and four bedrooms with three plus bathrooms. There is a three car side entry garage which includes an abundance of space in which to store vehicles and other gear. The adjacent laundry room is spacious and includes a sink area for a tidy garage entrance into the home.
A private split bedroom plan highlights the master suite at the rear of the home where a large vaulted bedroom is situated along with an attached oversized walk-in closet. There is double door entry into the retreat and an enormous bayed window sits at the rear of room overlooking the sundeck and providing plenty of natural light. The master bath features dual vanities, a garden tub with deck overlook and a separate shower. Three additional bedrooms are located on the opposite side of the home along two plus bathrooms. The powder room is for guests and the generously sized fourth bedroom features plentiful closet space and an adjoining full bath. Bedrooms two and three both feature walk-in closets and the second bedroom have private entrance into the shared hall bath. A walk-out basement foundation provides 125 square feet of space, storage space and patio exit. This home’s outstanding value is evident in the striking exterior and equally stunning interior floor plan.
