Ranch Plan 110-00392


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,556
Beds 4
Bath 3
1/2 Baths 0
Car 3
Stories 1
Width 74' 7"
Depth 70' 6"

Floorplan Drawings

Floorplan 1

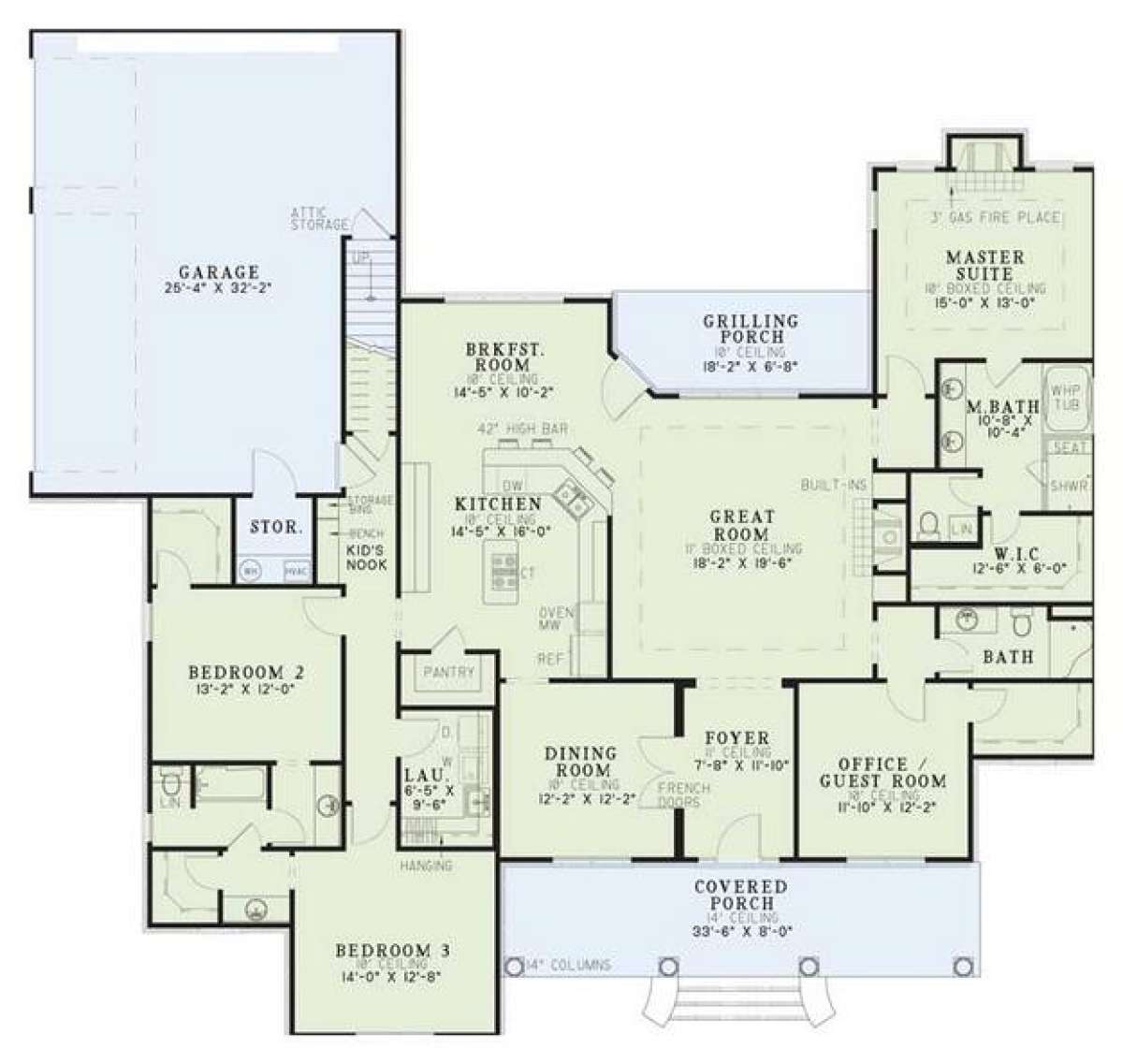

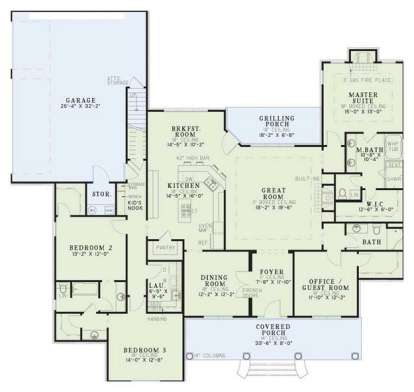

Floorplan 1 for House Plan #110-00392

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

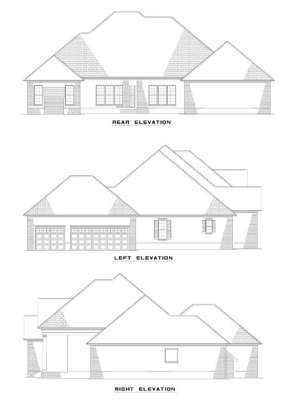

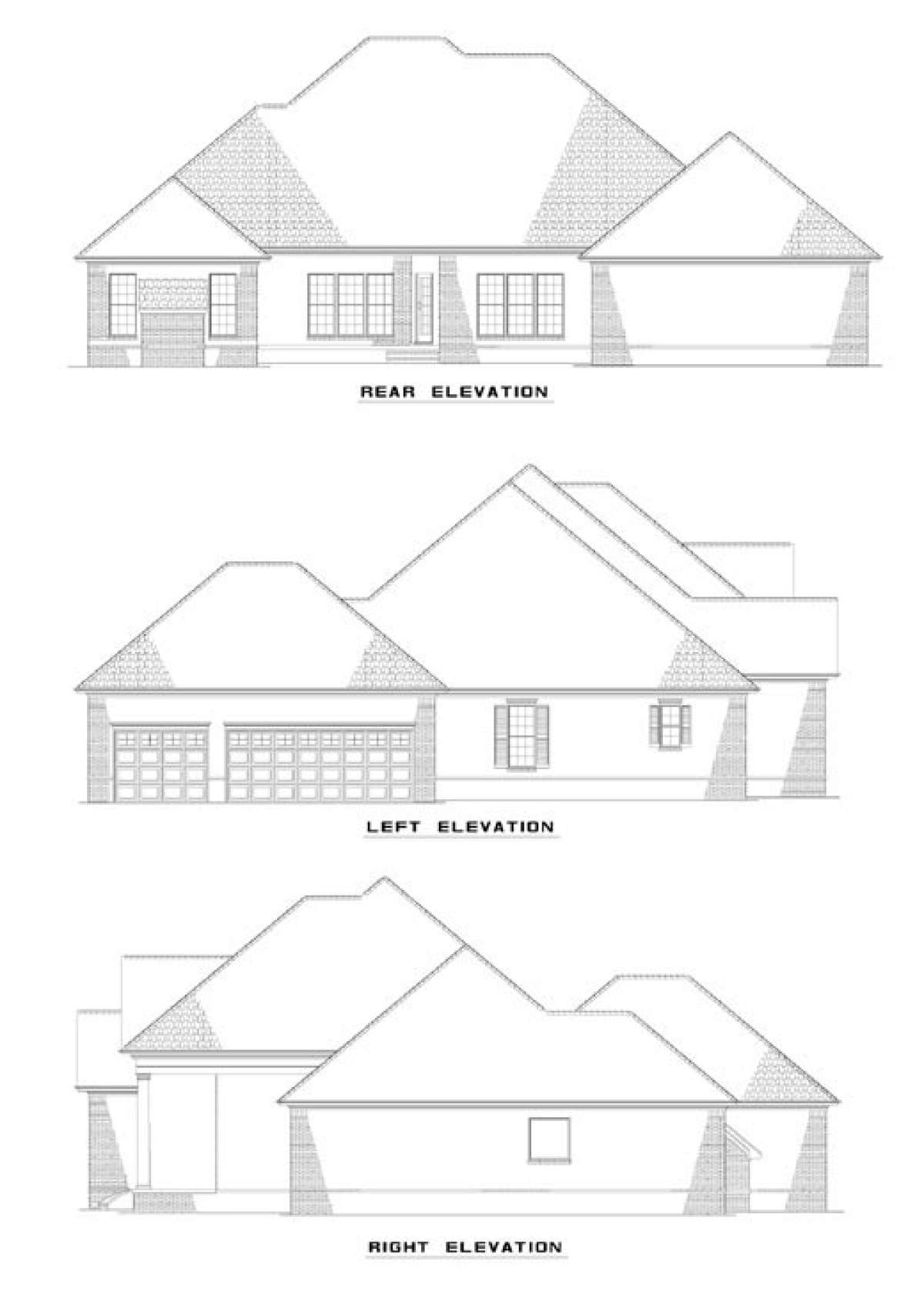

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This large and bold one story house plan features an attractive exterior, a split bedroom plan and an open well-designed floor plan. The exterior features hip roofing, a low maintenance brick façade and an expansive front covered porch measuring in excess of 33’ x 8’. The front porch is highlighted with a step-up staircase, substantial columns and great space for greeting family and friends. The home’s interior is highlighted with approximately 2,556 square feet of living space that offers four bedrooms, three bathrooms and a generously sized open layout perfect for entertaining and family relaxing. The foyer features French door access into the formal dining room which is spacious, has 10’ ceiling heights and double window views overlooking the front covered porch. The gourmet kitchen is situated between the formal dining room and casual breakfast room and is highlighted with a center island as well as a large angled breakfast bar for additional casual seating options. Along with plenty of additional counter space and cabinet space, an enormous walk-in food storage pantry is featured in the well-appointed kitchen. The breakfast nook is quite spacious, features a rear triple window wall and access onto the rear grilling porch. This outdoor space is perfect for cook-outs, summer fun with family and friends or just relaxing with a cool drink and a book. An 11’ boxed ceiling great room is centrally located and features rear window views onto the grilling porch, a warming fireplace and built-in cabinetry.

The split bedroom plan features a private master suite and study/guest suite on one wing of the home and two additional bedrooms situated on the opposite side of the home. Both bedrooms three and four offer generous floor space, window views and walk-in closets along with a jack and jill bath with separate vanities. There is a large laundry room with a sink area and counter space as well as a kid’s nook/drop off zone off the long hallway from the garage. The garage features side entry access, space for three automobiles, a separate storage room and a staircase up to attic storage. The master suite is highlighted with a boxed trey ceiling, a cozy fireplace, wonderful window views and plenty of space. The master bathroom features a lovely assortment of modern amenities; dual vanities, a whirlpool tub, separate shower with seating and an enclosed water closet and linen closet. There is a large walk-in master closet situated beyond the bathroom for privacy. The office/guest room features front porch window views, a walk-in closet and access to the nearby full bath. This home is highlighted with a lovely exterior, excellent outdoor space, a low-maintenance exterior and a large family friendly interior.
